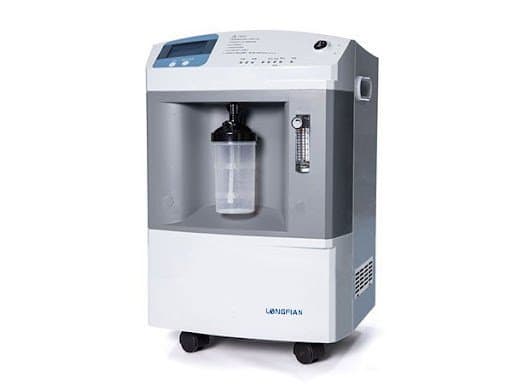

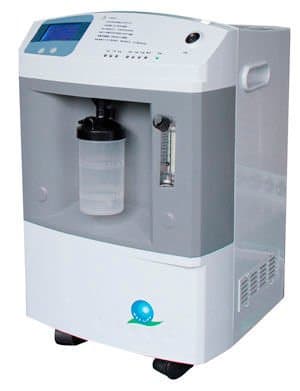

YSOCS-10 10L Oxygen Generator
10L

YSOCS-10 10L Oxygen Generator

YSOCS-5D 5L Oxygen Generator
5L Home Portable Oxygen Concentrator Machine
1-5LPM continuous flow
Oxygen Concentrations : 93% to 95%
Power 320W
Sound Level ≤ 48 dB (nominal)
Size 305(L) X 300 (W) X 535 (H) mm
Weight 16 kg
Function Timer/Running time counter/nebulization
(optional) Alarms Power failure;High/Low pressure;air blockage/Low oxygen purity(Optional)
Altitude up to 12,000 ft (3657 meters)
support use in plateau, mountains and high altitudes

YSOCS-5D 5L Oxygen Generator

YSRFS-100A Plasma surgical system
Suitable for ENT, Spine and Arthroscopic
procedures

YSRFS-100A Plasma surgical system

YSESU-350Y Surgical Generator
Multi-function ESU with max 7 working
modes;
Dual power output methods by hand switch
or foot switch;
Minimal sticking &amp; carbonization, reduce
the surgery damage,
Auto detection ofimpedance to protect the
patient (REM function).

YSESU-350Y Surgical Generator

TenTabs Zoncare E10 3 Channel Digital ECG Machine With Touchscreen Design
<ol>
<li>Zoncare E10 3-Channel ECG is designed with streamlined functionality to enhance bedside care, supporting caregivers with optimized workflows. It ensures efficient clinical processes and dependable performance for both caregivers and patients.</li>
<li>Support auto-diagnosis and auto-measurement, E10 has imported 280 professional case templates which can help caregivers quickly import diagnostic results.</li>
<li>Preview ECG waveform on the 5-inch touchscreen to check signal quality before printing which help to save printing paper and confirm waveform quality in time.Light-weight body makes it easy to take anywhere. It has a 5-inch high-resolution touch Screen design. Built-in high-resolution thermal printer direct printing, roll paper design. Internal storage up to 5000 and can be exported by USB flash disk.</li>
<li>One-button operation: power button, patient information button, and sampling button.</li>
<li>Auto/Manual/Rhythm work modes Interface prompts tachycardia and bradycardia Lead-off detection and alarm</li>
<li>Easy-to-use 1-2-3 touchscreen operation is fast and intuitive. Built-in rechargeable Li-ion battery, continuous Operating ≥5h ; AC/DC power supply</li>
<li>Report formats: PDF PNG JPG XML and ZQECG data export Workstation supports real-time sampling and analysis . It also can be upload and download reports</li>
</ol>

TenTabs Zoncare E10 3 Channel Digital ECG Machine With Touchscreen Design

Multi-parameter Patient Monitor YSPM80C
ECG / RESP / SpO2 / PR/ NIBP / TEM
Professional Medical Equipment Supplier, Hospital Equipment For Sale, Hospital Equipment Supplier &#8211; YSENMED
Search Our Catalog
Français
Español
USD
EUR
GBP
CAD
AUD
CHF
HKD
JPY
RUB
BRL
CLP
NOK
DKK
SEK
KRW
ILS
MXN
CNY
SAR
SGD
NZD
ARS
INR
COP
AED
Home
Products
Solutions
News
Download
Reviews &amp; References
About Us
Contact Us
English
&nbsp;
Patient Monitors
Home &gt; Operating Room Equipment &gt; Patient Monitors&gt; Multi-parameter Patient Monitor YSPM80C
&nbsp;
PrevNext
Multi-parameter Patient Monitor YSPM80C
Model: YSPM80C
Multi-parameter patient monitor, 12.1 inch color TFT LCD display
Model
YSPM80C
Brand
YSENMED
Price
Get Price
MOQ
1
Ship From
From Guangzhou, China
Shipping
Any shipping terms convenient for customers
&nbsp;
1
&nbsp;
Get Price
Categories：Patient Monitors
Share：
Description Get Price Review
&nbsp;
&nbsp;
Description
&nbsp;
NIBP
&nbsp;
Method: Oscillometry
&nbsp;
Measure mode: Manual, Auto, STAT
&nbsp;
Measure interval in auto mode:
&nbsp;
1~5/10/15/30/60/90/120/180/240/480min
&nbsp;
Measure period in STAT mode: 5min
&nbsp;
Pulse rate range: 40 ~ 240bpm
&nbsp;
Measure &amp; alarm range: Adult
&nbsp;
SYS 40 ~ 280mmHg
&nbsp;
DIA 10 ~ 220mmHg
&nbsp;
MEAN 20 ~ 240mmHg
&nbsp;
Pediatric
&nbsp;
SYS 40 ~ 220mmHg
&nbsp;
DIA 10 ~ 160mmHg
&nbsp;
MEAN 20 ~ 170mmHg
&nbsp;
Neonatal
&nbsp;
SYS 40 ~ 135mmHg
&nbsp;
DIA 10 ~ 100mmHg
&nbsp;
MEAN 20 ~ 110mmHg
&nbsp;
Static pressure measurement
&nbsp;
Range: 0 ~ 300mmHg
&nbsp;
Accuracy: ± 3mmHg
&nbsp;
Resolution: 1mmHg Accuracy:
&nbsp;
Max. Mean Error: ± 5mmHg
&nbsp;
Max. Standard Deviation: 8mmHg
&nbsp;
Overpressure protection:
&nbsp;
Adult 300mmHg
&nbsp;
Pediatric 240mmHg
&nbsp;
Neonatal 150mmHg
&nbsp;
SPO2
&nbsp;
Measurement range: 0 ~ 100%
&nbsp;
Resolution: 1%
&nbsp;
Accuracy: 70% ~ 100% ± 2%
&nbsp;
40% ~ 69% ± 3%
&nbsp;
Environment
&nbsp;
Operating environment :
&nbsp;
Temperature: 0 ~ 40 ℃
&nbsp;
Humidity: 15% ~ 80%
&nbsp;
Pressure: 86.0 kPa ~ 106.0kPa
&nbsp;
Transport and Storage environment :
&nbsp;
Temperature: -20 ~ 55 ℃
&nbsp;
Humidity: 10% ~ 90%
&nbsp;
Pressure: 86.0 kPa ~ 106.0kPa

Multi-parameter Patient Monitor YSPM80C
