TV-X8198A，98'' Interactive flat panel, built-in 4K camera and line array microphone 2.1-channel professional audio Processor I3-1115G4<Standard 3.0G, Turbo-4.2G> System version Windows 10 IoT RAM 8GB Storage 128GB

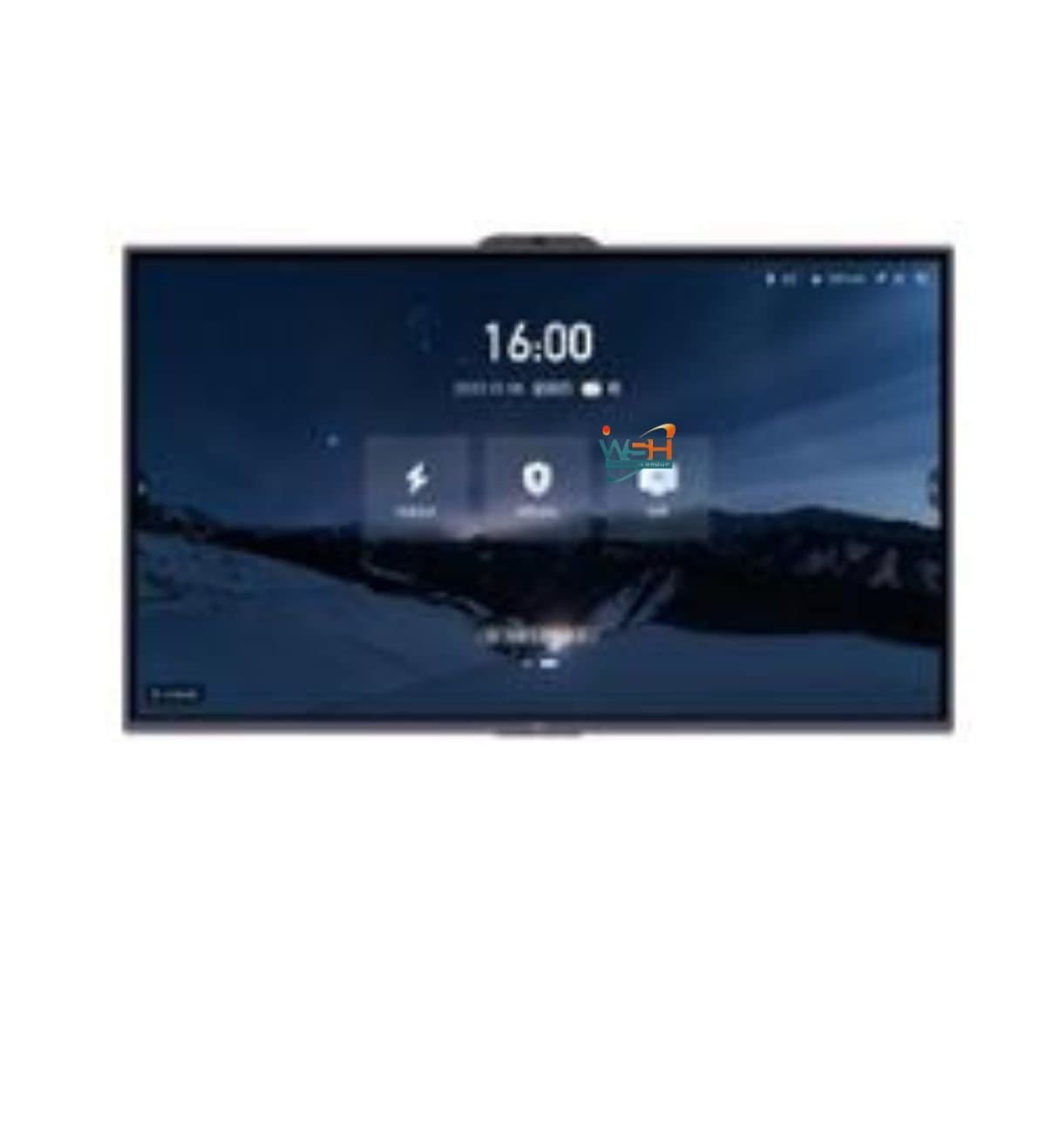

TV-X8198A，98” Interactive flat panel, built-in 4K camera and line array microphone 2.1-channel professional audio

Processor I3-1115G4<Standard 3.0G, Turbo-4.2G>

System version Windows 10 IoT

RAM 8GB

Storage 128GB

Description;

The iHUB Intelligent Conference Flat Panel focuses on small and medium-sized conference room scenarios, creating a small conference

center.The flat panel integrates functions such as high-definition display, digital whiteboard, 4K camera, array microphone, intelligent

central control and high-quality audio ; Equipped with Windows 10 IoT system, it meets the needs of conference presentation, writing,

interaction, collaboration, sharing, video, data security, environment monitoring and control and other needs, covering the entire process of

the meeting.

Feature

*98-inch DLED LCD screen with full HD 4K system icon display, simple business style design, the whole adopts all-aluminum alloy material

with aurora purple color, ultra-narrow bezel design with a screen ratio of up to 90%, ultra-thin screen, hidden port, simple and atmospheric

shape.

*Built-in non-independent computer module, all conference functions are run in the computer module, and the computer module uses

Windows 10 IoT genuine activated operating system.

*The national secret SM2 and SM3 encryption algorithms are used to encrypt data files and keep the encryption state during transmission to

ensure the security and reliability of data transmission and storage; comply with national safety standards and enhance the overall

information security protection capabilities.

*It has a 48MP high-definition camera, a field of view of 1185°, 8 array microphones, and a sound pickup distance of up to 12 meters; the

camera has multiple camera modes such as smart framing and speaker tracking.

*The camera and microphone are detachable modules, with 12 pogo pin magnetic interface design, no additional wiring is required, and

physical protection is used to prevent the leakage of meeting information.

*The camera module has a knob lens privacy cover, and users can turn off the lens when the camera is not in use to ensure privacy and

security.

*AI noise reduction can automatically eliminate 300 common noises, such as keyboard typing, chair moving, and air conditioning vibration.

*Ultimate audio experience: The product adopts a 2.1-channel design with 3 sound chambers: 1×32W (bass) + 2×20W (mid-high) gap sound

speakers; with 5 sound effect options (standard, conference, human voice, music, theater) to meet the needs of different scenarios.

*It has a Type-C full-function interface, which can realize screen projection, reverse control, and audio and video signal transmission

functions.

*It has an HDMI loop-out interface and a DP input interface, supporting 4K 60Hz.

*It has a smart button, built-in infrared sensor, temperature and humidity sensor, and light sensor, combined with IoT sensing technology, to

support real-time monitoring and display of temperature and humidity.

*It has 1 RS232, 2 IO, and 2 RELAY IoT central control interfaces, which are convenient for integration and management with other devices,

realize intelligent environmental control, and improve the user experience and comfort.

*It has a built-in storage battery and supports abnormal power-off protection function. After an abnormal power-off, the internal battery is

enabled to automatically save the meeting materials and meeting progress, and it can continue to be used after power-on.

*It has a high color gamut of 85% NTSC, and the image display is clear, colorful, and saturated, and the picture details are truly restored.

*It has a hardware-level blue light protection mechanism, with a blue light ratio of less than 25%, which can effectively filter and reduce the

radiation of high-energy short-wave blue light, so as to achieve long-term viewing without fatigue and ensure the health of users’ eyes.
