WSG 8985
WB-DL Wheel Balancer

WB-DL Wheel Balancer

Mechanical Hub

Wheel Balancer

WSG 8987
Truck &#038; Bus Wheel Balancer

Truck & Bus Wheel Balancer

WSG -8988
DSP Wheel Balancer

DSP Wheel Balancer

WSG 8989
Semi-Automatic Tyre Changer

Semi-Automatic Tyre Changer

WSG -8990
Tyremate Fully Automatic Tyre Changer

Tyremate Fully Automatic Tyre Changer

WSG 8991
Car Wheel Alignment Machine

Car Wheel Alignment Machine

Car Wash Lift

WSG 8991
Long Scissor Lift

Long Scissor Lift

High Rise Lift

WSG 8993
Product Details
Technical data
RAV1450P
Capacity kg
3200
3-phase motor kW
2.6

Mid Rise Lift RAV1450P

WSG 8994
Product Details
Lifting capacity 4000kg
Max lifting height 1900mm
Min height 180mm
Lifting time 55S
Motor 3.5kW/3ph,2.2kW/1ph
Air supply 6-8bar
Plateorm width 660mm
Weight 2400kg
• 4000kg lifting capacity.
• Above-ground installation.
• Low profle runway needs less space.
• Electrical levelling. • Infrared synchronization protection system
• The great planeness of runways is perfect for high accuracy wheel aligning.
• Long slip plate and adjustable turntable positions accommodate different sizes of wheelbases.
• Reserved tracks on platforms for optional rolling jacks.

Low profile scissor lift EE-6604BWF

WSG 8995
Product Details
Lifting capacity 3000/4000 kg
Max lifting height 1850mm
Min height 330mm
Lifting time 50S-60S
Motor 2.2kW/3.5kW
Air supply 6-8bar
Platform width 550mm
Weight 800kg
Description
3000kg lifting capacity.
Above-ground or recessed installation.
110mm initial height.
Infrared synchronization protection system.
Four cylinder design
Pneumatic safety locking system
Drive-on ramps lock into position as platform extensions.
Steady raising and lowering, no noise when lowered to ground.

Full Rise Scissor Lift

WSG 8996
Product Details
Light weight 3500/4000 Kg
Lift height 1000 mm
Min. height 110 mm
Lift time 30 s
Gas source requirement 6-8 bar
Motor power 2.2 kW
Weight 580 Kg
Description
• Mobile small scissor lift.
• Lifting height 1000mm, convenient and efficient.
• rated load 3500KG.
• Pneumatic unlocking device to minimize machine running noise.
• Safe operating voltage (24V) and guardrail design to prevent accidental injuries.
• After 120% dynamic loading test, 150% static loading test.

Midrise Scissor Lift

Type LS02

WSG 8998
Webbing Sling, Round Sling &#038; Lifting Belts Assembly

Webbing Sling, Round Sling & Lifting Belts Assembly

WSG 8999
Beam Anchor Trolley

Beam Anchor Trolley

Double Pulley

Beam Trolley

Single Pulley

WSG 9003
Vertical Anchorage Life Line

Vertical Anchorage Life Line

WSG 9004

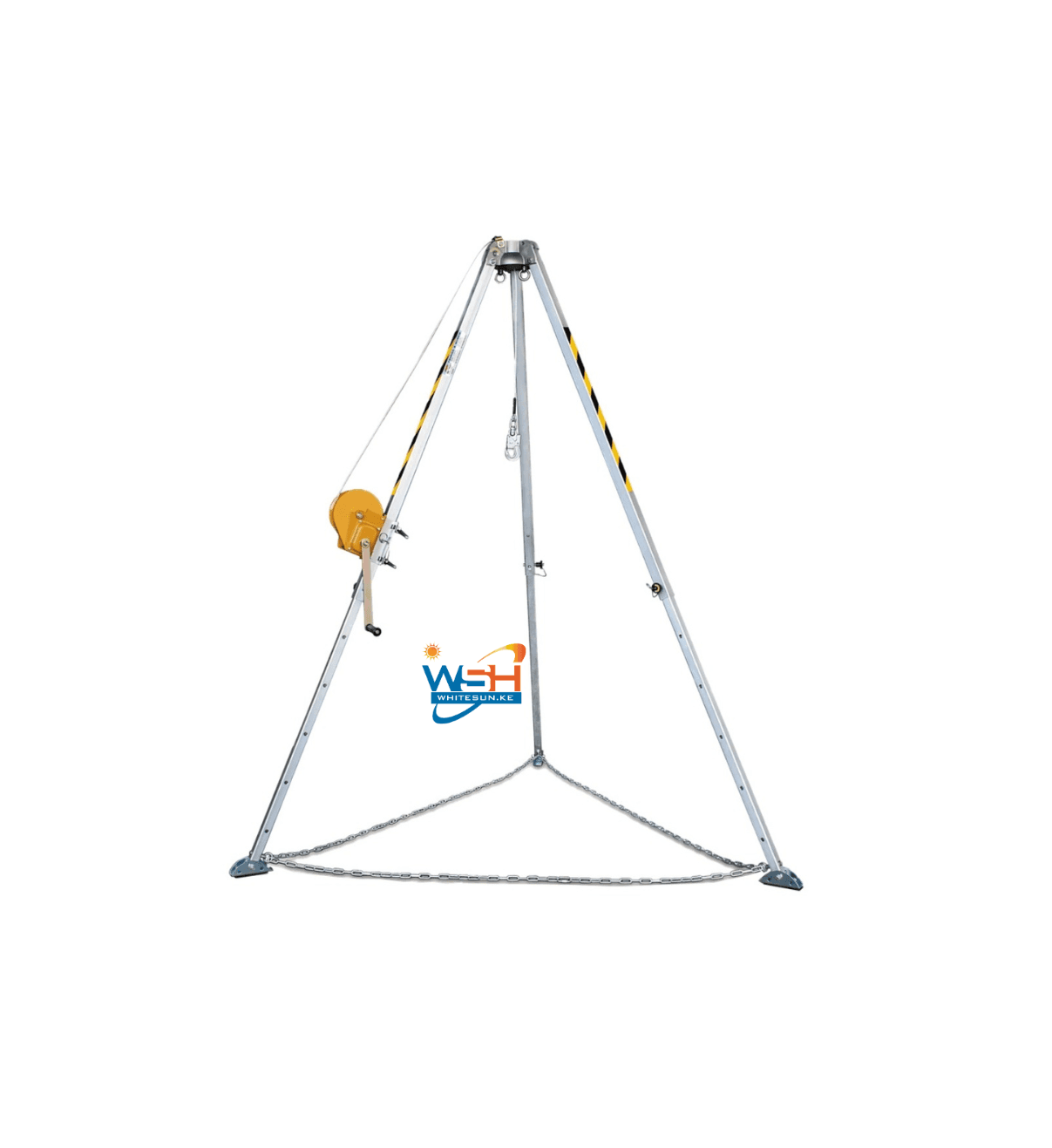

Product Details
Telescopic Legs
Additional cable puley to attach rectrable lifeline
Material: Aluminium
Wire dia: 5MM
Safe Load: 150Kg
Conforms to EN 795 &#038;EN 1496

Tripod Stand With Hand Winch

Fall Arrestors

WSG 9006
Description
Model Diameter×Length
HV-20. 16mm×20M
HV-30. 16mm×30M

Vertical Life Line With Rope Grab

Male Connectors

WSG 9008
Air Hose Pipe Black

Air Hose Pipe Black

WSG 9009
Description
Size	Code
4mm	15275
6mm	15626
8mm	15353/15351
10mm	12925/15352
12mm	15627
14mm	15638
16mm	15628

PU Pipes

WSG 9010
Product Details
The HSH-616 Lever Block is a high-quality lifting device designed for industrial applications. It features a strong and durable steel construction, with a compact and ergonomic handle for easy operation. This lever block has a capacity of up to 3 tons, making it ideal for heavy lifting tasks. The HSH-616 Lever Block lever hoist is ideal for lifting, pulling and positioning heavy loads in narrow spaces. Its compact and lightweight design makes it easy to transport and store. The hoist also features a hardened steel load chain and hooks that are designed to withstand harsh industrial environments.
Description
Model	 	HSH616-0.75	HSH616-1.5	HSH616-3	HSH616-6	HSH616-9
Capacity	tons	0.75	1.5	3	6	9
Standard Lift	m	1.5	1.5	1.5	1.5	1.5
Running test load	KN	11.2	22.5	45	75	112.5
Effort required to lift rated load	N	140	220	320	340	360
Strands of load chain
 	1	1	1	2	3
Diameter of load chain	mm	6	8	10	10	10
Dimensions
A	145	175	195	195	195
B	86	100	115	115	115
C	134	150	190	242	307
D	38	48	50	65	81
H	340	380	490	620	700
L	285	410	410	410	410
K	27	36	38	48	54
Net weight	kg	9.5	11.5	18.5	27.5	46
Packing measurement	cm	37.5X16X16	52X17X22	55X18.5X22.5	57X21X23	60X42X28
Extra weight per metre of extra lift	kg	0.8	1.4	2.2	4.4	6.6

HSH-616 Lever Block

WSG 9011
Product Details
Technical data
Accuracy
Measuring Range
Total Measuring Range
Front Axle
Total toe
+/-2&#8242;
+/-2○
+/-20○
Partial toe
+/-1&#8242;
+/-1○
+/-20○
Set-back
+/-2&#8242;
+/-2○
+/-5○
Camber
+/-2&#8242;
+/-3○
+/-10○
Caster
+/-5&#8242;
+/-10○
+/-18○
King-pin
+/-5&#8242;
+/-10○
+/-18○
Rear Axle
Total toe
+/-2&#8242;
+/-2○
+/-20○
Partial toe
+/-1&#8242;
+/-1○
+/-20○
Set-back (S 178WS)
+/-2&#8242;
+/-2○
+/-5○
Camber
+/-2&#8242;
+/-3○
+/-10○
Thrust angle
+/-2&#8242;
+/-2○
+/-5○

WIRELESS WHEEL ALIGNER TD 1780WS

WSG 9012
Product Details
Technical data
KPH 370.42K
Capacity
4500 kg
Three-phase motor
230/400V – 50Hz – 2.6kW
Single-phase motor
230V – 50Hz – 1.5kW
Weight
750kg
Noise level
≤70 Db(A)

2 POST LIFT BASELESS KPH 370.42K

WSG 9013
Description
• Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when
lift is in standing position(for maximum accessibility in the working area)
• Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting
platforms regardless of weight distribution
•Self Lubricating &#8211; All pivot points made with self lubricating bushings for long life
•Controlled speed during initial lifting and final lowering phase
•Audible alarm during the final lowering phase
•No cross rails or torsion bars between lifting platforms

FULL RISE LIFT RAV540

WSG 9014
Product Details
Technical data
KTE200
Capacity
2000 kg
Stroke
1000 mm
max. lifting height
1800 mm
Max. lifting length
1622 mm
Max. width
800 mm
Min. height
800 mm
Surface coating
Powder coated
Corrosion preventing
Ultra-high solid primer (UHS)
Length
2181 mm
Width
802 mm
weight
460 kg
Rigid with Drawer Pull out shelf
Lifting height: 1850 mm
Capacity: 2 T
Tablestop bores : 2 rows with 7 bores Ø 12
Drive: Air hydraulic pump
Handle: Fixed, removable, foldable
Wheel : 4 x 360° (2 straight lockable)

UNIVERSAL LIFT TABLE 1TON KTE200

WSG 9015
Product Details
Technical data
KTO100
Capacity
1000 kg
Stroke
1300 mm
max. lifting height
1800 mm
Max. lifting length
1300-1400 mm
Max. width
768 mm
Min. height
500 mm
Surface coating
Powder coated
Corrosion preventing
Ultra-high solid primer (UHS)
Length
1889 mm
Width
1055 mm
weight
360 kg
Tablestop can be inclined 3.5° in the
x/y direction 60:40 split + 100 mm extendable
Lifting height: 1826 mm
Capacity: 1T
Tablestop bores : 104 bores M10
Drive: Hydraulically-operated foot pump
Handle: Fixed, foldable, removable
Wheel : 4 x 360° (2 straight lockable)

UNIVERSAL LIFT TABLE 1TON KTO100

WSG 9016
Product Details
Technical data
KT100XT
Capacity
1000 kg
Stroke
1330 mm
max. lifting height
1965 mm
Max. lifting length
1260 mm
Max. width
740 mm
Min. height
635 mm
Surface coating
Powder coated
Corrosion preventing
Ultra-high solid primer (UHS)
Length
1672 – 2072 mm
Width
740 mm
weight
310 kg
Tablestop can be inclined 20 perpendicular to
the direction of travel can be moved 20mm
longitudinally and transversely
Lifting height: 1965mm
Capacity: 1T
Tablestop bores : 2rows each with 7bores Ø12
Drive: hydraulically-operated foot pump
Handle: extendable
Wheel : 4&#215;3600 (2 straight lockable)

UNIVERSAL LIFT TABLE 1TON KT100XT

WSG 9017
Product Details
Pantograph lift with foot-operated
hydraulic pump or with air hydraulic
pump
Lifting height: 800mm
400kg

MOTORCYCLE LIFT KP1394P

WSG 9018
Product Details
• Tyre changers especially designed
to handle motocycle wheels
• External clamping 6&#8243;-24&#8243;

MOTORCYLE TYRE CHANGER G7240

WSG 9019
Product Details
Model
P7-ST-25
Volts
12/24V
Peak Amps(A)
6200/3100A
Starting Amps(A)
2340/1170A
No. of batteries
2
Location of fuse
Clamp
Fuse(A)
500A
Dimension(cm)
25x25x50
Cable diameter(mm²)
50
Cable reach(cm)
170
Unit weight(kg)
25
Charger Voltage(V)
230
Charger Amps(A)
3

Truck Booster P7-ST-25

WSG 9020
Product Details
Model
W6
Front lumens
1000
Top lumens
200
Battery
5000mAh
Output
5V DC IA(USB)
Input
230V AC 50Hz(Charger)
Dimension(cm)
5.8&#215;4.5&#215;21.8
Charger
Yes

W6 SMLED 10.0W 1000 Lumens

WSG 9021
Hydraulic Garage Jack

Hydraulic Garage Jack

WSG 9022
Transmission Jack EE-TJ806

Transmission Jack EE-TJ806

WSG 9023
Product Details
Model
T11
Volts
12V
Lead acid battery test range(CCA)
20-1000
Battery test
12V
Alternator test
12V/24V
Starter test
12V/24V
Ground test
12V
Dimension(cm)
10x23x4
Unit weight(kg)
0.5
Accessories
USB Cable, CD Drive

Start Tester T11

WSG 9024
Product Details
Model
T2
Volts
12V
Lithium battery test range(CCA)
20-1000
Lead acid battery test range(CCA)
100-2000
Dimension(cm)
12.6&#215;7.6&#215;2.8
Accessories
USB Cable, CD Drive
Unit weight(kg)
0.2

Start Tester T2

WSG 9025
Start Booster W51
Product Details
Model
W51
Input
5V-1A Max
Front Lumen
250-500
Capacity
9.62 Wh
Battery
2600
Dimension
4.5x3x18.3
Charger
Yes

Start Booster W51

WSG 9026
Product Details
Model
W7
Volt
5V DC
Lumen
2000lm/1000lm
Charging current
2A
Battery
7.4V-4.4A, Li-ion 32.56Wh
Color temp
6.500K
Beam angle
115○
Charging time
5hr
Charger
Yes

Work Light W7

WSG 9027
Product Details
Model
W9
Watt
50
Tripod
W24
Lumen
4500
Battery
8800
Dimension(cm)
21x25x6

Work Light W9

WSG 9028
Product Details
Model
X12
Volts
12V
Peak Amps(A)
2200A
Lithium
51200mWh
Output
12V DC
Input
220-240V AC 50/60Hz

Start Booster X12

WSG 9030
Product Details
Model
H95
Volts
12V
Peak Amps(A)
200A
Starting Amps(A)
450A
Dimension(cm)
250&#215;280
Unit weight(kg)
2.4

Ultra Booster H95

WSG 9031
Product Details
Model
P5-3100
Volts
12V
Peak Amps(A)
3100A
Starting Amps(A)
1170A
No. of batteries
1
Location of fuse
Clamp
Fuse(A)
500A
Dimension(cm)
30x15x37
Cable dimenter(mm²)
25
Cable reach(cm)
167
Charger Voltage(V)
11.8
Unit weight(kg)
230
Charger Amps(A)
2

Batttery Booster 12V P5-3100A

WSG 9032
Product Details
Model
P24-1600
Volts
12V
Peak Amps(A)
1600A
Starting Amps(A)
450A
No. of batteries
1
Dimension(cm)
12x18x27
Cable diameter(mm²)
25
Cable reach(cm)
48
Unit weight(kg)
5.8
Charger Voltage(V)
230
Charger Amps(A)
1.2

Start Booster P24-1600

WSG 9033
Wheel Balancer Trucks, Buses, &#038; Tractors EE-3448(T)

Wheel Balancer Trucks, Buses, & Tractors EE-3448(T)

WSG 9034
Wheel Balancer Everet EE-3099

Wheel Balancer Everet EE-3099

WSG 9035
Product Details
Part number	Model	Power	Vessel	Pump	RPM	Air displacement	voltage	pressure	dimensions	weight
 	 	HP	L	 	 	I/min	Hz	Bars	L x W x H (mm)	Kg
1129740710	Cp Comp Ironman 10hp 500l 3ph	10	500	PS10	800	1446	400/3/50	10	2000 x 710 x 1370	410

Cp Comp Ironman 10hp 500l 3ph

WSG 9036
Product Details
TECHNICAL SPECIFICATIONS
Horse Power (Hp)	15
Power Supply	4
F.A.D. (1/min)	8
Cylinder No.	1480
Working Pressure (Kg/cm2)	300
Tank Capacity (Ltr)	380V/50HZ/3PHASE
Dimension (L x W x H) (cm)	183 x 65 x 120
Weight (kgs)	375

SWAN INDUSTRIAL PISTON COMPRESSOR SWU(P)-415

WSG -9037
Product Details
TECHNICAL SPECIFICATIONS
Horse Power (Hp)	10
Power Supply	380V/50HZ/3PHASE
Cylinder No.	3
Working Pressure (Kg/cm2)	8
F.A.D. (1/min)	1151
Tank Capacity (Ltr)	300
Dimension (L x W x H) (cm)	183 x 65 x 120
Weight (kgs)	350

SWAN INDUSTRIAL PISTON COMPRESSOR SWP-310

WSG 9038
Product Details
TECHNICAL SPECIFICATIONS
Horse Power (Hp)	7.5
Power Supply	3
F.A.D. (1/min)	8
Cylinder No.	872
Working Pressure (Kg/cm2)	240
Tank Capacity (Ltr)	380V/50HZ/3PHASE
Dimension (L x W x H) (cm)	147 x 65 x 115
Weight (kgs)	313

SWAN INDUSTRIAL PISTON COMPRESSOR SWP-307

WSG 9039
Product Details
Part number	Model	Power	Vessel	Pump	RPM	Air displacement	voltage	pressure	dimensions	weight
 	 	HP	L	 	 	I/min	Hz	Bars	L x W x H (mm)	Kg
1129740711	Cp Comp Ironman 15hp 500l 3ph	15	500	PS15	870	2099	400/3/50	10	2000 x 710 x 1370	465

CP Ironman 15-500 CE

WSG 9040
Product Details
Part number	Model	Power	Vessel	Pump	RPM	Air displacement	voltage	pressure	dimensions	weight
 	 	HP	L	 	 	I/min	Hz	Bars	L x W x H (mm)	Kg
1129740511	CP Ironman 7-270 CE	7.5	270	PS7	765	981	400/3/50	10	1560 x 540 x 1240	250

CP Ironman 7-270 CE

WSG -9041
CP Ironman 3-150 CE

CP Ironman 3-150 CE

WSG 9042
Product Details
BENEFITS
(1) 1 wall-mounted casing that houses
a compressor and a 10-meter hose
(2) 1 easy on/off buttion for plug-and-play use
(3) Lightweight, compact and easy to install
(4) Wide variety of application kits

Air Compressor With Hose Reel

WSG 9043
Product Details
The performance comes with the technology
Up to 30% more energy efficient than an equivalent
power sized piston compressor
Designed to work continuously
24/7 performance without any risk of failure
Pressure stability and no pulsation compared to
piston compressors.

Screw Compressor-with Dryer CPN SERIES

WSG 9044
Product Details
Quality, efficiency and user comfort
Different vessel sizes available
Clear and user friendly pressure switch and gauges
Strong fully cast iron blocks
Safe and robust protection
Strong reliable power

Piston compressor-Cast Iron Head CPRK

WSG 9045
Product Details
The quick fix device Direct driven oil lubricated compressors Short tasks to complete and small things to repair? These DIY compressors match your demands
CPRA 24 L20 MS / CPRA 50 M20 MS
Small size, outstanding results
Perfectly moveable thanks to the large
handle and big wheels
Improved performance and extended
service life due to splash lubrication
Safety first with thermal overheating
motor protection

Piston compressor-Aluminium Head CPRA Range (DIY)

WSG 9046
Product Details
Optimize your energy consumption
Direct drive for outstanding efficiency
The direct driven transmission combined with the high frequency motor result in a very wide turn down and very low specific energy requirement at each speed.
The new generation of air ends with very strict tolerances grant outstanding volumetric efficiency resulting in a very low energy consumption.

Screw compressor CPVSD RANGE

WSG 9047
Product Details
Part No.	Type	Litres	I/m	cfm	HP	kW	bar	Dryer	L x W x H (mm)	Start	kg
4152010059	CPM 7.5/10 DX M 400/50	270	600	21.2	7.5	5.5	10	A1	1531 X 612 X 1394	sds	180
4152010966	CPM 10/10 DX 400/50	270	920	32.51	10	7.5	10	A2	1429 X 642 X 1300	sds	280
4152010491	CPM 10/10 DX 400/50	500	920	32.5	10	7.5	10	A3	1935 X 650 X 1483	sds	290
4152022995	CPM 10/10 DX 400/50	500	996	35.2	10	7.5	10	A3	1950 X 720 X 1468	sds	295
4152010494	CPM 15/10 DX 400/50	500	1310	46.3	15	11	10	A4	1935 X 650 X 1483	sds	328
4152023005	CPM 20D/10 400/50	500	1680	59.4	20	15	10	A4	1950 X 720 X 1468	sds	358

Screw Compressors - With Dryer CPM Series

WSG 9048
Product Details
Part No.	Type	Litres	I/m	cfm	m3/h	HP	kW	rpm	phase	bar	Psi	L x W x H (mm)	kg
4116023631	CPRC 2 90 NS 12 MS	90	255	9	15.3	2	1.5	1075	1	10	145	985 x 395 x 820	62
4116025674	CPRC 3 200 NS 19 MS	200	393	13.9	23.6	3	2.2	1050	1	10	145	1500 x 450 x 960	131
4116024355	CPRC 3 200 NS 19 MT	200	393	13.9	23.6	3	2.2	1050	3	10	145	1500 x 450 x 960	131

Piston Compressors-aluminium Head CPRC Range

WSG 9049
Product Details
Part No.	Type	Litres	I/m	cfm	m3/h	HP	kW	rpm	phase	bar	psi	L x W x H (mm)	kg
4116022860	CPRD 6 270 NS 39 MT	270	653	23	39.2	5.5	4.5	1000	3	11	160	1520 X 290 X 1260	180
4116023909	CPRD 8 500 NS 39 FT	500	827	29.2	49.6	7.5	5.5	1250	3	11	160	2030 X 680 X 1400	280
4116022872	CPRD 8 500 NS59S FT	500	950	33.5	57	7.5	5.5	750	3	11	160	2030 X 680 X 1400	290
4116022873	CPRD 10 500 NS59S MT	500	1210	42.7	72.6	10.5	7.5	950	3	11	160	2030 X 680 X 1400	295
4116023147	CPRD 15 500 NS59S FT	500	1390	49.1	83.5	15	11	1100	3	11	160	2030 X 680 X 1400	328

Piston Compressors-aluminium Head CPRD

WSG 9050
Product Details
With Refrigerated air dryer, line filters and air receiver tank
General industry.
Many industrial companies use compressed air in their daily operations. Denair oil injected screw compressors are designed for all these industries.
MODEL	LTR	DISPLACEMENT	COOLING METHOD	DRIVE METHOD	MOTOR POWER	VOLTAGE	INVERTER	DIMENSION
LXWXH (MM)
 	 	CFM	PSI	BAR	 	 	KW	HP
DNA-7	520	32	152	10.5	AC	BD	7.5	10	380V/3PH/50HZ	Fix Speed	2170x890x1390
DNA-11	520	51	152	10.5	AC	BD	11	15	380V/3PH/50HZ	Fix Speed	2170x890x1391
DNVA-15	520	28-70	152	10.5	AC	DD	15	20	380V/3PH/50HZ	(VSD)	2450x1240x1590
DNVA-18	520	42-106	152	10.5	AC	DD	18.5	25	380V/3PH/50HZ	(VSD)	2450x1240x1591
DNVA-22	520	42-105	189	13	AC	DD	22	30	380V/3PH/50HZ	(VSD)	2450x1240x1592
DNVA-33	1000	73-182	189	13	AC	DD	37	50	380V/3PH/50HZ	(VSD)	2450x1240x1593

VSD INTEGRATED OIL INJECTED SCREW AIR COMPRESSOR

WSG 9051
Product Details
TECHNICAL SPECIFICATIONS
Air Capacity	5.3 m3/min ~ 180cfm
Working Pressure	7bar/102 PSI
Cooling Method	Turbo charged
Motor Power	34.6KW
Voltage	Diesel
Weight	G 3⁄4&#8243;x3
Dimension Lxwxh(without tow bar)	900 kg
Size and Number of outlet	2210x1410x1300mm

DIESEL PORTABLE SCREW AIR COMPRESSOR DACY-5/7

WSG 9052
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
50	220	7.8	13.3	2	1.5	2850	230/5/1	10	145	DOL	L20	740x320x640	33
SKU	1129100178

ABAC COMP POLE POSITION L20

WSG 9053
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
24	220	7.8	13.3	2	1.5	2850	230/5/1	10	145	DOL	L20	570x255x590	25
SKU	1129100202

WSG 9054
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
50	230	8.1	13.9	2	1.5	1420	230/5/1	10	145	DOL	0S20P	775x280x600	37
SKU	1129740343

ABAC COMP MONTECARLO OIL FREE OS20P

WSG 9055
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
24	230	8.1	13.9	2	1.5	1420	230/5/1	10	145	DOL	0S20P	520x240x570	29
SKU	1129740341

WSG 9056
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
500	827	30	50	7.5	5.5	1400	400/50/4	11	160	DOL	B6000	2030x670x1400	260
SKU	4116020243

ABAC COMP PRO 7.5HP 500LTR B6000

WSG 9057
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
270	595	21	36	5.5	4	1400	400/50/3	11	160	DOL	A49B	1650x560x1260	193
SKU	1129740697

ABAC COMP PRO 5.5HP 270LTR A49B

WSG -9158
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
270	393	13.9	23.7	3	2.2	1050	230/5/3	10	145	DOL	A39	2030x680x1400	162
SKU	1129740696

ABAC COMP CM3 270LTR A39

WSG 9059
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
200	320	11.5	19.3	3	2.2	1300	230/5/2	10	145	DOL	A29B	1500x510x1070	180
SKU	1129740695

ABAC COMP CM3 200LTR A29B

WSG -9060
Product Details
SIZE	AIR DISPLACEMENT	MOTOR POWER	 	 	MAX PRESSURE	STARTER	PUMP	DIMENSION	WEIGHT
 	1/min	CFM	m3/h	HP	KW	RPM	vol/HZ	BAR	PSI	Type	Model	L X W X H	KGS
100	255	9	15.4	2	1.5	1075	230/5/1	10	145	DOL	A29	940x430x970	63.4
SKU	1129740694

ABAC COMP CM2 100LTR A29

WSG 9061
Description
SPARES PARTS FOR HOIST # 110291/92/93 XM312NS2H26A5
CODE	PRODUCTS
8351	MISIA ROPE GUIDE XM316 FIG. 5
10060	MISIA LIFTING BRAKE SET
9752	MISIA BRAKE DISK FDB17
7037	MISIA RECTIFIER FOT HOIST MOTOR
10061	MISIA LIFTING MOTOR
9744	MISIA BRAKE DISC FDB17
SPARES PARTS FOR HOIST # 110294/95 XM525NS2H26A/5
7086	MISIA ROPE GUIDE XM525 FIG.5
10062	MISIA LIFTING BRAKE SET
9743	MISIA BRAKE DISK FDB20
7037	MISIA RECTIFIER FOR HOIST MOTOR
10063	MISIA LIFTING MOTOR
9748	MISIA HOOK BLOCK P-3200
SPARES PARTS FOR HOIST # 110296/97 XM740NS2H264/5
8592	MISIA ROPE GUIDE ME/INT/5
10064	MISIA LIFTING BRAKE SET
10065	MISIA BRAKE DISK FDB23
10066	MISIA RECTIFIER FOR HOIST MOTOR
10067	MISIA LIFTING MOTOR
SPARES PARTS FOR HOIST XM308NS2H20/5
9741	MISIA ROPE GUIDE
9745	MISIA BRAKE DISC FDB17
9746	MISIA HOOK BLOCK P-3200
SPARES PARTS FOR HOIST XM316NS2H20/5 AND XM316NS2H10/83
8355	MISIA ROPE GUIDE
9742	MISIA BRAKE DISC FDB17
9747	MISIA HOOK BLOCK P-3200
SPARES PARTS FOR HOIST XM740NS2H26A/5
9749	MISIA HOOK BLOCK MES2 P-8000
9751	MISIA LIFTING LIMIT SWITCH (FOR ALL HOIST)
12420	MISIA 1 TON HOOK BLOCK
 	MISIA 1TON HOOK BLOCK TO CONVERT 500KG TO 1TON.
12421	MISIA 2TON HOOK BLOCK
 	MISIA 2TON HOOK BLOCK TO CONVERT 1TON TO 2TON.
12422	MISIA PULLEY SET 2.5T FOR XM312S2
12423	MISIA PULLEY SET 3.2T FOR XM316S2
8748	MISIA G80 CHAIN 5MM
8749	MISIA G80 CHAIN 7MM
9234	SP MISIA LIMIT SWITCH MH5LD/3A FOR CHAIN HOISTS
9235	SP MISIA LIMIT SWITCH MH10SD/3A FOR CHAIN HOISTS
15360	MISIA EYE SUSPENSION 1S FOR 500KG
15361	MISIA HOOK SUSPENSION 1G FOR 500KG
15362	MISIA HOOK SUSPENSION 1G FOR 1000KG
15363	MISIA HOOK SUSPENSION 1G FOR 2000KG

Misia Spare Parts For Hoists

WSG -9062
Description
CODE	SPECIFICATION FOR HOISTS
XM308NS2H20/5	MISIA HOIST WIREROPE 1.6T X 20M FOOT MOUNTED
 	HOOK TRAVEL 20M
 	LIFTING SPEED 8M/MIN, MOTOR 2.5KW
 	WITH HOOK BLOCK, REEVING 2/1
 	OVERLOAD LIMITER ELECTRONIC TYPE 24VOLT
XM312NS2H20/5	MISIA HOIST WIREROPE 2.5TX20M FOOT MOUNTED
 	HOOK TRAVEL 20M
 	LIFTING SPEED 8M/MIN, MOTOR 4KW
 	WITH HOOK BLOCK, REEVING 2/1
 	OVERLOAD LIMITER ELECTRONIC TYPE 24VOLT
XM316NS2H20/5	MISIA HOIST WIREROPE 3.2TX20M FOOT MOUNTED
 	HOOK TRAVEL 20M
 	LIFTING SPEED 8M/MIN, MOTOR 5KW
 	WITH HOOK BLOCK, REEVING 2/1
 	OVERLOAD LIMITER ELECTRONIC TYPE 24VOLT
XM316NS2H10/83	MISIA HOIST WIREROPE WITH TROLLEY 3.2TX10M LOW HEADROOM
 	HOOK TRAVEL 10M
 	LIFTING SPEED 8M/MIN
 	LIFTING MOTOR 5KW
 	BEAM FLANGE-125MM-250MM
 	TRAVELLING MOTORS &#8211; 2PCS EACH 0.25KW
 	TRAVELLING SPEED &#8211; 20M/MIN,
 	CONTROL PENDANT FOR HOIST &#038; TROLLEY &#8211; 11.5MTR
 	TRAVEL LIMIT SWITCH INCLUDED
XM525NS2H26A/5	MISIA HOIST WIREROPE 5TX26M FOOT MOUNTED
 	HOOK TRAVEL 26M
 	LIFTING SPEED &#8211; 8M/MIN,MOTOR 5KW
 	LIFTING MOTOR 5KW FEM CLASS 2M
 	OVER AND UNDER REEEVING SWITCH INCLUDED
 	HOOK BLOCK &#8211; 360DEG ROTATING
 	OVERLOAD LIMITER ELECTRONIC TYPE 24VOLT
XM740NS2H26A/5	MISIA HOIST WIREROPE 8TX26M FOOT MOUNTED
 	HOOK TRAVEL 26M
 	LIFTING SPEED &#8211; 8M/MIN
 	LIFTING MOTOR 12KW
 	OVERLOAD LIMITED (OLL) &#8211; 24VOLT
 	HOOK BLOCK &#8211; 360DEG ROTATING
12061	MISIA BIRAIL TROLLEY CAPACITY 8TON FOR XM740
 	TROLLEY WITH GAUGE 1200MM
 	WITH INTERCONNECTION BOX FOR TROLLEY &#038; HOIST WITH TRAVEL LIMIT SWITCH
 	CONTROL PENDANT HEIGHT 15MTRS (UNWIRED) FOR 6 MOVEMENT

Misia Wire Rope Hoist

WSG 9063
Description
TOHO ELECTRIC WINDLASS WINCH
KDJ-500B	500KGX 60MTRS WIREROPE LIFTING HEIGHT SINGLE 1 PHASE,230V,50HZ

TOHO ELECTRIC WINDLASS WINCH

WSG -9064
Description
TOHO DIGITAL WEIGHING SCALE FOR OVERHEAD CRANE
CODE	MODEL	CAPACITY (TON)
15415	XZ-AAE/AAC-1	1 TON
15416	XZ-AAE/AAC-2	2TON
15417	XZ-AAE/AAC-3	3TON
15418	XZ-AAE/AAC-5	5TON

TOHO DIGITAL WEIGHING SCALE FOR OVERHEAD CRANE

WSG 9065
Description
SH MODEL WIREROPE HOIST WITH TROLLEY, FOOT MOUNTED, 3P, 415V, 50HZ, DUAL SPEED
CODE	MODEL	CAPACITY (TON)	LIFTING HEIGHT (MTR)	WIRE SIZE (MM)	NO.OF FALLS	LIFTING SPEED (M/MIN)
16028	3.2TX12M	3.2	12	 	1
16029	5TX12M	5	12	 	1

SH MODEL WIREROPE HOIST WITH TROLLEY, FOOT MOUNTED

WSG -9066
Description
SH MODEL WIREROPE HOIST WITHOUT TROLLEY, FOOT MOUNTED, 3P, 415V, 50HZ, SINGLE SPEED
CODE	MODEL	CAPACITY (TON)	LIFTING HEIGHT (MTR)	WIRE SIZE (MM)	NO.OF FALLS	LIFTING SPEED (M/MIN)
12878	2T x 20M	2	20	18MM	2	7.2
12880	3.2T x 20M	3.2	20	18MM	2	7
12891	5T x 20M	5	20	26MM	2	7.6

SH MODEL WIREROPE HOIST WITHOUT TROLLEY, FOOT MOUNTED

WSG 9067
Description
INDEF ELECTRIC CHAIN HOIST WITHOUT TROLLEY, 3PH, SINGLE SPEED
15905	1TX6M	1	6	8MM	2	4.8

INDEF ELECTRIC CHAIN HOIST WITHOUT TROLLEY

WSG 9068
Description
INDEF ELECTRIC CHAIN HOIST WITH TROLLEY, 3PH, DUAL SPEED
15906	3TX6M	3	6	10MM	2	1.8

INDEF ELECTRIC CHAIN HOIST WITH TROLLEY

WSG -9069
Description
CD1 MODEL WIREROPE HOIST WITHOUT TROLLEY, FOOT MOUNTED, 3P, 415V, 50HZ, SINGLE SPEED
CODE	MODEL	CAPACITY (TON)	LIFTING HEIGHT (MTR)	WIRE SIZE (MM)	NO.OF FALLS	LIFTING SPEED (M/MIN)
12210	1T x 20M	1	20	7.7MM	2	8
12272	2T x 20M	2	20	13MM	2	8
9289	3T x 12M	3	12	13MM	2	8
12273	3T x 20M	3	20	13MM	2	8
9290	3T x 25M	3	25	13MM	2	8

CD1 MODEL WIREROPE HOIST WITHOUT TROLLEY, FOOT MOUNTED

WSG 9070
Description
HHB SERIES ELECTRIC CHAIN HOIST WITH ELECTRIC MOTOR TROLLEY,3PH,SINGLE SPEED,WITH GALV.LOAD CHAIN.
CODE	MODEL	CAPACITY (TON)	LIFTING HEIGHT (MTR)	CHAIN SIZE (MM)	NO.OF FALLS	LIFTING SPEED (M/MIN)	I-BEAM SIZE (MM)
9286	1T x 12M	1	12	7.1MM SINGLE FALL	1	6.6	58-153
9287	2T x 12M	2	12	10MM SINGLE FALL	1	6.6	82-178
9288	3T x 12M	3	12	11.2MM SINGLE FALL	1	5.4	100-178
12270	5T x 12M	5	12	11.2MM TWO FALL	2	2.8	100-178
15184	10T x 12M	10	12	11.2MM FOUR FALL	4	2.7	150-220

HHB SERIES ELECTRIC CHAIN HOIST WITH ELECTRIC MOTOR TROLLEY

WSG 9071
Description
HHB SERIES ELECTRIC CHAIN HOIST WITHOUT TROLLEY, GALV. LOAD CHAIN
(Complete with chain bag)
CODE	MODEL	CAPACITY (TON)	LIFTING HEIGHT (MTR)	CHAIN SIZE (MM)	NO.OF FALLS	LIFTING SPEED (M/MIN)
9283	1T x 12M	1	12	7.1MM SINGLE FALL	1	6.6
9284	2T x 12M	2	12	10MM SINGLE FALL	1	6.6
9285	3T x 12M	3	12	11.2MM SINGLE FALL	1	5.4
12271	5T x 12M	5	12	11.2MM TWO FALL	2	2.8
15419	10T x 12M	10	12	11.2MM FOUR FALL	4	2.7

HHB SERIES ELECTRIC CHAIN HOIST WITHOUT TROLLEY

WSG -9072
Description
CODE	ITEM CODE	WLL TONNES
7739	KLA 8-10	2.5
7740	KLA 10-10	4.0
7741	KLA 13-10	6.7
7742	KLA 16-10	10.0
7743	KLA 20-10	16.0

Chain Grade 10 Short Link KL

WSG 9073
Product Details
CODE	ART. NO/ CODE	ITEM CODE
Z100899	FLEXITAG NEUTRAL
Category	Masterlink &#038; Hook
SKU	SIDT-2020

Sling ID-TAG

WSG -9074
Description
CODE	ITEM CODE	WEIGHT KG
Z100450	RDEKN-10/LKN/RH 3	0.06
Z100449	RDEKN-13/LKN/RH 5	0.13
Z100217	RDEKN-16/LKN	0.20

Spare Parts Latch Kit EGKN

WSG -9075
Description
ART. NO/ CODE	ITEM CODE	WLL TONNES
Z426383	SKT-10-8	3.2
Z426480	SKT-13-8	5.4
Z426587	SKT-16-8	8.0

Connecting Link GEN 1677-1

WSG 9077
Description
CODE	ITEM CODE	WLL TONNES
B14702	MGD 10-10	5.6
B14703	MGD 13-10	9.5
B14704	MGD 16-10	14.0

Master Grab Duo MGD

WSG -9078
Description
ART. NO/ CODE	ITEM CODE	WLL TONNES
Z101132	EKN-10-10	4.0
Z101134	EKN-13-10	6.7
Z101136	EKN16-10	10.0

Eye Sling Hook EKN With Latch

WSG -9079
Description
CODE	ITEM CODE	WLL TONNES
Z100744	EGKN-7/8-8	2.0
Z100722	EGKN-10-8	3.2
Z100773	EGKN-13-8	5.4
Z100774	EGKN-16-8	8.0

Clevis Sling Hook EGKN With Latch

WSG -9080
CODE	ITEM CODE	WLL TONNES
Z100855	OKE 13-10	6.7
Z100898	OKE 16-10	10.0

Foundry Hook OKE

WSG -9081
CODE	ITEM CODE	WLL TONNES
Z295929	BKG 10-8	10.0
Z291527	BKG 13-8	13.0
Z291624	BKG 16-8	8.0

Clevis Self Locking Hook BKG

WSG -9081
CODE	ITEM CODE	WLL TONNES
Z100860	MF-86-10	2.5
Z100861	MF-108-10	4
B14483	MF-1310-10	7.5
B14484	MF-1613-10	10
B14485	MF-2016-10	17.0
B14486	MF-2220-10	25.0

Master Link MF

WSG -9082
CODE	ITEM CODE	WLL TONNES
7719	MFH 1613-10	10
7720	MFH 2016-10	17
7721	MFH 2220-10	28
