Description
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
Specification
Model
T-804H
Rated Power(100V)
120W
Rated Power(70V)
60W
Sensitivity
94dB
Impedance
Black: COM White: 80Ω
Frequency response
80Hz -20KHz
Drive units
4&#8243; x 4 3&#8243; x 1
Dimensions
155 x 200 x 612mm
Weight
8.3Kg
Material
Aluminum alloy
IP rate
IP66

T-804H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

Music& Accessories Hub

Description
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
Specification
Model
T-802H
Rated Power(100V)
60W
Rated Power(70V)
30W
Sensitivity
92dB
Impedance
Black: COM White: 166Ω
Frequency response
80Hz -20KHz
Drive units
4&#8243; x 2 3&#8243; x 1
Dimensions
155 x 200 x 412mm
Weight
5.2Kg
Material
Aluminum alloy
IP rate
IP66

T-802H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

Description
. Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 4 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-904B
Power taps（100V）
20W, 40W
Power taps（70V）
10W, 20W
Sensitivity
94dB±3dB
Impedance
Black: Com Green: 500Ω
White: 250Ω
Frequency response
80-20KHz
Dimensions
150×105×516mm
Speaker driver
4&#8243; x 4
IP rate
IP66
Weight
3.55Kg

T-904B Outdoor Column Speaker (20W-40W)

Description
.Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 4 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-904B
Power taps（100V）
20W, 40W
Power taps（70V）
10W, 20W
Sensitivity
94dB±3dB
Impedance
Black: Com Green: 500Ω
White: 250Ω
Frequency response
80-20KHz
Dimensions
150×105×516mm
Speaker driver
4&#8243; x 4
IP rate
IP66
Weight
3.55Kg

Description
T-903B Outdoor Column Speaker (15W-30W)
. Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 3 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-903B
Power taps（100V）
15W, 30W
Power taps（70V）
7.5W, 15W
Sensitivity
93dB±3dB
Impedance
Black: Com Green: 660Ω
White: 330Ω
Frequency response
80-20KHz
Dimensions
150×105×414mm
Speaker driver
4&#8243; x 3
IP Grade
IP66
Weight
2.86Kg

T-903B Outdoor Column Speaker (15W-30W)

Description
Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
* The speaker adopts 2 4-inch full-frequency design, the low frequency is full and the treble is clear
* Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
* The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
* L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
* Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-902B
Power taps （100V）
10W, 20W
Power taps （70V）
5W, 10W
Sensitivity
93dB±3dB
Impedance
Black: Com Green: 1KΩ
White: 500Ω
Frequency response
80-20KHz
Dimensions
150×105×304mm
Speaker driver
4&#8243; x 2
IP rate
IP66
Weight
2.17Kg

T-902B Outdoor Column Speaker (5W-10W)

Description
The T-303 is an indoor column speaker built-in 70v/100v transformer.
The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in four units 4”+2.5” two way speaker drivers are designed of wide frequency response 130-15kHz, the power output of 30W could meet different applications varies from room size and ambient noise Surroundings.
The wooden enclosure and fabric grille are of grey color. Easy and secure wall mount through the mounting hook.
Features
Built-in 100v/70v transformer
Indoor column type loudspeaker
4×4”+2.5” full range driver
Power out 30w @100V
Wooden enclosure &#038; fabric grille in grey
Technical data
Power30W
Frequency Response130Hz-15kHz
SPL91dB ± 3dB
Voltage70/100V
Dimensions135x120x420 mm
Weight3.4kg

T-303 30W 4 Inch PA System Indoor Column Speaker

Description
Indoor luxury column speaker adopts high-density wood structure. The voice is clear and bright.Simple installation mode. Applicable to schools, supermarkets, hotels, shopping malls, etc.
Specification:
Model
T-302
Rated power
20W
SPL(1W/1M)
91dB±3dB
Impedance
Black: Com Red: 500Ω
Frequency response (-10dB)
80-20KHz
Dimensions
135×120×420mm
Speaker driver
4&#8243;×2 2.5&#8243;×1
Weight
3.4Kg

T-302 Indoor Column Speaker

Description
Indoor luxury column speaker adopts high-density wood structure. The voice is clear and bright.Simple installation mode. Applicable to schools, supermarkets, hotels, shopping malls, etc.
Specification:
Model
T-301
Power taps @100V
10W
Power taps @70V
5W
Impedance
Black:Com Red:1KΩ
SPL(1W/1M)
89dB ±3dB
Frequency response (-10dB)
80-20KHz
Speaker driver
4&#8243; x 1 2.5&#8243; x 1
Dimensions
135 x 120 x 320mm
Weight
2.6Kg

T-301 Indoor Column Speaker

Description
Outdoor and indoor waterproof column speaker, aluminum alloy shell, aluminum mesh cover, outdoor, streamlined design, fashionable and beautiful, high sensitivity, strong directivity.
Specification：
Model
T-702H
Power taps @100V
40W
Power taps @70V
20W
SPL
91dB±3dB
Impedance
Black: COM White: 250Ω
Frequency response
80-20KHz
IP rate
IP66
Dimensions
105 x 98 x 480mm
Speaker driver
4 x 3.5&#8243;
Weight
3.9Kg

T-702H Outdoor Column Loudspeaker

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using six 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc.
Specification：
Rated power (100V)
20W, 40W
Rated power (70V)
10W, 20W
Sensitivity
92dB±3dB
Impedance
Black: COM/White: 500Ω/Green: 250Ω
Frequency response
80Hz-20kHz
Dimension
105×75×550mm
Speaker unit
2.5&#8243;×6
IP level
IP66
Weight
2.8kg

T-704A Outdoor Column Speaker( 20W-40W)

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using four 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc.
Specification：
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Sensitivity
91dB±3dB
Impedance
Black: COM; White: 670Ω; Green: 330Ω
Frequency response
80Hz-20kHz
Dimension
105×75×410mm
Speaker unit
2.5&#8243;×4
IP level
IP66
Weight
2.1kg

T-703A Outdoor Column Speaker

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using three 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc
Specification:
Rated power (100V)
10W, 20W
Rated power (70V)
5W, 10W
Sensitivity
89dB±3dB
Impedance
Black: COM; White: 1KΩ; Green: 500Ω
Frequency response
80Hz-20kHz
Dimension
105×75×338mm
Speaker unit
2.5&#8243;×3
IP level
IP66
Weight
1.7kg

T-702A Outdoor Column Speaker

Description
The T-701A is a weatherproof outdoor column speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 2 units 2.5” full range speaker drivers are designed of wide frequency response 150-13kHz, the multiple power taps of 5W &#038; 10W could meet different applications varies from room size and ambient noise surroundings.
The aluminum enclosure and grille are of white color. It is also designed of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area through the supplied pair of metal mounting brackets.
Features
Built-in 100v/70v transformer
Weatherproof column type loudspeaker
IP66 waterproof level
2×2.5” full range driver
Power taps at 5w-10w @100V
Aluminum enclosure &#038; grille in white
A pair of metal mounting brackets are supplied
Technical data
Power10W
Frequency Response150Hz- 16kHz
SPL88dB ± 3dB
Voltage70/100V
Dimensions105x75x265mm
Weight1.4kg

T-701A (5 Watt - 10 Watt) Column Waterproof Speaker

Description
. Indoor ceiling speaker with unique shape design, streamlined appearance, one-piece injection molding structure and metal mesh structure.
. Equipped with a 5-inch woofer and a 1.5-inch tweeter to form a coaxial design, the low frequencies are full and the trebles are clear.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. The installation method adopts a hanging cable with a steel wire inside and an iron clip lifting design to facilitate user operation and installation.
. Suitable for schools, hotels, guesthouses, corridors, supermarkets, etc.
Specification:
Rated power (100V)
20W，10W
Rated power (70V)
10W，5W
Sensitivity
90dB ±3dB
Max SPL
103dB ±3dB
Impedance
Blue: COM Green: 500Ω Red: 1KΩ
Frequency response
80Hz -20KHz
Speaker unit
5&#8243;×1，1.5&#8243;×1
Dimension
Φ170×210mm
Weight
1.64kg

T-750D Pendent speaker

Description
Ceiling speakers. Various installation methods, using 360° sound coverage, unique appearance, suitable for hotels, shops, etc.
Specification:
Model
T-600B (Black) / T-600W (White)
Power taps @100V
7.5W, 10W, 15W, 20W, 30W, 60W
Power taps @70V
3.75W, 5W, 7.5W, 10W, 15W, 30W
Impedance
White: 1.3KΩ Red: 1KΩ Yellow: 670Ω
Brown: 500Ω Blue: 330Ω Green: 165Ω Black: Com
SPL(1W/1M)
102dB
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
6&#8243; x 1
Dimensions
385 x 385 x 302mm
Weight
3.4Kg

T-600B/ T-600W Pendant Loudspeaker (360 Degree Dispersion)

Description
Ball design, wide band speaker unit, unique appearance, suitable for supermarkets, shopping malls, etc.
Specification:
Model
T-200
Power taps @100V
1.5W, 3W, 6W
Power taps @70V
0.75W, 1.5W, 3W
Impedance
Blue: Com Red:6.7KΩ
Green: 3.3KΩ Yellow:1.7KΩ
SPL(1W/1M)
91dB±3dB
Frequency response (-10dB)
80-20KHz
IP rate
IP66
Speaker driver
5&#8243; x 1
Dimensions
205 x 205mm
Weight
1.1kg

T-200 Pendant Speaker

Description
Ball design, wide band speaker unit, unique appearance, suitable for supermarkets, shopping malls, etc.
Specification:
Model
T-200D(black)/T-200DW(white)
Power taps @100V
15W
Power taps @70V
7.5W
Impedance
Black: Com Red:670Ω
SPL(1W/1M)
86dB
Frequency response (-10dB)
80-20KHz
Speaker driver
6&#8243; x 1
Dimensions
255×220mm
Weight
2.6Kg

T-200D/ T-200DW Pendant Speaker (15W)

Description
The T-200B is a pendant speaker built-in 70v/100v transformer. The
70v/100v transformer technique reduces line losses on longer distance
and allows easy parallel connection of multiple loudspeakers.
The built-in 6” full range speaker driver is designed of wide frequency
response 150-14kHz, the multiple power taps of 3.75W, 7.5W &#038; 15W
could meet different applications varies from room size and ambient noise
surroundings.
Easy and secure wall mount installation to be suspended on the roof the hotel lobby or super market&#8217;s case desk.
It is ideal choice for industrial and commercial applications for hotel, super market, exhibition center, shopping mall,
where background music and paging is needed.
Specification
Model T-200B
Power Taps @100V 3.75W,7.5W,15W,
Power Taps @70V 1.85W, 3.75W, 7.5W
Impedance Blue: Com, Green: 2.6KΩ Yellow: 1.3KΩ, Red: 670Ω, SPL(1W/1M) 92dB
Max. SPL (Rated W/1M) 104dB
Frequency Response (-10dB) 150-14KHz
Finish Baffle: Aluminum, White Grille: Aluminum, White
Speaker Driver 6&#8243; x 1
Dimensions 172 x 250mm
Weight 2.6Kg
Mounting With mounting bracket fixed by screw

T-200B Pendant Speaker(3.75W-7.5W-15W

Description
. Ultra-thin aluminum alloy structure, 32mm in thickness; sturdy, corrosion-resistant, and durable.
. Imported polymer multi-layer honeycomb diaphragm, low Young&#8217;s modulus, light weight, high bending resistance and moderate damping.
. Built-in 8 drivers, NdFeB strong magnetic circuit; two 20mm silk diaphragm tweeters.
. 360 degrees of sound coverage, plane wave transmission, comfortable vocal sound, and long transmission distance.
. Wide frequency response range, 80Hz-20KHz plane sound.
. Ultra-thin (32mm) housing, high-strength aluminum alloy material, fine anodized grain surface, elegant appearance.
. Support multi-point installation, horizontal and vertical installation.
. Resistant to mildew, moisture and salt mist.
. Application: PA system in airports, cars, railways and subway stations; internal broadcasting in ships and warships; PA system and emergency broadcasting in schools, shopping malls, hotels, and institutions; emergency broadcasting in public places such as parks and squares.
Specification:
Model
T-6832C
Rated power
100W
Maximum SPL
106dB
Sensitivity
88dB ±3dB
Input voltage
100V
Frequency response
80Hz -20KHz
Diaphragm area
Two 300mm×300mm
Driver
8 woofer drivers; 2 tweeter drivers
Size
686×320×32mm
Weight
6.9kg

T-6832C Ultra-thin speaker

Description
Ultra-thin aluminum alloy structure, 32mm in thickness; sturdy, corrosion-resistant, and durable.
. Imported polymer multi-layer honeycomb diaphragm, low Young&#8217;s modulus, light weight, high bending resistance and moderate damping.
. Built-in 4 drivers, NdFeB strong magnetic circuit; two 20mm silk diaphragm tweeters.
. 360 degrees of sound coverage, plane wave transmission, comfortable vocal sound, and long transmission distance.
. Wide frequency response range, 150Hz-18KHz plane sound.
. Ultra-thin (32mm) housing, high-strength aluminum alloy material, fine anodized grain surface, elegant appearance.
. Support multi-point installation, horizontal and vertical installation.
. Resistant to mildew, moisture and salt mist.
. Application: PA system in airports, cars, railways and subway stations; internal broadcasting in ships and warships; PA system and emergency broadcasting in schools, shopping malls, hotels, and institutions; emergency broadcasting in public places such as parks and squares.
Specification:
Model
T-4535C
Rated power
50W
Max SPL
104dB
Sensitivity
88dB ±3dB
Voltage
100V
Frequency response
80Hz -20KHz
Diaphragm area
Two 156mm×314mm
Driver
4 woofer drivers; 2 tweeter drivers.
Size
450×350×32mm
Weight
4.9Kg

T-4535C Ultra-thin speaker

Description
Model:TS-115HT
Frequency response:50Hz~18KHz@-10d
Rated power:75W, 150W, 300W/100V, 400W/8Ω optional
Peak power:1200W
Max SPL(rated/peak):127dB/135dB
Sensitivity:103dB±3dB@(1W/1m)
Coverage angle:(H)90°(V)90°
Tweeter:15&#8243; woofer ×1, 1.7&#8243; compressed tweeter ×1
Size:500×500×520mm
Weight:27Kg

Outdoor Waterproof Speaker TS-115HT

Description
. Engineering plastic injection molding cabinet, good weather resistance, high strength, and light weight.
. The coaxial structure design of an efficient 8-inch mid-woofer and a 34-core compressed driver.
. High sensitivity, high power, long transmission distance.
. Steel surface mesh, built-in three layers of mesh cloth and acoustic cotton with breathable and waterproof functions, in accord with IP56 international standard.
. A standard hanger made of spray paint galvanized steel sheet and the matching stainless steel screws and safety ropes make it convenient and safe for the installation.
. It is mainly used in school playgrounds, theme parks, cultural squares, stadiums, etc.
Specification:
Model
TS-108HT
Frequency response
75Hz ~ 20KHZ @ &#8211; 10 db
Rated power
37.5W, 75W, 150W/100V, 150W/8Ω optional
Peak power
600W
Max SPL(rated/peak)
117dB/124dB
Sensitivity
96db±3db @ (1w/1m)
Coverage angle
(H) 90° (V) 90°
Speaker unit
8&#8243; woofer ×1, 1.4&#8243; compressed tweeter ×1
Dimension
300×302×280mm
Weight
11Kg

TS-108HT Outdoor All-weather Waterproof Speaker

Description
Frequency response:55Hz ~ 18KHZ @ -10dB
Rated power:50W, 100W, 200W/100V, 300W/8Ω optional
Peak power:1200W
Max SPL(rated/peak):123dB/129dB
Sensitivity:98dB±3dB@ (1W/1m)
Coverage angle:(H) 90° (V)90°
Speaker :12&#8243; woofer ×1, 1.7&#8243; compressed tweeter ×1
Size:407×410×378mm
Weight:20Kg
.Engineering plastic injection molding housing, good weather resistance, high strength, and light weight.
. The coaxial structure design of an efficient 12-inch mid-woofer and a 44-core compressed driver.
. High sensitivity, high power, long transmission distance.
. Steel surface mesh, built-in three layers of mesh cloth and acoustic cotton with breathable and waterproof functions, in accord with IP56 International
standard.
. Equipped with a standard hanger with galvanized steel spraying treatment and matching stainless steel screws and safety ropes, which are convenient and
safe to install.
. It is mainly used in school playgrounds, theme parks, cultural squares, stadiums, etc.

Outdoor Waterproof Speaker  TS-112HT

Description
Enclosure uses fiberglass materials, High density and hard, light weight; adopts high efficiency 12-inch neodymium woofer and 44-core neodymium tweeter driver; tweeter uses overload protection device, so the treble can withstand
the impact of fickle signal; bass and treble use horn-loaded design to reach long transmission distance; in order to meet a variety of sound reinforcement occasions, it comes with lifting metal bracket, which makes lifting installation
convenient.
And this well-designed lifting system with adjustable angle brings great convenience to installation.
It is mainly used in large stadiums, large theme parks, medium and large cultural Square, outdoor playground and other
occasions.
Model:TS-3H
Impedance:4Ω
Frequency Response:100Hz~20KHz
Rated Power:400W
Sensitivity:112dB
Coverage:(H) 70° (V) 70°
Tweeter:ф44 Titanium Tweeter x 1
Woofer:12&#8243; Woofer x 1
Enclosure Surface Treatment:Black Paint
Connector:Two 4-pin SPEAKON Socket 1+1-
Dimension (H x W x D):740 x 524 x524 mm
Weight:18Kg

Horn Speaker  TS-3H

Description
. Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. U-shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification：
Model
T-750AZ
Rated power
50W
Max power
100W
Frequency response
200Hz-15KHz
Sensitivity
110dB
Impedance
Black: COM, White: 8Ω
Speaker unit
2.5 inch tweeter driver × 1
Protection class
IP66
Dimension
282×210×333mm
Weight
2.1Kg
Material
ABS

T-750AZ Horn Speaker

Description
All aluminum alloy structure, stainless steel bracket, wide frequency domain explosion-proof speaker, strong sound penetration and wide coverage.
Specification：
Model
T-720X
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Impedance
Black-COM White-330Ω Green-670Ω
Frequency response
300-13KHz
Sensitivity
102dB±3dB
Waterproof level
IP66
Explosion-proof level
Ex nA llC T6 Gc
Dimension
247×247×290mm
Weight
2.1Kg

T-720X Wide Frequency Explosion-proof Horn Speaker (15W, 30W)

Description
Adopt aluminum alloy shell, high-performance magnets inside, compression drive head. With large sound power output, loud sound, strong penetrating power, wide coverage; Support outdoor IPX6 waterproof, corrosion resistance and aging resistance. It can be used for sound amplification in villages, highways, schools, factories and other places.
Specifications:
Model
T-CT100
Rated power (100V)
100W
Maximum power
200W
Frequency response
80Hz-20KHz
Sensitivity
110dB
Impedance
COM/100Ω
Speaker unit
2.5 inch treble driver head×1
Coverage distance
400m-500m
Waterproof level
IPX6
Dimensions (W * L)
450×460mm
Weight
3.8Kg
Material
Aluminum alloy shell

T-CT100 Waterproof Horn Speaker

Description
All aluminum alloy structure, wide frequency domain waterproof horn, large power, strong sound penetration, wide coverage, suitable for square, railway station, etc.
Specification：
Model
T-720CD
Rated Power(100V)
25W, 50W, 100W
Maximum SPL
134dB±3dB
Maximum Power
200W
Impedance
COM /400Ω/200Ω/100Ω/ 50Ω
Frequency Response (-20dB)
80-20KHz
Sensitivity (1W/1M)
114dB±3dB
Maximum SPL
134dB±3dB
Dimension
485×500mm
Weight
4.6Kg
IP Rate
IP66

T-720CD Weatherproof Horn Speaker

Description
Aluminum structure, strong penetration, suitable for railway station, bus station, large square, etc.
Model
T-710A
Power taps @100V
15W, 30W
Power taps @70V
7.5W, 15W
Impedance
Black: COM White: 330Ω Green: 670Ω
Frequency response
80-20KHz
Sensitivity
113dB±3dB
Dimensions
360 x 165 x 275mm
Weight
3.1Kg
IP rate
IP66

T-710A Weatherproof Horn Speaker

Description
High-grade wide-frequency horn, 2-frequency design, constant resistance, constant voltage and multiple power options, the ideal choice for horn speaker; suitable for railway stations, bus stations, large squares, etc.
Specification：
Model
T-710K
Power Taps @100V
Red : 12.5W, Green: 25W, White: 50W
Power Taps @70V
Red : 6.25W, Green: 12.5W, White: 25W
Impedance
Black: Com 800Ω 400Ω 200Ω
SPL(1W/1M)
99dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
360 x 255 x 315mm
Weight
4Kg

T-710K Weatherproof Horn Speaker (Music Horn)

Description
Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Built-in high-performance 100V audio transformer can reduce the loss caused by impedance in the circuit, with multiple power options and flexible wiring methods.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. U-shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification:
Model
T-750AY
Rated power (100V)
50W
Max power
100W
Frequency response
200Hz-15KHz
Sensitivity
110dB
Impedance
Black: COM, White: 200Ω
Speaker unit
2.5 inch tweeter driver × 1
Protection class
IP66
Dimension (W×D×H)
282×210×333mm
Weight
2.6Kg

T-750AY Horn Speaker

Description
. Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Built-in high-performance 100V audio transformer can reduce the loss caused by impedance in the circuit, with multiple power options and flexible wiring methods.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. Shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification:
Model
T-725AY
Rated power (100V)
25W
Max power
50W
Impedance
Black: COM, White: 400Ω
Frequency response
300-13KHz
Sensitivity
103dB±3dB
Max SPL
117dB±3dB
Protection class
IP66
Dimension (W×D×H)
282×210×280mm
Weight
1.9kg

T-725AY Horn Speaker

Description
Model :T-720G
Rated power (100V):15W, 30W
Rated power (70V):7.5W, 15W
Maximum power:60W
Impedance :Black: COM Green: 670Ω White: 330Ω
Frequency response:300-13KHz
Sensitivity:102dB±3dB
Waterproof protection:IP66
Size :245×245×300mm
Weight :2.4Kg

T-720K Weatherproof Aluminum Horn Speaker

Description
Model :T-720G
Rated power (100V):15W, 30W
Rated power (70V):7.5W, 15W
Maximum power:60W
Impedance :Black: COM Green: 670Ω White: 330Ω
Frequency response:300-13KHz
Sensitivity:102dB±3dB
Waterproof protection :IP66
Size :245×245×300mm
Weight :2.4Kg
All aluminum alloy structure, stainless steel bracket, waterproof protection, wide frequency domain, strong sound penetration, and wide
sound coverage; suitable for squares, railway stations, etc.

Horn Speaker  T-720G

Description
Aluminum alloy housing, wide frequency domain waterproof speaker, strong sound penetration, wide coverage; suitable for squares, railway stations, etc.
Specification:
Model
T-720R
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Impedance
Black-COM White-330Ω Green-670Ω
Frequency response
300-13KHz
Maximum sensitivity
118dB
Sensitivity
102dB±3dB
Protection level
IP66
Dimension
245×245×290mm
Weight
1.9Kg

T-720R Weatherproof Aluminum Horn Speaker (15W-30W )

Description
Waterproof horn, organic resin structure, durable;Sound coverage is wide;Applicable to square, playground, etc.
Specification:
Model
T-720B
Power Taps @100V
7.5W, 15W
Power Taps @70V
3.75W, 7.5W
Impedance
Black: Com White: 1.3KΩ Green: 670Ω
SPL(1W/1M)
103dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
221 x 165 x 235mm
Weight
1.6Kg

T-720B Weatherproof Horn Speaker (7.5W-15W)

Description
Waterproof horn, organic resin structure, durable;Sound coverage is wide;Applicable to square, playground, etc.
Specification:
Model
T-720A
Power Taps @100V
15W, 30W
Power Taps @70V
7.5W, 15W
Impedance
Black: Com Green: 670Ω White: 330Ω
SPL(1W/1M)
103dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
282 x 210 x 290mm
Weight
2.1Kg

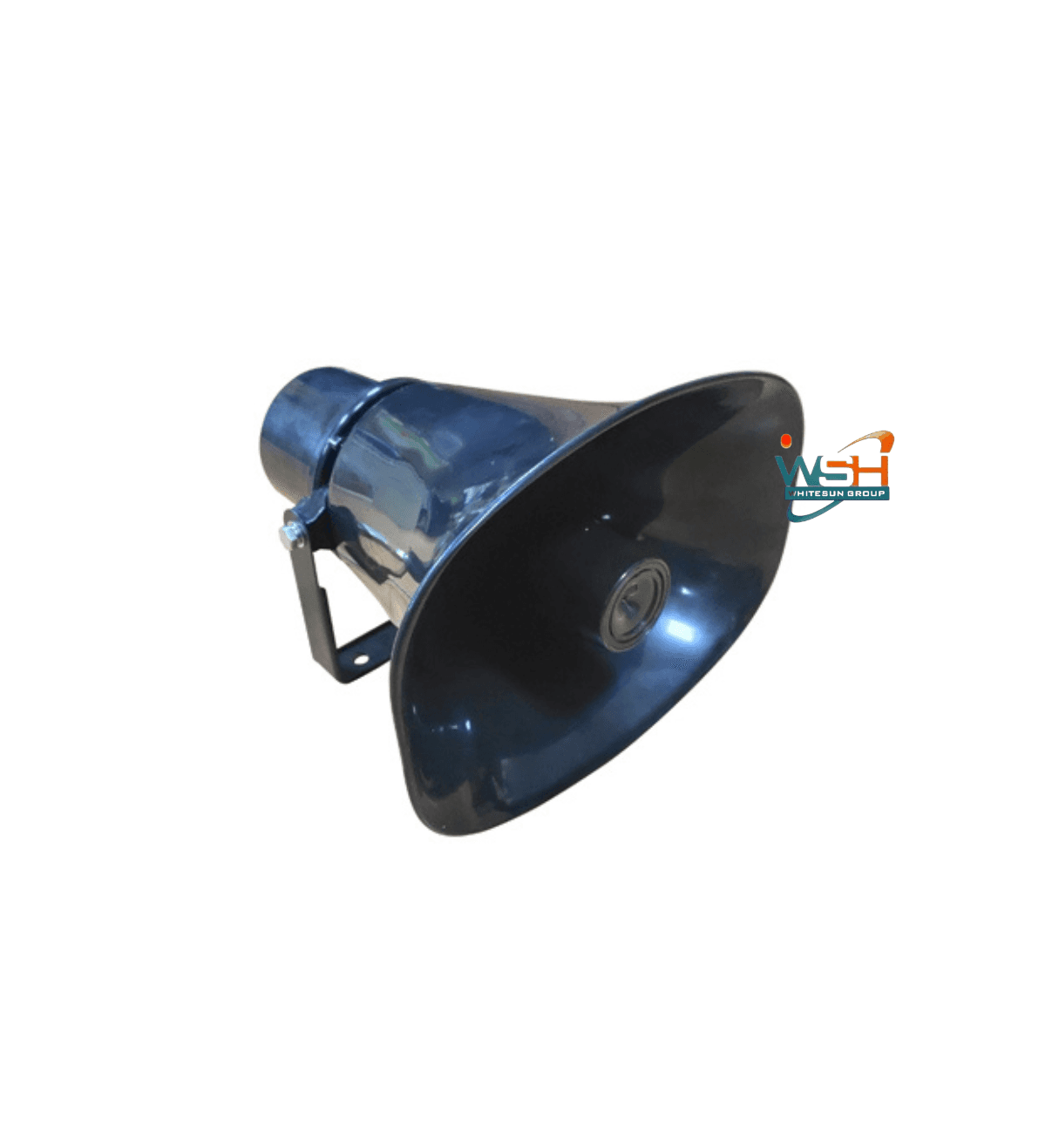

T-720A Weatherproof Horn Speaker (15W-30W )

Description
Model :T-710G
Rated power（100V）:50W
Frequency response:300-8KHz
Sensitivity:108dB ±3dB
Impedance:Black: Com White: 200Ω
Dimension:270×270×340mm
Material:Aluminum
IP level:IP66
Weight:3.8Kg

Horn speaker T-710G

Description
Model
T-710E
Rated Power
10W
Maximum Power
20W
Sensitivity
102dB±3dB
Impedance
Black, white: COM Black: 8Ω
Frequency Response
80Hz -20KHz
Protection Level
IP66
Dimension
130×150mm
Weight
0.5Kg

T-710E Weatherproof Horn Speaker

Description
The T-770T is a dual-directional waterproof projection speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
 The built-in two 6” full range speaker drivers are designed of wide frequency response 110-15kHz, the multiple power taps 5W, 10W &#038; 20W are helpful for different applications varies from room size and ambient noise surroundings.
 The aluminum enclosure and metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Waterproof projector type loudspeaker
2&#215;6” full range speaker unit
IP66 waterproof level
Power taps 5w-10w-20w @100V
Aluminum enclosure and metal bracket
Technical data
Power:20W
Frequency Response:110Hz &#8211; 15 kHz
SPL:92dB ± 2dB
Voltage:100V
Dimensions:172x252mm
Weight:3.3kg

T-770T Dual-directional Projection Loudspeaker

Description
The T-770 is a waterproof projection speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in6”full range speaker driver is designed of wide frequency response 250-14kHz, the multiple power taps 7.5W &#038; 15W are helpful for different applications varies from room size and ambient noise surroundings.
 The aluminum enclosure and metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Waterproof projector type loudspeaker
6” full range speaker unit
IP66 waterproof level
Power taps 7.5w-15w @100V
Aluminum enclosure and metal bracket
Technical data
Power:15W
Power Taps:7,5W
Frequency Response:110Hz &#8211; 14 kHz
SPL:94dB ± 2dB
Voltage:100V
Dimensions:172x315mm
Weight:2.7kg

T-770 Uni-directional Projection Loudspeaker

Description
Indoor wall speakers, wooden structure. The appearance of plastic technology, with
plastic mask, beautiful and generous. Applicable to schools, supermarkets, hotels,
etc.
Material: wooden
Model:T-601B
Rated power:6W
Frequency response:130-14KHz
SPL:92dB±3dB
Impedance:Black: Com Red: 1.7KΩ
Speaker driver:4&#8243;
Dimensions:202×99×271mm
Weight:2.1Kg

Wall mounted Speaker T-601B

Description
. Indoor wall-mounted speaker with unique shape design, streamlined appearance, plastic and metal mesh structure.
. Equipped with a 5-inch woofer and a 1.5-inch tweeter, the sound radiation angle is large, the low frequency is full, and the sound quality is clear.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. The bracket design can be adjusted up, down, left and right, and the up and down angles can be flexibly adjusted to facilitate user operation and installation.
. Suitable for schools, hotels, hotels, corridors, supermarkets, etc.
Specification:
Rated power (100V)
20W，10W
Rated power (70V)
10W，5W
Sensitivity
97dB ±3dB
Max SPL
110dB ±3dB
Impedance
Black: COM Green: 500Ω White: 1KΩ
Frequency response
80Hz -20KHz
Speaker unit
5&#8243;×，1.5&#8243;×1
Dimension
Φ170×187mm
Weight
1.54kg

T-750F Wall Mount Speaker

Description
High-grade wall-mounted speaker, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specifications
Rated power (100V)
60W
Rated power (70V)
30W
Sensitivity
92dB
Impedance
166Ω
Frequency response
60-20kHz
Speaker unit
6&#8243;×1, 1.5&#8243;×1
Dimensions
340×220×225mm
Weight
4.6kg
Color
White
Protection level
IP66

T-776SW Wall Mount Speaker

Description
High-grade wall-mounted speaker, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specifications
Rated power (100V)
60W
Rated power (70V)
30W
Sensitivity
92dB
Impedance
166Ω
Frequency response
60-20kHz
Speaker unit
6&#8243;×1, 1.5&#8243;×1
Dimensions
340×220×225mm
Weight
4.6kg
Color
Black
Protection level
IP66

T-776S Wall Mount Speaker

Description
High-grade outdoor wall-mounted speakers, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specification：
Model
T-774S
Rated power(100V)
30W
Rated power(70V)
15W
Sensitivity
89dB
Impedance
333Ω
Frequency response
80-20KHz
IP rate
IP66
Speaker driver
4&#8243; x 1 1&#8243; x 1
Dimensions
276 x 170 x 170mm
Weight
2.5Kg

T-774SThe High-end Outdoor Radio Speaker

Description
Multiple power options can be selected for the P series, suitable for squares, stations, exhibition halls and other places.
Specification：
Power Taps @100V
5W, 10W, 20W, 40W, 80W
Power Taps @70V
2.5W, 5W, 10W, 20W, 40W
Impedance
Balck: Com Red: 2KΩ/1KΩ/500Ω/250Ω/125Ω/8Ω
SPL(1W/1M)
94dB
Frequency Response (-10dB)
80Hz -20KHz
Speaker Driver
8&#8243; x 1 2&#8243; x 1
Dimensions
380 x 277 x 218mm
Weight
6.2Kg
IP Rate
IP66

T-778PWall Mount Speaker (5W-10W-20W-40W-80W)

Description
Model
T-775PW
Power Taps @100V
3.75W, 7.5W, 15W, 30W
Power Taps @70V
1.9W, 3.75W, 7.5W, 15W, 30W
Transformer Impedance
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω
Input
70V/100V/8Ω
SPL(1W/1M)
92dB
Max. SPL (Rated W/1M)
107dB
Frequency Response (-10dB)
125-18KHz
Finish
Baffle: ABS, Black/White
Grille: Steel, Black/White
Speaker Driver
5&#8243; x 1 1.5&#8243; x 1
Dimensions
243 x 185 x186mm
Weight
2.7kg
Mounting
With mounting bracket fixed by screw

T-775PW Wall Mount Speaker

Description
The T-776 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6”+1.5” two ways speaker driver is designed of wide frequency response 110-15kHz, the RMS 45 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
6” +1.5” two ways speaker unit
RMS 45W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Fashion speaker of white color
Technical data
Power:45W
Frequency Response:130Hz-15kHz
SPL:94dB
Voltage:100V
Dimensions:298x215x215mm
Weight:3,7kg

T-776W 6 Inch Two Way 45W Wall Mount Speaker

Description
The T-774 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 120-15kHz, the RMS 15 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
4” +1.5” two ways speaker unit
RMS 15W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:15W
Frequency Response:120Hz-15kHz
SPL:88dB
Voltage:100V
Dimensions:184x164x246mm
Weight:1,8kg

T-774W 4 Inch Two Way 15W Wall Mount Speaker

Description
The T-776 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6”+1.5” two ways speaker driver is designed of wide frequency response 110-15kHz, the RMS 45 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
6” +1.5” two ways speaker unit
RMS 45W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Fashion speaker of black color
Technical data
Power:45W
Frequency Response:130Hz-15kHz
SPL:94dB
Voltage:100V
Dimensions:298x215x215mm
Weight:3,7kg

T-776 6 Inch Two Way 45W Wall Mount Speaker

Description
The T-775 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5” two ways speaker driver is designed of wide frequency response 130-15kHz, the RMS 30 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
5” +1.5” two ways speaker unit
RMS 30W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:30W
Frequency Response:130Hz-15kHz
SPL:91dB
Voltage:100V
Dimensions:184x164x246mm
Weight:2,4kg

T-775 5 Inch Two Way 30W Wall Mount Speaker

Description
The T-774 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 120-15kHz, the RMS 15 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
4” +1.5” two ways speaker unit
RMS 15W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:15W
Frequency Response:120Hz-15kHz
SPL:88dB
Voltage:100V
Dimensions:184x164x246mm
Weight:1,8kg

T-774 4 Inch Two Way 15W Wall Mount Speaker

Model
T-778H/T-778HW
Power taps @100V
7.5W, 15W, 30W, 60W
Power taps @70V
3.75W, 7.5W, 15W, 30W, 60W
Max power
120W
Input
70V/100V/8Ω
SPL(1W/1M)
89dB
Impedance
1.3KΩ/670KΩ/330KΩ/165Ω/81Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
8&#8243; x 1 2&#8243; x 1
IP rate
IP66
Dimensions
450 x 295 x 290mm
Weight
6.5kg

T-778HW Wall Mount Speaker (7.5W-15W-30W-60W)

Model
T-776H/T-776HW
Power taps @100V
5W, 10W, 20W, 40W
Power taps @70V
2.5W, 5W, 10W, 20W, 40W
Max power
/
Input
70V/100V/8Ω
SPL(1W/1M)
89dB
Impedance
2KΩ/1KΩ/500KΩ/250Ω/125Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
6&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
340 x 220 x 225mm
Weight
2.7kg

T-776HW/T-776HW Wall Mount Speaker (7.5W-15W-30W-60W)

Model
T-775H/T-775HW
Power taps @100V
3.75W, 7.5W, 15W, 30W
Power taps @70V
1.9W, 3.75W, 7.5W, 15W, 30W
Max power
60W
Input
70V/100V/8Ω
SPL(1W/1M)
88dB
Impedance
2.6KΩ/1.3KΩ/670KΩ/330Ω/165Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
5&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
285 x 180 x 186mm
Weight
2.7kg

T-775H/ T-775H Wall Mount Speaker (7.5W-15W-30W-60W)

Description
Indoor high-grade wall-mounted speakers, multi-power fixed resistance and fixed pressure selection, modern sense of arc design, 2 frequency division design, high cost performance, convenient installation. Suitable for hotels, conference halls, etc.
Model
T-774H/T-774HW
Power taps @100V
2.5W, 5W, 10W, 20W
Power taps @70V
1.25W, 2.5W, 5W, 10W, 20W
Max power
40W
Input
70V/100V/8Ω
SPL(1W/1M)
86dB
Impedance
4KΩ/2KΩ/1KΩ/500Ω/250Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
4&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
260 x 170 x 170mm
Weight
2.3kg

T-774H/T-774HW Wall Mount Speaker (7.5W-15W-30W-60W)

Description
It is widely used in various small and medium-sized meeting rooms, banquet halls, hotels, commercial buildings, schools, entertainment and leisure places.
. The housing is made of polystyrene material, which is lightweight. And it is easy to install in various application scenarios.
. The front panel adopts iron mesh decorative panel parts, which is beautiful and elegant.
. Multi-angle adjustment of the mounting bracket, easy to adapt to various application scenarios.
. Adopt 1 5.25-inch mid-woofer unit and 1 25MM silk film tweeter unit.
. 5 fixed constant voltage volume adjustment switch.
. Built-in high-quality linear audio power transformer.
Specification：
Model
T-865CF
Constant Voltage Power@100V
3W,6W,12.5W,25W,50W
Constant Voltage Power@70V
1.5W,3W,6W,12.5W,25W
Peak Power
200W
Max SPL (nominal/peak)
101dB/107dB
Frequency Response
80Hz-20kHz
Sensitivity
84dB +-3dB
Speaker Unit
5.25 inch mid-woofer+25MM tweeter
Dimension
376(W)x202(D)x184(H)mm
Weight
4.1Kg

T-865CF Broadcast Wall-mounted Speaker

Description
. The housing is made of polystyrene material, which is lightweight. And it is easy to install in various application scenarios.
. The front panel adopts iron mesh decorative panel parts, which is beautiful and elegant.
. Multi-angle adjustment of the mounting bracket, easy to adapt to various application scenarios.
. Adopt a 5.25-inch mid-bass unit and a 25MM silk treble unit.
. 5 fixed constant voltage volume adjustment switch.
. Built-in high-quality linear audio power transformer.
. It is widely used in various small and medium-sized meeting rooms, banquet halls, hotels, commercial buildings, schools, entertainment and leisure places.
Specification:
Model
T-865CFB
Rated power (100V)
3W,6W,12.5W,25W,50W，8Ω
Rated power (70V)
1.5W,3W,6W,12.5W,25W，8Ω
Peak power
200W
Maximum SPL (rated/peak)
101dB/107dB
Frequency response
80Hz-20kHz
Sensitivity
84dB+-3dB
Speaker unit
5.25 inch mid-bass + 25MM silk treble
Dimensions (H x W x D)
376x202x184mmmm
Weight
4.1kg

T-865CFB Broadcasting Wall-mounted Speaker

Description
Model
TS-605TB
Resistance
4 Ohm
Frequency response
80Hz-20kHz
Speakers
5.25&#8221; LF; 1&#8221; HF
Nominal power
100W
Sensitivity
86dB+-3dB
Size
225 x 225 x 326mm
Weight
4.2kg

ITC TS-605TB Wall-mounted

Description
. The housing is made of the integral molding of polystyrene material, light in weight and easy to install in various application scenes.
. The front panel adopts iron mesh decorative parts, which is neat and beautiful.
. The mounting bracket supports angle adjustment, convenient for various application scenes.
. Adopt a 5.25-inch mid-woofer unit and a 25mm silk film tweeter unit.
. 5-key fixed switch for constant pressure volume adjustment.
. Built-in high-quality linear audio power transformer.
. Widely used in various small and medium conference rooms, banquet halls, hotels, commercial buildings, schools, entertainment places, etc.
Specification:
Model
TS-605T
Rated power
100W
Peak power
400W
Maximum SPL (rated/peak)
106dB/112dB
Rated impedance
8Ω
Frequency response
80Hz-20kHz
Sensitivity
86dB+-3dB
Speaker
5.25-inch mid-woofer + 25mm silk film tweeter
Size
326×255×252mm
Weight
4.2kg

TS-605T Conference Room Wall-mounted Speaker

The housing is made of the integral molding of polystyrene material, light in weight, and easy to install in various application scenes.
The front panel adopts iron mesh decorative parts, which are neat and beautiful.
The multi-angle adjustable mounting bracket is convenient for various application scenes.
Adopt a 5.25-inch mid-woofer unit and a 25mm silk film tweeter unit.
5-level switch for constant pressure volume adjustment.
Built-in high-quality linear audio power transformer.
Widely used in various small and medium conference rooms, banquet halls, hotels, commercial buildings, schools, entertainment places, etc.
Model	TS-605YB
Rated power	100W
Peak power	400W
Maximum SPL (rated/peak)	106dB/112dB
Rated impedance	8Ω
Frequency response	80Hz-20kHz
Sensitivity	86dB±3dB
Speaker unit	5.25-inch mid-woofer + 25mm silk film tweeter
Dimension	186×163×337mm (W×D×H)
Color	Black
Weight	4.1kg

Wall-mounted Speaker TS-605YB

Description
. The housing is made of the integral molding of polystyrene material, light in weight and easy to install in various application scenes.
. The front panel adopts iron mesh decorative parts, which is neat and beautiful.
. The mounting bracket supports angle adjustment, convenient for various application scenes.
. Adopt a 5.25-inch mid-woofer unit and a 25mm silk film tweeter unit.
. 5-key fixed switch for constant pressure volume adjustment.
. Built-in high-quality linear audio power transformer.
. Widely used in various small and medium conference rooms, banquet halls, hotels, commercial buildings, schools, entertainment places, etc.
Specification:
Model
TS-605Y
Rated power
100W
Peak power
400W
Maximum SPL (rated/peak)
106dB/112dB
Rated impedance
8Ω
Frequency response
80Hz-20kHz
Sensitivity
86dB+-3dB
Speaker
5.25-inch mid-woofer + 25mm silk film tweeter
Size
186×163×337mm (W×D×H)
Weight
4.1kg

TS-605Y Conference Room Wall-mounted Speaker

Description
Model:T-602XW
Rated power(100V):10W, 20W
Max power:40W
SPL:91dB
Impedance:Com/1KΩ/500Ω
Frequency response:100-20KHz
Speaker driver:4&#8243; x 2
Dimensions:440 x 151 x 151/111mm
Weight: 3.3Kg

Wall Mount Speaker T-602XW

Description
Features
. Built-in 100v/70v transformer
. Wall mount type loudspeaker
. 2&#215;4” full range speaker unit
. Power taps 10W-20W @100V
. Wooden enclosure and fabric mask in black
. Easy and fast hook wall mount installation
Description
The T-602X is a wall mount speaker built-in 70v/100v transformer. The
70v/100v transformer technique reduces line losses on longer distance
and allows easy parallel connection of multiple loudspeakers.
The built-in 4” full range speaker driver is designed of wide frequency
response 100-20KHz, the multiple power taps 10W, 20W are helpful for
different applications varies from room size and ambient noise
surroundings.
The wooden enclosure and fabric mask are of black color. Easy and secure wall mount installation through the
supplied mounting hook.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music
and paging is needed.
Model T-602X
Rated Power ( 1 0 0 V ) 10W/20W
Maximum Power 40W
Sensitivity 91dB
Impedance Com/1KΩ/500Ω
Frequency Response 100-20KHz
Speaker unit 4&#8243; x 2
Size 440 x 151 x 151/111mm
Weight 3.3Kg

T-602X Wall Mount Speaker

Description
Full iron structure, built-in safety, double protection speaker unit, suitable for passageways, large shopping malls, etc.
Specification：
Model
TF-700
Power taps @100V
0.75W, 1.5W, 3W, 6W
Power taps @70V
0.37W, 0.75W, 1.5W, 3W
Impedance
Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ
SPL(1W/1M)
91dB ±3dB
Frequency response (-10dB)
80-20KHz
Speaker driver
5&#8243; x 1
Dimensions
245 x 212 x 95mm
Weight
1.9Kg

TF-700 Fireproof Wall Mount Seaker(0.75W-1.5W-3W-6W)

Description
Indoor wall-mounted speakers, elegant appearance, with 4 inch full frequency unit, sound clear and bright. Full wood structure, good sound insulation effect, black and white color optional, suitable for hotels, shopping malls, schools, etc.
Specification:
Model
T-601XW
Rated power(100V)
5W, 10W
Max power
20W
SPL
89dB
Impendence
Com/1KΩ/2 KΩ
Frequency response
80Hz -20KHz
Speaker driver
4&#8243; x 1
Dimensions
244 x 152 x 141/122mm
Weight
2.2Kg

T-601XW Wall Mount Speaker

Description
Key features of this speaker include:
Design: Elegant, indoor wall-mounted design.
Audio: Features a 4-inch full-frequency unit for clear and bright sound.
Construction: Full wood structure, providing good sound insulation.
Applications: Suitable for various settings such as hotels, shopping malls, and schools.
Model
T-601X
Rated power(100V)
5W, 10W
Max power
20W
SPL
89dB
Impendence
Com/1KΩ/2 KΩ
Frequency response
80Hz -20KHz
Speaker driver
4&#8243; x 1
Dimensions
244 x 152 x 141/122mm
Weight
2.2Kg

ITC T-601X wall-mounted speaker.

Description
. White indoor luxury column speaker, one-piece injection molding structure, neat and elegant appearance, full of simplicity and beauty.
. One-piece stamping and forming mesh grille, with acoustic sound-transmitting cotton mesh inside, can prevent damage to the speaker unit by dust and water droplets.
. Equipped with a 4-inch mid-woofer unit and a 2.5-inch tweeter unit, it provides clear and bright sound, extremely transparent and penetrating treble, deep booming and elastic bass, mellow and melodious alto performance.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. Simple wall mounted installation.
. Suitable for schools, supermarkets, hotels, shopping malls, leisure places, etc.
Specification：
Model
T-301K
Rated power (100V)
10W
Rated power (70V)
5W
Sensitivity
89dB±3dB
Max SPL
99dB±3dB
Impedance
Black: COM, Red: 1KΩ
Frequency response
80-20kHz
Speaker unit
4&#8243;×1, 2.5&#8243;×1
Dimension (W×D×H)
147×100×290mm
Weight
1.5kg

T-301K Column Speaker

Description
Unique appearance design, plastic shell, using 2 frequency design, simple suspension, suitable for schools, corridors, supermarkets, etc.
Specification:
Model
T-612
Power taps @100V
2.5W, 5W, 10W
Power taps @70V
1.25W, 2.5W, 5W
Impedance
91dB ±3dB
SPL(1W/1M)
Black: Com Red: 4KΩ/ 2KΩ/ 1KΩ
Frequency response (-10dB)
90-18KHz
Speaker driver
6&#8243;×1 2&#8243;×1
Dimensions
345×240×100mm
Weight
1.7kg

T-612 Wall Mount Loudspeaker (2.5W-5W-10W)

Description
Unique appearance design, plastic shell, using 2 frequency design, simple suspension, suitable for schools, corridors, supermarkets, etc.
Specification:
Model
T-611
Power taps @100V
1.5W, 3W, 6W
Power taps @70V
0.75W, 1.5W, 3W
Impedance
Black: Com Red:6.7 KΩ/3.3 KΩ/1.7KΩ
SPL(1W/1M)
90dB ±3dB
Frequency response (-10dB)
80-20KHz
Speaker driver
5&#8243; x 1 2&#8243; x 1
Dimensions
285 x 200 x 85mm
Weight
1.3Kg

T-611 Wall Mount Loudspeaker (1.5W-3W-6W)

Description
. Indoor wall-mounted speaker with unique shape design, streamlined appearance, one-piece injection molding structure and metal mesh structure.
. 2 frequency division design，equipped with a 6-and-a-half-inch woofer and a 2-and-a-half-inch tweeter, the low frequencies are full and the trebles are clear.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. Simple hanging method facilitates installation.
. Suitable for schools, hotels, hotels, corridors, supermarkets, etc.
Specification:
Rated power (100V)
10W
Rated power (70V)
5W
Sensitivity
91dB ±3dB
Max SPL
101dB ±3dB
Impedance
Black: COM, Red: 1KΩ
Frequency response
130Hz-20kHz
Speaker unit
6.5&#8243;×1，2.5&#8243;×1
Dimension
276(H)×182(W)×103(D)mm
Weight
1.35kg

T-601F Wall Mount Speaker

Description
Model:T-601L
Power taps @100V:0.75W, 1.5W, 3W, 6W
Power taps @70V:0.38W, 0.75W, 1.5W, 3W
Impedance:Black: Com Blue:13.3KΩ Yellow:6.7KΩ White:3.3KΩ Green:1.7KΩ
SPL(1W/1M):92dB
Frequency response (-10dB):100-16KHz
Speaker driver:5&#8243; x 1
Dimensions:200 x 105 x 250mm
Weight:1.9Kg

Wall Mount Speaker T-601L

Description
Indoor wall-mounted speakers, streamlined appearance, large sound radiation angle, full frequency design. Suitable for schools, hotels, supermarkets, etc.
Specification：
Model
T-601
Power taps @100V
3W, 6W, 10W
Power taps @70V
1.5W, 3W, 5W
Impedance
Com/3.3KΩ/1.7KΩ/1KΩ
SPL(1W/1M)
91dB±3dB
Frequency Response (-10dB)
80-20KHz
Speaker Driver
6.5&#8243; x 1
Dimensions
185 x 275 x 105mm
Weight
1.4Kg
IP rate
IP5x

T-601 Wall Mount Speaker

Description
High-grade bedhead speakers, unique appearance, using small caliber speaker unit.The rear cover lock card is easy to install. Applicable to hotels etc.
Specification：
Model
T-103E
Power taps @100V
1.5W, 3W
Power taps @70V
0.75W, 1.5W
Impedance
Black: Com Blue: 6.7 KΩ White: 3.3 KΩ
SPL(1W/1M)
89dB
Frequency response (-10dB)
80-20KHz
Speaker driver
3&#8243;
Dimensions
115 x 60mm
Weight
0.5Kg

T-103E Wall Mount Speaker (1.5W-3W)

Description
This device is a 2*40W active speaker with a unique double-diffusion rectangular inverted tube structure, natural and rich low frequency, and high fidelity overall sound quality. It has a built-in U-band wireless transmission function and can be used with a built-in digital U-band handheld microphone. It has clear sound quality and strong anti-interference ability. It is suitable for multimedia classrooms, ordinary classrooms, conference rooms, training rooms, specialty stores and other places where sound amplification is required.
Features:
. It has 1-channel microphone input interface, 1-channel stereo line input interface and 1-channel line output interface.
. It has output overload, overvoltage and short circuit protection functions.
. It has 1 microphone volume adjustment knob, 1 line input volume adjustment knob, and 2 high and low frequency adjustment knobs.
. Built-in Hi-Fi high-fidelity premium speakers with an integrated electronic crossover, featuring independent amplifiers for bass and treble.
. It has 1-channel 100V broadcast input interface, which takes precedence over the local sound reinforcement signal.
. Built-in digital wireless teaching receiving module, which can connect 1 teaching wireless handheld microphone. Audio transmission adopts microphone wireless audio transmission technology based on U segment. Wireless audio transmission meets the frequency modulation range of 640MHz to 690MHz. It also has automatic frequency scanning and frequency matching technology functions. The whole machine has strong anti-interference ability, ID code audio encryption, stable transmission and low bit error rate.
. The whole machine is equipped with a handheld microphone, which has 1-channel 3.5mm audio interface that can be used to connect to a headset accessory.
. The handheld microphone has an OLED display and physical buttons. The display content includes frequency, volume, microphone status, power level parameters, and has a volume plus button, volume minus button, and power switch button. The physical buttons have clear pressing feedback. The power switch button can be turned on and off by long pressing, and can be muted by short pressing.
. The handheld microphone has two charging methods, including charging via the microphone charging cradle contact and charging via the TYPE-C interface, with a usage time of 8 hours.
. The handheld microphone has an intelligent detection function for the microphone status, and it will automatically shut down if there is no audio input for 40 minutes to save power.
. The infrared frequency matching technology can realize the automatic connection of wireless microphones to the system without crosstalk with other rooms or scenes.
. It has the function of mobile APP control, which can adjust the volume gain, frequency and transmission power, echo settings, reverb settings, equalizer settings, and modify the device Bluetooth name on the mobile terminal.
. With intelligent frequency scanning function, it can automatically select and avoid interference frequency bands.
. With remote upgrade function, it can realize Bluetooth online upgrade.
Specifications:
Rated output power
2× 40 W (including main cabinet and auxiliary cabinet)
Output impedance
4-8Ω
Input sensitivity
AUX IN : 350Mv±20MV/10KΩ , MIC : 5MV±0.5MV
Signal-to-noise ratio
≥70dB
Frequency response
40 ~ 20 KHz (≤±3dB)
Line out
1V
Volume control
1 MIC volume, 1 AUX volume
Harmonic distortion
≤1%
Wireless U segment
Frequency range covers 640MHz~690MHz
Wireless transmission distance
15m
Infrared frequency range
<3m

Wireless microphone usage time
8h

Operating temperature
5℃～40℃

Operating humidity
20%～80% relative humidity, no condensation

Power consumption
≤60W

Supply voltage
~ 220V 50Hz

Speaker size ( L*H*W )
162 × 245 × 223 mm

Microphone size
130*40*18mm

Speaker weight
7.5kg

Microphone weight
0.07kg

T-260HUC Active Speaker

Description:
It suits for those places that need sound reinforcement such as multimedia classroom, conference room, training room, exclusive shop etc.
Features:
. Line input, l mic input.
. Output overload, short circuit protection.
. Output 2 x 25W@4Ωload.
. When mic input, it has silent sound function.
. It is built-in 1 mic volume adjustment, 1 line input sound volume adjustment, 2 high-bass hidden volume adjustment.
. With 100V broadcast input interface, priority over local broadcast.
Model:T-250H
Rated output power:2 x 25W
Impedance:4-8Ω
Input SPL:AUX: 350Mv±20MV; MIC : 5MV ±0.5MV
S/N Ratio:≥70dB
Frequency response:80~16KHz (≤±3dB)
Volume adjustment:1 MIC volume, 1 AUX volume
Harmonic distortion:v≤1%
Operating temperature:5℃~40℃
Operating humidity:20%~80% relative humidity, non-condensing
Power consumption:≤60W
Voltage supply:~220-240V 50/60Hz
Dimension:200 x 210 x 300mm
Weight:6.8Kg

Multimedia Active Speaker T-250H

Description
Indoor active ceiling speaker, using antimagnetic and waterproof speaker unit, built-in volume controller, one in and one out signal input.Adopt new digital power amplifier module, higher efficiency. Applicable to shopping malls, hotels, guesthouses, etc.
Specification:
Model
T-105FP
Rated power
6W
Input
~220V/ 50Hz
SPL(1W/1M)
90dB
Frequency response (-10dB)
80-20KHz
Speaker driver
5&#8243; x 1
Cutout size
165mm
Dimensions
180 x 135mm
Weight
0.9Kg

T-105FP Waterproof Active Ceiling Loudspeaker (6W)

Description
. Support 1 channel microphone, 1 channel stereo line input, 1 channel stereo line output.
. Output overload, overvoltage, short circuit protection.
. With mute function, the microphone has priority over the line input.
. 1 microphone volume adjustment, 1 line input volume adjustment, 2 treble and bass adjustment.
. Built-in HIFI high-fidelity high-end speaker and electronic crossover. Independent amplifier drive for treble and bass .
. With 100V broadcast input interface prior to local broadcast.
Specification:
Model
T-260H
Rated output power
2×25W
Output impedance
4-8Ω
Input sensitivity
AUX IN ：350Mv±20MV/10KΩ；MIC ：5MV±0.5MV
SNR
≥70dB
Frequency response
40Hz~20KHz(≤±3dB)
Line output
1V
Volume adjustment
1 MIC volume, 1 AUX volume
THD
≤1%
Operating temperature
5℃～40℃
Operating humidity
20% to 80% relative humidity, no condensation
Power consumption
≤60W
Supply voltage
~ 220V 50Hz
Dimension（W×H×D）mm
162×240×225
Weight
7.5kg

T-260H Commercial Audio Active Speaker

Description
Active wall-mounted speakers, powerful functions, a variety of port input, non-balanced input to solve the interference of long-distance transmission signal, left and right channel stereo conversion.Powerful and cost-effective, it is an ideal choice for multimedia. Applicable to places with sound reinforcement requirements such as multimedia classrooms, ordinary classrooms, conference rooms, training rooms, specialty stores, etc.
. Multi-channel input function interface: 1 channel stereo balanced input of European terminal, 1 channel stereo 3.5 unbalanced input, left/right channel AUX input, external CD, MP3 and other background music can be connected.
. Built-in main volume independent adjustment and high and low volume adjustment.
. Stereo and single channel parallel input selection control.
. Various displays: power indicator light, left/right channel signal indicator light, etc.
. Built-in high-efficiency digital power amplifier and switching power supply circuit, high efficiency, low power consumption, and low heat generation.
. Wide power supply: 110-240V/50-60Hz.
Specification:
Output Power
25W × 2 @ 8Ω
Input sensitivity
0.35V
Output frequency response
70Hz-20KHz/1W±3dB
THD
≤0.05%@1K
Channel degree of separation
>75dB
S.N. ratio
>85dB
Amplifier
D Class
Indication
Power and channel signal
Protection
Over-temperature protection, overload protection, mute on and off
Treble control
±10dB
Bass control
±10dB
Input connector
European terminal balance, lotus seat, stereo 3.5 jack
AC power supply
~110-240V 50Hz~60Hz
Dimensions(LxWxH)
216 ×245 ×295mm
Net weight
7.5kg (per pair)

T-776A Active Wall Mount Speaker (Black in Pair, 2×25W)

Description
Active wall-mounted speakers, powerful functions, a variety of port input, non-balanced input to solve the interference of long-distance transmission signal, left and right channel stereo conversion.Powerful and cost-effective, it is an ideal choice for multimedia. Applicable to places with sound reinforcement requirements such as multimedia classrooms, ordinary classrooms, conference rooms, training rooms, specialty stores, etc.
. Multi-channel input function interface: 1 channel stereo balanced input of European terminal, 1 channel stereo 3.5 unbalanced input, left/right channel AUX input, external CD, MP3 and other background music can be connected.
. Built-in main volume independent adjustment and high and low volume adjustment.
. Stereo and single channel parallel input selection control.
. Various displays: power indicator light, left/right channel signal indicator light, etc.
. Built-in high-efficiency digital power amplifier and switching power supply circuit, high efficiency, low power consumption, and low heat generation.
. Wide power supply: 110-240V/50-60Hz.
Specification:
Output Power
20W × 2 @ 8Ω
Input sensitivity
0.35V
Output frequency response
80Hz-16KHz/1W±3dB
THD
≤0.05%@1K
Channel degree of separation
>75dB
S.N. ratio
>85dB
Amplifier
D Class
Indication
Power and channel signal
Protection
Over-temperature protection, overload protection, mute on and off
Treble control
±10dB
Bass control
±10dB
Input connector
European terminal balance, lotus seat, stereo 3.5 jack
AC power supply
~110-240V 50Hz~60Hz
Dimensions(LxWxH)
183×200×240mm
Net weight
5.2kg(per pair)

T-775A Active Wall Mounted Speaker

Description
1.Indoor strong directional speaker, unique appearance design, composed of ABS shell, aluminum mesh and metal iron bracket structure.
 2.The speaker adopts 6-inch full-range speaker unit design, with large sound radiation angle, full low frequency and clear sound quality.
3.Built-in high-performance copper wire audio transformer, which can reduce the loss caused by impedance in the circuit, and multiple power options. 4.The up and down angles can be flexibly adjusted to facilitate user operation and installation.
5.EN54 certificated by CNPOB LAB, Poland
Specification：
Model
VA-770E
Power Taps@100V
7.5W,15W
Impedance
Black:COM,White:1.3KΩ,Green:670Ω
Maximum SPL
112dB ±3dB
Sensitivity
100dB ±3dB
Freq Response
150-14KHz
Coverage angle 500Hz
360°
Coverage angle 1KHz
170°
Coverage angle 2KHz
95°
Coverage angle 4KHz
60°
Dimensions
170×170×270 mm
Weight
1.37 Kg
Speaker unit
6&#8243;

VA-770E Projection Speaker

Description
Model
VA-585
Power Taps @100V
15W, 7.5W, 3.75W, 1.87W, 0.93W
Power Taps @70V
7.5W, 3.75W, 1.87W, 0.93W, 0.46W
Impedance
Com/670Ω/1300Ω/2600Ω/5300Ω/8950Ω
SPL
92dB
Frequency Response (-10dB)
80-20KHz
Finish
Baffle: Steel, White
Grille: Steel, White Cover: Steel, Red
Speaker Driver
8&#8243; x 1 1.5”*1
Cutout Size
240mm
Dimension
270 x 152mm
Weight
1.7Kg

VA-585 Fireproof Ceiling Speaker

Description
Model
VA-565
Power Taps @100V
6W, 3W, 1.5W, 0.75W, 0.38W
Power Taps @70V
3W, 1.5W, 0.75W, 0.38W, 0.19W
Impedance
Com/1240Ω/1840Ω/3340Ω/6790Ω/13300Ω
SPL
92dB
Frequency Response (-10dB)
130-18KHz
Finish
Baffle: Steel, White
Grille: Steel, White Cover: Steel, Red
Speaker Driver
5&#8243; x 1
Cutout Size
157mm
Dimension
180 x 147mm
Weight
1.2Kg

VA-565 Fireproof Ceiling Speaker

Description
Model
VA-106
Rated power(100V)
1.5W, 3W, 6W
Rated power(70V)
1.5W, 3W, 4.5W
Impedance
Black: Com Red: 6.7KΩ/
Green: 3.3KΩ/ White: 1.7KΩ
Sensitive(1W/1M)
92dB
Max sentitive(W/1M)
106dB
Frequency response(-10dB)
110-18KHz
Drive unit
6&#8243;×1
Cutout size
220mm
Dimension(mm)
246×66mm
Weight
1kg

VA-106 Ceiling Speaker

Description
Model
VA-105
Rated power(100V)
1.5W, 3W, 6W
Rated power(70V)
0.75W, 1.5W, 3W
Impedance
Black: Com Red: 6.7KΩ/
Green: 3.3KΩ/ White: 1.7KΩ
Sensitive(1W/1M)
92dB
Max sentitive(W/1M)
102dB
Frequency response(-10dB)
110-18KHz
Dirve unit
5&#8243;×1
Cutout size
170mm
Dimension(mm)
200×55mm
Weight
0.8kg

VA-105 Ceiling Speaker

Description
Model
VA-104
Rated power(100V)
1.5W, 3W, 6W
Rated power(70V)
0.75W, 1.5W, 3W
Impedance
Black: Com Red: 6.7KΩ/
Green: 3.3KΩ/ White: 1.7KΩ
Sensitive(1W/1M)
92dB
Max sentitive(W/1M)
99dB
Frequency response(-10dB)
130-16KHz
Dirve unit
4&#8243;×1
Cutout size
155mm
Dimension(mm)
180×50mm
Weight
0.7kg

VA-104  Ceiling Speaker

Description
Multi-power flflame retardant fifireproof ceiling speaker. With temperature switch, 2-frequency coaxial design, clear and full sound. It is the ideal choice for fifireproof ceiling speakers. Applicable to shopping malls, supermarkets, hotels, etc.
Specification：
Model
T-585
Rated power (100V)
0.93W, 1.87W, 3.75W, 7.5W, 15W
Rated power (70V)
0.46W, 0.93W, 1.87W, 3.75W, 7.5W
Maximum sensitivity
105dB
Sensitivity
93dB
Impedance
Com / 10.7KΩ/ 5.3KΩ/ 2.6KΩ/1.3KΩ/ 670Ω
Frequency response (-10dB)
80-20KHz
Speaker unit
8&#8243;×1, 1.5&#8243;×1
Hole dimensions
φ240mm
Dimensions
270×130mm
Weight
1.7Kg

T-585 Fireproof Ceiling Speaker

Description
. Flame retardant fireproof ceiling speaker (multiple power options); built-in temperature safety switch.
. Clear and powerful sound, your ideal choice for EVAC PA systems.
. Suitable for shopping malls, supermarkets, hotels, etc.
Specification：
Model
T-565
Rated power (100V)
0.38W, 0.75W, 1.5W, 3W, 6W
Rated power (70V)
0.19W, 0.38W, 0.75W, 1.5W, 3W
Maximum sensitivity
100dB
Sensitivity
92dB
Impedance
Com/ 26KΩ/ 13KΩ/ 6.7KΩ/ 3.3KΩ/ 1.7KΩ
Frequency response (-10dB)
80-20KHz
Speaker unit
5&#8243;×1
Installation opening size
φ162mm
Size
180×125mm
Weight
1.2Kg

T-565 Fireproof Ceiling Speaker

Features
Fireproof ceiling speaker, ceramic connector, fuse and flame retardant cable, output
6W, 100V;All iron design fireproof back cover, spring clip installation is easy and
quick, excellent response to background music and sound information.
Model :T-505
Rated power(100V):6W
Rated power(70V):3W
Impedance:Com / 1.7KΩ
SPL:90dB
Frequency response :110-18KHz
Speaker driver:5&#8243;×1
Cutout size:170mm
Dimensions:200*120mm
Weight:0.9Kg
Installation:spring clip

T-505 Ceiling Speaker

Description
The T-105CA is a coaxial fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
 The built-in 5”+1.5&#8243; coaxial speaker driver is designed of wide frequency response 110-16kHz, the multiple power taps 3W &#038; 6W are helpful for different applications varies from room size and ambient noise surroundings. The aluminum grille, metal baffle and fire dome are painted in attractive white color and a fire dome metal can is supplied. Its spring clamp makes the easy and secure installation.
 It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
 Fireproof design features of this speaker include ceramic terminal, thermal fuse, fire dome and fire-resistant cable.
Model
T-105CA
Power Taps @100V
3W, 6W
Power Taps @70V
1.5W, 3W
Impedance
Com/3.3KΩ/1.7KΩ
SPL(1W/1M)
96dB
Max. SPL (Rated W/1M)
104dB
Frequency Response (-10dB)
110-18KHz
Finish
Baffle, Grille: Steel, White Cover: Steel, Color Plating
Speaker Driver
5&#8243; x 1 1.5&#8243; x 1
Cutout Size
170mm
Dimensions
200 x 110mm
Weight
1Kg
Mounting
Spring-clip

ITC Audio T-105CA

Description
Indoor full audio ceiling speaker with flame retardant iron back cover, fireproof design. Spring presser foot system, convenient for users to install. Applicable to: fire, shops, supermarkets, hotels, etc.
Specification：
Model
T-105C
Power Taps @100V
3W, 6W
Power Taps @70V
1.5W, 3W
Impedance
Com/3.3KΩ/1.7KΩ
SPL(1W/1M)
90dB
Max. SPL (Rated W/1M)
98dB
Frequency Response (-10dB)
80-20KHz
Speaker Driver
5&#8243; x 1
Fire test
Needle flame
Cutout Size
170mm
Dimensions
200 x 120mm
Weight
0.9Kg

T-105C Fireproof Ceiling Speaker

Description
. 4&#8221; fireproof version ceiling speaker
. Built-in 100V &#038; 70V transformer
. Ceramic connector, thermal use and fire-resistant cable
. 3W-6W at 100v output
. Metal enclosure, aluminum grille with fire dome
. Fast installation by spring clip
. Excellent response for background music and voice message
. EN54-24 certification is under taken
. Painted in white color
The T-104C is a fireproof ceiling speaker built-in 70v/100v transformer.
The 70v/100v transformer technique reduces line losses on longer
distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4” full range high temperature resistant speaker driver is designed of wide frequency response 110-13kHz,
the multiple power taps 3W &#038; 6W are helpful for different applications varies from room size and ambient noise
surroundings. The metal enclosure, aluminum grille with fire dom all are painted in attractive white color and a fire
dome metal can is supplied. Its spring clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where voice alarm
system is needed.
Fireproof design features of this speaker include ceramic terminal, thermal fuse, metal back can and fire-resistant
cable.
Model T-104C
Power Taps @100V 3W, 6W
Power Taps @70V 1.5W, 3W
Impedance Com/3.3KΩ/1.7KΩ
SPL(1W/1M) 89dB
Max. SPL (Rated W/1M) 97dB
Frequency Response (-10dB) 110-16KHz
Finish Baffle, Grille: Steel, White Cover: Steel, Color Plating
Speaker Driver 4&#8243; x 1
Cutout Size 155mm
Dimensions 180 x 106mm
Weight 0.9Kg
Mounting Spring-clip

T-104C 4" Fireproof Ceiling Loudspeaker (3W-6W)

Description
. Flame retardant fireproof ceiling speaker (multiple power options); built-in temperature safety switch.
. Clear and powerful sound, your ideal choice for EVAC PA systems.
. Suitable for shopping malls, supermarkets, hotels, etc.
Specification：
Model
T-565
Rated power (100V)
0.38W, 0.75W, 1.5W, 3W, 6W
Rated power (70V)
0.19W, 0.38W, 0.75W, 1.5W, 3W
Maximum sensitivity
100dB
Sensitivity
92dB
Impedance
Com/ 26KΩ/ 13KΩ/ 6.7KΩ/ 3.3KΩ/ 1.7KΩ
Frequency response (-10dB)
80-20KHz
Speaker unit
5&#8243;×1
Installation opening size
φ162mm
Size
180×125mm
Weight
1.2Kg

Description
. Low impedance 8Ωinput ceiling loudspeaker
. 8” +1.5” coaxial fiber speaker unit
. Hi-fi level speaker for home use
. RMS 30W and MAX 60W power output
. Built-in crossover
. Metal grille &#038; ABS baffle
. Paint in white color
. Flush mount secure installation
The T-208F is a low impedance 8Ω input ceiling mount speaker, it is
built-in 8”+1.5” coaxial fiber speaker driver and a crossover is equipped
to achieve hi-fi level sound performance of frequency response
60-18kHz, and the RMS 30W and MAX 60W power output are suitable for foreground and background music system.
The metal grille and ABS baffle are painted in attractive white color. Its flush mount type makes the easy and secure
installation.
The hi-fi sound quality and excellent frequency response make it is ideal choice for residential and commercial
applications in hotel, school, office and factory where background music and paging is needed.
Specification
Model T-208F
Rated Power 30W
Max Power 60W
Impedance Black: Com Red: 8Ω
SPL(1W/1M) 92dB
Max. SPL (Rated W/1M) 108dB
Frequency Response (-10dB) 60-18KHz
Finish Baffle: ABS, White Grille: Steel, White
Speaker Driver 8&#8243; x 1 1.5&#8243; x 1
Cutout Size 248mm
Dimensions 280 x 100mm
Weight 1.8Kg
Mounting Flush-mount dog ears

T-208F Hi-fi Ceiling Speaker(Coaxial Constant Impedance)

Features
. Built-in 100v/70v transformer
. Surface Mount ceiling type loudspeaker
. 4” speaker unit
. Power taps 3W @100V
. ABS grille, ABS baffle and ABS back cover
Description
The T-105T is a ceiling speaker built-in 70v/100v transformer. The
70v/100v transformer technique reduces line losses on longer distance
and allows easy parallel connection of multiple loudspeakers.
The built-in 4” speaker driver is designed of wide frequency response
110-16kHz, power output is 3 watts. The ABS grille, ABS baffle and ABS
back cover are in attractive white color.
The surface mount type is designed for some special application where cutting hole in roof is impossible, so the
speaker needs to be directly mounted to the surface of the roof.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music
and paging is needed.
Model T-105T
Power Taps @100V 3W
Power Taps @70V 1.5W
Impedance Black: Com Red: 3.3KΩ
SPL(1W/1M) 92dB
Max.SPL (Rated W/1M) 97dB
Frequency Response (-10dB) 110-16KHz
Finish Baffle: ABS, White Grille: ABSl, White
Speaker Driver 4&#8243; ×1
Dimensions 180×70mm
Weight 0.6Kg
Mounting Fixed by screw

T-105T Surface Mount Ceiling Speaker

Description
Suitable for hotels, shopping malls, supermarkets, leisure and entertainment places and background music system applications.
Specification
Rated power (100V):1.5W, 3W, 6W
Rated power (70V):0.75W,1.5W,3W
Impedance:Black: COM Red: 6.7KΩ/Green: 3.3KΩ/White: 1.7KΩ
Frequency response (-10dB):80-18kHz
Sensitivity (±3dB):89dB
Maximum sound pressure level (rated/peak):97dB/103dB
Speaker unit:5&#8243;×1
Installation opening size:145mm
Dimension:172×80mm
weight:0.75kg

Ceiling Speaker PT-05U

Description
. Composed of a 8-inch subwoofer and a 1-inch rotatable dome tweeter.
. With a coaxial 2-way design, the precisely engineered crossover optimizes the response of the vocal section.
. The tweeter and subwoofer are designed with an inclined angle, which effectively solves the problem of insufficient high-frequency directivity and facilitates on-site debugging for users.
. Using injection molded PP diaphragm to achieve high-fidelity reproduction of human voice.
. Frameless magnetic mesh cover design.
. Built-in adjustable directional tweeter.
. Suitable for use in indoor places such as high-end conference rooms, hotels and clubs.
Specification:
Model
TS-208M
Speaker type
Ceiling speaker
Rated power
100W
Maximum power
200W
Nominal impedance
8Ω
Frequency range (-10dB)
55Hz-20kHz
Sensitivity (1M/1W)
93dB±3dB
Maximum SPL
116dB±3dB
Coverage angle (-6dB)
0-120°
Subwoofer
8-inch subwoofer×1
Tweeter
1-inch tweeter×1
Net weight
2.8kg
Dimension (H×W)
145×277mm
Opening size
248mm

TS-208M Ceiling Speaker

Description
. Composed of a 6.5-inch subwoofer and a 1-inch rotatable dome tweeter.
. With a coaxial 2-way design, the precisely engineered crossover optimizes the response of the vocal section.
. The tweeter and subwoofer are designed with an inclined angle, which effectively solves the problem of insufficient high-frequency directivity and facilitates on-site debugging for users.
. Using injection molded PP diaphragm to achieve high-fidelity reproduction of human voice.
. Frameless magnetic mesh cover design.
. Built-in adjustable directional tweeter.
. Suitable for use in indoor places such as high-end conference rooms, hotels and clubs.
Specification：
Model
TS-206M
Speaker type
Ceiling speaker
Rated power
50W
Maximum power
100W
Nominal impedance
8Ω
Frequency range (-10dB)
60Hz-20kHz
Sensitivity (1M/1W)
91dB±3dB
Maximum SPL
111dB
Coverage angle (-6dB)
0-120°
Subwoofer
6.5-inch subwoofer×1
Tweeter
1-inch tweeter×1
Net weight
1.7kg
Dimension (H×W)
141×237mm
Opening size
210mm

T-750AY Horn Speaker

Product Description

Similar Products

T-804H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

T-802H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

T-904B Outdoor Column Speaker (20W-40W)

T-904B Outdoor Column Speaker (20W-40W)

T-903B Outdoor Column Speaker (15W-30W)

T-902B Outdoor Column Speaker (5W-10W)

T-303 30W 4 Inch PA System Indoor Column Speaker

T-302 Indoor Column Speaker

T-301 Indoor Column Speaker

T-702H Outdoor Column Loudspeaker

T-704A Outdoor Column Speaker( 20W-40W)

T-703A Outdoor Column Speaker
