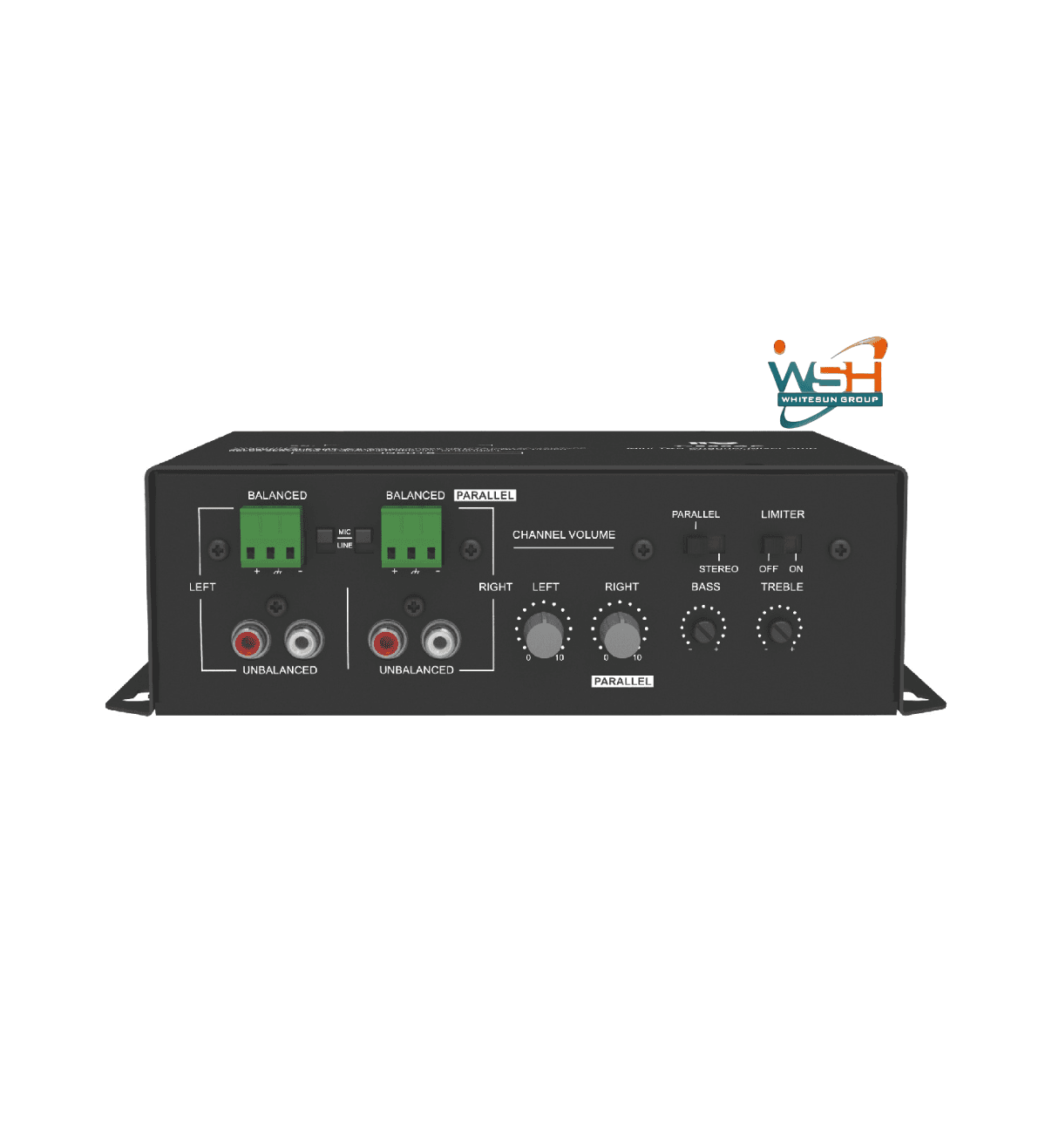

Description

Compact size for tabletop or wall mounted design.
Digital high efficiency mini amplifier.
Stereo output 60 watts by two channels and parallel output 120 watts.
2 Mic/line switchable inputs by phoenix connectors and 2 unbalanced aux inputs by dual RCA type.
Left and right master volume controls over Mic and music , bass and treble tone controls.
Left and right channel outputs by phoenix connector , parallel or stereo output two options with switch.
Speaker stereo outputs at 4Ω / 8Ω and speaker parallel output at 8Ω.
Built-in limiter for low noise and efficient operation, with limiter on/off switch, which make it suitable for laptop and iphone input.

Specifications:
Model
T-260AP

Rated Power Output
2 x 60W (THD10% @ 4Ω1KHz)

Speaker Outputs
4Ω or 8Ω

Input
2 AUX inputs by RCA and 2 MIC/Line inputs by phoenix connectors

LINE
350mV/10KΩ

MIC Input
5mV/600Ω

Frequency Response
50Hz~18KHz (±2dB)

S/N Ratio(line) Better than 85dB

THD
Less than 0.5% at 1KHz, 1/3 rated power

Efficiency
85%

Controls
Power switch, volume control Indicators

Power Protection
AC fuse, clipping, high temp & short-circuit

Power Supply
~110V-230V 50/60Hz

Dimensions
230 x 115 x 57mm

Finish
Panel: steel, black
Case: SPCC Panel
