Product Description
Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.

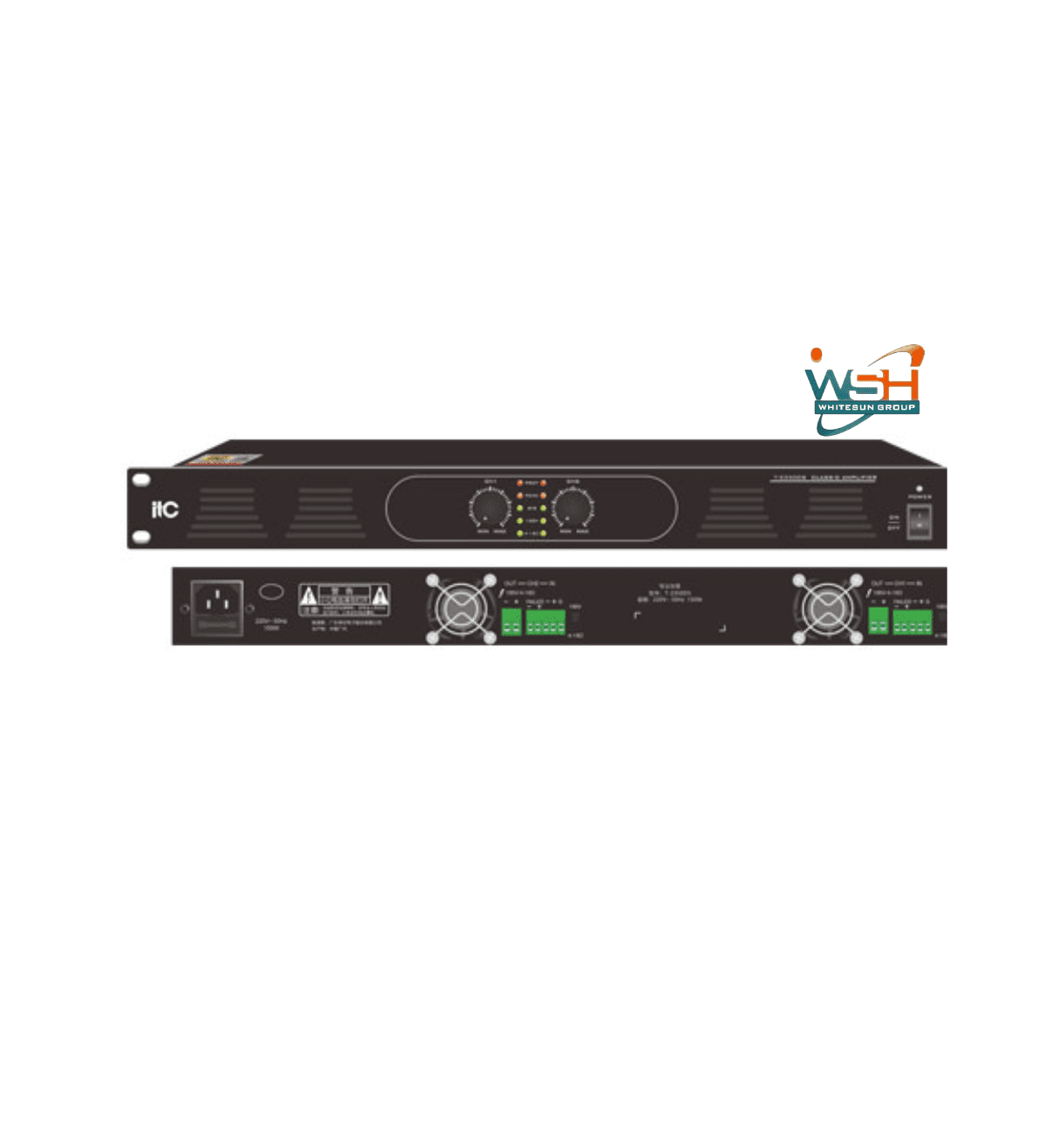

1U standard 19-inch industrial chassis design.
Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
Without transformer output 100V and can switch constant resistance 4-16Ω output.
The fault output function can remotely monitor the working state of amplifier.
The product has short circuit, overload and overheat protection.
Support 2-channel independent power supply function.
85% high-efficiency amplifier with low power loss and heat output.
2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
Model
T-2500DS
Rated Power Output
2×500W
Rated Output
100V/4-16Ω
Input Sensitivity (impedance)
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
1250W
Dimension
484×300×44mm
Weight
4.7Kg
