Product Description
Description:
The amplifier adopts high class D amplifier circuit, with built in high-efficient power switch which enhances the efficiency up to 85%.
The product uses reasonable dissipation layout, which makes the amplifier can keep less than 55℃ even at severe working conditions, thus largely expanding its life span.

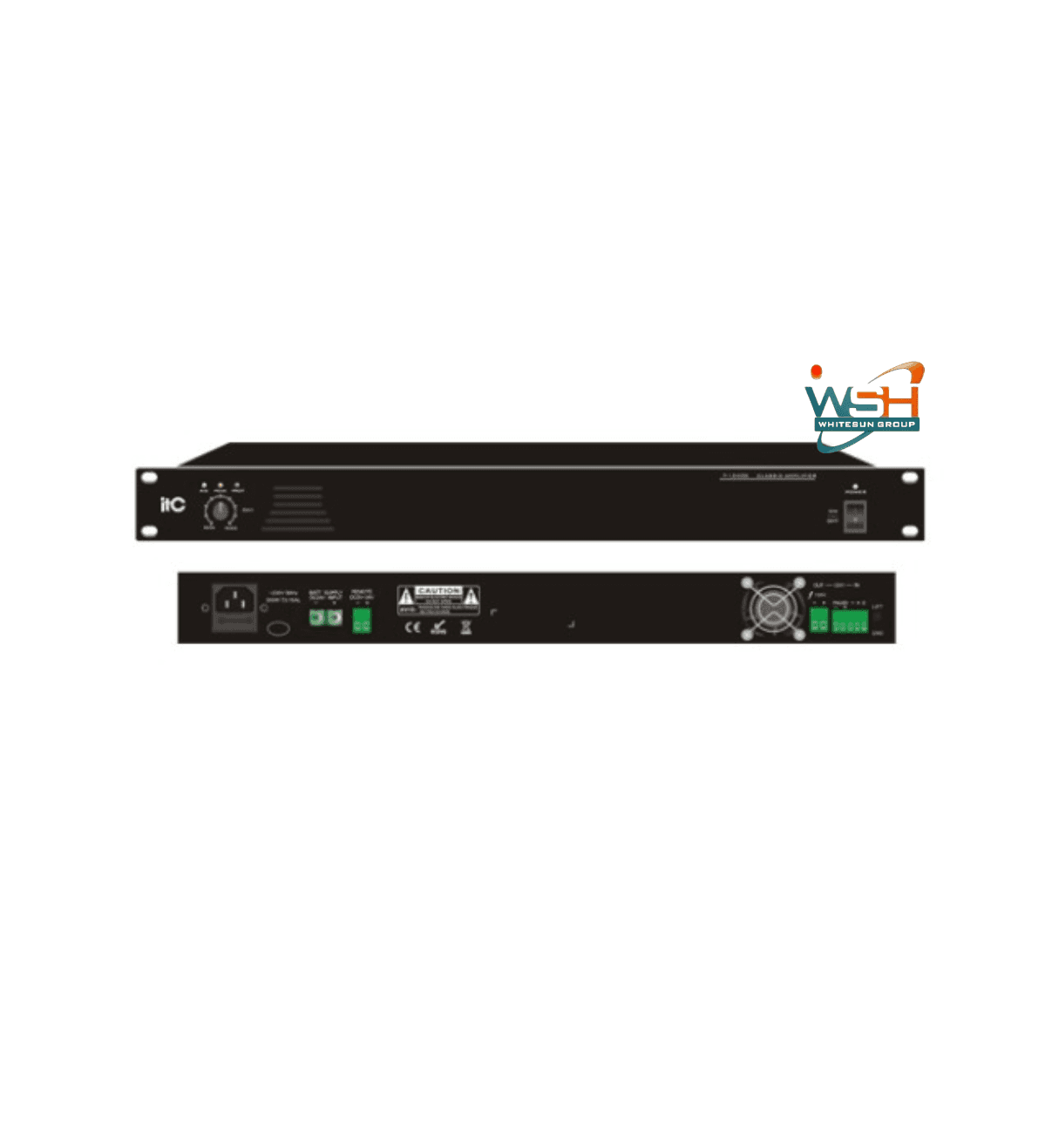

The amplifier is designed with rack mount in 1 U height and 19 inches.
The rear panel provides with 1 channels 100V output terminal wiring speaker, a phoenix interface for remote control and monitoring equipment working condition.
Extensive protection includes high temp, overload and short-circuit.
Features:
. 1 channel class D digital power amplifier, 1 independent channel without transformer output is 100V.
. The rear panel is equipped with a “ground” line suspension switch, which effectively eliminates the loop noise caused by the connection of the “ground” lines of multiple equipment signals.
. 85% high efficiency amplifier, low power loss, low heat.
. 1 channel European terminal balanced input, 1 channel European terminal output.
. Remote control of power-on function: remotely turn on the power of the machine, and disconnect the power of the machine when both functions are turned off at the same time.
. Fault output function, remote monitoring power amplifier working state.
. 1 channel independent 24V standby power inverter function, power amplifier with voltage limit, short circuit, overload, overheat protection.
. AC 110V or 230V and DC 24V optional.
Rated power output
240W
Controls
Remote power control and fault indicator
Indicators
signal, peak, protection, power
Protection
high temp, speaker DC output ,overload and short-circuit
Cooling
Forced cooling
Power Consumption
300W
Power Supply
~110-230V 50/60Hz
Dimensions
484 x 350 x 44mm
Weight
3.9Kg
