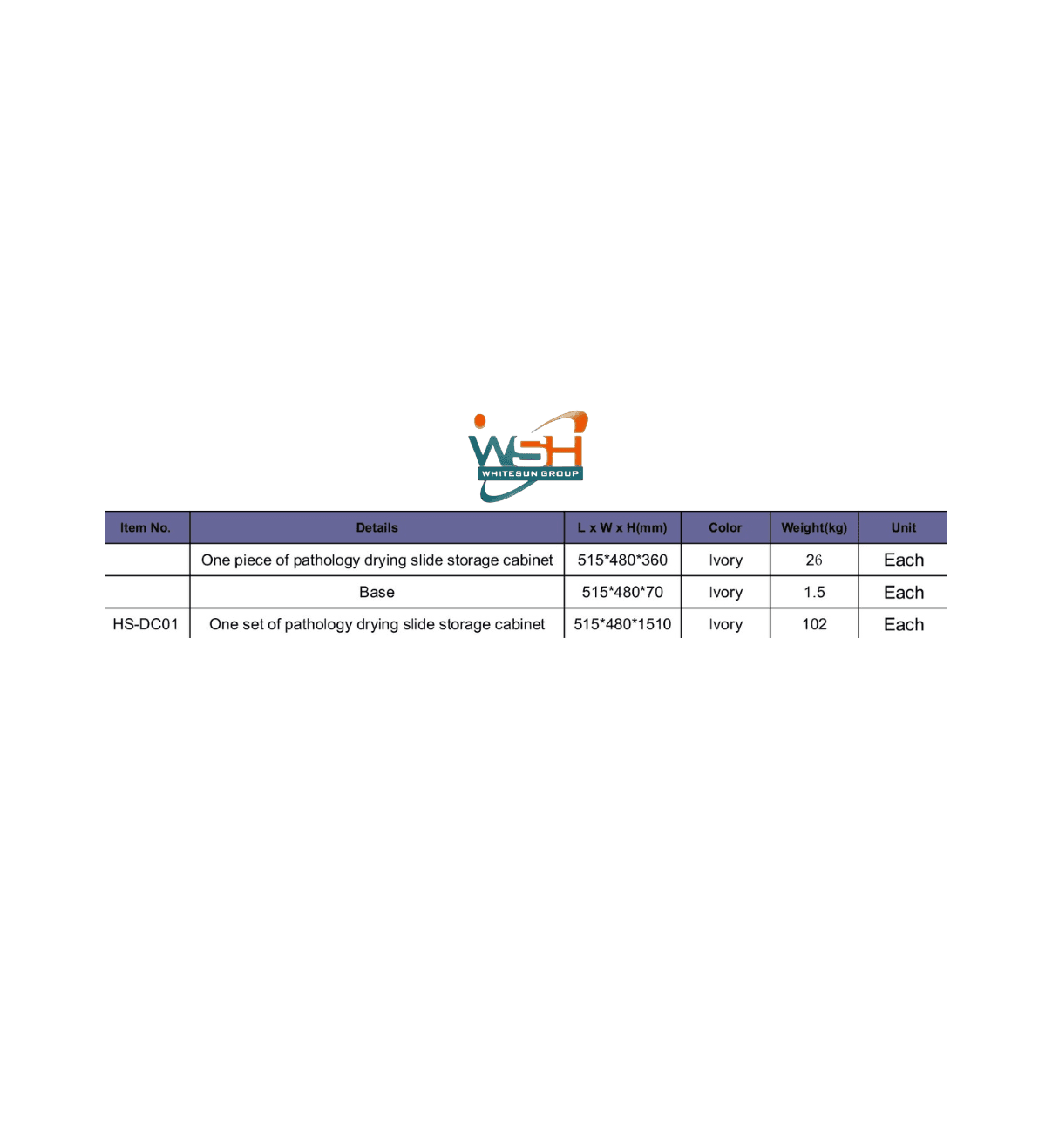

Pathology Drying Slide Storage Cabinet No.: HS-DC01

Description

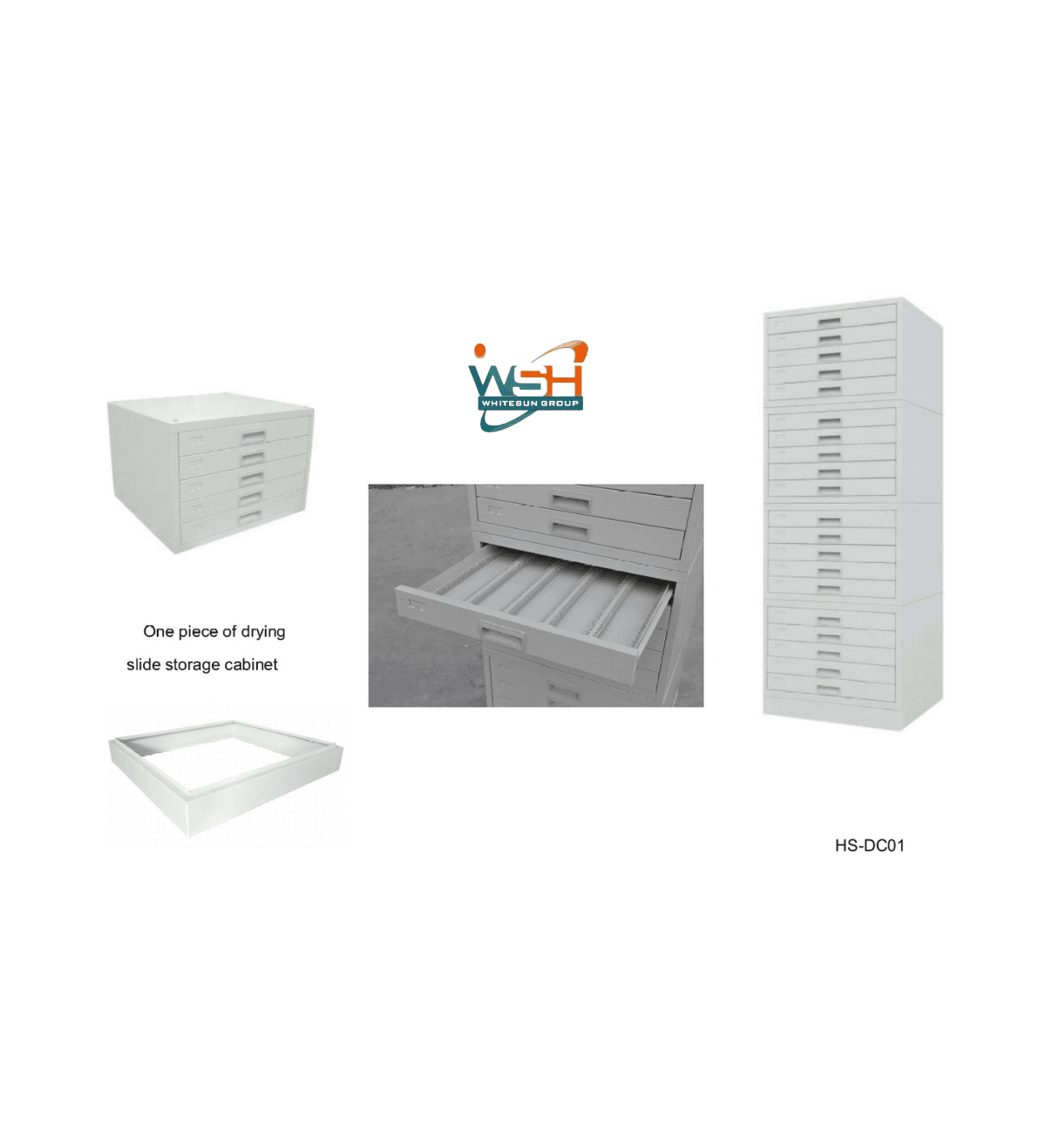

1. Four pieces and a base combine one set of slide storage cabinet
2. Outer dimension：515*480*1510 mm
3. Capacity: each of the 4 pieces cabinet holds approximately 3150 pcs slides with a total capacity
of 12600pcs slides per set. (if put 1 slide in each Card slots, the total capacity of each set are
6300pcs ).
4. It has the same dimension with our pathology slide storage cabinet, pathology paraffin wax storage cabinet. So they could be stacked up，saving much space and looked elegant.
5. Material：cold-rolled steel sheet with 0.8 mm thickness.
6. Surface treatment：automatic electrostatic powder coating.
7. Inner structure：each piece has 5 drawers，each drawer is divided into 5 grooves，each groove
is designed very exquisite. And the slices can be hold up-right. Thus, they will be dried easily in a
ventilated environment.
8. The drawer could be pulled out smoothly and steadily, it has automatic homing feature, which
could prevent the drawers from falling down accidentally.
9. There’s a card slot location for each drawer, so the contents of each drawer could be easily
identified.
10. With high elastic shock absorption mat, reduce collisions with cabinet put oneself in another’s
position to close the drawer, reduce the noise to the minimum.
11. On the top of each cabinet has securing snaps. So they could stack up one by one, saving
space and more steadier.
12. Net weight:65.5kg
13.dimensions of Cabinet:480*515*1510mm

Package Info:
Each instrument packed Wooden Case,
Dimensions:1000*540*950mm
Gross Weight:106 kg
