C arm x-ray machine Mobile high frequency digital x-ray machine MSLCX50

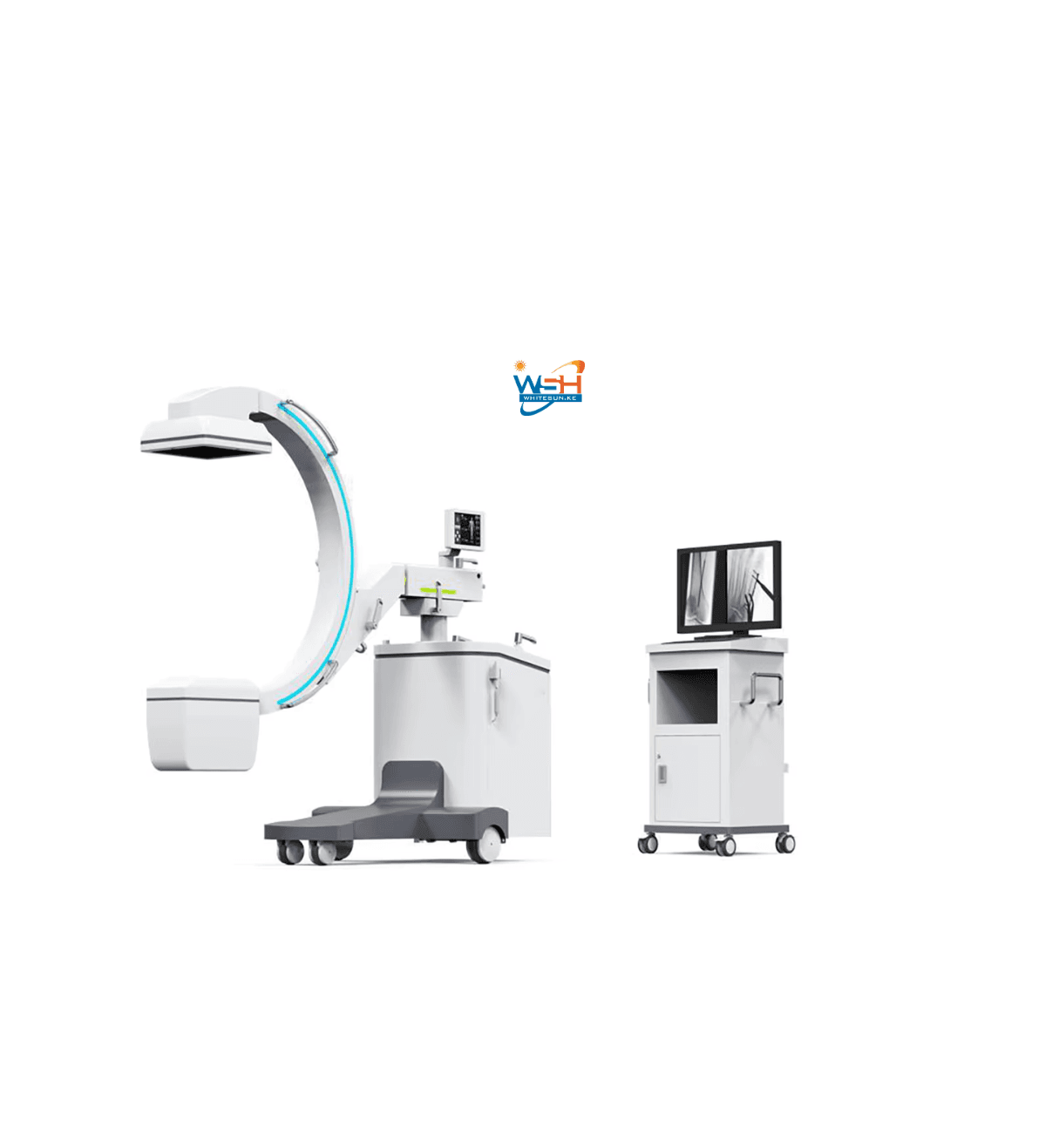

C Arm Imaging System X ray machine MSLCX50

New senies have super HD digital image chain technology, leading to more clear bone and soft fssue definitin, more accurate positioning, more convenient surgery and more safe patient. This type of equipment can be used in perspective diagnosis and treatment in normal surgery of hospital departments like traumatic orthopedics,general surgery, traumatology pain, spine surgery and gastroenterology etc, and will bring new operation expenience for doctors.

“C” the Future

• Streamlined surface, the self- balanced pathwayis more reliable, with more convenient operation.
• It has ultra-large motion range, withe 360″in rotation, to meet all projection needs on clinic. .
• It has silent motion mode, with the whole machine flexible to be moved freely in the surgery room.

c arm machine Product Description

c arm machine Specification

1.1	High frequency inverter power supply and combined tube
1.2	Power 5.6kW
1.3	Focus size: 0.6mm( small focus )/1.2mm( large focus )
1.4	Heat capacity of tube cover: 480kJ ( 648kHU )
1.5	Anode heat capacity: 60kJ(81kHU)
1.6	Inverter frequency: ≥200kHz

2.1	The system has a color human body graphic LCD touch screen, real-time adjustment of exposure parameters
2.2	Tube voltage: 40-120kV
2.3	Maximum tube current: 10mA( continuous perspective ); 50mA( pulse perspective)
2.4	Maximum pulse acquisition rate 25f/s
2.5	Maximum photographic current: 80mA

3.2	Collection size: ≥1024×1024
3.3	Pixel size: ≤205um
3.4	Spatial resolution: ≥2.0LP/mm
3.5	Dynamic adjustment range: ≥16bit
3.6	Filter grid density: ≥80L/cm, pluggable
3.7	Intelligent multi-dimensional laser positioning system, integrated support design
