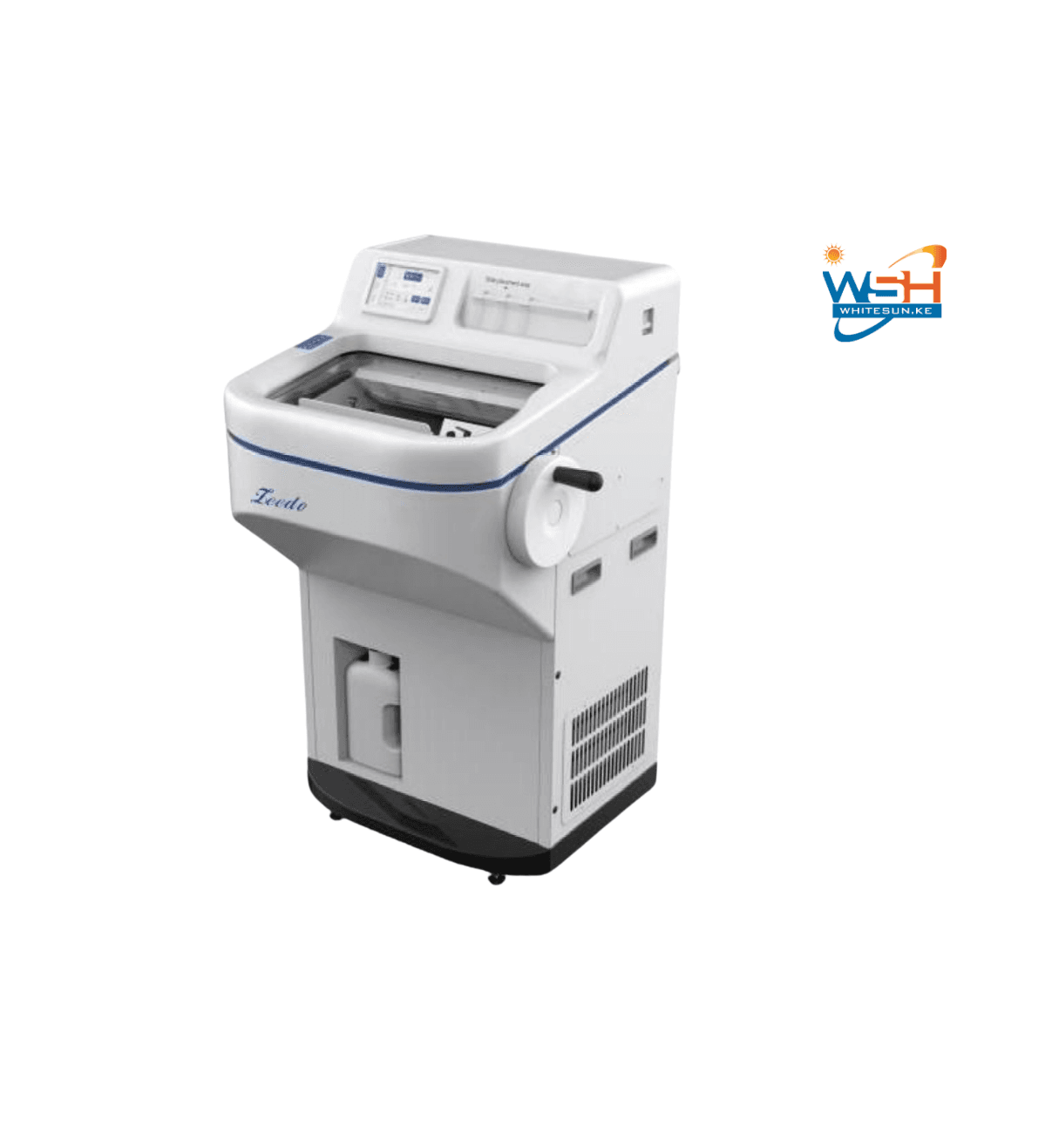

Product Description
Description
1. Modular control system:
Defrost automatically / manually. Each defrost time is 15 minutes by default, or the box temperature
rises to -5°C during the defrosting process, the defrosting will end in advance
Hibernation automatically / manually;
UV sterilization;
Semi-conductor refrigerant;
Slice number and thickness calculation;
1. Movement speeds of specimen clamp.
Appearance:
one-time injected model cover;
Anti-fog heating glass design;

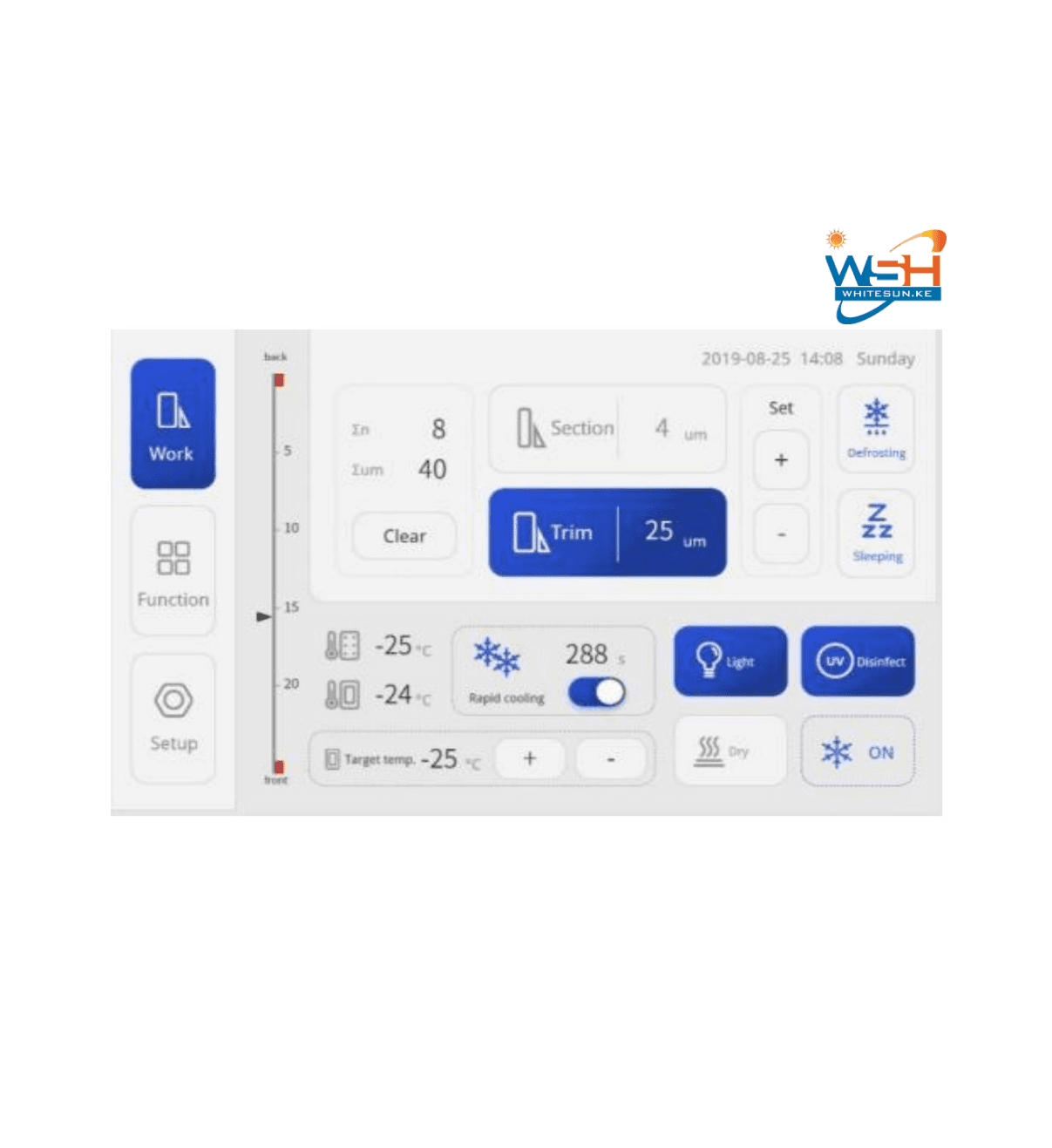

Chromatic liquid crystal touch screen.
Microtome
light and smooth handwheel with locking device on it;
Specimen clamp enables to adjust triaxially with a block in the centre to go back
High precision guide rails made in Germany make transmission smooth durable and be able to cut
hard sample;
Retraction
Freezing chamber
Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile.
With waste tray and instrument rack.
Blade holder:
Wide or narrow blades optional;
A anti-fatigue cam lock ensures blades clamp tight;
Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade;
Glass anti rolling plate to adjust angle and gap with pressing plate;
A pushing rod pops the blade out.
Relative humidity for transport and storage: Maximum 60 %, non-condensing
IEC 61010- 1 classification: Pollution level 2; Over-voltage category II
Atmospheric pressure:700 hPa ~ 1060hPa
A weighted noise level: ≤ 70 dB (A
Altitude: ≤2000 m
Main Technical Data:
1. Electrical:
Voltage frequency: 220-240VAC,50Hz;
220-240VAC,60Hz;
110- 127VAC,60Hz.
Main fuse: 4A
Power consumption: 220-240VAC,1400VA;
110- 127VAC, 1200VA;
2. Refrigerating:
(1) Freezing chamber
The range of temperature setting : ﹣35℃-40℃ adjustable
Defrost: Manual / Auto
Refrigerating capacity: 690 W
Refrigerate :R449A/400g±5g
3. Quick -freezing shelf:
Freezing shelf’s operating temperature: -40℃ ~40℃
Minimum reaching temperature :-60℃ (+5℃)
Number of specimen holder freezing points : 18
Number of semi-conductor freezing points : 2
4. Microtome technical data:
Setting range of section thickness :1 um – 100 um
5. Section thickness setting： a)1 um – 20 um, with a step of 1 um
b)20 um – 50 um, with a step of 2 um
c)50 um – 100 um, with a step of 5 um
Section thickness deviation:±20%
6.Trimming thickness range:
1μm~600μm
a)1μm~50μm, with a step of 5μm
b)50μm~100μm, with a step of 10μm
c)100μm~600μm, with a step of 50μm
7.Sample retraction: 0~200μm adjustable, with a step of 5μm
8.Specimen’s horizontal stroke :25 mm± 1mm
9.Specimen’s vertical stroke :59mm±0.5mm
10.Specimen’s max size: 55 mm *55 mm
11.Specimen clamp ‘s max adjustable angle : 12°for X＆Y axis, 360°for Z axis
12.Sample slow forward and rewind speed: 300μm/s
13.Sample fast forward and rewind speed: 900μm/s
14.Dimensional ：780 mm(650 without handwheel ) * 700 mm *1280 mm, ±5%
Net weight: 120 kg
Accessories:
Standard Setting List
1. Specimen Disc
10 pcs
Fuse (4A)
2 pcs
2. Appliance Stand
1 pcs
3. Power line
1 line
4. Hexagonal Wrench
1 set
5. Brush
1 pc
6. Handle
1 pc
Package Info:
Each instrument packed Wooden Case
Dimensions: 913*804*1467mm
Gross Weight: 208±10kg
