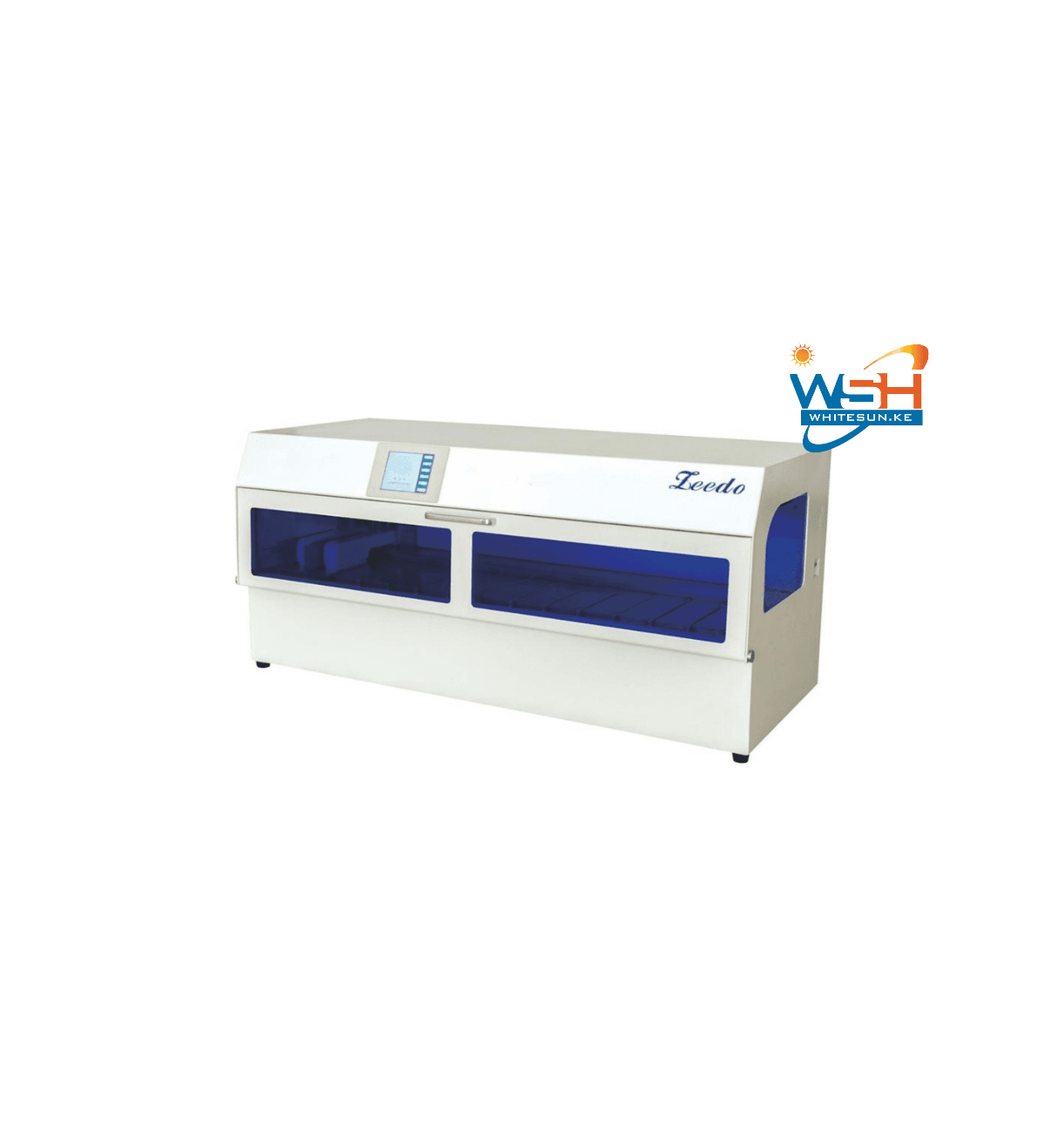

Product Description
Description
1. This machine can run both single hanging basket and double basket, one dehydrator is
equivalent to two hanging baskets;
2. Large LCD touch screen, all English menu, simple and clear operation;
3. Adopt intelligent program control technology to protect equipment and specimens ,Intelligent
separate protection specimen in case of failure ： When the dehydrator fails before the
anhydrous alcohol cylinder, the tissue is protected in the fixed cylinder; when the dehydrator
fails before the paraffin cylinder and after the anhydrous alcohol cylinder, the tissue is protected
in the anhydrous alcohol cylinder; when the hanging basket fails in the paraffin cylinder
dehydrator, the tissue is protected in the paraffin cylinder;
4. Adopt new water heating mode, low pressure contactless temperature control technology, more
safe. Reagent cylinder can be fully heated to avoid the effect of dehydration due to the
difference of temperature in winter and summer.
5. The new generation environmental protection design idea, adopts the dual purification function,
and matches with the full seal internal circulation filtration, guarantees the operator not to be
harmed by the harmful gas.
6. The “self-checking” item is displayed on the operating screen of the dehydrator, which has the
function of preventing the abnormal protection of the card cylinder, and can display the running
state and various functions in real time.
7. Power failure protection, in the state of sudden power failure, maintain program memory, and
complete the whole process of dehydration (can maintain more than 16 hours of normal
operation).
8. Can set the hanging basket stay filtrate time and the hanging basket oscillation times of the
design of the starting cylinder filtrate, to avoid the former cylinder reagent into the latter cylinder
caused by mixing.
9. Reasonable setting of single cylinder cover and elastic sealing technology to avoid reagent
volatilization.
10. Small specimens can be added at any time；Flexible programming, different tissues can start
from any solution container to the end of any solution container, to obtain the best dehydration
effect of different tissues;
11. Adopt international popular synchronous tooth belt, digital program control positioning, make
the operation more accurate.
12. The steel linear guide rail is used to fit the step motor to make the operation more accurate.
13. Hanging basket take-off and landing back using two-column two-dimensional soft transmission
mechanism, transmission stability, no noise, no hard wear;
14. Can set up 24 sets of operating procedures, imported core chip, powerful, no external magnetic
field interference.
15. Remote alarm system, failure, dehydrator can automatically dial the operator’s phone, so that
you can know at any time whether the equipment is safe operation;
16. Has the intelligent key function (does not look at the screen also can operate), when the display
screen does not display and the touch function damage, the dehydrator main function may
operate normally;
Main Technical Data:
1. Volume of individual reagent containers：2000ml
2. of reagent containers：14pcs
3. Hanging basket filtrate：Time can be adjusted arbitrarily
4. Number of dehydrated tissues：About 200 pcs (100 pcs in a single hanging basket)
5. Processing time in a single container：0~99 hours adjustable
6. Power supply：AC220V±10%
50HZ
7. Power：500W
8. Net Weight: 116kg
9. Dimensions: 1300*600*600mm
Package Info:
Each instrument packed Wooden Case
Gross Weight: 173kg
Dimensions: 1380*680*740mm
