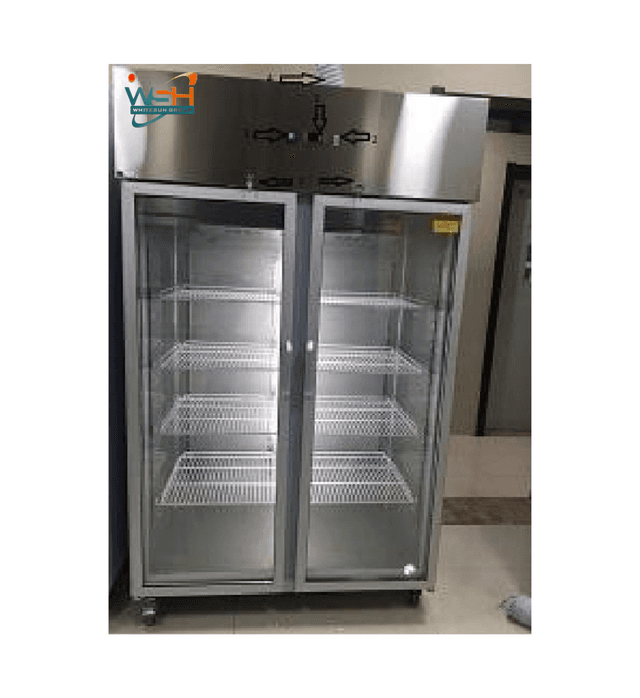

<p><strong>Description</strong></p>
<p>Specifications: 1200 *700*1900m<br />
Net Weight:150kgs<br />
1. It is suitable for the reception and preservation of pathological biopsy tissues. It is designed to<br />
meet the relevant requirements of the “China Safety and Environmental Protection Regulations”. It<br />
is safe, non-toxic, beautiful and durable.<br />
2. The cabinet material is made of 1.0mm 304# stainless steel frosted board, which is<br />
surface-plasticized and has the characteristics of firmness, beauty and corrosion resistance. (The<br />
glass door is equipped with an electric heating film to prevent fogging water on the glass. The door<br />
body adopts a self-priming reset device, which is flexible to open and close tightly.)<br />
3. Using imported Sanling compressor refrigeration, the temperature inside the cabinet can be<br />
controlled at 0~10 °C.<br />
4. The use of power: 220V/50HZ, refrigerant R12/R134a, power 300~1000W.<br />
5. Anti-corrosion vacuum glass door, anti-condensation, explosion-proof effect, sealed around, can<br />
effectively prevent harmful gas spillage.<br />
6. Direct cooling type refrigeration, high heat exchange efficiency, good cooling effect, icing and<br />
frosting, condensed water can be concentrated discharge, working noise <20db.
7. Digital temperature display, the temperature inside the cabinet is clear at a glance.
8. φ8mm steel spray grid, with special stainless steel anti-corrosion specimen storage box, bearing
capacity, specimen storage is convenient. (The top and bottom of the cabinet are 5 layers, and the
height of each floor is adjusted at will)
9. The handle is concentrated in the middle, the electrical control button is located in the upper right
corner, and the switch is convenient.
When the specimen is accessed, a negative pressure airflow is automatically formed in the cabinet
to maintain the indoor environment.
10.There are 4 sets of universal casters on the bottom of the cabinet, which is convenient for
moving

<strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Outer Case Dimensions: 1270*760*2000mm,<br />
Gross Weight:160 kg</p>


HS-801B Direct Cooling Specimen Refrigerator

Medical Equipment Hub

<p><strong>Description</strong> </p>
<p>Specifications: 1200*700*1880mm, Net Weight:150kgs</p>
<p>1. Double display operating parameters (digital display) housing is 304 stainless steel<br />
2. The application of the external door anti-condensation technology, 85% humidity without<br />
condensation, to ensure the observation of the situation inside the box.<br />
3. Transparent vacuum tempered glass door.<br />
4. Medical 0-10 degrees refrigerator humanized design<br />
5. Automated frost function, suitable for high temperature and high humidity areas. No ice cream<br />
6. The safety door lock is designed to prevent random opening.<br />
7. Large screen digital temperature display for easy observation.<br />
8. Wide voltage band, suitable for 187~242V voltage.<br />
9 built-in lighting. Wide climatic zone: suitable for use in areas with an ambient temperature of 10 to<br />
38 ° C and a humidity of 80% or less.<br />
9.The product can be directly embedded in the closet or wall without occupying extra space.<br />
10. Adopting new fully enclosed high-grade compressor, balanced operation, low noise and long<br />
service life<br />
11. effective volume: 866L</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1270*760*2000mm,<br />
Gross Weight:160 kg</p>


HS-801A: Air-cooled Refrigerator

<p><strong>Description</strong> </p>
<p>Specifications:2420*830*1810mm<br />

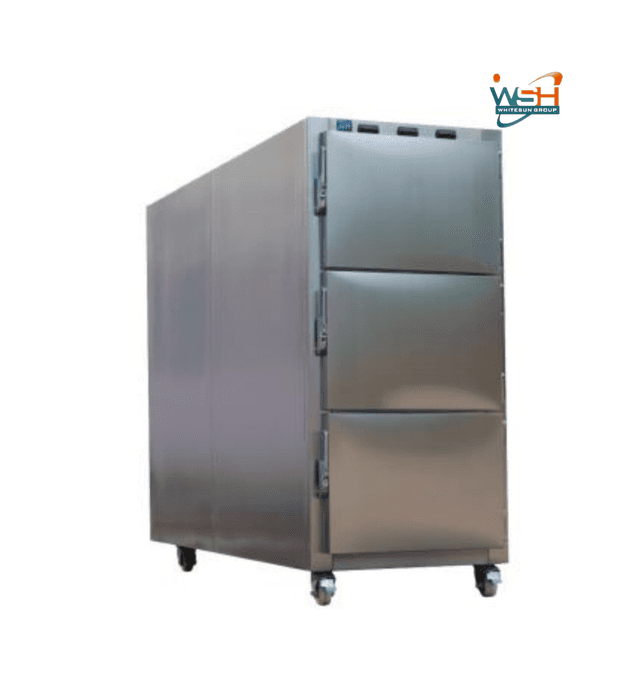

1. The corpse refrigerator is suitable for the mortuary funeral home laboratory and has the<br />
function of cold storage.<br />
2. Temperature control system<br />
3.3 sets of computer temperature control system to keep the temperature inside the box stable;<br />
4. Control system<br />
5. Keyboard lock and password protection function to prevent random adjustment of operating<br />
parameters;<br />
6. The alarm temperature range can be set freely; system failure alarm (high temperature alarm,<br />
low temperature alarm, sensor failure alarm, door opening alarm), failure point code display;<br />
7. Double alarm mode (sound buzzer alarm, light flashing alarm,)<br />
8. Use 3 high-efficiency brand compressors/SECOP compressors (optional)<br />
9. Adopt 3 groups of high-efficiency brand-made cooling fans;<br />
10. Adopt 3 sets of high-efficiency brand Chinese brand condensers<br />
11. Material: stainless steel 201/304 optional<br />
12. Compressor: domestic/imported SECOP optional<br />
1.Net Weight: 480KG</p>
<p><strong>Main Technical Data</strong>:<br />
Temperature: -16°C to 5°C<br />
Number of compressor sets: 3<br />
Power supply: 220V/50HZ<br />
Dimensions of corpse tray: 1950*610mm<br />
Inner opening size: 1950*630*440mm<br />
Material: stainless steel 201/304 optional<br />
Compressor: domestic/imported SECOP optional<br />
Refrigeration method: single door single control cooling</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 2440*890*1860(mm),<br />
Gross Weight:480 kg</p>


THP-773 Morgue Refrigerator（3 Cadaver）

<p><strong>Description</strong></p>

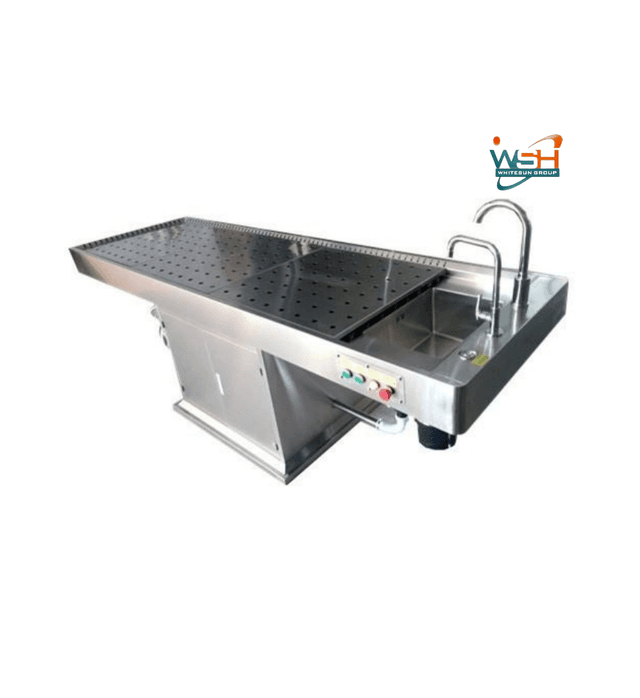

<p>Specifications: 2600*800*850mm<br />
Features:<br />
Autopsy table was specially designed according to Ministry of Public Security Criminal Science and<br />
Technology Demonstration dissection room. It has dual function of convulsions &#038; anatomical. It<br />
is made of stainless steel compression molding and the overall shape is luxurious , precision<br />
production , acid and alkali resistant</p>
<p><strong>General Feature</strong><br />
1. Mesa arc-shaped inner connection, no scaling, easy to clean<br />
2. Double mesa structure, three sideboard table with a hole, movable loading and unloading<br />
3. Anatomy operating table have the scale, easy to measure<br />
4. Pool infrared sensor faucet with high manual faucet, hot and cold water temperature can be<br />
adjusted<br />
5. There are mobile sprinklers which water pressure can be adjusted. Table water curtain device<br />
can automatically wash the bodies of dirt<br />
6. Mill pond below can be crushed after the broken tissue dissection, small bones, through the<br />
discharge outlet<br />
7. Exhaust system features a medial inclination of 35 degrees on both sides of the mesa mouth<br />
downward ventilation negative pressure ventilation mode (need to connect with the outside<br />
exhaust fan)<br />
8. The table has a removable disk which can be used for organ anatomical placement process<br />
9. Autopsy table has side waterproof power socket<br />
10. Autopsy tables is stable and reliable on lift with new electric elevator<br />
11. Circular base, a rotatable table plus or minus 35 degrees to facilitate the body to take pictures<br />
Net Weight: 120kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 2650*850*990mm,<br />
Gross Weight:136kg</p>


THP-772 Autopsy Table

<p><strong>Description</strong> </p>
<p>specification：1500*750*1900mm<br />
Material：adopt 304#1.0MM super stainless steel<br />
Main Technical Data:<br />
1. Powerful fume exhaust system: adopt high power, low noise high quality fan to eliminate the<br />
harmful fume fully<br />
2. drainage systems：using table surface washing and won’t let the blot leave on it; with spray, all<br />
the working surface can clean thoroughly<br />
3. lighting、UV system：using brand lighting system, convenient operation<br />
4. heating system：adopt super heater which can let it having hot water anytime. The flexible<br />
mental soft tap let it easy to clean each place of surface.<br />
5. crushing system：the good grinder help you clean all the dirt<br />
6. camera system seat：the universal revolving seat can connect the camera system<br />
7. pedal formalin supply control switch<br />
8. Net Weight: 160kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1580*830*2050mm, Gross Weight:: 215kg</p>

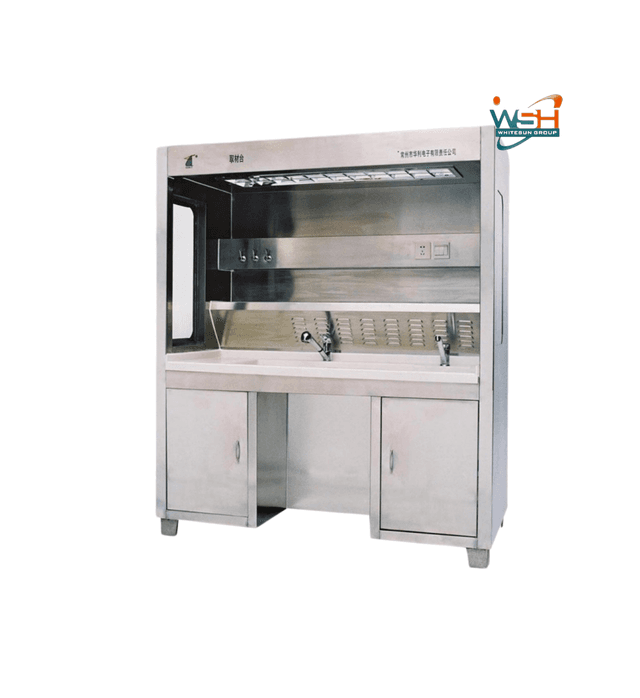

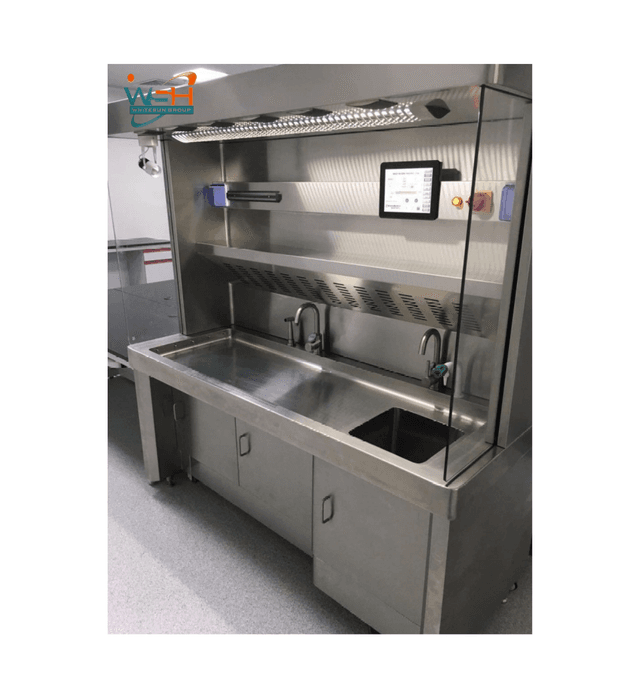

TH-701 Trimming Hood

<p><strong>Description</strong></p>
<p>1. Specifications: 1800 (L) 800 (W) 2000 (H) mm ± 50mm. The whole is made of 316 stainless steel,<br />
and the table is made of 2.0mm thick 316 stainless steel.<br />
2. The suction negative pressure exhaust design is adopted after the table, not the exhaust mode<br />
under the lower table, not the transparent structure without backplane. The exhaust position is 20cm<br />
on the operating table.<br />
3. Magnetic adsorption tool rack can absorb metal equipment, material equipment and anatomical<br />
equipment on it for convenience, with built-in glove rack.<br />
4. Formalin electric filling assembly (Description: with foot switch control, motor made of corrosion<br />
resistant materials and formalin recovery system.<br />
5. Automatic balance air supplement system, forming air curtain through airflow control, to prevent<br />
the leakage of toxic gas.<br />
6. The lifting device of the whole machine: adjust the height of the lifting table, the lifting range is<br />
200mm, to meet the height needs of the staff, use the pressure synchronization system, the lifting<br />
device is a light aluminum synthetic material, no sound in the process.<br />
7. Use LED clean lighting, with illumination of 80 microwatts per square centimeter.<br />
Hidden-mounted ultraviolet lamp. The disinfection device mainly used to operate the table area will<br />
automatically turn the table over, while the lighting device will be automatically hidden.<br />
8. Faucet: double faucet design, use water when taking materials, adjust the wall, the other one is<br />
water for tank cleaning, high-neck stainless steel faucet. (Compulsory energy saving product certificate)<br />
9. Sink: located on the right side of the table, (300mm 300mm 250mm) ± 5mm, the bottom of the inner tank is designed without dead space circular arc, movable flushing faucet: pull type washing,<br />
used to clean the internal working space and dead space of the material table.<br />
10. Organization grinder: 370W, 2600 rpm, full sound insulation cover, all stainless steel grinding<br />
components. It is connected with the drainage hole at the bottom of the sink and is mainly used for<br />
the crushing discharge of pathological tissue.<br />
11. The table is equipped with movable screen plate is easy to clean, the material table: 400mm<br />
300mm 100mm, lower cabinet body: using three cabinet door arc design double plate, the operation<br />
platform from the ground height is 800mm-850mm.<br />
12. Internal air purification device: ozone + anion purification,<br />
13. The exhaust of the material platform is connected with the overall exhaust system, and the<br />
intelligent control system is connected for control to realize data interconnection.<br />
14. Display≥ 17 inches, resolution ≥1920 * 1080(Optional)<br />
15. Integrated control display supports independent control of typhoon volume, wind speed and<br />
wind pressure, and interacts with the adjustment and changes of wind volume, wind speed and wind<br />
pressure of the total ventilation system of the laboratory. Built-in storage chip, with fault display,<br />
sound and light alarm, intelligent wireless fault information report, mobile query and other functions.<br />
Equipped with LED light, USB main interface, connected printer and keyboard.</p>
<p><strong>Configuration Listing</strong><br />
1.One main machine<br />
2.One shredder<br />
3.Two faucets<br />
4.1 table with a ruler<br />
5.1 set of display device and professional support<br />
6.One ultraviolet lamp<br />
7.LED flat panel lighting lamp 1<br />
8.One knife suction device<br />
9.Waterproof power socket 2<br />
10. Storage table 1<br />
11. One glove box<br />
12. 1 set of automatic liquid and recovery system<br />
13. 1 set of lifting system</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1890*810*1970 mm,<br />
Gross Weight:160 kg</p>


TH-702 Trimming Hood

<p><strong>Description</strong> </p>
<p>Specifications: 1800*800*1900mm<br />
1. Excellent top 316L medical grade antibacterial stainless steel plate, countertop thickness: 2mm,<br />
cabinet thickness 1.5mm, international leading processing technology, remove light pollution,<br />
making it difficult to obtain long-term eye fatigue;<br />
2. Well-formed one-time forming table, internal full arc design, easy to clean and disinfect;<br />
3. Negative pressure exhaust design, waist ventilation, advanced gas diversion system, timely<br />
elimination of harmful gases on the table;<br />
4. Comfort lighting and automatic disinfection components, with intelligent automatic flip and<br />
smart interconnection interlock function, in the acquisition, the disinfection device will be<br />
automatically hidden inside the workstation, in the non-working hours at night, the disinfection<br />
device will automatically flip on the table Sterilization and sterilization, at the same time, the<br />
comfort lighting device will be automatically hidden, effectively reducing the staff&#8217;s misoperation<br />
during work and reducing the work hazard;<br />
5. Both sides are equipped with automatic retractable tempered glass, if necessary, the protective glass will automatically open (no manual), to prevent the tissue liquid splashed out of the</p>
<p>workstation and the top of the sampling table, resulting in indoor biochemical pollution<br />
6. Imaging dedicated light source components;<br />
7. Magnetic adsorption tool holder; Haier Kitchen Po Instant Water Heater, 6L Pack, Instant Hot;<br />
8. The United States imported Annabium bone tissue grinder, 0.5 horsepower, 50HZ, all 304<br />
stainless steel liner, reliable performance, ensure smooth water;<br />
9. Workstation overall circuit protection components;<br />
10. All 304 stainless steel drawing workstation dedicated hot and cold faucet, permanent rust,<br />
durable;<br />
11. All-purpose small spray gun for 304 stainless steel sampling workstations with a retractable<br />
distance of 1 meter or more, permanent rust-free, durable;<br />
12. Automatic table flushing device, 304 stainless steel nozzle, internal anti-blocking device<br />
designed to continuously flush the tabletop for a long time, to ensure that the formalin solution<br />
is flushed into the sewer at the fastest speed;<br />
13. Laser engraving ruler placed on the table, stainless steel carbonization technology, permanent<br />
colorfast, length: 500mm<br />
14. Equipped with waterproof multi-function five-hole socket<br />
15. Intelligent fully automatic machine table lifting components (with 2 sets of adaptive memory<br />
function components) (Note: The height of the workstation platform can be adjusted 0-400mm<br />
to meet the different requirements of different workers for the height of the tabletop, reducing<br />
occupational injuries, and more humanity, with 2 sets of memory function, one key can be<br />
adjusted to the best position);<br />
16. Formalin electric filling assembly (Note: Supports foot switch control, motor is made of<br />
corrosion resistant material, long life, reliable performance)<br />
17. Smart Air Replenishing System (Explanation: Intelligent interconnection and intercommunication with the air exhaust system, air volume is 70% of the air volume, more<br />
effective guarantee of control of harmful gases in a limited space, without letting it outflow into<br />
the indoor air, causing secondary pollution<br />
18. touch screen control system (Note: 12-inch high-definition LCD touch screen, equipped with<br />
human-computer interaction system, integrated management system, automatic control of the<br />
exhaust, lighting, wind speed sensor, etc. When a fault occurs, it will automatically warn and<br />
issue an alarm command with reliable performance.<br />
19. Pathologically Drawn Special Chopping Block with XY Axis Laser Scale<br />
Net Weight: 150kg</p>
<p><strong>Package Info</strong>:<br />
Each instrument packed Wooden Case<br />
Outer Case Dimensions: 1900*890*2170mm<br />
Gross Weight330 kg</p>


TH-703 Intelligent Trimming Hood

<p><strong>Description</strong> </p>
<p>Suitable for users who have higher temperature uniformity requirements. The basis of laboratory<br />
research units supporting equipment, recommended for intermediate and senior laboratory.</p>
<p>1. Precision LCD microcomputer intelligent PID control system, with temperature control, timing<br />
and over-temperature alarm, with RS485 computer interface.<br />
2. With standard international brands cooling fan maintenance &#8211; free, durability. Perfect<br />
combination of duct design to ensure temperature uniformity for the working chamber<br />
3. Mirror stainless steel inner, anti-acid, and anti-corrosion characteristics.<br />
4. double tempered glass observation window in the door.<br />
5. the spaces and quantity of shelves can be adjusted</p>
<p><strong>Main Technical Data:</strong><br />
1. Temp range: RT+5~250℃<br />
2. Accuracy: ±1℃<br />
3. Fluctuation: ±1%<br />
4. Voltage: 220v<br />
5. Power: 1.2kw<br />
6. Inner size（H*W*D): 420*450*350mm<br />
7. Overall dimension（H*W*D）: 630*740*550mm<br />
8. Net weight:48kg</p>
<p><strong>Optional Product Accessories</strong><br />
1. Portable printer<br />
2. Programmable multi-stage controller<br />
3. ALLSENSTM software<br />
4. individual temperature limit</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 750*820*630mm<br />
Gross Weight: 51kg</p>

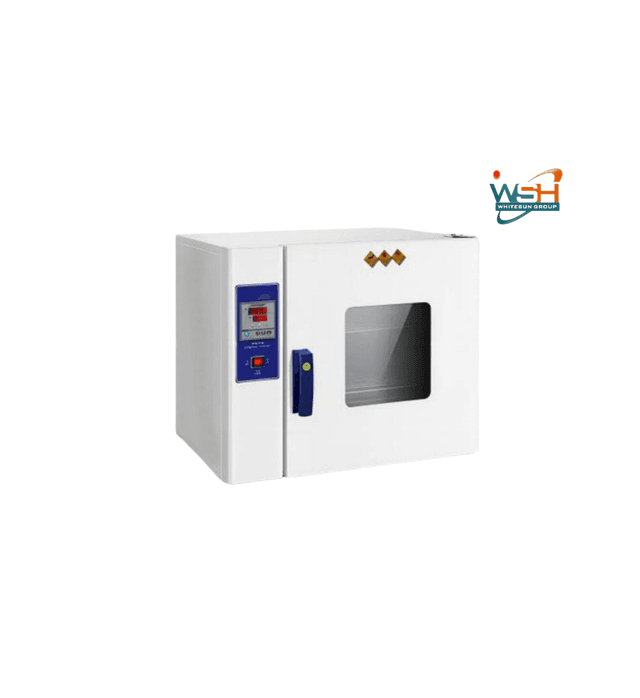

HS-9070 Electric Hot Air Drying Oven

<p><strong>Description</strong></p>
<p>1.Capacity(L): 28L<br />
2.Internal Dimension(W*D*H) mm: 270*265*400mm<br />
3.External Dimension(W*D*H) mm: 470*490*1120 /505*520*1165mm<br />
4.Power Supply(V/HZ): 220V/50Hz<br />
5.Power(W): 300/300/370/400W<br />
6.Power Consumption (KWh/24h): 3.0/3.1/4.6/5.6KWh/24h<br />
7.Temperature Range:0~-25/ -15～-40/-25～-60/-40～-86℃<br />
8.Ambient Temperature: 16-32℃<br />
9.Shelves: 1pc<br />
10.Climate Type: N<br />
11.Controller: Microprocessor<br />
12.Display: LED Digital<br />
13.Cooling Method: Direct Cold<br />
14.Defrosting: Manual<br />
15.Refrigerant: Mixed<br />
16.Extenal Material: Galvanized Sheet Sprayed<br />
17.Inner Material: 304 Stainless Steel<br />
18.Alarm Method: Sound-Light<br />
19.1year for Freezer, 3 Years for Compressor<br />
20.Net Weight: 66KG</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 550*590*1270mm<br />
Gross Weight: 88kg</p>


HS-028 Laboratory freezer

<p><strong>Description </strong></p>
<p>1.Viewing Head: Biological Microscope with Seidentopf Binocular Head, Interpupillary Distance<br />
Adjustment Range 48~75mm, 360°Rotation of Eyepiece Tube with Inclined at 30°<br />
2.Eyepiece: WF10X/18mm<br />
3.Nosepiece: Quadruple, Click-stop<br />
4.Objective: Achromatic Objective:4x,10x, 40x(s), 100x(s,oil)<br />
5.Stage: Double Layers Mechanical Stage,140mmX132mm/75mmX45mm<br />
6. Focusing: Coaxial Coarse and Fine Adjustment, Focusing Range 30mm,Focusing Interval<br />
0.002mm<br />
7.Condenser: Abbe NA=1.25 with liris Diaphragm and Filter<br />
8.Illumination:3W LED, Adjustable Brightness<br />
9.Standard Accessory:<br />
Blue Filter<br />
BGX1-20(1A) Fuse<br />
Dust Cover<br />
Immersion Oil<br />
Instruction Manual in English<br />
9. Optional Accessory:<br />
Trinocular Head<br />
Dark Field Condenser (Dry or Oil)<br />
5vDC Base Tray<br />
Eyepiece WF16X</p>
<p><strong>Package Info:</strong><br />
Each instrument packed carton<br />
Dimensions:320*270*430mm<br />
Gross Weight: 6kg</p>


HS-027 Microscope

<p><strong>Description</strong></p>
<p>1. Small size, great space saver for the lab<br />
2. Steel structure, centrifuge chamber made of stainless steel.<br />
3. AC frequency variable motor drives, stably and quietly during operation.<br />
4. Parameters can be revised during operation without stopping.<br />
5. Automatic calculates and displays RCF at the same time.<br />
6. Electronic lid lock<br />
7. TD4B cell smear centrifuge is widely used in immune blood laboratory, laboratory, research<br />
room, can carry out red blood cell serology and antigen experiment. Identification of antibodies<br />
and results of Coombs experiments.</p>
<p><strong>Main Technical Data:</strong><br />
1. Max RPM: 3000rpm/ 1200rpm(TD4B-2)<br />
2. Max RCF:890g / 225g(TD4B-2)<br />
3. Max Capacity:12 cards<br />
4. Timer:1min～99min<br />
5. Revolutions/min:±10r/min<br />
6. Voltage: AC 220±22V 50/60Hz 10A<br />
7. Power: 100W<br />
8. Noise Level: ≤ 60dB（A）<br />
9. Chamber Diameter: Φ280mm<br />
Net Weight: 15kg<br />
Dimensions: 385*320*270 (mm)</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight:20kg<br />
Dimensions: 460*390*330mm</p>


TD4B Table Cytospin Centrifuge

<p><strong>Description</strong></p>

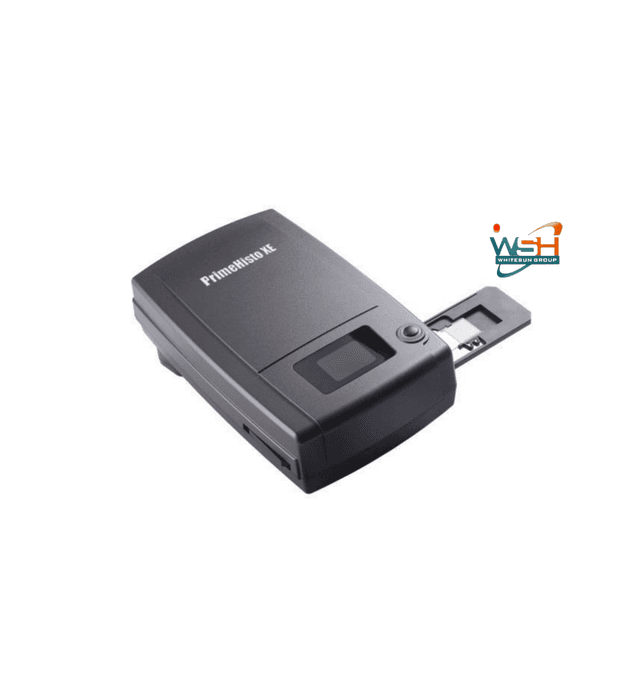

<p>The PrimeHisto XE is a histological slide scanner. The PrimeHisto XE design is designed for<br />
observation of histological samples, particularly medical/pathological tissue samples. The<br />
PrimeHisto XE allows scanning of histological samples mounted on a 25*75mm (1 x 3 inch) slide.<br />
With easy manipulation/setting, PrimeHisto XE allows the histological samples to be digitized in a<br />
matter of seconds.<br />
Scanners are equipped with HistoView, which is just an editing package that combines with the<br />
product hardware driver to scan and adjust the effective quality parameters of the images in the<br />
Windows and Mac OS environment. PrimeHisto XE allows you to save scanned images in a variety<br />
of image formats, such as TIFF, BMP, and JPEG.<br />
As a next-generation histological scanner, PrimeHisto XE has the ability to be suitable for most<br />
histological slide samples and can scan the entire histological slide image in a scanning area of<br />
24.3&#215;36.5mm. PrimeHisto XE also has a high resolution of up to 10,000 DPI and is suitable for a<br />
variety of micro applications, including advanced biology research in universities and basic biology<br />
research in high schools.<br />
1. Fast and economical digitization of organizational samples<br />
2. HistoView can be easily installed in PC/MAC system, with simple operation interface and<br />
powerful functions.<br />
3. High dynamic range (3.8 OD), can easily identify each cell.<br />
4. Wide range of applications, from basic histological research to high school biology research.<br />
5. Equivalent to 75 times the resolution.<br />
6. The newly designed rotatable polarizer holder (optional) allows scanning thin sections of<br />
polished rock on a 1×2 inches glass slide in bright field and polarized light</p>
<p><strong>Main Technical Data:</strong><br />
1. General technical parameters resolution:10000&#215;10000 DPI<br />
2. Dynamic range:3.8OD<br />
3. Scan area:24.3*36.5mm<br />
4. Scanning medium:75*25mm section<br />
5. Photo formats: TIFF, JPEG<br />
6. Light: transmits LED white light<br />
7. Operating systems: Windows XP/Vista / 7/8/10, Mac OS X 10.5+<br />
8. Dimensions :260 *155*70mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 415*290*135mm,<br />
Gross Weight: 2kg</p>


HS-TRO-001 Pathological Slide Scanner

<p><strong>Description </strong></p>
<p>Equipment composition<br />
1. Pathological section scanner<br />
2. Embedded PC with advanced graphics capability.</p>
<p>Optical microscopy<br />
1. 3200*2200 1” global shutter camera, Frame rate≥75f/s<br />
2. 20x objective lens, NA=0.75</p>
<p><strong>Hardware Configuration</strong><br />
1. Scanner platform XY drivers support resolution of 5um, Z auto focus support 0. 25um<br />
resolution.<br />
2. Scanning image resolution:20x objective lens, resolution ≤0.25um / pixel.<br />
3. Scanning process automation, Simple sample loading.<br />
4. LED light source, with a service life of more than 20000 hours.<br />
One click for scan. SW can pause/stop the scan process, support sample add-in during scan<br />
process.<br />
5. samples container. With the optional loading system, the sample container can reach 120 /<br />
240.<br />
6. Embedded PC, with nVidia professional graphics card for AI, featured with PC I0s like<br />
keyboard, USB3.0etc<br />
7. Slide Capacities: 6pcs (60pcs,120pcs ,240pcs optional)</p>
<p><strong>Software configuration</strong><br />
1. Images format: JPEG or BMP<br />
2. It supports automatic recognition of smear contour and scanning at specified position.<br />
3. Continuous scanning mode. The scan can be finished within 180s for one sample.<br />
(15mm*15mm)<br />
4. 4.4 Support history image browsing and review.<br />
4.5 Support auto sample positioning of sample slide.<br />
4.6 The scanner can mark the specified area and take high- -definition screenshots.<br />
4.7 It supports the storage of image data through local or network, and can query and count the<br />
stored data.<br />
Net Weight: 35kg<br />
Dimensions: 698*464*345mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 800*550*550mm,<br />
Gross Weight: 75kg</p>


HS-TRO-006 Digital Pathological Slide Scanner

<p><strong>Description</strong> </p>
<p>1. High printing speed, 2.5-4 seconds per cassette;<br />
2. Non contact UV laser technology;<br />
3. 10 inches LED touch screen via built-in software, also support to connect external PC;<br />
4. Fully compatible with LIS/HIS system;<br />
5. Built in bar-code scanner, and support to connect external scanners;<br />
6. Two working modes: Single output and batch outputs;<br />
7. Compatible with various models of embedding cassettes on the markets.<br />
8.Recommended service life: 8 years</p>
<p><strong>Main Technical Data:</strong><br />
Printing technology：UV Laser marking<br />
Print speed：2.5-4 seconds/cassette<br />
Print resolution：2500 dpi<br />
Cassette type：Cassette with lid (one-piece or two pieces);<br />
Cassette without lid<br />
Loading hopper：6<br />
Max Capacity Per Loading hopper：100 cassettes without lid or with lid assembled<br />
Compatible system：Open to connect HIS/LIS systems<br />
Dimension LxWxH;486mmx313mmx497mm<br />
Weight：37kg<br />
Power requirement：100-240 V AC, 50/60 Hz, 300W<br />
Other configuration：1. 10 inches touch screen<br />
2. Excellent ability to export number, letters,1D &#038; 2D codes, graphics;<br />
3. Software driver;<br />
4. Port to adaptable to various HIS/LIS system connection;<br />
5. Stable drive system for more durable application.</p>
<p><strong>Package Info:</strong><br />
Each instrument packed in carton<br />
Dimensions: 710*425*620mm<br />
Gross Weight: 49.5kg</p>


CP-UC06 Cassette Printer

<p><strong>Description</strong> </p>
<p>1. Automatic batch printing function, transparent embedding box clip, easy to observe the number of<br />
embedding boxes, add at any time, such as abnormal, the system automatically alarm and suspend<br />
printing.<br />
2. Automatic collection function, can automatically and neatly distribute the printed embedded box<br />
into the 10*10 matrix, and has the color distinction function, the first embedded box of the same<br />
sample is yellow, and the other is white, easy to distinguish (the color of the embedded box is<br />
optional).<br />
3. With network networking function, it can connect to the hospital LIS database, and has manual<br />
and scanning input.<br />
4. Zero cost of printing supplies, no ribbon, ink and other printing media, laser printing transmitter<br />
long life.<br />
5. Ultra-high definition printing, clear printing handwriting, friction resistance, corrosion resistance,<br />
not easy to fall off, easy to long-term archiving.<br />
6. Large amount of information printing, in the standard 45 degrees Angle embedding box incline,<br />
you can print patient name, digital code, characters, hospital name, date, two-dimensional code<br />
information, etc.<br />
7. Ultra-high speed printing, you can print on the machine without preheating.<br />
8. Large loading capacity,300 embedded boxes can be loaded at a time.<br />
9. Recommended service life: 8 years</p>
<p><strong>Main Technical Data:</strong><br />
Laser power： 20W<br />
Laser wavelength： 1060mm<br />
Marking range： 200*200mm<br />
Marking depth： ≤3mm (depending on material)<br />
Minimum line width： ≥0.01mm<br />
Minimum character： ≥0.15mm<br />
Repeat accuracy： ±0.01mm<br />
Average power consumption： ≤300W<br />
Output beam quality： M2＜1.8<br />
Laser Q-switched frequency： 20kHz~200kHz<br />
Marking speed： 0-30000 mm/s<br />
Control interface： standard USB<br />
Fiber laser life： >100,000 hours<br />
Power consumption： <500W
Cooling method： Air cooling
The beam quality resolution： 1 micron, which is more than 10 times that of traditional products
Power supply： AC220V, 50HZ / 5A
Working environment temperature: 10-40℃, humidity: 10%-90% no condensation
Linear speed： ≤300 m/min; (Galvanometer speed: 30000mm/s)
Laser marking machine configuration
1. 1 mainframe
2. 1 data cable
3. 6 embedding cassette loading slots
4. 6 embedding strips (50 embedding boxes per strip)
5. 1 power cord
6. 1 user manual
Net Weight:40kg
Dimensions: :400*435*420mm

<strong>Package Info:</strong><br />
Each instrument packed in carton<br />
Dimensions: 630*575*600mm,<br />
Gross Weight: 45kg</p>


CP-C06 Cassette Printer

<p><strong>Description</strong> </p>
<p>1. Laser printing without special printing supplies.<br />
2. The printing speed is not less than 25 embedded boxes per minute (including QR code).<br />
3. Can print all kinds of text, numbers, QR code, symbols.<br />
4. The embedded box to be printed is placed horizontally and has a safety gap with the four sides of<br />
the slot.<br />
5. Single slot design.<br />
6. Each tank is loaded with not less than 100 embedded boxes at one time<br />
7. High printing clarity, to ensure that the printed two-dimensional code can be scanned reliably.<br />
8. Long-term pre-filled packaging box strip, save the user manual loading trouble, to ensure the print quality.<br />
9. Semi-transparent viewing window that can be opened and closed for easy observation of the<br />
printing process.<br />
10. The translucent viewing window is located directly in front of the marking machine.<br />
11. The embedded box can be added at any time for special printing through the translucent<br />
window.<br />
12. In addition to the two-dimensional code, more than 8 fields of numeric and character information<br />
can be printed.<br />
13. It can be connected to HIS or LIS systems in hospitals.<br />
14. The loading slot is located on the left side of the marking machine.<br />
15. The exit of the printed buried box is located on the right side of the marking machine.<br />
16. High printing clarity, to ensure that the printed two-dimensional code can be scanned reliably.<br />
17. Long-term pre-filled packaging box strip, save the user manual loading trouble, to ensure the<br />
print quality.<br />
18. The embedded box upload is located on the left side of the machine, and the printed embedded<br />
box output is located on the right side of the machine.<br />
19. Printing software can realize batch printing and individual printing.<br />
20. Print software can customize the print field name.<br />
21. The number of editable print fields contained in the printing software is not less than 8.<br />
22. The writing printed on the buried box should be scratch-resistant. Resistant to organic solvents.<br />
23. The size of the printed QR code is not less than 6x6mm.<br />
24. The printing software should contain a print editing window, a window to be printed and a printed<br />
window.<br />
25. The front width of the machine is less than 200mm.<br />
26. The list to be printed has automatic data recovery function without loss of data.<br />
27. You can export the printed information to a file for statistical analysis.<br />
28. Using slide type embedded box conveying and printing structure, the embedded box slips freely<br />
on the slide.<br />
29. The embedding box is printed in the middle of the slide.<br />
30. The printed embedded box slides freely to the bottom of the slide.<br />
31. The printing position of the embedded box is controlled by the electric jacking rod in the middle<br />
of the slide.<br />
32.Recommended service life: 8 years</p>
<p><strong>Laser marking machine configuration</strong><br />
1. 1 mainframe<br />
2. 1 data cable<br />
3. Buried strip seat 2<br />
4. 2 embedding strips (50 embedding boxes per strip)<br />
5. 1 power cord,<br />
6. 1 user manual<br />
Net Weight:19.8kg<br />
Dimensions: 440*420*250mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed in carton.<br />
Dimensions: 545*345*515mm,<br />
Gross Weight: 24.3kgkg</p>


CP-C01 Cassette Printer

<p><strong>Description</strong> </p>
<p>1. Using laser direct marking technology, laser directly burn out the characters.<br />
2. Printing supplies such as ribbon and ink cartridges are not required.<br />
3. It can print all kinds of paint slides, and there is no strict requirement for the smoothness of the<br />
glass paint surface.<br />
4. High printing precision, printed two-dimensional code can be easily scanned.<br />
5. Can realize the printing information export and batch printing function, can also realize the<br />
independent manual input information printing function.<br />
6. No less than 100 slides can be loaded at one time.<br />
7. The mechanical push hand will push the printed slide directly to the slide collection station to<br />
avoid free sliding or falling of the printed slide.<br />
8. Fixed slide collection station without movable slide collection trough.<br />
9. The slide collection station can collect and print at least 40 slides at a time.<br />
10.The printed slide is pushed out horizontally, and the print is located on the right side of the<br />
marking machine.<br />
11. The printed slide collection adopts a stack structure, with the first printed slide at the top of the<br />
stack.<br />
12. The width of the whole machine is not more than 21cm, which can be placed on the slicing<br />
workbench.<br />
13. Printing speed ≤6 seconds/slide, that is, no less than 10 slides can be continuously printed per<br />
minute.<br />
14. Built-in air filtration system, effectively filter printing dust.<br />
15. Adopt the windows system.<br />
16. Built-in color touch screen.<br />
17. Slide loading rack adopts pluggable design to facilitate slide loading<br />
18. The slide uploading slot is located on the right side of the slide marking machine for easy<br />
loading of slides<br />
19. With USB interface, easy to import and export data.<br />
20. Integrated two-dimensional code scanner.<br />
21.The printing parameters of each marking machine are built in the U disk, and you can replace<br />
the computer without calibrating the printing parameters.<br />
22. Use RJ45 interface.<br />
23. The printing software has a variety of automatic selection of printing templates, which can<br />
automatically select printing templates according to different organizations.<br />
24. Optional independent slide collector. The collector can be freely combined and separated from<br />
the marking unit.<br />
25. The glass collection station plus the collector can collect not less than 200 slides at one time.<br />
26.The marking range is 50m X 50mm, the resolution is 2500DPI,<br />
27.the ultraviolet life span is about 3 years, and the ultraviolet power is 1 watt<br />
28.Recommended service life: 8 years</p>
<p><strong>Laser Slide Printer Configuration list:</strong><br />
1, a host<br />
2, a power cord<br />
3, a USB data cable<br />
4. Built-in QR code scanner<br />
5, glass 2 boxes (50 pieces/box)<br />
6, slide upload rack 2<br />
7. A user manual<br />
Net Weight: 21.2kg<br />
Dimensions: 490*200*375mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed in carton<br />
Gross Weight: 28.2kg<br />
Dimensions: 630*575*600mm</p>


SP-S01 Laser Slide Printer

<p><strong>Description </strong></p>
<p>Covering machine is a fast curing device for sealed glass slides. This machine adopts<br />
advanced microcomputer technology, which makes the equipment more accurate, stable and<br />
anti-interference ability. Suitable for medical colleges, hospital pathology, medical research units,<br />
animals and plants and food inspection departments.<br />
Usage:<br />
1. The glass slide containing the organization is neatly discharged into the concave frame of<br />
the workpiece table, and the numbered part is hung on the side of the work table;<br />
2. Take out the glue bottle and spin off the cone cover, cut a small section at the top of the<br />
cone, and drill a large and small suitable hole at the top;<br />
3. In turn, drop a small drop of glue on the slide tissue and cover the cover glass slide, and<br />
gently press the cover glass with your finger to spread the glue evenly;<br />
4. Turn on the machine power switch, use the left hand to send the glass slide with the cover<br />
glass from the left hole of the machine (can be single, or can be sent side by side), after 14<br />
seconds, the glass will be automatically sent out from the right side, the glue is dry </p>
<p><strong>Notes</strong>:<br />
1. 220 V power outlets must have secure ground wires;<br />
2. Disconnect the power when the 2. is not working;<br />
3. The glue box is specially made and can not be replaced by other containers;<br />
4.Pay attention to finishing the slide in time to prevent clogging the exit.</p>
<p><strong>Main Technical Data:</strong><br />
1. Rated voltage: AV220V±10%<br />
2. Power frequency: 50±1 HZ<br />
3. Rated power : ≤100W<br />
4. Speed:30 tablets/min<br />
5. Slide seat:15<br />
Net Weight:17.5kg<br />
Dimensions: 500*300*120mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 20kg<br />
Dimensions: 577*387*237mm</p>

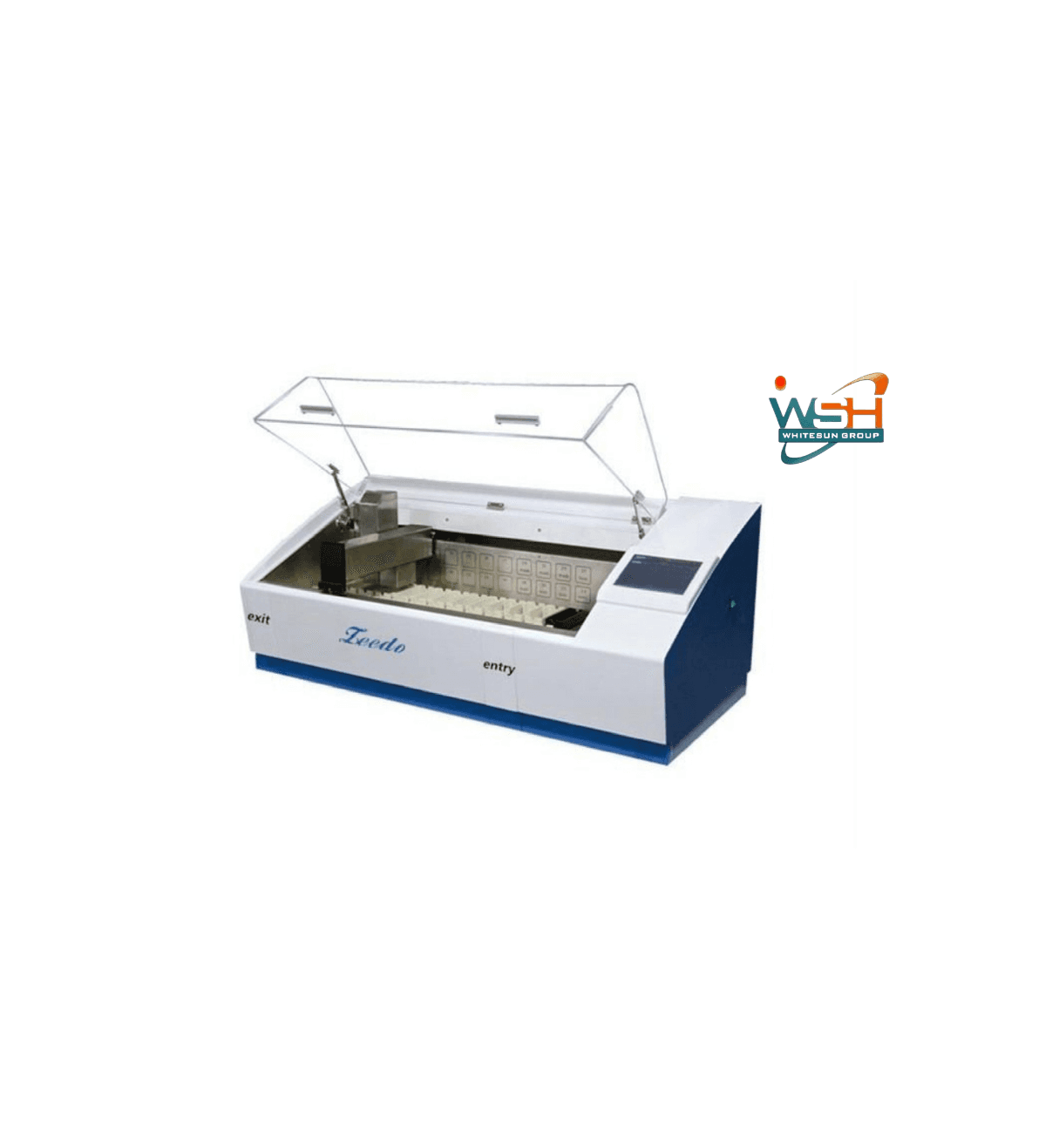

CS-FI Mini Cover Slipper

<p><strong>Description</strong></p>
<p>1. Covers of various brands and specifications<br />
2. Color touch screen control interface, real-time dynamic prompts of operation instructions,<br />
simple and efficient operation, prevent misoperation.<br />
3. Compatible with basket type, non-basket type and other types of dyeing racks, automatic<br />
identification, no manual conversion<br />
4. By adjusting the flow and speed of the sealing rubber, it can be compatible with imported and<br />
domestically produced multi-standard sealing glue, stepless adjustment and real-time<br />
response.<br />
5. Whether the dispensing needle is in real-time detection and alarm function at the working<br />
position, and a cleaning screen is designed at the storage position to effectively prevent the<br />
nozzle from drying (manual operation is required)<br />
6. Automatically monitor the quality of the cover slipper during the working process. The<br />
fragments and bad pieces are automatically discarded into the waste cassette. The sensor has<br />
self-checking function to effectively improve work efficiency.<br />
7. Automatically carry out two rounds of slide scans during the work process, effectively reducing<br />
the leakage rate of the slides and improving the quality of work.<br />
8. Slide grab has automatic adjustment positioning function, automatically reset after 3 failed<br />
capture and graphic and audible alarm<br />
9. The slide out box has the function of putting it at any time and taking it at any time, and the machine automatically performs the operation; the machine without the exit box automatically<br />
detects and has the graphic sound alarm function.<br />
10. The process of storing slides has the function of blocking automatic detection and resetting<br />
alarms.<br />
11. Provides two modes of dry sealing and wet sealing. Users can switch between the conventional<br />
parameters as needed.<br />
12. The alarm mode adopts various modes such as graphic display and sound, and the sound<br />
alarm automatically stops after 5 times.<br />
13. Using large suction ultra-quiet exhaust fan, built-in replaceable activated carbon filter to<br />
enhance heat dissipation and effectively prevent air pollution</p>
<p><strong>Main Technical Data:</strong><br />
1. Specimen slide throughput: 200~400pieces/hour<br />
2. Specimen slide holders：20~30pieces/holder<br />
3. Output magazines：30piece/magazine<br />
4. Cover slip magazine capacity：120~160 pieces /magazine<br />
5. Specimen slide size：26*75mm<br />
6. Cover slip size：24*50mm<br />
Net Weight: 47kg<br />
Dimensions: 590*390*620mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 62kg<br />
Dimensions: 680*480*820mm</em></p>


CS-T Cover Slipper

<p><strong>Description </strong></p>
<p>1. The cover-slipper is equipped with an 8-inch color touch control screen.<br />
2, Use circular arc cover block to reduce the production of bubbles and uniform cover to prevent<br />
glue overflow.<br />
3, With the intelligent detection function of the broken cover glass and no cover slide, the bad cover<br />
glass is automatically detected and removed;<br />
4.When the cover glass is missing, the suction unit is not effective and the instrument is alarming<br />
automatically, and stops working.<br />
5.It has the function of automatic monitoring of sealing agent to remind users to add sealing agent in<br />
time.<br />
6. The special and excellent cover-slipping mode with the cover glass to reduce the consumption of<br />
department supplies, and to improve the quality of the specimen slide reading.<br />
7. The working position of the spray needle is detected in real time, and the cover-slipper does not<br />
run and automatic alarm is not in the working position.<br />
8. With quality control function, real-time record of the number of covers and the number of covers<br />
collection box, automatic storage, access at any time, USB interface 2 convenient to export data.<br />
9.With artificial voice prompt function: after the online work is completed, there is a voice prompt<br />
function, the prompt frequency, volume and frequency can be adjusted, and the main interface is<br />
synchronized with text display and solution guidance.<br />
10. Real-time intelligent detection and positioning of the slide collection basket, without suspending<br />
the program, can extract the covered slide at any time.<br />
11. Equipment fault self-inspection function, timely analysis and positioning the cause of fault,<br />
improve the after-sales quality and efficiency.<br />
12. Tail gas treatment: with the function of activated carbon adsorption and exhausting waste gas,<br />
can effectively prevent xylene and other harmful substances to human body.<br />
13.The cover-slipper is equipped with the slide automatic air drying function, reduce the drying time,<br />
save human resources.<br />
14.The covered slides are automatically transferred to the built-in storage, which can store 12set of<br />
240 slides, which can be taken at any time to realize mass operation. The whole process does not<br />
need personnel care, and it is a workstation that really leaves people.<br />
15.The cover-slipper can be connected to form an integrated staining and cover-slipping<br />
workstation. The staining and cover units of the workstation can be used either alone or combined.<br />
Intelligent speed matching design, and the two units have no time difference pipeline operation.<br />
Main Technical Data:<br />
1. Speed of cover-slipping: Max 800 slides/hour.<br />
2. Capacity of slide rack: 20 slides/rack.<br />
3. The corresponding cover program can be selected according to the specimen type, with 6 quick<br />
modes of cover programs.<br />
4.The covered slides are automatically transferred to the built-in storage, which can store 12set of<br />
240 slides<br />
5.Size:600*600*682mm<br />
6.Weight:60kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 75kg<br />
Dimensions: 650*650*750mm</p>


CS-F Cover Slipper

<p><strong>Description </strong></p>
<p>1. The dyeing process is fully automated, only need to load glass slides, and there is no need for<br />
human intervention during operation.<br />
2. When the dyeing is completed, the stained pieces have been centrifuged and dried (the rotating<br />
speed reaches 950 RPM during centrifugation) and can be directly used for microscopic<br />
examination.<br />
3. Gram dyeing meets the three-step dyeing method of machine dyeing standard and the<br />
four-step manual dyeing method.<br />
4. Support the setting of engineers to make the dyeing more refined. The (sputum, leucorrhea),<br />
(urine, pleural effusion and ascites, quality control bacteria) and blood culture are divided into<br />
three categories, with professional staining settings. Achieve the most ideal dyeing effect.<br />
Support the professional dyeing setting of the operator, so that the dye can be attached to the<br />
microorganism instantly.<br />
5. High pressure centrifugal spray dyeing or injection dyeing is adopted, and the glass slides are<br />
placed horizontally or vertically, imitating manual spray dyeing. The reagent dosage is saved,<br />
and there is no cross contamination between slides. The dyeing is uniform and bright without<br />
flake.<br />
6. Brushless DC motor is adopted (no ignition of brush motor) the product is safer, with long<br />
service life, low power consumption and low noise.<br />
7. 12 glass plates, up to 180 glass plates can be dyed per hour. 24 glass discs, which can stain<br />
more than 200 glass discs per hour.12 glass plates, up to 190 glass plates can be dyed per<br />
hour.<br />
8. The dyeing time is about 4-5 minutes.<br />
9. Dyeing level: crystal violet dye solution 9, iodine solution 9 and magenta dye solution 9.<br />
10. 7-inch large screen operation display, full Chinese operation interface, and the number of slides<br />
can be customized. Totally enclosed system, no need to be close to the water tank and no<br />
pollution to the laboratory environment.<br />
11. The dyeing setting can be selected according to the smear thickness, and the reagent dosage<br />
can be set automatically.<br />
12. Each set of dyeing solution can dye 600 ~ 1000 glass slides.<br />
13. Ethanol cleaning, special flow path cleaning and spray detection, convenient maintenance.</p>
<p><strong>Main Technical Data:<br />
</strong><br />
1. Model Number: MSS-001<br />
2. Short Desc: Microbiology Slide Stainer<br />
3. &#8220;Scope of Application:<br />
4. Gram staining of microbial smears in clinical, disease control, quality inspection and various，<br />
professional microbial laboratories.&#8221;<br />
5. Sample tray capacity：1-12/24/16 Depends on the number of samples<br />
6. Cover opening height：58cm<br />
7. Voltage requirements：220V，50-60Hz<br />
8. Safety performance：The machine can only be operated when the cover is closed. When the<br />
machine is running, it automatically opens the electromagnetic lock to ensure the safety of<br />
operators. There are indicators on the panel to display the running status of the machine.<br />
Net Weight: 17.5kg<br />
Dimensions: 560*250*540mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 33kg<br />
Dimensions: 700*700*400mm,</p>


MSS-001 Microbiology Slide Stainer

<p><strong>Description </strong></p>
<p>1. This instrument is adopted FISH processing step, which can reduce a lot of manual operating<br />
time and avoid the damage of harmful reagent.<br />
2. Full touch screen operation, friendly human interface.<br />
3. Support restart functionality runs an unexpected power outage, when power is restored can be<br />
scheduled to automatically back up and running.<br />
4. Supporting automatic cooling function after running over.<br />
5. Supporting automatic warm-up function.<br />
6. Platform high precision of temperature control, low fluctuation.<br />
7. Can deal with 12 slides.<br />
8. Support 105 custom programs stored functions.<br />
9. Integrated denaturation and hybridization, hybrid, multiple-step operation three modes of<br />
operation.</p>
<p><strong>Main Technical Data:</strong><br />
1. Temperature control range : RT+5 ℃ ~100 ℃<br />
2. Temperature set range :0℃~100℃<br />
3. Accuracy of temperature : ≤ ± 1℃<br />
4. temperature :≤ ± 1℃<br />
5. Heating time: ≤2Min （<br />
37℃ to 95℃）<br />
6. Cooling time:≤6Min （<br />
95℃ to 45℃）<br />
7. Capacity: 12<br />
8. Power :350W<br />
9. Input voltage:220V/50-60Hz<br />
10. Fuse: 250V 3A Ф5×20<br />
Net Weight: 4.5kg<br />
Dimensions: 440*220*120mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 6kg<br />
Dimensions: 580*390*300mm</p>


HS-300Y Hybridizer

<p><strong>Description</strong></p>
<p>12. Open system, Suitable for various kinds of specimen<br />
13. True hands free, walk away, overnight operation.<br />
14. Easy Windows<br />
TM based programming, password protection<br />
15. Allows for several stainers using single computer simultaneously<br />
16. User-specified protocols/User’s own reagents, serval runs per day<br />
17. Robust, proven construction and operation<br />
18. No disposable pipette tips<br />
19. Per-run reagent volume checks<br />
20. Detailed reports stored<br />
21. No additional consumable costs<br />
22. No special reagents-using for different company<br />
Main Technical Data:<br />
7. Slides Capacity:<br />
48<br />
2. Reagents Capacity: 64<br />
3. Minimum dropping reagent :<br />
50ul<br />
4. Dropping reagent increment: 50ul, 100ul, 150ul, 200ul<br />
5. Maximal output power: ≤350VA<br />
6. Working noise: ≤60dB(A)<br />
7. Application:<br />
IHC, HE more<br />
8. Dimension(mm):<br />
1015*665*520<br />
9. Power supply: 220V or 110V<br />
10. Rated current:<br />
1.6A<br />
Net Weight: 116kg<br />
Dimensions: 1015*665*520mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1100*750*710mm ，810*510*560mm<br />
Gross Weight: 158kg</p>


HS-2300 Immuno Auto stainer

<p><strong>Description</strong> </p>
<p>1. Immunostainer system include： stainer, Retriever computer and printing system， Which let<br />
you Automate and standardize your IHC experiments to help you get safe, reliable, high-quality<br />
staining results.<br />
2. The Immunostainer consists of an automated pretreatment system and an automated<br />
immunohistochemical staining system. Pretreatment and staining are operated separately,<br />
allowing for more flexible scheduling and intermediate quality control.<br />
3. Fully automatic Immunostainer can automatically complete the entire process of<br />
immunohistochemical<br />
staining,<br />
which<br />
provides<br />
advanced<br />
immunohistochemical<br />
standardization and automated solutions to overcome the hand-dyeing time-consuming, poor<br />
repeatability and other shortcomings. The Fully automatic Immunostainer is fast, accurate,<br />
reliable, reproducible, cost-effective and offers flexible workflows to meet different client needs.<br />
4. Allows for several stainers using single computer simultaneously.<br />
5. Sample volume: 50-600ul adjustable, to maximize the cost control.<br />
6. 3 sample loading adjustment sites to maximize reagent utilization and reduce costs.<br />
7. Needle<br />
automatic<br />
vacuum<br />
washing<br />
and<br />
drying<br />
function,<br />
effectively<br />
prevent<br />
cross-contamination.<br />
8. Teflon does not hang liquid sample retention, save reagents, to avoid contamination.<br />
9. Seperate Toxic &#038; non-toxic waste discharge, more environmentally friendly.<br />
10. Automatic reagent level detection, automatic detection function, more intelligent and<br />
convenient<br />
the operation is very convenient with variety of procedures.<br />
11. The primary antibody is open, secondary antibody is not. And reagent bottle is registered once<br />
and can use repeatedly, save time and reduce costs.<br />
<strong><br />
Main Technical Data:</strong><br />
1. Slides Capacity: 48pcs<br />
2. Reagents Capacity: 48pcs<br />
3. Reagent Usage: 50-600ul<br />
4. Cross-contamination: <10-6
5. Operation Temperature: Ambient
6. Application: paraffin， frozen， puncture， cytology smears
Dimension (L x W x D): 107*69*58cm

<strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1200*850*850 mm/700*400*400mm,<br />
Gross Weight: 116kg</p>


HS-2400 Immuno Auto stainer

<p><strong>Description </strong></p>
<p>Frozen section specimens: Step 1: Fix specimen cylinder number 1 (20 seconds) → Step 2<br />
Washing cylinder number 4 (10 seconds) → Step 3 HE staining jar number 2 (1 minute 20 seconds)<br />
→ Step 4: Wash the tank number 4 (10 seconds) → Step 5: Differentiate the tank number 3 (1 time)<br />
→ Step 6: Wash the tank number 4 (10 seconds) → Step 7: Unblue tank number 7 (10 seconds) →<br />
Step 8, washing tank number 4 (10 seconds) → Step 9, Ehong tank number 8 (3 seconds) → Step<br />
10, washing tank number 4 (3 seconds) → Step 11: 75% alcohol tank number 9 (6 seconds) → Step<br />
12: Water washing tank number 4 (set 0) → Step 13: 85% alcohol tank number 10 (6 seconds) →<br />
Step 14: 95 % alcohol cylinder number 11 (6 seconds) → Step 15 100% alcohol cylinder number 12<br />
(6 seconds) → Step 16 100% alcohol cylinder number 13 (6 seconds) → Step 17 xylene cylinder<br />
Position number 14 (6 seconds) → Step 18 Xylene cylinder position number 15 (end in 1 second)</p>
<p><strong>Main Technical Data:</strong><br />
1. Number of liquid cylinders: 15:<br />
2. The first cylinder is an automatic start-up saving cylinder.<br />
3. Number of cleaning tanks: 3<br />
4. Number of hematoxylin tanks: 1 (water bath heating)<br />
5. Number of differentiation tanks: 1<br />
6. Number of eosin tanks: 1<br />
7. Number of anti-blue cylinders: 1<br />
8. Number of gradient alcohol tanks: 5<br />
9. Number of end cylinders: 1<br />
10. Single cylinder processing time: can be set arbitrarily from 1 second to 59 minutes<br />
11. The temperature setting range of the hematoxylin tank and the warm water return tank is adjustable from 0 to 99 degrees.<br />
12. Dyeing steps: 18 steps<br />
13. Number of stained slides in a single staining rack: 20 slides<br />
14. Infinite loop working mode of three dyeing racks<br />
15. Single dyeing time: 4 minutes adjustable<br />
16. The computer-programmed water inlet and sewage drainage system ensures that the water<br />
quality is clean and water-saving when cleaning glass slides in each process.<br />
17. Hematoxylin can be heated in a water bath, and can be colored quickly using ultrasonic waves.<br />
The temperature can be set arbitrarily (patented)<br />
18. The differentiation cylinder has precise priority processing<br />
19. Eohong cylinder has precise priority processing<br />
20. A single staining can reach 20 slides to meet the requirements of breast resection technology<br />
21. Three methods of returning to blue are available, among which the warm water heating method<br />
is sufficient and the temperature can be set arbitrarily (patented)<br />
22. The dyeing rack has automatic identification function<br />
23. It has an alarm function after the program is completed.<br />
24. Numbers of programs: 10 programs<br />
Net Weight: 55kg<br />
Dimensions: 810*430*450mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 70kg<br />
Dimensions:880*510*535mm</p>


LSC-110 Slide Stainer

<p><strong>Description</strong> </p>
<p>1. Full English color touch screen display, ATM-type operation mode. The operation is simple and<br />
easy to understand.<br />
2. Multiple sets of programs are available for editing (non-sequential editing can be performed,<br />
and dyeing steps and time can be programmed arbitrarily)<br />
3. Automatic drying temperature can be set. The temperature around the drying cylinder is<br />
uniform, and there is a water and gas overflow<br />
4. With automatic detection and automatic reset function.<br />
5. Strong anti-interference ability and high degree of intelligence.<br />
6. Automatically control the flushing water level. When the dyed hanging blue enters the washing<br />
tank, the water is automatically filled in the washing tank. When the hanging blue leaves the<br />
washing tank, the water injection is automatically stopped, and the water in the tank is drained.<br />
7. It has the function of locking cylinder protection<br />
8. The drip residence time is adjustable. The dripping time can be adjusted according to the<br />
sample volume and ambient temperature to ensure the purity of the reagent<br />
9. The number of running steps is 24 steps, (the same cylinder position can be run repeatedly)<br />
10. Adopt international standard synchronous toothed belt drive, low noise, high temperature<br />
resistance, corrosion resistance, high transmission accuracy, with photoelectric positioning<br />
sensor, so that the positioning is more accurate and the service life is long.<br />
11. Harmful gas purification treatment: protect the health of staff and prevent the working<br />
environment from pollution</p>
<p><strong>Main Technical Data:</strong><br />
1. Sixteen sets of editable programs can be programmed arbitrarily<br />
2. The processing volume of a single cylinder is 1000ML, and the loading capacity is 65 pieces<br />
each time.<br />
3. Single-cylinder processing time 0～99min99s<br />
4. The number of shakings: the shaking time of the cylinder can be adjusted arbitrarily<br />
5. Stirring times: can be adjusted arbitrarily<br />
6. The drip residence time is: 0 seconds to 300 seconds can be adjusted arbitrarily<br />
7. 14 cylinder positions, 1 washing cylinder (the first cylinder), one drying cylinder (the last<br />
cylinder),<br />
8. Drying temperature, 0-85℃ can be set arbitrarily<br />
9. Power supply: 220V 50HZ ±10℅<br />
10. (10) Power consumption: ≤300W<br />
Net Weight:80Kg<br />
Dimensions: 1161*480*550mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1260*615*695mm,<br />
Gross Weight: 110kg</p>


LSD-600 Slide Stainer

<p><strong>Description</strong> </p>
<p>1. Large screen English menu ,7-inch color touch screen operation;<br />
2. Has the intelligent key function (can not see the screen blind operation), when the display<br />
screen has no display and touch function damage, the main function of the dyeing machine can<br />
be operated normally;<br />
3. Program intelligent dynamic detection function, can track and detect the operation of<br />
specimens, and can judge and deal with various abnormal conditions, to prevent damage to<br />
specimens;<br />
4. Use of ionized decomposition of harmful gases and activated carbon filtration, fully sealed<br />
internal circulation systems to ensure that operators are protected from harmful gases;<br />
5. The washing cylinder uses the bottom of the cylinder to feed water automatically, and drains 3<br />
cm below the cylinder opening to prevent the water from overflowing into the instrument due to<br />
the failure of the instrument pump, and also to avoid the upper spray water, because the<br />
impulse is too large to wash out the diagnostic cells; the last cylinder is the oven.<br />
6. It can automatically warm up hematoxylin, eosin and other dyes, and the dyeing effect is better<br />
and more stable (can be set to warm or not according to the requirements of use);<br />
7. 18 reagents cylinder design, dye cylinder volume of 1000 ml (more than 75 pieces per batch of<br />
dyeable tablets) dyeing steps open, random increase or decrease settings, so that the dyeing<br />
machine is light and convenient, but also fully meet the requirements of dyeing;<br />
8. Dyeing hanging back lateral transmission using steel linear guide rail with stepping motor, so<br />
that the operation is more accurate, will not be inaccurate cylinder, . (Its transverse drive does<br />
not use wire rope, belt or synchronous tooth belt, this kind of use time in the market will become<br />
relaxed, resulting in cylinder inaccuracy);<br />
9. Can set up 30sets of running procedures to meet the requirements of a variety of dyeing<br />
methods;<br />
10. The &#8220;self-detection&#8221; item is displayed on the operating display screen of the dyeing machine,<br />
which has the function of preventing the abnormal protection of the card cylinder, and can<br />
display the running state and various functions in real time;<br />
11. Equipped with a special drying cylinder, dyeing after the completion of hot air drying, the real<br />
realization of the dyeing process once completed;<br />
12. Automatic data storage with power failure, incoming calls continue to run function;<br />
13. Has any cylinder start operation and any cylinder stop operation function;<br />
14. Patent for a programmable stepper motor driver (patent number zl 2012 2 0009482.3);<br />
15. Automatic flushing, pump-free and sensor-free automatic drainage, patent: a new type of cell<br />
tissue dyeing machine washing box (patent number: zl 2014); and 2 0828607.4)</p>
<p><strong>Main Technical Data:</strong><br />
1. Rated voltage :220 v±10 per cent AC<br />
2. Power frequency :50±1 hz<br />
3. Rated power: ≤500 W<br />
4. Reagent tanks :18 cylinders<br />
5. Tank volume: 1000 ml<br />
6. Number of stained slides per batch: ≥75 tablets<br />
Net Weight: 96.5kg<br />
Dimensions: 1300*600*600mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 1352*619*655mm<br />
Gross Weight: 132kg</p>


LSD-620 Tissue Slide Stainer

<p><strong>Description</strong></p>
<p>The big Tissue Stainer can stain large quantity slides at same time.</p>
<p>1. Adopt PLC control system and Electronic Touch Screen, it’s convenient to operation and low<br />
failure rate.<br />
2. Adopt high performance stepper motor and drive with Synchronous Belt, to ensure the<br />
balanced running, accurately fixed position, min. noise and so on.<br />
3. Adopt Photoelectric switch to fixed position, it has found position memory and reset<br />
automatically functions.<br />
4. It can store 5-10 different programs to meet the different staining requirements.<br />
5. Battery backup can be optional, to permit staining of slides to continue during the main power<br />
failures.<br />
6. It has 26 stations: From1 to 17 stations are reagent containers, 19, 21, 23 stations are water<br />
washing containers, 18, 20, 22 stations are waiting containers that for putting the ready staining<br />
racks. 24 station for loading staining rack. 0 station for unloading staining rack. 25 station is<br />
oven.</p>
<p><strong>Main Technical Data:</strong><br />
1. Specimen slide throughput: At least 200 specimen slides per hour<br />
(depend on the selected program)<br />
2. Loading capacity:<br />
3 -5slides rack<br />
3. Slide rack capacity:<br />
30 specimen slides<br />
4. Total number of stations: 26<br />
5. Number reagent stations:<br />
18<br />
6. Reagent container volume: 600ml<br />
7. Number of wash stations: 3<br />
8. Number of wait stations:<br />
3<br />
9. Oven: 1 (last station, 26<br />
th<br />
)<br />
10. Oven chamber temperature: from ambient temperature to 85°C<br />
11. Load/unload stations:<br />
1 each<br />
12. Incubation time setting:<br />
from 0 sec. up to 9999 sec.<br />
13. Permanent memory capacity: 5 programs, up to 24 program steps each<br />
14. Operation temperature range: 15°C to 35°C<br />
15. Relative humidity: ≤90%(+25°C)<br />
16. Dimension (W×D×H): 120cm×50cm×60cm<br />
17. Voltage: 220V, 50Hz<br />
18. Power rating: 300VA</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Tanks<br />
26 pcs<br />
2. Slide basket<br />
1 pc<br />
3. Fuse (5 A)<br />
2 pcs<br />
4. Power line<br />
1 line<br />
5. Optional Accessories<br />
6. Extra Tank<br />
7. Slide Basket<br />
8. Transmission belt<br />
Net Weight: 91kg<br />
Dimensions: 1230*650*560mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 133kg<br />
Dimensions: 1320*760*750mm</p>


LSS-800 Automatic Slide Stainer

<p><strong>Description</strong></p>
<p>1. Electrical modular design. LSS820 dyeing machine can meet the requirements of different</p>
<p>laboratories. No matter conventional dyeing or special deying, both can process meanwhile or</p>
<p>separately, in order to obtain high dyeing effect.<br />
2. Color touch screen can make the input and search of the data convenient, different dyeing<br />
procedure and dyeing process can be displayed in real time.<br />
3. Dyeing procedure can start throughout choosing color code and it can be displayed on the<br />
operation interface in real time. The workers can see and understand the process easily.<br />
4. There are 10 sets of different dyeing process can be chosen. 10 staining racks can dye<br />
meanwhile. And it can run any different programs meanwhile at any time.<br />
5. 26 reagent sites. Two of them can be changed into empty sites. When multi staining frame<br />
operates meanwhile, it can optimize the dyeing process automatically.<br />
6. Staining rack can load and take out throughout uploading and downloading the drawer. We can<br />
upload 2 staining racks, download 3 staining racks.<br />
7. Mechanical arm can move at high speed, reach any site in a second. The staining rack can set<br />
rising and falling frequency at short time.<br />
8. The amount of dye can up to 400 pieces one hour at most.</p>
<p>1. Dyeing frame capacity: 30 glass slides<br />
2. Loading capacity: can deal with staining rack with 10 different processes meanwhile at most.<br />
( Continuous upload)<br />
3. Total number of Site :36<br />
4. Total number of reagent sites:26<br />
5. Total number of washing site:5<br />
6. 500ml Reagent tank volume:500ml<br />
7. The amount of uploading site: 2<br />
8. The amount of downloading site:3<br />
9. The amount of stored program: 10 sets<br />
10. Power source: 220VAC±10%,50/60HZ<br />
11. Power: 200W<br />
12.Touch screen: color 10.4 inch (Intelligent user management interface, graphical display dyeing<br />
process.)<br />
Net Weight: 125kg<br />
Dimensions: 1050*600*600mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 150kg<br />
Dimensions: 1140*715*850mm,</p>


LSS-820 Automatic Slide Stainer

<p><strong>Description</strong></p>
<p>LSS850 automatic slide stainer can preset the staining process according to different tissue types,<br />
intelligent software control the staining process, reduce the staining difference caused by operation,<br />
through the program presets the staining frame in accordance with the set program in each rack to<br />
achieve the purpose of automatic staining.</p>
<p><strong>Main Technical Data:</strong><br />
1．Number of Station: 32 Stations: Including 5 washing stations (can be set as reagent stations<br />
according to customers&#8217; requirements). 6 uploading/downloading Stations, 3 Oven stations, up to 31<br />
reagent stations.<br />
2．Water station: 5 stations.<br />
3．Visible planar construction is easy to observe the liquid level height of each tank position; Built-in<br />
LED lighting is easy observation of the staining process.<br />
4．With 12.1inch color touch screen and English operating interface. It no need stop when adjusting<br />
the parameters.<br />
5．Hot plate temperature: 25 to 95℃.<br />
6．Editable program: Can store 200 editable programs, 200 steps/program. Each step setting<br />
time: 1 second -23 hours 59 minutes and 59 seconds<br />
7．Each step can be setting 3 working modes for Precise time control: Normal, Priority (priority<br />
processing the lifting), Precise mode (robotic arm standing by to wait for lifting the rack)<br />
8．Parameters: screen that can shows the steps of the process in progress.<br />
9．XYZ three-axis manipulator combined movement, highly intelligent multi-threaded task<br />
scheduling program, high efficiency, can uploading and running 12 baskets concurrently. The<br />
staining speed is 720 slides/h.<br />
10．The mechanical arm can be set 3 working modes: Drainage, Shaking, Agitation. And can freely<br />
setting the parameters.<br />
11．12 programs can be run simultaneously and can make frozen sections, HE staining and PAPA<br />
staining.<br />
12．It can be paused or started the running program at any time when instrument working.<br />
13．It can be cancel the running staining program at any time, or can be renew the canceled<br />
running program, and the renewed program will continue to run from its pre-undo state.<br />
14．10 shortcut programs can be set on the main interface; Each step can be setting 3 working<br />
modes.<br />
15．Conventional HE staining, fast frozen HE staining and PAPA staining can be performed<br />
individually or simultaneously<br />
16．the basket is uploading and downloading with drawer type station. You can setting uploading/<br />
downloading station freely. Various combinations to meet the needs of different situations.<br />
17．The uploading station has a detection sensor to automatically detect the slide rack status in the<br />
station; With abnormal open drawer alarm and delayed voice reminder function, drawer open<br />
timeout reminder time 1-120 seconds adjustable.<br />
18．Any tank starting function.<br />
19．Intelligent staining time adjustment. It can be set according to the staining days or the number<br />
of baskets, automatically adjust the staining time, and the single staining time can be adjusted at<br />
any time.<br />
20．On-demand water supply. Real-time detection of water intake status in the running water tank.<br />
21．The instruments have a built-in water flow control knob, which can adjust the water flow<br />
according to the water pressure to ensure adequate washing.<br />
7．Each step can be setting 3 working modes for Precise time control: Normal, Priority (priority<br />
processing the lifting), Precise mode (robotic arm standing by to wait for lifting the rack)<br />
8．Parameters: screen that can shows the steps of the process in progress.<br />
9．XYZ three-axis manipulator combined movement, highly intelligent multi-threaded task<br />
scheduling program, high efficiency, can uploading and running 12 baskets concurrently. The<br />
staining speed is 720 slides/h.<br />
10．The mechanical arm can be set 3 working modes: Drainage, Shaking, Agitation. And can freely<br />
setting the parameters.<br />
11．12 programs can be run simultaneously and can make frozen sections, HE staining and PAPA<br />
staining.<br />
12．It can be paused or started the running program at any time when instrument working.<br />
13．It can be cancel the running staining program at any time, or can be renew the canceled<br />
running program, and the renewed program will continue to run from its pre-undo state.<br />
14．10 shortcut programs can be set on the main interface; Each step can be setting 3 working<br />
modes.<br />
15．Conventional HE staining, fast frozen HE staining and PAPA staining can be performed<br />
individually or simultaneously<br />
16．the basket is uploading and downloading with drawer type station. You can setting uploading/<br />
downloading station freely. Various combinations to meet the needs of different situations.<br />
17．The uploading station has a detection sensor to automatically detect the slide rack status in the<br />
station; With abnormal open drawer alarm and delayed voice reminder function, drawer open<br />
timeout reminder time 1-120 seconds adjustable.<br />
18．Any tank starting function.<br />
19．Intelligent staining time adjustment. It can be set according to the staining days or the number<br />
of baskets, automatically adjust the staining time, and the single staining time can be adjusted at<br />
any time.<br />
20．On-demand water supply. Real-time detection of water intake status in the running water tank.<br />
21．The instruments have a built-in water flow control knob, which can adjust the water flow<br />
according to the water pressure to ensure adequate washing.<br />
22．Reagent change remind and management functions, it can remind the operator to pay attention<br />
to and replace the corresponding reagent in real time according to the days or times of reagent use.<br />
Reagent usage is marked in different colors on the touch screen.<br />
23．The staining time is intelligently adjusted according to the reagent use time and the number of<br />
staining pieces.<br />
24．Fast running speed, the fastest to complete 1s differentiation.<br />
25．Activated carbon filter + air purification system ensure a safe working environment.<br />
26．When the equipment is operating, the cover is abnormally opened and the alarm is raised, and<br />
the manipulator stops running. This function can open or close.<br />
27．With artificial voice prompt alarm function, after failure or completion of work, voice prompt,<br />
prompt frequency, volume, number of times can be adjusted, failure occurs on the main page to<br />
prompt and display the solution guide, to remind technical personnel to operate in time.<br />
28．with the running status query function, you can understand the current execution of the step,<br />
remaining time and station distribution and other information.<br />
29．with a quality control module, including quality control Settings and overview, change of<br />
reagent records, running program history, reagent use details and other modules.<br />
30．remote intelligent monitoring: with remote alarm, remote monitoring function, you can monitor<br />
through the web page or APP three ways, real-time understanding of the operating status of the<br />
instrument, USB interface configuration, can export Excel quality control table.<br />
31．with two USB interfaces, you can export quality control data, you can upgrade the equipment,<br />
update operations.<br />
32．with the administrator and ordinary user login mode, can set the password, the administrator<br />
account has the highest authority, can be assigned to other account permissions, query Settings<br />
and modify operations.<br />
33．triple sound and light alarm system: English artificial voice alarm system, control panel<br />
synchronous light prompt, light color three, the main interface synchronous text display solution<br />
guide.<br />
34．basket capacity：20pcs/sheet, one running can handle 3 baskets with 60 slides.<br />
35．tank capacity：850ml<br />
Net Weight: 167kg<br />
Dimensions: 1180*730*680mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 180kg<br />
Dimensions: 1260*830*880mm</p>


Staining Series &Cover Slippers LSS 850 Slide Stainer

<p><strong>Description</strong></p>
<p>Features:<br />
1. It have clipper –built case, the user can put blade, wax block, or other consumable on the top of<br />
case. it is easy.<br />
2. It do not need to lubricate and maintain the microtome frequently.<br />
3. The hand wheel in the right can be locked in any position, and the handle can be locked in<br />
highest position, it is double safe for changing blade or tissue block.<br />
4. The specimen Orienting system: axes X and Y 8°, axis 180°.<br />
5. It adopt the special blade holder, it is more safe and convenient to use the disposable blade<br />
directly. it also can to longer the user life of disposable blade.<br />
Main Technical Data:<br />
1. Slice thickness range: 0μm～60μm<br />
2. Section thickness setting: 0-2 um in 0.5 um –increments<br />
a) 2-10um in 1 um-increments<br />
b) 10-20 um in 2 um-increments<br />
c) 20-60um in 5 um-increments<br />
3. Horizontal specimen stroke :20 mm<br />
4. Vertical specimen stroke : 50mm<br />
5. Slip precision: ± 5%<br />
6. Maximal slice section: 50 × 45mm<br />
7. Specimen adjustment direction: horizontal 8°, vertical 8°, rotating 360°<br />
8. Movement range of blade holder base: front and back ±25mm, left and right ±25mm<br />
9. Blade holder angle 0~10°<br />
Accessories:<br />
Standard Setting List<br />
1. Disposable Blade Holder 1 pc<br />
2. Specimen Cassette Clamp<br />
1 pc<br />
3. Hexagonal Wrench<br />
1 set<br />
4. Brush<br />
1 pc<br />
5. Optional Accessories<br />
6. Paraffin Wax Holder<br />
7. Feather Microtome Blade<br />
Net Weight: 30kg<br />
Dimensions: 500*480*280mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 520 *520*450mm,<br />
Gross Weight:41 kg</p>


HS-2205 Rotary Microtome

<p><strong>Description</strong></p>
<p>A newly developed products after ，it has adopted internationally advanced design. This microtome<br />
is classic of the current advance craftwork . it reach the perfect mixture of electronic and<br />
mechanism.. So the customer can operate it easily and conveniently.<br />
Features:<br />
1. Adopting internationally advanced stepper motor drive, high slicing accuracy, smooth and quiet<br />
operation.<br />
2. LCD screen with English menu display, buttons to adjust slice and trimming thickness,<br />
automatic slice counting, position memory, fast forward, fast rewind, and fine adjustment of the<br />
clamping head position.<br />
3. The sample retraction function avoids damage caused by reverse friction between the<br />
specimen tissue and the section, making the blade smoother and extending the service life of the<br />
blade.<br />
4. With automatic identification of half-cut function, turning the handwheel half a circle<br />
counterclockwise can realize automatic trimming, making slicing more efficient;<br />
5. A variety of trimming methods, in addition to half-cutting, you can also press the fine-tuning<br />
button while turning the handwheel to achieve trimming, which is faster;<br />
6. Two-in-one knife holder, which can easily switch between wide and narrow blades<br />
7. Slicing is smoother and the service life of the blade is extended.<br />
8. The handwheel can be locked at any position, making section safer and more convenient.<br />
9. A large capacity waste tray that is easy to disassemble, ensuring clean and hygienic section<br />
work<br />
10. With automatic reset function, the device will automatically return to the starting point after</p>
<p>starting or running to the limit position.<br />
Main Technical Data:<br />
1. Slice thickness range: 0.5μm～100μm(3~5um is the best slicing effect)<br />
2. Section thickness setting：0.5～5μm，in 0.5μm increment<br />
a) 5～20μm，in 1μm increments<br />
b) 20～60μm,in 5μm increments<br />
c) 60～100μm，in 10μm increments<br />
3. Trimming section range : 1～600μm<br />
4. Trimming thickness setting：1～10μm，in 1μm increment ;<br />
a) 10～20μm，in 2μm increments<br />
b) 20～50μm，in 5μm increments;<br />
c) 50～100μm，in 10μm increments;<br />
d) 100～600μm，in 50μm increments<br />
5. Horizontal specimen stroke :20mm<br />
6. Vertical specimen stroke: 55mm<br />
7. Specimen retraction :20um<br />
8. Slip precision: ± 5%<br />
9. Maximal slice section: 50 *45mm<br />
10. Dimension: 530 * 520 * 450mm<br />
Accessories:<br />
Standard Setting List<br />
1. Disposable Blade Holder 1 pc<br />
2. Specimen Cassette<br />
1 pc<br />
3. Fuse (2A)<br />
2 pcs<br />
4. Power line<br />
1 line<br />
5. Hexagonal Wrench<br />
1 set<br />
6. Brush<br />
1 pc</p>
<p><strong>Optional Accessories</strong><br />
1. Paraffin Wax Holder<br />
2. Feather Microtome Blade<br />
Net Weight:32kg<br />
Dimensions: 500*450*300mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 520*520*450mm<br />
Gross Weight:43 kgs</p>


HS-3315 Semi- automatic Microtome

<p><strong>Description</strong></p>
<p>1. Streamlined molded housing results in attractive appearance and is easy to clean.<br />
2. Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step<br />
and single.<br />
3. LED display<br />
4. Electronic trim function makes it easy to switch from trim and section mode<br />
5. Specimen retraction mechanism protects specimen from unintended blade damage<br />
6. Section counting function counts total section pieces and total thickness.<br />
7. Unit contains a precise micro motion specimen feeding system which uses a micro computer,<br />
optical signal and stepper motor to control specimen feeding resulting in more precise<br />
specimen feeding.<br />
8. Internationally accepted slide mechanism and groove ensures the precision of specimen<br />
movement while making the unit free from lubrication and maintenance requirements.<br />
9. Unit contains a handwheel force balancing system for adjusting the balancing force during<br />
sectioning, making rotation even and smooth;<br />
10. Two safety locking mechanisms on the handwheel; one locks on the top; the other locks at any<br />
position<br />
11. The disposable blade can move horizontally to avoid the dangers of unintended contact with<br />
the blade. Every blade cuts specimen into three equal parts, which ensures the entire use of blade<br />
edge.<br />
12. The waste tray collects sectioning debris are easily removed for cleaning<br />
13. Cassette clamp and C clamp are optional<br />
14. Specimen orientation on X/Y axes 8°<br />
15. Alarm to warn of forward or backwards limitation.<br />
16. Self-diagnostic prompt.<br />
17. Emergency stop and foot switch (optional)<br />
Main Technical Data:<br />
1. Section thickness range：0.5μm～100μm(3~5um is the best slicing effect)<br />
2. Section thickness setting：0.5～5μm，in 0.5μm increment<br />
a) 5～20μm，in 1μm increments<br />
b) 20～60μm,in 5μm increments<br />
c) 60～100μm，in 10μm increments<br />
3. Trimming thickness: 1～600μm<br />
4. Trimming thickness setting：1～10μm，in 1μm increment ;<br />
a) 10～20μm，in 2μm increments<br />
b) 20～50μm，in 5μm increments;<br />
c) 50～100μm，in 10μm increments;<br />
d) 100～600μm，in 50μm increments;<br />
5. Specimen retraction: 10～150μμm(Can be closed)，in 1μm increments ;<br />
6. Specimen vertical stroke：60mm<br />
7. Specimen horizontally stroke：25mm<br />
8. Max specimen size with C clamp (H×W)：55mm*45mm<br />
9. Dimensions (W×D×H)：570*510*490mm<br />
10. Net Weight：34.6kg</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Disposable Blade Holder 1 pc<br />
2. Specimen Cassette<br />
1 pc<br />
3. Fuse (2A)<br />
2 pcs<br />
4. Power line<br />
1 line<br />
5. Hexagonal Wrench<br />
1 set<br />
6. Brush<br />
1 pc</p>
<p><strong>Optional Accessories<br />
</strong><br />
1. Paraffin Wax Holder<br />
2. Feather Microtome Blade<br />
Out Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 45kg<br />
Dimensions: 695*525*480mm</p>


HS-3345 Fully Automatic Microtome

<p><strong>Description</strong></p>
<p>HS3355 computer microtome is a new product launched by our company after HS3315 microtome<br />
series. This microtome integrates the essence of our factory&#8217;s technology, adopts international<br />
advanced design concepts, is more in line with ergonomic design, and mainly uses imported parts.<br />
Stepper motor feed system; high-precision cross ball guide rail; recirculating ball screw and other<br />
precision parts make the slice accuracy higher. This microtome is a model of current advanced<br />
technology, a perfect combination of electronics and machinery, and a new development direction of<br />
tissue sectioning.</p>
<p><strong>Features:</strong><br />
1. Reasonable layout and simple operation;<br />
2. Adopting 4.3-inch touch screen design, easy to understand, Chinese and English are optional;<br />
3. External control panel, more convenient operation;<br />
4. Two sets of independent position memory function, multiple setting methods;<br />
5. The chuck position is digitalized, and the input coordinates automatically reach the coordinate<br />
position;<br />
6. Intelligent sensing half-repair function improves work efficiency. Only half a circle of handwheel is<br />
required to achieve the repair, and no other operation is required during the whole process; after the<br />
half-knife repair is completed, turn the handwheel in a full circle to automatically switch to the slicing<br />
mode<br />
7. Unique sample retraction function, the retraction thickness is adjustable, which avoids the damage caused by the reverse friction between the specimen tissue and the slicing knife, makes<br />
the blade smoother, and prolongs the service life of the blade;<br />
8. Cross-ball double guide rail design, solid structure, stable performance;<br />
9. Adopt advanced speed regulation method, small vibration, low noise;<br />
10. A variety of tissue chucks are optional, bidirectional sampling, suitable for samples of different<br />
hardness and shapes;<br />
11. The knife holder body can be accurately displaced laterally, and the full length of the blade can<br />
be used without moving the blade with fingers, avoiding danger; at the same time, each blade can<br />
be divided into three parts to cut wax block tissue, which triples the service life of the blade,<br />
compatible with wide blades and narrow blades, with built-in knife guards and knife retracting<br />
devices<br />
12. The body surface is made of metal spraying, with high strength, corrosion resistance, smooth<br />
lines and elegant appearance.<br />
13. The handwheel can be locked in the upper and lower positions, making the slicing work safer<br />
and more convenient<br />
14. The knife holder adopts a dovetail groove structure base, which is more accurate and stable in<br />
forward and backward movement and locking;<br />
15. The large-capacity waste chip trough with magnetic function is easy to disassemble and install,<br />
making the slicing work clean and hygienic;<br />
16. The sample positioning system with 0 position can be adjusted on the X/Y axis and the sample<br />
can be positioned horizontally at ±8 degrees;</p>
<p><strong>Main Technical Data:</strong><br />
1. Slice thickness: 0μm~100μm (3~5um is the best slicing effect)<br />
2. Setting range: 0μm~5μm increment value 0.5μm<br />
5μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
Numbers can be directly entered through the touch screen<br />
3. Trimming thickness: 0μm~800μm<br />
4. Setting range: 0μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
100μm~800μm increment value 50μm<br />
Numbers can be directly input through the touch screen<br />
5. Sample retraction: 0μm~250μm<br />
6. Horizontal specimen stroke: 30mm</p>
<p>7. Vertical specimen stroke: 70mm<br />
8. Maximal slice section: 50*45mm<br />
9. Slip precision: ± 5%<br />
10. Knife holder angle: 0~15°<br />
11. Input power: AC220V/110V frequency 50/60HZ<br />
12. Dimension: 590*440*320mm<br />
13. Net weight: 33kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 43kg<br />
Dimensions: 530*520*450mm</p>


HS-3355 Semi Automatic Microtome

<p><strong>Description</strong></p>
<p>1. Reasonable layout and simple operation; fully automatic continuous sectioning function; three<br />
modes of continuous, stepping and single slice are optional, and the sectioning speed is adjustable;<br />
2. Adopting 4.3-inch touch screen design, easy to understand, Chinese and English are optional;<br />
3. External control panel, more convenient operation;<br />
4. Two sets of independent position memory function, multiple setting methods;<br />
5. The chuck position is digitalized, and the input coordinates automatically reach the coordinate<br />
position;<br />
6. Intelligent sensing half-repair function improves work efficiency. Only half a circle of the<br />
handwheel is required to achieve the repair, and no other operation is required during the whole<br />
process; after the half-knife repair is completed, turn the handwheel in a full circle to automatically<br />
switch to the sectioning mode<br />
7. Unique sample retraction function, with adjustable retraction thickness, avoids damage caused<br />
by reverse friction between the specimen tissue and the slicer, makes the blade smoother, and<br />
prolongs the service life of the blade;<br />
8. Cross-ball double guide rail design, solid structure, stable performance;<br />
9. Adopt advanced speed regulation method, small vibration, low noise;<br />
10. A variety of tissue chucks are optional, bidirectional sampling, suitable for samples of different<br />
hardness and shapes;<br />
11. The knife holder body can be accurately displaced laterally, and the full length of the blade can<br />
be used without moving the blade with fingers, avoiding danger; at the same time, each blade can<br />
be divided into three parts to cut wax block tissue, which triples the service life of the blade,<br />
compatible with wide blades and narrow blades, with built-in knife guards and knife retracting<br />
devices.<br />
12. The body surface is made of metal spraying, with high strength, corrosion resistance, smooth<br />
lines and elegant appearance.<br />
13. The handwheel can be locked in the upper and lower positions, making the slicing work safer<br />
and more convenient.<br />
14. The knife holder adopts a dovetail groove structure base, which is more accurate and stable in<br />
forward and backward movement and locking;<br />
15. The large-capacity waste chip trough with magnetic function is easy to disassemble and install,<br />
making the slicing work clean and hygienic;<br />
16. The sample positioning system with 0 position can be adjusted on the X/Y axis and the sample<br />
can be positioned horizontally at ±8 degrees;</p>
<p><strong>Main Technical Data:</strong><br />
1. Slice thickness: 0μm~100μm (3~5um is the best slicing effect)<br />
2. Setting range: 0μm~5μm increment value 0.5μm<br />
5μm~20μm increment value 1μm<br />
20μm~60μm increment value 5μm<br />
60μm~100μm increment value 10μm<br />
Numbers can be directly entered through the touch screen<br />
3. Trimming thickness: 0μm~800μm<br />
4. Setting range: 0μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
100μm~800μm increment value 50μm<br />
Numbers can be directly input through the touch screen<br />
5. Sample retraction: 0μm~250μm<br />
6. Horizontal specimen stroke: 30mm<br />
7. Vertical specimen stroke: 70mm<br />
8. Maximal slice section: 55*45mm<br />
9. Slip precision: ± 5%<br />
10. Knife holder angle: 0~15°<br />
11. Languages: 2 (Chinese and English)<br />
12. Input power: AC220V/110V frequency 50/60HZ<br />
13. Dimension: 590*440*320mm<br />
14. Net weight: 35kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 45kg<br />
Dimensions: 695*525*480mm</p>


HS-3385 Fully Automatic Microtome

<p><strong>Description</strong></p>
<p>1. Sectioning thickness range: 0.5～ 100 μm，Default: 6µm<br />
2. Section Thickness Setting: 0.5～5 µm，Step 0.5µm<br />
5～20 µm，Step 1µm<br />
20～60µm，Step 5µm<br />
60～100µm，Step 10µm<br />
3. Trim Thickness range: 1～ 600 μm，Default：20µm<br />
4. Trim Thickness Setting: 1～ 600 μm，Default：20µm<br />
1～ 600 μm，Step：20µm<br />
20～50µm，Step 5µm<br />
50～100µm，Step 10µm<br />
100～600µm，Step 50µm<br />
5. Feeding Drive Mode: Driven by stepper motor, feeding is precise and stable<br />
6. Specimen Head Memory: Memorize the specimen head feeding location, after replacing the new<br />
tissue specimen, the specimen head can directly reach the memory location with one click.<br />
7. Specimen Head Retraction: Support retraction in the range of 0 to 250 µm (0µm is off). The<br />
default value is 20µm.<br />
8. Specimen Head Coarse Feeding Speed: 900～2000µm/s，Default：1800µm/s<br />
9. Specimen Head Fine Feeding Speed: 100～900µm/s，Default：300µm/s<br />
10.Horizontal Stroke of Specimen Head: 25±1mm<br />
11. Vertical Stroke of Specimen Head: 60±1mm<br />
12.Specimen Positioning: Specimen disc 360°rotation, 0 Digit Indication<br />
13.Specimen Head Return: Press the “Fast Backward” key to quickly return, and press the “Fast<br />
Backward” key again to stop the return, the return speed is 2000µm/s<br />
14.Handwheel Lock: Locked at 6 O’clock, locked at 12 O’clock<br />
15.Knife Holder: Compatible with high profile and low profile blade, horizontal movement 48mm,<br />
Angle adjustment: 0 ~ 15°<br />
Refrigeration Parameters:<br />
1.Refrigeration Positions: Multi-point refrigeration, support 4 positions refrigeration including cryo<br />
chamber, specimen head, knife holder, and freezing shelves<br />
2.Temperature Display: Temperatures of cryo chamber, specimen head, knife holder, and freezing<br />
shelves<br />
3.Temperature Setting: Specimen head: -5°C～-50 °C，default: -15℃<br />
4.Refrigeration Method: With One Compressor<br />
5.Number of Freezing Stations: 3<br />
Auxiliary Parameters:<br />
1.Disinfection Function: UV disinfection, manual disinfection, 30min, 60min, 180min optional<br />
2.Lighting: Sliding window with induction automatic lighting, support on/off control by hand, lighting<br />
brightness can be adjusted<br />
3.Data Accumulation: Sect/Trim thickness and times are cumulative and zeroable<br />
4.Automatic Standby: Stand-by time range: 1～60min; Default 5min<br />
5.Knife Anti-collision Function: Support position marking for knife anti-collision, the sign can be<br />
re-marked after moving the knife holder<br />
6.Audio Alerts: When specimen head reaches the front or the rear limit, all there will have the audio<br />
alerts<br />
7.Screen: With 5 inch colour LCD touch screen, any function and parameters can be operated and<br />
set through the touch screen, easy to operate<br />
8.Sliding Window: Single pane<br />
9.Key Panel: The left side of the device is equipped with a physical keypad, which supports common<br />
functions such as fast forward, fast backward, slow forward, slow backward, thickness modified,<br />
sect/trim conversion</p>
<p><strong>Accessory Parameters:</strong></p>
<p>1.Knife Protector: With eye-catching red colour, metal material used, fixed on the knife holder, easy<br />
to operate<br />
2.Knife Ejector: Integrated on the knife protector, blade ejected by push-button, and blade<br />
replacement is safe and quick<br />
3.Specimen Discs: Planar structure design, large contact area with freezing shelves and specimen<br />
head, higher freezing efficiency for specimen; The current standard disc is φ 35mm, one size<br />
specimen holder<br />
Power: 370W<br />
Dimension: Width * Depth * Height: 590mm(Handle Included) * 715mm * 445mm<br />
Net Weight: 70kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 815*690*595mm<br />
Gross Weight: 88KG</p>


HS2040 Benchtop Cryostat

<p><strong>Description</strong></p>
<p>1. Modular control system:<br />
Defrost automatically / manually. Each defrost time is 15 minutes by default, or the box temperature<br />
rises to -5°C during the defrosting process, the defrosting will end in advance<br />
Hibernation automatically / manually;<br />
UV sterilization;<br />
Semi-conductor refrigerant;<br />
Slice number and thickness calculation;<br />
1. Movement speeds of specimen clamp.<br />
Appearance:<br />
one-time injected model cover;<br />
Anti-fog heating glass design;<br />
Chromatic liquid crystal touch screen.<br />
Microtome<br />
light and smooth handwheel with locking device on it;<br />
Specimen clamp enables to adjust triaxially with a block in the centre to go back<br />
High precision guide rails made in Germany make transmission smooth durable and be able to cut<br />
hard sample;<br />
Retraction<br />
Freezing chamber<br />
Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile.<br />
With waste tray and instrument rack.<br />
Blade holder:<br />
Wide or narrow blades optional;<br />
A anti-fatigue cam lock ensures blades clamp tight;<br />
Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade;<br />
Glass anti rolling plate to adjust angle and gap with pressing plate;<br />
A pushing rod pops the blade out.<br />
Relative humidity for transport and storage: Maximum 60 %, non-condensing<br />
IEC 61010- 1 classification: Pollution level 2; Over-voltage category II<br />
Atmospheric pressure:700 hPa ~ 1060hPa<br />
A weighted noise level: ≤ 70 dB (A<br />
Altitude: ≤2000 m</p>
<p><strong>Main Technical Data:</strong><br />
1. Electrical:<br />
Voltage frequency: 220-240VAC,50Hz;<br />
220-240VAC,60Hz;<br />
110- 127VAC,60Hz.<br />
Main fuse: 4A<br />
Power consumption: 220-240VAC,1400VA;<br />
110- 127VAC, 1200VA;<br />
2. Refrigerating:<br />
(1) Freezing chamber<br />
The range of temperature setting : ﹣35℃-40℃ adjustable<br />
Defrost: Manual / Auto<br />
Refrigerating capacity: 690 W<br />
Refrigerate :R449A/400g±5g<br />
3. Quick -freezing shelf:<br />
Freezing shelf’s operating temperature: -40℃ ~40℃<br />
Minimum reaching temperature :-60℃ (+5℃)<br />
Number of specimen holder freezing points : 18<br />
Number of semi-conductor freezing points : 2<br />
4. Microtome technical data:<br />
Setting range of section thickness :1 um &#8211; 100 um<br />
5. Section thickness setting： a)1 um &#8211; 20 um, with a step of 1 um<br />
b)20 um &#8211; 50 um, with a step of 2 um<br />
c)50 um &#8211; 100 um, with a step of 5 um<br />
Section thickness deviation:±20%<br />
6.Trimming thickness range:<br />
1μm~600μm<br />
a)1μm~50μm, with a step of 5μm<br />
b)50μm~100μm, with a step of 10μm<br />
c)100μm~600μm, with a step of 50μm<br />
7.Sample retraction: 0~200μm adjustable, with a step of 5μm<br />
8.Specimen’s horizontal stroke :25 mm± 1mm<br />
9.Specimen’s vertical stroke :59mm±0.5mm<br />
10.Specimen’s max size: 55 mm *55 mm<br />
11.Specimen clamp ‘s max adjustable angle : 12°for X＆Y axis, 360°for Z axis<br />
12.Sample slow forward and rewind speed: 300μm/s<br />
13.Sample fast forward and rewind speed: 900μm/s<br />
14.Dimensional ：780 mm(650 without handwheel ) * 700 mm *1280 mm, ±5%<br />
Net weight: 120 kg</p>
<p><strong>Accessories:</strong><br />
<strong>Standard Setting List</strong><br />
1. Specimen Disc<br />
10 pcs<br />
Fuse (4A)<br />
2 pcs<br />
2. Appliance Stand<br />
1 pcs<br />
3. Power line<br />
1 line<br />
4. Hexagonal Wrench<br />
1 set<br />
5. Brush<br />
1 pc<br />
6. Handle<br />
1 pc<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 913*804*1467mm<br />
Gross Weight: 208±10kg</p>


Microtome Series HS-4000 Semi-automatic Cryostat

<p><strong>Description</strong></p>
<p>Round tissue bath has black non-stick coated interior to reduce glare and improve visibility. Top</p>
<p>ledge allows space for preheating or for evaporating away any remaining water. Durable fiberglass</p>
<p>insulated body prevents heat loss. Glass lid and detachable power cord for easy cleaning.<br />
Main Technical Data:<br />
1. Capacity: 2.5L<br />
2. Temperature range: RT to 75˚ C<br />
3. Outside Size: 270mm(D)*210mm(H)<br />
4. Interior Size: 210mm(D)*65mm(H)<br />
5. Power consumption: 400W<br />
6. Power supply: AC 110V/220V±10%, 50/60Hz<br />
7. Net Weight:3 kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 340*350*160mm,<br />
Gross Weight: 4kg </p>


HS-1001 Tissue Floating Water Bath

<p><strong>Description</strong></p>
<p>It is composed in three areas, water Flattening Bath, Slide Drying Bench and a multipurpose Tray.</p>
<p><strong>Features:</strong><br />
1. Adopting modular design, the three parts of water Flattening Bath, Drying slice and Baking slice<br />
have independent temperature control accurately<br />
2. Black enamel polymer bleaching tank, clear contrast when fishing, easy to operate.<br />
3. Unique corrugated drying slot design, the slides are inserted at an oblique angle of 60°, which<br />
is convenient for actual operation, and can handle 40 slides at the same time.<br />
4. The baking sheet room can hold 3 dyeing racks of 30-40 sheets, and can also put 2pcs 250ml<br />
beakers to melt the wax at the same time, which can satisfy High-volume work requirements<br />
5. The baking room can set different baking time according to the temperature, and there is an<br />
audible alarm</p>
<p><strong>Main Technical Data:</strong><br />
1. Dimension: (W-D-H) 510*340*220 mm<br />
2. Dimension of Water Bath: (W-D-H) 190*140*70 mm<br />
3. Temperature control range: three parts all adjustable from 30-90℃, automatic constant<br />
temperature<br />
4. Net Weight:11 kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 550*340*220mm,Gross Weight: 13.5kg </p>


HS-1145 Tissue Flotation Workstaion

<p><strong>Description</strong></p>
<p>1. Heat conduct fast, durable.<br />
2. Self memory of temperature.<br />
3. Display presetting temperature &#038; current temperature.<br />
4. Corrosion-resistance of the bath.</p>
<p><strong>Main Technical Data:</strong><br />
1. Range of setting temperature: ambient to 90°C (constant adjusting).<br />
2. Temperature precise error: + 2°C.<br />
3. Allowance ambient temperature: 0 &#8211; 40°C.<br />
4. Working voltage: 220 V /50 Hz.<br />
5. Power: 250 W.<br />
6. Dimensions (W x D x H): 340 x 340 x 120 mm<br />
7. Net Weight:5.3 kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Outer Case Dimensions: 450*400*200mm,<br />
Gross Weight: 7kg</p>


HS-1135 Tissue Baking Processor

<p><strong>Description</strong></p>
<p>1. Model Number: HS1125<br />
2. Short Desc: Tissue Water Bath<br />
3. Heat conduct fast, durable.<br />
4. Self memory of temperature.<br />
5. Display presetting temperature &#038; current temperature.<br />
6. Corrosion-resistance of the bath.</p>
<p><strong>Main Technical Data:</strong><br />
1. Range of setting temperature: ambient to 90°C (constant adjusting)<br />
2. Temperature precise error: +2°C.<br />
3. Allowance ambient temperature: 0 &#8211; 40°C.<br />
4. Working voltage: 220 V /50 Hz.<br />
5. Power: 200 W.<br />
6. Dimensions (W x D x H): 340 x 340 x 120 mm<br />
7. Net Weight:4.7kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 450*420*200mm,<br />
Gross Weight: 7kg</p>


HS-1125 Tissue Water Bath

<p><strong>Description</strong></p>
<p>The grooved heating surface channels melted wax to a removable collection tray. The collection</p>
<p>tray connects magnetically to the base of the main unit. Disposable plastic liners are included to</p>
<p>insert into the collection tray for easy disposal of runoff wax. This unit now includes a digital control<br />
panel for personalized settings.<br />
1. Remove the wax trimmer from its packaging and place it on a stable workstation. We recommend<br />
that you retain the carton and packaging.<br />
2. The wax trimmer comes with a detachable AC power cord. Connect the cord to the port located<br />
on the back of the unit. When ready to use, plug the cord<br />
into a power source.<br />
3. Attach the magnetic paraffin collection tray at the bottom of the unit and<br />
insert a plastic<br />
collection tray insert. The brim of the plastic liner can be folded down along the side of the tray that<br />
sits against the unit. The magnet will hold the collection tray in place.<br />
4. Flip the power switch to the ON position to begin use and adjust temperature. (See Operation<br />
section for instructions)<br />
OPERATION &#8211; Reference the diagrams on the next page for best use.<br />
1. Plug in your wax trimmer and flip the Power Switch to the ON position. The digital display will<br />
illuminate and display the current temperature of the unit.<br />
2. Press the SET Key (bottom left button) to switch to the temperature setting mode. The setting will<br />
blink, and you can use the up and down Temperature<br />
Setting buttons (right side buttons) to set<br />
your desired temperature. To lock in your desired temperature, press the SET Key again and the<br />
unit will begin to<br />
heat to that temperature. The unit will remember this setting during next use until<br />
it is changed.<br />
3. The suggested operating temperature for this model is 80-90° C. The user may increase or<br />
decrease the temperature to make the paraffin melt faster or slower. This model should NOT be set<br />
higher than 100° C. Temperature control range: ambient temperature ~ 110°.<br />
4. There is a red LED Light at the top left of the display to show that the unit is heating.<br />
5. Allow for up to 10 minutes of heating time to reach the desired temperature. DO NOT permit<br />
anything other than the paraffin covered cassettes to touch the heated surface. Ensure that loose<br />
sleeves, clothing, and jewelry are kept away from the heated surface. In case of injury, consult a first<br />
aid kit regarding treatment for burns or contact a doctor.<br />
6. Ensure that the cassettes are flat. Each cassette should be pulled in a downward<br />
direction against the grain of the surface. This removes excess paraffin from the side of the<br />
cassette.<br />
Net Weight :3kg<br />
Dimensions: 225*210*140mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 370*210*260mm,<br />
Gross Weight: 4kg</p>


ES-100 Wax Trimmer

<p><strong>Description</strong></p>
<p>1.The full automatic procedure control &#038; new heating element gives feature of quick heating &#038;<br />
energy saving<br />
2.The temperature survey integration block from American DALLAS Corporation has been used to<br />
make it precise in temperature survey and credible in performance<br />
3.It possesses the function of memorization to keep the set temperature automatically after startup<br />
4.The LED shows heating state<br />
Main Technical Data:<br />
1. Range of temperature: ambient～70℃<br />
2. Precision: ±1%<br />
3. Voltage:AC220V 50HZ / AC110V 60 HZ, Power: 1200VA<br />
4. Capacity: 10000ml<br />
5. Dimension:350*450*510mm<br />
6. Net Weight: 10KG<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 510*450*530mm,<br />
Gross Weight: 15kg </p>


ES-400 Paraffin Dispenser

<p><strong>Description</strong></p>
<p>Feature:<br />
The Embedding center is composed of two modules, main console and Cryo Console. It is<br />
independent design, can put the position left-to-right or right-to-left, to meet different habits of<br />
customers. The large working surface allows user processing many samples at the same time. The<br />
temperature and work start time can be settable through the control panel.<br />
1. The machine adopts fully automatic program control, and can preset an automatic start time of<br />
7 days.<br />
2. The wax bath adopts overheating protection, safe and reliable, filtering design, effectively<br />
avoiding paraffin blockage, large capacity, and can meet the embedding of 250 tissues at a<br />
time.<br />
3. With sensitive micro switch and foot switch for operator to choose.<br />
4. It has a unique design of the embedded upper-level lighting system, with enough brightness to<br />
determine the position of the small tissue package.<br />
5. This machine has 5 independent temperature control systems, among which the temperature<br />
control of wax tank, wax nozzle, workbench, storage tank and tweezers block can be adjusted<br />
arbitrarily within the range of 0～99℃.<br />
6. With automatic power-on function, different power-on time can be set every day.<br />
7. Paraffin recovery design, high performance solenoid valve control.<br />
8. It adopts split design, embedding machine and cold table can be combined at will<br />
Cryo Console:<br />
1. It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.<br />
2. The Teflon coated surface allows a minimum ice formation and easy cleaning.<br />
3. It can be used as a standalone unit near the microtome station.</p>
<p>Main Technical Data:<br />
Main Console:<br />
1. Nominal supply voltage: 220V/50HZ or 110V/60HZ<br />
2. Maximum power draw: 600-800W<br />
3. Working temperature: From ambient to 99℃<br />
4. Increments: 1centigrade<br />
5. Capacity: Paraffin reservoir: 3.2L<br />
Cassettes/molds tray: 1.4L<br />
6.Dimensions: (W*D*H) 560*530*350mm<br />
7.Weight: 30kg<br />
Cryo Console:<br />
1. Nominal supply voltage: 220V/50HZor110V/60HZ<br />
2. Maximum power draw: 110VA<br />
3. Working temperature: From ambient to –20 centigrade<br />
4. Increments 1 centigrade<br />
5. Dimensions: (W*D*H) 345mm * 600mm * 375mm<br />
6. Weight: 24kg</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Foot Switch<br />
1 pc<br />
2. Fuse (5 A)<br />
2 pcs<br />
3. Power line<br />
2 line</p>
<p><strong>Optional Accessories</strong><br />
1. Temperature sensor<br />
Package Info:<br />
1. Each instrument packed Wooden Case<br />
2. Dimensions for Main console: 650*600*570 mm<br />
3. Dimensions for Cryo console: 650*440*570 mm<br />
4. Gross Weight for main console: 42 kg<br />
5. Gross Weight for Cryo console: 35kg</p>


ES-300 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1. Reasonable layout, simple and convenient operation.<br />
2. Adopting a 7-inch touch screen display, the temperature display of each functional module is clear,<br />
and both Chinese and English languages are optional.<br />
3. Using PID constant temperature algorithm, precise temperature control with a control accuracy of<br />
0.1℃.<br />
4. Real time temperature curve display, making temperature control more intuitive.<br />
5. Fast heating, uniform heating, superior performance, independent temperature control for each<br />
branch, dual overheating protection for the temperature control system, safer and more reliable.<br />
6. Intelligent wax melting mode, more efficient and intelligent.<br />
7. Fully automatic program control, 7*24-hour automatic running time setting, more convenient;<br />
Equipped with memory and automatic recovery functions, it automatically retains the preset<br />
temperature after operation.<br />
8. Large capacity wax melting cylinder, capable of accommodating 600 wax blocks for embedding at<br />
once.<br />
9. Manual and pedal dual waxing method.<br />
10. The wax production time and flow rate can be adjusted.<br />
11. Automatic shadowless lighting, adjustable brightness and lighting time.<br />
12. Split design, the embedding machine and cryo console can be combined freely.<br />
13. The left and right boxes, as well as the inner and outer boxes, are designed to be separated for<br />
easy removal, wax replacement, and maintenance.<br />
14. A spacious workbench with wax block repair device and flow channel design to prevent paraffin<br />
overflow.<br />
15. Equipped with a universal metal hose magnifying glass, suitable for handling extremely small<br />
specimen tissues; Configure a semiconductor small cooling platform for instant cooling, facilitating<br />
rapid positioning and embedding of specimens.<br />
16. Lifetime free software upgrade.<br />
 Main Technical Data:<br />
Main Console:<br />
1. Wax cylinder capacity: 6L<br />
2. Temperature control of wax cylinder, paraffin dispenser, working surface, left and right tank, and<br />
tweezers block: 0-99℃<br />
3. Environmental temperature: 0℃~45℃<br />
4. Net weight: 25.5kg<br />
5. Dimension: 650 * 647 * 465mm<br />
6. Voltage: 220V 50Hz<br />
7. Power: 800W<br />
8. One time can handle 100 organizations<br />
Cryo Console<br />
1. Cooling temperature setting range: room temperature~-20 ℃<br />
2. Power supply voltage: 220V, 50Hz<br />
3. Power: 200W<br />
4. Environmental temperature: Room temperature<br />
5. Dimension: 632*410*446mm<br />
6. Net weight: 20kg<br />
Thermal Console<br />
1. Power supply voltage: 220V, 50Hz<br />
2. Power: 500W<br />
3. Environmental temperature: 0~45 ℃<br />
4. Relative humidity: ≤85%<br />
5. Heating temperature setting range: 30~90 ℃<br />
6. Working temperature: 30~70℃<br />
7. Dimension: 410*660*450mm<br />
8. Net weight: 11.5kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions for main console: 760*750*700mm<br />
Dimensions for cryo console: 720*490*640mm<br />
Dimensions for thermal consol: 720*490*640 mm<br />
Gross weight for main console: 50kg<br />
Gross weight for cryo console: 45kg</p>


ES-500 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1．Automatic program control, It can be setting the operation time for any day, any time, any<br />
minute<br />
2．In a week<br />
3．The machine is composed of two molds,main console and cold plate. It is independent desi<br />
gn, can put the position left to-right or right to -left<br />
4．The large 6L capacity allows user processing 400 tissues at the same time.<br />
5．With manual operation and pedal switch for the operator to choose<br />
6．LED light for embedding space<br />
7．Tweezers storage cylinder is convenient for user<br />
8．Touching LCD scree is simple and convenient, and it is clear at a glane<br />
Main Technical Data:<br />
Main Console:<br />
Model No.: ES600<br />
Wax cylinder volume: 6L<br />
Dimensions: 600 *650 * 450mm<br />
Weight:<br />
40kgs.<br />
Voltage: 220V 50Hz<br />
Power: 1500w<br />
Heater temperature setting range: ambient to 99 ℃<br />
Temperature for the heat preservation tank ambient to 99 ℃<br />
Temperature for the operation table:<br />
ambient to 99 ℃<br />
Working environmental temperature:<br />
0 ℃ &#8211; 45 ℃<br />
Cryo Console:<br />
The size for the cooling surface: 365*330mm<br />
Dimension: 380*650*450mm<br />
Voltage: 110v-240v; 50Hz-60Hz<br />
Power: 120W<br />
The temperature for the cooling plate: -20 degree<br />
Accessories:<br />
Standard Setting List<br />
1. Foot Switch<br />
1 pc<br />
2. Fuse (5 A)<br />
2 pcs<br />
3. Power line<br />
2 line<br />
Optional Accessories<br />
1.Temperature sensor<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 1190*750*760 mm,<br />
Gross Weight: 100 kg</p>


ES-600 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1. English menu, man-machine interaction, simple operation. Prompt judge and automatic<br />
processing in case of abnormal condition, which can prevent the tissue from being damaged.<br />
2. Double-control heat without water<br />
3. Based on different tissues, several running programs available for customers<br />
4. Self-provided power supply can continue to operate for 4 to 6 hours during a power outage. The<br />
tissue protection cylinder can be automatically operated after a power outage. Does not contain<br />
heated paraffin. If the temperature of the heated wax cylinder does not reach the set<br />
temperature, the tissue will not enter the wax cylinder and return to the protection cylinder to<br />
wait. High degree of intelligence<br />
5. Environment friendly: The air as purified through internal circulation can be exhausted off the<br />
window.<br />
6. With transmission of gear and rack, mechanical failures can be reduced.<br />
7. With 16 sets of editable programs, intelligent operation and operation.</p>
<p><strong>Main Technical Data:</strong><br />
1. 12 tanks (3 wax cylinders in the end)<br />
2. Capacity of single- tanks: 1000ml<br />
3. Cylinder start dwell time 45-100 seconds.<br />
4. Basket can hold 60 specimens<br />
5. Single tanks processing time: set arbitrarily in the range of 0 to 99 hour(s)<br />
6. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Tissue basket<br />
1 pc<br />
3. The exhaust pipe<br />
1 pc<br />
4. Tissue cassette<br />
20 pcs<br />
5. Fuse (5 A)<br />
2 pcs<br />
6. Power line<br />
1 line</p>
<p><strong>Optional Accessories</strong><br />
1. Extra Tank<br />
2. Tissue Basket<br />
Net Weight: 60kg<br />
Dimensions: 1010*390*450mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 85kg<br />
Dimensions: 1140*560*580mm,</p>


HS-1000 Automatic Tissue Processor

<p><strong>Description</strong></p>
<p>1.</p>
<p>English menu, man-machine interaction, simple operation.</p>
<p>2.<br />
Double-control heat without water<br />
3.<br />
Based on different tissues, several running programs available for customers<br />
4.<br />
Self-provided power supply can continue to operate for 4 to 6 hours during a power outage.<br />
The tissue protection cylinder can be automatically operated after a power outage. Does not<br />
contain heated paraffin. If the temperature of the heated wax cylinder does not reach the set<br />
temperature, the tissue will not enter the wax cylinder and return to the protection cylinder to<br />
wait. High degree of intelligence<br />
5. Environment friendly: The air as purified through internal circulation can be exhausted off the<br />
window.<br />
6.<br />
With transmission of gear and rack, mechanical failures can be reduced.<br />
7. The surface of the machine body adopts APS static electricity, spraying process, high strength,<br />
corrosion resistance, streamlined appearance and easy to clean.<br />
8. There are three sets of temperature control systems to ensure that one set is in normal use and<br />
two sets are on standby. Real-time display of temperature during operation<br />
9.<br />
With 16 sets of editable programs, intelligent operation and operation.</p>
<p><strong>Main Technical Data:</strong><br />
1. Tanks: 12 Tanks (3 wax Tanks in the end)<br />
2. Capacity of single tank: 1500ml<br />
3. Basket can hold 75 specimens<br />
4. Single-tanks processing time: Randomly set within the range from 0 to 99 hour(s).<br />
5. The temperature of wax cylinder can be randomly set within the range of 99℃.<br />
6. Cylinder start dwell time 45-100 seconds.<br />
7. Tissue-protection cylinder sequence: 7th cylinder<br />
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best</p>
<p><strong>Accessories</strong>:<br />
Standard Setting List<br />
1. Tanks<br />
12 pcs<br />
2. Tissue basket<br />
1 pc<br />
3. The exhaust pipe<br />
1 pc<br />
4. Tissue cassette<br />
20 pcs<br />
5. Fuse (5 A)<br />
2 pcs<br />
6. Power line<br />
1 line</p>
<p><strong>Optional Accessories</strong><br />
1. Extra Tank<br />
2. Tissue Basket<br />
Net Weight: 67kg<br />
Dimensions: 1130*400*500mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 100 kgs<br />
Dimensions: 1260*570*640 mm,</p>


HS-1500 Automatic Tissue Processor

<p><strong>Description</strong></p>
<p>1. English menu, man-machine dialogue, easy to operate.<br />
2. With 16 sets of editable programs, intelligent operation and operation.<br />
3. Power failure protection function, automatically switch to the built-in power supply after power<br />
failure, it can continue to operate for 4 to 6 hours during a power outage. The tissue protection<br />
cylinder can be automatically operated after a power outage. Does not contain heated paraffin.<br />
If the temperature of the heated wax cylinder does not reach the set temperature, the tissue will<br />
not enter the wax cylinder and return to the protection cylinder to wait. High degree of<br />
intelligence, also configure high-power battery, to ensure that the program is completed in one<br />
time.<br />
4. Add specimens at any time during the running of the program; you can switch the paraffin bath<br />
to warm the wax at any time. Real-time display of program content, heating status, set<br />
temperature, real-time temperature and other operating status.<br />
5. The scheduled boot time can be set at any time according to the needs of the work.<br />
6. The surface of the machine body adopts APS static electricity, spraying process, high strength,<br />
corrosion resistance, streamlined appearance and easy to clean.<br />
7. Fully sealed dehydration operation, external exhaust device ensures a green and<br />
environmentally friendly working environment.<br />
8. There are three sets of temperature control systems to ensure that one set is in normal use and<br />
two sets are on standby. Real-time display of temperature during operation<br />
9. Heating status at a glance, temperature control accuracy ± 1 ° C<br />
10. Automatic switch machine can set the time arbitrarily within one year<br />
Main Technical Data:<br />
1. 12 liquid cylinders (3 of which are wax cylinders)<br />
2. Single cylinder volume: 2200ml<br />
3. Basket can hold125 specimens<br />
4. Single cylinder working time: arbitrarily set within 0-24 hours<br />
5. Temperature setting: 0-99 °C arbitrary setting<br />
6. Cylinder start dwell time: 45-100 seconds.<br />
7. Organization protection cylinder position 7.<br />
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best<br />
9. Power supply: AC220V±10%, 50HZ±10%<br />
10. Power: ≤500WProduct Function:<br />
Net Weight: 82kg<br />
Dimensions: 1250*410*560mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 107kg<br />
Dimensions: 1330*540*740mm </p>


HS-2000 Automatic Tissue Processor

<p><strong>Description </strong></p>
<p>1. This machine can run both single hanging basket and double basket, one dehydrator is</p>
<p>equivalent to two hanging baskets;</p>
<p>2. Large LCD touch screen, all English menu, simple and clear operation;<br />
3. Adopt intelligent program control technology to protect equipment and specimens ,Intelligent<br />
separate protection specimen in case of failure ： When the dehydrator fails before the<br />
anhydrous alcohol cylinder, the tissue is protected in the fixed cylinder; when the dehydrator<br />
fails before the paraffin cylinder and after the anhydrous alcohol cylinder, the tissue is protected<br />
in the anhydrous alcohol cylinder; when the hanging basket fails in the paraffin cylinder<br />
dehydrator, the tissue is protected in the paraffin cylinder;<br />
4. Adopt new water heating mode, low pressure contactless temperature control technology, more<br />
safe. Reagent cylinder can be fully heated to avoid the effect of dehydration due to the<br />
difference of temperature in winter and summer.<br />
5. The new generation environmental protection design idea, adopts the dual purification function,<br />
and matches with the full seal internal circulation filtration, guarantees the operator not to be<br />
harmed by the harmful gas.<br />
6. The &#8220;self-checking&#8221; item is displayed on the operating screen of the dehydrator, which has the<br />
function of preventing the abnormal protection of the card cylinder, and can display the running<br />
state and various functions in real time.<br />
7. Power failure protection, in the state of sudden power failure, maintain program memory, and<br />
complete the whole process of dehydration (can maintain more than 16 hours of normal<br />
operation).<br />
8. Can set the hanging basket stay filtrate time and the hanging basket oscillation times of the<br />
design of the starting cylinder filtrate, to avoid the former cylinder reagent into the latter cylinder<br />
caused by mixing.<br />
9. Reasonable setting of single cylinder cover and elastic sealing technology to avoid reagent<br />
volatilization.<br />
10. Small specimens can be added at any time；Flexible programming, different tissues can start<br />
from any solution container to the end of any solution container, to obtain the best dehydration<br />
effect of different tissues;<br />
11. Adopt international popular synchronous tooth belt, digital program control positioning, make<br />
the operation more accurate.<br />
12. The steel linear guide rail is used to fit the step motor to make the operation more accurate.<br />
13. Hanging basket take-off and landing back using two-column two-dimensional soft transmission<br />
mechanism, transmission stability, no noise, no hard wear;<br />
14. Can set up 24 sets of operating procedures, imported core chip, powerful, no external magnetic<br />
field interference.<br />
15. Remote alarm system, failure, dehydrator can automatically dial the operator&#8217;s phone, so that<br />
you can know at any time whether the equipment is safe operation;<br />
16. Has the intelligent key function (does not look at the screen also can operate), when the display<br />
screen does not display and the touch function damage, the dehydrator main function may<br />
operate normally;<br />
Main Technical Data:<br />
1. Volume of individual reagent containers：2000ml<br />
2. of reagent containers：14pcs<br />
3. Hanging basket filtrate：Time can be adjusted arbitrarily<br />
4. Number of dehydrated tissues：About 200 pcs (100 pcs in a single hanging basket)<br />
5. Processing time in a single container：0~99 hours adjustable<br />
6. Power supply：AC220V±10%<br />
50HZ<br />
7. Power：500W<br />
8. Net Weight: 116kg<br />
9. Dimensions: 1300*600*600mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 173kg<br />
Dimensions: 1380*680*740mm</p>


LTP-400 Double Basket Tissue Processor

<p><strong>Description</strong></p>
<p>1.Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and<br />
reliable work<br />
2. The starting cylinder can be set and has the function of customizing the cylinder position<br />
3.If Have optional function that can provide power -off protection （UPS).<br />
4.Adopting agitation (vacuum) mode for dehydration.<br />
5.Screen showing information is English, easy to use.<br />
6. Time setting range: It can be turned on any day or every day, the working time of each cylinder<br />
can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the<br />
minimum is 0 for the rest<br />
7.Wax jar adopt constant temperature control system. Temperature precision high: defend<br />
pollution.<br />
8.Adopting 9 slices 1.2Lmedicine aquarium, at any moment observe tissue change at work.<br />
9. There are 10 programs selectable<br />
10. It can be equipped with power supply according to user requirements, and can operate for 4-6<br />
hours for other functions besides wax bath after power failure to ensure the safety of the<br />
organization<br />
11. Anti-collision stopping device for hanging basket。<br />
Main Technical Data:<br />
1. Steps of processing tissue: 12 steps.<br />
2. Glass container: Quantity—9capacity-1.2L.<br />
3. Wax cup: quantity—3capacity—1L.<br />
4. Temperature range—60-99℃ .<br />
5. Process: Each cup working hours—0～59hr59min.<br />
6. Conditions of use: Ambient temperature: +5℃～40; Ambient humidity: <85% (at 20±5℃)
7. Vertical reciprocative motion of tissue basket: 3 times/min
8. Tissue basket specification: Barrel tissue basket--￠95x100mm.
9. Layer nacelle---￠95x80mm Five layers.
10. Power: 400~500W
11. Rated voltage: AC220 V 50HZ /AC110V 50HZ

<strong>Accessories</strong>:<br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Paraffin wax tank<br />
3 pcs<br />
3. wax tank connection line 3 pcs<br />
4. Tissue basket<br />
1 pc<br />
5. Tissue cassette<br />
20 pcs<br />
6. Hexagonal Wrench<br />
1 pc<br />
7. Screwdriver<br />
1 pc<br />
8. Fuse (5A)<br />
2 pcs<br />
9. Power line<br />
1 line<br />
Optional Accessories: Vacuum<br />
Extra paraffin tank<br />
Extra reagent tank<br />
Net Weight: 53kg<br />
Dimensions: 670*550*680mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions (for machine):750*760*700 mm,<br />
Dimensions (for tanks) :600*400*550mm<br />
Gross Weight: 100 kg</p>


HS-566 Spin Tissue Processor

<p><strong>Description</strong></p>
<p>1. Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and<br />
reliable work<br />
2. The starting cylinder can be set and has the function of customizing the cylinder position<br />
3. Have optional function that can provide power -off protection （UPS).<br />
4. Adopting agitation (vacuum) mode for dehydration.<br />
5. Large LCD screen showing every step of processing and easy for monitoring, 160*90mm<br />
(7inch)<br />
6. Timing: The configurable delay time is 30 days<br />
7. Time setting range: It can be turned on any day or every day, the working time of each cylinder<br />
can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the<br />
minimum is 0 for the rest<br />
8. Constant temperature controlling system adopted on the paraffin jar to ensure high precision of temperature controller. Internal surface oxidation treatment.<br />
9. There are 10 programs selectable</p>
<p>10. It can be equipped with power supply according to user requirements, and can operate for 4-6<br />
hours for other functions besides wax bath after power failure to ensure the safety of the<br />
organization<br />
11. Anti-collision stopping device for hanging basket。<br />
Main Technical Data:<br />
1. Carousel type with 12 stations,9 reagent container, 3wax paraffin container<br />
2. Option: two basket loading。<br />
3. Capacity: 2.3 L for reagent container, 1.8 L for wax paraffin container<br />
4. Temperature of wax container: 60-99℃.<br />
5. Tissue baskets made of metal with varying capacities of up to 100 cassettes<br />
6. Tissue basket stirring 1 minute interval every 5 minutes.<br />
7. Battery backup 4 hours (Optional)<br />
8. Ergonomic control panel with foil – protected keyboard and LCD<br />
9. Infiltration time separately programmable for each station<br />
10. Easy editing and changing of programs even during a processing run<br />
11. Programmable infiltration time: 30days per station; Delayed time, 30days.<br />
12. Programs Number: 10, selectable<br />
13. Vacuum device pressure: max 0.05 Mpa (approx 0.5 bar)<br />
14. Standard tissue baskets: Size: Φ 130X110mm<br />
15. Number: 1 (2 optional), Capacity: max 90 cassettes<br />
16. Instrument dimension: Φ780mm X height: 570mm-690mm<br />
17. Nominal voltage: AC220 V 50HZ/AC110V 50HZ<br />
Nominal frequency: 50Hz<br />
18. Power: 400~500W<br />
Accessories:<br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Paraffin wax tank<br />
3 pcs<br />
3. Paraffin wax tank connection line 3 pcs<br />
4. Tissue basket<br />
1 pc<br />
5. Tissue cassette<br />
20 pcs<br />
6. Hexagonal Wrench<br />
1 pc<br />
7. Screwdriver<br />
1 pc<br />
8. Fuse (5A)<br />
2 pcs<br />
9. Power line<br />
1 line</p>
<p>Optional Accessories<br />
1. Extra paraffin tank<br />
2. Extra reagent tank<br />
Net Weight: 70kg<br />
Dimensions: 780*570*690mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions (for machine):880*880*800 mm,<br />
Dimensions (for tanks): 620*410*530mm,<br />
Gross Weight: 110 kg (Bubble goods to 150 kg)</p>


HS-569 Spin Tissue Processor (Vacuum)

<p><strong>Description</strong></p>
<p>1. Single cylinder processing capacity 220 orderly arranged standard embedding cassettes.<br />
2. The main switch of the tissue dehydration cylinder cover is required to be a mechanical handle<br />
and have an unlocked alarm device.<br />
3. A 10-inch color LCD touch screen is used as the user interface. The screen is adjustable at<br />
multiple angles rather than fixed gears to ensure a clear field of vision.<br />
4. Independent liquid and gas passages, and the gas in the airway can be liquefied and discharged<br />
into the waste liquid bottle through a uniquely designed condenser tube, without leakage of polluted<br />
gas.<br />
5. The dehydration cylinder cover has a transparent glass window for easy observation of the status<br />
in the dehydration cylinder.<br />
6. Timing function: The completion time of tissue dehydration on any day of the week can be set.<br />
7. It has a power-off protection function. After a power outage, the instrument can automatically<br />
work in sequence from the breakpoint.<br />
8. There are 10 sets of tissue processing programs for users to set and choose.<br />
9. Reagent management system: Set the use cycle of reagents and paraffin according to the<br />
number of embedded cassettes processed, the number of days the reagents are used, or the<br />
number of dehydration times. The system automatically counts and prompts to replace reagents<br />
and paraffin when the threshold is reached. Alcohol and paraffin are automatically replaced in<br />
gradient.<br />
10. One-touch free switching between conventional dehydration and rapid dehydration. Start the<br />
rapid dehydration program during the day to quickly dehydrate small specimens, and complete<br />
dehydration in ≤3 hours. Start the conventional dehydration program at night.<br />
11. Gas pressure conversion device: A mechanical structure device completes the gas pressure<br />
conversion, avoiding the high failure rate caused by the solenoid valve.<br />
12. Automatic wax replacement function: After the first cylinder of paraffin is discharged into the<br />
waste wax cylinder, the original second cylinder of paraffin enters the first cylinder, and then the<br />
original third cylinder of paraffin enters the second cylinder, and the third cylinder is added with new<br />
wax.<br />
13. Automatic reagent rotation function: After the first cylinder of the same reagent is discharged into<br />
the waste liquid cylinder, the system will automatically use the reagent in the correct order (arranged<br />
from low to high according to cleanliness) and discharge it into the previous reagent cylinder after<br />
use, without the need to manually rotate the position of the reagent bottle.<br />
14. Multiple safety protection functions: 2 liquid level sensors sense the lowest and highest liquid<br />
levels, prompt and stop operation protection functions; over-temperature detection and power-off<br />
protection functions of the working room; automatic alarm function when the working room cover is<br />
not locked.<br />
15. Magnetic stirring function shortens the specimen dehydration time and achieves better<br />
dehydration effect.<br />
16. There are sound and screen prompts when the work is finished.<br />
Main Technical Data:<br />
1.Number of reagent bottles: 9<br />
2. Number of wax cylinders: 3<br />
3. Cleaning bottles: 3<br />
4. Activated carbon bottle: 1<br />
5. Waste liquid box: 1<br />
6. Dehydration cylinder volume: 6L<br />
7. Reagent bottle volume: 4L<br />
8. Studio heating temperature: When the medium is solvent, the temperature is 0℃-45℃, when the<br />
medium is paraffin, the temperature is 55℃-70℃, adjustable.<br />
9. Working pressure: positive pressure 0-30Kpa negative pressure -70-0Kpa, adjustable.<br />
10. Wax tank temperature: 55℃-70℃, adjustable<br />
11. Paraffin melting time is less than 3 hours.<br />
12. Immersion setting time: 0-300 minutes, adjustable.<br />
13. Liquid inlet time: 0-5min; liquid discharge time 0-5min adjustable.<br />
14. Stirring time: arbitrarily set, stirring interval time: arbitrarily set<br />
15. Machine size: 650*650*1020mm<br />
16. Net weight: 142kg<br />
Accessories:<br />
Standard Configuration List<br />
1. Main unit 1<br />
2. Reagent bottles 9<br />
3. Cleaning bottles 3<br />
4. Activated carbon bottle 1<br />
5. Waste liquid box 1<br />
4. Dehydration basket 1 set<br />
5. Stirring rods 2<br />
6. Shovel 1<br />
7. Stainless steel plate 1<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 750*750*1330mm<br />
Gross Weight: 180kg </p>


ATP-200 Tissue Processor

<p><strong>Description</strong></p>
<p>1. This machine is an automated tissue processor with beautiful appearance, unique design and<br />
technological innovation. When processing specimens, you can choose heating, pressurizing,<br />
vacuum, normal pressure and other modes to meet the processing of various types of<br />
specimens.<br />
2. Working and resting are in a fully sealed state, which can effectively avoid the volatilization and<br />
loss of reagents, reduce operating costs, and create a clean working environment.<br />
3. When processing specimens, the specimens are in a fully sealed state, and the fluid is changed<br />
without changing the cylinder, which subverts the traditional dehydration mode and effectively<br />
avoids tissue damage. There is no danger of specimen damage caused by power outages,<br />
cylinder jams or other mechanical failures of traditional dehydrators.<br />
4. The tissue processing boxes can store 3.8L/5.3L/6.8L reagents. The unique software control,<br />
three-stage discharge system and special design of the processing bottle reduce the carryover of reagents.<br />
5. Adopting a color touch screen that is easy to observe, the interface is intuitive and clear, and</p>
<p>easy to operate.<br />
6. This machine has a scheduled automatic operation function, which can be set to automatically<br />
start at any time on any day within 15 days.<br />
7. After the work is completed, the machine will have sound and screen prompts.<br />
8. The computer control system is sensitive and reliable, and has multiple sets of user programs<br />
for users to set and choose.<br />
9. The liquid and gas circuit control systems are sensitive and reliable, and can completely<br />
evacuate the liquid in the reagent bottle.<br />
10. With over-temperature protection function for accidental heating out of control.<br />
11. It has a power-off protection function (optional function). After a power-off, the instrument can<br />
automatically work in sequence from the breakpoint when the power is restored.<br />
12. Can process 126/267/356 tissue specimens each time. The special specimen processing<br />
basket is extremely convenient to pick up and place the specimen basket, and the operation<br />
can be completed with one hand.<br />
13. Number of programs:10 programs</p>
<p><strong>Main Technical Data:</strong><br />
1. Reagent bottle capacity: 2.3L(100 cassettes)<br />
3.2L(200 cassettes)<br />
4.8L (300 cassettes)<br />
2. 10 reagent bottles, 2 cleaning bottles, 1 filter, 1 backup (also can use be filter) ,3 wax cylinders<br />
3. Retort volume: 3.8L(100 cassettes)<br />
5.3L(200 cassettes)<br />
6.8L (300 cassettes)<br />
4. Wax cylinder volume: 2.6(100 cassettes)<br />
4.3(200 cassettes)<br />
5.5L(300 cassettes)<br />
5. Reagent temperature range: 30℃-65℃<br />
6. Wax bath temperature: 50℃-70℃<br />
7. Stirring time: 0-5 minutes<br />
8. Stirring time interval: 10 minutes<br />
9. Operation mode: manual and automatic<br />
10. Input power: 1000W<br />
11. Power supply voltage: 220V 50Hz</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Tissue Basket<br />
1 pcs<br />
2. Reagent Bottle<br />
17 pcs<br />
3. Fuse (10A)<br />
2 pcs<br />
4. Power line<br />
1 line<br />
5.<br />
Optional Accessories:<br />
1. Tissue Basket<br />
2. Regent Bottle<br />
3. Vacuum or not<br />
Net Weight: 98kg (100 cassettes) /123kg (200 cassettes)/130kg(300 cassettes)<br />
Dimensions: 550*600*1180mm (100 cassettes)<br />
625*700*1250mm (200 cassettes)<br />
625*700*1250mm (300 cassettes)<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions (for 3kinds capacity machine):<br />
700*680*1390mm / 800*740*1460mm/ 800*740*1460mm,<br />
Gross Weight: 130kg/165kg/172kg</p>


ATP-300 Closure Tissue Processor (100/200/300cassettes)

<p><strong>Description</strong></p>
<p>1. Single Tank Capacity: 330 standard embedding cassettes arranged in an orderly manner.<br />
2. Mechanical handle : for chamber lid with &#8220;lid unsecured&#8221; alarm.<br />
3. User Interface: 15-inch adjustable-angle color LCD touchscreen interface.<br />
4. Independent Liquid and Gas Pathways: Unique condenser design to liquefy gases in the air<br />
pathway and discharge them into a waste bottle, ensuring no contaminated gas leakage.<br />
5. Transparent Lid Window: Allows for easy observation of the interior of the processing tank.<br />
6. Timer Function: Ability to set the tissue processing completion time for any day of the week.<br />
7. Power Failure Protection: Automatic resumption of processing from the point of interruption upon<br />
power restoration.<br />
8. Pre-set Programs: 10 tissue processing programs for user customization and selection.<br />
9. Reagent Management System: Tracks the number of processed cassettes, days of reagent use,<br />
or processing cycles to determine reagent and wax replacement intervals. Automatic counting and<br />
alerts for reagent and wax replacement. Automatic gradient replacement of alcohol and wax.<br />
10. One-touch Switching: Seamless transition between routine and rapid processing modes. Rapid<br />
processing for small specimens can be completed in less than 3 hours during the day, while routine<br />
processing is conducted at night.<br />
11. Gas Pressure Conversion Device: Mechanical structure for gas pressure conversion, avoiding<br />
high failure rates associated with solenoid valves.<br />
12. Automatic Wax Replacement: The first wax tank drains into the waste wax tank, the second wax<br />
tank moves to the first, the third wax tank moves to the second, and new wax is added to the third<br />
tank.<br />
13. Automatic Reagent Rotation: After the first tank of a reagent is drained into the waste tank, the<br />
system automatically uses the reagents in the correct order (from least to most clean) and drains<br />
them into the previous reagent tank, eliminating the need for manual rotation.<br />
14. Multiple Safety Protections: Two liquid level sensors for minimum and maximum levels,<br />
providing alerts and stopping operation if necessary. Over-temperature detection and power failure<br />
protection.<br />
15. Magnetic Stirring Function: Reduces processing time and improves dehydration quality.<br />
16. Reagent Bottle Detection: Equipped with optical positioning and blue backlighting for real-time<br />
insertion verification, ensuring dehydration process integrity. Activates yellow light flashing and<br />
audible alarm for improper placement. Features backlit graduated scale for enhanced liquid level<br />
visibility under blue-transmitted illumination.<br />
17. Fault-triggered Phone Alert: Equipped with malfunction-triggered telephone alarm functionality.<br />
18. Completion Alerts: Audible and on-screen notifications upon completion of processing.</p>
<p><strong>Main Technical Data:</strong><br />
1. Processing tank volume: 6L<br />
2. Reagent bottle volume: 6L<br />
3. Reagent Bottle Quantity:<br />
  9 reagent bottles<br />
  3 cleaning bottles<br />
  1 activated carbon filter<br />
  1 waste liquid container<br />
4. Wax Cylinder Quantity: 3 tanks.<br />
5. Workspace Heating Temperature: 0°C-45°C for solvents; 55°C-70°C for wax, adjustable.<br />
6. Working Pressure: Positive pressure: 0–30 kPa; Negative pressure: -70–0 kPa (adjustable).<br />
7. Wax Tank Temperature: 55°C-70°C, adjustable.<br />
8. Wax Melting Time: less than 3 hours.<br />
9. Immersion Time Setting: 0-300 minutes, adjustable.<br />
10. Liquid Inlet/Outlet Time: 0-5 minutes, adjustable.<br />
11. Stirring Time: Arbitrarily settable; Stirring interval: Arbitrarily settable.<br />
12. Dimensions: 650*650*1420mm<br />
13. Net weight: 167kg</p>
<p><strong>Accessories:</strong><br />
Standard Configuration List<br />
1. Main Unit<br />
, 1 unit<br />
2. Reagent Bottles<br />
,13 tanks<br />
3. Waste Wax Container<br />
,1 unit<br />
4. Processing Baskets<br />
,1 set<br />
5. Stirring Rods<br />
,2 units<br />
6. Spatula<br />
,1 unit<br />
7. Stainless Steel Tray<br />
,1 unit</p>


ATP-300 Plus Tissue Processor

<p>Product code: WSG 286994</p>
<p>MSLMV10 VETERINARY ANAESTHESIA MACHINE</p>
<p>&nbsp;</p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h2>Protable Veterinary Anesthesia Machine MSLMV10</h2>
<p>Special Feature<br />
*Specifically deigned surical locations wherever space is limited,ideal for office base anesthesia</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028117669.jpg" alt="" /><br />
*No electricity will be needed,only manual operation</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028112323.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028111181.jpg" alt="" /><br />
*Ventilation mode:Closed,Semi-closed,Semi-open</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028117275.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028118736.jpg" alt="" /><br />
*Classical CO2 circle absorber is with 1 canister,low resistance,minimum gas leakage,60cmH2O peak pressure protection</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028465845.jpg" alt="" /></p>
<p>Option<br />
*Anesthesia ventilator<br />
*Trolley</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028462206.jpg" alt="" /></p>
<p>Specification:<br />
*Volum(manual Mode):20-1500ml</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028466067.jpg" alt="" /><br />
*Gas Supply:02+N2O:0.25-0.65Mpa<br />
*Flowmeter:O2:0.1-10l/m,N2O2:0.1-10l/m</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028467167.jpg" alt="" /><br />
*O2 Flush:25-75L/min<br />
*CO2 Canister:1000ml</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028467468.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>


MSLMV10 VETERINARY ANAESTHESIA MACHINE

<p>Product code: WSG 286995</p>
<p>MSLVP03 VET INFUSION PUMP (WITHOUT DRIP)</p>
<p>&nbsp;</p>
<h3 data-spm-anchor-id="a2700.details.0.i57.5d7577b46FYQlT">Other attributes</h3>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Model Number : MSLVP03</div>
</div>
<div class="attribute-item">
<div class="left">Product name : <span data-spm-anchor-id="a2700.details.0.i64.5d7577b46FYQlT">Vet Infusion pump</span></div>
</div>
<div class="attribute-item">
<div class="left">Name: Animal Use Veterinary Infusion Pump</div>
</div>
<div class="attribute-item">
<div class="left">Voltage: 110v-220v</div>
</div>
<div class="attribute-item">
<div class="left">Infusion Mode: Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode</div>
</div>
<div class="attribute-item">
<div class="left">Rate Unit: Ml/h, volume/time, d/min</div>
</div>
<div class="attribute-item">
<div class="left">IV Sets: Standard single use IV sets</div>
</div>
<div class="attribute-item">
<div class="left">Flow Rate: 1.0ml/h~1200ml/h</div>
</div>
<div class="attribute-item">
<div class="left">Self-Testing: Yes</div>
</div>
<div class="attribute-item">
<div class="left">Warranty: 12 Months</div>
</div>
<div class="attribute-item">
<div class="left">Keyword: Veterinary Infusion pump</div>
</div>
</div>


MSLVP03 VET INFUSION PUMP (WITHOUT DRIP)

<p>Product code: WSG 286996</p>
<div>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">
<h2>Safe and reliable vet syringe pump MSLVP04</h2>
<p>Safe and reliable<br />
1.1 Using double CPU design, reliable data transmission, safer syringe.<br />
1.2 High precision occlusion pressure sensors design, 8 levels adjustable of sensitivity occlusion pressure.<br />
1.3 Real-time self-testing,real-time self-testing when startup and during syringe process, ensure the safety of each component and each function, safer syringe.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017267826.jpg" alt="" /><br />
1.4 Automatic switching between AC and DC power supply , battery backup time more than 9hours under double channel are using, ensure no interruption when no AC power supply or in moving condition.<br />
1.5 Alarm prompt with sound, light and message, 8 adjustable level of alarm volume.<br />
1.6 Dynamic pressure value display,and real-time detect occlusion pressure status.<br />
1.7 Various alarm, avoid the suddenly accidents during infusion process.<br />
1.8 Motor anti-reverse function, avoid preventing upstream absolutely.<br />
1.9 10000 event log, which reduce doctor-patient disputes and promote harmony between doctors and patients.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017262786.jpg" alt="" /></p>
<p>2. User friendly<br />
2.1 Numeric keypad input, very user friendly.<br />
2.2 Screen 3.5 inch big brightness LCD, display visually rich content and intuitive.<br />
2.3 As the ATM easy operation menu, that is according people operation hobbits.<br />
2.4 No need to open the battery door when maintain, easy to maintain.<br />
2.5 Claw push rod, easily to install the syringe.<br />
2.6 Freedom of choice between automatic primed and manual primed, displaying the purge rate, accurately knows the total amount of purge volume.<br />
2.7 Displaying the Increment, VIBI, Total Volume, Brand and Sets of Syringe, Mode, Battery Volume, Occlusion pressure value, the key parameters display clearly.<br />
2.8 Empty settings, syringe will be stop when finish all the fluid inside the syringe, no need to set the VTBI again.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017266290.jpg" alt="" /></p>
<p>3. Deviation and effective<br />
3.1 The deviation of all international standard IV set are within ±2% after calibration.<br />
3.2 Pulse compensation technology, more precise injection.<br />
3.3 Automatic calibration, able to calibrate different brand syringe, more precise syringe.<br />
3.4 Able to store more than 25 brands of infusion sets, user friendly.<br />
3.5 The position of alarm light is highlighted, visible in directions from a long distance.<br />
3.6 Cannot use the new syringe without calibration, ensure the accuracy and safety of the syringe.<br />
3.7 Able to auto-recognize such five different mode syringe , 5ml, 10ml, 20ml, 30ml, 50(60)ml , and save syringe deviation<br />
automatically.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017262533.jpg" alt="" /></p>
<p>4. Advanced technology<br />
4.1 Multiple syringe mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with usage habits.<br />
4.2 Display 10 levels brightness adjustable, energy saving and environmental protection.<br />
4.3 Both Chinese and English language are available for use by foreign doctors.<br />
4.4 The install method can be rotated by 90 degrees, which is convenient to use in different environments.<br />
4.5 It is can be modified that the alarm time of fluid near empty, remind the medical staff prepare to replace the liquid medicine in advance.<br />
4.6 Channel sleep function when syringe stop, keep quiet of environment.<br />
4.7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle blood does not coagulate.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017265313.jpg" alt="" /><br />
4.8 Can be transmitted the event log to PC with USB, information and system upgrade and maintenance.<br />
4.9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.<br />
4.10 Password function, avoid the risk of system parameters being modified by irrelevant personnel.<br />
4.11 The rate of micro mode is adjustable from 0.10 to 99.99, which avoid the incorrect input with high syringe rate.<br />
4.12 The gear setting function of occlusion pressure deviation is suitable all of different brand syringe occlusion pressure question.</p>
<table cellspacing="0">
<tbody>
<tr>
<td>NO</td>
<td>Item</td>
<td>Technical Parameter</td>
</tr>
<tr>
<td>1</td>
<td>Injection Mode</td>
<td>Constant Rate, Time mode, Drug Weight,<br />
Micro, Sequential, Drug Library Mode</td>
</tr>
<tr>
<td>2</td>
<td>Syringe Size</td>
<td>5ml, 10ml, 20ml, 30ml, 50/60ml, auto recognition</td>
</tr>
<tr>
<td>3</td>
<td>Flow Rate Range</td>
<td>5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h<br />
20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h<br />
50/60ml: 0.10ml/h-1200.00ml/h</td>
</tr>
<tr>
<td>4</td>
<td>Flow Rate Increment</td>
<td>0.01ml/h</td>
</tr>
<tr>
<td>5</td>
<td>Preset Time</td>
<td>1s-99hr59min59s</td>
</tr>
<tr>
<td>6</td>
<td>Parameter Changed During Injection</td>
<td>Support change of VTBI, flow rate during injection</td>
</tr>
<tr>
<td>7</td>
<td>Accuracy</td>
<td>≤±2%(±1% mechanical accuracy included)</td>
</tr>
<tr>
<td>8</td>
<td>Preset Volume(VTBI)</td>
<td>0.1~9999.99ml &amp; empty</td>
</tr>
<tr>
<td>9</td>
<td>Accumulated Volume</td>
<td>0.00~999.99ml</td>
</tr>
<tr>
<td>10</td>
<td>Purge Rate</td>
<td>5ml: 30-60ml 10ml: 150-300ml 20ml: 200-400ml<br />
30ml: 300-600ml 50/60ml: 600-1200ml</td>
</tr>
<tr>
<td>11</td>
<td>Bolus Rate</td>
<td>5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h<br />
20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h<br />
50/60ml: 0.10ml/h-1200.00ml/h</td>
</tr>
<tr>
<td>12</td>
<td>KVO</td>
<td>0.10-5.0ml/h adjustable</td>
</tr>
<tr>
<td>13</td>
<td>Occlusion Pressure</td>
<td>8 level adjustable, 20Kpa-140Kpa, dynamically<br />
pressure value display.</td>
</tr>
<tr>
<td>14</td>
<td>Alarm</td>
<td>Finished, near finished, near empty, empty, occlusion,syringe disconnected, no operation, parameter error,syringe size error,low battery,<br />
battery lost, battery ran out, AC power lost, abnormal injection,communication error.</td>
</tr>
<tr>
<td>15</td>
<td>Syringe Management</td>
<td>Preset 20 syringe brands, can add or edit the brand,accept all brands after calibration.</td>
</tr>
<tr>
<td>16</td>
<td>Display</td>
<td>3.5&#8242; TFT color LCD, 10 level brightness adjustable.</td>
</tr>
<tr>
<td>17</td>
<td>Power Supply</td>
<td>AC power, AC:100V~240V, 50Hz/60Hz,≤25VA</td>
</tr>
<tr>
<td>18</td>
<td>Communication Port</td>
<td>USB, RJ45 for future use, Ethernet Port</td>
</tr>
<tr>
<td>19</td>
<td>Syringe Size</td>
<td>5ml, 10ml, 20ml, 30ml, 50/60ml, auto recogintion</td>
</tr>
<tr>
<td>20</td>
<td>Battery</td>
<td>Rechargeable Lithium battery, DC11.1V, 3000mAh,<br />
operating time: ≥9h@5ml/h</td>
</tr>
<tr>
<td>21</td>
<td>Alarm Voice</td>
<td>Standard Medical Alarm Voice with Mute function,<br />
8 levels adjustable.</td>
</tr>
<tr>
<td>22</td>
<td>Event log</td>
<td>1000 event log, can be transmitted to PC with USB</td>
</tr>
<tr>
<td>23</td>
<td>Software Upgrade</td>
<td>Upgrade the software with USB</td>
</tr>
<tr>
<td>24</td>
<td>Operation Environment</td>
<td>Temperature: +5℃~+40℃, Relative humidity:20%~90%,<br />
Atmospheric pressure:70~106Kpa</td>
</tr>
<tr>
<td>25</td>
<td>Classification</td>
<td>Class II, Type CF, IPX4</td>
</tr>
<tr>
<td>26</td>
<td>Dimension</td>
<td>Size: 275mm*145mm*160mm, Weight: 2.1KG</td>
</tr>
<tr>
<td>27</td>
<td>Other Function</td>
<td>Double CPU, Password function, Multi Language,<br />
Pressure Release function, 90°rotatable IV pole,<br />
4 soft function key, key lock function, numeric keypad, Pause function etc.</td>
</tr>
<tr>
<td>28</td>
<td>Application</td>
<td>Intravenous injection</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>


MSLVP04 VET SYRINGE PUMP

<p>Product code: WSG 286997</p>
<div class="rich-text-table"><strong>Basic information</strong></div>
<div>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">Model NO. S9V</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Application : Bovine, Canine, Equine, Feline, Ovine</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Display Formats : B+B, 4b, B+Pw, B+Cw, B+M, B+Color</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Imaging Modes : B Mode, M Mode, Thi Mode, Cdi Mode, Dpi Mode, Tdi</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Scan Methods : Electronic Curved Array, Electronic Linear Array</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Transport Package : Carton</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Specification : 55.0*55.0*68.0cm</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Trademark : MSL</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Origin : Guangdong China</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl"></div>
</div>
</div>
</div>
</div>


S9V Sonoscape

<p>Product code: WSG 286998</p>
<div class="rich-text-table">
<table>
<tbody>
<tr>
<td>Item</td>
<td>MSLSY30</td>
</tr>
<tr>
<td>Top diameter</td>
<td>≤Φ8.0mm</td>
</tr>
<tr>
<td>Input tube</td>
<td>≤Φ8.0mm</td>
</tr>
<tr>
<td>Biopsy channel</td>
<td>≥Φ2.0mm</td>
</tr>
<tr>
<td>Working length</td>
<td>≥1500mm</td>
</tr>
<tr>
<td>Total length</td>
<td>≥1800mm</td>
</tr>
<tr>
<td>Field of view</td>
<td>≥140º</td>
</tr>
<tr>
<td>Depth of field</td>
<td>≥3-100mm</td>
</tr>
<tr>
<td>Image solution</td>
<td>≥1000000pixels CMOS</td>
</tr>
<tr>
<td>Bending angles</td>
<td>≥ up210º down≥90º left&amp;right≥100º</td>
</tr>
<tr>
<td>Image frozen</td>
<td>images frozen,Video and picture record</td>
</tr>
</tbody>
</table>
</div>
<p>2.<b>parameter of processer&amp; light source</b><b> (LED light)</b></p>
<div class="rich-text-table">
<table>
<tbody>
<tr>
<td>Contrast adjustment</td>
<td>0-100</td>
</tr>
<tr>
<td>Image adjustment</td>
<td>Color,Tone,Saturation<br />
adjustment level: 0-100</td>
</tr>
<tr>
<td>Sharpness adjustment :</td>
<td>0-3 grade</td>
</tr>
<tr>
<td>Image enhance</td>
<td>0-30</td>
</tr>
<tr>
<td>White balance</td>
<td>Auto/manual white balance</td>
</tr>
<tr>
<td>Pump</td>
<td>pressure 30-80Mpk,<br />
air supply 4L/min-10L/min</td>
</tr>
<tr>
<td>illuminance</td>
<td>≥200000Lx,<br />
LED light source 30000hours life.</td>
</tr>
<tr>
<td>Brightness</td>
<td>0-100</td>
</tr>
<tr>
<td>Main function</td>
<td>Large screen frozen, small screen display continue .Digital widescreen and picture in picture function.<br />
With USB interface support picture and video record function<br />
With USB keyboard can Patient information entry function</td>
</tr>
</tbody>
</table>
</div>


MSLSY30 VET GASTROSCOPE

<p>Product code: WSG 286999</p>
<p><strong>Portable medical diagnostic x ray machine Features</strong></p>
<p>1) Simple &amp; light structure;</p>
<p>2) 6-segment LED display;</p>
<p>3) Anatomical memories for 24 selection program;</p>
<p>4) Double-loop (analog &amp; digital) high precision control mode;</p>
<p>5) High precision control in tube voltage &amp; current;</p>
<p>6) Self-protection &amp; auto-diagnosis available when malfunction occurs.</p>
<p><strong>Specifications</strong></p>
<table border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Model</td>
<td>MSLPX01</td>
</tr>
<tr>
<td rowspan="3">Power supply</td>
<td>Voltage: AC220V± 10%, 50/60Hz ± 1Hz</td>
</tr>
<tr>
<td>Capacity: ≥5kVA;</td>
</tr>
<tr>
<td>Internal resistance: ≤0.5Ω</td>
</tr>
<tr>
<td>Maximum output power</td>
<td>P =110kV×36mA=4kW</td>
</tr>
<tr>
<td>Nominal output power</td>
<td>100kV,40mA,0.1s,4kW</td>
</tr>
<tr>
<td>Frequency</td>
<td>≥40kHz</td>
</tr>
<tr>
<td>kV adjustable range</td>
<td>40kV~110kV, continuous regulation, stepping 1kV</td>
</tr>
<tr>
<td>mA adjustable range</td>
<td>36mA~70mA</td>
</tr>
<tr>
<td>mAs adjustable range</td>
<td>1mAs-200mAs,continuous regulation, stepping 1kV</td>
</tr>
<tr>
<td>Exposure time adjustable range</td>
<td>0.04s~3.2s</td>
</tr>
<tr>
<td rowspan="2">X ray tube</td>
<td>Focus: 0.6/1.5mm,</td>
</tr>
<tr>
<td>Thermal Capacity: 76kHU</td>
</tr>
<tr>
<td>Anatomical program</td>
<td>24 memory choices available</td>
</tr>
<tr>
<td rowspan="2">Accessories</td>
<td>Standard: manual switch,cable</td>
</tr>
<tr>
<td>Optional: mobile steel support</td>
</tr>
</tbody>
</table>


MSLPX01 PORTABLE X RAY MACHINE

<p>Product code: WSG 287000</p>
<p>Model:YSB-DU30A<br />
Efficient Diagnosis<br />
Thin and Light weight Design<br />
15.6 inches 1920X1080 HD Display<br />
High Degree of Integration<br />
Easy to Operation Multi-function Knob<br />
Built-in Battery Life More Than 4 hours<br />
Speckle and Noise Supperession<br />
IMT Automatic Vascular Intima Measurement<br />
Automatic Envelope Spectrum Measurement<br />
Multiple Application and Software Package<br />
Support 3D Imaging<br />
Characteristics<br />
Add new Pan function<br />
Light and thin design<br />
Tilting Monitor Angle Adjustment<br />
2 Transducer Ports<br />
Backlit and standard Keyboard<br />
Quick knob of menu parameter adjust<br />
Auto Image Optimized<br />
Auto Spectrum Trace and Measure<br />
Editable Report Page<br />
Solid-state Hard Disk<br />
Rich Interface<br />
HDMI Port<br />
DICOM Port<br />
LAN Port<br />
VGA Port<br />
USB Port<br />
Optional<br />
3D Free Hand Rebuilding software<br />
Convex/Linear/Cavity/Micro-convex/Rectal<br />
Height Adjustable Trolley</p>


MSLCU02 laptop Ultrasound + convex probe

<p>Product code: WSG 287002</p>
<p><strong>Applications: </strong><br />
Ovine, Goat, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.</p>
<p><strong>Features : </strong></p>
<p>5&#8243; FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.</p>
<p>Hand-held design, smart and light, easy to carry, convenient for detection.</p>
<p>OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.</p>
<p>Automatically calculate back-fat and lean percentage of swine.</p>
<p>128 frames permanent storage, 256 frames cine loop.</p>
<p>Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.</p>
<p>Easy to print out all kinds of detection images and reports.</p>
<p>Optional mouse to operate easier.</p>
<p>Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.</p>
<p><strong>Specifications:</strong></p>
<p>Detect Depth(mm): ≥140</p>
<p>Blind zone(mm): ≤3</p>
<p>Monitor size: 5 inch</p>
<p>Display mode: B, B+B, B+M, M, 4B</p>
<p>Image gray scale: 256</p>
<p>Image storage: 128</p>
<p>Cine loop: ≥400 frame</p>
<p>Scan depth: 120mm-220mm</p>
<p>Image flip: up/down, left/right</p>
<p>Focus position: Adjustable</p>
<p>Posture mark: 15</p>
<p>Image process: Histogram, color encode, gama, image smooth</p>
<p>Probe frequency: Adjustable ( 3 point each probe )</p>
<p>Frame correction: Adjustable</p>
<p>Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.</p>
<p>Notation: date, time, name, sex, age, full screen words edit and etc.</p>
<p>Output report: regular</p>
<p>Output: USB2.0, VIDEO( PALD, NTSC)</p>
<p>Charging method: adapter, battery</p>
<p>Adapter rating: 100-240V～, 50-60Hz, 70VA</p>
<p>Battery: 2600mAh, continuous work: ≥3 hours</p>
<p>Machine dimension: 230mm(L)x120mm(W)x38mm(H)</p>
<p>Net weight: 700g</p>


MSLVU22 Handed Ultrasound + Rectal probe

<p>Product code: WSG 287002</p>
<h3>Description：</h3>
<p>1. The height of the operating table is lifted and lowered by electric control, and the lower tank is equipped in the middle;<br />
2. The left and right sides of the operating table can be tilted by 5°-15° respectively.<br />
3, the operating table can be tilted 45 ° in front of the front, using electric operation;<br />
4. The whole machine is compact in structure, reliable and reasonable in performance, and easy to operate;<br />
5. The column and base cover are made of 304 stainless steel, which is resistant to high temperature, corrosion and rust;<br />
6, the work surface temperature adjustment range 0-60 °, automatic constant temperature function, you can adjust the temperature at will;<br />
7, built-in high temperature protector, safe and reliable;<br />
8. The operating table is equipped with a buckle for the convenience of fixing, simple and firm.</p>


MSLWL18 Animal operating Table

<p>Product code: WSG 287002</p>
<p><strong>Other attributes</strong></p>
<h3 data-spm-anchor-id="a2700.details.0.i63.6bbf3abdoiWPzq">Other attributes</h3>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number : MSLDWL18</div>
</div>
<div class="attribute-item">
<div class="left">Product name : Pet operation table</div>
</div>
<div class="attribute-item">
<div class="left">Application: All animal</div>
</div>
<div class="attribute-item">
<div class="left">Standrad: animal use standard</div>
</div>
<div class="attribute-item">
<div class="left">Size: small/larger</div>
</div>
<div class="attribute-item">
<div class="left">Material : Stainless steel SUS#304</div>
</div>
<div class="attribute-item">
<div class="left">Part: infusion rack/plate/bucket/brake caster/universal caster</div>
</div>
<div class="attribute-item">
<div class="left">Lifting method: Hydraulic/electrict</div>
</div>
<div class="attribute-item">
<div class="left">Working environment: Voltage 220V±10%</div>
</div>
<div class="attribute-item">
<div class="left">Temperature&amp;Humidity: 0-60℃ &amp; &lt;85% RH</div>
</div>
</div>
<div class="attribute-list">
<div class="attribute-item"></div>
</div>
<p>&nbsp;</p>


MSLWL17 Animal operating Table

<p>Product code: WSG 287003</p>
<p><strong>Other attributes</strong></p>
<p>Place of Origin: China</p>
<p>Brand Name : MSL</p>
<p>Model Number : MSLVCT04</p>
<p>Product name : Vet CT scan</p>
<p>Image Size: 39.4cm*31.5cm</p>
<p>Pixel Pitch : 154μm</p>
<p>A/D Conversion : 16 bit</p>
<p>Highest rate : 60fps (2*2Binning)</p>
<p>Output power of High-voltage Generator : 15kw</p>
<p>Input Voltage : 220VAC (50/60HZ)</p>
<p>Max Tube Voltage : 120kV</p>
<p>Max mA: 160mA</p>
<p>Focal Point Size :0.3mm/0.6mm</p>
<p>&nbsp;</p>


MSLVCT04 VET CT

<p>Product code: WSG 287004</p>
<h2>Specifications</h2>
<p>Pet immunofluorescence analyzer MSLYT05 PRINCIPLE<br />
sandwich lateral flow immunochromatographic assay<br />
REAGENTS AND MATERIALS<br />
●Test card<br />
●Disposable capillary droppers<br />
●Cotton swab<br />
●Assay buffers<br />
●Products Manual<br />
STORAGE AND STABILITY<br />
The kit can be stored at room temperature (4- -30° C). The test kit is stable through the expiration date (24 months) marked on the package label. DO NOT FREEZE. Do not store the test kit in direct sunlight.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>PACKAGE: 10 Tests per kit, 20 kits per carton<br />
TEST TIME: 5-10 Min.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>Test medthod: Lateral chromatography(Immunofluorescence)<br />
Detection channel: Single<br />
Language<br />
Software tanguage can be customized in simplified Chinese,English and French, Rrench,Russian,Spanish ect.<br />
Dispiay screen: 7 inch high resolution LCD Touch screen.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>Pinter: Built-in thermal printer<br />
Work environment: +5~40C, ≤80%RH, 86~106KPa<br />
Power supply: 100V~240V， 50~60Hz， 40VA<br />
Lithium Battery: ≥2400mAh，11.1V<br />
N.W: 1.65kg (without power adaptor)</p>
<p>The test must ensure that the English name and batch number of the c card product are consistent with the name on the aluminum foil bag of the strip to be tested and the batch number on the back</p>
<p>Insert the if-10 instrument with the front side of the strip upward according to the direction of the arrow</p>
<p>The company is equipped with pipette gun with a range of 5-50 μ L. if the sampling and sample adding volume is 100 μ L, the sample shall be taken twice</p>


MSLYT05 VET FLUORESCENCE MACHINE

<p>Product code: WSG 287005</p>
<h2>Specifications</h2>
<p>Model Number    MT-460<br />
Product name    Veterinary CT Machine<br />
Application    Animal Health Diagnosis<br />
Model    MT-460<br />
Scan duration    24 seconds<br />
Total exposure duration    8 seconds<br />
Weight-bearing of bed    &lt;60kg<br />
Low noise    70db<br />
Compact structure    266*167*160cm<br />
X-ray source    Rotating anode<br />
Tube voltage    40-125kv</p>
<p>&nbsp;</p>


MSLCTX01 VETERINARY CONE BEAM COMPUTED TAMOGRAPHY

<p>Product code: WSG 287006</p>
<p>Hematology analyzer Main Features:</p>
<p>    19 parameters + 3 histograms<br />
    60 tests/hour<br />
    9.7µL sampling volume for testing<br />
    8.4 inches touch screen<br />
    Storage report >1000 cases</p>


MSLHAS01

<p style="padding-left: 40px;">Product code: WSG 287158</p>
<p>MSLHW2003A Gynecological Bed</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<div class="desc_contents">
<p><strong> </strong></p>
<div class="attribute-list">
<div class="attribute-item"></div>
<div class="right"></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHW2003A Gynecological Bed

<p style="padding-left: 40px;">Product code: WSG 287160</p>
<p>MSLHW503B &#8211; 01 Lithotomy stirrup Leg Frame</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<div class="desc_contents">
<p><strong>Description summery</strong></p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i67.2f657952ymbZ5g">Material</div>
<div class="right">metal</div>
</div>
<div class="attribute-item">
<div class="left">Instrument classification</div>
<div class="right">Class II</div>
</div>
<div class="attribute-item">
<div class="left">Safety standard</div>
<div class="right">ISO</div>
</div>
<div class="attribute-item">
<div class="left">Place of Origin</div>
<div class="right">Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name</div>
<div class="right">MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number</div>
<div class="right">MSLHW503B-01</div>
</div>
<div class="attribute-item">
<div class="left">Power Source</div>
<div class="right">Electric</div>
</div>
<div class="attribute-item">
<div class="left">Shelf Life</div>
<div class="right">2 years</div>
</div>
<div class="attribute-item">
<div class="left">Quality Certification</div>
<div class="right">ce</div>
</div>
<div class="attribute-item">
<div class="left">Product name</div>
<div class="right">Lithotomy Stirrup Leg Frame</div>
</div>
<div class="attribute-item">
<div class="left">Model</div>
<div class="right">MSLHW503B-01</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Length</div>
<div class="right">1000mm</div>
</div>
<div class="attribute-item">
<div class="left">Max Weight Capacity</div>
<div class="right">180kg</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever upward</div>
<div class="right">+90°</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever down</div>
<div class="right">-35°(Adjustable angle≥125° )</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Horizontal Inside</div>
<div class="right">≥25°</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Horizontal Outreach</div>
<div class="right">≥30°</div>
</div>
<div class="attribute-item">
<div class="left">Packing</div>
<div class="right">45*55*110cm</div>
</div>
<div class="attribute-item">
<div class="left">Application</div>
<div class="right"><span data-spm-anchor-id="a2700.details.0.i68.2f657952ymbZ5g">enterology, urology,obstetric, gynecology lithotomy,endoscopic surgery</span></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHW503B - 01 Lithotomy stirrup Leg Frame

<p style="padding-left: 40px;">Product code: WSG 287161</p>
<p>MSLEDP02 ELECTRIC DERMTOME</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<h2>pecifications</h2>
<div class="desc_contents">
<h2><strong>Anti-liquid grade electric dermatome machine MSLEDP02 Technical Parameters</strong></h2>
<p>Power supply: AC220V + 10%; 50Hz + 1Hz<br />
Skin thickness: 0-0.75 mm and incremental interval: 0.05 mm<br />
Skin width: 2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, 10.2 cm<br />
Removable  handle connection line<br />
Control mode: Handheld control, easy to operate;<br />
Sterilization mode: whole machine can be sterilized under high temperature and pressure</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232118128144.jpg" alt="" /></p>
<h3><strong>Protection against shock electric dermatome machine MSLEDP02 Characteristic</strong></h3>
<p>Weight: 1.18 kg<br />
Length: 232 mm<br />
Height: 138 mm<br />
Width: 170 mm<br />
Voltage: ac220v ± 10%;<br />
Power: 150 va;</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232125519935.jpg" alt="" /></p>
<p>Frequency: 50 Hz ± 1 Hz.<br />
Power output: 14.5v DC, 4.3a maximum<br />
Protection level: i level<br />
Anti-shock type: bf type</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232126547381.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEDP02 ELECTRIC DERMTOME

<p style="padding-left: 40px;">Product code: WSG 287163</p>
<p>MSLGT06 CT INJECTION</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLGT06 CT INJECTION

<p style="padding-left: 40px;">Product code: WSG 287164</p>
<p>MSLZT01 NITROUS OXIDE SEDATION</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<h2>Specifications</h2>
<div class="desc_contents">
<h3><strong>TECHNICAL  SPECIFICATION</strong></h3>
<h3>Ventilation mode</h3>
<ul>
<li>Continuous gas supply</li>
<li>On-demand gas supply</li>
<li>Rapid oxygen supply</li>
<li>Manual</li>
</ul>
<div>
<h3></h3>
<h3>Ventilatorion parameter range</h3>
<div>Oxvgen concentration             30%- 100%</div>
<div>Nitrous oxide concentration     0%- 70%，</div>
<div>On-demand gas                       0-30Lmin.</div>
<div>Pressure trigger (RtW)            -1cmH2O ~ -10cmH2O</div>
<div>Gas supply time                       1s- 6S</div>
<div>Peak flow                                  ≥601 /min.</div>
<div>Manual ventilation flow             0- 30L /min</div>
<div>Rapid oxygen flow                    25L/min &#8211; 75L/min</div>
<div>Pressure limit                           5cmH2O- 60cmH2O</div>
</div>
<p>&nbsp;</p>
<h3>Monltorlng parameter</h3>
<div>Oxygen concentration      30%- 100%.</div>
<div>Ainway pressure              0- 60cmH2O.</div>
<div>Flow                                 0- 30L/min.</div>
<div></div>
<h3><strong>Oscillogram</strong></h3>
<div>P-T (pressure &#8211; time)</div>
<div></div>
<div>
<h3>Alarm and protectlon</h3>
<div>The AC power failure alarm               Power failure or no cocnio</div>
<div>Builin badkup bttery low vllage          &lt;11.3土0.3V</div>
<div>High oxygen concentration alarm     31% &#8211; 100%，</div>
<div>Low axygen concentration alarm      30% &#8211; 99%，</div>
<div>High ainway pressure alarm              5cmH2O &#8211; 60cmHO</div>
<div>Pressure limit                                     0cmH2O &#8211; 60cmHO</div>
<div>Emergency ar Input                           when machine mafunction</div>
<div>Nitrous axide dlosure function           Whenoxygenpressures200kPa</div>
<div>Low gas source input pressure         Pressure s 200kPa</div>
<div></div>
<div>
<h3>Working conditlons</h3>
<div>Gas source                 O2, N2O</div>
<div>Pressure                     280kPa &#8211; 600kPa</div>
<div>Voltage                       110V &#8211; 240V.</div>
<div>Power frequency         50/60Hz.</div>
<div></div>
<div></div>
</div>
</div>
<h3>Size</h3>
<div>Wooden case packing size          L 570 * W 780 * H 1400 mm</div>
<div>G.W                                             80KG</div>
<div>NW                                              35KG</div>
<div>Wooden case packing size          L 465 * W 465 * H 505 mm</div>
<div>G.W                                             37KG</div>
<div>N.W                                             15K</div>
<div>Total CBM                                    0.73m3</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLZT01 NITROUS OXIDE SEDATION

<p style="padding-left: 40px;">Product code: WSG 287165</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left">MSLSY26 VIDEO GASTROSCOPE SET</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLSY26 VIDEO GASTROSCOPE SET

<p style="padding-left: 40px;">Product code: WSG 287166</p>
<p><strong>MSLEK51 100W electrosurgical unit</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left"></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEK51 100W electrosurgical unit

<p style="padding-left: 40px;">Product code: WSG 287167</p>
<p><strong>MSLUS01 ultrasonic scapel</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i59.25a35f9cOlePvl">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i58.25a35f9cOlePvl">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number: MSLUS01</div>
</div>
<div class="attribute-item">
<div class="left">Product name : Ultrasonic Scalpel System</div>
</div>
<div class="attribute-item">
<div class="left">MOQ : 1 PCS</div>
</div>
<div class="attribute-item">
<div class="left">Name : MSLUS01</div>
</div>
<div class="attribute-item">
<div class="left">Brand : MSL</div>
</div>
<div class="attribute-item">
<div class="left">Color : Silver</div>
</div>
<div class="attribute-item">
<div class="left">Warranty     : 1 Year / 12 Months</div>
</div>
<div class="attribute-item">
<div class="left">DEMISSION: 58*58*25</div>
</div>
<div class="attribute-item">
<div class="left">Weight: 15</div>
</div>
<div class="attribute-item">
<div class="left">Use: Ultrasonic Scalpel</div>
</div>
<div class="attribute-item">
<div class="left">Language: Multiple Languages Choice</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLUS01 ultrasonic scapel

<p style="padding-left: 40px;">Product code: WSG 287168</p>
<p><strong>MSLEC39 Digital 12 Channel ECG Machine</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h1>Isoflurane Anesthesia or other Gas Anesthesia Machine &#8211; MSLGA01</h1>
<p>Anesthesia medical equipment</p>
<p>1. Medical <a href="http://www.medicalequipment-msl.com/">anesthesia machine</a></p>
<p>2. Vertical anesthesia equipment</p>
<p>3. <a href="http://www.medicalequipment-msl.com/htm/portable-anesthesia-machine/">Mobile anesthesia machine</a></p>
<p>4. <a href="http://www.medicalequipment-msl.com/htm/anesthesia-gas-machine/">Anesthesia gas machine</a></p>
<p><a href="http://www.medicalequipment-msl.com/htm/anesthesia-machines/">Anesthesia Machine</a>, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process demonstrate the inner quality: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.</p>
<p>The <a href="http://www.medicalequipment-msl.com/htm/ventilator-machine/">Medical Ventilator</a> adopts microcomputer control with high-definition TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.</p>
<p>The high-precision Vaporizer <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/vaporizer-definition.html">Vaporizer Definition and Vaporizer Construction</a>) </em>is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.</p>
<p>High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.</p>
<p>Reliable pneumatic transmission system.</p>
<p>Economic and proper configuration of technologies, optional as required by the Customer.</p>
<p>Modularized design and upgrading. Upgrading is available as required by the Customer.</p>
</div>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Main body</td>
<td colspan="3">High-strength engineering plastic rack, light, beautiful and corrosion resistant</td>
</tr>
<tr>
<td>Scope of application</td>
<td colspan="3">adult, child</td>
</tr>
<tr>
<td>Gas source</td>
<td colspan="3">O<sub>2</sub>: 0.27～0.55MPa    N<sub>2</sub>O: 0.27～0.55MPa</td>
</tr>
<tr>
<td rowspan="2">Flow meter</td>
<td colspan="3">O<sub>2</sub>: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="3">N<sub>2</sub>0: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="4">O<sub>2</sub>, N<sub>2</sub>O linkage and N<sub>2</sub>O Stopper</p>
<p>When using nitrous oxide, oxygen concentration&gt;25%;</p>
<p>When the oxygen pressure&lt;0.2Kpa, the flow of nitrous oxide would be cut off.</td>
</tr>
<tr>
<td>Flow rate of rapid oxygen supply</td>
<td colspan="3">25～75L/min</td>
</tr>
<tr>
<td>Low oxygen pressure alarm <em>(<a href="http://www.medicalequipment-msl.com/htm/medical-device-news/oxygen-alarm.html">Oxygen Alarm</a>)</em></td>
<td colspan="3">There will be sound alarm when the oxygen</p>
<p>pressure &lt; 0.2MPa</td>
</tr>
<tr>
<td>Vaporizer</td>
<td colspan="3">it has the function of automatic compensation based on</p>
<p>pressure, temperature, and flow rate. The regulation</p>
<p>range of evaporator concentration is 0～5 vol%. Among</p>
<p>Halothane，Enflurane, Isoflurane and Sevoflurane, one</p>
<p>can be chosen for application as required by the</p>
<p>customer. And vaporizers that are imported with original</p>
<p>packaging are also available.</td>
</tr>
<tr>
<td>Respiratory circuit</td>
<td colspan="3">working mode: all-close, semi-close, semi-open</p>
<p>releasing pressure: 0.5～7 kPa</td>
</tr>
<tr>
<td>Respiratory Bellows</td>
<td colspan="3">bellows for adults, bellows for children</p>
<p>tidal volume range:0～1,500 ml</td>
</tr>
<tr>
<td colspan="4">Ventilator <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Definition</a> and <a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Function</a>)</em></td>
</tr>
<tr>
<td>Display mode</td>
<td colspan="3">High-definition TFT color LCD screen display</td>
</tr>
<tr>
<td>Ventilation  mode</td>
<td colspan="3">IPPV, SIPPV, SIMV, PEEP, MANUAL,</p>
<p>SIGH, （IMV, VCV, PCV）</td>
</tr>
<tr>
<td rowspan="8">Ventilation parameters</td>
<td colspan="2">Tidal volume</td>
<td>50～1500 ml (20～1500 ml)</td>
</tr>
<tr>
<td colspan="2">Rate</td>
<td>1～99 bpm</td>
</tr>
<tr>
<td colspan="2">SIMV rate</td>
<td>2～20 bpm</td>
</tr>
<tr>
<td colspan="2">I:E</td>
<td>2:1～1:8 (4:1～1:8)</td>
</tr>
<tr>
<td colspan="2">Inspiratory trigger pressure</td>
<td>-1.0～2.0Kpa</td>
</tr>
<tr>
<td colspan="2">PEEP</p>
<p>Pressure Range</td>
<td>0～2.0Kpa</p>
<p>1.0～6.0Kpa</td>
</tr>
<tr>
<td colspan="2">SIGH</td>
<td>1.5 times the inspiratory time (70-150 adjustable)</td>
</tr>
<tr>
<td colspan="2">Inspiratory platform</td>
<td>0～50%</td>
</tr>
<tr>
<td colspan="4">Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure &#8211; time waveform, flow rate &#8211; time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance,flow-volume oop,pressure-volume loop)</td>
</tr>
<tr>
<td colspan="2">Monitoring of oxygen concentration</td>
<td colspan="2">21%～100%</td>
</tr>
<tr>
<td colspan="4">Security Alarm System</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Oxygen Concentration alarm</td>
<td colspan="2">upper limit setting range  21%～100%</td>
</tr>
<tr>
<td colspan="2">low limit setting range   10%～80%</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Airway pressure alarm</td>
<td colspan="2">upper limit setting range  0.3～6.0 kPa</td>
</tr>
<tr>
<td colspan="2">low limit setting range   0.2～5.0 kPa</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Per-minute ventilation volume alarm</td>
<td colspan="2">upper limit setting range 3.0～30L/min</td>
</tr>
<tr>
<td colspan="2">low limit setting range   1.0～10L/min</td>
</tr>
<tr>
<td colspan="2">Sustained high-pressure alarm</td>
<td colspan="2">it will give alarm when stress have consistently been higher than 2.5 kPa</td>
</tr>
<tr>
<td colspan="2">Suffocation alarm</td>
<td colspan="2">it will give sound and light alarm if there</p>
<p>is no tidal volume input for 15 seconds</td>
</tr>
<tr>
<td colspan="4">Power alarm</td>
</tr>
<tr>
<td colspan="2">Power</td>
<td colspan="2">AC 220V±10%     50Hz±1Hz（UPS, Storage battery）</td>
</tr>
<tr>
<td colspan="4">（Mechanical Arms） （End-expiratory CO2 monitoring）</td>
</tr>
<tr>
<td colspan="4">Items within brackets are optional.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEC39 Digital 12 Channel ECG Machine

<p style="padding-left: 40px;">Product code: WSG 287168</p>
<p><strong>MSLGA01 anesthesia machine</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h1>Isoflurane Anesthesia or other Gas Anesthesia Machine &#8211; MSLGA01</h1>
<p>Anesthesia medical equipment</p>
<p>1. Medical <a href="http://www.medicalequipment-msl.com/">anesthesia machine</a></p>
<p>2. Vertical anesthesia equipment</p>
<p>3. <a href="http://www.medicalequipment-msl.com/htm/portable-anesthesia-machine/">Mobile anesthesia machine</a></p>
<p>4. <a href="http://www.medicalequipment-msl.com/htm/anesthesia-gas-machine/">Anesthesia gas machine</a></p>
<p><a href="http://www.medicalequipment-msl.com/htm/anesthesia-machines/">Anesthesia Machine</a>, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process demonstrate the inner quality: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.</p>
<p>The <a href="http://www.medicalequipment-msl.com/htm/ventilator-machine/">Medical Ventilator</a> adopts microcomputer control with high-definition TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.</p>
<p>The high-precision Vaporizer <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/vaporizer-definition.html">Vaporizer Definition and Vaporizer Construction</a>) </em>is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.</p>
<p>High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.</p>
<p>Reliable pneumatic transmission system.</p>
<p>Economic and proper configuration of technologies, optional as required by the Customer.</p>
<p>Modularized design and upgrading. Upgrading is available as required by the Customer.</p>
</div>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Main body</td>
<td colspan="3">High-strength engineering plastic rack, light, beautiful and corrosion resistant</td>
</tr>
<tr>
<td>Scope of application</td>
<td colspan="3">adult, child</td>
</tr>
<tr>
<td>Gas source</td>
<td colspan="3">O<sub>2</sub>: 0.27～0.55MPa    N<sub>2</sub>O: 0.27～0.55MPa</td>
</tr>
<tr>
<td rowspan="2">Flow meter</td>
<td colspan="3">O<sub>2</sub>: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="3">N<sub>2</sub>0: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="4">O<sub>2</sub>, N<sub>2</sub>O linkage and N<sub>2</sub>O Stopper</p>
<p>When using nitrous oxide, oxygen concentration&gt;25%;</p>
<p>When the oxygen pressure&lt;0.2Kpa, the flow of nitrous oxide would be cut off.</td>
</tr>
<tr>
<td>Flow rate of rapid oxygen supply</td>
<td colspan="3">25～75L/min</td>
</tr>
<tr>
<td>Low oxygen pressure alarm <em>(<a href="http://www.medicalequipment-msl.com/htm/medical-device-news/oxygen-alarm.html">Oxygen Alarm</a>)</em></td>
<td colspan="3">There will be sound alarm when the oxygen</p>
<p>pressure &lt; 0.2MPa</td>
</tr>
<tr>
<td>Vaporizer</td>
<td colspan="3">it has the function of automatic compensation based on</p>
<p>pressure, temperature, and flow rate. The regulation</p>
<p>range of evaporator concentration is 0～5 vol%. Among</p>
<p>Halothane，Enflurane, Isoflurane and Sevoflurane, one</p>
<p>can be chosen for application as required by the</p>
<p>customer. And vaporizers that are imported with original</p>
<p>packaging are also available.</td>
</tr>
<tr>
<td>Respiratory circuit</td>
<td colspan="3">working mode: all-close, semi-close, semi-open</p>
<p>releasing pressure: 0.5～7 kPa</td>
</tr>
<tr>
<td>Respiratory Bellows</td>
<td colspan="3">bellows for adults, bellows for children</p>
<p>tidal volume range:0～1,500 ml</td>
</tr>
<tr>
<td colspan="4">Ventilator <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Definition</a> and <a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Function</a>)</em></td>
</tr>
<tr>
<td>Display mode</td>
<td colspan="3">High-definition TFT color LCD screen display</td>
</tr>
<tr>
<td>Ventilation  mode</td>
<td colspan="3">IPPV, SIPPV, SIMV, PEEP, MANUAL,</p>
<p>SIGH, （IMV, VCV, PCV）</td>
</tr>
<tr>
<td rowspan="8">Ventilation parameters</td>
<td colspan="2">Tidal volume</td>
<td>50～1500 ml (20～1500 ml)</td>
</tr>
<tr>
<td colspan="2">Rate</td>
<td>1～99 bpm</td>
</tr>
<tr>
<td colspan="2">SIMV rate</td>
<td>2～20 bpm</td>
</tr>
<tr>
<td colspan="2">I:E</td>
<td>2:1～1:8 (4:1～1:8)</td>
</tr>
<tr>
<td colspan="2">Inspiratory trigger pressure</td>
<td>-1.0～2.0Kpa</td>
</tr>
<tr>
<td colspan="2">PEEP</p>
<p>Pressure Range</td>
<td>0～2.0Kpa</p>
<p>1.0～6.0Kpa</td>
</tr>
<tr>
<td colspan="2">SIGH</td>
<td>1.5 times the inspiratory time (70-150 adjustable)</td>
</tr>
<tr>
<td colspan="2">Inspiratory platform</td>
<td>0～50%</td>
</tr>
<tr>
<td colspan="4">Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure &#8211; time waveform, flow rate &#8211; time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance,flow-volume oop,pressure-volume loop)</td>
</tr>
<tr>
<td colspan="2">Monitoring of oxygen concentration</td>
<td colspan="2">21%～100%</td>
</tr>
<tr>
<td colspan="4">Security Alarm System</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Oxygen Concentration alarm</td>
<td colspan="2">upper limit setting range  21%～100%</td>
</tr>
<tr>
<td colspan="2">low limit setting range   10%～80%</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Airway pressure alarm</td>
<td colspan="2">upper limit setting range  0.3～6.0 kPa</td>
</tr>
<tr>
<td colspan="2">low limit setting range   0.2～5.0 kPa</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Per-minute ventilation volume alarm</td>
<td colspan="2">upper limit setting range 3.0～30L/min</td>
</tr>
<tr>
<td colspan="2">low limit setting range   1.0～10L/min</td>
</tr>
<tr>
<td colspan="2">Sustained high-pressure alarm</td>
<td colspan="2">it will give alarm when stress have consistently been higher than 2.5 kPa</td>
</tr>
<tr>
<td colspan="2">Suffocation alarm</td>
<td colspan="2">it will give sound and light alarm if there</p>
<p>is no tidal volume input for 15 seconds</td>
</tr>
<tr>
<td colspan="4">Power alarm</td>
</tr>
<tr>
<td colspan="2">Power</td>
<td colspan="2">AC 220V±10%     50Hz±1Hz（UPS, Storage battery）</td>
</tr>
<tr>
<td colspan="4">（Mechanical Arms） （End-expiratory CO2 monitoring）</td>
</tr>
<tr>
<td colspan="4">Items within brackets are optional.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLGA01 anesthesia machine

<p style="padding-left: 40px;">Product code: WSG 287169</p>
<p><strong>MSLMP57 MULTI PARAMETER MONITOR</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h2>Best Multi-Parameter Patient Monitor MSLMP57</h2>
<p>Features<br />
12.1 inch color display with 800*600 resolution.<br />
Three Working Modes: Monitoring, Surgery and Diagnosis.<br />
Simple and friendly operating display interface.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359387263.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359382379.jpg" alt="" /></p>
<p>Multi-display modes suitable for different applications:<br />
Standard Interface, Large font, ECG Standard Full Display, OXY , Trend Table, BP Trend.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359383516.jpg" alt="" /><br />
Built-in rechargeable Lithium battery up to 2 hours of continuous work<br />
VGA output for external display</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359388416.jpg" alt="" /></p>
<p>Technique Specification<br />
ECG<br />
Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359386472.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000031588.jpg" alt="" /><br />
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV<br />
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000038240.jpg" alt="" /><br />
Resolution: 1 BPM<br />
Accuracy: ±1%<br />
Sensitivity &gt;200 uV(Peak to peak)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000037280.jpg" alt="" /></p>
<p>ST measurement range: -2.0 ~ +2.0 mV<br />
Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater<br />
Other Range: unspecified<br />
Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000035123.jpg" alt="" /><br />
Bandwidth:<br />
Diagnostic: 0.05~130 Hz<br />
Monitor: 0.5~40 Hz<br />
Surgery: 1~20 Hz</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000036203.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLMP57 MULTI PARAMETER MONITOR

<p style="padding-left: 40px;">Product code: WSG 287170</p>
<p><strong>MSLEK68 3000W ELECTROSURGICAL UNIT</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<p>&nbsp;</p>
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<p> Ideal cut and coagulation functions for highly complex surgical procedures in different fields. Access to convenient surgery is made easier with monopolar cut, monopolar coagulation, and bipolar coagulation.</p>
<p>Much more efficient than low frequency, produces less heat, not to mention sparkle, resulting in less burned tissue<br />
Fast healing with excellent results<br />
Provides smooth cuts with optimal performance on adipose tissues<br />
Absolute output power at every mode of Coagulation, Blend, Bipolar like variable power of general ESU.  It minimizes the carbonization and second bleeding by adhesion of the tissue<br />
Complex  Patient protect system for more safety<br />
2 Monopolar output<br />
Various Cutting, Coagulation and Bipolar Modes<br />
Spray Coagulation Function</p>
<p>The  electrosurgical unit super seeds the expectation of the most expectant medical professionals.</p>
<p>Device unites the benefits provided by blood vessel closing system and diathermy, argon coagulation in a single unit.</p>
<p>It also comes with 2 monopolar sockets, independent  socket and a bipolar socket. Operations are enabled with the use of various instrumentation. without having to change them during the procedure.</p>
<p>The unit follows advanced operating modes e.g. cutting in liquids.  comes with customizable settings based on surgical interventions by using the 9 program storage position. has automatic adjustment of power to maximize the effectiveness of operation.</p>
<p>PowerStart system works with MultiSwitch for remote selection of program.</p>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEK68 3000W ELECTROSURGICAL UNIT

<p style="padding-left: 40px;">Product code: WSG 287171</p>
<p><strong>MSLEAX610 real time PCR system (16 channels)</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>Real-time PCR (polymerase chain reaction) is a laboratory technique used to amplify and detect specific DNA sequences. It is a powerful tool for analyzing gene expression, genetic mutations, and other genetic variations. Real-time PCR systems use fluorescent probes or primers to detect the presence of a specific DNA sequence in a sample. The results are displayed in real-time, allowing researchers to monitor the progress of the reaction and analyze the results quickly.</div>
<div>
<h2>Specifications</h2>
<div class="desc_contents">
<h3>Double channels pcr test equipment 16 /32 channel MSLEAX610</h3>
<p>&nbsp;</p>
<p>Type:</p>
<p>Bio-Separation System</p>
<p>Brand Name:</p>
<p>MSL</p>
<p>Model Number:</p>
<p>MSLEAX610</p>
<p>Place of Origin:</p>
<p>Guangdong, China</p>
<p>Instrument classification:</p>
<p>Class II</p>
<p>Warranty:</p>
<p>1 Year</p>
<p>After-sale Service:</p>
<p>Online technical support</p>
<p>Product model:</p>
<p>MSLEAX610</p>
<p>Product name:</p>
<p>real time pcr machine</p>
<p>channel:</p>
<p>16/32 channel</p>
<p>Consumable:</p>
<p>Clear 0.2 ml PCR tube/8-tube strips</p>
<p>Sample Capacity:</p>
<p>16&#215;0.2ml(2x8well, double block)</p>
<p>Reaction Volume:</p>
<p>10-100ul</p>
<p>Temperature control technology:</p>
<p>Marlow customized Peltier allow1.000.000 cycles</p>
<p>Temperature Range:</p>
<p>0-100&#8243;C(Resolution:0.19C)</p>
<p>Hot Lid Temperature:</p>
<p>30-115*C(Adjustable,default 105C)</p>
</div>
</div>
</div>
</div>


MSLEAX610 real time PCR system (16 channels)

<p style="padding-left: 40px;">Product code: WSG 287172</p>
<p><strong>MSLHPD01 Helicobacter pylori Detector</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><b>1 Helicobacter Pylori</b><br />
Helicobacter Pylori is a Gram-negative Helicobacter that is parasitic on the human gastric mucosa. Founded in 1983 by Warren and Marshall. It can survive in a high degree of stomach acid, not only can coat the stomach stick, but also can pass through the protective barrier of the stomach, causing stomach lesions.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00wyBVtmdMcvbL/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="647" height="" data-original="//image.made-in-china.com/226f3j00wyBVtmdMcvbL/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></p>
<p><b>3 Detection of Helicobacter Pylori</b><br />
Principle: Urease is not present in mammalian cells, the presence of urease in human stomach is evidence of the presence of Helicobacter pylori. After oral administration of urea [&#8220;C] capsules, if the patient has Helicobacter pylori in the stomach, the urease produced by it, can quickly decompose urea into carbon dioxide and ammonia gas. Carbon dioxide is excreted through the blood into the lungs. The discharged &#8220;C02 is collected on the respiratory card, and the tag is placed on the Helicobacter pylori analyzer determine whether there is any in the stomach infection with Helicobacter pylori.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00EnCVtfdFfeoW/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="560" height="" data-original="//image.made-in-china.com/226f3j00EnCVtfdFfeoW/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<img decoding="async" src="https://image.made-in-china.com/226f3j00EOMWaPJCfvkl/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="620" height="" data-original="//image.made-in-china.com/226f3j00EOMWaPJCfvkl/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<b>7 Method for detecting Helicobacter pylori</b><br />
Should be fasted for 4 to 6 hours before the test<br />
Take about 120ml warm drinking water with urea 14C capsule, wait for 10-20 minutes.<br />
Collect the sample.<br />
Test the sample.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00aFMhQcwEZCoV/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="710" height="" data-original="//image.made-in-china.com/226f3j00aFMhQcwEZCoV/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></p>
<div id="1684894142003" class="cke-navigation" contenteditable="false">Detailed Photos</div>
<p>&nbsp;</p>
</div>
<div><img decoding="async" src="https://image.made-in-china.com/226f3j00siCcjBARSoqu/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00siCcjBARSoqu/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00ZWCoSFmAKkbg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00ZWCoSFmAKkbg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00NWBkKtwsycbz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00NWBkKtwsycbz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<img decoding="async" src="https://image.made-in-china.com/226f3j00FlvoKpmaLqkg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FlvoKpmaLqkg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00FWvqShAPybop/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FWvqShAPybop/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00FivbZemRyqoz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FivbZemRyqoz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></div>
</div>
</div>


MSLHPD01 Helicobacter pylori Detector

<p style="padding-left: 40px;">Product code: WSG 287173</p>
<p><strong>MSLDBA09 full &#8211; auto Chemistry Analyzer</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<h2>Description</h2>
<p>Class B Autoclaves for clinics, dentists and surgeons.</p>
<p>Volume: 12-23 Liter</p>
<p>Type: B</p>
<h2><strong>Applications of Class B Autoclaves<br />
</strong></h2>
<p>The versatility of Class B autoclaves makes them integral in various sectors. From the medical field to research facilities and dental practices, these autoclaves play a crucial role in maintaining sterile environments.</p>
</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>


MSLDBA09 full - auto Chemistry Analyzer

<p style="padding-left: 40px;">Product code: WSG 287174</p>
<p><strong>MSLFCY01 FLOW CYTOMETRY MACHINE</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>Name:Flow Cytometer</p>
<p>Model:MSLFCY01</p>
<p>Laser:488NM solid</p>
<p>Test speed:more than 38000 cells/s</p>
<p>Size: 500mm*605mm*305mm</p>
<p>Language version:English/Chinese</p>
<p>carry over:less than 0.5%</p>
<p>Fluorescence linearity:more than 0.99</p>
<p>Detector:FSC SSC FL1-FL5</p>
<p>Certificate:CE ISO</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<p><strong>Professional Flow Cytometry 488nm Solid Laser Open System Flow Cytometer for Academy of Science MSLFCY01</strong></p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H69b70a075acd443e926df9a37e2cd2b2P/236934233/H69b70a075acd443e926df9a37e2cd2b2P.jpg?quality=close" /></p>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H54429db4a71e45d9a3f2fad9f8b56cb7O/236934233/H54429db4a71e45d9a3f2fad9f8b56cb7O.jpg?quality=close" /></p>
<table>
<tbody>
<tr>
<td colspan="1" rowspan="1">Laser</td>
<td colspan="1" rowspan="1">488nm solid</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Detector</td>
<td colspan="1" rowspan="1">FSC、 SSC、 FL1-FL5</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1"></td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence Channel</td>
<td colspan="1" rowspan="1">FL1:525/50（ FITC）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL2:585/40（PE）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL3:630/30（ PE-Texas Red/ECD/PI）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL4:697/60（ PerCP/PE-Cy5/PE-Cy5.5)</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL5:780/60( PE-Cy7)</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence sensitivity</td>
<td colspan="1" rowspan="1">FITC ≤ 100 MESF； PE≤ 50 MESF</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence linearity</td>
<td colspan="1" rowspan="1">≥ 0.99</td>
</tr>
<tr>
<td colspan="1" rowspan="1">FSC sensitivity</td>
<td colspan="1" rowspan="1">≤1μm</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Test particle size</td>
<td colspan="1" rowspan="1">0.5-50μm</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Carry Over</td>
<td colspan="1" rowspan="1">≤0.5%</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Instrument CV</td>
<td colspan="1" rowspan="1">FSC and all FL channel CV less than 2%</td>
</tr>
<tr>
<td colspan="1" rowspan="1">FSC and SSC CV</td>
<td colspan="1" rowspan="1">Can separate red blood cells and platelet, can separate white blood cells into 3 groups</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Test speed</td>
<td colspan="1" rowspan="1">≥38000 cells/s</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Minimum Sample Vol</td>
<td colspan="1" rowspan="1">90μ L</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Measure Range</td>
<td colspan="1" rowspan="1">Maximum Support 107</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Threshold</td>
<td colspan="1" rowspan="1">Double threshold, minimum cells fraction</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence<br />
compensation</td>
<td colspan="1" rowspan="1">Support auto online compensation, offline compensation and visualized<br />
compensation</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Item Template</td>
<td colspan="1" rowspan="1">Support Item template, acquisition condition/ fluorescence compensation 1-click use</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Intake method</td>
<td colspan="1" rowspan="1">Manual intake<br />
Rotary Wheel auto-sampling with auto- mixing function:32tests/wheel,</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Liquid storage station</td>
<td colspan="1" rowspan="1">sheath bottle, waste bottle, shutdown liquid bottle 2L<br />
cleaning liquid bottle 0.5L</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Software</td>
<td colspan="1" rowspan="1">English/Chinese</td>
</tr>
<tr>
<td colspan="1" rowspan="1">PC</td>
<td colspan="1" rowspan="1">Dell（CPU i5/8G DDR4/1T hard disk） +Dell 27 inches monitor</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Size/ Weight</td>
<td colspan="1" rowspan="1">500mm*605mm*305mm（ L*W*H） ,35KG</td>
</tr>
</tbody>
</table>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/He74b847bfc9b41f7b396caa50ac8ef28C/236934233/He74b847bfc9b41f7b396caa50ac8ef28C.jpg?quality=close" /></p>
</div>
</div>


MSLFCY01 FLOW CYTOMETRY MACHINE

<p style="padding-left: 40px;">Product code: WSG 287174</p>
<p><strong>MSLAB21 PLUS ECONOMIC BLOOD ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div></div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="vc_row wpb_row vc_inner vc_row-fluid">
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<ul>
<li>
<h2>Specifications</h2>
<div class="desc_contents">
<p>Fully auto hematology analyzer MSLAB21Plus</p>
<div><strong><em>1. Advanced Design   Excellent Performance</em></strong></div>
<div>9.6µL venous blood sample, 9.6µL anticoagulant capillary blood, 20µL prediluted capillary blood. One time blood sampling could make two tests under predilted mode.</div>
<div>Intelligent float discriminator. Manual adjust supported</div>
<div>Dual swirling flow and intelligent fitting technology to ensure reliable PLT counting</div>
<div>Module design, separate hydraulic part and circuit, enhanced anti-interference function</div>
<div>Automatic washing of inside and outside surface of probe</div>
<div>Alarm hint if reagent volume is short</div>
<div></div>
<div><strong><em>2. Simple Operation    Low Cost</em></strong></div>
<div>Automatic dispense, Automatic making dilution inside of instrument, Automatic testing, Automatic cleaning</div>
<div>Windows color operation interface and operated by mouse &amp; keyboard</div>
<div>Adjustable probe. Many kinds of blood sampling container</div>
<div>Automatic sleep and wake up function</div>
<div>Low reagent consumption and low cost</div>
<div></div>
<div><em><strong>3. Convenient Maintenance   Safety &amp; Eco-protection</strong></em></div>
<div>Automatic &amp; Intelligent function of diagnosis and maintenance</div>
<div>Soak, back &amp; forth flush, real time monitoring function of high pressure burning and automatic block-clearing</div>
<div>Perfect self checking function, Automatic cleaning tubes during power on and power off for reducing the rate of blockage</div>
<div>Fan Shape door for easy maintenance</div>
<div>Eco-friendly design of built-in reagents, saving spce and reducing the rate of reagent contamination</div>
<div>No cyanogen reagents for Eco-protection</div>
<div></div>
<div><em><strong>4. Perfect Quality     Traceable Results</strong></em></div>
<div>Manual and automatic calibration available</div>
<div>Boasts management system for quality control, nine kinds of control files. Mean value, SD value, CV value are provided. Automatic drawing L-J graph</div>
<div>Provide relevant blood control and calibrator</div>
<div>Furnished with original reagents</div>
<div>ISO9001, CMD, CMC and CE approved</div>
</div>
</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB21 PLUS ECONOMIC BLOOD ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287175</p>
<p><strong>MSLCM17 CLIA Analyser</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding"></div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="vc_row wpb_row vc_inner vc_row-fluid">
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_single_image wpb_content_element vc_align_left wpb_content_element">
<figure class="wpb_wrapper vc_figure">
<div class="vc_single_image-wrapper   vc_box_border_grey"></div>
</figure>
</div>
</div>
</div>
</div>
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<p>The analyzer uses enzymatic chemiluminescence immunoassay and is used together with the supporting detection reagents to clinically be used for qualitative or quantitative detection of analytes in serum, plasma, whole blood or urine samples derived from human body, including hormones, tumor-associated antigens, infectious diseases, autoimmunity, allergens, allergen related items. The analyzer uses PMT to detect the photonics, convert the optical signal to digital signal after</p>
<p>amplification and discrimination. Finally the measured value is substituted into the master curve of the reagent to calculate the concentration.</p>
</div>
</div>
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<h4><b>Key Features:</b></h4>
<ul>
<li>The complete cartridge-based system, with less than 5 minutes of sample processing time.</li>
<li>Can run 1-8 samples in a single run.</li>
<li>Can run multiple parameters in the same run.</li>
<li>Calibrators and controls are provided for each parameter. Calibrators must be run once in 90 days and controlled every time the instrument is used.</li>
<li>Run time for all the assays is &lt;60 minutes across any parameter.</li>
<li>Pack size of the kit is 24 and 48 reactions.</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLCM17 CLIA  Analyser

<p style="padding-left: 40px;">Product code: WSG 287176</p>
<p><strong>BC &#8211; 5000 Mindray 5 &#8211; diff Hematology Analyser<br />
</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<ul>
<li>WBC 5-part differentiation, 23 reportable parameters, 3 histograms and 3 scattergrams</li>
<li>Whole blood mode, Capillary whole blood mode and Prediluted mode</li>
<li>Tri-angle Laser scatter + Chemical dye + Flow cytometry technology</li>
<li>Dedicated optical counting channel for Basophil measurement</li>
<li>Powerful capability of flagging abnormal cells</li>
<li>4 inch large TFT touch screen with user-friendly software</li>
<li>Large storage capacity: up to 20,000 samples</li>
<li>Throughput: 40 samples per hour</li>
<li>Sample volume is only 15μL which is ideal for pediatrics</li>
<li>Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiation even on samples with high Eosinophil</li>
</ul>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


BC - 5000 Mindray 5 - diff Hematology Analyser

<p style="padding-left: 40px;">Product code: WSG 287400</p>
<p><strong>Bs &#8211; 230 mindray chemistry Analyzer</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">200 tests per hour, up to 400 tests per hour with ISE (K, Na, Cl, Li)</div>
<div class="products_d wow fadeInDown">Model :<span style="font-size: 16px;">MINDRAY BS-230</span></div>
<div class="products_d wow fadeInDown">Brand: <span style="font-size: 16px;">MINDRAY</span></div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


Bs - 230 mindray chemistry Analyzer

<p style="padding-left: 40px;">Product code: WSG 287401<b style="font-style: inherit; text-align: center;">M</b></p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">SLAB39T Automatic CBC machine</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">Technical Specifications:</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Function: Automated WBC 3-Part</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM%, LYM#, GRAN%, MID%, MID#, PDW, MPV, PCT, RCDW, LCDW, RDW, P-LCR and WBC, RBC, PLT three histograms.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Principal: Electronic impedance, SFT method for hemoglobin</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Throughput: ≥60T/H</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Analysis Mode: Optional venous blood, anticoagulant blood and prediluted blood</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Sample Volume: Anticoagulant whole blood ≤9.6µL, Anticoagulant capillary blood ≤9.6µL, prediluted capillary blood ≤20µL, the sample volume for repeating two times testing and avoiding second sampling</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Working Mode: Automatic sampling, detecting automatic testing, furnished with dilutor, no need diluting outside. Automatic dispensing lyse and making second diluting automatically</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Block-clearing: Soak and washing back and forth, high pressure burning. Boast the function of monitoring incomplete blockage</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Alarm: Automated system diagnosis, self testing, fault alarm and reagent shortage alarm</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Automated Maintenance: Automated washing during power on and power off, reducing the blockage rate</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Standby Protection: 24 hours switch on, automatic sleep and wake up function</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Storage: Large quantity test results storage, at least 400 thousand test results with comprehensive information. Extended SD memory supported.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Control Mode: Quality control mode of L-J, X-B and X-r. Westguard quality control regulation</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Calibration Mode: Manual and automatic calibration available. Fresh blood calibration available also.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Reference Value Setting: Many reference value ranges (children, adult and the aged). The appropriate reference value range could be automatically selected according to the inputted age and sex.</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents"></div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB39T Automatic CBC machine

<p style="padding-left: 40px;">Product code: WSG 287402</p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">MSLBA62 semi auto chemistry analyzer</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">Features:</div>
<div class="desc_contents"></div>
<div class="desc_contents">1. 7.0 inch LCD touch screen, graphical interface is easy to use.</div>
<div class="desc_contents"></div>
<div class="desc_contents">2. Large memory space, can store 300 test items, 20, 000 test results.</div>
<div class="desc_contents"></div>
<div class="desc_contents">3. Built-in thermal printer to print measurement results and flag abnormal results.</div>
<div class="desc_contents"></div>
<div class="desc_contents">4. Incubator intelligent temperature control, room temperature, 25.0℃, 30.0℃, 37.0℃ four temperature options.</div>
<div class="desc_contents"></div>
<div class="desc_contents"></div>
<div class="desc_contents"></div>
<div class="desc_contents">Technical Parameters:</div>
<div class="desc_contents"></div>
<div class="desc_contents">Model</div>
<div class="desc_contents"></div>
<div class="desc_contents">BIOBASE-Silver</div>
<div class="desc_contents"></div>
<div class="desc_contents">Sample Type</div>
<div class="desc_contents"></div>
<div class="desc_contents">Serum, Plasma, Urine, Cerebrospinal fluid, etc</div>
<div class="desc_contents"></div>
<div class="desc_contents">Analytical Method</div>
<div class="desc_contents"></div>
<div class="desc_contents">End point method, Fixed time method(two-point method), Dynamic method(rate method)</div>
<div class="desc_contents"></div>
<div class="desc_contents">Incubating Positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">20 incubating positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">Incubator Temperature</div>
<div class="desc_contents"></div>
<div class="desc_contents">R.T. 25℃, 30℃, 37℃, four temperature options</div>
<div class="desc_contents"></div>
<div class="desc_contents">Cuvette</div>
<div class="desc_contents"></div>
<div class="desc_contents">Flow through a direct-reading cuvette</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength 340/405/450/510/546/578/630nm, 2 more open filter positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength Accuracy</div>
<div class="desc_contents"></div>
<div class="desc_contents">±2nm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Screen</div>
<div class="desc_contents"></div>
<div class="desc_contents">7.0 inch LCD touch screen</div>
<div class="desc_contents"></div>
<div class="desc_contents">Language</div>
<div class="desc_contents"></div>
<div class="desc_contents">English, French, Spanish, other languages can be customized</div>
<div class="desc_contents"></div>
<div class="desc_contents">Printer</div>
<div class="desc_contents"></div>
<div class="desc_contents">Built-in thermal printer</div>
<div class="desc_contents"></div>
<div class="desc_contents">Interface</div>
<div class="desc_contents"></div>
<div class="desc_contents">RS-232, USB</div>
<div class="desc_contents"></div>
<div class="desc_contents">Consumption</div>
<div class="desc_contents"></div>
<div class="desc_contents">150VA</div>
<div class="desc_contents"></div>
<div class="desc_contents">Power Supply</div>
<div class="desc_contents"></div>
<div class="desc_contents">AC110/220V±10%, 60/50Hz</div>
<div class="desc_contents"></div>
<div class="desc_contents">External Size(W*D*H)</div>
<div class="desc_contents"></div>
<div class="desc_contents">400*410*190mm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Packing Size(W*D*H)</div>
<div class="desc_contents"></div>
<div class="desc_contents">520*490*330mm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Net Weight</div>
<div class="desc_contents"></div>
<div class="desc_contents">9kg</div>
<div class="desc_contents"></div>
<div class="desc_contents">Gross Weight</div>
<div class="desc_contents"></div>
<div class="desc_contents">12kg</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA62 semi auto chemistry analyzer

<p style="padding-left: 40px;">Product code: WSG 287403</p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">MSLBA61 full auto chemistry analyzer</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">Place of Origin China</div>
<div class="desc_contents">Instrument classification Class II</div>
<div class="desc_contents">Type Biochemical Analysis System</div>
<div class="desc_contents">Brand Name MSL</div>
<div class="desc_contents">Model Number MSLBA61</div>
<div class="desc_contents">Test speed Constant 120T/H</div>
<div class="desc_contents">Methodology Two-point,End-point,Rate</div>
<div class="desc_contents">Dimension 305mm(L) x 605mm(W) x 330mm(H)</div>
<div class="desc_contents">Net weight 22KG</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA61 full auto chemistry analyzer

<p style="padding-left: 40px;">Product code: WSG 287404</p>
<p><strong>MSLBA66 FULL AUTO CHEMISTRY ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<table>
<tbody>
<tr>
<td colspan="1" rowspan="1">
<div data-spm-anchor-id="a2700.details.0.i20.e3fe2fe8OZmhcl">Model</div>
</td>
<td colspan="2" rowspan="1">
<div>YSTE200K</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Sample &amp; Reagent System</div>
</td>
<td colspan="1" rowspan="1">
<div>Sample Positions</div>
</td>
<td colspan="1" rowspan="1">
<div>37 sample positions</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Reagent Position</div>
</td>
<td colspan="1" rowspan="1">
<div>28 reagent positions</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Probe Washing</div>
</td>
<td colspan="1" rowspan="1">
<div>Automatic washing interior and exterior</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Reagent Cooling</div>
</td>
<td colspan="1" rowspan="1">
<div>Refrigerated tray with independent switch</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="5">
<div>Reaction System</div>
</td>
<td colspan="1" rowspan="1">
<div>Temperature Control</div>
</td>
<td colspan="1" rowspan="1">
<div>37+0.1℃, real-time monitoring</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Cuvettes</div>
</td>
<td colspan="1" rowspan="1">
<div>48 reusable cuvettes,optical length 6mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Mixer Probe</div>
</td>
<td colspan="1" rowspan="1">
<div>Independent stirring</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Washing</div>
</td>
<td colspan="1" rowspan="1">
<div>Automatic cuvettes washing</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>STAT function</div>
</td>
<td colspan="1" rowspan="1">
<div>YES</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Optical System</div>
</td>
<td colspan="1" rowspan="1">
<div>Light Source</div>
</td>
<td colspan="1" rowspan="1">
<div>6V/10W halogen lamp</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Spectrophotometry</div>
</td>
<td colspan="1" rowspan="1">
<div>Post-spectral spectrophotometry</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Wavelength</div>
</td>
<td colspan="1" rowspan="1">
<div>340,405,450,510,546,578,630,700nm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Absorbance</div>
</td>
<td colspan="1" rowspan="1">
<div>0~3.0Abs</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="2">
<div>Calibration &amp; QC</div>
</td>
<td colspan="1" rowspan="1">
<div>Calibration</div>
</td>
<td colspan="1" rowspan="1">
<div>Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Quality Control</div>
</td>
<td colspan="1" rowspan="1">
<div>Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="3">
<div>Data Management</div>
</td>
<td colspan="1" rowspan="1">
<div>Software</div>
</td>
<td colspan="1" rowspan="1">
<div>Windows 7/8/10 , 32or 64bit</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>LIS System</div>
</td>
<td colspan="1" rowspan="1">
<div>Bi-direction,support HL7 protocol</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Interface</div>
</td>
<td colspan="1" rowspan="1">
<div>LAN port access</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">
<div>Printer</div>
</td>
<td colspan="1" rowspan="1">
<div>External,multiple reporting mode available</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Working Conditions</div>
</td>
<td colspan="1" rowspan="1">
<div>Power Supply</div>
</td>
<td colspan="1" rowspan="1">
<div>AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Temperature</div>
</td>
<td colspan="1" rowspan="1">
<div>10~30℃</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Water Consumption</div>
</td>
<td colspan="1" rowspan="1">
<div>Deionized water:&lt;5L/H</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Humidity</div>
</td>
<td colspan="1" rowspan="1">
<div>30-80%</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Size &amp; Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>External Size (W*D*H)</div>
</td>
<td colspan="1" rowspan="1">
<div>625*425*460mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Net Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>36kg</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Package Size (W*D*H)</div>
</td>
<td colspan="1" rowspan="1">
<div>721*531*855mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Gross Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>55kg</div>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA66 FULL AUTO CHEMISTRY ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287405</p>
<p><strong>MSLER07 ELISA READER (400 &#8211; 800NM)</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>Microplate types: 96/ 48-well plate<br />
Photodetector: Silicon Photodiode<br />
Light source: 8v/50w Controlled tungsten halogen lamp<br />
Wavelength range: 400nm~850nm<br />
Standard filters: 405,450,492,630nm &amp; 4 optional<br />
Reading range: 0.000~4.000A<br />
Resolution: 0.001A<br />
Accuracy: ±0.008A<br />
Reproducibility: ≤0.2%<br />
Stability:±0.003A</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Packaging &amp; Delivery</h2>
<table border="0">
<tbody>
<tr>
<td>Packaging detail:Standard export package<br />
Delivery detail:within 7-10 workdays after receipt of payment</td>
</tr>
</tbody>
</table>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h3><strong>Main Features:</strong></h3>
<p>* Touch screen with 10.4”color LED display, resolution 1024*600<br />
* Large Intelligent operation interface, easy connect to PC<br />
* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen<br />
* Comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas<br />
* More than 20 different report formats<br />
* Auto Lamp adjustment and auto calibration<br />
* Support keyboard and mouse with USB interfaces<br />
* Stable memory stores up to twenty million test data, 500 test projects</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140047683.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140048810.jpg" alt="" /></p>
<h3><strong>Technical Specifications:</strong></h3>
<p>Microplate types: 96/ 48-well plate<br />
Photodetector: Silicon Photodiode<br />
Light source: 8v/50w Controlled tungsten halogen lamp<br />
Wavelength range: 400nm~850nm<br />
Standard filters: 405,450,492,630nm &amp; 4 optional<br />
Reading range: 0.000~4.000A<br />
Resolution: 0.001A<br />
Accuracy: ±0.008A<br />
Reproducibility: ≤0.2%<br />
Stability:±0.003A</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140047943.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140043257.jpg" alt="" /><br />
Reading Speed : Single Wavelength≤3s ;Double Wavelength≤6s<br />
Shaking: Linear Shaking , 3 speeds<br />
Printer:Built-in Thermal Printer,optional external printer<br />
Interface connections: DVI,VGA,NETWORK  INTERFACE,USB,AUDIO INTERFACE, RS-232<br />
Power supply: 100~240V, 50~60Hz<br />
Dimensions: 460(L)×350(W)×197(H)mm<br />
Net weight: 8kg</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140048804.jpg" alt="" /></p>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLER07 ELISA READER (400 - 800NM)

<p style="padding-left: 40px;">Product code: WSG 287405</p>
<p><strong>MSLBA25 COAGULATION ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<div><strong>automated Single channel boold coagulation machine MSLBA25</strong> Specifications</div>
<div>single channel Coagulation test machine</div>
<div>1.single channel</div>
<div>2.reagent open system</div>
<div>3.CE&amp;ISO</div>
<div>4.192*64 LCD display</div>
</div>
<div class="products_d wow fadeInDown">
<h2></h2>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h2><strong>Automated Single channel blood coagulation machine MSLBA25 Main Feature</strong></h2>
<div>1.Advanced percentage analysis principle overcome the interfere with Jaundice, Hemolysis, and Chyle. Precision testing on Abnormal samples</div>
<div>2. Mini- reagent consumption up to 20ul, reagent open system</div>
<div>3. Special location setting system of testing cups, loading bracket, precision operating</div>
<div>4. Special measuring cell diaphragm system, stop other light interfere</div>
<div>5. Provide 2 kind of analytical method of FIB</div>
<div>6. Can set more than 5 point of standard curve, modify and saving parameters, variety item can be added</div>
<div>7. Online startup and mannual startup system</div>
<div>8. Incubate management system with audible signal hint</div>
<div>9. Built-in thermal printer with reference value range</div>
<div>10. Large memory for 10000 results</div>
<div><strong>Explanation</strong></div>
<div>
<div>★Detector channels: 1</div>
<div>★Position for Reagents: 2</div>
<div>★Position for Sample: 5</div>
<div>★Light Source: 470nm long-life cold light source</div>
<div>★Sample Consumption: 20-40uL</div>
<div>★Mini-reagent Consumption: 20uL</div>
<div>★Homoiothermy Controlling: 37℃±0.3℃</div>
<div>★Repeatability: CV≤2%</div>
<div>★Linear Error: r&gt;0.98</div>
<div>★Measurement Startup: online adding, auto timing, manual startup system</div>
<div>★Memory: 10000 results</div>
<div>★Counting Function: can be converted on S, %, PTR,INR, mg/dL</div>
<div>★Printer: built in thermal printer</div>
<div>★Display: 192*64 LCD display</div>
<div>★Working Condition:Temperature:10℃-30℃,Relative Humidity:20%-80%</div>
<div>★Voltage:AC 90~264V,auto adapt according to the input voltage</div>
<div>★Size: 280mm(L)*300mm(B)*160mm(H)</div>
<div></div>
<div></div>
</div>
</div>
</div>
</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA25 COAGULATION ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287406</p>
<p><strong>MSLAB07 AUTOMATIC CBC MACHINE</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>TYPE: Automated blood analyzers</p>
<p>BRAND NAME: MSL</p>
<p>MODEL NUMBER: MSLAB07</p>
<p>PLACE OF ORIGIN: CHINA  (Mainland)</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Packaging &amp; Delivery</h2>
<p>Packaging detail : standard export package</p>
<p>Delivery detail: within 7-10 workdays after receipt of payment</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h1 align="left"><strong>Automated blood analyzers-MSLAB07</strong></h1>
<p align="left">tically cleaning sampling probe, windows interface all testing parameter displayed simultaneously, PC connecting.</p>
<p align="left"><strong><img decoding="async" class="img-responsive" src="https://medicalequipment-msl.com/upload/img/20171128/20171128153848345.jpg" alt="Hematology Blood Analyzers" /></strong></p>
<div></div>
<div></div>
<div></div>
<h2 align="left"><strong>cheap automated analyzers MSLAB07 features</strong></h2>
<p><strong><img decoding="async" class="img-responsive" src="https://medicalequipment-msl.com/upload/img/20171128/201711281538488993.jpg" alt="hematology analyzer veterinary" /></strong></p>
<p align="left"><strong>Automatically cleaning sampling probe, windows interface all testing parameter displayed simultaneously, PC connecting.</strong></p>
<p align="left">♦ 3part differentiation of WBC, 22 parameters, up to 45 samples test per hour</p>
<p align="left">♦ Classic fluid pipe design, larger result Linear Dynamic Range<br />
♦ Advanced ARM Intelligent digital processing technology<br />
♦ Three independent operation model: Figure button, mouse, international Key-board<br />
♦ Automatically cleaning sampling probe(inside and outside)<br />
♦ 8.4” color TFT, Windows interface all testing parameter displayed simultaneously<br />
♦ Large storage capacity: up to 10,000 samples +3 histograms<br />
♦ Low sample volume 10~40ul, high precision microanalysis<br />
♦ Internal thermal-sensitive printer or external printer<br />
♦ RS232 interface, PC connecting</p>
</div>
</div>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB07 AUTOMATIC CBC MACHINE

<p style="padding-left: 40px;">Product code: WSG 287407</p>
<p><strong>MSLHAS02 5- PART BLOOD ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<h3>Features</h3>
<ul>
<li>CBC+3-DIFF, 21 parameters +3 histograms</li>
<li>Throughput:70 samples per hour</li>
<li>Intuitive operation system with 10.4 inch TFT touch screen</li>
<li>Open vial sampling</li>
<li>500,000 results storage with histograms</li>
<li>Original QC, calibrators and reagents</li>
</ul>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHAS02 5- PART BLOOD ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287408</p>
<p><strong>BC-30 MINDRAY HEMATOLOGY ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;\r\n&lt;ul&gt;\r\n&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;\r\n&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;\r\n&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;\r\n&lt;li&gt;Open vial sampling&lt;/li&gt;\r\n&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;\r\n&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;\r\n&lt;/ul&gt;\r\n&quot;}}">
<h3>Features</h3>
<ul>
<li>CBC+3-DIFF, 21 parameters +3 histograms</li>
<li>Throughput:70 samples per hour</li>
<li>Intuitive operation system with 10.4 inch TFT touch screen</li>
<li>Open vial sampling</li>
<li>500,000 results storage with histograms</li>
<li>Original QC, calibrators and reagents</li>
</ul>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


BC-30 MINDRAY HEMATOLOGY ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287409</p>
<p><strong>MSLBA51 SEMI AUTO CHEMISTRY ANALYZER</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>1.7 inch Color LCD ,Touch screen</p>
<p>2.10incubators,3 timers</p>
<p>3.Flow cell and cuvette test mode compatible</p>
<p>4.Real time curve showing</p>
<p>5.7 wavelength , 80 test items pre-programmed</p>
<p>6.Memory for 10,000 sample results</p>
<p>.Light source hibernate function making lamp life longer</p>
<p>.RS232 interface,PC connecting</p>
<p>9.Test mode: Kinetic, End point,Two point,Absorbance</p>
<p>10.Wavelength: 7 standard filters, 340,405,492,510,546,578,630 nm, 1 free position</p>
<p>11.Wavelength precision: 2 nm, width≤10nm</p>
<p>12.Absorbance range: 0~4.500 Abs</p>
<p>13.Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs</p>
<p>14.10lncubators,37土0.3℃;</p>
<p>15.3 timers, precision:土0.1sCarry over:&lt;1%</p>
<p>16.Repeatability cV:&lt;1%</p>
<p>17.Flowcell incubator:37℃、30℃、25℃、and others,Precision : 10.1℃</p>
<p>18.Sample volume: 0~3000 uL(500uL recommend)</p>
<p>19.Data Storage: 10000</p>
</div>
<div class="products_d wow fadeInDown">
<h2></h2>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h3>Cheap Semi-auto Chemistry Analyzer machine MSLBA51 Feature</h3>
<p>&nbsp;</p>
<p>●7 inch Color LCD , Touch screen<br />
●10incubators,3 timers<br />
●Flow cell and Cuvette test mode compatible<br />
●Real time curve showing<br />
●7 wavelength。80 test Items pre-programmed<br />
●Memory for 10,000 sample results<br />
1 Light source hibernate functlon making lamp life longer<br />
●RS232 interface, PC connecting</p>
<p>&nbsp;</p>
<p><strong>Specification of </strong><strong>MSLBA51 Biochemistry Analyzer with incubators   </strong></p>
<p>Test mode: Kinetic, End point, Two point, Absorbance</p>
<p>Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position</p>
<p>Wavelength precision: ±2 nm, width ≤ 10nm</p>
<p>Absorbance range: 0~4.500 Abs</p>
<p>Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs</p>
<p>carry over: &lt; 1%</p>
<p>Repeatability CV: &lt; 1%</p>
<p>Incubator: 37℃, 30℃, 25℃, Precision : ±0.1℃</p>
<p>Sample volume: 0~3000 uL (≥500uL recommend)</p>
<p>Data Storage: ≥10000</p>
<p>Flow cell: 32 uL quartz glass, 10 mm</p>
<p>Lamp: 6V 10W Halogen Lamp with long life</p>
<p>Screen: 7 inch color LCD</p>
<p>CPU: ARM series high speed micro CPU</p>
<p>Printer: Internal thermal sensitive printer</p>
<p>Interface: RS-232</p>
<p>Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%</p>
<p>Power supply: 100~240VAC,50-60Hz, 100VA</p>
<p>&nbsp;</p>
<p><strong>Usual test list </strong><strong>of </strong><strong>MSLBA50 Semi-automatic Biochemistry Analyzer  </strong></p>
<p>Liver function:</p>
<p>ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3</p>
<p>Renal function :</p>
<p>BUN  CRE  UA  URE  CO2-CP  γ-GT</p>
<p>Lipids:</p>
<p>T-CHO  TG  HDL-C  LDL-C</p>
<p>Cardiac function:</p>
<p>CK  CK-MB  LDH</p>
<p>Immune proteins:</p>
<p>IGA  IGG  IGM  C3</p>
<p>Others:</p>
<p>GLU  HGB  AMS</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
