Product Description

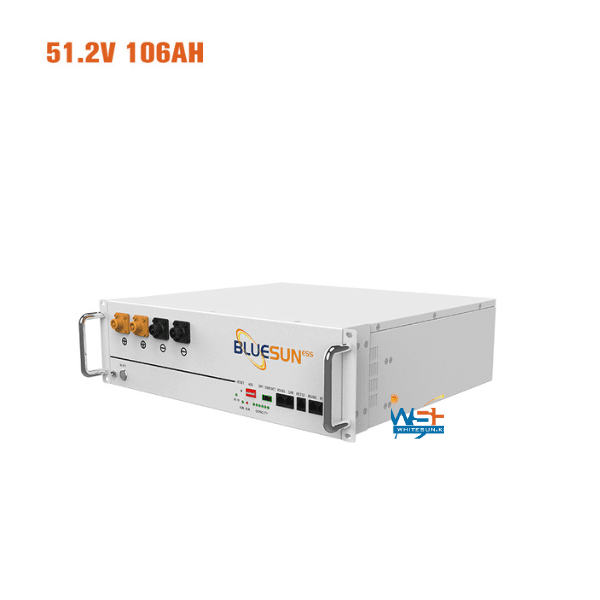

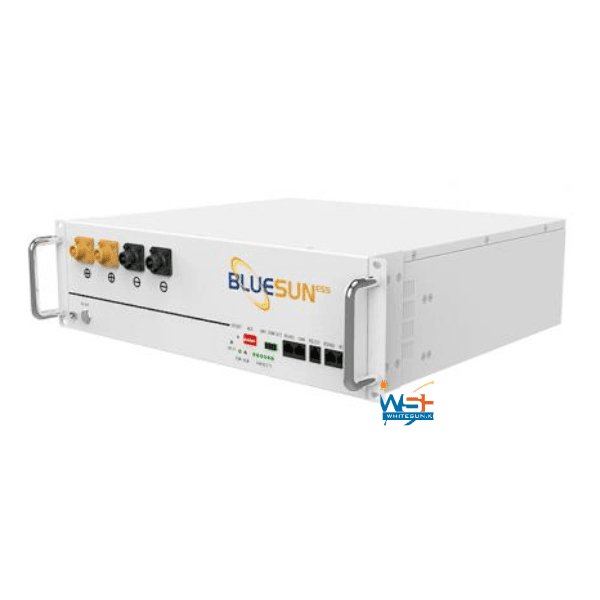

Low Voltage 51.2V 106AH LiFePO4 Battery Module
Product Features:
The lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of BSM48106 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user’s long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
The energy storage product utilizes lithium iron phosphate (LiFePO4) cells, known for their safety, long cycle life, and eco-friendliness. Key features include:
*High Performance BMS:
Protects against over-discharge, over-charge, over-current, and abnormal temperatures, with self-management for charging/discharging and single-core balancing.
*Intelligent Design:
Integrated inspection module ensures efficient monitoring and operation.
*Flexible Configuration:
Multiple modules can be connected in series to expand capacity, power, and standby time.
*Low Maintenance:
Self-ventilation reduces system noise, while low self-discharge extends the recharging period up to 10 months during storage.
*Wide Operating Range:
Performs well in temperatures from -20℃ to +55℃ with excellent discharge efficiency.
*Compact & Lightweight:
Standard 19-inch embedded design allows easy installation and maintenance.
*No Memory Effect:
Supports shallow charging and discharging without performance degradation.
Battery parameters:
- Cell Technology; Li-ion(LFP）
- Battery Module Capacity (KWH): 5.42
- Battery Module Voltage (Vdc): 51.2
- Battery Cell Capacity (AH): 106
- Discharge Voltage (V): 40
- Charge Voltage (V): 58.4
- Dimension(W*D*H, mm): 490*451*133
- Communication: RS485/RS232/CAN
- Protection Class: IP22
- Operation Life: >10 years
- Operation Cycle Life: ＞6000
