Description
Model
PA &#8211; 300SU
Power (100V)
5W/10W
Power (70V)
2.5W/5W
Frequency response
80Hz -20KHz
Sensitivity
89 dB ±3 dB
Maximum sound pressure level
102dB
Speaker unit
4 ″ × 1
Installation size (mm)
255mm
Weight
2.75 Kg
Product size ( length * width * height mm )
248x161x310mm
Impedance
Black:COM,White:2KΩ,Green:1KΩ

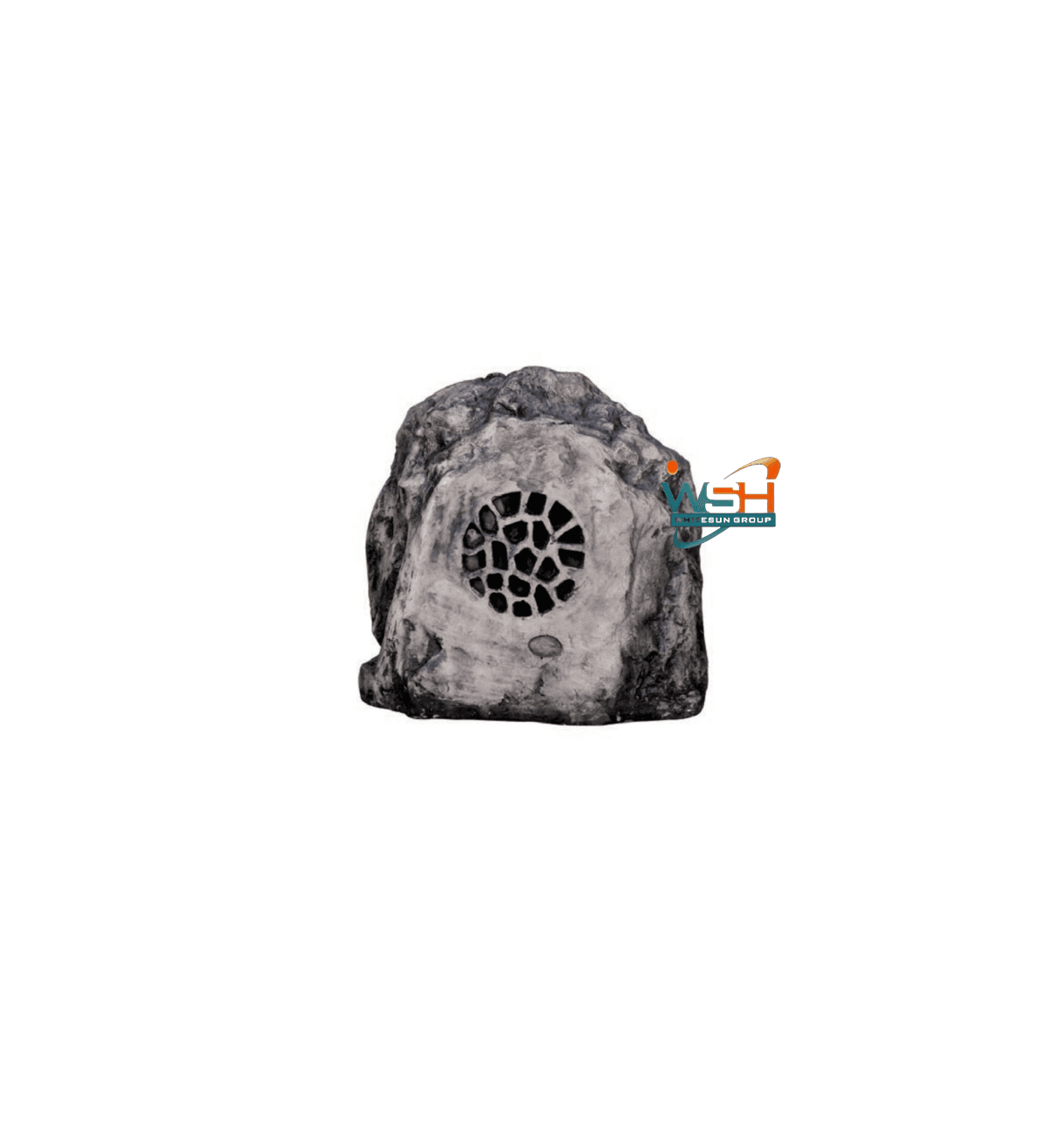

PA-300SU Landscape Garden Speaker

Music& Accessories Hub

Description
Model
PA &#8211; 300SN
Power(100V)
7.5W/15W
Power(70V)
3.8W/7.5W
Frequency response
110Hz -1 7 KHz
Sensitivity
81 dB
Maximum sound pressure level
96dB
Speaker unit
5″
Installation dimensions (mm)
290mm
Weight
2.45kg
Product dimensions(mm)
270x198x238mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

PA-300SN Landscape Garden Speaker

Description
Model:PA -300 SM
Power(100V):7.5W/15W
Power(70V):3.8W/7.5W
Frequency response:80Hz -20KHz
Sensitivity:81 dB
Maximum sound pressure level:96dB
Speaker unit:5″
Installation dimensions (mm):265mm
Weight:2.82kg
Product dimensions (mm):250x241x240mm
Impedance Black:COM,White:1.3KΩ,Green:670Ω

Landscape Garden Speaker PA-300SM

Description
Model
PA -300 SP
Power(100V)
5W/10W
Power(70V)
2.5W/5W
Frequency response
80Hz -20KHz
Sensitivity
79 dB
Maximum sound pressure level
92dB
Speaker unit
4 ″
Installation dimensions (mm)
230 mm
Weight
1.94kg
Product dimensions(mm)
205x195x240mm
Impedance
Black:COM,White:2KΩ,Green:1KΩ

PA-300SP Landscape Garden Speaker

Description
Model
PA &#8211; 300SK
Power(100V)
7.5W/15W
Power(70V)
3.8W/7.5W
Frequency response
80Hz -20KHz
Sensitivity
76 dB
Maximum sound pressure level
91dB
Speaker unit
5″
Installation dimensions (mm)
300 mm
Weight
2.7kg
Product dimensions (mm)
272x260x217mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

PA-300SK Landscape Garden Speaker

Description
Model
PA &#8211; 300SJ
Power(100V)
7.5W/15W
Power(70V)
3.8W/7.5W
Frequency response
80Hz -20KHz
Sensitivity
78 dB
Maximum sound pressure level
93dB
Speaker unit
5″
Installation dimensions (mm)
3 35mm
Weight
2.75kg
Product dimensions(mm)
328x220x209mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

PA-300SJ Landscape Garden Speaker

Description
Model
PA-300SH
Power @100V
7.5W/15W
Power @70V
3.8W/7.5W
Frequency response
80Hz -20KHz
Sensitivity
75dB
Maximum SPL
90dB
Speaker driver
5″
Cutout size(mm)
265mm
Weight
2.45Kg
Dimensions(mm)
260x220x207mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

PA-300SH Landscape Garden Speaker

Description
.The courtyard spotlight speaker is a new generation of all-weather outdoor landscape satellite speakers. It is a small box with a dark brown-black appearance and looks like a garden floor lamp. It can be easily hidden among flowers, plants and trees, and blends seamlessly with the surrounding environment.
. The multi-sealed shell also ensures that the speaker can withstand the test of various climates such as cold and hot weather, wind and rain, and is not easy to corrode or peel, making it safe and reliable.
. The sound is highly directional and does not disturb people. Users can aim the speakers in any direction and angle to achieve ideal placement and positioning. By minimizing the spread of sound energy outside the target area, it focuses a wide sound field in the main listening area. It not only reduces the interference to neighbors, but also enables you and your relatives and friends to hear the best sound effects.
Application:
Mainly used in courtyards, villas and other occasions.
Specification:
Impedance
8Ω
Frequency response
40Hz~20kHz
Rated power
40W
Peak power
160W
Sensitivity
90dB±3dB
Maximum sound pressure level (dB)
106dB
Bass
6.5-inch bass × 1
Dimensions (H×W×D)
477×206×339mm
Weight
3.5kg

TS-TY0650 Courtyard speaker

Description
. The underground subwoofer is a new generation of omnidirectional, all-weather outdoor speakers with 360° sound field coverage and wide audio performance.
. Support a highly concealed hidden installation layout, with a dark brown and black appearance, which fully reflects the concept of integrating with the space design. It can be closely integrated with the surrounding landscape to create an excellent choice for courtyard music parties.
. Support the use of multiple spotlight speakers.
Application:
Mainly used in courtyards, villas and other occasions.
Specification
Impedance
8Ω
Frequency response
40Hz~100Hz
Rated power
250W
Peak power
1000W
Sensitivity
87dB±3dB
Maximum sound pressure level (dB)
111dB
Bass
12-inch bass × 1
Dimensions (H×W×D)
627×346×708mm
Weight
13.7kg

TS-TY1200 Courtyard speaker

Description
Model
T-1900C
Power taps @100V
10W
Power taps @70V
5W
Max power
40W
Frequency response
80Hz-20KHz
SPL
90dB±2dB
Speaker driver
6.5&#8243;
Cutout size(mm)
205x 205 x 205mm
Weight
2.0Kg
Dimensions(mm)
H：317
Finish
plastic
IP rate
IP66

T-1900C Landscape Garden Speaker

Description
Model
T-1910S
Power taps @100V
7.5W/15W
Power taps @70V
3.8W/7.5W
Frequency response
80Hz-20KHz
SPL
95dB
Speaker driver
6.5&#8243;
IP rate
IP66
Cutout size(mm)
255x255x255
Weight
2.91Kg
Dimensions(mm)
290x300x337
Finish
polyethylene
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

T-1910S Landscape Garden Speaker

Description
Model
T-1900S
Power taps @100V
5W, 10W
Power taps @70V
2.5W, 5W
Max power
20W
Frequency response
80Hz-20KHz
SPL
95dB
Speaker driver
4&#8243;
IP rate
IP66
Cutout size(mm)
166 x 166 x 166 x 166mm
Weight
1.73Kg
Dimensions(mm)
H：235
Finish
plastic

T-1900S Landscape Garden Speaker

Description
Model
T-1900A
Power taps @100V
12.5W, 25W
Power taps @70V
6.25W, 12.5W
Max power
100W
Frequency response
80Hz-20KHz
SPL
90dB
Speaker driver
5&#8243;
IP rate
IP66
Cutout size(mm)
95 x 95 x 95 x 95mm
Weight
3.8Kg
Dimensions(mm)
H：335
Finish
plastic

T-1900A Landscape Garden Speaker

Description
Model
T-3300A
Power taps @100V
12.5W, 25W
Power taps @70V
6.25W, 12.5W
Frequency response
80Hz-20KHz
SPL
96dB
Speaker driver
6&#8243; + 3&#8243;
IP rate
IP66
Dimensions(mm)
240x240x540mm
Weight
7.2Kg
Finish
aluminium alloy shell

T-3300A Landscape Garden Speaker

Description
Model
T-3100A
Power taps @100V
7.5W, 15W
Power taps @70V
3.75W, 7.5W
Frequency response
80Hz-20KHz
SPL
96dB
Speaker driver
6&#8243; + 3&#8243;
IP rate
IP66
Dimensions(mm)
240x240x435mm
Weight
6.6Kg
Finish
aluminium alloy shell

T-3100A Landscape Garden Speaker

Description
Model:T-300HA
Power (100V):5W, 10W
Power (70V):2.5W, 5W
Frequency response:160Hz-16KHz
Sensitivity:96dB
Speaker unit:4″
Protection level:IP66
Installation size (mm):243mm
Weight:4.95Kg
Height (mm):290
Material:Organic resin

Landscape Garden Speaker  T-300HA

Description
Model:T-300R
Power taps @100V:7.5W, 15W
Power taps @70V:3.8W, 7.5W
SPL(1W/1M):96dB
Frequency response (-10dB):120-16KHz
Finish:Organic resin
Speaker driver:5.5&#8243;
IP rate:IP66
Cutout size:300mm
Dimensions(mm):H:210
Weight:3.65Kg

Landscape Garden Speaker T-300R

Description
Model
T-300J
Power taps @100V
15W, 30W
Power taps @70V
7.5W, 15W
SPL(1W/1M)
96dB
Frequency response (-10dB)
80-20KHz
Finish
Organic resin
Speaker driver
8&#8243;+2.5&#8243;
IP rate
IP66
Cutout size
460 x 490 x 365mm
Unit(mm)
H:350
Weight
8.16Kg
Dimensions(mm)
685x385x350

T-300J Landscape Garden Speaker

Description
Model
T-300SC
Power taps @100V
7.5W/15W
Power taps @70V
3.8W/7.5W
Frequency response
80Hz -20KHz
Sensitivity
88dB
Maximum SPL
103dB
Speaker driver
5inch coaxial speaker
Cutout size(mm)
340mm
Weight
3.5Kg
Dimensions(mm)
322x250x260mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

T-300SC Landscape Garden Speaker

Description
Model
T-300SA
Power taps @100V
7.5W/15W
Power taps @70V
3.8W/7.5W
Frequency response
80Hz -20KHz
Sensitivity
88dB
Maximum SPL
103dB
Speaker driver
5 inch coaxial speaker
Cutout size(mm)
300mm
Weight
2.65Kg
Dimensions(mm)
260x185x225mm
Impedance
Black:COM,White:1.3KΩ,Green:670Ω

T-300SA Landscape Garden Speaker

Description
Rated power (100V):7.5W, 15W
Rated power (70V):3.8W, 7.5W
Frequency response:80Hz -20KHz
sensitivity:88dB
Max SPL:103dB
Speaker unit:5 inch coaxial speaker
Cutout size(mm):300mm
Weight:2.25Kg
Dimension(mm): 310x210x225mm
Material: organic resin
Impedance Black:COM,White:1.3KΩ,Green:670Ω

Landscape Garden T-300NA

Description
 Model
T-300MQ
Rated power (100V)
12.5W, 25W
Rated power (70V)
6.25W, 12.5W
Impedance
Black:COM, White:800Ω, Green:400Ω
Frequency response
80-20KHz
Sensitivity
92dB
Maximum SPL
109dB
Speaker unit
6.5&#8243; coaxial speaker
Protection level
Ip66
Installation size (mm)
371mm
Weight
4.50Kg
Product size (mm)
382*280*333

T-300MQ Landscape Garden Speaker

Description
Model:T-300ML
Rated power (100V):7.5W, 15W
Rated power (70V):3.8W, 7.5W
Impedance:Black:COM,White:1.3KΩ ,Green:670Ω
Frequency response:120-16KHz
Sensitivity:91dB
Maximum SPL:106dB
Speaker unit:6.5&#8243; coaxial speaker
Protection level:Ip66
Installation size (mm):353mm
Weight:4.05Kg
Product size (mm):400*260*323

Landscape Garden T-300ML

Description
Specification:
Model
T-300MK
Rated power (100V)
7.5W, 15W
Rated power (70V)
3.8W, 7.5W
Impedance
Black:COM,White:1.3KΩ ,Green:670Ω
Frequency response
80-20KHz
Sensitivity
91dB
Maximum SPL
106dB
Speaker unit
6.5&#8243; coaxial speaker
Protection level
Ip66
Installation size (mm)
348mm
Weight
4.10Kg
Product size (mm)
370*252*270

T-300MK Landscape Garden Speaker

Description
Note:Due to the continuous product updating, the color and dimension of the products are subject to the actual product. The following specification are for reference only.
Specification:
Model
T-300B
Power taps @100V
7.5W/15W
Power taps @70V
3.8W/7.5W
SPL(1W/1M)
95dB
Frequency response (-10dB)
80Hz -20KHz
Finish
Organic resin
Speaker driver
6.5&#8243;
IP rate
IP66
Cutout size
295mm
Unit(mm)
H:265
Weight
5.14Kg
Impedence
Black:COM,White:1.3KΩ,Green:670Ω

T-300B Landscape Garden Speaker

Description
Note:Due to the continuous product updating, the color and dimension of the products are subject to the actual product. The following specification are for reference only.
Specification:
Model
T-300A
Power taps @100V
12.5W, 25W
Power taps @70V
6.5W, 12.5W
SPL(1W/1M)
95dB
Frequency response (-10dB)
80Hz -20KHz
Finish
Organic resin
Speaker driver
6.5&#8243;
IP rate
IP66
Cutout size
260mm
Unit(mm)
H:320
Weight
3.95Kg
Impedance
Black:COM,White:800Ω ,Green:400Ω

T-300A Landscape Garden Speaker

Description
Note:Due to the continuous product updating, the color and dimension of the products are subject to the actual product. The following specification are for reference only.
Specification：
Rated power (100V)
15W,30W
Rated power (70V)
7.5W,15W
Frequency response
120Hz-15kHz
Sensitivity
95dB±3dB
Speaker unit
6.5″ full range × 1
Protection level
IP66
Installation size (mm)
350mm
Weight
4kg
Dimensions (mm)
416×277×350

T-300 Landscape Garden Speaker

Description
. Professional integrated structure design, good cabinet sealing performance, fast-conducting all-copper nickel-plated grounding post; in line with the certification standard of IP54 protection class.
. Built-in 25W digital amplifier module, delicate sound quality and strong power.
. Powered by DC24/1.5A, the noise floor is small.
. Digital product, easy to extend, no geographical restrictions, easy installation.
. Adopt 3.5mm audio interface input, which is suitable for popular audio input interfaces and is convenient for sound amplification.
Specification:
Protection class
IP54
Speaker unit
2&#8243;×4
power
25W(MAX）
Maximum power consumption
30W
Operating Voltage
24V/1.5A
Operating temperature
-20℃～60℃
Working humidity
20%~80% relative humidity, no condensation
Size (L*W*H)
83×88×294mm
Weight
1.45kg

TS-0625Y Column Speaker

Description
Rated power (100V)
10W
Rated power (70V)
5W
Sensitivity
89dB±3dB
Max SPL
99dB±3dB
Impedance
Black: COM, Red: 1KΩ
Frequency response
80-20kHz
Speaker unit
4&#8243;×1, 2.5&#8243;×1
Dimension (W×D×H)
147×100×290mm
Weight
1.5kg

T-301KB Column Speaker

Description
.The shell is made of high-strength, corrosion-resistant aluminum alloy and aluminum mesh cover, and has an outdoor anti-rust spraying
process. It is not easy to rust after years of use, and fully considers the complexity and diversity of the outdoor environment .
.Two built-in 4-inch full-range speaker units have been professionally tuned to ensure clear, loud and balanced sound. Whether playing soft
background music or delivering emergency broadcasts, they can be presented to the audience with the best effect, and the clarity and
penetration of the sound can be maintained even at a long distance .
.Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
.Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle.
Rated power (100V).10W,20W
Rated power (70V).5W,10W
Impedance.Black: COM Green: 1KΩ White: 500Ω
Frequency response (-10dB).130-16KHz
Sensitivity (±3dB).93dB
Maximum sound pressure level (rated/peak).106dB/112dB
Speaker unit.4&#8243;x2
Dimension.150×105×304mm
Protection level.Ip66
Weight.2.17kg

Column Speaker PT-402B

Description
Rated power (100V):5W,10W
Rated power (70V):2.5W,5W
Impedance:Black: COM Green: 2KΩ White: 1KΩ
Frequency response (-10dB):130-16KHz
Sensitivity (±3dB):92dB
Maximum sound pressure level (rated/peak):102dB/108dB
Speaker unit:4&#8243;x1
Dimension:150×105×196mm
Protection level:Ip66
Weight:1.31kg

Column Speaker PT-401B

Description
.The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after
years of use. A waterproof net is added inside to ensure all-weather outdoor use .
.Built-in 4 large magnetic steel 2.5-inch full-range speaker units to improve the sound effect of mid-high frequencies, making the mid-high
frequencies clearer and brighter .
.Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
.Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .
Rated power (100V):15W,30W
Rated power (70V):7.5W,15W
Impedance:Black: COM White: 670Ω Green: 330Ω
Frequency response (-10dB):130-16KHz
Sensitivity (±3dB):91dB
Maximum sound pressure level (rated/peak):106dB/112dB
Speaker unit:2.5&#8243;×4
Protection level:105×75×410mm
Dimensions (WxDxH ):Ip66
Weight:2.1kg

Column Speaker PT-203A

Description
.The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after
years of use. A waterproof net is added inside to ensure all-weather outdoor use .
.Built-in 3 large magnetic steel 2.5-inch full-range speaker units to improve the sound effects of mid-high frequencies, making the mid-high
frequencies clearer and brighter .
.Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
.Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .
Rated power (100V): 1.7kg
Rated power (70V):10W,20W
:5W,10W
Impedance: Black: COM White: 1KΩ Green: 500Ω
Frequency response (-10dB): 150-16kHz
Sensitivity (±3dB):89dB
Maximum sound pressure level (rated/peak) :102dB/108dB
Speaker unit: 2.5&#8243;×3
Protection level: 105×75×338mm
Dimensions (WxDxH ): Ip66
Weight:

Column Speaker PT-202A

Description
.The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after
years of use. A waterproof net is added inside to ensure all-weather outdoor use .
.Built-in 2 large magnetic steel 2.5-inch full-range speaker units to improve the sound effect of mid-high frequencies and make the mid-high
frequencies clearer and brighter .
.Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
.Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .
Rated power (100V): 5W,10W
Rated power (70V):2.5W,5W
Impedance:Black: COM White: 2KΩ Green: 1KΩ
Frequency response (-10dB):150-16kHz
Sensitivity (±3dB):88dB
Maximum sound pressure level (rated/peak):98dB/104dB
Speaker unit:2.5&#8243;×2
Protection level:Ip66
Dimensions (WxDxH ):105×75×265mm
Weight:
1.4kg

Column Speaker PT-201A

Description
Suitable for outdoor places such as schools, playgrounds, squares, parks, communities and background music system applications .
Features：
. The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after years of use. A waterproof net is added inside to ensure all-weather outdoor use .
. Built-in 6 large magnetic steel 2.5-inch full-range speaker units to improve the sound effects of mid-high frequencies, making the mid-high frequencies clearer and brighter .
. Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
. Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .
Specifications：
Rated power (100V)
20W,40W
Rated power (70V)
10W,20W
Impedance
Black: COM White: 500Ω Green: 250Ω
Frequency response (-10dB)
100-16kHz
Sensitivity (±3dB)
92dB
Maximum sound pressure level (rated/peak)
108dB/114dB
Speaker unit
2.5&#8243;×6
Dimensions (WxDxH )
105×75×550mm
Protection class
IP66
Weight
2.8kg

PT-204A Column Speaker

Description
Suitable for hotels, shopping malls, supermarkets, schools, leisure and entertainment places, etc.
1. The indoor luxurious wooden sound column has a wooden structure and adopts surface veneer technology, which has a delicate texture and effectively avoids the sound coloration caused by speaker resonance .
2. It has a built-in 4-inch full-range speaker unit and adopts a full-paper folded ring cone, which provides delicate, soft, clear and full sound quality .
3. The brown tight mesh design effectively prevents the speaker from being damaged by dust .
4. Adopts low distortion 70/100V transformer .
Specifications：
Rated power (100V)
10W
Rated power (70V)
5W
Impedance
Black:COM,Red:1KΩ
Frequency response (-10dB)
130-18KHz
Sensitivity (±3dB)
89dB
Maximum sound pressure level (rated/peak)
99dB/105dB
Speaker unit
4&#8243;×1
Dimensions (WxDxH)
135×120×320mm
Weight
2.6kg

PT-04H Indoor Column Speaker

Description
. High power outdoor waterproof sound column, all metal structure, IP66, suitable for large square, playground and other places.
. The shell is made of cold-rolled plate material, and the surface is sprayed with powder to improve the service life and prevent oxidation;
. The mesh cover is made of aluminum, and the surface is sprayed with powder to increase the strength of the mesh cover, and a layer of waterproof cloth is added to prevent water and dust and improve the service life;
. With four 6.5-inch full-range speaker units and one 3-inch tweeter, the low frequency is full, the treble is clear, the human voice is enhanced, the carrying power is large, and the penetrating power is strong;
. Built-in high-performance 100V audio transformer, which can reduce the loss caused by impedance in the circuit, multiple power options, and flexible wiring methods;
. Standard bracket, easy to install;
Specification：
Model
T-904
Power taps（100V）
120W
Power taps（70V）
60W
Sensitivity
94dB
Impedance
Black: Com White: 80Ω
Frequency response
80-20KHz
IP rate
IP66
Dimensions
240×190×920mm
Speaker driver
6.5&#8243;×4+3&#8243;×1
Weight
10.8Kg

T-904 Column Speaker

Description
. Outdoor luxury active column speaker, metal casing, aluminum mesh, and ABS plastic cover structure, excellent waterproof performance
. Using two frequency division, double protection of power amplifier module, with signal automatic power on and off function;
. The speakers are designed with 2 6-inch woofers and 1 3-inch tweeter, the low frequency is full and the treble is clear
. The surface of the inner panel is pasted with waterproof cloth technology, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. Self-contained installation bracket, convenient and quick installation; suitable for large squares, communities, etc.
Specification：
Model
T-902P
Rated power
60W
Input
~220V 50HZ
Sensitivity
91dB±3dB
Frequency response
80-20KHz
Speaker driver
6&#8243; x 2 3&#8243; x 1
Dimensions
185 x 235 x 615mm
Weight
8Kg
IP rate
IP66
Material
Iron

T-902P Column Speaker

Description
The outdoor luxurious active column speaker adopts two-frequency division, double protection of amplifier module. And it has the function of signal automatic power-on and power-off; suitable for large squares, communities, etc.
Specification：
Model
T-901P
Rated power
20W
Input
~220V 50HZ
Sensitivity
85dB±3dB
Frequency response
80-20KHz
Speaker unit
6&#8243; x 1 3&#8243; x 1
Size
185 x 235 x 425mm
Weight
6Kg
Protection level
IP66

T-901P Column Speaker

Description
The housing is made of aluminum alloy. With adjustable angle brackets, it is easy to install; With professional surface treatment technology, it is waterproof and rust-proof. Matching 2 way speaker unit, it has better sound quality.
Specification：
Model
T-803
Rated power (100V)
17.5W, 35W
Rated power (70V)
8.7W, 17.5W
Sensitivity
91dB±3dB
Impedance
Black: Com White: 570Ω
Green: 285Ω
Frequency response
50-20KHz
Speaker driver
4&#8243;×3 2.5&#8243;×1
IP rate
IP66
Dimensions
150×125×515mm
Weight
4.3Kg

T-803 Column Speaker

Description
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
Specification
Model
T-804H
Rated Power(100V)
120W
Rated Power(70V)
60W
Sensitivity
94dB
Impedance
Black: COM White: 80Ω
Frequency response
80Hz -20KHz
Drive units
4&#8243; x 4 3&#8243; x 1
Dimensions
155 x 200 x 612mm
Weight
8.3Kg
Material
Aluminum alloy
IP rate
IP66

T-804H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

Description
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
Specification
Model
T-802H
Rated Power(100V)
60W
Rated Power(70V)
30W
Sensitivity
92dB
Impedance
Black: COM White: 166Ω
Frequency response
80Hz -20KHz
Drive units
4&#8243; x 2 3&#8243; x 1
Dimensions
155 x 200 x 412mm
Weight
5.2Kg
Material
Aluminum alloy
IP rate
IP66

T-802H Aluminum Alloy Column Outdoor Waterproof Fully (120W)

Description
. Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 4 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-904B
Power taps（100V）
20W, 40W
Power taps（70V）
10W, 20W
Sensitivity
94dB±3dB
Impedance
Black: Com Green: 500Ω
White: 250Ω
Frequency response
80-20KHz
Dimensions
150×105×516mm
Speaker driver
4&#8243; x 4
IP rate
IP66
Weight
3.55Kg

T-904B Outdoor Column Speaker (20W-40W)

Description
.Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 4 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-904B
Power taps（100V）
20W, 40W
Power taps（70V）
10W, 20W
Sensitivity
94dB±3dB
Impedance
Black: Com Green: 500Ω
White: 250Ω
Frequency response
80-20KHz
Dimensions
150×105×516mm
Speaker driver
4&#8243; x 4
IP rate
IP66
Weight
3.55Kg

Description
T-903B Outdoor Column Speaker (15W-30W)
. Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
. The speaker adopts 3 4-inch full-frequency design, the low frequency is full and the treble is clear
. Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
. Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-903B
Power taps（100V）
15W, 30W
Power taps（70V）
7.5W, 15W
Sensitivity
93dB±3dB
Impedance
Black: Com Green: 660Ω
White: 330Ω
Frequency response
80-20KHz
Dimensions
150×105×414mm
Speaker driver
4&#8243; x 3
IP Grade
IP66
Weight
2.86Kg

T-903B Outdoor Column Speaker (15W-30W)

Description
Outdoor and indoor waterproof sound column, aluminum alloy shell, aluminum mesh, structure, excellent waterproof performance
* The speaker adopts 2 4-inch full-frequency design, the low frequency is full and the treble is clear
* Built-in high-performance audio transformer, which can reduce the loss caused by impedance in the circuit
* The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
* L-shaped mounting bracket is adopted, the angle can be adjusted arbitrarily, and the installation is convenient and quick
* Applicable to various outdoor areas such as hotels, commercial buildings, supermarkets, schools, leisure and entertainment
Specification：
Model
T-902B
Power taps （100V）
10W, 20W
Power taps （70V）
5W, 10W
Sensitivity
93dB±3dB
Impedance
Black: Com Green: 1KΩ
White: 500Ω
Frequency response
80-20KHz
Dimensions
150×105×304mm
Speaker driver
4&#8243; x 2
IP rate
IP66
Weight
2.17Kg

T-902B Outdoor Column Speaker (5W-10W)

Description
The T-303 is an indoor column speaker built-in 70v/100v transformer.
The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in four units 4”+2.5” two way speaker drivers are designed of wide frequency response 130-15kHz, the power output of 30W could meet different applications varies from room size and ambient noise Surroundings.
The wooden enclosure and fabric grille are of grey color. Easy and secure wall mount through the mounting hook.
Features
Built-in 100v/70v transformer
Indoor column type loudspeaker
4×4”+2.5” full range driver
Power out 30w @100V
Wooden enclosure &#038; fabric grille in grey
Technical data
Power30W
Frequency Response130Hz-15kHz
SPL91dB ± 3dB
Voltage70/100V
Dimensions135x120x420 mm
Weight3.4kg

T-303 30W 4 Inch PA System Indoor Column Speaker

Description
Indoor luxury column speaker adopts high-density wood structure. The voice is clear and bright.Simple installation mode. Applicable to schools, supermarkets, hotels, shopping malls, etc.
Specification:
Model
T-302
Rated power
20W
SPL(1W/1M)
91dB±3dB
Impedance
Black: Com Red: 500Ω
Frequency response (-10dB)
80-20KHz
Dimensions
135×120×420mm
Speaker driver
4&#8243;×2 2.5&#8243;×1
Weight
3.4Kg

T-302 Indoor Column Speaker

Description
Indoor luxury column speaker adopts high-density wood structure. The voice is clear and bright.Simple installation mode. Applicable to schools, supermarkets, hotels, shopping malls, etc.
Specification:
Model
T-301
Power taps @100V
10W
Power taps @70V
5W
Impedance
Black:Com Red:1KΩ
SPL(1W/1M)
89dB ±3dB
Frequency response (-10dB)
80-20KHz
Speaker driver
4&#8243; x 1 2.5&#8243; x 1
Dimensions
135 x 120 x 320mm
Weight
2.6Kg

T-301 Indoor Column Speaker

Description
Outdoor and indoor waterproof column speaker, aluminum alloy shell, aluminum mesh cover, outdoor, streamlined design, fashionable and beautiful, high sensitivity, strong directivity.
Specification：
Model
T-702H
Power taps @100V
40W
Power taps @70V
20W
SPL
91dB±3dB
Impedance
Black: COM White: 250Ω
Frequency response
80-20KHz
IP rate
IP66
Dimensions
105 x 98 x 480mm
Speaker driver
4 x 3.5&#8243;
Weight
3.9Kg

T-702H Outdoor Column Loudspeaker

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using six 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc.
Specification：
Rated power (100V)
20W, 40W
Rated power (70V)
10W, 20W
Sensitivity
92dB±3dB
Impedance
Black: COM/White: 500Ω/Green: 250Ω
Frequency response
80Hz-20kHz
Dimension
105×75×550mm
Speaker unit
2.5&#8243;×6
IP level
IP66
Weight
2.8kg

T-704A Outdoor Column Speaker( 20W-40W)

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using four 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc.
Specification：
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Sensitivity
91dB±3dB
Impedance
Black: COM; White: 670Ω; Green: 330Ω
Frequency response
80Hz-20kHz
Dimension
105×75×410mm
Speaker unit
2.5&#8243;×4
IP level
IP66
Weight
2.1kg

T-703A Outdoor Column Speaker

Description
1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.
2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.
3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.
4. Using three 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.
5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.
6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;
7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.
Application:
Large squares, playgrounds, parks, railways, etc
Specification:
Rated power (100V)
10W, 20W
Rated power (70V)
5W, 10W
Sensitivity
89dB±3dB
Impedance
Black: COM; White: 1KΩ; Green: 500Ω
Frequency response
80Hz-20kHz
Dimension
105×75×338mm
Speaker unit
2.5&#8243;×3
IP level
IP66
Weight
1.7kg

T-702A Outdoor Column Speaker

Description
The T-701A is a weatherproof outdoor column speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 2 units 2.5” full range speaker drivers are designed of wide frequency response 150-13kHz, the multiple power taps of 5W &#038; 10W could meet different applications varies from room size and ambient noise surroundings.
The aluminum enclosure and grille are of white color. It is also designed of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area through the supplied pair of metal mounting brackets.
Features
Built-in 100v/70v transformer
Weatherproof column type loudspeaker
IP66 waterproof level
2×2.5” full range driver
Power taps at 5w-10w @100V
Aluminum enclosure &#038; grille in white
A pair of metal mounting brackets are supplied
Technical data
Power10W
Frequency Response150Hz- 16kHz
SPL88dB ± 3dB
Voltage70/100V
Dimensions105x75x265mm
Weight1.4kg

T-701A (5 Watt - 10 Watt) Column Waterproof Speaker

Description
. Indoor ceiling speaker with unique shape design, streamlined appearance, one-piece injection molding structure and metal mesh structure.
. Equipped with a 5-inch woofer and a 1.5-inch tweeter to form a coaxial design, the low frequencies are full and the trebles are clear.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. The installation method adopts a hanging cable with a steel wire inside and an iron clip lifting design to facilitate user operation and installation.
. Suitable for schools, hotels, guesthouses, corridors, supermarkets, etc.
Specification:
Rated power (100V)
20W，10W
Rated power (70V)
10W，5W
Sensitivity
90dB ±3dB
Max SPL
103dB ±3dB
Impedance
Blue: COM Green: 500Ω Red: 1KΩ
Frequency response
80Hz -20KHz
Speaker unit
5&#8243;×1，1.5&#8243;×1
Dimension
Φ170×210mm
Weight
1.64kg

T-750D Pendent speaker

Description
Ceiling speakers. Various installation methods, using 360° sound coverage, unique appearance, suitable for hotels, shops, etc.
Specification:
Model
T-600B (Black) / T-600W (White)
Power taps @100V
7.5W, 10W, 15W, 20W, 30W, 60W
Power taps @70V
3.75W, 5W, 7.5W, 10W, 15W, 30W
Impedance
White: 1.3KΩ Red: 1KΩ Yellow: 670Ω
Brown: 500Ω Blue: 330Ω Green: 165Ω Black: Com
SPL(1W/1M)
102dB
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
6&#8243; x 1
Dimensions
385 x 385 x 302mm
Weight
3.4Kg

T-600B/ T-600W Pendant Loudspeaker (360 Degree Dispersion)

Description
Ball design, wide band speaker unit, unique appearance, suitable for supermarkets, shopping malls, etc.
Specification:
Model
T-200
Power taps @100V
1.5W, 3W, 6W
Power taps @70V
0.75W, 1.5W, 3W
Impedance
Blue: Com Red:6.7KΩ
Green: 3.3KΩ Yellow:1.7KΩ
SPL(1W/1M)
91dB±3dB
Frequency response (-10dB)
80-20KHz
IP rate
IP66
Speaker driver
5&#8243; x 1
Dimensions
205 x 205mm
Weight
1.1kg

T-200 Pendant Speaker

Description
Ball design, wide band speaker unit, unique appearance, suitable for supermarkets, shopping malls, etc.
Specification:
Model
T-200D(black)/T-200DW(white)
Power taps @100V
15W
Power taps @70V
7.5W
Impedance
Black: Com Red:670Ω
SPL(1W/1M)
86dB
Frequency response (-10dB)
80-20KHz
Speaker driver
6&#8243; x 1
Dimensions
255×220mm
Weight
2.6Kg

T-200D/ T-200DW Pendant Speaker (15W)

Description
The T-200B is a pendant speaker built-in 70v/100v transformer. The
70v/100v transformer technique reduces line losses on longer distance
and allows easy parallel connection of multiple loudspeakers.
The built-in 6” full range speaker driver is designed of wide frequency
response 150-14kHz, the multiple power taps of 3.75W, 7.5W &#038; 15W
could meet different applications varies from room size and ambient noise
surroundings.
Easy and secure wall mount installation to be suspended on the roof the hotel lobby or super market&#8217;s case desk.
It is ideal choice for industrial and commercial applications for hotel, super market, exhibition center, shopping mall,
where background music and paging is needed.
Specification
Model T-200B
Power Taps @100V 3.75W,7.5W,15W,
Power Taps @70V 1.85W, 3.75W, 7.5W
Impedance Blue: Com, Green: 2.6KΩ Yellow: 1.3KΩ, Red: 670Ω, SPL(1W/1M) 92dB
Max. SPL (Rated W/1M) 104dB
Frequency Response (-10dB) 150-14KHz
Finish Baffle: Aluminum, White Grille: Aluminum, White
Speaker Driver 6&#8243; x 1
Dimensions 172 x 250mm
Weight 2.6Kg
Mounting With mounting bracket fixed by screw

T-200B Pendant Speaker(3.75W-7.5W-15W

Description
. Ultra-thin aluminum alloy structure, 32mm in thickness; sturdy, corrosion-resistant, and durable.
. Imported polymer multi-layer honeycomb diaphragm, low Young&#8217;s modulus, light weight, high bending resistance and moderate damping.
. Built-in 8 drivers, NdFeB strong magnetic circuit; two 20mm silk diaphragm tweeters.
. 360 degrees of sound coverage, plane wave transmission, comfortable vocal sound, and long transmission distance.
. Wide frequency response range, 80Hz-20KHz plane sound.
. Ultra-thin (32mm) housing, high-strength aluminum alloy material, fine anodized grain surface, elegant appearance.
. Support multi-point installation, horizontal and vertical installation.
. Resistant to mildew, moisture and salt mist.
. Application: PA system in airports, cars, railways and subway stations; internal broadcasting in ships and warships; PA system and emergency broadcasting in schools, shopping malls, hotels, and institutions; emergency broadcasting in public places such as parks and squares.
Specification:
Model
T-6832C
Rated power
100W
Maximum SPL
106dB
Sensitivity
88dB ±3dB
Input voltage
100V
Frequency response
80Hz -20KHz
Diaphragm area
Two 300mm×300mm
Driver
8 woofer drivers; 2 tweeter drivers
Size
686×320×32mm
Weight
6.9kg

T-6832C Ultra-thin speaker

Description
Ultra-thin aluminum alloy structure, 32mm in thickness; sturdy, corrosion-resistant, and durable.
. Imported polymer multi-layer honeycomb diaphragm, low Young&#8217;s modulus, light weight, high bending resistance and moderate damping.
. Built-in 4 drivers, NdFeB strong magnetic circuit; two 20mm silk diaphragm tweeters.
. 360 degrees of sound coverage, plane wave transmission, comfortable vocal sound, and long transmission distance.
. Wide frequency response range, 150Hz-18KHz plane sound.
. Ultra-thin (32mm) housing, high-strength aluminum alloy material, fine anodized grain surface, elegant appearance.
. Support multi-point installation, horizontal and vertical installation.
. Resistant to mildew, moisture and salt mist.
. Application: PA system in airports, cars, railways and subway stations; internal broadcasting in ships and warships; PA system and emergency broadcasting in schools, shopping malls, hotels, and institutions; emergency broadcasting in public places such as parks and squares.
Specification:
Model
T-4535C
Rated power
50W
Max SPL
104dB
Sensitivity
88dB ±3dB
Voltage
100V
Frequency response
80Hz -20KHz
Diaphragm area
Two 156mm×314mm
Driver
4 woofer drivers; 2 tweeter drivers.
Size
450×350×32mm
Weight
4.9Kg

T-4535C Ultra-thin speaker

Description
Model:TS-115HT
Frequency response:50Hz~18KHz@-10d
Rated power:75W, 150W, 300W/100V, 400W/8Ω optional
Peak power:1200W
Max SPL(rated/peak):127dB/135dB
Sensitivity:103dB±3dB@(1W/1m)
Coverage angle:(H)90°(V)90°
Tweeter:15&#8243; woofer ×1, 1.7&#8243; compressed tweeter ×1
Size:500×500×520mm
Weight:27Kg

Outdoor Waterproof Speaker TS-115HT

Description
. Engineering plastic injection molding cabinet, good weather resistance, high strength, and light weight.
. The coaxial structure design of an efficient 8-inch mid-woofer and a 34-core compressed driver.
. High sensitivity, high power, long transmission distance.
. Steel surface mesh, built-in three layers of mesh cloth and acoustic cotton with breathable and waterproof functions, in accord with IP56 international standard.
. A standard hanger made of spray paint galvanized steel sheet and the matching stainless steel screws and safety ropes make it convenient and safe for the installation.
. It is mainly used in school playgrounds, theme parks, cultural squares, stadiums, etc.
Specification:
Model
TS-108HT
Frequency response
75Hz ~ 20KHZ @ &#8211; 10 db
Rated power
37.5W, 75W, 150W/100V, 150W/8Ω optional
Peak power
600W
Max SPL(rated/peak)
117dB/124dB
Sensitivity
96db±3db @ (1w/1m)
Coverage angle
(H) 90° (V) 90°
Speaker unit
8&#8243; woofer ×1, 1.4&#8243; compressed tweeter ×1
Dimension
300×302×280mm
Weight
11Kg

TS-108HT Outdoor All-weather Waterproof Speaker

Description
Frequency response:55Hz ~ 18KHZ @ -10dB
Rated power:50W, 100W, 200W/100V, 300W/8Ω optional
Peak power:1200W
Max SPL(rated/peak):123dB/129dB
Sensitivity:98dB±3dB@ (1W/1m)
Coverage angle:(H) 90° (V)90°
Speaker :12&#8243; woofer ×1, 1.7&#8243; compressed tweeter ×1
Size:407×410×378mm
Weight:20Kg
.Engineering plastic injection molding housing, good weather resistance, high strength, and light weight.
. The coaxial structure design of an efficient 12-inch mid-woofer and a 44-core compressed driver.
. High sensitivity, high power, long transmission distance.
. Steel surface mesh, built-in three layers of mesh cloth and acoustic cotton with breathable and waterproof functions, in accord with IP56 International
standard.
. Equipped with a standard hanger with galvanized steel spraying treatment and matching stainless steel screws and safety ropes, which are convenient and
safe to install.
. It is mainly used in school playgrounds, theme parks, cultural squares, stadiums, etc.

Outdoor Waterproof Speaker  TS-112HT

Description
Enclosure uses fiberglass materials, High density and hard, light weight; adopts high efficiency 12-inch neodymium woofer and 44-core neodymium tweeter driver; tweeter uses overload protection device, so the treble can withstand
the impact of fickle signal; bass and treble use horn-loaded design to reach long transmission distance; in order to meet a variety of sound reinforcement occasions, it comes with lifting metal bracket, which makes lifting installation
convenient.
And this well-designed lifting system with adjustable angle brings great convenience to installation.
It is mainly used in large stadiums, large theme parks, medium and large cultural Square, outdoor playground and other
occasions.
Model:TS-3H
Impedance:4Ω
Frequency Response:100Hz~20KHz
Rated Power:400W
Sensitivity:112dB
Coverage:(H) 70° (V) 70°
Tweeter:ф44 Titanium Tweeter x 1
Woofer:12&#8243; Woofer x 1
Enclosure Surface Treatment:Black Paint
Connector:Two 4-pin SPEAKON Socket 1+1-
Dimension (H x W x D):740 x 524 x524 mm
Weight:18Kg

Horn Speaker  TS-3H

Description
. Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. U-shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification：
Model
T-750AZ
Rated power
50W
Max power
100W
Frequency response
200Hz-15KHz
Sensitivity
110dB
Impedance
Black: COM, White: 8Ω
Speaker unit
2.5 inch tweeter driver × 1
Protection class
IP66
Dimension
282×210×333mm
Weight
2.1Kg
Material
ABS

T-750AZ Horn Speaker

Description
All aluminum alloy structure, stainless steel bracket, wide frequency domain explosion-proof speaker, strong sound penetration and wide coverage.
Specification：
Model
T-720X
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Impedance
Black-COM White-330Ω Green-670Ω
Frequency response
300-13KHz
Sensitivity
102dB±3dB
Waterproof level
IP66
Explosion-proof level
Ex nA llC T6 Gc
Dimension
247×247×290mm
Weight
2.1Kg

T-720X Wide Frequency Explosion-proof Horn Speaker (15W, 30W)

Description
Adopt aluminum alloy shell, high-performance magnets inside, compression drive head. With large sound power output, loud sound, strong penetrating power, wide coverage; Support outdoor IPX6 waterproof, corrosion resistance and aging resistance. It can be used for sound amplification in villages, highways, schools, factories and other places.
Specifications:
Model
T-CT100
Rated power (100V)
100W
Maximum power
200W
Frequency response
80Hz-20KHz
Sensitivity
110dB
Impedance
COM/100Ω
Speaker unit
2.5 inch treble driver head×1
Coverage distance
400m-500m
Waterproof level
IPX6
Dimensions (W * L)
450×460mm
Weight
3.8Kg
Material
Aluminum alloy shell

T-CT100 Waterproof Horn Speaker

Description
All aluminum alloy structure, wide frequency domain waterproof horn, large power, strong sound penetration, wide coverage, suitable for square, railway station, etc.
Specification：
Model
T-720CD
Rated Power(100V)
25W, 50W, 100W
Maximum SPL
134dB±3dB
Maximum Power
200W
Impedance
COM /400Ω/200Ω/100Ω/ 50Ω
Frequency Response (-20dB)
80-20KHz
Sensitivity (1W/1M)
114dB±3dB
Maximum SPL
134dB±3dB
Dimension
485×500mm
Weight
4.6Kg
IP Rate
IP66

T-720CD Weatherproof Horn Speaker

Description
Aluminum structure, strong penetration, suitable for railway station, bus station, large square, etc.
Model
T-710A
Power taps @100V
15W, 30W
Power taps @70V
7.5W, 15W
Impedance
Black: COM White: 330Ω Green: 670Ω
Frequency response
80-20KHz
Sensitivity
113dB±3dB
Dimensions
360 x 165 x 275mm
Weight
3.1Kg
IP rate
IP66

T-710A Weatherproof Horn Speaker

Description
High-grade wide-frequency horn, 2-frequency design, constant resistance, constant voltage and multiple power options, the ideal choice for horn speaker; suitable for railway stations, bus stations, large squares, etc.
Specification：
Model
T-710K
Power Taps @100V
Red : 12.5W, Green: 25W, White: 50W
Power Taps @70V
Red : 6.25W, Green: 12.5W, White: 25W
Impedance
Black: Com 800Ω 400Ω 200Ω
SPL(1W/1M)
99dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
360 x 255 x 315mm
Weight
4Kg

T-710K Weatherproof Horn Speaker (Music Horn)

Description
Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Built-in high-performance 100V audio transformer can reduce the loss caused by impedance in the circuit, with multiple power options and flexible wiring methods.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. U-shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification:
Model
T-750AY
Rated power (100V)
50W
Max power
100W
Frequency response
200Hz-15KHz
Sensitivity
110dB
Impedance
Black: COM, White: 200Ω
Speaker unit
2.5 inch tweeter driver × 1
Protection class
IP66
Dimension (W×D×H)
282×210×333mm
Weight
2.6Kg

T-750AY Horn Speaker

Description
. Waterproof design, simple and beautiful overall appearance.
. High-quality plastic material, excellent mechanical properties, good impact strength, low temperature resistance, high temperature resistance, superior material stability and durability.
. Large arc design, high sensitivity, high efficiency, sonorous amplification, wide sound coverage and long transmission distance.
. Internal high-performance magnet, compressed driver head, high sound power output, strong sound penetration.
. Built-in high-performance 100V audio transformer can reduce the loss caused by impedance in the circuit, with multiple power options and flexible wiring methods.
. Use high-quality wires to meet long-term full-load use, anti-scalding, good conductivity, and safe use.
. Shaped bracket design, 108 ° flexible rotation and adjustment, convenient for users to operate, install and debug.
. Suitable for outdoor places such as squares, villages and sports fields.
Specification:
Model
T-725AY
Rated power (100V)
25W
Max power
50W
Impedance
Black: COM, White: 400Ω
Frequency response
300-13KHz
Sensitivity
103dB±3dB
Max SPL
117dB±3dB
Protection class
IP66
Dimension (W×D×H)
282×210×280mm
Weight
1.9kg

T-725AY Horn Speaker

Description
Model :T-720G
Rated power (100V):15W, 30W
Rated power (70V):7.5W, 15W
Maximum power:60W
Impedance :Black: COM Green: 670Ω White: 330Ω
Frequency response:300-13KHz
Sensitivity:102dB±3dB
Waterproof protection:IP66
Size :245×245×300mm
Weight :2.4Kg

T-720K Weatherproof Aluminum Horn Speaker

Description
Model :T-720G
Rated power (100V):15W, 30W
Rated power (70V):7.5W, 15W
Maximum power:60W
Impedance :Black: COM Green: 670Ω White: 330Ω
Frequency response:300-13KHz
Sensitivity:102dB±3dB
Waterproof protection :IP66
Size :245×245×300mm
Weight :2.4Kg
All aluminum alloy structure, stainless steel bracket, waterproof protection, wide frequency domain, strong sound penetration, and wide
sound coverage; suitable for squares, railway stations, etc.

Horn Speaker  T-720G

Description
Aluminum alloy housing, wide frequency domain waterproof speaker, strong sound penetration, wide coverage; suitable for squares, railway stations, etc.
Specification:
Model
T-720R
Rated power (100V)
15W, 30W
Rated power (70V)
7.5W, 15W
Impedance
Black-COM White-330Ω Green-670Ω
Frequency response
300-13KHz
Maximum sensitivity
118dB
Sensitivity
102dB±3dB
Protection level
IP66
Dimension
245×245×290mm
Weight
1.9Kg

T-720R Weatherproof Aluminum Horn Speaker (15W-30W )

Description
Waterproof horn, organic resin structure, durable;Sound coverage is wide;Applicable to square, playground, etc.
Specification:
Model
T-720B
Power Taps @100V
7.5W, 15W
Power Taps @70V
3.75W, 7.5W
Impedance
Black: Com White: 1.3KΩ Green: 670Ω
SPL(1W/1M)
103dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
221 x 165 x 235mm
Weight
1.6Kg

T-720B Weatherproof Horn Speaker (7.5W-15W)

Description
Waterproof horn, organic resin structure, durable;Sound coverage is wide;Applicable to square, playground, etc.
Specification:
Model
T-720A
Power Taps @100V
15W, 30W
Power Taps @70V
7.5W, 15W
Impedance
Black: Com Green: 670Ω White: 330Ω
SPL(1W/1M)
103dB±3dB
Frequency Response (-10dB)
80Hz -20KHz
IP Rate
IP66
Dimensions
282 x 210 x 290mm
Weight
2.1Kg

T-720A Weatherproof Horn Speaker (15W-30W )

Description
Model :T-710G
Rated power（100V）:50W
Frequency response:300-8KHz
Sensitivity:108dB ±3dB
Impedance:Black: Com White: 200Ω
Dimension:270×270×340mm
Material:Aluminum
IP level:IP66
Weight:3.8Kg

Horn speaker T-710G

Description
Model
T-710E
Rated Power
10W
Maximum Power
20W
Sensitivity
102dB±3dB
Impedance
Black, white: COM Black: 8Ω
Frequency Response
80Hz -20KHz
Protection Level
IP66
Dimension
130×150mm
Weight
0.5Kg

T-710E Weatherproof Horn Speaker

Description
The T-770T is a dual-directional waterproof projection speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
 The built-in two 6” full range speaker drivers are designed of wide frequency response 110-15kHz, the multiple power taps 5W, 10W &#038; 20W are helpful for different applications varies from room size and ambient noise surroundings.
 The aluminum enclosure and metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Waterproof projector type loudspeaker
2&#215;6” full range speaker unit
IP66 waterproof level
Power taps 5w-10w-20w @100V
Aluminum enclosure and metal bracket
Technical data
Power:20W
Frequency Response:110Hz &#8211; 15 kHz
SPL:92dB ± 2dB
Voltage:100V
Dimensions:172x252mm
Weight:3.3kg

T-770T Dual-directional Projection Loudspeaker

Description
The T-770 is a waterproof projection speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in6”full range speaker driver is designed of wide frequency response 250-14kHz, the multiple power taps 7.5W &#038; 15W are helpful for different applications varies from room size and ambient noise surroundings.
 The aluminum enclosure and metal bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Waterproof projector type loudspeaker
6” full range speaker unit
IP66 waterproof level
Power taps 7.5w-15w @100V
Aluminum enclosure and metal bracket
Technical data
Power:15W
Power Taps:7,5W
Frequency Response:110Hz &#8211; 14 kHz
SPL:94dB ± 2dB
Voltage:100V
Dimensions:172x315mm
Weight:2.7kg

T-770 Uni-directional Projection Loudspeaker

Description
Indoor wall speakers, wooden structure. The appearance of plastic technology, with
plastic mask, beautiful and generous. Applicable to schools, supermarkets, hotels,
etc.
Material: wooden
Model:T-601B
Rated power:6W
Frequency response:130-14KHz
SPL:92dB±3dB
Impedance:Black: Com Red: 1.7KΩ
Speaker driver:4&#8243;
Dimensions:202×99×271mm
Weight:2.1Kg

Wall mounted Speaker T-601B

Description
. Indoor wall-mounted speaker with unique shape design, streamlined appearance, plastic and metal mesh structure.
. Equipped with a 5-inch woofer and a 1.5-inch tweeter, the sound radiation angle is large, the low frequency is full, and the sound quality is clear.
. The built-in high-performance audio transformer can reduce the loss caused by impedance in the circuit.
. The mesh cover adopts the technology of sticking breathable cotton inside, which can prevent dust or liquid from entering and affect the sound quality, protect the speaker and increase the service life
. The bracket design can be adjusted up, down, left and right, and the up and down angles can be flexibly adjusted to facilitate user operation and installation.
. Suitable for schools, hotels, hotels, corridors, supermarkets, etc.
Specification:
Rated power (100V)
20W，10W
Rated power (70V)
10W，5W
Sensitivity
97dB ±3dB
Max SPL
110dB ±3dB
Impedance
Black: COM Green: 500Ω White: 1KΩ
Frequency response
80Hz -20KHz
Speaker unit
5&#8243;×，1.5&#8243;×1
Dimension
Φ170×187mm
Weight
1.54kg

T-750F Wall Mount Speaker

Description
High-grade wall-mounted speaker, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specifications
Rated power (100V)
60W
Rated power (70V)
30W
Sensitivity
92dB
Impedance
166Ω
Frequency response
60-20kHz
Speaker unit
6&#8243;×1, 1.5&#8243;×1
Dimensions
340×220×225mm
Weight
4.6kg
Color
White
Protection level
IP66

T-776SW Wall Mount Speaker

Description
High-grade wall-mounted speaker, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specifications
Rated power (100V)
60W
Rated power (70V)
30W
Sensitivity
92dB
Impedance
166Ω
Frequency response
60-20kHz
Speaker unit
6&#8243;×1, 1.5&#8243;×1
Dimensions
340×220×225mm
Weight
4.6kg
Color
Black
Protection level
IP66

T-776S Wall Mount Speaker

Description
High-grade outdoor wall-mounted speakers, small volume, large power, beautiful appearance, horn type high-pitched design, dichonic frequency, high cost performance, easy installation. Suitable for background sound amplification in all kinds of outdoor places.
Specification：
Model
T-774S
Rated power(100V)
30W
Rated power(70V)
15W
Sensitivity
89dB
Impedance
333Ω
Frequency response
80-20KHz
IP rate
IP66
Speaker driver
4&#8243; x 1 1&#8243; x 1
Dimensions
276 x 170 x 170mm
Weight
2.5Kg

T-774SThe High-end Outdoor Radio Speaker

Description
Multiple power options can be selected for the P series, suitable for squares, stations, exhibition halls and other places.
Specification：
Power Taps @100V
5W, 10W, 20W, 40W, 80W
Power Taps @70V
2.5W, 5W, 10W, 20W, 40W
Impedance
Balck: Com Red: 2KΩ/1KΩ/500Ω/250Ω/125Ω/8Ω
SPL(1W/1M)
94dB
Frequency Response (-10dB)
80Hz -20KHz
Speaker Driver
8&#8243; x 1 2&#8243; x 1
Dimensions
380 x 277 x 218mm
Weight
6.2Kg
IP Rate
IP66

T-778PWall Mount Speaker (5W-10W-20W-40W-80W)

Description
Model
T-775PW
Power Taps @100V
3.75W, 7.5W, 15W, 30W
Power Taps @70V
1.9W, 3.75W, 7.5W, 15W, 30W
Transformer Impedance
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω
Input
70V/100V/8Ω
SPL(1W/1M)
92dB
Max. SPL (Rated W/1M)
107dB
Frequency Response (-10dB)
125-18KHz
Finish
Baffle: ABS, Black/White
Grille: Steel, Black/White
Speaker Driver
5&#8243; x 1 1.5&#8243; x 1
Dimensions
243 x 185 x186mm
Weight
2.7kg
Mounting
With mounting bracket fixed by screw

T-775PW Wall Mount Speaker

Description
The T-776 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6”+1.5” two ways speaker driver is designed of wide frequency response 110-15kHz, the RMS 45 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
6” +1.5” two ways speaker unit
RMS 45W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Fashion speaker of white color
Technical data
Power:45W
Frequency Response:130Hz-15kHz
SPL:94dB
Voltage:100V
Dimensions:298x215x215mm
Weight:3,7kg

T-776W 6 Inch Two Way 45W Wall Mount Speaker

Description
The T-774 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 120-15kHz, the RMS 15 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
4” +1.5” two ways speaker unit
RMS 15W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:15W
Frequency Response:120Hz-15kHz
SPL:88dB
Voltage:100V
Dimensions:184x164x246mm
Weight:1,8kg

T-774W 4 Inch Two Way 15W Wall Mount Speaker

Description
The T-776 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6”+1.5” two ways speaker driver is designed of wide frequency response 110-15kHz, the RMS 45 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
6” +1.5” two ways speaker unit
RMS 45W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Fashion speaker of black color
Technical data
Power:45W
Frequency Response:130Hz-15kHz
SPL:94dB
Voltage:100V
Dimensions:298x215x215mm
Weight:3,7kg

T-776 6 Inch Two Way 45W Wall Mount Speaker

Description
The T-775 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5” two ways speaker driver is designed of wide frequency response 130-15kHz, the RMS 30 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
5” +1.5” two ways speaker unit
RMS 30W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:30W
Frequency Response:130Hz-15kHz
SPL:91dB
Voltage:100V
Dimensions:184x164x246mm
Weight:2,4kg

T-775 5 Inch Two Way 30W Wall Mount Speaker

Description
The T-774 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 120-15kHz, the RMS 15 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
4” +1.5” two ways speaker unit
RMS 15W @100V
Metal grille, ABS enclosure and stainless mounting bracket
Technical data
Power:15W
Frequency Response:120Hz-15kHz
SPL:88dB
Voltage:100V
Dimensions:184x164x246mm
Weight:1,8kg

T-774 4 Inch Two Way 15W Wall Mount Speaker

Model
T-778H/T-778HW
Power taps @100V
7.5W, 15W, 30W, 60W
Power taps @70V
3.75W, 7.5W, 15W, 30W, 60W
Max power
120W
Input
70V/100V/8Ω
SPL(1W/1M)
89dB
Impedance
1.3KΩ/670KΩ/330KΩ/165Ω/81Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
8&#8243; x 1 2&#8243; x 1
IP rate
IP66
Dimensions
450 x 295 x 290mm
Weight
6.5kg

T-778HW Wall Mount Speaker (7.5W-15W-30W-60W)

Model
T-776H/T-776HW
Power taps @100V
5W, 10W, 20W, 40W
Power taps @70V
2.5W, 5W, 10W, 20W, 40W
Max power
/
Input
70V/100V/8Ω
SPL(1W/1M)
89dB
Impedance
2KΩ/1KΩ/500KΩ/250Ω/125Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
6&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
340 x 220 x 225mm
Weight
2.7kg

T-776HW/T-776HW Wall Mount Speaker (7.5W-15W-30W-60W)

Model
T-775H/T-775HW
Power taps @100V
3.75W, 7.5W, 15W, 30W
Power taps @70V
1.9W, 3.75W, 7.5W, 15W, 30W
Max power
60W
Input
70V/100V/8Ω
SPL(1W/1M)
88dB
Impedance
2.6KΩ/1.3KΩ/670KΩ/330Ω/165Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
5&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
285 x 180 x 186mm
Weight
2.7kg

T-775H/ T-775H Wall Mount Speaker (7.5W-15W-30W-60W)

Description
Indoor high-grade wall-mounted speakers, multi-power fixed resistance and fixed pressure selection, modern sense of arc design, 2 frequency division design, high cost performance, convenient installation. Suitable for hotels, conference halls, etc.
Model
T-774H/T-774HW
Power taps @100V
2.5W, 5W, 10W, 20W
Power taps @70V
1.25W, 2.5W, 5W, 10W, 20W
Max power
40W
Input
70V/100V/8Ω
SPL(1W/1M)
86dB
Impedance
4KΩ/2KΩ/1KΩ/500Ω/250Ω
Frequency response (-10dB)
80Hz -20KHz
Speaker driver
4&#8243; x 1 1.5&#8243; x 1
IP rate
IP66
Dimensions
260 x 170 x 170mm
Weight
2.3kg

T-774H/T-774HW Wall Mount Speaker (7.5W-15W-30W-60W)

Description
It is widely used in various small and medium-sized meeting rooms, banquet halls, hotels, commercial buildings, schools, entertainment and leisure places.
. The housing is made of polystyrene material, which is lightweight. And it is easy to install in various application scenarios.
. The front panel adopts iron mesh decorative panel parts, which is beautiful and elegant.
. Multi-angle adjustment of the mounting bracket, easy to adapt to various application scenarios.
. Adopt 1 5.25-inch mid-woofer unit and 1 25MM silk film tweeter unit.
. 5 fixed constant voltage volume adjustment switch.
. Built-in high-quality linear audio power transformer.
Specification：
Model
T-865CF
Constant Voltage Power@100V
3W,6W,12.5W,25W,50W
Constant Voltage Power@70V
1.5W,3W,6W,12.5W,25W
Peak Power
200W
Max SPL (nominal/peak)
101dB/107dB
Frequency Response
80Hz-20kHz
Sensitivity
84dB +-3dB
Speaker Unit
5.25 inch mid-woofer+25MM tweeter
Dimension
376(W)x202(D)x184(H)mm
Weight
4.1Kg

T-865CF Broadcast Wall-mounted Speaker

Description
. The housing is made of polystyrene material, which is lightweight. And it is easy to install in various application scenarios.
. The front panel adopts iron mesh decorative panel parts, which is beautiful and elegant.
. Multi-angle adjustment of the mounting bracket, easy to adapt to various application scenarios.
. Adopt a 5.25-inch mid-bass unit and a 25MM silk treble unit.
. 5 fixed constant voltage volume adjustment switch.
. Built-in high-quality linear audio power transformer.
. It is widely used in various small and medium-sized meeting rooms, banquet halls, hotels, commercial buildings, schools, entertainment and leisure places.
Specification:
Model
T-865CFB
Rated power (100V)
3W,6W,12.5W,25W,50W，8Ω
Rated power (70V)
1.5W,3W,6W,12.5W,25W，8Ω
Peak power
200W
Maximum SPL (rated/peak)
101dB/107dB
Frequency response
80Hz-20kHz
Sensitivity
84dB+-3dB
Speaker unit
5.25 inch mid-bass + 25MM silk treble
Dimensions (H x W x D)
376x202x184mmmm
Weight
4.1kg

Landscape Garden Speaker T-300HA

Product Description

Similar Products
