Product Description
Description
It is a 10-channel audio mixer.
There is 1 channel for a remote microphone and a channel for a microphone or line signal (with 9 switches).
There is 1 input channel for the remote microphone.
Input channels 2-10, connectors are XLR type (Mic: Balanced, Line: Unbalanced)
Input channels 2-4 have phantom power for use with condenser microphones.
And when in use, the audio signal of input channels 5-10 will be automatically reduced.
Input channels 7-10, connectors are XLR (for mic) and RCA (for line), independent for selection.

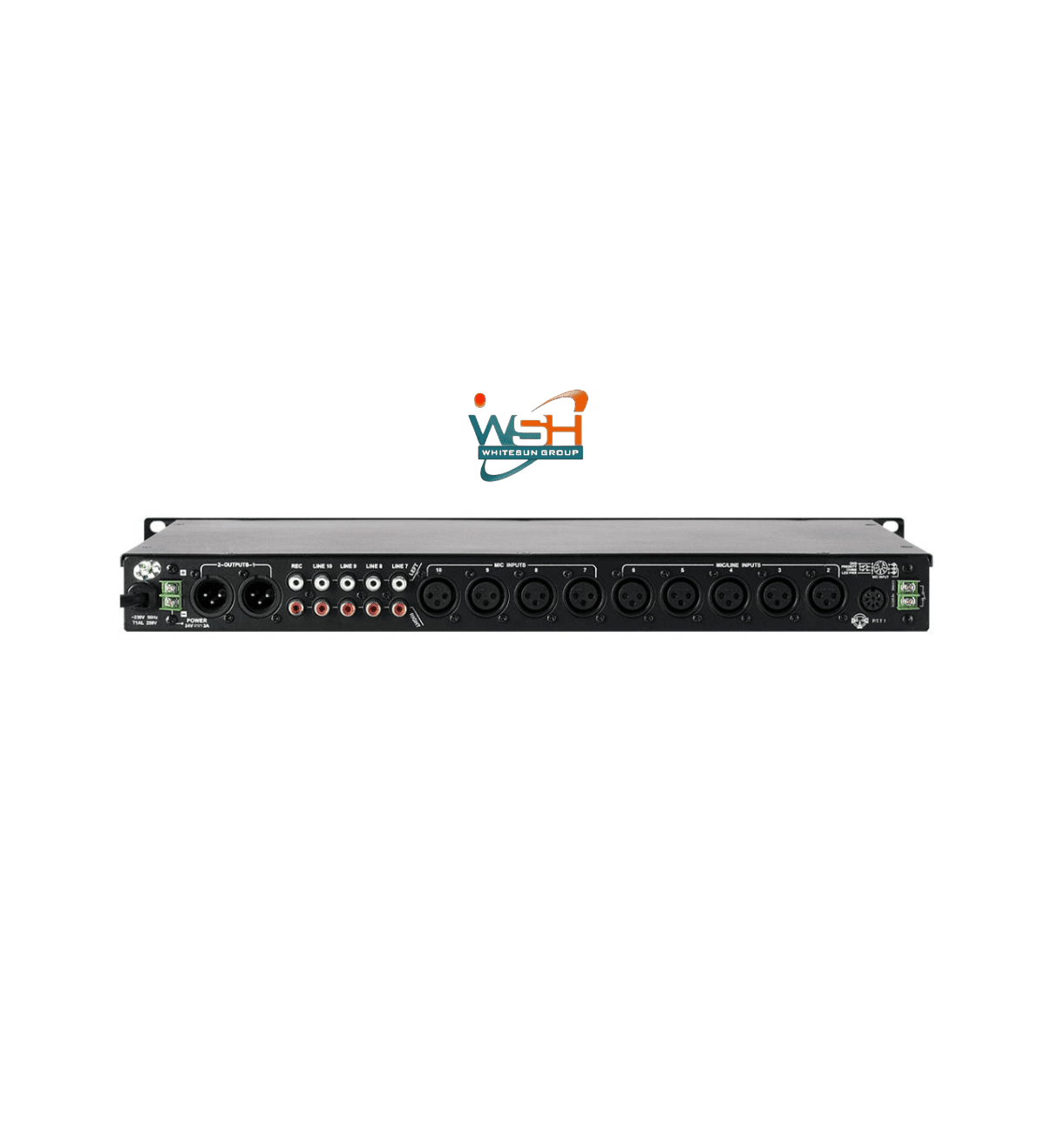

There are 2 output channels, XLR, 200 ohm balanced connectors with volume control.
Features:
Standard cabinet design (1U).
Each input has level indication.
Mic 2.3.4 is equipped with priority switch to select its priority level.
All the 10 inputs with mic, line and high pass filtering selector.
Reminding signal of bell when opening:
① Optional 2-speed bell (built-in).
② Automatic priority.
③ The bell can be controlled with the remote microphone T-319.
Three output signal modes can be selected (output 1, output 1+2, output 2).
Two sets of output are equipped with high and bass adjustment function.
Double channel output has independent level display.
Independent stereo line output with RCA interface (line 7-10).
With recording output function.
It can be used with T-319.
