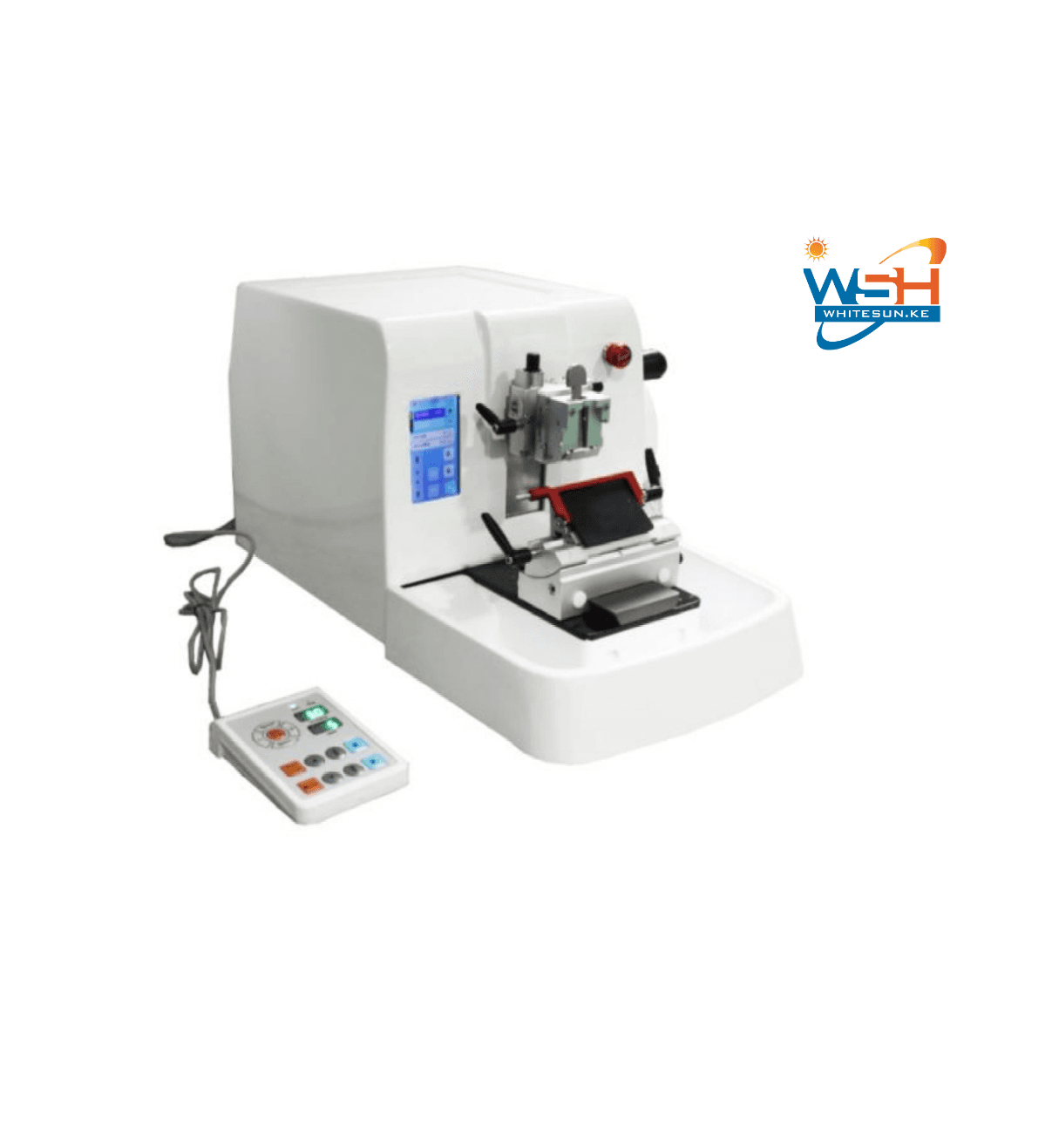

Product Description
Description
1. Reasonable layout and simple operation; fully automatic continuous sectioning function; three
modes of continuous, stepping and single slice are optional, and the sectioning speed is adjustable;
2. Adopting 4.3-inch touch screen design, easy to understand, Chinese and English are optional;
3. External control panel, more convenient operation;
4. Two sets of independent position memory function, multiple setting methods;
5. The chuck position is digitalized, and the input coordinates automatically reach the coordinate
position;
6. Intelligent sensing half-repair function improves work efficiency. Only half a circle of the
handwheel is required to achieve the repair, and no other operation is required during the whole
process; after the half-knife repair is completed, turn the handwheel in a full circle to automatically
switch to the sectioning mode
7. Unique sample retraction function, with adjustable retraction thickness, avoids damage caused
by reverse friction between the specimen tissue and the slicer, makes the blade smoother, and
prolongs the service life of the blade;
8. Cross-ball double guide rail design, solid structure, stable performance;
9. Adopt advanced speed regulation method, small vibration, low noise;
10. A variety of tissue chucks are optional, bidirectional sampling, suitable for samples of different
hardness and shapes;
11. The knife holder body can be accurately displaced laterally, and the full length of the blade can
be used without moving the blade with fingers, avoiding danger; at the same time, each blade can
be divided into three parts to cut wax block tissue, which triples the service life of the blade,
compatible with wide blades and narrow blades, with built-in knife guards and knife retracting
devices.
12. The body surface is made of metal spraying, with high strength, corrosion resistance, smooth
lines and elegant appearance.
13. The handwheel can be locked in the upper and lower positions, making the slicing work safer
and more convenient.
14. The knife holder adopts a dovetail groove structure base, which is more accurate and stable in
forward and backward movement and locking;
15. The large-capacity waste chip trough with magnetic function is easy to disassemble and install,
making the slicing work clean and hygienic;
16. The sample positioning system with 0 position can be adjusted on the X/Y axis and the sample
can be positioned horizontally at ±8 degrees;
Main Technical Data:
1. Slice thickness: 0μm~100μm (3~5um is the best slicing effect)
2. Setting range: 0μm~5μm increment value 0.5μm
5μm~20μm increment value 1μm
20μm~60μm increment value 5μm
60μm~100μm increment value 10μm
Numbers can be directly entered through the touch screen
3. Trimming thickness: 0μm~800μm
4. Setting range: 0μm~10μm increment value 1μm
10μm~20μm increment value 2μm
20μm~50μm increment value 5μm
50μm~100μm increment value 10μm
100μm~800μm increment value 50μm
Numbers can be directly input through the touch screen
5. Sample retraction: 0μm~250μm
6. Horizontal specimen stroke: 30mm
7. Vertical specimen stroke: 70mm
8. Maximal slice section: 55*45mm
9. Slip precision: ± 5%
10. Knife holder angle: 0~15°
11. Languages: 2 (Chinese and English)
12. Input power: AC220V/110V frequency 50/60HZ
13. Dimension: 590*440*320mm
14. Net weight: 35kg
Package Info:
Each instrument packed Wooden Case
Gross Weight: 45kg
Dimensions: 695*525*480mm
