<p><strong>Description</strong></p>
<p>HS3355 computer microtome is a new product launched by our company after HS3315 microtome<br />
series. This microtome integrates the essence of our factory&#8217;s technology, adopts international<br />
advanced design concepts, is more in line with ergonomic design, and mainly uses imported parts.<br />
Stepper motor feed system; high-precision cross ball guide rail; recirculating ball screw and other<br />
precision parts make the slice accuracy higher. This microtome is a model of current advanced<br />
technology, a perfect combination of electronics and machinery, and a new development direction of<br />
tissue sectioning.</p>
<p><strong>Features:</strong><br />
1. Reasonable layout and simple operation;<br />
2. Adopting 4.3-inch touch screen design, easy to understand, Chinese and English are optional;<br />
3. External control panel, more convenient operation;<br />
4. Two sets of independent position memory function, multiple setting methods;<br />
5. The chuck position is digitalized, and the input coordinates automatically reach the coordinate<br />
position;<br />
6. Intelligent sensing half-repair function improves work efficiency. Only half a circle of handwheel is<br />
required to achieve the repair, and no other operation is required during the whole process; after the<br />
half-knife repair is completed, turn the handwheel in a full circle to automatically switch to the slicing<br />
mode<br />
7. Unique sample retraction function, the retraction thickness is adjustable, which avoids the damage caused by the reverse friction between the specimen tissue and the slicing knife, makes<br />
the blade smoother, and prolongs the service life of the blade;<br />
8. Cross-ball double guide rail design, solid structure, stable performance;<br />
9. Adopt advanced speed regulation method, small vibration, low noise;<br />
10. A variety of tissue chucks are optional, bidirectional sampling, suitable for samples of different<br />
hardness and shapes;<br />
11. The knife holder body can be accurately displaced laterally, and the full length of the blade can<br />
be used without moving the blade with fingers, avoiding danger; at the same time, each blade can<br />
be divided into three parts to cut wax block tissue, which triples the service life of the blade,<br />
compatible with wide blades and narrow blades, with built-in knife guards and knife retracting<br />
devices<br />
12. The body surface is made of metal spraying, with high strength, corrosion resistance, smooth<br />
lines and elegant appearance.<br />
13. The handwheel can be locked in the upper and lower positions, making the slicing work safer<br />
and more convenient<br />
14. The knife holder adopts a dovetail groove structure base, which is more accurate and stable in<br />
forward and backward movement and locking;<br />
15. The large-capacity waste chip trough with magnetic function is easy to disassemble and install,<br />
making the slicing work clean and hygienic;<br />
16. The sample positioning system with 0 position can be adjusted on the X/Y axis and the sample<br />
can be positioned horizontally at ±8 degrees;</p>
<p><strong>Main Technical Data:</strong><br />
1. Slice thickness: 0μm~100μm (3~5um is the best slicing effect)<br />
2. Setting range: 0μm~5μm increment value 0.5μm<br />
5μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
Numbers can be directly entered through the touch screen<br />
3. Trimming thickness: 0μm~800μm<br />
4. Setting range: 0μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
100μm~800μm increment value 50μm<br />
Numbers can be directly input through the touch screen<br />
5. Sample retraction: 0μm~250μm<br />
6. Horizontal specimen stroke: 30mm</p>
<p>7. Vertical specimen stroke: 70mm<br />
8. Maximal slice section: 50*45mm<br />
9. Slip precision: ± 5%<br />
10. Knife holder angle: 0~15°<br />
11. Input power: AC220V/110V frequency 50/60HZ<br />
12. Dimension: 590*440*320mm<br />
13. Net weight: 33kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 43kg<br />
Dimensions: 530*520*450mm</p>


HS-3355 Semi Automatic Microtome

Medical Equipment Hub

<p><strong>Description</strong></p>
<p>1. Reasonable layout and simple operation; fully automatic continuous sectioning function; three<br />
modes of continuous, stepping and single slice are optional, and the sectioning speed is adjustable;<br />
2. Adopting 4.3-inch touch screen design, easy to understand, Chinese and English are optional;<br />
3. External control panel, more convenient operation;<br />
4. Two sets of independent position memory function, multiple setting methods;<br />
5. The chuck position is digitalized, and the input coordinates automatically reach the coordinate<br />
position;<br />
6. Intelligent sensing half-repair function improves work efficiency. Only half a circle of the<br />
handwheel is required to achieve the repair, and no other operation is required during the whole<br />
process; after the half-knife repair is completed, turn the handwheel in a full circle to automatically<br />
switch to the sectioning mode<br />
7. Unique sample retraction function, with adjustable retraction thickness, avoids damage caused<br />
by reverse friction between the specimen tissue and the slicer, makes the blade smoother, and<br />
prolongs the service life of the blade;<br />
8. Cross-ball double guide rail design, solid structure, stable performance;<br />
9. Adopt advanced speed regulation method, small vibration, low noise;<br />
10. A variety of tissue chucks are optional, bidirectional sampling, suitable for samples of different<br />
hardness and shapes;<br />
11. The knife holder body can be accurately displaced laterally, and the full length of the blade can<br />
be used without moving the blade with fingers, avoiding danger; at the same time, each blade can<br />
be divided into three parts to cut wax block tissue, which triples the service life of the blade,<br />
compatible with wide blades and narrow blades, with built-in knife guards and knife retracting<br />
devices.<br />
12. The body surface is made of metal spraying, with high strength, corrosion resistance, smooth<br />
lines and elegant appearance.<br />
13. The handwheel can be locked in the upper and lower positions, making the slicing work safer<br />
and more convenient.<br />
14. The knife holder adopts a dovetail groove structure base, which is more accurate and stable in<br />
forward and backward movement and locking;<br />
15. The large-capacity waste chip trough with magnetic function is easy to disassemble and install,<br />
making the slicing work clean and hygienic;<br />
16. The sample positioning system with 0 position can be adjusted on the X/Y axis and the sample<br />
can be positioned horizontally at ±8 degrees;</p>
<p><strong>Main Technical Data:</strong><br />
1. Slice thickness: 0μm~100μm (3~5um is the best slicing effect)<br />
2. Setting range: 0μm~5μm increment value 0.5μm<br />
5μm~20μm increment value 1μm<br />
20μm~60μm increment value 5μm<br />
60μm~100μm increment value 10μm<br />
Numbers can be directly entered through the touch screen<br />
3. Trimming thickness: 0μm~800μm<br />
4. Setting range: 0μm~10μm increment value 1μm<br />
10μm~20μm increment value 2μm<br />
20μm~50μm increment value 5μm<br />
50μm~100μm increment value 10μm<br />
100μm~800μm increment value 50μm<br />
Numbers can be directly input through the touch screen<br />
5. Sample retraction: 0μm~250μm<br />
6. Horizontal specimen stroke: 30mm<br />
7. Vertical specimen stroke: 70mm<br />
8. Maximal slice section: 55*45mm<br />
9. Slip precision: ± 5%<br />
10. Knife holder angle: 0~15°<br />
11. Languages: 2 (Chinese and English)<br />
12. Input power: AC220V/110V frequency 50/60HZ<br />
13. Dimension: 590*440*320mm<br />
14. Net weight: 35kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Gross Weight: 45kg<br />
Dimensions: 695*525*480mm</p>


HS-3385 Fully Automatic Microtome

<p><strong>Description</strong></p>
<p>1. Sectioning thickness range: 0.5～ 100 μm，Default: 6µm<br />
2. Section Thickness Setting: 0.5～5 µm，Step 0.5µm<br />
5～20 µm，Step 1µm<br />
20～60µm，Step 5µm<br />
60～100µm，Step 10µm<br />
3. Trim Thickness range: 1～ 600 μm，Default：20µm<br />
4. Trim Thickness Setting: 1～ 600 μm，Default：20µm<br />
1～ 600 μm，Step：20µm<br />
20～50µm，Step 5µm<br />
50～100µm，Step 10µm<br />
100～600µm，Step 50µm<br />
5. Feeding Drive Mode: Driven by stepper motor, feeding is precise and stable<br />
6. Specimen Head Memory: Memorize the specimen head feeding location, after replacing the new<br />
tissue specimen, the specimen head can directly reach the memory location with one click.<br />
7. Specimen Head Retraction: Support retraction in the range of 0 to 250 µm (0µm is off). The<br />
default value is 20µm.<br />
8. Specimen Head Coarse Feeding Speed: 900～2000µm/s，Default：1800µm/s<br />
9. Specimen Head Fine Feeding Speed: 100～900µm/s，Default：300µm/s<br />
10.Horizontal Stroke of Specimen Head: 25±1mm<br />
11. Vertical Stroke of Specimen Head: 60±1mm<br />
12.Specimen Positioning: Specimen disc 360°rotation, 0 Digit Indication<br />
13.Specimen Head Return: Press the “Fast Backward” key to quickly return, and press the “Fast<br />
Backward” key again to stop the return, the return speed is 2000µm/s<br />
14.Handwheel Lock: Locked at 6 O’clock, locked at 12 O’clock<br />
15.Knife Holder: Compatible with high profile and low profile blade, horizontal movement 48mm,<br />
Angle adjustment: 0 ~ 15°<br />
Refrigeration Parameters:<br />
1.Refrigeration Positions: Multi-point refrigeration, support 4 positions refrigeration including cryo<br />
chamber, specimen head, knife holder, and freezing shelves<br />
2.Temperature Display: Temperatures of cryo chamber, specimen head, knife holder, and freezing<br />
shelves<br />
3.Temperature Setting: Specimen head: -5°C～-50 °C，default: -15℃<br />
4.Refrigeration Method: With One Compressor<br />
5.Number of Freezing Stations: 3<br />
Auxiliary Parameters:<br />
1.Disinfection Function: UV disinfection, manual disinfection, 30min, 60min, 180min optional<br />
2.Lighting: Sliding window with induction automatic lighting, support on/off control by hand, lighting<br />
brightness can be adjusted<br />
3.Data Accumulation: Sect/Trim thickness and times are cumulative and zeroable<br />
4.Automatic Standby: Stand-by time range: 1～60min; Default 5min<br />
5.Knife Anti-collision Function: Support position marking for knife anti-collision, the sign can be<br />
re-marked after moving the knife holder<br />
6.Audio Alerts: When specimen head reaches the front or the rear limit, all there will have the audio<br />
alerts<br />
7.Screen: With 5 inch colour LCD touch screen, any function and parameters can be operated and<br />
set through the touch screen, easy to operate<br />
8.Sliding Window: Single pane<br />
9.Key Panel: The left side of the device is equipped with a physical keypad, which supports common<br />
functions such as fast forward, fast backward, slow forward, slow backward, thickness modified,<br />
sect/trim conversion</p>
<p><strong>Accessory Parameters:</strong></p>
<p>1.Knife Protector: With eye-catching red colour, metal material used, fixed on the knife holder, easy<br />
to operate<br />
2.Knife Ejector: Integrated on the knife protector, blade ejected by push-button, and blade<br />
replacement is safe and quick<br />
3.Specimen Discs: Planar structure design, large contact area with freezing shelves and specimen<br />
head, higher freezing efficiency for specimen; The current standard disc is φ 35mm, one size<br />
specimen holder<br />
Power: 370W<br />
Dimension: Width * Depth * Height: 590mm(Handle Included) * 715mm * 445mm<br />
Net Weight: 70kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 815*690*595mm<br />
Gross Weight: 88KG</p>


HS2040 Benchtop Cryostat

<p><strong>Description</strong></p>
<p>1. Modular control system:<br />
Defrost automatically / manually. Each defrost time is 15 minutes by default, or the box temperature<br />
rises to -5°C during the defrosting process, the defrosting will end in advance<br />
Hibernation automatically / manually;<br />
UV sterilization;<br />
Semi-conductor refrigerant;<br />
Slice number and thickness calculation;<br />
1. Movement speeds of specimen clamp.<br />
Appearance:<br />
one-time injected model cover;<br />
Anti-fog heating glass design;<br />
Chromatic liquid crystal touch screen.<br />
Microtome<br />
light and smooth handwheel with locking device on it;<br />
Specimen clamp enables to adjust triaxially with a block in the centre to go back<br />
High precision guide rails made in Germany make transmission smooth durable and be able to cut<br />
hard sample;<br />
Retraction<br />
Freezing chamber<br />
Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile.<br />
With waste tray and instrument rack.<br />
Blade holder:<br />
Wide or narrow blades optional;<br />
A anti-fatigue cam lock ensures blades clamp tight;<br />
Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade;<br />
Glass anti rolling plate to adjust angle and gap with pressing plate;<br />
A pushing rod pops the blade out.<br />
Relative humidity for transport and storage: Maximum 60 %, non-condensing<br />
IEC 61010- 1 classification: Pollution level 2; Over-voltage category II<br />
Atmospheric pressure:700 hPa ~ 1060hPa<br />
A weighted noise level: ≤ 70 dB (A<br />
Altitude: ≤2000 m</p>
<p><strong>Main Technical Data:</strong><br />
1. Electrical:<br />
Voltage frequency: 220-240VAC,50Hz;<br />
220-240VAC,60Hz;<br />
110- 127VAC,60Hz.<br />
Main fuse: 4A<br />
Power consumption: 220-240VAC,1400VA;<br />
110- 127VAC, 1200VA;<br />
2. Refrigerating:<br />
(1) Freezing chamber<br />
The range of temperature setting : ﹣35℃-40℃ adjustable<br />
Defrost: Manual / Auto<br />
Refrigerating capacity: 690 W<br />
Refrigerate :R449A/400g±5g<br />
3. Quick -freezing shelf:<br />
Freezing shelf’s operating temperature: -40℃ ~40℃<br />
Minimum reaching temperature :-60℃ (+5℃)<br />
Number of specimen holder freezing points : 18<br />
Number of semi-conductor freezing points : 2<br />
4. Microtome technical data:<br />
Setting range of section thickness :1 um &#8211; 100 um<br />
5. Section thickness setting： a)1 um &#8211; 20 um, with a step of 1 um<br />
b)20 um &#8211; 50 um, with a step of 2 um<br />
c)50 um &#8211; 100 um, with a step of 5 um<br />
Section thickness deviation:±20%<br />
6.Trimming thickness range:<br />
1μm~600μm<br />
a)1μm~50μm, with a step of 5μm<br />
b)50μm~100μm, with a step of 10μm<br />
c)100μm~600μm, with a step of 50μm<br />
7.Sample retraction: 0~200μm adjustable, with a step of 5μm<br />
8.Specimen’s horizontal stroke :25 mm± 1mm<br />
9.Specimen’s vertical stroke :59mm±0.5mm<br />
10.Specimen’s max size: 55 mm *55 mm<br />
11.Specimen clamp ‘s max adjustable angle : 12°for X＆Y axis, 360°for Z axis<br />
12.Sample slow forward and rewind speed: 300μm/s<br />
13.Sample fast forward and rewind speed: 900μm/s<br />
14.Dimensional ：780 mm(650 without handwheel ) * 700 mm *1280 mm, ±5%<br />
Net weight: 120 kg</p>
<p><strong>Accessories:</strong><br />
<strong>Standard Setting List</strong><br />
1. Specimen Disc<br />
10 pcs<br />
Fuse (4A)<br />
2 pcs<br />
2. Appliance Stand<br />
1 pcs<br />
3. Power line<br />
1 line<br />
4. Hexagonal Wrench<br />
1 set<br />
5. Brush<br />
1 pc<br />
6. Handle<br />
1 pc<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 913*804*1467mm<br />
Gross Weight: 208±10kg</p>


Microtome Series HS-4000 Semi-automatic Cryostat

<p><strong>Description</strong></p>
<p>Round tissue bath has black non-stick coated interior to reduce glare and improve visibility. Top</p>
<p>ledge allows space for preheating or for evaporating away any remaining water. Durable fiberglass</p>
<p>insulated body prevents heat loss. Glass lid and detachable power cord for easy cleaning.<br />
Main Technical Data:<br />
1. Capacity: 2.5L<br />
2. Temperature range: RT to 75˚ C<br />
3. Outside Size: 270mm(D)*210mm(H)<br />
4. Interior Size: 210mm(D)*65mm(H)<br />
5. Power consumption: 400W<br />
6. Power supply: AC 110V/220V±10%, 50/60Hz<br />
7. Net Weight:3 kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 340*350*160mm,<br />
Gross Weight: 4kg</p>


HS-1001 Tissue Floating Water Bath

<p><strong>Description</strong></p>
<p>It is composed in three areas, water Flattening Bath, Slide Drying Bench and a multipurpose Tray.</p>
<p><strong>Features:</strong><br />
1. Adopting modular design, the three parts of water Flattening Bath, Drying slice and Baking slice<br />
have independent temperature control accurately<br />
2. Black enamel polymer bleaching tank, clear contrast when fishing, easy to operate.<br />
3. Unique corrugated drying slot design, the slides are inserted at an oblique angle of 60°, which<br />
is convenient for actual operation, and can handle 40 slides at the same time.<br />
4. The baking sheet room can hold 3 dyeing racks of 30-40 sheets, and can also put 2pcs 250ml<br />
beakers to melt the wax at the same time, which can satisfy High-volume work requirements<br />
5. The baking room can set different baking time according to the temperature, and there is an<br />
audible alarm</p>
<p><strong>Main Technical Data:</strong><br />
1. Dimension: (W-D-H) 510*340*220 mm<br />
2. Dimension of Water Bath: (W-D-H) 190*140*70 mm<br />
3. Temperature control range: three parts all adjustable from 30-90℃, automatic constant<br />
temperature<br />
4. Net Weight:11 kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 550*340*220mm,Gross Weight: 13.5kg</p>


HS-1145 Tissue Flotation Workstaion

<p><strong>Description</strong></p>
<p>1. Heat conduct fast, durable.<br />
2. Self memory of temperature.<br />
3. Display presetting temperature &#038; current temperature.<br />
4. Corrosion-resistance of the bath.</p>
<p><strong>Main Technical Data:</strong><br />
1. Range of setting temperature: ambient to 90°C (constant adjusting).<br />
2. Temperature precise error: + 2°C.<br />
3. Allowance ambient temperature: 0 &#8211; 40°C.<br />
4. Working voltage: 220 V /50 Hz.<br />
5. Power: 250 W.<br />
6. Dimensions (W x D x H): 340 x 340 x 120 mm<br />
7. Net Weight:5.3 kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Outer Case Dimensions: 450*400*200mm,<br />
Gross Weight: 7kg</p>


HS-1135 Tissue Baking Processor

<p><strong>Description</strong></p>
<p>1. Model Number: HS1125<br />
2. Short Desc: Tissue Water Bath<br />
3. Heat conduct fast, durable.<br />
4. Self memory of temperature.<br />
5. Display presetting temperature &#038; current temperature.<br />
6. Corrosion-resistance of the bath.</p>
<p><strong>Main Technical Data:</strong><br />
1. Range of setting temperature: ambient to 90°C (constant adjusting)<br />
2. Temperature precise error: +2°C.<br />
3. Allowance ambient temperature: 0 &#8211; 40°C.<br />
4. Working voltage: 220 V /50 Hz.<br />
5. Power: 200 W.<br />
6. Dimensions (W x D x H): 340 x 340 x 120 mm<br />
7. Net Weight:4.7kg</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions: 450*420*200mm,<br />
Gross Weight: 7kg</p>


HS-1125 Tissue Water Bath

<p><strong>Description</strong></p>

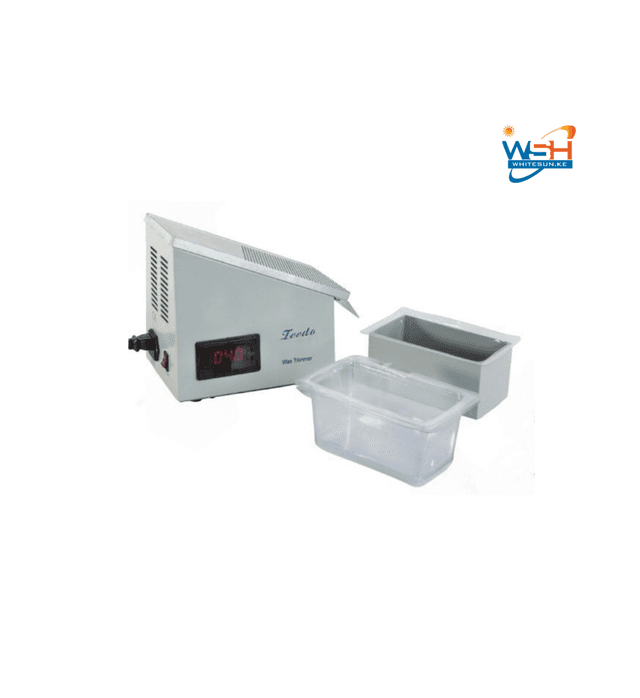

<p>The grooved heating surface channels melted wax to a removable collection tray. The collection</p>
<p>tray connects magnetically to the base of the main unit. Disposable plastic liners are included to</p>
<p>insert into the collection tray for easy disposal of runoff wax. This unit now includes a digital control<br />
panel for personalized settings.<br />
1. Remove the wax trimmer from its packaging and place it on a stable workstation. We recommend<br />
that you retain the carton and packaging.<br />
2. The wax trimmer comes with a detachable AC power cord. Connect the cord to the port located<br />
on the back of the unit. When ready to use, plug the cord<br />
into a power source.<br />
3. Attach the magnetic paraffin collection tray at the bottom of the unit and<br />
insert a plastic<br />
collection tray insert. The brim of the plastic liner can be folded down along the side of the tray that<br />
sits against the unit. The magnet will hold the collection tray in place.<br />
4. Flip the power switch to the ON position to begin use and adjust temperature. (See Operation<br />
section for instructions)<br />
OPERATION &#8211; Reference the diagrams on the next page for best use.<br />
1. Plug in your wax trimmer and flip the Power Switch to the ON position. The digital display will<br />
illuminate and display the current temperature of the unit.<br />
2. Press the SET Key (bottom left button) to switch to the temperature setting mode. The setting will<br />
blink, and you can use the up and down Temperature<br />
Setting buttons (right side buttons) to set<br />
your desired temperature. To lock in your desired temperature, press the SET Key again and the<br />
unit will begin to<br />
heat to that temperature. The unit will remember this setting during next use until<br />
it is changed.<br />
3. The suggested operating temperature for this model is 80-90° C. The user may increase or<br />
decrease the temperature to make the paraffin melt faster or slower. This model should NOT be set<br />
higher than 100° C. Temperature control range: ambient temperature ~ 110°.<br />
4. There is a red LED Light at the top left of the display to show that the unit is heating.<br />
5. Allow for up to 10 minutes of heating time to reach the desired temperature. DO NOT permit<br />
anything other than the paraffin covered cassettes to touch the heated surface. Ensure that loose<br />
sleeves, clothing, and jewelry are kept away from the heated surface. In case of injury, consult a first<br />
aid kit regarding treatment for burns or contact a doctor.<br />
6. Ensure that the cassettes are flat. Each cassette should be pulled in a downward<br />
direction against the grain of the surface. This removes excess paraffin from the side of the<br />
cassette.<br />
Net Weight :3kg<br />
Dimensions: 225*210*140mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 370*210*260mm,<br />
Gross Weight: 4kg</p>


ES-100 Wax Trimmer

<p><strong>Description</strong></p>

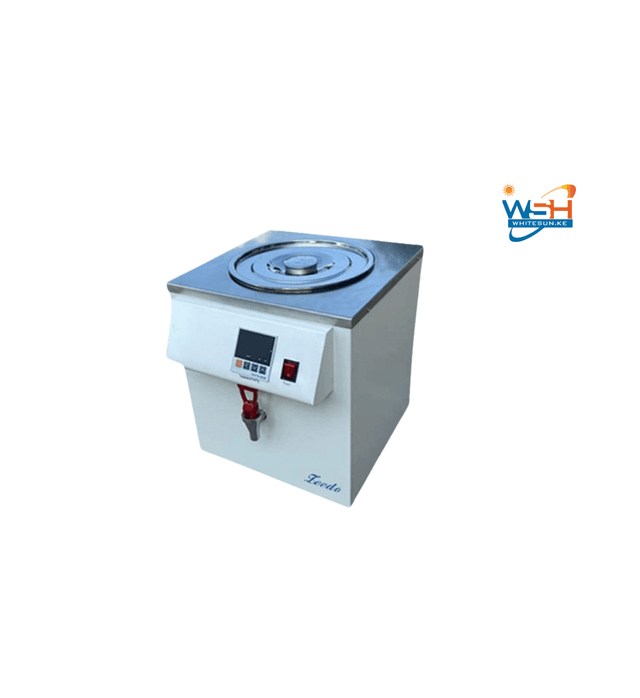

<p>1.The full automatic procedure control &#038; new heating element gives feature of quick heating &#038;<br />
energy saving<br />
2.The temperature survey integration block from American DALLAS Corporation has been used to<br />
make it precise in temperature survey and credible in performance<br />
3.It possesses the function of memorization to keep the set temperature automatically after startup<br />
4.The LED shows heating state<br />
Main Technical Data:<br />
1. Range of temperature: ambient～70℃<br />
2. Precision: ±1%<br />
3. Voltage:AC220V 50HZ / AC110V 60 HZ, Power: 1200VA<br />
4. Capacity: 10000ml<br />
5. Dimension:350*450*510mm<br />
6. Net Weight: 10KG<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 510*450*530mm,<br />
Gross Weight: 15kg</p>


ES-400 Paraffin Dispenser

<p><strong>Description</strong></p>
<p>Feature:<br />

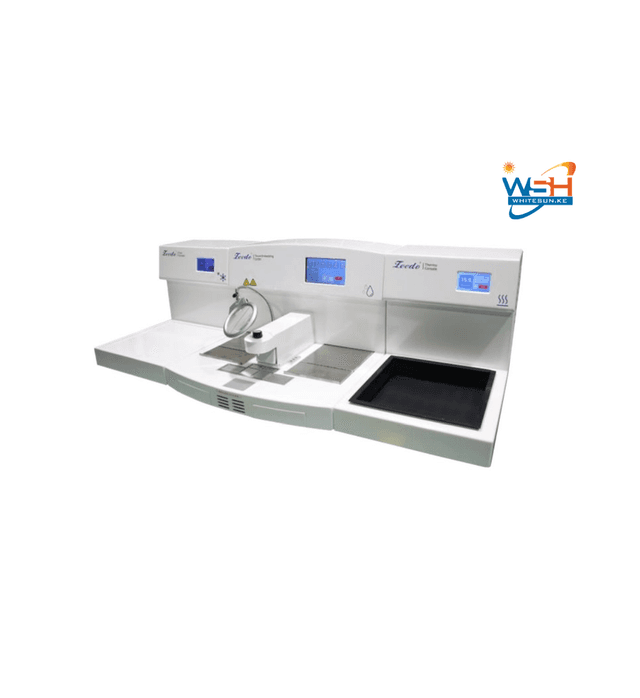

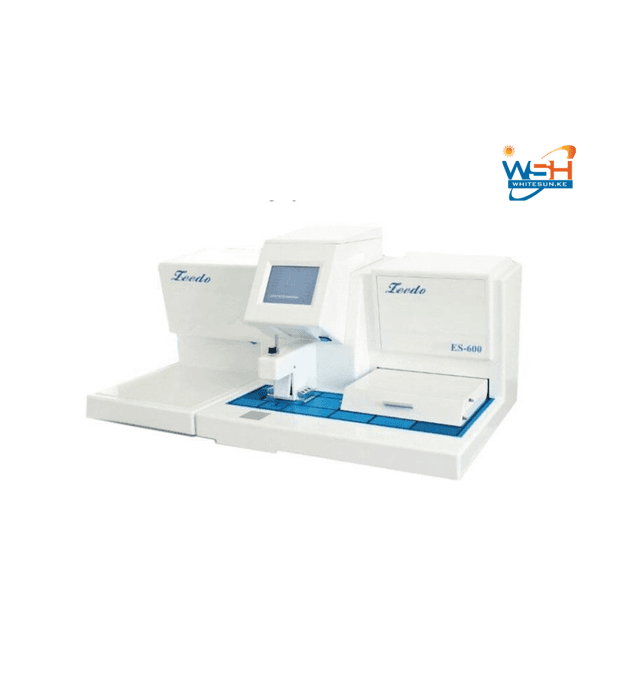

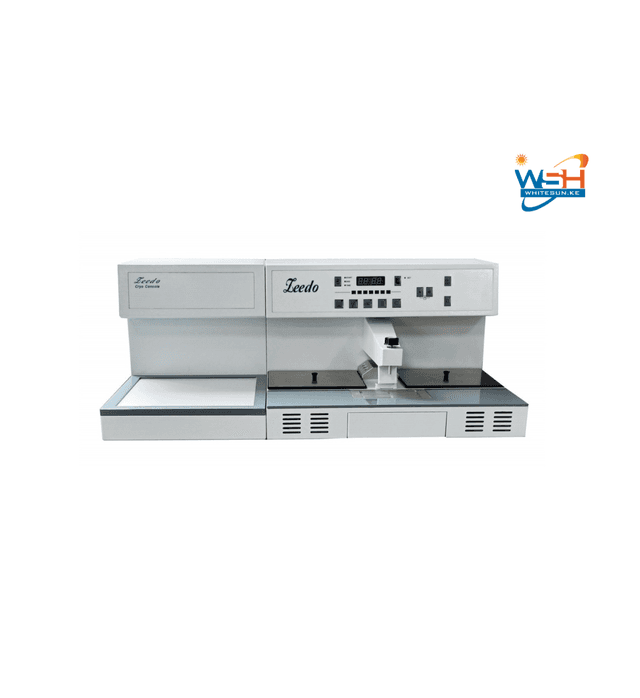

The Embedding center is composed of two modules, main console and Cryo Console. It is<br />
independent design, can put the position left-to-right or right-to-left, to meet different habits of<br />
customers. The large working surface allows user processing many samples at the same time. The<br />
temperature and work start time can be settable through the control panel.<br />
1. The machine adopts fully automatic program control, and can preset an automatic start time of<br />
7 days.<br />
2. The wax bath adopts overheating protection, safe and reliable, filtering design, effectively<br />
avoiding paraffin blockage, large capacity, and can meet the embedding of 250 tissues at a<br />
time.<br />
3. With sensitive micro switch and foot switch for operator to choose.<br />
4. It has a unique design of the embedded upper-level lighting system, with enough brightness to<br />
determine the position of the small tissue package.<br />
5. This machine has 5 independent temperature control systems, among which the temperature<br />
control of wax tank, wax nozzle, workbench, storage tank and tweezers block can be adjusted<br />
arbitrarily within the range of 0～99℃.<br />
6. With automatic power-on function, different power-on time can be set every day.<br />
7. Paraffin recovery design, high performance solenoid valve control.<br />
8. It adopts split design, embedding machine and cold table can be combined at will<br />
Cryo Console:<br />
1. It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.<br />
2. The Teflon coated surface allows a minimum ice formation and easy cleaning.<br />
3. It can be used as a standalone unit near the microtome station.</p>
<p>Main Technical Data:<br />
Main Console:<br />
1. Nominal supply voltage: 220V/50HZ or 110V/60HZ<br />
2. Maximum power draw: 600-800W<br />
3. Working temperature: From ambient to 99℃<br />
4. Increments: 1centigrade<br />
5. Capacity: Paraffin reservoir: 3.2L<br />
Cassettes/molds tray: 1.4L<br />
6.Dimensions: (W*D*H) 560*530*350mm<br />
7.Weight: 30kg<br />
Cryo Console:<br />
1. Nominal supply voltage: 220V/50HZor110V/60HZ<br />
2. Maximum power draw: 110VA<br />
3. Working temperature: From ambient to –20 centigrade<br />
4. Increments 1 centigrade<br />
5. Dimensions: (W*D*H) 345mm * 600mm * 375mm<br />
6. Weight: 24kg</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Foot Switch<br />
1 pc<br />
2. Fuse (5 A)<br />
2 pcs<br />
3. Power line<br />
2 line</p>
<p><strong>Optional Accessories</strong><br />
1. Temperature sensor<br />
Package Info:<br />
1. Each instrument packed Wooden Case<br />
2. Dimensions for Main console: 650*600*570 mm<br />
3. Dimensions for Cryo console: 650*440*570 mm<br />
4. Gross Weight for main console: 42 kg<br />
5. Gross Weight for Cryo console: 35kg</p>


ES-300 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1. Reasonable layout, simple and convenient operation.<br />
2. Adopting a 7-inch touch screen display, the temperature display of each functional module is clear,<br />
and both Chinese and English languages are optional.<br />
3. Using PID constant temperature algorithm, precise temperature control with a control accuracy of<br />
0.1℃.<br />
4. Real time temperature curve display, making temperature control more intuitive.<br />
5. Fast heating, uniform heating, superior performance, independent temperature control for each<br />
branch, dual overheating protection for the temperature control system, safer and more reliable.<br />
6. Intelligent wax melting mode, more efficient and intelligent.<br />
7. Fully automatic program control, 7*24-hour automatic running time setting, more convenient;<br />
Equipped with memory and automatic recovery functions, it automatically retains the preset<br />
temperature after operation.<br />
8. Large capacity wax melting cylinder, capable of accommodating 600 wax blocks for embedding at<br />
once.<br />
9. Manual and pedal dual waxing method.<br />
10. The wax production time and flow rate can be adjusted.<br />
11. Automatic shadowless lighting, adjustable brightness and lighting time.<br />
12. Split design, the embedding machine and cryo console can be combined freely.<br />
13. The left and right boxes, as well as the inner and outer boxes, are designed to be separated for<br />
easy removal, wax replacement, and maintenance.<br />
14. A spacious workbench with wax block repair device and flow channel design to prevent paraffin<br />
overflow.<br />
15. Equipped with a universal metal hose magnifying glass, suitable for handling extremely small<br />
specimen tissues; Configure a semiconductor small cooling platform for instant cooling, facilitating<br />
rapid positioning and embedding of specimens.<br />
16. Lifetime free software upgrade.<br />
 Main Technical Data:<br />
Main Console:<br />
1. Wax cylinder capacity: 6L<br />
2. Temperature control of wax cylinder, paraffin dispenser, working surface, left and right tank, and<br />
tweezers block: 0-99℃<br />
3. Environmental temperature: 0℃~45℃<br />
4. Net weight: 25.5kg<br />
5. Dimension: 650 * 647 * 465mm<br />
6. Voltage: 220V 50Hz<br />
7. Power: 800W<br />
8. One time can handle 100 organizations<br />
Cryo Console<br />
1. Cooling temperature setting range: room temperature~-20 ℃<br />
2. Power supply voltage: 220V, 50Hz<br />
3. Power: 200W<br />
4. Environmental temperature: Room temperature<br />
5. Dimension: 632*410*446mm<br />
6. Net weight: 20kg<br />
Thermal Console<br />
1. Power supply voltage: 220V, 50Hz<br />
2. Power: 500W<br />
3. Environmental temperature: 0~45 ℃<br />
4. Relative humidity: ≤85%<br />
5. Heating temperature setting range: 30~90 ℃<br />
6. Working temperature: 30~70℃<br />
7. Dimension: 410*660*450mm<br />
8. Net weight: 11.5kg<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions for main console: 760*750*700mm<br />
Dimensions for cryo console: 720*490*640mm<br />
Dimensions for thermal consol: 720*490*640 mm<br />
Gross weight for main console: 50kg<br />
Gross weight for cryo console: 45kg</p>


ES-500 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1．Automatic program control, It can be setting the operation time for any day, any time, any<br />
minute<br />
2．In a week<br />
3．The machine is composed of two molds,main console and cold plate. It is independent desi<br />
gn, can put the position left to-right or right to -left<br />
4．The large 6L capacity allows user processing 400 tissues at the same time.<br />
5．With manual operation and pedal switch for the operator to choose<br />
6．LED light for embedding space<br />
7．Tweezers storage cylinder is convenient for user<br />
8．Touching LCD scree is simple and convenient, and it is clear at a glane<br />
Main Technical Data:<br />
Main Console:<br />
Model No.: ES600<br />
Wax cylinder volume: 6L<br />
Dimensions: 600 *650 * 450mm<br />
Weight:<br />
40kgs.<br />
Voltage: 220V 50Hz<br />
Power: 1500w<br />
Heater temperature setting range: ambient to 99 ℃<br />
Temperature for the heat preservation tank ambient to 99 ℃<br />
Temperature for the operation table:<br />
ambient to 99 ℃<br />
Working environmental temperature:<br />
0 ℃ &#8211; 45 ℃<br />
Cryo Console:<br />
The size for the cooling surface: 365*330mm<br />
Dimension: 380*650*450mm<br />
Voltage: 110v-240v; 50Hz-60Hz<br />
Power: 120W<br />
The temperature for the cooling plate: -20 degree<br />
Accessories:<br />
Standard Setting List<br />
1. Foot Switch<br />
1 pc<br />
2. Fuse (5 A)<br />
2 pcs<br />
3. Power line<br />
2 line<br />
Optional Accessories<br />
1.Temperature sensor<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 1190*750*760 mm,<br />
Gross Weight: 100 kg</p>


ES-600 Tissue Embedding System

<p><strong>Description</strong></p>
<p>1. English menu, man-machine interaction, simple operation. Prompt judge and automatic<br />
processing in case of abnormal condition, which can prevent the tissue from being damaged.<br />
2. Double-control heat without water<br />
3. Based on different tissues, several running programs available for customers<br />
4. Self-provided power supply can continue to operate for 4 to 6 hours during a power outage. The<br />
tissue protection cylinder can be automatically operated after a power outage. Does not contain<br />
heated paraffin. If the temperature of the heated wax cylinder does not reach the set<br />
temperature, the tissue will not enter the wax cylinder and return to the protection cylinder to<br />
wait. High degree of intelligence<br />
5. Environment friendly: The air as purified through internal circulation can be exhausted off the<br />
window.<br />
6. With transmission of gear and rack, mechanical failures can be reduced.<br />
7. With 16 sets of editable programs, intelligent operation and operation.</p>
<p><strong>Main Technical Data:</strong><br />
1. 12 tanks (3 wax cylinders in the end)<br />
2. Capacity of single- tanks: 1000ml<br />
3. Cylinder start dwell time 45-100 seconds.<br />
4. Basket can hold 60 specimens<br />
5. Single tanks processing time: set arbitrarily in the range of 0 to 99 hour(s)<br />
6. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Tissue basket<br />
1 pc<br />
3. The exhaust pipe<br />
1 pc<br />
4. Tissue cassette<br />
20 pcs<br />
5. Fuse (5 A)<br />
2 pcs<br />
6. Power line<br />
1 line</p>
<p><strong>Optional Accessories</strong><br />
1. Extra Tank<br />
2. Tissue Basket<br />
Net Weight: 60kg<br />
Dimensions: 1010*390*450mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 85kg<br />
Dimensions: 1140*560*580mm,</p>


HS-1000 Automatic Tissue Processor

<p><strong>Description</strong></p>
<p>1.</p>
<p>English menu, man-machine interaction, simple operation.</p>
<p>2.<br />
Double-control heat without water<br />
3.<br />
Based on different tissues, several running programs available for customers<br />
4.<br />
Self-provided power supply can continue to operate for 4 to 6 hours during a power outage.<br />
The tissue protection cylinder can be automatically operated after a power outage. Does not<br />
contain heated paraffin. If the temperature of the heated wax cylinder does not reach the set<br />
temperature, the tissue will not enter the wax cylinder and return to the protection cylinder to<br />
wait. High degree of intelligence<br />
5. Environment friendly: The air as purified through internal circulation can be exhausted off the<br />
window.<br />
6.<br />
With transmission of gear and rack, mechanical failures can be reduced.<br />
7. The surface of the machine body adopts APS static electricity, spraying process, high strength,<br />
corrosion resistance, streamlined appearance and easy to clean.<br />
8. There are three sets of temperature control systems to ensure that one set is in normal use and<br />
two sets are on standby. Real-time display of temperature during operation<br />
9.<br />
With 16 sets of editable programs, intelligent operation and operation.</p>
<p><strong>Main Technical Data:</strong><br />
1. Tanks: 12 Tanks (3 wax Tanks in the end)<br />
2. Capacity of single tank: 1500ml<br />
3. Basket can hold 75 specimens<br />
4. Single-tanks processing time: Randomly set within the range from 0 to 99 hour(s).<br />
5. The temperature of wax cylinder can be randomly set within the range of 99℃.<br />
6. Cylinder start dwell time 45-100 seconds.<br />
7. Tissue-protection cylinder sequence: 7th cylinder<br />
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best</p>
<p><strong>Accessories</strong>:<br />
Standard Setting List<br />
1. Tanks<br />
12 pcs<br />
2. Tissue basket<br />
1 pc<br />
3. The exhaust pipe<br />
1 pc<br />
4. Tissue cassette<br />
20 pcs<br />
5. Fuse (5 A)<br />
2 pcs<br />
6. Power line<br />
1 line</p>
<p><strong>Optional Accessories</strong><br />
1. Extra Tank<br />
2. Tissue Basket<br />
Net Weight: 67kg<br />
Dimensions: 1130*400*500mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 100 kgs<br />
Dimensions: 1260*570*640 mm,</p>


HS-1500 Automatic Tissue Processor

<p><strong>Description</strong></p>
<p>1. English menu, man-machine dialogue, easy to operate.<br />
2. With 16 sets of editable programs, intelligent operation and operation.<br />
3. Power failure protection function, automatically switch to the built-in power supply after power<br />
failure, it can continue to operate for 4 to 6 hours during a power outage. The tissue protection<br />
cylinder can be automatically operated after a power outage. Does not contain heated paraffin.<br />
If the temperature of the heated wax cylinder does not reach the set temperature, the tissue will<br />
not enter the wax cylinder and return to the protection cylinder to wait. High degree of<br />
intelligence, also configure high-power battery, to ensure that the program is completed in one<br />
time.<br />
4. Add specimens at any time during the running of the program; you can switch the paraffin bath<br />
to warm the wax at any time. Real-time display of program content, heating status, set<br />
temperature, real-time temperature and other operating status.<br />
5. The scheduled boot time can be set at any time according to the needs of the work.<br />
6. The surface of the machine body adopts APS static electricity, spraying process, high strength,<br />
corrosion resistance, streamlined appearance and easy to clean.<br />
7. Fully sealed dehydration operation, external exhaust device ensures a green and<br />
environmentally friendly working environment.<br />
8. There are three sets of temperature control systems to ensure that one set is in normal use and<br />
two sets are on standby. Real-time display of temperature during operation<br />
9. Heating status at a glance, temperature control accuracy ± 1 ° C<br />
10. Automatic switch machine can set the time arbitrarily within one year<br />
Main Technical Data:<br />
1. 12 liquid cylinders (3 of which are wax cylinders)<br />
2. Single cylinder volume: 2200ml<br />
3. Basket can hold125 specimens<br />
4. Single cylinder working time: arbitrarily set within 0-24 hours<br />
5. Temperature setting: 0-99 °C arbitrary setting<br />
6. Cylinder start dwell time: 45-100 seconds.<br />
7. Organization protection cylinder position 7.<br />
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best<br />
9. Power supply: AC220V±10%, 50HZ±10%<br />
10. Power: ≤500WProduct Function:<br />
Net Weight: 82kg<br />
Dimensions: 1250*410*560mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 107kg<br />
Dimensions: 1330*540*740mm</p>


HS-2000 Automatic Tissue Processor

<p><strong>Description </strong></p>
<p>1. This machine can run both single hanging basket and double basket, one dehydrator is</p>
<p>equivalent to two hanging baskets;</p>
<p>2. Large LCD touch screen, all English menu, simple and clear operation;<br />
3. Adopt intelligent program control technology to protect equipment and specimens ,Intelligent<br />
separate protection specimen in case of failure ： When the dehydrator fails before the<br />
anhydrous alcohol cylinder, the tissue is protected in the fixed cylinder; when the dehydrator<br />
fails before the paraffin cylinder and after the anhydrous alcohol cylinder, the tissue is protected<br />
in the anhydrous alcohol cylinder; when the hanging basket fails in the paraffin cylinder<br />
dehydrator, the tissue is protected in the paraffin cylinder;<br />
4. Adopt new water heating mode, low pressure contactless temperature control technology, more<br />
safe. Reagent cylinder can be fully heated to avoid the effect of dehydration due to the<br />
difference of temperature in winter and summer.<br />
5. The new generation environmental protection design idea, adopts the dual purification function,<br />
and matches with the full seal internal circulation filtration, guarantees the operator not to be<br />
harmed by the harmful gas.<br />
6. The &#8220;self-checking&#8221; item is displayed on the operating screen of the dehydrator, which has the<br />
function of preventing the abnormal protection of the card cylinder, and can display the running<br />
state and various functions in real time.<br />
7. Power failure protection, in the state of sudden power failure, maintain program memory, and<br />
complete the whole process of dehydration (can maintain more than 16 hours of normal<br />
operation).<br />
8. Can set the hanging basket stay filtrate time and the hanging basket oscillation times of the<br />
design of the starting cylinder filtrate, to avoid the former cylinder reagent into the latter cylinder<br />
caused by mixing.<br />
9. Reasonable setting of single cylinder cover and elastic sealing technology to avoid reagent<br />
volatilization.<br />
10. Small specimens can be added at any time；Flexible programming, different tissues can start<br />
from any solution container to the end of any solution container, to obtain the best dehydration<br />
effect of different tissues;<br />
11. Adopt international popular synchronous tooth belt, digital program control positioning, make<br />
the operation more accurate.<br />
12. The steel linear guide rail is used to fit the step motor to make the operation more accurate.<br />
13. Hanging basket take-off and landing back using two-column two-dimensional soft transmission<br />
mechanism, transmission stability, no noise, no hard wear;<br />
14. Can set up 24 sets of operating procedures, imported core chip, powerful, no external magnetic<br />
field interference.<br />
15. Remote alarm system, failure, dehydrator can automatically dial the operator&#8217;s phone, so that<br />
you can know at any time whether the equipment is safe operation;<br />
16. Has the intelligent key function (does not look at the screen also can operate), when the display<br />
screen does not display and the touch function damage, the dehydrator main function may<br />
operate normally;<br />
Main Technical Data:<br />
1. Volume of individual reagent containers：2000ml<br />
2. of reagent containers：14pcs<br />
3. Hanging basket filtrate：Time can be adjusted arbitrarily<br />
4. Number of dehydrated tissues：About 200 pcs (100 pcs in a single hanging basket)<br />
5. Processing time in a single container：0~99 hours adjustable<br />
6. Power supply：AC220V±10%<br />
50HZ<br />
7. Power：500W<br />
8. Net Weight: 116kg<br />
9. Dimensions: 1300*600*600mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Gross Weight: 173kg<br />
Dimensions: 1380*680*740mm</p>


LTP-400 Double Basket Tissue Processor

<p><strong>Description</strong></p>
<p>1.Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and<br />
reliable work<br />
2. The starting cylinder can be set and has the function of customizing the cylinder position<br />
3.If Have optional function that can provide power -off protection （UPS).<br />
4.Adopting agitation (vacuum) mode for dehydration.<br />
5.Screen showing information is English, easy to use.<br />
6. Time setting range: It can be turned on any day or every day, the working time of each cylinder<br />
can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the<br />
minimum is 0 for the rest<br />
7.Wax jar adopt constant temperature control system. Temperature precision high: defend<br />
pollution.<br />
8.Adopting 9 slices 1.2Lmedicine aquarium, at any moment observe tissue change at work.<br />
9. There are 10 programs selectable<br />
10. It can be equipped with power supply according to user requirements, and can operate for 4-6<br />
hours for other functions besides wax bath after power failure to ensure the safety of the<br />
organization<br />
11. Anti-collision stopping device for hanging basket。<br />
Main Technical Data:<br />
1. Steps of processing tissue: 12 steps.<br />
2. Glass container: Quantity—9capacity-1.2L.<br />
3. Wax cup: quantity—3capacity—1L.<br />
4. Temperature range—60-99℃ .<br />
5. Process: Each cup working hours—0～59hr59min.<br />
6. Conditions of use: Ambient temperature: +5℃～40; Ambient humidity: <85% (at 20±5℃)
7. Vertical reciprocative motion of tissue basket: 3 times/min
8. Tissue basket specification: Barrel tissue basket--￠95x100mm.
9. Layer nacelle---￠95x80mm Five layers.
10. Power: 400~500W
11. Rated voltage: AC220 V 50HZ /AC110V 50HZ

<strong>Accessories</strong>:<br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Paraffin wax tank<br />
3 pcs<br />
3. wax tank connection line 3 pcs<br />
4. Tissue basket<br />
1 pc<br />
5. Tissue cassette<br />
20 pcs<br />
6. Hexagonal Wrench<br />
1 pc<br />
7. Screwdriver<br />
1 pc<br />
8. Fuse (5A)<br />
2 pcs<br />
9. Power line<br />
1 line<br />
Optional Accessories: Vacuum<br />
Extra paraffin tank<br />
Extra reagent tank<br />
Net Weight: 53kg<br />
Dimensions: 670*550*680mm</p>
<p><strong>Package Info:</strong><br />
Each instrument packed Wooden Case<br />
Dimensions (for machine):750*760*700 mm,<br />
Dimensions (for tanks) :600*400*550mm<br />
Gross Weight: 100 kg</p>


HS-566 Spin Tissue Processor

<p><strong>Description</strong></p>
<p>1. Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and<br />
reliable work<br />
2. The starting cylinder can be set and has the function of customizing the cylinder position<br />
3. Have optional function that can provide power -off protection （UPS).<br />
4. Adopting agitation (vacuum) mode for dehydration.<br />
5. Large LCD screen showing every step of processing and easy for monitoring, 160*90mm<br />
(7inch)<br />
6. Timing: The configurable delay time is 30 days<br />
7. Time setting range: It can be turned on any day or every day, the working time of each cylinder<br />
can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the<br />
minimum is 0 for the rest<br />
8. Constant temperature controlling system adopted on the paraffin jar to ensure high precision of temperature controller. Internal surface oxidation treatment.<br />
9. There are 10 programs selectable</p>
<p>10. It can be equipped with power supply according to user requirements, and can operate for 4-6<br />
hours for other functions besides wax bath after power failure to ensure the safety of the<br />
organization<br />
11. Anti-collision stopping device for hanging basket。<br />
Main Technical Data:<br />
1. Carousel type with 12 stations,9 reagent container, 3wax paraffin container<br />
2. Option: two basket loading。<br />
3. Capacity: 2.3 L for reagent container, 1.8 L for wax paraffin container<br />
4. Temperature of wax container: 60-99℃.<br />
5. Tissue baskets made of metal with varying capacities of up to 100 cassettes<br />
6. Tissue basket stirring 1 minute interval every 5 minutes.<br />
7. Battery backup 4 hours (Optional)<br />
8. Ergonomic control panel with foil – protected keyboard and LCD<br />
9. Infiltration time separately programmable for each station<br />
10. Easy editing and changing of programs even during a processing run<br />
11. Programmable infiltration time: 30days per station; Delayed time, 30days.<br />
12. Programs Number: 10, selectable<br />
13. Vacuum device pressure: max 0.05 Mpa (approx 0.5 bar)<br />
14. Standard tissue baskets: Size: Φ 130X110mm<br />
15. Number: 1 (2 optional), Capacity: max 90 cassettes<br />
16. Instrument dimension: Φ780mm X height: 570mm-690mm<br />
17. Nominal voltage: AC220 V 50HZ/AC110V 50HZ<br />
Nominal frequency: 50Hz<br />
18. Power: 400~500W<br />
Accessories:<br />
Standard Setting List<br />
1. Reagent bottle<br />
9 pcs<br />
2. Paraffin wax tank<br />
3 pcs<br />
3. Paraffin wax tank connection line 3 pcs<br />
4. Tissue basket<br />
1 pc<br />
5. Tissue cassette<br />
20 pcs<br />
6. Hexagonal Wrench<br />
1 pc<br />
7. Screwdriver<br />
1 pc<br />
8. Fuse (5A)<br />
2 pcs<br />
9. Power line<br />
1 line</p>
<p>Optional Accessories<br />
1. Extra paraffin tank<br />
2. Extra reagent tank<br />
Net Weight: 70kg<br />
Dimensions: 780*570*690mm<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions (for machine):880*880*800 mm,<br />
Dimensions (for tanks): 620*410*530mm,<br />
Gross Weight: 110 kg (Bubble goods to 150 kg)</p>


HS-569 Spin Tissue Processor (Vacuum)

<p><strong>Description</strong></p>
<p>1. Single cylinder processing capacity 220 orderly arranged standard embedding cassettes.<br />
2. The main switch of the tissue dehydration cylinder cover is required to be a mechanical handle<br />
and have an unlocked alarm device.<br />
3. A 10-inch color LCD touch screen is used as the user interface. The screen is adjustable at<br />
multiple angles rather than fixed gears to ensure a clear field of vision.<br />
4. Independent liquid and gas passages, and the gas in the airway can be liquefied and discharged<br />
into the waste liquid bottle through a uniquely designed condenser tube, without leakage of polluted<br />
gas.<br />
5. The dehydration cylinder cover has a transparent glass window for easy observation of the status<br />
in the dehydration cylinder.<br />
6. Timing function: The completion time of tissue dehydration on any day of the week can be set.<br />
7. It has a power-off protection function. After a power outage, the instrument can automatically<br />
work in sequence from the breakpoint.<br />
8. There are 10 sets of tissue processing programs for users to set and choose.<br />
9. Reagent management system: Set the use cycle of reagents and paraffin according to the<br />
number of embedded cassettes processed, the number of days the reagents are used, or the<br />
number of dehydration times. The system automatically counts and prompts to replace reagents<br />
and paraffin when the threshold is reached. Alcohol and paraffin are automatically replaced in<br />
gradient.<br />
10. One-touch free switching between conventional dehydration and rapid dehydration. Start the<br />
rapid dehydration program during the day to quickly dehydrate small specimens, and complete<br />
dehydration in ≤3 hours. Start the conventional dehydration program at night.<br />
11. Gas pressure conversion device: A mechanical structure device completes the gas pressure<br />
conversion, avoiding the high failure rate caused by the solenoid valve.<br />
12. Automatic wax replacement function: After the first cylinder of paraffin is discharged into the<br />
waste wax cylinder, the original second cylinder of paraffin enters the first cylinder, and then the<br />
original third cylinder of paraffin enters the second cylinder, and the third cylinder is added with new<br />
wax.<br />
13. Automatic reagent rotation function: After the first cylinder of the same reagent is discharged into<br />
the waste liquid cylinder, the system will automatically use the reagent in the correct order (arranged<br />
from low to high according to cleanliness) and discharge it into the previous reagent cylinder after<br />
use, without the need to manually rotate the position of the reagent bottle.<br />
14. Multiple safety protection functions: 2 liquid level sensors sense the lowest and highest liquid<br />
levels, prompt and stop operation protection functions; over-temperature detection and power-off<br />
protection functions of the working room; automatic alarm function when the working room cover is<br />
not locked.<br />
15. Magnetic stirring function shortens the specimen dehydration time and achieves better<br />
dehydration effect.<br />
16. There are sound and screen prompts when the work is finished.<br />
Main Technical Data:<br />
1.Number of reagent bottles: 9<br />
2. Number of wax cylinders: 3<br />
3. Cleaning bottles: 3<br />
4. Activated carbon bottle: 1<br />
5. Waste liquid box: 1<br />
6. Dehydration cylinder volume: 6L<br />
7. Reagent bottle volume: 4L<br />
8. Studio heating temperature: When the medium is solvent, the temperature is 0℃-45℃, when the<br />
medium is paraffin, the temperature is 55℃-70℃, adjustable.<br />
9. Working pressure: positive pressure 0-30Kpa negative pressure -70-0Kpa, adjustable.<br />
10. Wax tank temperature: 55℃-70℃, adjustable<br />
11. Paraffin melting time is less than 3 hours.<br />
12. Immersion setting time: 0-300 minutes, adjustable.<br />
13. Liquid inlet time: 0-5min; liquid discharge time 0-5min adjustable.<br />
14. Stirring time: arbitrarily set, stirring interval time: arbitrarily set<br />
15. Machine size: 650*650*1020mm<br />
16. Net weight: 142kg<br />
Accessories:<br />
Standard Configuration List<br />
1. Main unit 1<br />
2. Reagent bottles 9<br />
3. Cleaning bottles 3<br />
4. Activated carbon bottle 1<br />
5. Waste liquid box 1<br />
4. Dehydration basket 1 set<br />
5. Stirring rods 2<br />
6. Shovel 1<br />
7. Stainless steel plate 1<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions: 750*750*1330mm<br />
Gross Weight: 180kg</p>


ATP-200 Tissue Processor

<p><strong>Description</strong></p>
<p>1. This machine is an automated tissue processor with beautiful appearance, unique design and<br />
technological innovation. When processing specimens, you can choose heating, pressurizing,<br />
vacuum, normal pressure and other modes to meet the processing of various types of<br />
specimens.<br />
2. Working and resting are in a fully sealed state, which can effectively avoid the volatilization and<br />
loss of reagents, reduce operating costs, and create a clean working environment.<br />
3. When processing specimens, the specimens are in a fully sealed state, and the fluid is changed<br />
without changing the cylinder, which subverts the traditional dehydration mode and effectively<br />
avoids tissue damage. There is no danger of specimen damage caused by power outages,<br />
cylinder jams or other mechanical failures of traditional dehydrators.<br />
4. The tissue processing boxes can store 3.8L/5.3L/6.8L reagents. The unique software control,<br />
three-stage discharge system and special design of the processing bottle reduce the carryover of reagents.<br />
5. Adopting a color touch screen that is easy to observe, the interface is intuitive and clear, and</p>
<p>easy to operate.<br />
6. This machine has a scheduled automatic operation function, which can be set to automatically<br />
start at any time on any day within 15 days.<br />
7. After the work is completed, the machine will have sound and screen prompts.<br />
8. The computer control system is sensitive and reliable, and has multiple sets of user programs<br />
for users to set and choose.<br />
9. The liquid and gas circuit control systems are sensitive and reliable, and can completely<br />
evacuate the liquid in the reagent bottle.<br />
10. With over-temperature protection function for accidental heating out of control.<br />
11. It has a power-off protection function (optional function). After a power-off, the instrument can<br />
automatically work in sequence from the breakpoint when the power is restored.<br />
12. Can process 126/267/356 tissue specimens each time. The special specimen processing<br />
basket is extremely convenient to pick up and place the specimen basket, and the operation<br />
can be completed with one hand.<br />
13. Number of programs:10 programs</p>
<p><strong>Main Technical Data:</strong><br />
1. Reagent bottle capacity: 2.3L(100 cassettes)<br />
3.2L(200 cassettes)<br />
4.8L (300 cassettes)<br />
2. 10 reagent bottles, 2 cleaning bottles, 1 filter, 1 backup (also can use be filter) ,3 wax cylinders<br />
3. Retort volume: 3.8L(100 cassettes)<br />
5.3L(200 cassettes)<br />
6.8L (300 cassettes)<br />
4. Wax cylinder volume: 2.6(100 cassettes)<br />
4.3(200 cassettes)<br />
5.5L(300 cassettes)<br />
5. Reagent temperature range: 30℃-65℃<br />
6. Wax bath temperature: 50℃-70℃<br />
7. Stirring time: 0-5 minutes<br />
8. Stirring time interval: 10 minutes<br />
9. Operation mode: manual and automatic<br />
10. Input power: 1000W<br />
11. Power supply voltage: 220V 50Hz</p>
<p><strong>Accessories:</strong><br />
Standard Setting List<br />
1. Tissue Basket<br />
1 pcs<br />
2. Reagent Bottle<br />
17 pcs<br />
3. Fuse (10A)<br />
2 pcs<br />
4. Power line<br />
1 line<br />
5.<br />
Optional Accessories:<br />
1. Tissue Basket<br />
2. Regent Bottle<br />
3. Vacuum or not<br />
Net Weight: 98kg (100 cassettes) /123kg (200 cassettes)/130kg(300 cassettes)<br />
Dimensions: 550*600*1180mm (100 cassettes)<br />
625*700*1250mm (200 cassettes)<br />
625*700*1250mm (300 cassettes)<br />
Package Info:<br />
Each instrument packed Wooden Case<br />
Dimensions (for 3kinds capacity machine):<br />
700*680*1390mm / 800*740*1460mm/ 800*740*1460mm,<br />
Gross Weight: 130kg/165kg/172kg</p>


ATP-300 Closure Tissue Processor (100/200/300cassettes)

<p><strong>Description</strong></p>
<p>1. Single Tank Capacity: 330 standard embedding cassettes arranged in an orderly manner.<br />
2. Mechanical handle : for chamber lid with &#8220;lid unsecured&#8221; alarm.<br />
3. User Interface: 15-inch adjustable-angle color LCD touchscreen interface.<br />
4. Independent Liquid and Gas Pathways: Unique condenser design to liquefy gases in the air<br />
pathway and discharge them into a waste bottle, ensuring no contaminated gas leakage.<br />
5. Transparent Lid Window: Allows for easy observation of the interior of the processing tank.<br />
6. Timer Function: Ability to set the tissue processing completion time for any day of the week.<br />
7. Power Failure Protection: Automatic resumption of processing from the point of interruption upon<br />
power restoration.<br />
8. Pre-set Programs: 10 tissue processing programs for user customization and selection.<br />
9. Reagent Management System: Tracks the number of processed cassettes, days of reagent use,<br />
or processing cycles to determine reagent and wax replacement intervals. Automatic counting and<br />
alerts for reagent and wax replacement. Automatic gradient replacement of alcohol and wax.<br />
10. One-touch Switching: Seamless transition between routine and rapid processing modes. Rapid<br />
processing for small specimens can be completed in less than 3 hours during the day, while routine<br />
processing is conducted at night.<br />
11. Gas Pressure Conversion Device: Mechanical structure for gas pressure conversion, avoiding<br />
high failure rates associated with solenoid valves.<br />
12. Automatic Wax Replacement: The first wax tank drains into the waste wax tank, the second wax<br />
tank moves to the first, the third wax tank moves to the second, and new wax is added to the third<br />
tank.<br />
13. Automatic Reagent Rotation: After the first tank of a reagent is drained into the waste tank, the<br />
system automatically uses the reagents in the correct order (from least to most clean) and drains<br />
them into the previous reagent tank, eliminating the need for manual rotation.<br />
14. Multiple Safety Protections: Two liquid level sensors for minimum and maximum levels,<br />
providing alerts and stopping operation if necessary. Over-temperature detection and power failure<br />
protection.<br />
15. Magnetic Stirring Function: Reduces processing time and improves dehydration quality.<br />
16. Reagent Bottle Detection: Equipped with optical positioning and blue backlighting for real-time<br />
insertion verification, ensuring dehydration process integrity. Activates yellow light flashing and<br />
audible alarm for improper placement. Features backlit graduated scale for enhanced liquid level<br />
visibility under blue-transmitted illumination.<br />
17. Fault-triggered Phone Alert: Equipped with malfunction-triggered telephone alarm functionality.<br />
18. Completion Alerts: Audible and on-screen notifications upon completion of processing.</p>
<p><strong>Main Technical Data:</strong><br />
1. Processing tank volume: 6L<br />
2. Reagent bottle volume: 6L<br />
3. Reagent Bottle Quantity:<br />
  9 reagent bottles<br />
  3 cleaning bottles<br />
  1 activated carbon filter<br />
  1 waste liquid container<br />
4. Wax Cylinder Quantity: 3 tanks.<br />
5. Workspace Heating Temperature: 0°C-45°C for solvents; 55°C-70°C for wax, adjustable.<br />
6. Working Pressure: Positive pressure: 0–30 kPa; Negative pressure: -70–0 kPa (adjustable).<br />
7. Wax Tank Temperature: 55°C-70°C, adjustable.<br />
8. Wax Melting Time: less than 3 hours.<br />
9. Immersion Time Setting: 0-300 minutes, adjustable.<br />
10. Liquid Inlet/Outlet Time: 0-5 minutes, adjustable.<br />
11. Stirring Time: Arbitrarily settable; Stirring interval: Arbitrarily settable.<br />
12. Dimensions: 650*650*1420mm<br />
13. Net weight: 167kg</p>
<p><strong>Accessories:</strong><br />
Standard Configuration List<br />
1. Main Unit<br />
, 1 unit<br />
2. Reagent Bottles<br />
,13 tanks<br />
3. Waste Wax Container<br />
,1 unit<br />
4. Processing Baskets<br />
,1 set<br />
5. Stirring Rods<br />
,2 units<br />
6. Spatula<br />
,1 unit<br />
7. Stainless Steel Tray<br />
,1 unit</p>


ATP-300 Plus Tissue Processor

<p>Product code: WSG 286994</p>
<p>MSLMV10 VETERINARY ANAESTHESIA MACHINE</p>
<p>&nbsp;</p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h2>Protable Veterinary Anesthesia Machine MSLMV10</h2>
<p>Special Feature<br />
*Specifically deigned surical locations wherever space is limited,ideal for office base anesthesia</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028117669.jpg" alt="" /><br />
*No electricity will be needed,only manual operation</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028112323.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028111181.jpg" alt="" /><br />
*Ventilation mode:Closed,Semi-closed,Semi-open</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028117275.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028118736.jpg" alt="" /><br />
*Classical CO2 circle absorber is with 1 canister,low resistance,minimum gas leakage,60cmH2O peak pressure protection</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028465845.jpg" alt="" /></p>
<p>Option<br />
*Anesthesia ventilator<br />
*Trolley</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028462206.jpg" alt="" /></p>
<p>Specification:<br />
*Volum(manual Mode):20-1500ml</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028466067.jpg" alt="" /><br />
*Gas Supply:02+N2O:0.25-0.65Mpa<br />
*Flowmeter:O2:0.1-10l/m,N2O2:0.1-10l/m</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028467167.jpg" alt="" /><br />
*O2 Flush:25-75L/min<br />
*CO2 Canister:1000ml</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220222/202202220028467468.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>


MSLMV10 VETERINARY ANAESTHESIA MACHINE

<p>Product code: WSG 286995</p>
<p>MSLVP03 VET INFUSION PUMP (WITHOUT DRIP)</p>
<p>&nbsp;</p>
<h3 data-spm-anchor-id="a2700.details.0.i57.5d7577b46FYQlT">Other attributes</h3>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Model Number : MSLVP03</div>
</div>
<div class="attribute-item">
<div class="left">Product name : <span data-spm-anchor-id="a2700.details.0.i64.5d7577b46FYQlT">Vet Infusion pump</span></div>
</div>
<div class="attribute-item">
<div class="left">Name: Animal Use Veterinary Infusion Pump</div>
</div>
<div class="attribute-item">
<div class="left">Voltage: 110v-220v</div>
</div>
<div class="attribute-item">
<div class="left">Infusion Mode: Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode</div>
</div>
<div class="attribute-item">
<div class="left">Rate Unit: Ml/h, volume/time, d/min</div>
</div>
<div class="attribute-item">
<div class="left">IV Sets: Standard single use IV sets</div>
</div>
<div class="attribute-item">
<div class="left">Flow Rate: 1.0ml/h~1200ml/h</div>
</div>
<div class="attribute-item">
<div class="left">Self-Testing: Yes</div>
</div>
<div class="attribute-item">
<div class="left">Warranty: 12 Months</div>
</div>
<div class="attribute-item">
<div class="left">Keyword: Veterinary Infusion pump</div>
</div>
</div>


MSLVP03 VET INFUSION PUMP (WITHOUT DRIP)

<p>Product code: WSG 286996</p>
<div>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">
<h2>Safe and reliable vet syringe pump MSLVP04</h2>
<p>Safe and reliable<br />
1.1 Using double CPU design, reliable data transmission, safer syringe.<br />
1.2 High precision occlusion pressure sensors design, 8 levels adjustable of sensitivity occlusion pressure.<br />
1.3 Real-time self-testing,real-time self-testing when startup and during syringe process, ensure the safety of each component and each function, safer syringe.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017267826.jpg" alt="" /><br />
1.4 Automatic switching between AC and DC power supply , battery backup time more than 9hours under double channel are using, ensure no interruption when no AC power supply or in moving condition.<br />
1.5 Alarm prompt with sound, light and message, 8 adjustable level of alarm volume.<br />
1.6 Dynamic pressure value display,and real-time detect occlusion pressure status.<br />
1.7 Various alarm, avoid the suddenly accidents during infusion process.<br />
1.8 Motor anti-reverse function, avoid preventing upstream absolutely.<br />
1.9 10000 event log, which reduce doctor-patient disputes and promote harmony between doctors and patients.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017262786.jpg" alt="" /></p>
<p>2. User friendly<br />
2.1 Numeric keypad input, very user friendly.<br />
2.2 Screen 3.5 inch big brightness LCD, display visually rich content and intuitive.<br />
2.3 As the ATM easy operation menu, that is according people operation hobbits.<br />
2.4 No need to open the battery door when maintain, easy to maintain.<br />
2.5 Claw push rod, easily to install the syringe.<br />
2.6 Freedom of choice between automatic primed and manual primed, displaying the purge rate, accurately knows the total amount of purge volume.<br />
2.7 Displaying the Increment, VIBI, Total Volume, Brand and Sets of Syringe, Mode, Battery Volume, Occlusion pressure value, the key parameters display clearly.<br />
2.8 Empty settings, syringe will be stop when finish all the fluid inside the syringe, no need to set the VTBI again.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017266290.jpg" alt="" /></p>
<p>3. Deviation and effective<br />
3.1 The deviation of all international standard IV set are within ±2% after calibration.<br />
3.2 Pulse compensation technology, more precise injection.<br />
3.3 Automatic calibration, able to calibrate different brand syringe, more precise syringe.<br />
3.4 Able to store more than 25 brands of infusion sets, user friendly.<br />
3.5 The position of alarm light is highlighted, visible in directions from a long distance.<br />
3.6 Cannot use the new syringe without calibration, ensure the accuracy and safety of the syringe.<br />
3.7 Able to auto-recognize such five different mode syringe , 5ml, 10ml, 20ml, 30ml, 50(60)ml , and save syringe deviation<br />
automatically.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017262533.jpg" alt="" /></p>
<p>4. Advanced technology<br />
4.1 Multiple syringe mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with usage habits.<br />
4.2 Display 10 levels brightness adjustable, energy saving and environmental protection.<br />
4.3 Both Chinese and English language are available for use by foreign doctors.<br />
4.4 The install method can be rotated by 90 degrees, which is convenient to use in different environments.<br />
4.5 It is can be modified that the alarm time of fluid near empty, remind the medical staff prepare to replace the liquid medicine in advance.<br />
4.6 Channel sleep function when syringe stop, keep quiet of environment.<br />
4.7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle blood does not coagulate.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20210912/202109122017265313.jpg" alt="" /><br />
4.8 Can be transmitted the event log to PC with USB, information and system upgrade and maintenance.<br />
4.9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.<br />
4.10 Password function, avoid the risk of system parameters being modified by irrelevant personnel.<br />
4.11 The rate of micro mode is adjustable from 0.10 to 99.99, which avoid the incorrect input with high syringe rate.<br />
4.12 The gear setting function of occlusion pressure deviation is suitable all of different brand syringe occlusion pressure question.</p>
<table cellspacing="0">
<tbody>
<tr>
<td>NO</td>
<td>Item</td>
<td>Technical Parameter</td>
</tr>
<tr>
<td>1</td>
<td>Injection Mode</td>
<td>Constant Rate, Time mode, Drug Weight,<br />
Micro, Sequential, Drug Library Mode</td>
</tr>
<tr>
<td>2</td>
<td>Syringe Size</td>
<td>5ml, 10ml, 20ml, 30ml, 50/60ml, auto recognition</td>
</tr>
<tr>
<td>3</td>
<td>Flow Rate Range</td>
<td>5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h<br />
20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h<br />
50/60ml: 0.10ml/h-1200.00ml/h</td>
</tr>
<tr>
<td>4</td>
<td>Flow Rate Increment</td>
<td>0.01ml/h</td>
</tr>
<tr>
<td>5</td>
<td>Preset Time</td>
<td>1s-99hr59min59s</td>
</tr>
<tr>
<td>6</td>
<td>Parameter Changed During Injection</td>
<td>Support change of VTBI, flow rate during injection</td>
</tr>
<tr>
<td>7</td>
<td>Accuracy</td>
<td>≤±2%(±1% mechanical accuracy included)</td>
</tr>
<tr>
<td>8</td>
<td>Preset Volume(VTBI)</td>
<td>0.1~9999.99ml &amp; empty</td>
</tr>
<tr>
<td>9</td>
<td>Accumulated Volume</td>
<td>0.00~999.99ml</td>
</tr>
<tr>
<td>10</td>
<td>Purge Rate</td>
<td>5ml: 30-60ml 10ml: 150-300ml 20ml: 200-400ml<br />
30ml: 300-600ml 50/60ml: 600-1200ml</td>
</tr>
<tr>
<td>11</td>
<td>Bolus Rate</td>
<td>5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h<br />
20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h<br />
50/60ml: 0.10ml/h-1200.00ml/h</td>
</tr>
<tr>
<td>12</td>
<td>KVO</td>
<td>0.10-5.0ml/h adjustable</td>
</tr>
<tr>
<td>13</td>
<td>Occlusion Pressure</td>
<td>8 level adjustable, 20Kpa-140Kpa, dynamically<br />
pressure value display.</td>
</tr>
<tr>
<td>14</td>
<td>Alarm</td>
<td>Finished, near finished, near empty, empty, occlusion,syringe disconnected, no operation, parameter error,syringe size error,low battery,<br />
battery lost, battery ran out, AC power lost, abnormal injection,communication error.</td>
</tr>
<tr>
<td>15</td>
<td>Syringe Management</td>
<td>Preset 20 syringe brands, can add or edit the brand,accept all brands after calibration.</td>
</tr>
<tr>
<td>16</td>
<td>Display</td>
<td>3.5&#8242; TFT color LCD, 10 level brightness adjustable.</td>
</tr>
<tr>
<td>17</td>
<td>Power Supply</td>
<td>AC power, AC:100V~240V, 50Hz/60Hz,≤25VA</td>
</tr>
<tr>
<td>18</td>
<td>Communication Port</td>
<td>USB, RJ45 for future use, Ethernet Port</td>
</tr>
<tr>
<td>19</td>
<td>Syringe Size</td>
<td>5ml, 10ml, 20ml, 30ml, 50/60ml, auto recogintion</td>
</tr>
<tr>
<td>20</td>
<td>Battery</td>
<td>Rechargeable Lithium battery, DC11.1V, 3000mAh,<br />
operating time: ≥9h@5ml/h</td>
</tr>
<tr>
<td>21</td>
<td>Alarm Voice</td>
<td>Standard Medical Alarm Voice with Mute function,<br />
8 levels adjustable.</td>
</tr>
<tr>
<td>22</td>
<td>Event log</td>
<td>1000 event log, can be transmitted to PC with USB</td>
</tr>
<tr>
<td>23</td>
<td>Software Upgrade</td>
<td>Upgrade the software with USB</td>
</tr>
<tr>
<td>24</td>
<td>Operation Environment</td>
<td>Temperature: +5℃~+40℃, Relative humidity:20%~90%,<br />
Atmospheric pressure:70~106Kpa</td>
</tr>
<tr>
<td>25</td>
<td>Classification</td>
<td>Class II, Type CF, IPX4</td>
</tr>
<tr>
<td>26</td>
<td>Dimension</td>
<td>Size: 275mm*145mm*160mm, Weight: 2.1KG</td>
</tr>
<tr>
<td>27</td>
<td>Other Function</td>
<td>Double CPU, Password function, Multi Language,<br />
Pressure Release function, 90°rotatable IV pole,<br />
4 soft function key, key lock function, numeric keypad, Pause function etc.</td>
</tr>
<tr>
<td>28</td>
<td>Application</td>
<td>Intravenous injection</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>


MSLVP04 VET SYRINGE PUMP

<p>Product code: WSG 286997</p>
<div class="rich-text-table"><strong>Basic information</strong></div>
<div>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">Model NO. S9V</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Application : Bovine, Canine, Equine, Feline, Ovine</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Display Formats : B+B, 4b, B+Pw, B+Cw, B+M, B+Color</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Imaging Modes : B Mode, M Mode, Thi Mode, Cdi Mode, Dpi Mode, Tdi</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Scan Methods : Electronic Curved Array, Electronic Linear Array</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Transport Package : Carton</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Specification : 55.0*55.0*68.0cm</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Trademark : MSL</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Origin : Guangdong China</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl"></div>
</div>
</div>
</div>
</div>


S9V Sonoscape

<p>Product code: WSG 286998</p>
<div class="rich-text-table">
<table>
<tbody>
<tr>
<td>Item</td>
<td>MSLSY30</td>
</tr>
<tr>
<td>Top diameter</td>
<td>≤Φ8.0mm</td>
</tr>
<tr>
<td>Input tube</td>
<td>≤Φ8.0mm</td>
</tr>
<tr>
<td>Biopsy channel</td>
<td>≥Φ2.0mm</td>
</tr>
<tr>
<td>Working length</td>
<td>≥1500mm</td>
</tr>
<tr>
<td>Total length</td>
<td>≥1800mm</td>
</tr>
<tr>
<td>Field of view</td>
<td>≥140º</td>
</tr>
<tr>
<td>Depth of field</td>
<td>≥3-100mm</td>
</tr>
<tr>
<td>Image solution</td>
<td>≥1000000pixels CMOS</td>
</tr>
<tr>
<td>Bending angles</td>
<td>≥ up210º down≥90º left&amp;right≥100º</td>
</tr>
<tr>
<td>Image frozen</td>
<td>images frozen,Video and picture record</td>
</tr>
</tbody>
</table>
</div>
<p>2.<b>parameter of processer&amp; light source</b><b> (LED light)</b></p>
<div class="rich-text-table">
<table>
<tbody>
<tr>
<td>Contrast adjustment</td>
<td>0-100</td>
</tr>
<tr>
<td>Image adjustment</td>
<td>Color,Tone,Saturation<br />
adjustment level: 0-100</td>
</tr>
<tr>
<td>Sharpness adjustment :</td>
<td>0-3 grade</td>
</tr>
<tr>
<td>Image enhance</td>
<td>0-30</td>
</tr>
<tr>
<td>White balance</td>
<td>Auto/manual white balance</td>
</tr>
<tr>
<td>Pump</td>
<td>pressure 30-80Mpk,<br />
air supply 4L/min-10L/min</td>
</tr>
<tr>
<td>illuminance</td>
<td>≥200000Lx,<br />
LED light source 30000hours life.</td>
</tr>
<tr>
<td>Brightness</td>
<td>0-100</td>
</tr>
<tr>
<td>Main function</td>
<td>Large screen frozen, small screen display continue .Digital widescreen and picture in picture function.<br />
With USB interface support picture and video record function<br />
With USB keyboard can Patient information entry function</td>
</tr>
</tbody>
</table>
</div>


MSLSY30 VET GASTROSCOPE

<p>Product code: WSG 286999</p>
<p><strong>Portable medical diagnostic x ray machine Features</strong></p>
<p>1) Simple &amp; light structure;</p>
<p>2) 6-segment LED display;</p>
<p>3) Anatomical memories for 24 selection program;</p>
<p>4) Double-loop (analog &amp; digital) high precision control mode;</p>
<p>5) High precision control in tube voltage &amp; current;</p>
<p>6) Self-protection &amp; auto-diagnosis available when malfunction occurs.</p>
<p><strong>Specifications</strong></p>
<table border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Model</td>
<td>MSLPX01</td>
</tr>
<tr>
<td rowspan="3">Power supply</td>
<td>Voltage: AC220V± 10%, 50/60Hz ± 1Hz</td>
</tr>
<tr>
<td>Capacity: ≥5kVA;</td>
</tr>
<tr>
<td>Internal resistance: ≤0.5Ω</td>
</tr>
<tr>
<td>Maximum output power</td>
<td>P =110kV×36mA=4kW</td>
</tr>
<tr>
<td>Nominal output power</td>
<td>100kV,40mA,0.1s,4kW</td>
</tr>
<tr>
<td>Frequency</td>
<td>≥40kHz</td>
</tr>
<tr>
<td>kV adjustable range</td>
<td>40kV~110kV, continuous regulation, stepping 1kV</td>
</tr>
<tr>
<td>mA adjustable range</td>
<td>36mA~70mA</td>
</tr>
<tr>
<td>mAs adjustable range</td>
<td>1mAs-200mAs,continuous regulation, stepping 1kV</td>
</tr>
<tr>
<td>Exposure time adjustable range</td>
<td>0.04s~3.2s</td>
</tr>
<tr>
<td rowspan="2">X ray tube</td>
<td>Focus: 0.6/1.5mm,</td>
</tr>
<tr>
<td>Thermal Capacity: 76kHU</td>
</tr>
<tr>
<td>Anatomical program</td>
<td>24 memory choices available</td>
</tr>
<tr>
<td rowspan="2">Accessories</td>
<td>Standard: manual switch,cable</td>
</tr>
<tr>
<td>Optional: mobile steel support</td>
</tr>
</tbody>
</table>


MSLPX01 PORTABLE X RAY MACHINE

<p>Product code: WSG 287000</p>
<p>Model:YSB-DU30A<br />
Efficient Diagnosis<br />
Thin and Light weight Design<br />
15.6 inches 1920X1080 HD Display<br />
High Degree of Integration<br />
Easy to Operation Multi-function Knob<br />
Built-in Battery Life More Than 4 hours<br />
Speckle and Noise Supperession<br />
IMT Automatic Vascular Intima Measurement<br />
Automatic Envelope Spectrum Measurement<br />
Multiple Application and Software Package<br />
Support 3D Imaging<br />
Characteristics<br />
Add new Pan function<br />
Light and thin design<br />
Tilting Monitor Angle Adjustment<br />
2 Transducer Ports<br />
Backlit and standard Keyboard<br />
Quick knob of menu parameter adjust<br />
Auto Image Optimized<br />
Auto Spectrum Trace and Measure<br />
Editable Report Page<br />
Solid-state Hard Disk<br />
Rich Interface<br />
HDMI Port<br />
DICOM Port<br />
LAN Port<br />
VGA Port<br />
USB Port<br />
Optional<br />
3D Free Hand Rebuilding software<br />
Convex/Linear/Cavity/Micro-convex/Rectal<br />
Height Adjustable Trolley</p>


MSLCU02 laptop Ultrasound + convex probe

<p>Product code: WSG 287002</p>
<p><strong>Applications: </strong><br />
Ovine, Goat, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.</p>
<p><strong>Features : </strong></p>
<p>5&#8243; FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.</p>
<p>Hand-held design, smart and light, easy to carry, convenient for detection.</p>
<p>OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.</p>
<p>Automatically calculate back-fat and lean percentage of swine.</p>
<p>128 frames permanent storage, 256 frames cine loop.</p>
<p>Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.</p>
<p>Easy to print out all kinds of detection images and reports.</p>
<p>Optional mouse to operate easier.</p>
<p>Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.</p>
<p><strong>Specifications:</strong></p>
<p>Detect Depth(mm): ≥140</p>
<p>Blind zone(mm): ≤3</p>
<p>Monitor size: 5 inch</p>
<p>Display mode: B, B+B, B+M, M, 4B</p>
<p>Image gray scale: 256</p>
<p>Image storage: 128</p>
<p>Cine loop: ≥400 frame</p>
<p>Scan depth: 120mm-220mm</p>
<p>Image flip: up/down, left/right</p>
<p>Focus position: Adjustable</p>
<p>Posture mark: 15</p>
<p>Image process: Histogram, color encode, gama, image smooth</p>
<p>Probe frequency: Adjustable ( 3 point each probe )</p>
<p>Frame correction: Adjustable</p>
<p>Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.</p>
<p>Notation: date, time, name, sex, age, full screen words edit and etc.</p>
<p>Output report: regular</p>
<p>Output: USB2.0, VIDEO( PALD, NTSC)</p>
<p>Charging method: adapter, battery</p>
<p>Adapter rating: 100-240V～, 50-60Hz, 70VA</p>
<p>Battery: 2600mAh, continuous work: ≥3 hours</p>
<p>Machine dimension: 230mm(L)x120mm(W)x38mm(H)</p>
<p>Net weight: 700g</p>


MSLVU22 Handed Ultrasound + Rectal probe

<p>Product code: WSG 287002</p>
<h3>Description：</h3>
<p>1. The height of the operating table is lifted and lowered by electric control, and the lower tank is equipped in the middle;<br />
2. The left and right sides of the operating table can be tilted by 5°-15° respectively.<br />
3, the operating table can be tilted 45 ° in front of the front, using electric operation;<br />
4. The whole machine is compact in structure, reliable and reasonable in performance, and easy to operate;<br />
5. The column and base cover are made of 304 stainless steel, which is resistant to high temperature, corrosion and rust;<br />
6, the work surface temperature adjustment range 0-60 °, automatic constant temperature function, you can adjust the temperature at will;<br />
7, built-in high temperature protector, safe and reliable;<br />
8. The operating table is equipped with a buckle for the convenience of fixing, simple and firm.</p>


MSLWL18 Animal operating Table

<p>Product code: WSG 287002</p>
<p><strong>Other attributes</strong></p>
<h3 data-spm-anchor-id="a2700.details.0.i63.6bbf3abdoiWPzq">Other attributes</h3>
<div class="attribute-list">
<div class="attribute-item">
<div class="left">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number : MSLDWL18</div>
</div>
<div class="attribute-item">
<div class="left">Product name : Pet operation table</div>
</div>
<div class="attribute-item">
<div class="left">Application: All animal</div>
</div>
<div class="attribute-item">
<div class="left">Standrad: animal use standard</div>
</div>
<div class="attribute-item">
<div class="left">Size: small/larger</div>
</div>
<div class="attribute-item">
<div class="left">Material : Stainless steel SUS#304</div>
</div>
<div class="attribute-item">
<div class="left">Part: infusion rack/plate/bucket/brake caster/universal caster</div>
</div>
<div class="attribute-item">
<div class="left">Lifting method: Hydraulic/electrict</div>
</div>
<div class="attribute-item">
<div class="left">Working environment: Voltage 220V±10%</div>
</div>
<div class="attribute-item">
<div class="left">Temperature&amp;Humidity: 0-60℃ &amp; &lt;85% RH</div>
</div>
</div>
<div class="attribute-list">
<div class="attribute-item"></div>
</div>
<p>&nbsp;</p>


MSLWL17 Animal operating Table

<p>Product code: WSG 287003</p>
<p><strong>Other attributes</strong></p>
<p>Place of Origin: China</p>
<p>Brand Name : MSL</p>
<p>Model Number : MSLVCT04</p>
<p>Product name : Vet CT scan</p>
<p>Image Size: 39.4cm*31.5cm</p>
<p>Pixel Pitch : 154μm</p>
<p>A/D Conversion : 16 bit</p>
<p>Highest rate : 60fps (2*2Binning)</p>
<p>Output power of High-voltage Generator : 15kw</p>
<p>Input Voltage : 220VAC (50/60HZ)</p>
<p>Max Tube Voltage : 120kV</p>
<p>Max mA: 160mA</p>
<p>Focal Point Size :0.3mm/0.6mm</p>
<p>&nbsp;</p>


MSLVCT04 VET CT

<p>Product code: WSG 287004</p>
<h2>Specifications</h2>
<p>Pet immunofluorescence analyzer MSLYT05 PRINCIPLE<br />
sandwich lateral flow immunochromatographic assay<br />
REAGENTS AND MATERIALS<br />
●Test card<br />
●Disposable capillary droppers<br />
●Cotton swab<br />
●Assay buffers<br />
●Products Manual<br />
STORAGE AND STABILITY<br />
The kit can be stored at room temperature (4- -30° C). The test kit is stable through the expiration date (24 months) marked on the package label. DO NOT FREEZE. Do not store the test kit in direct sunlight.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>PACKAGE: 10 Tests per kit, 20 kits per carton<br />
TEST TIME: 5-10 Min.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>Test medthod: Lateral chromatography(Immunofluorescence)<br />
Detection channel: Single<br />
Language<br />
Software tanguage can be customized in simplified Chinese,English and French, Rrench,Russian,Spanish ect.<br />
Dispiay screen: 7 inch high resolution LCD Touch screen.</p>
<p>Pet immunofluorescence analyzer MSLYT05</p>
<p>Pinter: Built-in thermal printer<br />
Work environment: +5~40C, ≤80%RH, 86~106KPa<br />
Power supply: 100V~240V， 50~60Hz， 40VA<br />
Lithium Battery: ≥2400mAh，11.1V<br />
N.W: 1.65kg (without power adaptor)</p>
<p>The test must ensure that the English name and batch number of the c card product are consistent with the name on the aluminum foil bag of the strip to be tested and the batch number on the back</p>
<p>Insert the if-10 instrument with the front side of the strip upward according to the direction of the arrow</p>
<p>The company is equipped with pipette gun with a range of 5-50 μ L. if the sampling and sample adding volume is 100 μ L, the sample shall be taken twice</p>


MSLYT05 VET FLUORESCENCE MACHINE

<p>Product code: WSG 287005</p>
<h2>Specifications</h2>
<p>Model Number    MT-460<br />
Product name    Veterinary CT Machine<br />
Application    Animal Health Diagnosis<br />
Model    MT-460<br />
Scan duration    24 seconds<br />
Total exposure duration    8 seconds<br />
Weight-bearing of bed    &lt;60kg<br />
Low noise    70db<br />
Compact structure    266*167*160cm<br />
X-ray source    Rotating anode<br />
Tube voltage    40-125kv</p>
<p>&nbsp;</p>


MSLCTX01 VETERINARY CONE BEAM COMPUTED TAMOGRAPHY

<p>Product code: WSG 287006</p>
<p>Hematology analyzer Main Features:</p>
<p>    19 parameters + 3 histograms<br />
    60 tests/hour<br />
    9.7µL sampling volume for testing<br />
    8.4 inches touch screen<br />
    Storage report >1000 cases</p>


MSLHAS01

<p style="padding-left: 40px;">Product code: WSG 287158</p>
<p>MSLHW2003A Gynecological Bed</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<div class="desc_contents">
<p><strong> </strong></p>
<div class="attribute-list">
<div class="attribute-item"></div>
<div class="right"></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHW2003A Gynecological Bed

<p style="padding-left: 40px;">Product code: WSG 287160</p>
<p>MSLHW503B &#8211; 01 Lithotomy stirrup Leg Frame</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<div class="desc_contents">
<p><strong>Description summery</strong></p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i67.2f657952ymbZ5g">Material</div>
<div class="right">metal</div>
</div>
<div class="attribute-item">
<div class="left">Instrument classification</div>
<div class="right">Class II</div>
</div>
<div class="attribute-item">
<div class="left">Safety standard</div>
<div class="right">ISO</div>
</div>
<div class="attribute-item">
<div class="left">Place of Origin</div>
<div class="right">Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name</div>
<div class="right">MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number</div>
<div class="right">MSLHW503B-01</div>
</div>
<div class="attribute-item">
<div class="left">Power Source</div>
<div class="right">Electric</div>
</div>
<div class="attribute-item">
<div class="left">Shelf Life</div>
<div class="right">2 years</div>
</div>
<div class="attribute-item">
<div class="left">Quality Certification</div>
<div class="right">ce</div>
</div>
<div class="attribute-item">
<div class="left">Product name</div>
<div class="right">Lithotomy Stirrup Leg Frame</div>
</div>
<div class="attribute-item">
<div class="left">Model</div>
<div class="right">MSLHW503B-01</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Length</div>
<div class="right">1000mm</div>
</div>
<div class="attribute-item">
<div class="left">Max Weight Capacity</div>
<div class="right">180kg</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever upward</div>
<div class="right">+90°</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever down</div>
<div class="right">-35°(Adjustable angle≥125° )</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Horizontal Inside</div>
<div class="right">≥25°</div>
</div>
<div class="attribute-item">
<div class="left">Cantilever Horizontal Outreach</div>
<div class="right">≥30°</div>
</div>
<div class="attribute-item">
<div class="left">Packing</div>
<div class="right">45*55*110cm</div>
</div>
<div class="attribute-item">
<div class="left">Application</div>
<div class="right"><span data-spm-anchor-id="a2700.details.0.i68.2f657952ymbZ5g">enterology, urology,obstetric, gynecology lithotomy,endoscopic surgery</span></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHW503B - 01 Lithotomy stirrup Leg Frame

<p style="padding-left: 40px;">Product code: WSG 287161</p>
<p>MSLEDP02 ELECTRIC DERMTOME</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div>
<h2>pecifications</h2>
<div class="desc_contents">
<h2><strong>Anti-liquid grade electric dermatome machine MSLEDP02 Technical Parameters</strong></h2>
<p>Power supply: AC220V + 10%; 50Hz + 1Hz<br />
Skin thickness: 0-0.75 mm and incremental interval: 0.05 mm<br />
Skin width: 2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, 10.2 cm<br />
Removable  handle connection line<br />
Control mode: Handheld control, easy to operate;<br />
Sterilization mode: whole machine can be sterilized under high temperature and pressure</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232118128144.jpg" alt="" /></p>
<h3><strong>Protection against shock electric dermatome machine MSLEDP02 Characteristic</strong></h3>
<p>Weight: 1.18 kg<br />
Length: 232 mm<br />
Height: 138 mm<br />
Width: 170 mm<br />
Voltage: ac220v ± 10%;<br />
Power: 150 va;</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232125519935.jpg" alt="" /></p>
<p>Frequency: 50 Hz ± 1 Hz.<br />
Power output: 14.5v DC, 4.3a maximum<br />
Protection level: i level<br />
Anti-shock type: bf type</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20191223/201912232126547381.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEDP02 ELECTRIC DERMTOME

<p style="padding-left: 40px;">Product code: WSG 287163</p>
<p>MSLGT06 CT INJECTION</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<div class="desc_contents">
<div></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLGT06 CT INJECTION

<p style="padding-left: 40px;">Product code: WSG 287164</p>
<p>MSLZT01 NITROUS OXIDE SEDATION</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="left">
<h2>Specifications</h2>
<div class="desc_contents">
<h3><strong>TECHNICAL  SPECIFICATION</strong></h3>
<h3>Ventilation mode</h3>
<ul>
<li>Continuous gas supply</li>
<li>On-demand gas supply</li>
<li>Rapid oxygen supply</li>
<li>Manual</li>
</ul>
<div>
<h3></h3>
<h3>Ventilatorion parameter range</h3>
<div>Oxvgen concentration             30%- 100%</div>
<div>Nitrous oxide concentration     0%- 70%，</div>
<div>On-demand gas                       0-30Lmin.</div>
<div>Pressure trigger (RtW)            -1cmH2O ~ -10cmH2O</div>
<div>Gas supply time                       1s- 6S</div>
<div>Peak flow                                  ≥601 /min.</div>
<div>Manual ventilation flow             0- 30L /min</div>
<div>Rapid oxygen flow                    25L/min &#8211; 75L/min</div>
<div>Pressure limit                           5cmH2O- 60cmH2O</div>
</div>
<p>&nbsp;</p>
<h3>Monltorlng parameter</h3>
<div>Oxygen concentration      30%- 100%.</div>
<div>Ainway pressure              0- 60cmH2O.</div>
<div>Flow                                 0- 30L/min.</div>
<div></div>
<h3><strong>Oscillogram</strong></h3>
<div>P-T (pressure &#8211; time)</div>
<div></div>
<div>
<h3>Alarm and protectlon</h3>
<div>The AC power failure alarm               Power failure or no cocnio</div>
<div>Builin badkup bttery low vllage          &lt;11.3土0.3V</div>
<div>High oxygen concentration alarm     31% &#8211; 100%，</div>
<div>Low axygen concentration alarm      30% &#8211; 99%，</div>
<div>High ainway pressure alarm              5cmH2O &#8211; 60cmHO</div>
<div>Pressure limit                                     0cmH2O &#8211; 60cmHO</div>
<div>Emergency ar Input                           when machine mafunction</div>
<div>Nitrous axide dlosure function           Whenoxygenpressures200kPa</div>
<div>Low gas source input pressure         Pressure s 200kPa</div>
<div></div>
<div>
<h3>Working conditlons</h3>
<div>Gas source                 O2, N2O</div>
<div>Pressure                     280kPa &#8211; 600kPa</div>
<div>Voltage                       110V &#8211; 240V.</div>
<div>Power frequency         50/60Hz.</div>
<div></div>
<div></div>
</div>
</div>
<h3>Size</h3>
<div>Wooden case packing size          L 570 * W 780 * H 1400 mm</div>
<div>G.W                                             80KG</div>
<div>NW                                              35KG</div>
<div>Wooden case packing size          L 465 * W 465 * H 505 mm</div>
<div>G.W                                             37KG</div>
<div>N.W                                             15K</div>
<div>Total CBM                                    0.73m3</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLZT01 NITROUS OXIDE SEDATION

<p style="padding-left: 40px;">Product code: WSG 287165</p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left">MSLSY26 VIDEO GASTROSCOPE SET</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLSY26 VIDEO GASTROSCOPE SET

<p style="padding-left: 40px;">Product code: WSG 287166</p>
<p><strong>MSLEK51 100W electrosurgical unit</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left"></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEK51 100W electrosurgical unit

<p style="padding-left: 40px;">Product code: WSG 287167</p>
<p><strong>MSLUS01 ultrasonic scapel</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<div class="desc_contents">
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i59.25a35f9cOlePvl">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i58.25a35f9cOlePvl">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number: MSLUS01</div>
</div>
<div class="attribute-item">
<div class="left">Product name : Ultrasonic Scalpel System</div>
</div>
<div class="attribute-item">
<div class="left">MOQ : 1 PCS</div>
</div>
<div class="attribute-item">
<div class="left">Name : MSLUS01</div>
</div>
<div class="attribute-item">
<div class="left">Brand : MSL</div>
</div>
<div class="attribute-item">
<div class="left">Color : Silver</div>
</div>
<div class="attribute-item">
<div class="left">Warranty     : 1 Year / 12 Months</div>
</div>
<div class="attribute-item">
<div class="left">DEMISSION: 58*58*25</div>
</div>
<div class="attribute-item">
<div class="left">Weight: 15</div>
</div>
<div class="attribute-item">
<div class="left">Use: Ultrasonic Scalpel</div>
</div>
<div class="attribute-item">
<div class="left">Language: Multiple Languages Choice</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLUS01 ultrasonic scapel

<p style="padding-left: 40px;">Product code: WSG 287168</p>
<p><strong>MSLEC39 Digital 12 Channel ECG Machine</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h1>Isoflurane Anesthesia or other Gas Anesthesia Machine &#8211; MSLGA01</h1>
<p>Anesthesia medical equipment</p>
<p>1. Medical <a href="http://www.medicalequipment-msl.com/">anesthesia machine</a></p>
<p>2. Vertical anesthesia equipment</p>
<p>3. <a href="http://www.medicalequipment-msl.com/htm/portable-anesthesia-machine/">Mobile anesthesia machine</a></p>
<p>4. <a href="http://www.medicalequipment-msl.com/htm/anesthesia-gas-machine/">Anesthesia gas machine</a></p>
<p><a href="http://www.medicalequipment-msl.com/htm/anesthesia-machines/">Anesthesia Machine</a>, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process demonstrate the inner quality: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.</p>
<p>The <a href="http://www.medicalequipment-msl.com/htm/ventilator-machine/">Medical Ventilator</a> adopts microcomputer control with high-definition TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.</p>
<p>The high-precision Vaporizer <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/vaporizer-definition.html">Vaporizer Definition and Vaporizer Construction</a>) </em>is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.</p>
<p>High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.</p>
<p>Reliable pneumatic transmission system.</p>
<p>Economic and proper configuration of technologies, optional as required by the Customer.</p>
<p>Modularized design and upgrading. Upgrading is available as required by the Customer.</p>
</div>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Main body</td>
<td colspan="3">High-strength engineering plastic rack, light, beautiful and corrosion resistant</td>
</tr>
<tr>
<td>Scope of application</td>
<td colspan="3">adult, child</td>
</tr>
<tr>
<td>Gas source</td>
<td colspan="3">O<sub>2</sub>: 0.27～0.55MPa    N<sub>2</sub>O: 0.27～0.55MPa</td>
</tr>
<tr>
<td rowspan="2">Flow meter</td>
<td colspan="3">O<sub>2</sub>: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="3">N<sub>2</sub>0: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="4">O<sub>2</sub>, N<sub>2</sub>O linkage and N<sub>2</sub>O Stopper</p>
<p>When using nitrous oxide, oxygen concentration&gt;25%;</p>
<p>When the oxygen pressure&lt;0.2Kpa, the flow of nitrous oxide would be cut off.</td>
</tr>
<tr>
<td>Flow rate of rapid oxygen supply</td>
<td colspan="3">25～75L/min</td>
</tr>
<tr>
<td>Low oxygen pressure alarm <em>(<a href="http://www.medicalequipment-msl.com/htm/medical-device-news/oxygen-alarm.html">Oxygen Alarm</a>)</em></td>
<td colspan="3">There will be sound alarm when the oxygen</p>
<p>pressure &lt; 0.2MPa</td>
</tr>
<tr>
<td>Vaporizer</td>
<td colspan="3">it has the function of automatic compensation based on</p>
<p>pressure, temperature, and flow rate. The regulation</p>
<p>range of evaporator concentration is 0～5 vol%. Among</p>
<p>Halothane，Enflurane, Isoflurane and Sevoflurane, one</p>
<p>can be chosen for application as required by the</p>
<p>customer. And vaporizers that are imported with original</p>
<p>packaging are also available.</td>
</tr>
<tr>
<td>Respiratory circuit</td>
<td colspan="3">working mode: all-close, semi-close, semi-open</p>
<p>releasing pressure: 0.5～7 kPa</td>
</tr>
<tr>
<td>Respiratory Bellows</td>
<td colspan="3">bellows for adults, bellows for children</p>
<p>tidal volume range:0～1,500 ml</td>
</tr>
<tr>
<td colspan="4">Ventilator <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Definition</a> and <a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Function</a>)</em></td>
</tr>
<tr>
<td>Display mode</td>
<td colspan="3">High-definition TFT color LCD screen display</td>
</tr>
<tr>
<td>Ventilation  mode</td>
<td colspan="3">IPPV, SIPPV, SIMV, PEEP, MANUAL,</p>
<p>SIGH, （IMV, VCV, PCV）</td>
</tr>
<tr>
<td rowspan="8">Ventilation parameters</td>
<td colspan="2">Tidal volume</td>
<td>50～1500 ml (20～1500 ml)</td>
</tr>
<tr>
<td colspan="2">Rate</td>
<td>1～99 bpm</td>
</tr>
<tr>
<td colspan="2">SIMV rate</td>
<td>2～20 bpm</td>
</tr>
<tr>
<td colspan="2">I:E</td>
<td>2:1～1:8 (4:1～1:8)</td>
</tr>
<tr>
<td colspan="2">Inspiratory trigger pressure</td>
<td>-1.0～2.0Kpa</td>
</tr>
<tr>
<td colspan="2">PEEP</p>
<p>Pressure Range</td>
<td>0～2.0Kpa</p>
<p>1.0～6.0Kpa</td>
</tr>
<tr>
<td colspan="2">SIGH</td>
<td>1.5 times the inspiratory time (70-150 adjustable)</td>
</tr>
<tr>
<td colspan="2">Inspiratory platform</td>
<td>0～50%</td>
</tr>
<tr>
<td colspan="4">Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure &#8211; time waveform, flow rate &#8211; time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance,flow-volume oop,pressure-volume loop)</td>
</tr>
<tr>
<td colspan="2">Monitoring of oxygen concentration</td>
<td colspan="2">21%～100%</td>
</tr>
<tr>
<td colspan="4">Security Alarm System</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Oxygen Concentration alarm</td>
<td colspan="2">upper limit setting range  21%～100%</td>
</tr>
<tr>
<td colspan="2">low limit setting range   10%～80%</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Airway pressure alarm</td>
<td colspan="2">upper limit setting range  0.3～6.0 kPa</td>
</tr>
<tr>
<td colspan="2">low limit setting range   0.2～5.0 kPa</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Per-minute ventilation volume alarm</td>
<td colspan="2">upper limit setting range 3.0～30L/min</td>
</tr>
<tr>
<td colspan="2">low limit setting range   1.0～10L/min</td>
</tr>
<tr>
<td colspan="2">Sustained high-pressure alarm</td>
<td colspan="2">it will give alarm when stress have consistently been higher than 2.5 kPa</td>
</tr>
<tr>
<td colspan="2">Suffocation alarm</td>
<td colspan="2">it will give sound and light alarm if there</p>
<p>is no tidal volume input for 15 seconds</td>
</tr>
<tr>
<td colspan="4">Power alarm</td>
</tr>
<tr>
<td colspan="2">Power</td>
<td colspan="2">AC 220V±10%     50Hz±1Hz（UPS, Storage battery）</td>
</tr>
<tr>
<td colspan="4">（Mechanical Arms） （End-expiratory CO2 monitoring）</td>
</tr>
<tr>
<td colspan="4">Items within brackets are optional.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEC39 Digital 12 Channel ECG Machine

<p style="padding-left: 40px;">Product code: WSG 287168</p>
<p><strong>MSLGA01 anesthesia machine</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h1>Isoflurane Anesthesia or other Gas Anesthesia Machine &#8211; MSLGA01</h1>
<p>Anesthesia medical equipment</p>
<p>1. Medical <a href="http://www.medicalequipment-msl.com/">anesthesia machine</a></p>
<p>2. Vertical anesthesia equipment</p>
<p>3. <a href="http://www.medicalequipment-msl.com/htm/portable-anesthesia-machine/">Mobile anesthesia machine</a></p>
<p>4. <a href="http://www.medicalequipment-msl.com/htm/anesthesia-gas-machine/">Anesthesia gas machine</a></p>
<p><a href="http://www.medicalequipment-msl.com/htm/anesthesia-machines/">Anesthesia Machine</a>, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process demonstrate the inner quality: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.</p>
<p>The <a href="http://www.medicalequipment-msl.com/htm/ventilator-machine/">Medical Ventilator</a> adopts microcomputer control with high-definition TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.</p>
<p>The high-precision Vaporizer <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/vaporizer-definition.html">Vaporizer Definition and Vaporizer Construction</a>) </em>is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.</p>
<p>High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.</p>
<p>Reliable pneumatic transmission system.</p>
<p>Economic and proper configuration of technologies, optional as required by the Customer.</p>
<p>Modularized design and upgrading. Upgrading is available as required by the Customer.</p>
</div>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Main body</td>
<td colspan="3">High-strength engineering plastic rack, light, beautiful and corrosion resistant</td>
</tr>
<tr>
<td>Scope of application</td>
<td colspan="3">adult, child</td>
</tr>
<tr>
<td>Gas source</td>
<td colspan="3">O<sub>2</sub>: 0.27～0.55MPa    N<sub>2</sub>O: 0.27～0.55MPa</td>
</tr>
<tr>
<td rowspan="2">Flow meter</td>
<td colspan="3">O<sub>2</sub>: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="3">N<sub>2</sub>0: 0.1～1.0L/min   1.1～10L/min</td>
</tr>
<tr>
<td colspan="4">O<sub>2</sub>, N<sub>2</sub>O linkage and N<sub>2</sub>O Stopper</p>
<p>When using nitrous oxide, oxygen concentration&gt;25%;</p>
<p>When the oxygen pressure&lt;0.2Kpa, the flow of nitrous oxide would be cut off.</td>
</tr>
<tr>
<td>Flow rate of rapid oxygen supply</td>
<td colspan="3">25～75L/min</td>
</tr>
<tr>
<td>Low oxygen pressure alarm <em>(<a href="http://www.medicalequipment-msl.com/htm/medical-device-news/oxygen-alarm.html">Oxygen Alarm</a>)</em></td>
<td colspan="3">There will be sound alarm when the oxygen</p>
<p>pressure &lt; 0.2MPa</td>
</tr>
<tr>
<td>Vaporizer</td>
<td colspan="3">it has the function of automatic compensation based on</p>
<p>pressure, temperature, and flow rate. The regulation</p>
<p>range of evaporator concentration is 0～5 vol%. Among</p>
<p>Halothane，Enflurane, Isoflurane and Sevoflurane, one</p>
<p>can be chosen for application as required by the</p>
<p>customer. And vaporizers that are imported with original</p>
<p>packaging are also available.</td>
</tr>
<tr>
<td>Respiratory circuit</td>
<td colspan="3">working mode: all-close, semi-close, semi-open</p>
<p>releasing pressure: 0.5～7 kPa</td>
</tr>
<tr>
<td>Respiratory Bellows</td>
<td colspan="3">bellows for adults, bellows for children</p>
<p>tidal volume range:0～1,500 ml</td>
</tr>
<tr>
<td colspan="4">Ventilator <em>(</em><em><a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Definition</a> and <a href="http://www.medicalequipment-msl.com/htm/medical-device-book/ventilator-definition.html">Ventilator Function</a>)</em></td>
</tr>
<tr>
<td>Display mode</td>
<td colspan="3">High-definition TFT color LCD screen display</td>
</tr>
<tr>
<td>Ventilation  mode</td>
<td colspan="3">IPPV, SIPPV, SIMV, PEEP, MANUAL,</p>
<p>SIGH, （IMV, VCV, PCV）</td>
</tr>
<tr>
<td rowspan="8">Ventilation parameters</td>
<td colspan="2">Tidal volume</td>
<td>50～1500 ml (20～1500 ml)</td>
</tr>
<tr>
<td colspan="2">Rate</td>
<td>1～99 bpm</td>
</tr>
<tr>
<td colspan="2">SIMV rate</td>
<td>2～20 bpm</td>
</tr>
<tr>
<td colspan="2">I:E</td>
<td>2:1～1:8 (4:1～1:8)</td>
</tr>
<tr>
<td colspan="2">Inspiratory trigger pressure</td>
<td>-1.0～2.0Kpa</td>
</tr>
<tr>
<td colspan="2">PEEP</p>
<p>Pressure Range</td>
<td>0～2.0Kpa</p>
<p>1.0～6.0Kpa</td>
</tr>
<tr>
<td colspan="2">SIGH</td>
<td>1.5 times the inspiratory time (70-150 adjustable)</td>
</tr>
<tr>
<td colspan="2">Inspiratory platform</td>
<td>0～50%</td>
</tr>
<tr>
<td colspan="4">Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure &#8211; time waveform, flow rate &#8211; time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance,flow-volume oop,pressure-volume loop)</td>
</tr>
<tr>
<td colspan="2">Monitoring of oxygen concentration</td>
<td colspan="2">21%～100%</td>
</tr>
<tr>
<td colspan="4">Security Alarm System</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Oxygen Concentration alarm</td>
<td colspan="2">upper limit setting range  21%～100%</td>
</tr>
<tr>
<td colspan="2">low limit setting range   10%～80%</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Airway pressure alarm</td>
<td colspan="2">upper limit setting range  0.3～6.0 kPa</td>
</tr>
<tr>
<td colspan="2">low limit setting range   0.2～5.0 kPa</td>
</tr>
<tr>
<td colspan="2" rowspan="2">Per-minute ventilation volume alarm</td>
<td colspan="2">upper limit setting range 3.0～30L/min</td>
</tr>
<tr>
<td colspan="2">low limit setting range   1.0～10L/min</td>
</tr>
<tr>
<td colspan="2">Sustained high-pressure alarm</td>
<td colspan="2">it will give alarm when stress have consistently been higher than 2.5 kPa</td>
</tr>
<tr>
<td colspan="2">Suffocation alarm</td>
<td colspan="2">it will give sound and light alarm if there</p>
<p>is no tidal volume input for 15 seconds</td>
</tr>
<tr>
<td colspan="4">Power alarm</td>
</tr>
<tr>
<td colspan="2">Power</td>
<td colspan="2">AC 220V±10%     50Hz±1Hz（UPS, Storage battery）</td>
</tr>
<tr>
<td colspan="4">（Mechanical Arms） （End-expiratory CO2 monitoring）</td>
</tr>
<tr>
<td colspan="4">Items within brackets are optional.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLGA01 anesthesia machine

<p style="padding-left: 40px;">Product code: WSG 287169</p>
<p><strong>MSLMP57 MULTI PARAMETER MONITOR</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<h2>Specifications</h2>
<div class="desc_contents">
<h2>Best Multi-Parameter Patient Monitor MSLMP57</h2>
<p>Features<br />
12.1 inch color display with 800*600 resolution.<br />
Three Working Modes: Monitoring, Surgery and Diagnosis.<br />
Simple and friendly operating display interface.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359387263.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359382379.jpg" alt="" /></p>
<p>Multi-display modes suitable for different applications:<br />
Standard Interface, Large font, ECG Standard Full Display, OXY , Trend Table, BP Trend.</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359383516.jpg" alt="" /><br />
Built-in rechargeable Lithium battery up to 2 hours of continuous work<br />
VGA output for external display</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359388416.jpg" alt="" /></p>
<p>Technique Specification<br />
ECG<br />
Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220125/202201252359386472.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000031588.jpg" alt="" /><br />
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV<br />
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000038240.jpg" alt="" /><br />
Resolution: 1 BPM<br />
Accuracy: ±1%<br />
Sensitivity &gt;200 uV(Peak to peak)</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000037280.jpg" alt="" /></p>
<p>ST measurement range: -2.0 ~ +2.0 mV<br />
Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater<br />
Other Range: unspecified<br />
Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000035123.jpg" alt="" /><br />
Bandwidth:<br />
Diagnostic: 0.05~130 Hz<br />
Monitor: 0.5~40 Hz<br />
Surgery: 1~20 Hz</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20220126/202201260000036203.jpg" alt="" /></p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLMP57 MULTI PARAMETER MONITOR

<p style="padding-left: 40px;">Product code: WSG 287170</p>
<p><strong>MSLEK68 3000W ELECTROSURGICAL UNIT</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>
<div class="desc_contents">
<p>&nbsp;</p>
<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<p> Ideal cut and coagulation functions for highly complex surgical procedures in different fields. Access to convenient surgery is made easier with monopolar cut, monopolar coagulation, and bipolar coagulation.</p>
<p>Much more efficient than low frequency, produces less heat, not to mention sparkle, resulting in less burned tissue<br />
Fast healing with excellent results<br />
Provides smooth cuts with optimal performance on adipose tissues<br />
Absolute output power at every mode of Coagulation, Blend, Bipolar like variable power of general ESU.  It minimizes the carbonization and second bleeding by adhesion of the tissue<br />
Complex  Patient protect system for more safety<br />
2 Monopolar output<br />
Various Cutting, Coagulation and Bipolar Modes<br />
Spray Coagulation Function</p>
<p>The  electrosurgical unit super seeds the expectation of the most expectant medical professionals.</p>
<p>Device unites the benefits provided by blood vessel closing system and diathermy, argon coagulation in a single unit.</p>
<p>It also comes with 2 monopolar sockets, independent  socket and a bipolar socket. Operations are enabled with the use of various instrumentation. without having to change them during the procedure.</p>
<p>The unit follows advanced operating modes e.g. cutting in liquids.  comes with customizable settings based on surgical interventions by using the 9 program storage position. has automatic adjustment of power to maximize the effectiveness of operation.</p>
<p>PowerStart system works with MultiSwitch for remote selection of program.</p>
</div>
</div>
</div>
</div>
</div>
</div>


MSLEK68 3000W ELECTROSURGICAL UNIT

<p style="padding-left: 40px;">Product code: WSG 287171</p>
<p><strong>MSLEAX610 real time PCR system (16 channels)</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><strong>Description</strong></div>
<div>Real-time PCR (polymerase chain reaction) is a laboratory technique used to amplify and detect specific DNA sequences. It is a powerful tool for analyzing gene expression, genetic mutations, and other genetic variations. Real-time PCR systems use fluorescent probes or primers to detect the presence of a specific DNA sequence in a sample. The results are displayed in real-time, allowing researchers to monitor the progress of the reaction and analyze the results quickly.</div>
<div>
<h2>Specifications</h2>
<div class="desc_contents">
<h3>Double channels pcr test equipment 16 /32 channel MSLEAX610</h3>
<p>&nbsp;</p>
<p>Type:</p>
<p>Bio-Separation System</p>
<p>Brand Name:</p>
<p>MSL</p>
<p>Model Number:</p>
<p>MSLEAX610</p>
<p>Place of Origin:</p>
<p>Guangdong, China</p>
<p>Instrument classification:</p>
<p>Class II</p>
<p>Warranty:</p>
<p>1 Year</p>
<p>After-sale Service:</p>
<p>Online technical support</p>
<p>Product model:</p>
<p>MSLEAX610</p>
<p>Product name:</p>
<p>real time pcr machine</p>
<p>channel:</p>
<p>16/32 channel</p>
<p>Consumable:</p>
<p>Clear 0.2 ml PCR tube/8-tube strips</p>
<p>Sample Capacity:</p>
<p>16&#215;0.2ml(2x8well, double block)</p>
<p>Reaction Volume:</p>
<p>10-100ul</p>
<p>Temperature control technology:</p>
<p>Marlow customized Peltier allow1.000.000 cycles</p>
<p>Temperature Range:</p>
<p>0-100&#8243;C(Resolution:0.19C)</p>
<p>Hot Lid Temperature:</p>
<p>30-115*C(Adjustable,default 105C)</p>
</div>
</div>
</div>
</div>


MSLEAX610 real time PCR system (16 channels)

<p style="padding-left: 40px;">Product code: WSG 287172</p>
<p><strong>MSLHPD01 Helicobacter pylori Detector</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div><b>1 Helicobacter Pylori</b><br />
Helicobacter Pylori is a Gram-negative Helicobacter that is parasitic on the human gastric mucosa. Founded in 1983 by Warren and Marshall. It can survive in a high degree of stomach acid, not only can coat the stomach stick, but also can pass through the protective barrier of the stomach, causing stomach lesions.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00wyBVtmdMcvbL/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="647" height="" data-original="//image.made-in-china.com/226f3j00wyBVtmdMcvbL/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></p>
<p><b>3 Detection of Helicobacter Pylori</b><br />
Principle: Urease is not present in mammalian cells, the presence of urease in human stomach is evidence of the presence of Helicobacter pylori. After oral administration of urea [&#8220;C] capsules, if the patient has Helicobacter pylori in the stomach, the urease produced by it, can quickly decompose urea into carbon dioxide and ammonia gas. Carbon dioxide is excreted through the blood into the lungs. The discharged &#8220;C02 is collected on the respiratory card, and the tag is placed on the Helicobacter pylori analyzer determine whether there is any in the stomach infection with Helicobacter pylori.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00EnCVtfdFfeoW/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="560" height="" data-original="//image.made-in-china.com/226f3j00EnCVtfdFfeoW/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<img decoding="async" src="https://image.made-in-china.com/226f3j00EOMWaPJCfvkl/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="620" height="" data-original="//image.made-in-china.com/226f3j00EOMWaPJCfvkl/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<b>7 Method for detecting Helicobacter pylori</b><br />
Should be fasted for 4 to 6 hours before the test<br />
Take about 120ml warm drinking water with urea 14C capsule, wait for 10-20 minutes.<br />
Collect the sample.<br />
Test the sample.</p>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00aFMhQcwEZCoV/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="710" height="" data-original="//image.made-in-china.com/226f3j00aFMhQcwEZCoV/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></p>
<div id="1684894142003" class="cke-navigation" contenteditable="false">Detailed Photos</div>
<p>&nbsp;</p>
</div>
<div><img decoding="async" src="https://image.made-in-china.com/226f3j00siCcjBARSoqu/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00siCcjBARSoqu/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00ZWCoSFmAKkbg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00ZWCoSFmAKkbg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00NWBkKtwsycbz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00NWBkKtwsycbz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><br />
<img decoding="async" src="https://image.made-in-china.com/226f3j00FlvoKpmaLqkg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FlvoKpmaLqkg/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00FWvqShAPybop/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FWvqShAPybop/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /><img decoding="async" src="https://image.made-in-china.com/226f3j00FivbZemRyqoz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" alt="HP Tester Urea Breath Test Helicobacter Pylori Detector Medical Equipment for Hospital Price" width="1060" height="" data-original="//image.made-in-china.com/226f3j00FivbZemRyqoz/HP-Tester-Urea-Breath-Test-Helicobacter-Pylori-Detector-Medical-Equipment-for-Hospital-Price.webp" data-faw_img="true" /></div>
</div>
</div>


MSLHPD01 Helicobacter pylori Detector

<p style="padding-left: 40px;">Product code: WSG 287173</p>
<p><strong>MSLDBA09 full &#8211; auto Chemistry Analyzer</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<h2>Description</h2>
<p>Class B Autoclaves for clinics, dentists and surgeons.</p>
<p>Volume: 12-23 Liter</p>
<p>Type: B</p>
<h2><strong>Applications of Class B Autoclaves<br />
</strong></h2>
<p>The versatility of Class B autoclaves makes them integral in various sectors. From the medical field to research facilities and dental practices, these autoclaves play a crucial role in maintaining sterile environments.</p>
</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>


MSLDBA09 full - auto Chemistry Analyzer

<p style="padding-left: 40px;">Product code: WSG 287174</p>
<p><strong>MSLFCY01 FLOW CYTOMETRY MACHINE</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12"></section>
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>Name:Flow Cytometer</p>
<p>Model:MSLFCY01</p>
<p>Laser:488NM solid</p>
<p>Test speed:more than 38000 cells/s</p>
<p>Size: 500mm*605mm*305mm</p>
<p>Language version:English/Chinese</p>
<p>carry over:less than 0.5%</p>
<p>Fluorescence linearity:more than 0.99</p>
<p>Detector:FSC SSC FL1-FL5</p>
<p>Certificate:CE ISO</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<p><strong>Professional Flow Cytometry 488nm Solid Laser Open System Flow Cytometer for Academy of Science MSLFCY01</strong></p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H69b70a075acd443e926df9a37e2cd2b2P/236934233/H69b70a075acd443e926df9a37e2cd2b2P.jpg?quality=close" /></p>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H54429db4a71e45d9a3f2fad9f8b56cb7O/236934233/H54429db4a71e45d9a3f2fad9f8b56cb7O.jpg?quality=close" /></p>
<table>
<tbody>
<tr>
<td colspan="1" rowspan="1">Laser</td>
<td colspan="1" rowspan="1">488nm solid</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Detector</td>
<td colspan="1" rowspan="1">FSC、 SSC、 FL1-FL5</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1"></td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence Channel</td>
<td colspan="1" rowspan="1">FL1:525/50（ FITC）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL2:585/40（PE）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL3:630/30（ PE-Texas Red/ECD/PI）</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL4:697/60（ PerCP/PE-Cy5/PE-Cy5.5)</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">FL5:780/60( PE-Cy7)</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence sensitivity</td>
<td colspan="1" rowspan="1">FITC ≤ 100 MESF； PE≤ 50 MESF</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence linearity</td>
<td colspan="1" rowspan="1">≥ 0.99</td>
</tr>
<tr>
<td colspan="1" rowspan="1">FSC sensitivity</td>
<td colspan="1" rowspan="1">≤1μm</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Test particle size</td>
<td colspan="1" rowspan="1">0.5-50μm</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Carry Over</td>
<td colspan="1" rowspan="1">≤0.5%</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Instrument CV</td>
<td colspan="1" rowspan="1">FSC and all FL channel CV less than 2%</td>
</tr>
<tr>
<td colspan="1" rowspan="1">FSC and SSC CV</td>
<td colspan="1" rowspan="1">Can separate red blood cells and platelet, can separate white blood cells into 3 groups</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Test speed</td>
<td colspan="1" rowspan="1">≥38000 cells/s</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Minimum Sample Vol</td>
<td colspan="1" rowspan="1">90μ L</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Measure Range</td>
<td colspan="1" rowspan="1">Maximum Support 107</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Threshold</td>
<td colspan="1" rowspan="1">Double threshold, minimum cells fraction</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Fluorescence<br />
compensation</td>
<td colspan="1" rowspan="1">Support auto online compensation, offline compensation and visualized<br />
compensation</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Item Template</td>
<td colspan="1" rowspan="1">Support Item template, acquisition condition/ fluorescence compensation 1-click use</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Intake method</td>
<td colspan="1" rowspan="1">Manual intake<br />
Rotary Wheel auto-sampling with auto- mixing function:32tests/wheel,</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Liquid storage station</td>
<td colspan="1" rowspan="1">sheath bottle, waste bottle, shutdown liquid bottle 2L<br />
cleaning liquid bottle 0.5L</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Software</td>
<td colspan="1" rowspan="1">English/Chinese</td>
</tr>
<tr>
<td colspan="1" rowspan="1">PC</td>
<td colspan="1" rowspan="1">Dell（CPU i5/8G DDR4/1T hard disk） +Dell 27 inches monitor</td>
</tr>
<tr>
<td colspan="1" rowspan="1">Size/ Weight</td>
<td colspan="1" rowspan="1">500mm*605mm*305mm（ L*W*H） ,35KG</td>
</tr>
</tbody>
</table>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/He74b847bfc9b41f7b396caa50ac8ef28C/236934233/He74b847bfc9b41f7b396caa50ac8ef28C.jpg?quality=close" /></p>
</div>
</div>


MSLFCY01 FLOW CYTOMETRY MACHINE

<p style="padding-left: 40px;">Product code: WSG 287174</p>
<p><strong>MSLAB21 PLUS ECONOMIC BLOOD ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div></div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="vc_row wpb_row vc_inner vc_row-fluid">
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<ul>
<li>
<h2>Specifications</h2>
<div class="desc_contents">
<p>Fully auto hematology analyzer MSLAB21Plus</p>
<div><strong><em>1. Advanced Design   Excellent Performance</em></strong></div>
<div>9.6µL venous blood sample, 9.6µL anticoagulant capillary blood, 20µL prediluted capillary blood. One time blood sampling could make two tests under predilted mode.</div>
<div>Intelligent float discriminator. Manual adjust supported</div>
<div>Dual swirling flow and intelligent fitting technology to ensure reliable PLT counting</div>
<div>Module design, separate hydraulic part and circuit, enhanced anti-interference function</div>
<div>Automatic washing of inside and outside surface of probe</div>
<div>Alarm hint if reagent volume is short</div>
<div></div>
<div><strong><em>2. Simple Operation    Low Cost</em></strong></div>
<div>Automatic dispense, Automatic making dilution inside of instrument, Automatic testing, Automatic cleaning</div>
<div>Windows color operation interface and operated by mouse &amp; keyboard</div>
<div>Adjustable probe. Many kinds of blood sampling container</div>
<div>Automatic sleep and wake up function</div>
<div>Low reagent consumption and low cost</div>
<div></div>
<div><em><strong>3. Convenient Maintenance   Safety &amp; Eco-protection</strong></em></div>
<div>Automatic &amp; Intelligent function of diagnosis and maintenance</div>
<div>Soak, back &amp; forth flush, real time monitoring function of high pressure burning and automatic block-clearing</div>
<div>Perfect self checking function, Automatic cleaning tubes during power on and power off for reducing the rate of blockage</div>
<div>Fan Shape door for easy maintenance</div>
<div>Eco-friendly design of built-in reagents, saving spce and reducing the rate of reagent contamination</div>
<div>No cyanogen reagents for Eco-protection</div>
<div></div>
<div><em><strong>4. Perfect Quality     Traceable Results</strong></em></div>
<div>Manual and automatic calibration available</div>
<div>Boasts management system for quality control, nine kinds of control files. Mean value, SD value, CV value are provided. Automatic drawing L-J graph</div>
<div>Provide relevant blood control and calibrator</div>
<div>Furnished with original reagents</div>
<div>ISO9001, CMD, CMC and CE approved</div>
</div>
</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB21 PLUS ECONOMIC BLOOD ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287175</p>
<p><strong>MSLCM17 CLIA Analyser</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding"></div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="vc_row wpb_row vc_inner vc_row-fluid">
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_single_image wpb_content_element vc_align_left wpb_content_element">
<figure class="wpb_wrapper vc_figure">
<div class="vc_single_image-wrapper   vc_box_border_grey"></div>
</figure>
</div>
</div>
</div>
</div>
<div class="wpb_column vc_column_container vc_col-sm-6">
<div class="vc_column-inner">
<div class="wpb_wrapper">
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<p>The analyzer uses enzymatic chemiluminescence immunoassay and is used together with the supporting detection reagents to clinically be used for qualitative or quantitative detection of analytes in serum, plasma, whole blood or urine samples derived from human body, including hormones, tumor-associated antigens, infectious diseases, autoimmunity, allergens, allergen related items. The analyzer uses PMT to detect the photonics, convert the optical signal to digital signal after</p>
<p>amplification and discrimination. Finally the measured value is substituted into the master curve of the reagent to calculate the concentration.</p>
</div>
</div>
<div class="wpb_text_column wpb_content_element">
<div class="wpb_wrapper">
<h4><b>Key Features:</b></h4>
<ul>
<li>The complete cartridge-based system, with less than 5 minutes of sample processing time.</li>
<li>Can run 1-8 samples in a single run.</li>
<li>Can run multiple parameters in the same run.</li>
<li>Calibrators and controls are provided for each parameter. Calibrators must be run once in 90 days and controlled every time the instrument is used.</li>
<li>Run time for all the assays is &lt;60 minutes across any parameter.</li>
<li>Pack size of the kit is 24 and 48 reactions.</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLCM17 CLIA  Analyser

<p style="padding-left: 40px;">Product code: WSG 287176</p>
<p><strong>BC &#8211; 5000 Mindray 5 &#8211; diff Hematology Analyser<br />
</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<ul>
<li>WBC 5-part differentiation, 23 reportable parameters, 3 histograms and 3 scattergrams</li>
<li>Whole blood mode, Capillary whole blood mode and Prediluted mode</li>
<li>Tri-angle Laser scatter + Chemical dye + Flow cytometry technology</li>
<li>Dedicated optical counting channel for Basophil measurement</li>
<li>Powerful capability of flagging abnormal cells</li>
<li>4 inch large TFT touch screen with user-friendly software</li>
<li>Large storage capacity: up to 20,000 samples</li>
<li>Throughput: 40 samples per hour</li>
<li>Sample volume is only 15μL which is ideal for pediatrics</li>
<li>Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiation even on samples with high Eosinophil</li>
</ul>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


BC - 5000 Mindray 5 - diff Hematology Analyser

<p style="padding-left: 40px;">Product code: WSG 287400</p>
<p><strong>Bs &#8211; 230 mindray chemistry Analyzer</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">200 tests per hour, up to 400 tests per hour with ISE (K, Na, Cl, Li)</div>
<div class="products_d wow fadeInDown">Model :<span style="font-size: 16px;">MINDRAY BS-230</span></div>
<div class="products_d wow fadeInDown">Brand: <span style="font-size: 16px;">MINDRAY</span></div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


Bs - 230 mindray chemistry Analyzer

<p style="padding-left: 40px;">Product code: WSG 287401<b style="font-style: inherit; text-align: center;">M</b></p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">SLAB39T Automatic CBC machine</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">Technical Specifications:</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Function: Automated WBC 3-Part</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM%, LYM#, GRAN%, MID%, MID#, PDW, MPV, PCT, RCDW, LCDW, RDW, P-LCR and WBC, RBC, PLT three histograms.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Principal: Electronic impedance, SFT method for hemoglobin</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Throughput: ≥60T/H</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Analysis Mode: Optional venous blood, anticoagulant blood and prediluted blood</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Sample Volume: Anticoagulant whole blood ≤9.6µL, Anticoagulant capillary blood ≤9.6µL, prediluted capillary blood ≤20µL, the sample volume for repeating two times testing and avoiding second sampling</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Working Mode: Automatic sampling, detecting automatic testing, furnished with dilutor, no need diluting outside. Automatic dispensing lyse and making second diluting automatically</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Block-clearing: Soak and washing back and forth, high pressure burning. Boast the function of monitoring incomplete blockage</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Alarm: Automated system diagnosis, self testing, fault alarm and reagent shortage alarm</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Automated Maintenance: Automated washing during power on and power off, reducing the blockage rate</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Standby Protection: 24 hours switch on, automatic sleep and wake up function</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Storage: Large quantity test results storage, at least 400 thousand test results with comprehensive information. Extended SD memory supported.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Control Mode: Quality control mode of L-J, X-B and X-r. Westguard quality control regulation</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Calibration Mode: Manual and automatic calibration available. Fresh blood calibration available also.</div>
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">Reference Value Setting: Many reference value ranges (children, adult and the aged). The appropriate reference value range could be automatically selected according to the inputted age and sex.</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents"></div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB39T Automatic CBC machine

<p style="padding-left: 40px;">Product code: WSG 287402</p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">MSLBA62 semi auto chemistry analyzer</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">Features:</div>
<div class="desc_contents"></div>
<div class="desc_contents">1. 7.0 inch LCD touch screen, graphical interface is easy to use.</div>
<div class="desc_contents"></div>
<div class="desc_contents">2. Large memory space, can store 300 test items, 20, 000 test results.</div>
<div class="desc_contents"></div>
<div class="desc_contents">3. Built-in thermal printer to print measurement results and flag abnormal results.</div>
<div class="desc_contents"></div>
<div class="desc_contents">4. Incubator intelligent temperature control, room temperature, 25.0℃, 30.0℃, 37.0℃ four temperature options.</div>
<div class="desc_contents"></div>
<div class="desc_contents"></div>
<div class="desc_contents"></div>
<div class="desc_contents">Technical Parameters:</div>
<div class="desc_contents"></div>
<div class="desc_contents">Model</div>
<div class="desc_contents"></div>
<div class="desc_contents">BIOBASE-Silver</div>
<div class="desc_contents"></div>
<div class="desc_contents">Sample Type</div>
<div class="desc_contents"></div>
<div class="desc_contents">Serum, Plasma, Urine, Cerebrospinal fluid, etc</div>
<div class="desc_contents"></div>
<div class="desc_contents">Analytical Method</div>
<div class="desc_contents"></div>
<div class="desc_contents">End point method, Fixed time method(two-point method), Dynamic method(rate method)</div>
<div class="desc_contents"></div>
<div class="desc_contents">Incubating Positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">20 incubating positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">Incubator Temperature</div>
<div class="desc_contents"></div>
<div class="desc_contents">R.T. 25℃, 30℃, 37℃, four temperature options</div>
<div class="desc_contents"></div>
<div class="desc_contents">Cuvette</div>
<div class="desc_contents"></div>
<div class="desc_contents">Flow through a direct-reading cuvette</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength 340/405/450/510/546/578/630nm, 2 more open filter positions</div>
<div class="desc_contents"></div>
<div class="desc_contents">Wavelength Accuracy</div>
<div class="desc_contents"></div>
<div class="desc_contents">±2nm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Screen</div>
<div class="desc_contents"></div>
<div class="desc_contents">7.0 inch LCD touch screen</div>
<div class="desc_contents"></div>
<div class="desc_contents">Language</div>
<div class="desc_contents"></div>
<div class="desc_contents">English, French, Spanish, other languages can be customized</div>
<div class="desc_contents"></div>
<div class="desc_contents">Printer</div>
<div class="desc_contents"></div>
<div class="desc_contents">Built-in thermal printer</div>
<div class="desc_contents"></div>
<div class="desc_contents">Interface</div>
<div class="desc_contents"></div>
<div class="desc_contents">RS-232, USB</div>
<div class="desc_contents"></div>
<div class="desc_contents">Consumption</div>
<div class="desc_contents"></div>
<div class="desc_contents">150VA</div>
<div class="desc_contents"></div>
<div class="desc_contents">Power Supply</div>
<div class="desc_contents"></div>
<div class="desc_contents">AC110/220V±10%, 60/50Hz</div>
<div class="desc_contents"></div>
<div class="desc_contents">External Size(W*D*H)</div>
<div class="desc_contents"></div>
<div class="desc_contents">400*410*190mm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Packing Size(W*D*H)</div>
<div class="desc_contents"></div>
<div class="desc_contents">520*490*330mm</div>
<div class="desc_contents"></div>
<div class="desc_contents">Net Weight</div>
<div class="desc_contents"></div>
<div class="desc_contents">9kg</div>
<div class="desc_contents"></div>
<div class="desc_contents">Gross Weight</div>
<div class="desc_contents"></div>
<div class="desc_contents">12kg</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA62 semi auto chemistry analyzer

<p style="padding-left: 40px;">Product code: WSG 287403</p>
<p style="padding-left: 40px;"><b style="font-style: inherit; text-align: center;">MSLBA61 full auto chemistry analyzer</b></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"><strong>Specifications</strong></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">Place of Origin China</div>
<div class="desc_contents">Instrument classification Class II</div>
<div class="desc_contents">Type Biochemical Analysis System</div>
<div class="desc_contents">Brand Name MSL</div>
<div class="desc_contents">Model Number MSLBA61</div>
<div class="desc_contents">Test speed Constant 120T/H</div>
<div class="desc_contents">Methodology Two-point,End-point,Rate</div>
<div class="desc_contents">Dimension 305mm(L) x 605mm(W) x 330mm(H)</div>
<div class="desc_contents">Net weight 22KG</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA61 full auto chemistry analyzer

<p style="padding-left: 40px;">Product code: WSG 287404</p>
<p><strong>MSLBA66 FULL AUTO CHEMISTRY ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<table>
<tbody>
<tr>
<td colspan="1" rowspan="1">
<div data-spm-anchor-id="a2700.details.0.i20.e3fe2fe8OZmhcl">Model</div>
</td>
<td colspan="2" rowspan="1">
<div>YSTE200K</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Sample &amp; Reagent System</div>
</td>
<td colspan="1" rowspan="1">
<div>Sample Positions</div>
</td>
<td colspan="1" rowspan="1">
<div>37 sample positions</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Reagent Position</div>
</td>
<td colspan="1" rowspan="1">
<div>28 reagent positions</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Probe Washing</div>
</td>
<td colspan="1" rowspan="1">
<div>Automatic washing interior and exterior</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Reagent Cooling</div>
</td>
<td colspan="1" rowspan="1">
<div>Refrigerated tray with independent switch</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="5">
<div>Reaction System</div>
</td>
<td colspan="1" rowspan="1">
<div>Temperature Control</div>
</td>
<td colspan="1" rowspan="1">
<div>37+0.1℃, real-time monitoring</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Cuvettes</div>
</td>
<td colspan="1" rowspan="1">
<div>48 reusable cuvettes,optical length 6mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Mixer Probe</div>
</td>
<td colspan="1" rowspan="1">
<div>Independent stirring</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Washing</div>
</td>
<td colspan="1" rowspan="1">
<div>Automatic cuvettes washing</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>STAT function</div>
</td>
<td colspan="1" rowspan="1">
<div>YES</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Optical System</div>
</td>
<td colspan="1" rowspan="1">
<div>Light Source</div>
</td>
<td colspan="1" rowspan="1">
<div>6V/10W halogen lamp</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Spectrophotometry</div>
</td>
<td colspan="1" rowspan="1">
<div>Post-spectral spectrophotometry</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Wavelength</div>
</td>
<td colspan="1" rowspan="1">
<div>340,405,450,510,546,578,630,700nm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Absorbance</div>
</td>
<td colspan="1" rowspan="1">
<div>0~3.0Abs</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="2">
<div>Calibration &amp; QC</div>
</td>
<td colspan="1" rowspan="1">
<div>Calibration</div>
</td>
<td colspan="1" rowspan="1">
<div>Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Quality Control</div>
</td>
<td colspan="1" rowspan="1">
<div>Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="3">
<div>Data Management</div>
</td>
<td colspan="1" rowspan="1">
<div>Software</div>
</td>
<td colspan="1" rowspan="1">
<div>Windows 7/8/10 , 32or 64bit</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>LIS System</div>
</td>
<td colspan="1" rowspan="1">
<div>Bi-direction,support HL7 protocol</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Interface</div>
</td>
<td colspan="1" rowspan="1">
<div>LAN port access</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1"></td>
<td colspan="1" rowspan="1">
<div>Printer</div>
</td>
<td colspan="1" rowspan="1">
<div>External,multiple reporting mode available</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Working Conditions</div>
</td>
<td colspan="1" rowspan="1">
<div>Power Supply</div>
</td>
<td colspan="1" rowspan="1">
<div>AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Temperature</div>
</td>
<td colspan="1" rowspan="1">
<div>10~30℃</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Water Consumption</div>
</td>
<td colspan="1" rowspan="1">
<div>Deionized water:&lt;5L/H</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Humidity</div>
</td>
<td colspan="1" rowspan="1">
<div>30-80%</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="4">
<div>Size &amp; Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>External Size (W*D*H)</div>
</td>
<td colspan="1" rowspan="1">
<div>625*425*460mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Net Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>36kg</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Package Size (W*D*H)</div>
</td>
<td colspan="1" rowspan="1">
<div>721*531*855mm</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Gross Weight</div>
</td>
<td colspan="1" rowspan="1">
<div>55kg</div>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA66 FULL AUTO CHEMISTRY ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287405</p>
<p><strong>MSLER07 ELISA READER (400 &#8211; 800NM)</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}"></div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>Microplate types: 96/ 48-well plate<br />
Photodetector: Silicon Photodiode<br />
Light source: 8v/50w Controlled tungsten halogen lamp<br />
Wavelength range: 400nm~850nm<br />
Standard filters: 405,450,492,630nm &amp; 4 optional<br />
Reading range: 0.000~4.000A<br />
Resolution: 0.001A<br />
Accuracy: ±0.008A<br />
Reproducibility: ≤0.2%<br />
Stability:±0.003A</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Packaging &amp; Delivery</h2>
<table border="0">
<tbody>
<tr>
<td>Packaging detail:Standard export package<br />
Delivery detail:within 7-10 workdays after receipt of payment</td>
</tr>
</tbody>
</table>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h3><strong>Main Features:</strong></h3>
<p>* Touch screen with 10.4”color LED display, resolution 1024*600<br />
* Large Intelligent operation interface, easy connect to PC<br />
* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen<br />
* Comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas<br />
* More than 20 different report formats<br />
* Auto Lamp adjustment and auto calibration<br />
* Support keyboard and mouse with USB interfaces<br />
* Stable memory stores up to twenty million test data, 500 test projects</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140047683.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140048810.jpg" alt="" /></p>
<h3><strong>Technical Specifications:</strong></h3>
<p>Microplate types: 96/ 48-well plate<br />
Photodetector: Silicon Photodiode<br />
Light source: 8v/50w Controlled tungsten halogen lamp<br />
Wavelength range: 400nm~850nm<br />
Standard filters: 405,450,492,630nm &amp; 4 optional<br />
Reading range: 0.000~4.000A<br />
Resolution: 0.001A<br />
Accuracy: ±0.008A<br />
Reproducibility: ≤0.2%<br />
Stability:±0.003A</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140047943.jpg" alt="" /></p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140043257.jpg" alt="" /><br />
Reading Speed : Single Wavelength≤3s ;Double Wavelength≤6s<br />
Shaking: Linear Shaking , 3 speeds<br />
Printer:Built-in Thermal Printer,optional external printer<br />
Interface connections: DVI,VGA,NETWORK  INTERFACE,USB,AUDIO INTERFACE, RS-232<br />
Power supply: 100~240V, 50~60Hz<br />
Dimensions: 460(L)×350(W)×197(H)mm<br />
Net weight: 8kg</p>
<p><img decoding="async" src="https://medicalequipment-msl.com/upload/img/20200812/202008121140048804.jpg" alt="" /></p>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLER07 ELISA READER (400 - 800NM)

<p style="padding-left: 40px;">Product code: WSG 287405</p>
<p><strong>MSLBA25 COAGULATION ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<div><strong>automated Single channel boold coagulation machine MSLBA25</strong> Specifications</div>
<div>single channel Coagulation test machine</div>
<div>1.single channel</div>
<div>2.reagent open system</div>
<div>3.CE&amp;ISO</div>
<div>4.192*64 LCD display</div>
</div>
<div class="products_d wow fadeInDown">
<h2></h2>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h2><strong>Automated Single channel blood coagulation machine MSLBA25 Main Feature</strong></h2>
<div>1.Advanced percentage analysis principle overcome the interfere with Jaundice, Hemolysis, and Chyle. Precision testing on Abnormal samples</div>
<div>2. Mini- reagent consumption up to 20ul, reagent open system</div>
<div>3. Special location setting system of testing cups, loading bracket, precision operating</div>
<div>4. Special measuring cell diaphragm system, stop other light interfere</div>
<div>5. Provide 2 kind of analytical method of FIB</div>
<div>6. Can set more than 5 point of standard curve, modify and saving parameters, variety item can be added</div>
<div>7. Online startup and mannual startup system</div>
<div>8. Incubate management system with audible signal hint</div>
<div>9. Built-in thermal printer with reference value range</div>
<div>10. Large memory for 10000 results</div>
<div><strong>Explanation</strong></div>
<div>
<div>★Detector channels: 1</div>
<div>★Position for Reagents: 2</div>
<div>★Position for Sample: 5</div>
<div>★Light Source: 470nm long-life cold light source</div>
<div>★Sample Consumption: 20-40uL</div>
<div>★Mini-reagent Consumption: 20uL</div>
<div>★Homoiothermy Controlling: 37℃±0.3℃</div>
<div>★Repeatability: CV≤2%</div>
<div>★Linear Error: r&gt;0.98</div>
<div>★Measurement Startup: online adding, auto timing, manual startup system</div>
<div>★Memory: 10000 results</div>
<div>★Counting Function: can be converted on S, %, PTR,INR, mg/dL</div>
<div>★Printer: built in thermal printer</div>
<div>★Display: 192*64 LCD display</div>
<div>★Working Condition:Temperature:10℃-30℃,Relative Humidity:20%-80%</div>
<div>★Voltage:AC 90~264V,auto adapt according to the input voltage</div>
<div>★Size: 280mm(L)*300mm(B)*160mm(H)</div>
<div></div>
<div></div>
</div>
</div>
</div>
</div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA25 COAGULATION ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287406</p>
<p><strong>MSLAB07 AUTOMATIC CBC MACHINE</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>TYPE: Automated blood analyzers</p>
<p>BRAND NAME: MSL</p>
<p>MODEL NUMBER: MSLAB07</p>
<p>PLACE OF ORIGIN: CHINA  (Mainland)</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Packaging &amp; Delivery</h2>
<p>Packaging detail : standard export package</p>
<p>Delivery detail: within 7-10 workdays after receipt of payment</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h1 align="left"><strong>Automated blood analyzers-MSLAB07</strong></h1>
<p align="left">tically cleaning sampling probe, windows interface all testing parameter displayed simultaneously, PC connecting.</p>
<p align="left"><strong><img decoding="async" class="img-responsive" src="https://medicalequipment-msl.com/upload/img/20171128/20171128153848345.jpg" alt="Hematology Blood Analyzers" /></strong></p>
<div></div>
<div></div>
<div></div>
<h2 align="left"><strong>cheap automated analyzers MSLAB07 features</strong></h2>
<p><strong><img decoding="async" class="img-responsive" src="https://medicalequipment-msl.com/upload/img/20171128/201711281538488993.jpg" alt="hematology analyzer veterinary" /></strong></p>
<p align="left"><strong>Automatically cleaning sampling probe, windows interface all testing parameter displayed simultaneously, PC connecting.</strong></p>
<p align="left">♦ 3part differentiation of WBC, 22 parameters, up to 45 samples test per hour</p>
<p align="left">♦ Classic fluid pipe design, larger result Linear Dynamic Range<br />
♦ Advanced ARM Intelligent digital processing technology<br />
♦ Three independent operation model: Figure button, mouse, international Key-board<br />
♦ Automatically cleaning sampling probe(inside and outside)<br />
♦ 8.4” color TFT, Windows interface all testing parameter displayed simultaneously<br />
♦ Large storage capacity: up to 10,000 samples +3 histograms<br />
♦ Low sample volume 10~40ul, high precision microanalysis<br />
♦ Internal thermal-sensitive printer or external printer<br />
♦ RS232 interface, PC connecting</p>
</div>
</div>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLAB07 AUTOMATIC CBC MACHINE

<p style="padding-left: 40px;">Product code: WSG 287407</p>
<p><strong>MSLHAS02 5- PART BLOOD ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;rn&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;rn&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<h3>Features</h3>
<ul>
<li>CBC+3-DIFF, 21 parameters +3 histograms</li>
<li>Throughput:70 samples per hour</li>
<li>Intuitive operation system with 10.4 inch TFT touch screen</li>
<li>Open vial sampling</li>
<li>500,000 results storage with histograms</li>
<li>Original QC, calibrators and reagents</li>
</ul>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHAS02 5- PART BLOOD ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287408</p>
<p><strong>BC-30 MINDRAY HEMATOLOGY ANALYZER</strong></p>
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div>
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-3370a1b466" class="cmp-text" data-cmp-data-layer="{&quot;text-3370a1b466&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:42:07Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;\r\n&lt;ul&gt;\r\n&lt;li&gt;CBC+3-DIFF, 21 parameters +3 histograms&lt;/li&gt;\r\n&lt;li&gt;Throughput:70 samples per hour&lt;/li&gt;\r\n&lt;li&gt;Intuitive operation system with 10.4 inch TFT touch screen&lt;/li&gt;\r\n&lt;li&gt;Open vial sampling&lt;/li&gt;\r\n&lt;li&gt;500,000 results storage with histograms&lt;/li&gt;\r\n&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;\r\n&lt;/ul&gt;\r\n&quot;}}">
<h3>Features</h3>
<ul>
<li>CBC+3-DIFF, 21 parameters +3 histograms</li>
<li>Throughput:70 samples per hour</li>
<li>Intuitive operation system with 10.4 inch TFT touch screen</li>
<li>Open vial sampling</li>
<li>500,000 results storage with histograms</li>
<li>Original QC, calibrators and reagents</li>
</ul>
</div>
</div>
</div>
</section>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


BC-30 MINDRAY HEMATOLOGY ANALYZER

<p style="padding-left: 40px;">Product code: WSG 287409</p>
<p><strong>MSLBA51 SEMI AUTO CHEMISTRY ANALYZER</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;rn&lt;ul&gt;rn&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;rn&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;rn&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;rn&lt;li&gt;Only three reagents needed&lt;/li&gt;rn&lt;li&gt;Open vial sampling&lt;/li&gt;rn&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;rn&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;rn&lt;/ul&gt;rn&quot;}}">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p>1.7 inch Color LCD ,Touch screen</p>
<p>2.10incubators,3 timers</p>
<p>3.Flow cell and cuvette test mode compatible</p>
<p>4.Real time curve showing</p>
<p>5.7 wavelength , 80 test items pre-programmed</p>
<p>6.Memory for 10,000 sample results</p>
<p>.Light source hibernate function making lamp life longer</p>
<p>.RS232 interface,PC connecting</p>
<p>9.Test mode: Kinetic, End point,Two point,Absorbance</p>
<p>10.Wavelength: 7 standard filters, 340,405,492,510,546,578,630 nm, 1 free position</p>
<p>11.Wavelength precision: 2 nm, width≤10nm</p>
<p>12.Absorbance range: 0~4.500 Abs</p>
<p>13.Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs</p>
<p>14.10lncubators,37土0.3℃;</p>
<p>15.3 timers, precision:土0.1sCarry over:&lt;1%</p>
<p>16.Repeatability cV:&lt;1%</p>
<p>17.Flowcell incubator:37℃、30℃、25℃、and others,Precision : 10.1℃</p>
<p>18.Sample volume: 0~3000 uL(500uL recommend)</p>
<p>19.Data Storage: 10000</p>
</div>
<div class="products_d wow fadeInDown">
<h2></h2>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<h3>Cheap Semi-auto Chemistry Analyzer machine MSLBA51 Feature</h3>
<p>&nbsp;</p>
<p>●7 inch Color LCD , Touch screen<br />
●10incubators,3 timers<br />
●Flow cell and Cuvette test mode compatible<br />
●Real time curve showing<br />
●7 wavelength。80 test Items pre-programmed<br />
●Memory for 10,000 sample results<br />
1 Light source hibernate functlon making lamp life longer<br />
●RS232 interface, PC connecting</p>
<p>&nbsp;</p>
<p><strong>Specification of </strong><strong>MSLBA51 Biochemistry Analyzer with incubators   </strong></p>
<p>Test mode: Kinetic, End point, Two point, Absorbance</p>
<p>Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position</p>
<p>Wavelength precision: ±2 nm, width ≤ 10nm</p>
<p>Absorbance range: 0~4.500 Abs</p>
<p>Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs</p>
<p>carry over: &lt; 1%</p>
<p>Repeatability CV: &lt; 1%</p>
<p>Incubator: 37℃, 30℃, 25℃, Precision : ±0.1℃</p>
<p>Sample volume: 0~3000 uL (≥500uL recommend)</p>
<p>Data Storage: ≥10000</p>
<p>Flow cell: 32 uL quartz glass, 10 mm</p>
<p>Lamp: 6V 10W Halogen Lamp with long life</p>
<p>Screen: 7 inch color LCD</p>
<p>CPU: ARM series high speed micro CPU</p>
<p>Printer: Internal thermal sensitive printer</p>
<p>Interface: RS-232</p>
<p>Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%</p>
<p>Power supply: 100~240VAC,50-60Hz, 100VA</p>
<p>&nbsp;</p>
<p><strong>Usual test list </strong><strong>of </strong><strong>MSLBA50 Semi-automatic Biochemistry Analyzer  </strong></p>
<p>Liver function:</p>
<p>ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3</p>
<p>Renal function :</p>
<p>BUN  CRE  UA  URE  CO2-CP  γ-GT</p>
<p>Lipids:</p>
<p>T-CHO  TG  HDL-C  LDL-C</p>
<p>Cardiac function:</p>
<p>CK  CK-MB  LDH</p>
<p>Immune proteins:</p>
<p>IGA  IGG  IGM  C3</p>
<p>Others:</p>
<p>GLU  HGB  AMS</p>
</div>
</div>
</div>
</div>
<p>&nbsp;</p>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLBA51 SEMI AUTO CHEMISTRY ANALYZER

CX23 OLYMPUS MICROSCOPE

<p style="padding-left: 40px;">Product code: WSG 287412</p>
<p><strong>MSLCTT10 CT TUBE<br />
</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<section class="mr-innovation-detail-text aem-GridColumn aem-GridColumn--default--12">
<div class="rich-text-main wrap wrap-nopadding">
<div id="text-b73ca747ca" class="cmp-text" data-cmp-data-layer="{&quot;text-b73ca747ca&quot;:{&quot;@type&quot;:&quot;xpace/components/content/publics/text&quot;,&quot;repo:modifyDate&quot;:&quot;2022-01-14T00:43:13Z&quot;,&quot;xdm:text&quot;:&quot;&lt;h3&gt;Features&lt;/h3&gt;\r\n&lt;ul&gt;\r\n&lt;li&gt;CBC+3-DIFF, 20 parameters +3 Histograms&lt;/li&gt;\r\n&lt;li&gt;Throughput: up to 30 samples per hour&lt;/li&gt;\r\n&lt;li&gt;8.4 inch TFT touch screen&lt;/li&gt;\r\n&lt;li&gt;Only three reagents needed&lt;/li&gt;\r\n&lt;li&gt;Open vial sampling&lt;/li&gt;\r\n&lt;li&gt;Large storage capacity: up to 50,000 samples&amp;nbsp;&lt;/li&gt;\r\n&lt;li&gt;Original QC, calibrators and reagents&lt;/li&gt;\r\n&lt;/ul&gt;\r\n&quot;}}">
<h3>Features</h3>
<ul>
<li>CBC+3-DIFF, 20 parameters +3 Histograms</li>
<li>Throughput: up to 30 samples per hour</li>
<li>8.4 inch TFT touch screen</li>
<li>Only three reagents needed</li>
<li>Open vial sampling</li>
<li>Large storage capacity: up to 50,000 samples</li>
<li>Original QC, calibrators and reagents</li>
</ul>
</div>
</div>
</section>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHX40 50KW MULTIFUNCTIONAL DYNAMIC GASTROINTESTINAL DR, 220v

<p style="padding-left: 40px;">Product code: WSG 287413</p>
<p><strong>MSLVX16 20KW VETERINARY X &#8211; RAY ANALOGUE MACHINE</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown"><strong> PRODUCT DESCRIPTION</strong></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="sr-layout-block bsc-info">
<div class="sr-layout-subblock">
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf"></div>
</div>
</div>
</div>
</div>
<div class="sr-layout-content detail-desc">
<div class="async-rich-info">
<div class="rich-text cf">
<div class="sr-layout-block bsc-info">
<div class="sr-layout-subblock">
<div class="sr-txt-title">
<h2 class="sr-txt-h2">Basic Info.</h2>
</div>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">Model NO.: CCX-D65</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Warrant: 1 Year</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Power Voltage: 380V</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Output Power: 65kw</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Photography Ma: 10 ~ 1000 Ma</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Fluoroscopy Ma: 1 ~ 100 Ma</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Photography Kv: 40 ~ 150 Kv</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Fluoroscopy Kv: 40 ~ 125 Kv</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Flat Panel Detector Size: 17 X17</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-value fl"></div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Trademark: Comcernmed</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Origin: China</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">HS Code: 9022140090</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Production Capacity: 500 Set/Month</div>
</div>
</div>
</div>
</div>
</div>
<div class="sr-layout-content detail-desc">
<div class="sr-txt-title">
<h2 class="sr-txt-h2">Product Pictorial Description</h2>
</div>
<div class="async-rich-info">
<div class="rich-text cf">
<p> <b>Medical Hospital 65kw Multifunctional dynamic DR</b><b>Model:CCX-D65</b></p>
<div data-mic-template="">
<div>
<div data-mic-template-image="" data-mic-template-item=""><img decoding="async" src="https://image.made-in-china.com/226f3j00lAnqmjIEQbko/Medical-Hospital-65kw-Gastrointestinal-X-Radiation-Fluoroscopy-and-Photography-Multifunctional-Dynamic-Dr-Digital-X-Ray-Machine.webp" alt="Medical Hospital 65kw Gastrointestinal X Radiation Fluoroscopy and Photography Multifunctional Dynamic Dr Digital X Ray Machine" width="575" height="" data-original="//image.made-in-china.com/226f3j00lAnqmjIEQbko/Medical-Hospital-65kw-Gastrointestinal-X-Radiation-Fluoroscopy-and-Photography-Multifunctional-Dynamic-Dr-Digital-X-Ray-Machine.webp" /></div>
<div data-mic-template-item="" data-mic-template-text="">
<div>
<div>
<div>
<div>
<div>
<div>
<div>
<div><b>Application:</b><br />
<b>CCX-D65 </b>is a multifunctional digital dynamic photography system. Can output the continuous dynamic images, used in conventional, gastrointestinal X radiation Fluoroscopy and photography were performed to provide radiological guidance for the diagnosis of patients And display.<b>Main functions: </b><br />
Still photography<br />
Dynamic perspective<br />
Whole spine splicing</p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLHX39 65KW MULTIFUNCTIONAL DYNAMIC GASTROINTESTINAL DR, 380V

<p style="padding-left: 40px;">Product code: WSG 287415</p>
<p><strong>MSLVX16 20KW VETERINARY X &#8211; RAY ANALOGUE MACHINE</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown"><strong> PRODUCT DESCRIPTION</strong></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="sr-layout-block bsc-info">
<div class="sr-layout-subblock">
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">Model NO.: WTX-20</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Output Power 16kw Power Voltage: 220V±22V</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Ma Range: 32~200mA</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Mas Range: 0.32 ~200mas</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Loading Time: 10~4000ms</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Specification: 290× 260× 230 mm</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Trademark: Waleeta</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Origin: Jiangsu, China</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">HS Code: 9018909090</div>
</div>
</div>
</div>
</div>
</div>
<div class="sr-layout-content detail-desc">
<div class="sr-txt-title">
<h2 class="sr-txt-h2">Product Description</h2>
</div>
<div class="async-rich-info">
<div class="rich-text cf">
<div>
<div id="1713513731782" class="cke-navigation" contenteditable="false">Product Description</div>
<p><strong>WTX-20 Hot sale Veterinary High Frequency Equipment Stationary X-ray Machine</strong></p>
</div>
<div><strong><img decoding="async" src="https://image.made-in-china.com/226f3j00fuYVDNUWIpor/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" alt="Pet Vet Clinic and Hospital Use 20kw Xray Machine for Small Animals" width="1060" height="" data-original="//image.made-in-china.com/226f3j00fuYVDNUWIpor/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" /></strong></div>
<div>
<p><b>Features:</b><br />
1. Applicable to all kinds of animals under 100KG in weight, including Tibetan mastiff<br />
2. 16 pre-set shooting modes, adjustable and savable<br />
3. Analog and digital double-loop high-precision control mode to ensure stable x-rays in case of unstable power source<br />
4. Malfunction self-protection and self-diagnosis, self-protection and alarming is in case of malfunction with traceable fault codes for easy maintenance.</p>
<div class="rich-text-table">
<table>
<tbody>
<tr>
<td colspan="2" rowspan="1">
<div><b>Technial Specifications</b></div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Maximum output power</div>
</td>
<td colspan="1" rowspan="1">
<div>20kW</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Input voltage range</div>
</td>
<td colspan="1" rowspan="1">
<div>AC220V±22V</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Applicable support</div>
</td>
<td colspan="1" rowspan="1">
<div>Radiography</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Tube voltage range of radiography</div>
</td>
<td colspan="1" rowspan="1">
<div>40kv~120kv</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Range of tube current</div>
</td>
<td colspan="1" rowspan="1">
<div>32~320mA</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Range of exposure time</div>
</td>
<td colspan="1" rowspan="1">
<div>0.01s~5s</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>mAs range</div>
</td>
<td colspan="1" rowspan="1">
<div>0.32mAs~320mAs</div>
</td>
</tr>
<tr>
<td colspan="1" rowspan="1">
<div>Communication interface</div>
</td>
<td colspan="1" rowspan="1">
<div>RS-232</div>
</td>
</tr>
</tbody>
</table>
</div>
</div>
<div id="1713513731783" class="cke-navigation" contenteditable="false">Detailed Photos</div>
<p><img decoding="async" src="https://image.made-in-china.com/226f3j00prfhPTYsmzkg/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" alt="Pet Vet Clinic and Hospital Use 20kw Xray Machine for Small Animals" width="1060" height="" data-original="//image.made-in-china.com/226f3j00prfhPTYsmzkg/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" /><br />
<img decoding="async" src="https://image.made-in-china.com/226f3j00gpGWLuRcmroz/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" alt="Pet Vet Clinic and Hospital Use 20kw Xray Machine for Small Animals" width="1060" height="" data-original="//image.made-in-china.com/226f3j00gpGWLuRcmroz/Pet-Vet-Clinic-and-Hospital-Use-20kw-Xray-Machine-for-Small-Animals.webp" /></p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLVX16 20KW VETERINARY X - RAY ANALOGUE MACHINE

<p style="padding-left: 40px;">Product code: WSG 287415</p>
<p><strong>MSLRX02 DIGITAL MAMMOGRAPHY MACHINE</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<h2>QUICK DETAILS</h2>
<p>Amorphous silicon TFT/PD matrix panel<br />
Scintillator    CsI (TI)<br />
Pixel pitch    85µm<br />
Effective active area    235mm x 290mm<br />
Effective pixel matrix    ＞ 2762 x 3408<br />
AD conversion    16bit<br />
Programmable gain amplifier<br />
Energy range    25kV-40kV<br />
AED Trigger mode Software</p>
</div>
<div class="products_d wow fadeInDown">
<h2></h2>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<div>
<h2>Breast Flat Panel Detector MSLFP30 for sale|Medsinglong</h2>
<p>&nbsp;</p>
<p>1.<strong>Introduction</strong></p>
<p>The MSLFP30 is a digital FPD detector with the patented Amorphous Silicon TFT sensor and needles directly deposited CsI: Tl scintillator technique of iRay technology. It is designed with the compact outline in order to retrofit the analog mammography system to digital. MSLFP30 has a quite large active area of 24x30cm with 85μm pixel pitch. The employed CsI (Cesium Iodide) scintillator makes the MSLFP30 achieve a special high DQE and MTF. The detector provides AED (Auto Exposure Detection) function via the specialized sensor to detect the X-ray for activing the FPD, and is also compatible with the existed AEC function of the analog mammography system. MSLFP30 supports FFDM applications.</p>
<ol start="2">
<li><strong> General Technique Specifications</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Sensor technology</td>
<td>Amorphous silicon TFT/PD matrix panel</td>
</tr>
<tr>
<td>Scintillator</td>
<td>CsI (TI), needles directly deposited on the a-Si TFT panel</td>
</tr>
<tr>
<td>Pixel pitch</td>
<td>85µm</td>
</tr>
<tr>
<td>Effective active area</td>
<td>235mm x 290mm</td>
</tr>
<tr>
<td>Effective pixel matrix</td>
<td>＞ 2762 x 3408</td>
</tr>
<tr>
<td>AD conversion</td>
<td>16bit</td>
</tr>
<tr>
<td>Charge amplifier</td>
<td>Programmable gain amplifier</td>
</tr>
<tr>
<td>Energy range</td>
<td>25kV-40kV</td>
</tr>
<tr>
<td>Data\Control interface</td>
<td>&nbsp;</p>
<p>GigE</td>
</tr>
<tr>
<td>Trigger mode</td>
<td>Software, AED</td>
</tr>
<tr>
<td>AED function</td>
<td>Yes</td>
</tr>
<tr>
<td>Frame rate</td>
<td>2fps@Free run</td>
</tr>
<tr>
<td>Cycle time</td>
<td>Typical 15s</td>
</tr>
</tbody>
</table>
</div>
<div>
<ol start="3">
<li><strong> Image Quality</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Limited spatial resolution</td>
<td>6 lp/mm</td>
</tr>
<tr>
<td>Saturation dose*</td>
<td>Typical 2500μGy @ 7.2pC</td>
</tr>
<tr>
<td>Dynamic range*</td>
<td>&gt;76dB @ 7.2pC</td>
</tr>
<tr>
<td>QNED</p>
<p>(measured according to European Guidelines)</td>
<td>&nbsp;</p>
<p>FFDM: ≤20µGy @ Binning 1C</td>
</tr>
<tr>
<td>QNLD</p>
<p>(measured according to European Guidelines)</td>
<td>&nbsp;</p>
<p>FFDM: ≤80µGy @ Binning 1C</td>
</tr>
<tr>
<td>Linearity*</td>
<td>≥ 0.999</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>MTF* @ RQM1/Binning1C</p>
<p>(measured according to IEC62220-1-2)</td>
<td>Typical 90% @ 1.0 LP/mm</p>
<p>Typical 70% @ 2.0 LP/mm</p>
<p>Typical 58% @ 3.0 LP/mm</p>
<p>Typical 29% @ 5.0 LP/mm</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>DQE* @ RQM1/Binning1C</p>
<p>(measured according to IEC62220-1-2)</td>
<td>Typical 69% @ 0 LP/mm</p>
<p>Typical 65% @ 1.0 LP/mm</p>
<p>Typical 56% @ 2.0 LP/mm</p>
<p>Typical 45% @ 3.0 LP/mm</p>
<p>Typical 31% @ 5.0 LP/mm</td>
</tr>
<tr>
<td>Lag</p>
<p>(measured according to IEC62220-1-2)</td>
<td>&nbsp;</p>
<p>&lt; 1.5% (first frame)</td>
</tr>
<tr>
<td>Memory effect</td>
<td>&lt;0.3%, after 60s</td>
</tr>
</tbody>
</table>
</div>
<div></div>
<div>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>(measured according to IEC62220-1-2)</td>
<td>&nbsp;</td>
</tr>
<tr>
<td>CNR @ 45mm PMMA</td>
<td>≥ 12.5</td>
</tr>
<tr>
<td>Image receptor homogeneity</p>
<p>(measured according to European Guidelines)</td>
<td>&nbsp;</p>
<p>&lt;10%</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>ACR phantom @ clinical condition</td>
<td>≥ 4 fibers</p>
<p>≥ 4 masses</p>
<p>≥ 3 speck groups</td>
</tr>
<tr>
<td>Missed tissue at the chest wall side</td>
<td>&lt; 3 mm</td>
</tr>
</tbody>
</table>
<p>*: The Radiation quality is W/Rh (50µm), according to IEC62220-1-2:2007.</p>
<ol start="4">
<li><strong> Mechanical</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Weight</td>
<td>≤1.3kg</td>
</tr>
<tr>
<td>Housing material</td>
<td>Aluminum with carbon fiber laminate entrance window</td>
</tr>
<tr>
<td>Size (mm3)</td>
<td>327 (L) × 254.5 (W) × 14 (H)</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>Outline</td>
<td>&nbsp;</p>
<p>&nbsp;</td>
</tr>
</tbody>
</table>
</div>
<div>
<ol start="5">
<li><strong> Communications</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Data interface</td>
<td>GigE</td>
</tr>
<tr>
<td>X-ray synchronization interface</td>
<td>AED</td>
</tr>
<tr>
<td>Software</td>
<td>SDK, supporting the 32 and 64 Windows® OS</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<ol start="6">
<li><strong> Environmental and Reliability</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Temperature</td>
<td>10 &#8211; 40 °C (operating), -10 – 55 °C (storage)</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>Humidity</td>
<td>10 &#8211; 90% RH (operating, non-condensing)</p>
<p>10 &#8211; 95%RH (storage)</td>
</tr>
<tr>
<td>Pressure</td>
<td>700 – 1060mbar (operating and storage)</td>
</tr>
<tr>
<td>Vibration</td>
<td>IEC 60068-2-6 (10-200 Hz, 5 g)</td>
</tr>
<tr>
<td>Shock</td>
<td>IEC 60068-2-29 (16ms, 10 g)</td>
</tr>
<tr>
<td>Life time</td>
<td>5 years</td>
</tr>
<tr>
<td>Life time dose</td>
<td>Typical 300Gy</td>
</tr>
<tr>
<td>IBFR</td>
<td>≤ 2.5%</td>
</tr>
<tr>
<td>CFR36</td>
<td>≤ 7.5%</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<ol start="7">
<li><strong> Power</strong></li>
</ol>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Supply</td>
<td>100-240V AC and mains frequency of 50Hz and 60Hz, both +/- 2%.</td>
</tr>
<tr>
<td>Input</td>
<td>24V DC</td>
</tr>
</tbody>
</table>
</div>
<div></div>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>Dissipation</td>
<td>Around 18W</td>
</tr>
<tr>
<td>Cooling</td>
<td>Passive</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<ol start="8">
<li><strong> Regulatory</strong></li>
</ol>
<p>&nbsp;</p>
<p>&nbsp;</p>
<table class="Table" cellspacing="0">
<tbody>
<tr>
<td>General regulatory</td>
<td>CE, RoHs</td>
</tr>
<tr>
<td>Risk management</td>
<td>ISO 14971: 2007</td>
</tr>
<tr>
<td>&nbsp;</p>
<p>&nbsp;</p>
<p>Safety and essential perfor mance</td>
<td>IEC60601-1:2005/EN60601- 1:2006+AC:2010/IEC 60601-1:2005+</p>
<p>Amendment 1:2012/EN 60601-1:2006+</p>
<p>Amendment 1:2013</p>
<p>IEC 60601-1-2:2014</td>
</tr>
<tr>
<td>Radiation protection</td>
<td>IEC 60601-1-3:2008</td>
</tr>
<tr>
<td>Characteristics of digital X-ray imaging devices</td>
<td>IEC 62220-1-2:2007</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>


MSLFP30 MAMMOGRAPHY FLAT PANEL DETECTOR

<p style="padding-left: 40px;">Product code: WSG 287415</p>
<p><strong>MSLRX02 DIGITAL MAMMOGRAPHY MACHINE</strong></p>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown"></div>
<div class="products_d wow fadeInDown">
<div class="desc_contents">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<div>Perfect environmental adaption makes it available for indoor and vehicle application for different intended use.</div>
<div>User-friendly GUI(Graphic user interface),support various exposure mode</div>
<div>User-friendly Interface, simple and easy to operate</div>
<div>Fast transmission speed, comply with DICOM3.0 protocol, can achieve the seamless link</div>
<div>with HIS. RIS. and PACS systems.</div>
<div>Powerful tools for patient management, data gathering and image reconstruction, viewing</div>
<div>and measuring, typesetting, printing, storage, provides rich aides for diagnosis</div>
<div>With special detector of a-Si for breast mammography, X-ray is transferred to electric signals directly without the additional</div>
<div>process of transferring x-Ray to visible and then to electric signal.This eliminates the artifact due to scattering of X-Ray and</div>
<div>guarantees the authenticity from the imaging mechanism and can really satisfy the requirements of breast mammography on</div>
<div>details. With high DOE, this can guarantee high resolution of image and meanwhile decrease irradiation dose.</div>
</div>
<div class="products_d wow fadeInDown">
<h2>Packaging &amp; Delivery</h2>
<table border="0" width="100%">
<tbody>
<tr>
<td width="200" height="28"><span class="attr-name">Packaging detail:Standard export package<br />
Delivery detail:within 7-10 workdays after receipt of payment</span></td>
</tr>
</tbody>
</table>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<p>Efficient Navigator DR Mammography MSLRX02</p>
<div>Perfect environmental adaption makes it available for indoor and vehicle application for different intended use.</div>
<div>User-friendly GUI(Graphic user interface),support various exposure mode</div>
<div>User-friendly Interface, simple and easy to operate</div>
<div>Fast transmission speed, comply with DICOM3.0 protocol, can achieve the seamless link with HIS. RIS. and PACS systems.</div>
<div>Powerful tools for patient management, data gathering and image reconstruction, viewing and measuring, typesetting, printing, storage, provides rich aides for diagnosis</div>
<div>With special detector of a-Si for breast mammography, X-ray is transferred to electric signals directly without the additional process of transferring x-Ray to visible and then to electric signal.This eliminates the artifact due to scattering of X-Ray and guarantees the authenticity from the imaging mechanism and can really satisfy the requirements of breast mammography on details. With high DOE, this can guarantee high resolution of image and meanwhile decrease irradiation dose.</div>
<div><img decoding="async" class="img-responsive" src="https://medicalequipment-msl.com/upload/img/20180108/20180108142541732.jpg" alt="diagnostic mammogram" /></div>
<p>Efficient Navigator DR Mammography MSLRX02</p>
<table>
<tbody>
<tr>
<td>Item</td>
<td>
<p align="center">Description</p>
</td>
</tr>
<tr>
<td>
<p align="justify"><strong>1</strong></p>
</td>
<td>
<p align="justify"><strong>Mammography System</strong></p>
</td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Rating power:5000VA</p>
<p>Integrated System (Generator Integrated within the main device)</p>
<p>High voltage generator output: ≥100 kHz, 20 kV to 40 kV increment step: 1 kV</p>
<p>High performance X-ray tube:</p>
<p>Standard：Molybdenum Anode, Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)</p>
<p>Optional：Tungsten Anode, Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)</p>
<p>Support isocenter rotation function</p>
<p>C-arm Rotation range: +180°～ -135°</p>
<p>Height range of breast support surface: 735mm-1315mm;</p>
<p>C-arm power-driven electrically, Dual side digital display;</p>
<p>Compression plate: flexible and multi-level smart Compression</p>
<p>Spatial Resolution: &gt;6 Lp/mm</p>
<p>Detector type: Amorphous Silicon Detector</p>
<p>Effective Imaging Area: 24*30cm</p>
<p>Acquisition Station compatible with DICOM 3.0</p>
<p>Focal distance : 650mm</p>
<p>Added filter: Mo / Rh</p>
<p>Added filter Switch: Manual/Automatic</p>
<p>X-ray Field adjustment: Manual</p>
<p>Magnification factor: 1.5</p>
<p>Exposure mode: Manual / AEC</p>
<p>Supply: 220V～,±10%</p>
<p>Frequency: 50/60Hz±1Hz</p>
<p>Max. power : 5000 VA</p>
<p>N.W.: 240 Kg</p>
<p>Compact design, minimum device height: &lt; 1.1 m</p>
<p>Packing Size: 121 X 94 X 145 CM</td>
</tr>
<tr>
<td>
<p align="justify"><strong>2</strong></p>
</td>
<td>
<p align="justify"><strong>High-Voltage Generator</strong></p>
</td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>a)  Frequency:≥100KHz;</p>
<p>b)  Tube voltage Range: 20 kV ～ 40 kV in 1 kV step;</p>
<p>c)  Max Output: 4 kW;</p>
<p>d)  Max tube voltage:40kV;</p>
<p>e)  Max tube current: 140mA;</p>
<p>f)  Max current time product: ≥630mAs;</p>
<p>g)  Ripple: ＜4%.</p>
<p>&nbsp;</td>
</tr>
<tr>
<td>
<p align="justify"><strong>3</strong></p>
</td>
<td><strong>X-Ray Tube</strong></td>
</tr>
<tr>
<td rowspan="2">
<p align="center">
</td>
<td>Standard：</p>
<p>Imported X-ray tube for Mammography;</p>
<p>Anode Type: Molybdenum;</p>
<p>Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)</p>
<p>Permanent filtration: 0.5mmBe</p>
<p>Max anode speed: 10000rpm/min;</p>
<p>Max tube voltage:40kV;</p>
<p>Max tube current: 35mA(small)/140mA(Large)</p>
<p>Anode heating capacity: 300 kHu</td>
</tr>
<tr>
<td>Optional：</p>
<p>Imported X-ray tube for Mammography;</p>
<p>Anode Type: Tungsten;</p>
<p>Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)</p>
<p>Permanent filtration:0.5mmBe;</p>
<p>Max anode speed: 10000rpm/min;</p>
<p>Max tube voltage:49kV;</p>
<p>Max tube current: 35mA(small)/140mA(Large)</p>
<p>Anode heating capacity: 300 kHu</td>
</tr>
<tr>
<td>
<p align="justify"><strong>4</strong></p>
</td>
<td>
<p align="justify"><strong>Beam Limiting</strong><strong> Device</strong></p>
</td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Electric switch between Molybdenum or Tungsten added filter;</p>
<p>Adjustable X-ray field manually.</p>
<p>Light field indicator is on automatically as compression plate moves down;</p>
<p>Light field indicator is off with delay as compression plate stops moving;</p>
<p>e)  Off delay of light field indicator can be set via software.</td>
</tr>
<tr>
<td>
<p align="justify"><strong>5</strong></p>
</td>
<td><strong>C-arm Assembly</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>C-arm up-down and rotation movement controlled via C-arm control panel;</p>
<p>C-arm stops automatically at common mammographic position: CC, OBL and LAT;</p>
<p>Rotation angle of OBL position can be set via software;</p>
<p>Support table up-down range: 735mm(L)～1315mm(H);</p>
<p>Rotation type of C-arm: isocenter rotation around the examined part;</p>
<p>Rotation range of C-arm: -135<sup>o</sup>～180<sup>o</sup></p>
<p>Distance between focal spot and image reception area:650mm;</p>
<p>Magnification factor:1.5</p>
<p>Device can be installed in the movable physical vehicle as max height of device is less than 110cm;</p>
<p>Local display panel on the both side of the stand can indicate rotation angle of C-arm;</p>
<p>For safer operation, emergency stop button is locate on the top of C-arm;</p>
<p>Duplex foot switch(2 pcs) provided.</td>
</tr>
<tr>
<td><strong>6</strong></td>
<td><strong>Compression Device</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Up-down movement : power-driven electrically;</p>
<p>Compression control: continuous activation by foot;</p>
<p>Compression mode: flexible and multi-level compression, automatic and manual decompression;</p>
<p>Compression plate travel range: 5～268mm;</p>
<p align="justify">Compression force: 0～200N</p>
<p align="justify">Compression thickness: 5～268mm</p>
<p>Size of compression plate: 24X30cm.</td>
</tr>
<tr>
<td>
<p align="justify"><strong>7</strong></p>
</td>
<td>
<p align="justify"><strong>Local Operation and Display</strong></p>
</td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>a) Dual display with backlight on the both side;</p>
<p>b) Parameters displayed:</p>
<p>&#8211;  rotation angle of C-arm;</p>
<p>&#8211;  compression thickness;</p>
<p>&#8211;  compression force;</p>
<p>&#8211;  KV;</p>
<p>&#8211;  mAs;</p>
<p>&#8211;  density</p>
<p>&#8211;  focal spot selected;</p>
<p>&#8211;  exposure mode;</p>
<p>&#8211;  Added filter selected;</p>
<p>&#8211;  automatic decompression indication;</p>
<p>&#8211;  state indication;</p>
<p>&#8211;  failure alarming indication;</p>
<p>c) Control function:</p>
<p>&#8211;  KV;</p>
<p>&#8211;  mAs;</p>
<p>&#8211;  density</p>
<p>&#8211;  selection of focal spot;</p>
<p>&#8211;  selection of filter;</p>
<p>&#8211;  selection of mammographic mode;</p>
<p>&#8211;  selection of automatic decompression    after exposure.</td>
</tr>
<tr>
<td>
<p align="justify"><strong>8</strong></p>
</td>
<td>
<p align="justify"><strong>Anti-scatter Grid</strong></p>
</td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Support movable grid;</p>
<p>Grid ratio: 5:1;</p>
<p>Grid density: 41 L/cm;</p>
<p>Grid focal distance:65cm；</p>
<p>Manually unload grid in magnification mode.</td>
</tr>
<tr>
<td><strong>9</strong></td>
<td><strong>Digital Image Detector</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Detector type: Amorphous Silicon Detector;</p>
<p>Material: Amorphous Silicon + CSI;</p>
<p>Min. pixel: 85µm;</p>
<p>Image Matrix Sizes: 2816×3528 pixels;</p>
<p>Effective Imaging Area: 24cm×30cm;</p>
<p>Image Reading Duration: ＜1.4s;</p>
<p>Interval Duration: ＜30s;</p>
<p>Spatial Resolution: 6 lp/mm;</p>
<p>MTF: 50%;</p>
<p>DQE: 65% (1 Lp/mm);</p>
<p>Output Gray scale: 14 bits</td>
</tr>
<tr>
<td><strong>10</strong></td>
<td><strong>Acquisition Station</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Intel CPU frequency≥2.4GHz,≥ 4 GB Memory, ≥500 GB HDD</p>
<p>LCD Display</p>
<p>Image Acquisition Software</p>
<p>Image Detector Self-check and adjustment</p>
<p>Patient Information and Image Management</p>
<p>Auto Explore Control</p>
<p>Acquisition of Explored Image Information</p>
<p>Browsing and Searching of Image</p>
<p>Measure the Distance, Angle, Space of Image and Mark The Selected Area</p>
<p>Image Process after Acquisition: Black and white reverse, rotate and flip, zoom, local editing, enhancement, filtering noise, copies, abridged, etc.</p>
<p>DICOM 3.0 Services (Print, Store, Query/Retrieve, CDRW, Scheduled Workflow and Patient Information Reconciliation)</p>
<p>Automatic failure diagnosis, error code and message indication;</p>
<p>Exposure activation: exposure button;</p>
<p>Data backup and recovery.</td>
</tr>
<tr>
<td>
<p align="justify"><strong>11</strong></p>
</td>
<td><strong>Automatic Exposure Control</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Automatically select imaging parameters according to the thickness of breast and density of tissue;</p>
<p>Integration detector;</p>
<p>Automatically position selection.</p>
<p>d)  Automatically kV, filter and mAs selection.</td>
</tr>
<tr>
<td>
<p align="justify"><strong>12</strong></p>
</td>
<td><strong>Manuals</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>User Manual</p>
<p>Pre-Installation Manual</td>
</tr>
<tr>
<td>
<p align="center">Item</p>
</td>
<td>
<p align="center">Description</p>
</td>
</tr>
<tr>
<td>
<p align="center"><strong>1</strong></p>
</td>
<td><strong>High resolution medical image display</strong></td>
</tr>
<tr>
<td>
<p align="center">
</td>
<td>Display Hardware: 5MP LCD Display at 2K x 2.5K</p>
<p>&nbsp;</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<p><strong>Efficient Navigator DR Mammography MSLRX02</strong></p>
<table>
<tbody>
<tr>
<td>Power Capacity</td>
<td>5000VA</td>
</tr>
<tr>
<td>Voltage</td>
<td>220V～,±10%</td>
</tr>
<tr>
<td>Frequency</td>
<td>50/60Hz±1Hz</td>
</tr>
<tr>
<td>Earth resistance</td>
<td>≤0.6Ω</td>
</tr>
</tbody>
</table>
<table>
<tbody>
<tr>
<td>
<p align="center">Item</p>
</td>
<td>
<p align="center">Temperature</p>
</td>
<td>
<p align="center">Humidity</p>
</td>
<td>
<p align="center">Atmosphere Pressure</p>
</td>
</tr>
<tr>
<td>
<p align="center">Shield Room</p>
</td>
<td>
<p align="center">15℃～35℃</p>
</td>
<td>
<p align="center">30%～60%</p>
<p align="center">（No dewing）</p>
</td>
<td rowspan="2">
<p align="center">700hPa～1060hPa</p>
</td>
</tr>
<tr>
<td>
<p align="center">Operator Room</p>
</td>
<td>
<p align="center">10℃～40℃</p>
</td>
<td>
<p align="center">20％～80％</p>
<p align="center">（No dewing）</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
</div>


MSLRX02 DIGITAL MAMMOGRAPHY MACHINE

<p style="padding-left: 40px;">Product code: WSG 287416</p>
<h1 title="MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D" data-spm-anchor-id="a2700.details.0.i67.27327fa5wJUGbF">MSLCX50 5.6KW DIGITAL C-ARM WITH WIFI FUNCTION</h1>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<div class="products_d wow fadeInDown">
<h2>Quick Details</h2>
<p><strong> c arm machine</strong></p>
<table>
<tbody>
<tr>
<td>1.Power 5.6kW</p>
<p>2.Inverter frequency: ≥200kHz</p>
<p>3.Tube voltage: 40-120kV</p>
<p>4.with WiFi function</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<p><strong>C arm x-ray machine Mobile high frequency digital x-ray machine MSLCX50</strong></p>
<p>&nbsp;</p>
<p><strong>C Arm Imaging System X ray machine MSLCX50</strong></p>
<p>New senies have super HD digital image chain technology, leading to more clear bone and soft fssue definitin, more accurate positioning, more convenient surgery and more safe patient. This type of equipment can be used in perspective diagnosis and treatment in normal surgery of hospital departments like traumatic orthopedics,general surgery, traumatology pain, spine surgery and gastroenterology etc, and will bring new operation expenience for doctors.</p>
<p><strong>&#8220;C” the Future</strong></p>
<ul>
<li>Streamlined surface, the self- balanced pathwayis more reliable, with more convenient operation.</li>
<li>It has ultra-large motion range, withe 360&#8243;in rotation, to meet all projection needs on clinic. .</li>
<li>It has silent motion mode, with the whole machine flexible to be moved freely in the surgery room.</li>
</ul>
<p>c arm machine Product Description</p>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H7b0d69da5dee47a4bbfe598e642066f83/220127909/H7b0d69da5dee47a4bbfe598e642066f83.jpg?quality=close" alt="Mobile c arm x-ray machine high frequency digital x ray machine mobile x-ray machine MSLCX50" /></p>
<p><strong>c arm machine Specification</strong></p>
<table id="w-e-element-432">
<tbody>
<tr>
<td colspan="1" rowspan="1">1.1</td>
<td colspan="1" rowspan="1">High frequency inverter power supply and combined tube</td>
</tr>
<tr>
<td colspan="1" rowspan="1">1.2</td>
<td colspan="1" rowspan="1">Power 5.6kW</td>
</tr>
<tr>
<td colspan="1" rowspan="1">1.3</td>
<td colspan="1" rowspan="1">Focus size: 0.6mm( small focus )/1.2mm( large focus )</td>
</tr>
<tr>
<td colspan="1" rowspan="1">1.4</td>
<td colspan="1" rowspan="1">Heat capacity of tube cover: 480kJ ( 648kHU )</td>
</tr>
<tr>
<td colspan="1" rowspan="1">1.5</td>
<td colspan="1" rowspan="1">Anode heat capacity: 60kJ(81kHU)</td>
</tr>
<tr>
<td colspan="1" rowspan="1">1.6</td>
<td colspan="1" rowspan="1">Inverter frequency: ≥200kHz</td>
</tr>
</tbody>
</table>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H91fd94a3104541348c8683446cfc037aG/220127909/H91fd94a3104541348c8683446cfc037aG.jpg?quality=close" alt="Mobile c arm x-ray machine high frequency digital x ray machine mobile x-ray machine MSLCX50" /></p>
<table id="w-e-element-465">
<tbody>
<tr>
<td colspan="1" rowspan="1">2.1</td>
<td colspan="1" rowspan="1">The system has a color human body graphic LCD touch screen, real-time adjustment of exposure parameters</td>
</tr>
<tr>
<td colspan="1" rowspan="1">2.2</td>
<td colspan="1" rowspan="1">Tube voltage: 40-120kV</td>
</tr>
<tr>
<td colspan="1" rowspan="1">2.3</td>
<td colspan="1" rowspan="1">Maximum tube current: 10mA( continuous perspective ); 50mA( pulse perspective)</td>
</tr>
<tr>
<td colspan="1" rowspan="1">2.4</td>
<td colspan="1" rowspan="1">Maximum pulse acquisition rate 25f/s</td>
</tr>
<tr>
<td colspan="1" rowspan="1">2.5</td>
<td colspan="1" rowspan="1">Maximum photographic current: 80mA</td>
</tr>
</tbody>
</table>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/Hdda8db7629df46e8a962e1279762c4a1w/220127909/Hdda8db7629df46e8a962e1279762c4a1w.jpg?quality=close" alt="Mobile c arm x-ray machine high frequency digital x ray machine mobile x-ray machine MSLCX50" /></p>
<table id="w-e-element-493">
<tbody>
<tr>
<td colspan="1" rowspan="1">3.2</td>
<td colspan="1" rowspan="1">Collection size: ≥1024&#215;1024</td>
</tr>
<tr>
<td colspan="1" rowspan="1">3.3</td>
<td colspan="1" rowspan="1">Pixel size: ≤205um</td>
</tr>
<tr>
<td colspan="1" rowspan="1">3.4</td>
<td colspan="1" rowspan="1">Spatial resolution: ≥2.0LP/mm</td>
</tr>
<tr>
<td colspan="1" rowspan="1">3.5</td>
<td colspan="1" rowspan="1">Dynamic adjustment range: ≥16bit</td>
</tr>
<tr>
<td colspan="1" rowspan="1">3.6</td>
<td colspan="1" rowspan="1">Filter grid density: ≥80L/cm, pluggable</td>
</tr>
<tr>
<td colspan="1" rowspan="1">3.7</td>
<td colspan="1" rowspan="1">Intelligent multi-dimensional laser positioning system, integrated support design</td>
</tr>
</tbody>
</table>
<p><img decoding="async" class="img-responsive" src="https://s.alicdn.com/@sc04/kf/H53ba3193b9cd4c44817c4897f70dfb6ad/220127909/H53ba3193b9cd4c44817c4897f70dfb6ad.jpg?quality=close" alt="Mobile c arm x-ray machine high frequency digital x ray machine mobile x-ray machine MSLCX50" /></p>
</div>
</div>
</div>
</div>


MSLCX50 5.6KW DIGITAL C-ARM WITH WIFI FUNCTION

<p style="padding-left: 40px;">Product code: WSG 287417</p>
<h1 title="MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D" data-spm-anchor-id="a2700.details.0.i67.27327fa5wJUGbF">MSLCX20 5KW DIGITAL C-AM WITH FIXED X-RAY TUBE</h1>
<div class="attribute-list">
<div class="products_d wow fadeInDown">
<h2></h2>
<h2>Quick Details</h2>
<p>C-Arm x ray machine MSLCX20</p>
<p>Input voltage: 220/110VAC<br />
maximum output power: 5kW<br />
Tube current: 0.1mA to 100mA<br />
Tube voltage: 40 to 125kV<br />
Maximum anode heat capacity: 200KHU</p>
</div>
<div class="products_d wow fadeInDown">
<h2>Specifications</h2>
<div class="desc_contents">
<p>A C-Arm machine is an advanced medical imaging device based on X-ray technology. They are primarily used for fluoroscopy capabilities, although they have radiography capability too. C-Arm is called so, due to its C-shaped arm, which is used to connect the x-ray source on one end and the detector on the other.</p>
<p>C-Arm machines are widely used during orthopedic, urology, gastroenterology surgeries, other complicated surgical, pain management and emergency procedures, cardiac and angiography studies and in therapeutic studies including stents or needle placements. The Fluoroscopy technology enables high-resolution X-ray images provided in real time, so that the surgeons can do more accurate procedures with better outcomes for the patient. C-Arm systems are also mobile and provide a great deal of flexibility to the surgeon to take images of whole body of the patient from different angles as required.</p>
<p><strong>C-arm product parameters MSLCX20  </strong></p>
<p>Machine model<br />
model: MSLCX20<br />
power supply: 220V/110 AC</p>
<p><strong>C arm fluoroscopy MSLCX20 Combined ray source</strong><br />
model: Gemini5<br />
target angle: 10°<br />
focus:   0.3/0.6mm<br />
Input voltage: 220/110VAC<br />
maximum output power: 5kW<br />
Tube current: 0.1mA to 100mA<br />
Tube voltage: 40 to 125kV<br />
Maximum anode heat capacity: 200KHU</p>
</div>
</div>
</div>


MSLCX20 5KW DIGITAL C-AM WITH FIXED X-RAY TUBE

<p style="padding-left: 40px;">Product code: WSG 287417</p>
<h1 title="MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D" data-spm-anchor-id="a2700.details.0.i67.27327fa5wJUGbF">MSLPX36 portable Flouroscopy machine</h1>
<div class="attribute-list">
<div class="attribute-item">
<div data-spm-anchor-id="a2700.details.0.i65.3ee76d38XvmM1r"><strong>Description</strong></div>
<div class="left" data-spm-anchor-id="a2700.details.0.i65.3ee76d38XvmM1r">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: VetsMart</div>
</div>
<div class="attribute-item">
<div class="left">Model Number: VM-PXR05</div>
</div>
<div class="attribute-item">
<div class="left">Product name: X ray Fluoroscopy Machine</div>
</div>
<div class="attribute-item">
<div class="left">Output Image size: 10 inches</div>
</div>
<div class="attribute-item">
<div class="left">Survey thickness: ≤300mm</div>
</div>
<div class="attribute-item">
<div class="left">X-ray tube voltage: 45-90KV adjustable</div>
</div>
<div class="attribute-item">
<div class="left">Voltage deviation : ≤10%</div>
</div>
<div class="attribute-item">
<div class="left">X-ray tube current: 0.25-0.5mA adjustable</div>
</div>
<div class="attribute-item">
<div class="left">Current deviation: ≤20%</div>
</div>
<div class="attribute-item">
<div class="left">Position deviation: ±1mm</div>
</div>
<div class="attribute-item">
<div class="left">Resolution: ≥3lp/mm</div>
</div>
<div class="attribute-item">
<div class="left">Operating frequency: 20Khz</div>
</div>
</div>


MSLPX36 portable Flouroscopy machine

<p style="padding-left: 40px;">Product code: WSG 287418</p>
<h1 title="MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D" data-spm-anchor-id="a2700.details.0.i67.27327fa5wJUGbF">MSLHX04 32KW HIGH FREQUENCY X RAY MACHINE WITH TOSHIBA TUBE</h1>
<div class="attribute-list"><strong>Introduction</strong><br />
Floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design, flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.Features<br />
◆Sophisticated technology, high rotating speed, good heat dissipation, high heat capacity, suitable for long-time clinical examination, long product life.</p>
<p>◆High frequency generator with high X-ray inverse frequency, large power and good X-ray quality.</p>
<p>◆Intelligence high voltage control system with various APR.</p>
<p>◆New generation a-Si Csl flat panel detector with high conversion rate achieves digital image acquisition with low dose.</p>
<p>◆High standard digital image processing system provides more post-processing and meets clinical needs.</p>
<p><strong>Specifications</strong><br />
<u>Ambient Conditions</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Ambient temperature</td>
<td>10℃～40℃</td>
</tr>
<tr>
<td>Relative humidity</td>
<td>30％～75％</td>
</tr>
<tr>
<td>Atmospheric</td>
<td>70～106kPa</td>
</tr>
<tr>
<td>Main head</td>
<td>9.7 inch touch screen control panel</td>
</tr>
</tbody>
</table>
<p><u>X-ray Generator</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Model</td>
<td colspan="4">                  <strong>SHO-DDX03 Series</strong></td>
</tr>
<tr>
<td>Output power</td>
<td>20kw</td>
<td>32kw</td>
<td>40kw</td>
<td>50kw</td>
</tr>
<tr>
<td><u>Current</u></td>
<td>10-320mA</td>
<td>10-400mA</td>
<td>10-500mA</td>
<td>10-630mA</td>
</tr>
<tr>
<td><u>Voltage</u></td>
<td>40kv-125kv</td>
<td>40kv-125kv</td>
<td>40kv-125kv</td>
<td>40kv-150kv</td>
</tr>
<tr>
<td>mAs</td>
<td>0.1-320mAs</td>
<td>0.1-400mAs</td>
<td>0.1-400mAs</td>
<td>0.1-630mAs</td>
</tr>
<tr>
<td>Exposure time</td>
<td colspan="4">0.002~6.3S</td>
</tr>
<tr>
<td><u>Focus size</u></td>
<td>1.0/2.0</td>
<td>1.0/2.0</td>
<td>1.0/2.0</td>
<td>0.6/1.2</td>
</tr>
<tr>
<td>APR program</td>
<td colspan="4">Equipped</td>
</tr>
<tr>
<td>Intelligent protection system</td>
<td colspan="4">It has self-protection system. It will give an alarm and check fault code.</td>
</tr>
</tbody>
</table>
<p><u>X-ray Tube</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Anode type</td>
<td>Rotating Anode</td>
</tr>
<tr>
<td>Focal Spot value</td>
<td>0.6mm /1.2mm</td>
</tr>
<tr>
<td>Maximum voltage</td>
<td>150KV</td>
</tr>
<tr>
<td>Revolving speed of anode</td>
<td>2800rpm</td>
</tr>
<tr>
<td>Inherent filtration</td>
<td>1.0mmAl</td>
</tr>
<tr>
<td>Anode heat storage capacity</td>
<td>300kHU</td>
</tr>
<tr>
<td>Maximum cooling rate of anode</td>
<td>870W</td>
</tr>
<tr>
<td>Housing heat storage capacity</td>
<td>900kJ</td>
</tr>
</tbody>
</table>
<p><u>X-ray detector(Iray brand Flat Panel Detector)</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Type</td>
<td>Amorphous Silicon</td>
</tr>
<tr>
<td>Scintillator</td>
<td>Cesium Iodide</td>
</tr>
<tr>
<td>Active Area</td>
<td>17x17Inch(43cm*43cm)</td>
</tr>
<tr>
<td>Active Pixel</td>
<td>3072*3072</td>
</tr>
<tr>
<td>Pixel Pitch</td>
<td>139um</td>
</tr>
<tr>
<td>A/D Conversion</td>
<td>16bits</td>
</tr>
<tr>
<td>DQE</td>
<td>≧70%</td>
</tr>
<tr>
<td>Spatial Resolution</td>
<td>36Lp/cm</td>
</tr>
<tr>
<td>Acquisition time</td>
<td>≤2S</td>
</tr>
</tbody>
</table>
<p><u>Collimator</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Type</td>
<td>Manual Collimator</td>
</tr>
<tr>
<td>Max. Window</td>
<td>440mm×440mm（SID=100cm）</td>
</tr>
<tr>
<td>Lamp</td>
<td>AC/DC24V、5W</td>
</tr>
<tr>
<td>Lamp timer</td>
<td>Automatic illumination with timer for lamp(30S)</td>
</tr>
<tr>
<td>Inherent filtration</td>
<td>1.0mmAl</td>
</tr>
<tr>
<td>Illuminant</td>
<td>LED</td>
</tr>
</tbody>
</table>
<p><u>Grid</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Densities</td>
<td>40LP/CM</td>
</tr>
<tr>
<td>Ratios</td>
<td>10:1</td>
</tr>
<tr>
<td>Size</td>
<td>18”×18”</td>
</tr>
<tr>
<td>Focal distance</td>
<td>130cm</td>
</tr>
</tbody>
</table>
<p><u>Table</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Type</td>
<td>Radiography Table</td>
</tr>
<tr>
<td>Tabletop size</td>
<td>2000mm×800mm</td>
</tr>
<tr>
<td>load-bearing</td>
<td>300KG</td>
</tr>
</tbody>
</table>
<p><u>Movement</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td><strong>Tube stand</strong></td>
<td></td>
</tr>
<tr>
<td>Up-down movement</td>
<td>1280mm</td>
</tr>
<tr>
<td>Stand left-right movement</td>
<td>1800mm</td>
</tr>
<tr>
<td>Rotational angles of stand</td>
<td>+180°～-180°</td>
</tr>
<tr>
<td>Rotational angles of tube</td>
<td>±90°</td>
</tr>
<tr>
<td><strong>Detector stand</strong></td>
<td></td>
</tr>
<tr>
<td>Up-down movement</td>
<td>1280mm</td>
</tr>
</tbody>
</table>
<p><u>Workstation</u></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Monitor</td>
<td>23’’ LCD Dell brand</td>
</tr>
<tr>
<td>CPU</td>
<td>≥2.8GHz</td>
</tr>
<tr>
<td>Memory</td>
<td>≥4GB</td>
</tr>
<tr>
<td>HDD</td>
<td>≥1TB</td>
</tr>
<tr>
<td>DICOM3.0</td>
<td>Query for integration with any PACS</td>
</tr>
</tbody>
</table>
</div>
<p>&nbsp;</p>


MSLHX04 32KW HIGH FREQUENCY X RAY MACHINE WITH CHINA TUBE

<p style="padding-left: 40px;">Product code: WSG 287400</p>
<h1 title="MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D" data-spm-anchor-id="a2700.details.0.i67.27327fa5wJUGbF">MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D</h1>
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i65.27327fa5wJUGbF">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i66.27327fa5wJUGbF">Instrument classification :Class I</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number : DY03</div>
</div>
<div class="attribute-item">
<div class="left">Product name: Printer For DR System</div>
</div>
<div class="attribute-item">
<div class="left">Spatial resolution: 320dpl(12.6 pixels/mm)</div>
</div>
<div class="attribute-item">
<div class="left">Throughput: 14*17&#8243;,50sheets/h;8*10&#8243; ^70 sheets/h</div>
</div>
<div class="attribute-item">
<div class="left">Film Transferring Method: Rubbing</div>
</div>
<div class="attribute-item">
<div class="left">Film Tray:  Two supply tray, 200-sheet capacity total</div>
</div>
<div class="attribute-item">
<div class="left">Film Sizes:  8&#8243;x10&#8243;,10&#8243;x12&#8243;,14&#8243;x17&#8243;</div>
</div>
<div class="attribute-item">
<div class="left">Power Supply:  100-240VAC 50/60HZ 600W</div>
</div>
<div class="attribute-item">
<div class="left">Weight: 50Kg</div>
</div>
<div class="attribute-item">
<div class="left">Storage Humidity: 30%-85%</div>
</div>
<div class="attribute-item">
<div class="left">Network Protocol:    Standard DICOM 3.0 connection</div>
</div>
</div>
<p>&nbsp;</p>


MSLDY03 High Quality Clear Xray Film Image Thermal Xray Printer for DR System Factory Price Medical X Ray Dry Film Printer For D

<p style="padding-left: 40px;">Product code: WSG 287401</p>
<p>MSLGX22 1 KW PORTABLE SMALL X-RAY</p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i68.23879e03gMsy46">Place of Origin: Guangdong, China</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Model Number: MSLGX22</div>
</div>
<div class="attribute-item">
<div class="left">Power Source: Electric</div>
</div>
<div class="attribute-item">
<div class="left">Material: acrylic</div>
</div>
<div class="attribute-item">
<div class="left">Shelf Life: 3 years</div>
</div>
<div class="attribute-item">
<div class="left">Quality Certification: ce</div>
</div>
<div class="attribute-item">
<div class="left">Instrument classification: Class II</div>
</div>
<div class="attribute-item">
<div class="left">Safety standard: GB2626-2006</div>
</div>
<div class="attribute-item">
<div class="left">Product name: handheld x ray system machine</div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: MSL</div>
</div>
<div class="attribute-item">
<div class="left">Properties: Medical X-ray Equipments</div>
</div>
<div class="attribute-item">
<div class="left">Application: X-ray Room .Radiography Department ~</div>
</div>
<div class="attribute-item">
<div class="left">Screen: 7 inches</div>
</div>
<div class="attribute-item">
<div class="left">X-ray release time range: 0.03-0.20secs(step: 10millisecond) 0.20-2.00secs(step: 50millisecond)</div>
</div>
<div class="attribute-item">
<div class="left">Dimension: 285mm x 265mm x 168mm</div>
</div>
<div class="attribute-item">
<div class="left">Weight: 3.2kg±5%</div>
</div>
<div class="attribute-item">
<div class="left">Battery: 22.2V(polymer lithium ion),2200mAh</div>
</div>
<div class="attribute-item">
<div class="left">Function: Medical Radiography</div>
</div>
</div>
<p>&nbsp;</p>


MSLGX22 1 KW PORTABLE SMALL X-RAY

<p style="padding-left: 40px;">Product code: WSG 287402</p>
<p><b>MSLGX88 Handheld X-ray machine </b></p>
<p>Experience the convenience and efficiency of our Handheld X-ray Imaging System, designed with fixed exposure parameters for effortless operation. Ideal for examining limbs and chest areas*, it offers precise imaging without the need for mammography. Choose from optional accessories such as the BWM1717X (100um) or BWM-1012W (120um) for enhanced functionality, along with a bracket for added support.</p>
<p>&nbsp;</p>
<p>Operating seamlessly on a Win system computer, this compact device weighs just 2.6kg, ensuring portability without compromising performance. With dimensions of 265.9&#215;103.6&#215;168.1mm, it fits effortlessly into any medical setting. Crafted from durable metal and steel materials, it guarantees reliability and longevity.</p>
<p>&nbsp;</p>
<p>Backed by a comprehensive 2-year warranty and online technical support, our Handheld X-ray Imaging System assures peace of mind and dependable service whenever you need it.</p>
<p>&nbsp;</p>
<p>*Note: Not suitable for mammography applications.</p>
<p>Power Source : Electricity</p>
<p>Warranty : 2 years</p>
<p>Material : Metal, Steel</p>
<p>Shelf Life : 2 years</p>
<p>Parameters : Fixed exposure parameters,easy to operate</p>
<p>Application scope : limbs and chest,not suitable for mammography.</p>
<p>Optional : BW-1717X (100um),BW-1012W(120um),bracket</p>
<p>Operating systme : Win system computer</p>
<p>Weight : 7LBS</p>
<p>Dimension : 265.9*103.61*68.1mm</p>
<p>&nbsp;</p>


MSLGX88 Handheld X-ray machine

<p style="padding-left: 40px;">Product code: WSG 287403</p>
<p><b>MSLGX21 5.6kW portable X-ray with 10&#8243; Touch screen, 220V or 110V </b></p>
<p>&nbsp;</p>


MSLGX21 5.6kW portable X-ray with 10" Touch screen, 220V or 110V

<p style="padding-left: 40px;">Product code: WSG 287404</p>
<p><b>MSLPX 38 5.6kw portable x-ray </b></p>
<p><strong>Specifications</strong></p>
<p>Product Details</p>
<p>Model MSLPX38</p>
<p>Brand MSL</p>
<p>Category X-ray machines</p>
<p>Product Specifications</p>
<p>Digital or Analog Digital</p>
<p>Stationary or Portable Portable</p>


MSLPX 38 5.6kw portable x-ray

<p style="padding-left: 40px;">Product code: WSG 287405</p>
<p><b>MSLPX01 4.5kW portable X-ray </b></p>
<p><strong>Specifications</strong></p>
<p>Place of Origin China</p>
<p>Brand Name MSL</p>
<p>Model Number MSLPX01</p>
<p>Power Source Electric</p>
<p>Material metal</p>
<p>Shelf Life 1years</p>
<p>Quality Certification CB</p>
<p>Instrument classification Class I</p>
<p>Safety standard None</p>
<p>Product name 4.5kW Veterinary Human Digital Mobile Portable X Ray Machine</p>
<p>Feature High Frequency Radiography</p>
<p>Maximum output power 4.5kW</p>
<p>Power capacity ≥5kVA</p>
<p>Frequency ≥40kHz</p>
<p>mA adjusting range 40-80mA</p>
<p>S adjusting range 10ms-3200ms</p>
<p>Input power AC220V</p>
<p>Size 290*260*230 mm</p>
<p>Weight 18.8kg</p>


MSLPX01 4.5kW portable X-ray

<p>Product code: WSG 287405</p>
<p><b>MSLPX20 8KW portable X- Ray with battery</b></p>
<p>&nbsp;</p>
<p><strong>Specifications</strong></p>
<p>Place of Origin: <span style="font-size: 16px;">Guangdong, China</span></p>
<p>Brand Name: <span style="font-size: 16px;">ICEN</span></p>
<p>Model Number: <span style="font-size: 16px;">IN-D50BY</span></p>
<p>Power Source: <span style="font-size: 16px;">Electric</span></p>
<p>Warranty: <span style="font-size: 16px;">1 Year</span></p>
<p>Material: <span style="font-size: 16px;">metal, Plastic</span></p>
<p>Shelf Life: <span style="font-size: 16px;">1 years</span></p>
<p>Quality Certification:<span style="font-size: 16px;">ce </span><span style="font-size: 16px;">Instrume</span></p>


MSLPX20 8KW portable X- Ray with battery

<p>Product code: WSG 287406</p>
<p><b>MSLGX11 5.0KW portable x-ray </b></p>
<p><b>Specifications</b></p>
<p>MSLGX11 Portable X ray machine</p>
<p>&#8211; It adopts high frequency inverter technology, output high pressure is stable, good image quality can be obtained;</p>
<p>&nbsp;</p>
<p>&#8211; The compact design makes it easy to carry out work in different areas and locations;</p>
<p>&nbsp;</p>
<p>&#8211; With three exposure control methods: Tekecontrol/ hand brake/ interface button;</p>
<p>&nbsp;</p>
<p>&#8211; Fault self- diagnosis, self-protection;</p>
<p>&nbsp;</p>
<p>&#8211; With flexible digital interface, offer SDK protocol, users can control the core programming deeply and can be suitable for different DR detectors.</p>
<p>&#8211; Support frame</p>
<p>optional.</p>
<p>&nbsp;</p>
<p><b>Quick Details</b></p>
<p>1. 9.7 inch touch screen</p>
<p>&nbsp;</p>
<p>2. 5.0KW</p>
<p>&nbsp;</p>
<p>3.Communication mode:RS232/Bluetooth</p>
<p>&nbsp;</p>
<p>4.Exposure mode:Wired/Wireles</p>


MSLGX11 5.0KW portable x-ray

<p>Product code: WSG 287407</p>
<p><strong>MSLPX15 5.3KW portable X- Ray</strong></p>
<p>&nbsp;</p>
<p><strong>Specifications</strong></p>
<p>Medsinglong Medical 9.7 Inch Touch Screen Mobile DR X-ray Machine Price 5.3kw High Frequency Digital Portable X Ray Machine</p>
<p>&nbsp;</p>
<p style="text-align: left;">5.3kw Portable X-ray Machine Mobile Veterinary Dr Radiography MSLPX15</p>
<p><strong>GENERAL PARAMETER  </strong></p>
<p>Output Power 5.3kW</p>
<p>Rated Voltage 220vAc ,±10%.50/60Hz</p>
<p>lnverter Frequency 100kHz,±5%</p>
<p>kv accuracy ±4%</p>
<p>mA accuracy ≤±(5% ) (mA&gt;25mA,ms&gt;5);≤±(10%+1mA) (mA≤25mA)</p>
<p>Rotor Fixed Rotor</p>
<p><b>EXPOSURE PARAMETER  </b></p>
<p>kV Range 40kV-125kV,1kv step</p>
<p>mA Range 10-100mA(R&#8217;20)</p>
<p>ms Range 1-4000ms (R&#8217;20)</p>
<p>ms accuracy ≤J±(5%+0.2ms)</p>
<p>mAs Range 0.1-200mAs (R20)</p>
<p>mAs accuracy ≤±(5%+0.2mAs)</p>
<p>OPTIONAL PARAMETER</p>
<p>Tech. mode kV-mAs</p>
<p>kV-mA-ms</p>
<p>APR num 2000</p>
<p>Communication lnterface RS-232</p>
<p>Volume 450*255*220( include collimator)</p>
<p>Weight 15kg</p>
<p><b> </b></p>


MSLPX15 5.3KW portable X- Ray

<p>Product code: WSG 287408</p>
<p><span style="font-size: 2em; font-weight: bold;">SLCV17 careray 17*17 wireless Flat panel</span></p>
<p>&nbsp;</p>
<p><b>Quick Details</b></p>
<p><b>1.17&#8243;17&#8243; wireless Flat Panel Detectors</b></p>
<p><b> </b></p>
<p><b>2.Scintillator: CsI Direct Deposition</b></p>
<p><b> </b></p>
<p><b>3.Pixel Pitch: 140μm</b></p>
<p><b> </b></p>
<p><b>4.Weight: 3.7kg</b></p>
<p><b> </b></p>
<p>&nbsp;</p>
<p><b>Specifications</b></p>
<p style="text-align: left;">The MSLCV17 detector is a class of digital X-ray flat panel detector that has an imaging area of</p>
<p style="text-align: left;">430mm×430mm. The MSLCV17 detector communicates with wireless and an optional wired</p>
<p style="text-align: left;">communication feature (Giga-bit Ethernet communication mode via connecting the power box).</p>
<p style="text-align: left;">The detector functions by intercepting X-ray photons. Then the scintillator emits visible spectrum <span style="font-size: 16px;">photons that illuminate an array of photo detectors (a-Si) that create electrical signals. The electrical </span><span style="font-size: 16px;">signals are then digitally converted to display an image on the monitor. </span></p>
<p style="text-align: left;">The detector should be connected to a computer and X-ray generator to digitize X-ray images and <span style="font-size: 16px;">transfer radio</span><span style="font-size: 16px;">graphy diagnostics.</span></p>
<p style="text-align: left;"><b>CARERAY 17*17 digital wireless x-ray Flat Panel Detectors MSLCV17 Features </b></p>
<p style="text-align: left;"><b> </b></p>
<p style="text-align: left;">* Supports wireless communication (IEEE 802.11a/b/g/n) and double frequency (2.4GHz/5GHz).</p>
<p style="text-align: left;">* 17&#8243;x17&#8243; cassette-size detector easily fits into standard bucky tray cabinets to upgrade old systems,</p>
<p style="text-align: left;">while also fitting many general radiography imaging systems.</p>
<p style="text-align: left;">* Designed for portability and stability on uneven terrain with its lightweight design, simple wiring,</p>
<p style="text-align: left;">rubber-insulated frame, and high-strength aluminum-alloy case.</p>
<p style="text-align: left;">* No not need to be connected to generator due to patented Full-Field Automatic Exposure Detection</p>
<p style="text-align: left;">(F2AED) Technology.</p>
<p style="text-align: left;">* High capacity battery and low-power operation ensure hundreds of X-ray shots in a single-charge.</p>
<p style="text-align: left;">
<p style="text-align: left;">17*17&#8243; CARERAY digital wireless x-ray flat panel detector Vet Human Use MSLCV17</p>
<p style="text-align: left;">
<p style="text-align: left;">Place of Origin:Guangdong, China</p>
<p style="text-align: left;">
<p style="text-align: left;">Brand Name:CARERAY</p>
<p style="text-align: left;">
<p style="text-align: left;">Model Number:MSLCV17</p>
<p style="text-align: left;">
<p style="text-align: left;">Power Source:Electricity</p>
<p style="text-align: left;">
<p style="text-align: left;">Warranty:2 years</p>


MSLCV17 careray 17*17 wireless Flat panel

<p>Product code: WSG 287409</p>
<p>&nbsp;</p>
<h1>MSLFP06 IRAY 17*17 wireless Flat panel</h1>
<p>&nbsp;</p>
<p><b>Specifications</b></p>
<p><b>Features of Superior 17 x 17-inch Cassette-size Flat Panel Detector MSLFP06</b></p>
<p>Wireless cassette detector per ISO 4090, fits in bucky</p>
<p>139 pm pixel pitch, with 16 bit ADC for more image</p>
<p>details Stable iSync+ Automatic Exposure Detection (AED)</p>
<p>&nbsp;</p>
<p>X ray Flat Panel Detectors 2</p>
<p>&nbsp;</p>
<p>Specification of Superior 17 x 17-inch Cassette-size Flat Panel Detector MSLFP06</p>
<p>Detector technology. Amorphous silicon</p>
<p>Scintillator: Csl</p>
<p>Active area mm: 427&#215;427</p>
<p>Pixel matrix:3072&#215;3027</p>
<p>Pixel pitch(um): 139</p>
<p>Resolution(lp/mm) 3.6</p>
<p>AD Conversion(bit) 16</p>
<p>Battery Autonomy(h):5</p>
<p>WIFI: 2.4G and 5G, IEEE802.11a/b/n/ac</p>
<p>Trigger Mode: AED/ software</p>
<p>Preview image time(s) 3.5</p>
<p>Full image time(s) Typ.5</p>
<p>Dimension (mm) 460x460x15</p>
<p>Weight(kg) 4.6</p>
<p>Static loading: 150kg uniformly</p>
<p>Ingress protection:IPX1</p>
<p>operating humidity:10%-90%</p>
<p>storage &amp; transport humidity with package: 5%-95%</p>
<p>X ray Flat Panel Detectors 1</p>


MSLFP06 IRAY 17*17 wireless Flat panel

<p>Product code: WSG 287410</p>
<p>&nbsp;</p>
<h1>Sonoair 70</h1>
<p><strong><span style="font-size: 16px;">General Information</span></strong></p>
<p>SonoAir 70 is the world&#8217;s lightest and thinnest laptop ultrasound—only 1/3 the weight and thickness of traditional portables. With 4 probe connectors, it effortlessly transforms in various clinical applications. Elevating user experience with touchscreen, touchpad, Touch ID, and intelligent functions. Redefining point-of-care exams with high-definition imaging and smart tools, it&#8217;s the most innovative solution for physicians in dynamic environments.</p>
<p><strong>Light weight</strong></p>
<p>1. Dimensions of main unit (approx.): 322mm（Length）× 217mm（Width）× 26mm（Height)</p>
<p>2. Net weight of main unit (approx.): 2.1kg (no probe included)</p>
<p>&nbsp;</p>
<p><strong>Probe Connectors</strong></p>
<p>Probe Connectors * 4 (With a dedicated trolly, it is a Hybrid of Portable and Cart-based Ultrasound)</p>
<p>&nbsp;</p>
<p><strong>Material</strong></p>
<p>Built with Aluminum metal material and easy to clean.</p>
<p>&nbsp;</p>
<p><strong>Triple-Touch</strong></p>
<p>1. 14.1 inch Touch Screen: High resolution 14.1 Inch LCD display; Resolution: 1920 x 1080；Angle adjustable range: 0-135°</p>
<p>2. Touch pad</p>
<p>3. Touch ID: Finger print</p>
<p>&nbsp;</p>
<p><strong>Ultra-Green</strong></p>
<p>Battery: 180+ mins for sanning &amp; 36h+ for stand by Fast response: Instant 3s Wake-Up from Standby Mode</p>
<p>&nbsp;</p>
<p><strong>Specifications</strong></p>
<p>Detailed Standard Configuration</p>
<p>1. USB 3.0 * 2, LAN, HDMI, Wifi, Bluetooth, ≥128G integrated hard disk(Can be upgraded to a higher capacity)</p>
<p>2. AIO (Automatic Image Optimization), Speckle Reduction Algorithm (SRA), Q-Image, Zoom, SonoZoom</p>
<p>3. Auto IMT, AutoThyroid, AutoBreast, Super Needle, SonoOB, SonoBladder</p>
<p>&nbsp;</p>
<p>Options</p>
<p>SonoDiaph, CW mode, SonoNeedle, TDI, Color M Mode, SonoIMT Dedicated trolly, Caring case, Biopsy Kit</p>
<p>&nbsp;</p>
<p><strong>Display Modes</strong></p>
<p>B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, 2D Steer, CFM Mode, CPA Mode, DPD Mode, PW Mode, B/BC Mode, Triplex Mode, Quadplex Mode, Trapezoidal Mode, Super Needle</p>
<p>&nbsp;</p>
<p><strong>Applications</strong></p>
<p>Abdominal, Cardiac, Thyroid, Breast, Vascular, Carotid, MSK, Nerve, Superficial, Pediatric, OB/GYN, Urology, TCD, Scrotum, Renal, Lung, Lumbar, Prostate, UT&amp;Ovary</p>
<p>&nbsp;</p>
<p><strong>Transducer Types</strong></p>
<p>1. Convex transducer</p>
<p>2. Linear transducer</p>
<p>3. Transvaginal transducer</p>
<p>4. Phased array transducer</p>
<p>5. Micro-convex transducer</p>


Sonoair 70

<p>Product code: WSG 287410</p>
<p>&nbsp;</p>
<h1>SonoBook 9 Cardiac Ultrasound</h1>
<p><strong>PRODUCT DESCRIPTION</strong></p>
<p>The Chison SonoBook 9 ultrasound’s cardiac capabilities are among the best in this price range. Yet, this also excels at more than cardiac imaging. The vascular imaging performed by the SonoBook 9 is diagnostically advanced, and it has also been adopted by professional sports teams for use in their training facilities as an orthopedic/MSK ultrasound.</p>
<p>&nbsp;</p>
<p>Image quality for the SonoBook 9 is optimized by using advanced technologies, including: compound imaging, needle visualization, speckle reduction imaging. Key unique features include IMT, Tissue Doppler, and prospective/retrospective cineloop saving. Additionally, it features some of the highest frame rates of any portable cardiovascular ultrasound machine.</p>
<p>&nbsp;</p>
<p>With an internal Solid State hard drive (SSD), the SonoBook portable ultrasound machine is among the fastest machines we tested. Saving loops, changing modes, adjusting image quality, exporting, etc, are all nearly instantaneous. Most notable: there is almost no lag when saving cine clips, which is a key issue with most portable ultrasound machines.</p>
<p>&nbsp;</p>
<p>Key notable features include:</p>
<p>&nbsp;</p>
<p>Fast boot up speeds (&lt;1 minute)</p>
<p>4D OB Imaging with VirtualHD</p>
<p>Transducer support for over 27 probes</p>
<p>Instant switch between different ultrasound modes and measurements</p>
<p>AIO (Automatic Image Optimization for B-Mode and D-Mode)</p>
<p>Auto Measurements including Auto IMT, Auto NT, Auto-trace for PW and for follicles and breast lesions</p>
<p>Chison SonoBook 9’s durability and design is similar to Mindray and generally better than comparable portable ultrasound systems from GE’s Vivid and Logiq lines.</p>
<p>&nbsp;</p>
<p>The SonoBook 9 price is less expensive than its closest competitors, which include the Mindray M9, Philips CX50, and GE Vivid iq. When compared to other affordable ultrasound machines, the SonoBook’s cardiac imaging was quite a bit better than the Chison EBit 60, Mindray M7, GE Logiq e, GE Vivid e, GE Vivid i, and SonoScape S8 Expert.</p>


SonoBook 9 Cardiac Ultrasound

<p>Product code: WSG 287411</p>
<p>S9 advanced sonoscape usg machine + convex and linear</p>
<p>&nbsp;</p>
<p><strong>PRODUCT DESCRIPTION</strong></p>
<p>&nbsp;</p>
<p>15-inch high definition 50° foldable LED monitor</p>
<p>&nbsp;</p>
<p>Innovative and elegant touchscreen panel</p>
<p>&nbsp;</p>
<p>Two pinless transducer sockets</p>
<p>&nbsp;</p>
<p>A comprehensive selection of probes: HD Linear, HD Convex, Micro-convex, Endocavity, HD Phased Array, Intraoperative, TEE, Bi-plane, Pencil, Volumetric, Endocavity 4D and Laparoscopy probe</p>
<p>&nbsp;</p>
<p>Premium application technology: μ-scan speckle reduction, compound imaging, TDI, stress echo, C-Xlasto elastography, contrast imaging, IMT, B-Steer, automatic flow volume analysis, real-time 4D</p>
<p>&nbsp;</p>
<p>Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.</p>
<p>&nbsp;</p>
<p>Frequently used presets can be defined fully flexible</p>
<p>&nbsp;</p>
<p>ECG functionality</p>
<p>&nbsp;</p>
<p>Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report</p>
<p>&nbsp;</p>
<p>Access for foot switch</p>
<p>&nbsp;</p>
<p>Exchangeable high capacity Li-ion battery for 90 minutes scan function</p>
<p>&nbsp;</p>
<p>Optional elegant height-adjustable trolley Full flexible 4.5&#8243; castors with brakes</p>
<p>for easy transportation</p>


S9 advanced sonoscape usg machine + convex and linear

<p>Product code : WSH 29811</p>
<p>MSL898D (x898) Sony thermal printer </p>
<p><strong>Description</strong></p>
<p>UP-X898MD<br />
Gallery<br />
Overview<br />
High speed, high quality black &#038; white printing of medical images in a compact space-saving footprint with analogue and digital inputs<br />
The UP-X898MD is a compact A6 medical grade black and white digital printer that can accept analogue video as well as PC-friendly digital USB signal inputs.</p>
<p>It’s designed to be integrated into a wide range of compatible medical imaging environments such as digital ultrasound systems, mobile C-arms or cardiac catheterisation laboratory. The high quality thermal print engine can produce hard copy prints of still images captured by these systems for use in patient records and referrals. For even greater convenience, printed still images can also be stored to a connected USB flash drive.</p>
<p>(Please note that images printed from the UP-X898MD are not to be used for diagnosis).</p>
<p>The UP-X898MD is a successor to the popular Sony UP-897 series of medical printers. Redesigned and upgraded, it offers several operational and ergonomic enhancements while retaining the same space-saving footprint and easy integration into medical carts. Usability is further enhanced by an enlarged LCD display panel and joystick for intuitive menu navigation.</p>
<p>Capable of delivering high-quality black &#038; white prints in under two seconds. Advanced thermal printing technology delivers near-photo quality results using widely available print media.</p>
<p>Unique Sony technology allows paper to be cut in two directions – both up and down – as a lower cutter is newly included, along with the conventional upper cutter. This enables flexible printer installation in almost any location as well as smooth printing operations.<br />
Wireless Printing Capability<br />
By using the optional UPA-WU10* Wireless Print System, you can achieve cable-free connection between the Sony digital printer with 5V USB output port**, mobile C-arm and other hospital imaging modalities.</p>
<p>* Product availability of the UPA-WU10 may vary according to the sales area. For more information, please contact your nearest Sony sales office or an authorized dealer.<br />
** For more information about compatible printers, please contact your nearest Sony sales office or an authorised dealer.<br />
Features<br />
High print quality<br />
Advanced thermal printing technology enables photo-quality black &#038; white prints with a high resolution up to approximately 325 dpi and grey levels up to 256 steps.<br />
Dual cutter configuration<br />
In addition to the conventional upper cutter, a lower cutter has been added to the front door. This enables paper to be cut in a downward direction in addition to an upward direction. This increased flexibility in cutting direction expands location choices for printer installation. For example, even if the printer is installed immediately below the operation console of an ultrasound system, paper can easily be cut from the front. Furthermore, a safety mechanism automatically hides the lower cutter when opening the front panel to change the printing paper.<br />
A6 prints in less than two seconds<br />
While operating in high speed mode, the UP-X898MD can produce A6-size prints in approximately 1.9 seconds (when used with UPP-110HG or UPP-110S print media).<br />
Hybrid operation with analogue and digital inputs<br />
A choice of analogue composite video and PC-friendly digital USB inputs allows flexible use with a wide range of modality devices.<br />
Store pictures on a USB flash drive<br />
The UP-X898MD can automatically store printed images from both USB and Video inputs onto a connected USB storage device.<br />
Compact, space-saving design<br />
Measuring 88mm (H) x 154 mm (W) x 240 mm (D), the UP-X898MD has the same space-saving design as the UP-897MD for easy, flexible integration into medical carts.<br />
Enhanced operability<br />
Building on the success of the popular UP-897MD, the UP-X898MD features an enlarged LCD panel that displays printer settings, selected paper type and advisory messages. An intuitive joystick control allows speedy menu navigation, while the new Auto Lock mode prevents unintentional changes to print settings.<br />
Hard copy reference of print settings<br />
For convenient reference, selected settings (Brightness, Contrast, Gamma and Sharpness) can optionally be printed in a blank space on the print paper.<br />
Uses widely available print media<br />
Sony offers a choice of three high quality, widely available A6 thermal print media types to meet the needs of different applications. Choose from the UPP-110HD, UPP-110S, or the UPP-110HG High Glossy Printing Paper that produces glossy, long-lasting near-photo quality prints.<br />
Wide PC compatibility<br />
For maximum flexibility, a wide range of PC drivers are provided for Windows XP, Vista, 7 and 8 (32/64bit).<br />
Quick guide print<br />
Quick instruction guides for different print operations can be selected via the front control panel. They can be printed out for easy reference without needing to refer to the user manual.*<br />
*English only.<br />
Wireless Printing Capability*<br />
The optional UPA-WU10 Wireless Print System allows cable-free connection between the UP-X898MD and surgical endoscopes, ultrasound systems, and other hospital imaging modalities. This is ideal for busy clinical environments, where modalities are constantly being moved between different OR and treatment rooms. This all-in-one wireless printing solution also resolves the problem of limited space on medical carts, allowing connection between a medical imaging modality and an ‘off-cart’ printer without requiring a lengthy USB cable.</p>
<p>* This function is available to Sony digital printers with USB 5V type A Output port. For more information regarding the compatibility, please contact your nearest Sony office or an authorised dealer.<br />
Compliance with Medical Safety Standards<br />
This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).<br />
For more details, please contact your nearest Sony sales office or an authorized dealer.</p>


MSL898D (x898) Sony thermal printer

<p>Product code : WSH 29837</p>
<p><b> MSLBD05 BONE DENSITOMETER </b></p>
<p><strong>Description</strong></p>
<p>Bone density scan MSLBD05 Technical Parameters</p>
<p>1. Ultrasonic parameters: BUA (ultrasonic amplitude attenuation), SOS (ultrasonic sound velocity), OI (bone mass index)</p>
<p>2.Measurement method: full dry type (no liquid inside and outside the equipment, no temperature control device required), two-way ultrasonic transmission and reception</p>
<p>3. Probe frequency: 0.5MHz ± 10%</p>
<p>4. Broadband at 4.-6db:<span style="font-size: 16px;">&gt;60%</span></p>
<p>5. Measurement time: ≤ 25 seconds</p>
<p>6. Test repeatability: OPR≤±1%</p>
<p>7. Measurement accuracy: SOS ≤ ± 2%</p>
<p>8. Test repeatability: BUA ≤ ± 5%</p>
<p>9.* Diagnostic parameters: BUA. OI value, T value, Z value, SOS, OPR, adult ratio, age ratio</p>
<p>10. Ultrasonic output TIS: 2.8*10 -3mW/cm2</p>
<p>11. Calibration (correction): automatic calibration of the human body simulation module</p>
<p>12.* Temperature compensation system: Automatically compensates for measurement deviation caused by temperature</p>
<p>13. Built-in reference database: Asian, European, Middle Eastern and African databases</p>
<p>14.*USB interface output, can be connected to a tablet computer, connected to a notebook, desktop can be used, and can be connected to different models of printer output reports.</p>
<p>15. Equipped with two foot auxiliary stations to adapt to various foot detection.</p>
<p>16.* Diagnostic report output; automatic test data diagnosis, built-in print report output. Diagnostic information can be entered in the diagnostic report, and an external printer output report is also provided. The software supports sending the PACS network system.</p>
<p>17.* Measurement site and probe spacing: The probe measurement spacing is fixed to the heel.</p>
<p>18.* Bone Density Software Test System: Adult bone density test software that automatically searches for the best signal. Automatically prompts that the test site is placed correctly.</p>
<p>19. Completion parameters are complete:</p>
<p>Adult: T value, Z value, age ratio, adult ratio, OPR (measurement repeatability), OI (bone index), SOS (sound rate), BUA (ultrasonic amplitude attenuation)</p>
<p>20.* Probe: The oil bladder probe uses special ultrasonic oil as the conductor for measurement. The probe automatically searches for the best signal and can be used permanently without replacement during the life of the product.</p>
<p>21. Language switching: Chinese/English interface switching. Software style: simple and golden interface optional.</p>
<p>22.*All Chinese color report form, providing A4, B5 and other size report formats, convenient for previewing and printing at any time</p>
<p>23.* Supports Bluetooth report transmission and supports WeChat scan code self-download download.</p>
<p>24.* Complete Internet function and communication protocol to facilitate access to the hospital&#8217;s networked system and expert remote consultation.</p>
<p>25.*Special work trolley, brand computer integrated machine, support operating system: WindowsXP, Win7, 8, 10 (full support for Microsoft 32-bit/64-bit operating system)</p>
<p>26.* Case database management system, automatic recording, query, classification, backup, etc., quick and easy to find; measurement results can be exported to EXCEL format, which is convenient for doctors to perform data statistics and analysis.</p>
<p>27. Operating humidity (non-condensing): 30-70% Relative humidity: 0-80% non-condensing Operating temperature: 10-40 ° C</p>
<p>28. Power requirements: AC220V ± 10% 50Hz, 3.15A 125W</p>
<p>29. Instrument (host) weight: 13kg (net weight 13kg)</p>
<p>30. Instrument (host) size: (width × height × length) Instrument: 330mm × 360mm ×<span style="font-size: 16px;">645mm</span></p>


MSLBD05 BONE DENSITOMETER

<p>Product code : WSH 29838</p>
<p><b>MSLCU45 cardiac ultrasound with CW + CONVEX PROBE</b></p>
<p><strong>Description</strong></p>
<p>3d dog ultrasound scan during pregnancy MSLCU45</p>
<p>Latest portable 3d ultrasound machine MSLCU45 for sale</p>
<p>12.1″ High definition LCD monitor，0-90 degree adjustable angle</p>
<p>2 Activated transducer Ports</p>
<p>Lithium battery can last more than 2 hours</p>
<p>Trapezoidal Extended Imaging</p>
<p>Smart image optimization technology generating excellent 2D image</p>
<p>Dual/Triples Synchronous</p>
<p>Probe automatically frozen protection</p>
<p>Task light indicating the current task facilitates the operator</p>
<p>Software packages: Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Small Parts, Vascular, Orthopedics</p>
<p>DICOM3.0 available</p>
<p>Data Interface：：Video 、 S-Video 、USB2.0 (Double)、VGA、RS-232、RJ45</p>
<p>N.W :8KG G.W :14KG</p>
<p>Package Size: 395mmx335mmx4<span style="font-size: 16px;">55mm</span></p>
<p>&nbsp;</p>


MSLCU45 cardiac ultrasound with CW + CONVEX PROBE

<p>Product code : WSH 29850</p>
<p><b>MSLCU02 Laptop color Doppler ultrasound + convex probe</b></p>
<p><strong>Description</strong></p>
<p>Dimensions and Weight</p>
<p>Length: 370 mm</p>
<p>Width: 360 mm</p>
<p>Height: 78 mm</p>
<p>Net Weight: ≤5.8kg</p>
<p>Power Supply</p>
<p>Input Voltage: AC 100V-242V Input Power: 120 VA Frequency: 60Hz/50Hz Output: 15Vdc, 6.67A</p>
<p>Continuous Working Time ＞8.0h</p>
<p>Battery Working Hours ≥2.5h</p>
<p>Li-battery: BT10G /10.0A/11.1V.</p>


MSLCU02 Laptop color Doppler ultrasound + convex probe

<p>Product code : WSH 29851</p>
<p><strong>MSLBD06 Bone Densitometer with tablet</strong></p>
<p><strong>Description</strong></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>
<div class="sr-layout-content">
<div class="basic-info-list">
<div class="bsc-item cf">
<div class="bac-item-label fl">Model NO. : MSLBD06</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Measurement Time :≤ 25 Seconds</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Test Repeatability : Opr≤±1%</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Measurement Accuracy : Sos ≤ ± 2%</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Power Requirements : AC220V ± 10% 50Hz, 3.15A 125W</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Instrument (Host) Weight: 13kg</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Instrument (Host) Size: 330mm × 360mm × 645mm</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Transport Package : Carton</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Specification : 79.0*50.0*51.0cm</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Trademark : MSL</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Origin : Guangdong China</div>
</div>
<div class="bsc-item cf">
<div class="bac-item-label fl">Production Capacity : 1000sets/Month</div>
</div>
</div>
</div>
</td>
<td></td>
</tr>
<tr>
<td></td>
<td></td>
</tr>
<tr>
<td></td>
<td></td>
</tr>
<tr>
<td></td>
<td></td>
</tr>
<tr>
<td></td>
<td></td>
</tr>
<tr>
<td></td>
<td></td>
</tr>
</tbody>
</table>


MSLBD06 Bone Densitometer with tablet

<p>Product code : WSH 29852</p>
<p><strong>MSLCU77 portable 4D color Doppler ultrasound + convex probe</strong></p>
<p><strong>Description</strong></p>
<table border="1" cellspacing="0">
<tbody>
<tr>
<td>Transducer Ports</td>
<td>3 Activated Transducer Ports</td>
</tr>
<tr>
<td>Monitor</td>
<td>15.6-inch high resolution color display screen</td>
</tr>
<tr>
<td>Resolution</td>
<td>1920*1080</td>
</tr>
<tr>
<td>Lithium Battery</td>
<td>10000mA Battery Capacity</td>
</tr>
<tr>
<td>Features</td>
<td>Elastic imaging</p>
<p>TDI(TVI, TEI, TVM, TVD)</p>
<p>Static 3D</p>
<p>4D Module</td>
</tr>
<tr>
<td>Number of Probe Elements</td>
<td>128</td>
</tr>
</tbody>
</table>


MSLCU77 portable 4D color Doppler ultrasound + convex probe

<p>Product code : WSH 29853</p>
<p><strong>MSLRM12 Auto Ref-keratometer with keratometer</strong></p>
<p><strong>Description</strong></p>
<table style="height: 469px;" border="1" width="1163" cellspacing="1" cellpadding="1">
<tbody>
<tr>
<td>Display</td>
<td>8-inch TFT touch screen</td>
</tr>
<tr>
<td>Corneal apex distance</td>
<td>0.0, 12.0, 13.75, 15.0</td>
</tr>
<tr>
<td>Spherical mirror degree:</td>
<td>-20.00D~+20.00D</td>
</tr>
<tr>
<td>Cylindrical power</td>
<td>0.00D~+10.00D</td>
</tr>
<tr>
<td>Axis position</td>
<td>10~180°</td>
</tr>
<tr>
<td>Astigmatism symbol</td>
<td>-, +, ±</td>
</tr>
<tr>
<td>Interpupillary distance</td>
<td>10~86mm</td>
</tr>
<tr>
<td>Pupil diameter</td>
<td>2.00-8.00mm</td>
</tr>
<tr>
<td>Visual target</td>
<td>Guided cloud map</td>
</tr>
</tbody>
</table>


MSLRM12 Auto Ref-keratometer with keratometer

<p>Product code : WSG 29855</p>
<p>MSLMY12 wireless convex + Tranvaginal probe</p>
<p><b>Product Description</b></p>
<div class="attribute-list">
<div class="attribute-item">
<div class="left" data-spm-anchor-id="a2700.details.0.i63.43716d97peWXtD">Place of Origin : Guangdong, China</div>
<div data-spm-anchor-id="a2700.details.0.i63.43716d97peWXtD"></div>
</div>
<div class="attribute-item">
<div class="left">Brand Name: Medsinglong</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Model Number: MSLMY12</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Power Source: Electric</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Material : plastic, metal</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Shelf Life : 2 years</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Quality Certification : ce</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Instrument classification : Class II</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Safety standard : GB15979-2002</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Application : Gynecology and Obstetrics, Abdomen etc</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Probe Type : Convex &amp; small convex</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Display mode : B,B/M,PW,Color</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Channel of RF circuit board : 32</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Image save : jpg, mp4</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Cine-loop : 1000 frames movie playback stored</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Battery working time : 180minutes; 10hours standby time</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Battery charge : Wireless charge, take 3 hours for full charge</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Size : 350mm*93mm*23mm</div>
<div></div>
</div>
<div class="attribute-item">
<div class="left">Weight : ≤200g</div>
</div>
</div>
<p></p>
