Product Description
Description

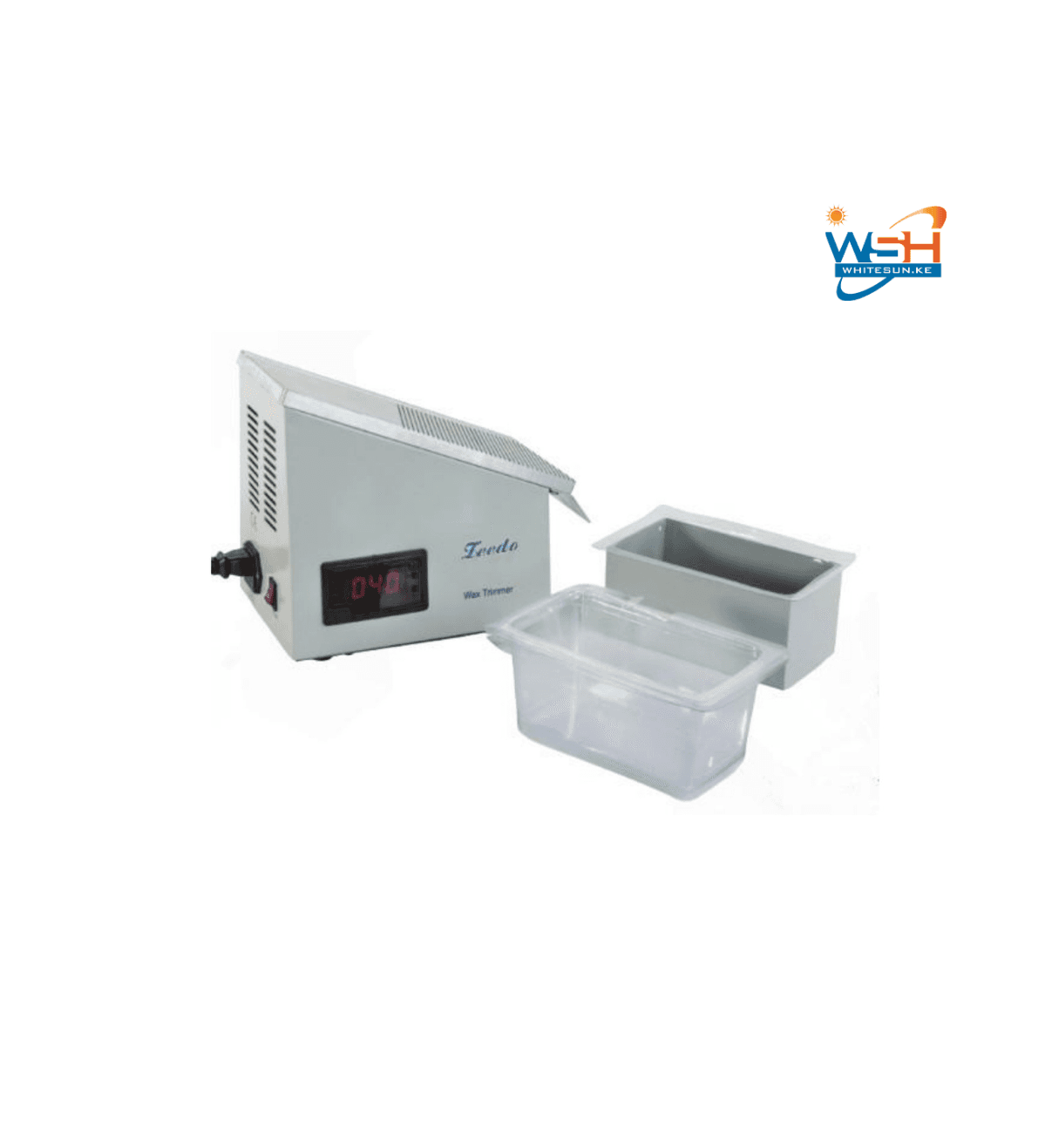

The grooved heating surface channels melted wax to a removable collection tray. The collection
tray connects magnetically to the base of the main unit. Disposable plastic liners are included to
insert into the collection tray for easy disposal of runoff wax. This unit now includes a digital control
panel for personalized settings.
1. Remove the wax trimmer from its packaging and place it on a stable workstation. We recommend
that you retain the carton and packaging.
2. The wax trimmer comes with a detachable AC power cord. Connect the cord to the port located
on the back of the unit. When ready to use, plug the cord
into a power source.
3. Attach the magnetic paraffin collection tray at the bottom of the unit and
insert a plastic
collection tray insert. The brim of the plastic liner can be folded down along the side of the tray that
sits against the unit. The magnet will hold the collection tray in place.
4. Flip the power switch to the ON position to begin use and adjust temperature. (See Operation
section for instructions)
OPERATION – Reference the diagrams on the next page for best use.
1. Plug in your wax trimmer and flip the Power Switch to the ON position. The digital display will
illuminate and display the current temperature of the unit.
2. Press the SET Key (bottom left button) to switch to the temperature setting mode. The setting will
blink, and you can use the up and down Temperature
Setting buttons (right side buttons) to set
your desired temperature. To lock in your desired temperature, press the SET Key again and the
unit will begin to
heat to that temperature. The unit will remember this setting during next use until
it is changed.
3. The suggested operating temperature for this model is 80-90° C. The user may increase or
decrease the temperature to make the paraffin melt faster or slower. This model should NOT be set
higher than 100° C. Temperature control range: ambient temperature ~ 110°.
4. There is a red LED Light at the top left of the display to show that the unit is heating.
5. Allow for up to 10 minutes of heating time to reach the desired temperature. DO NOT permit
anything other than the paraffin covered cassettes to touch the heated surface. Ensure that loose
sleeves, clothing, and jewelry are kept away from the heated surface. In case of injury, consult a first
aid kit regarding treatment for burns or contact a doctor.
6. Ensure that the cassettes are flat. Each cassette should be pulled in a downward
direction against the grain of the surface. This removes excess paraffin from the side of the
cassette.
Net Weight :3kg
Dimensions: 225*210*140mm
Package Info:
Each instrument packed Wooden Case
Dimensions: 370*210*260mm,
Gross Weight: 4kg
