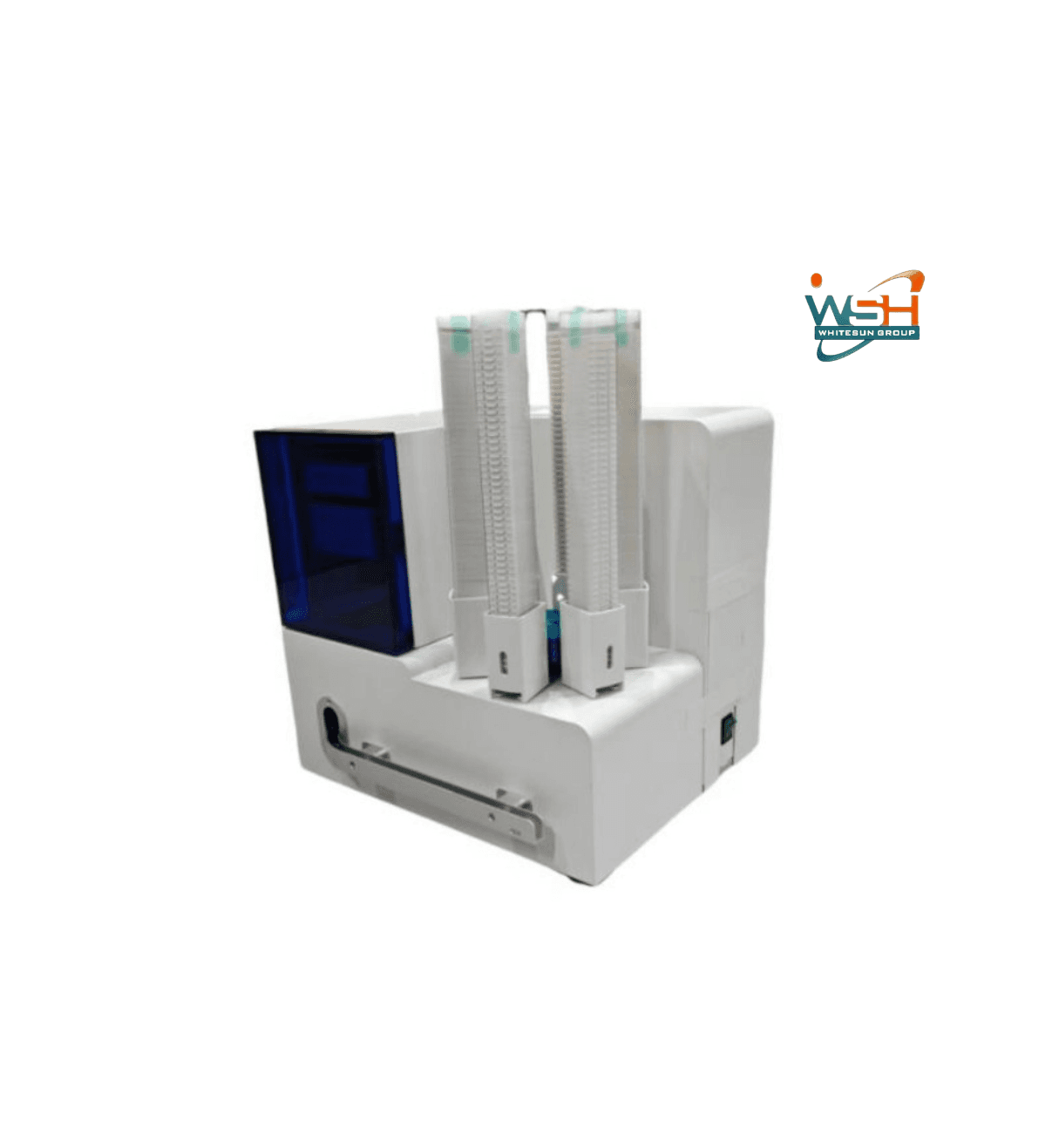

Product Description
Description
1. Automatic batch printing function, transparent embedding box clip, easy to observe the number of
embedding boxes, add at any time, such as abnormal, the system automatically alarm and suspend
printing.
2. Automatic collection function, can automatically and neatly distribute the printed embedded box
into the 10*10 matrix, and has the color distinction function, the first embedded box of the same
sample is yellow, and the other is white, easy to distinguish (the color of the embedded box is
optional).
3. With network networking function, it can connect to the hospital LIS database, and has manual
and scanning input.
4. Zero cost of printing supplies, no ribbon, ink and other printing media, laser printing transmitter
long life.
5. Ultra-high definition printing, clear printing handwriting, friction resistance, corrosion resistance,
not easy to fall off, easy to long-term archiving.
6. Large amount of information printing, in the standard 45 degrees Angle embedding box incline,
you can print patient name, digital code, characters, hospital name, date, two-dimensional code
information, etc.
7. Ultra-high speed printing, you can print on the machine without preheating.
8. Large loading capacity,300 embedded boxes can be loaded at a time.
9. Recommended service life: 8 years
Main Technical Data:
Laser power： 20W
Laser wavelength： 1060mm
Marking range： 200*200mm
Marking depth： ≤3mm (depending on material)
Minimum line width： ≥0.01mm
Minimum character： ≥0.15mm
Repeat accuracy： ±0.01mm
Average power consumption： ≤300W
Output beam quality： M2＜1.8
Laser Q-switched frequency： 20kHz~200kHz
Marking speed： 0-30000 mm/s
Control interface： standard USB
Fiber laser life： >100,000 hours
Power consumption： <500W
Cooling method： Air cooling
The beam quality resolution： 1 micron, which is more than 10 times that of traditional products
Power supply： AC220V, 50HZ / 5A
Working environment temperature: 10-40℃, humidity: 10%-90% no condensation
Linear speed： ≤300 m/min; (Galvanometer speed: 30000mm/s)
Laser marking machine configuration
1. 1 mainframe
2. 1 data cable
3. 6 embedding cassette loading slots
4. 6 embedding strips (50 embedding boxes per strip)
5. 1 power cord
6. 1 user manual
Net Weight:40kg
Dimensions: :400*435*420mm
Package Info:
Each instrument packed in carton
Dimensions: 630*575*600mm,
Gross Weight: 45kg
