Main Specifications
Drum capacity: 400litres gross
Mixing capacity: about 300–320litres per batch
Engine power: 7 HP diesel
Drum speed: about 25–30 RPM
Output: around 6–8 m³ of concrete per hour
Machine weight: about 300–450 kg

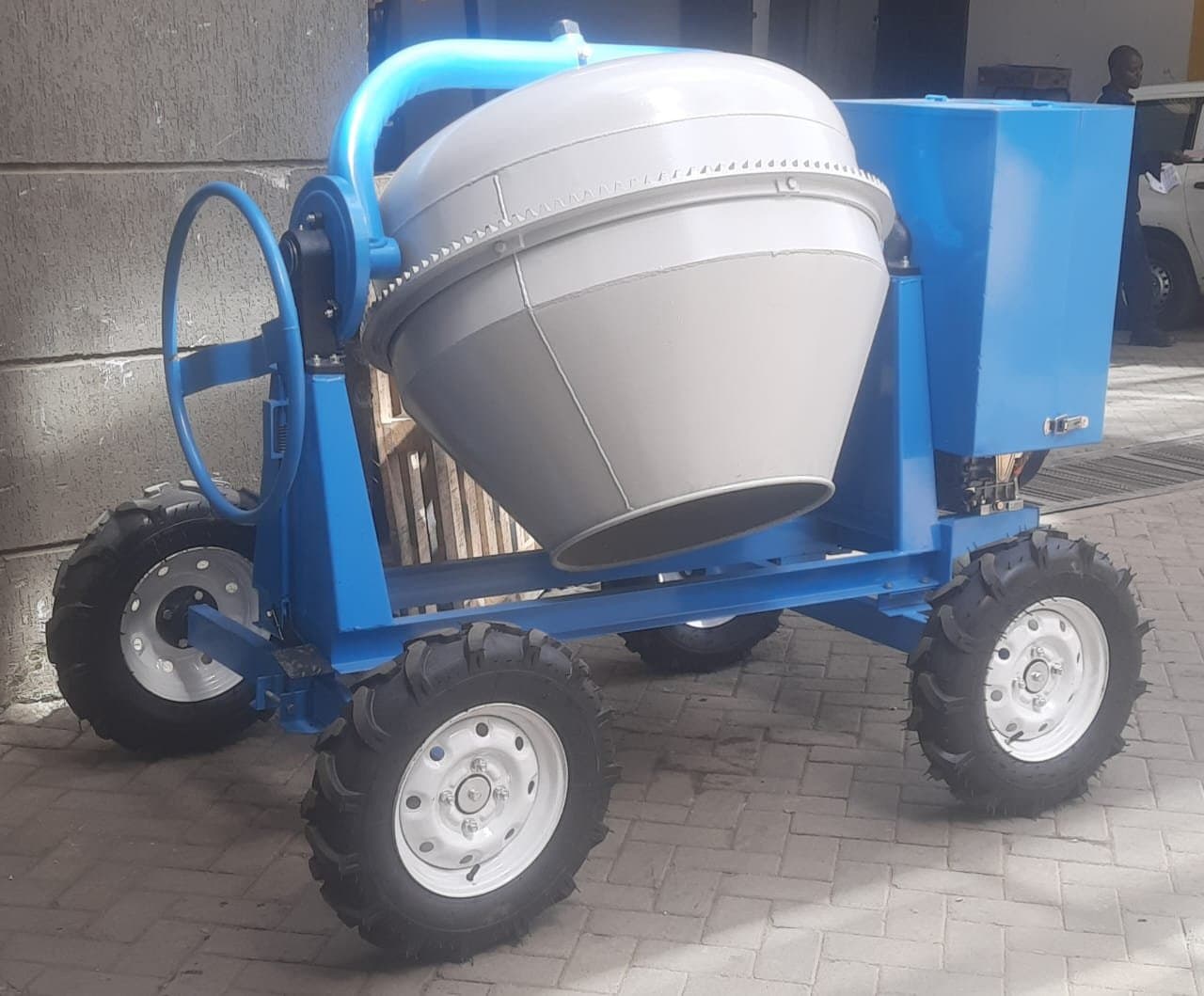

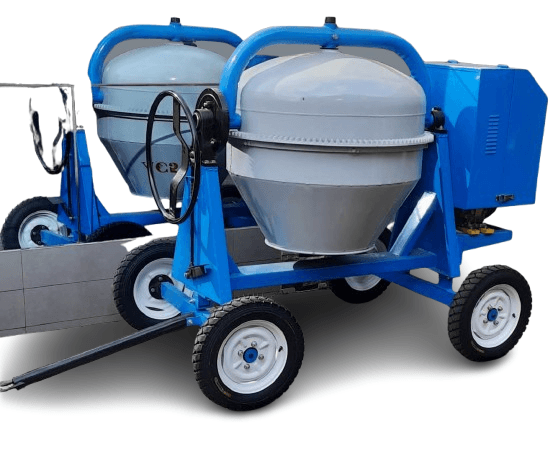

Type: Tilting drum with wheels for towing or moving around the site.
Typical Features
Strong steel drum and chassis
7HP air-cooled diesel engine
Pneumatic wheels for easy movement
Gear or belt transmission
Designed for continuous site mixing and long working hours.
Common Uses
Residential building construction
Concrete slabs and foundations
Rural or small contractor projects
Road repairs and paving.
