Product Description
Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel
high-power amplifier requirements.
Features:
Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in
extremely harsh working environment, greatly extending the service life of the equipment.
1U standard 19-inch industrial chassis design.
Providing 4 channel of 100 v or 4-16 Ω output terminal wiring speaker.
Without transformer output 100V and can switch constant resistance 4-16Ω output.
The fault output function can remotely monitor the working state of amplifier.
The product has short circuit, overload and overheat protection.
Support 4-channel independent power supply function.
85% high-efficiency amplifier with low power loss and heat output.
4-channel European terminal balanced input and 4-channel European terminal output.

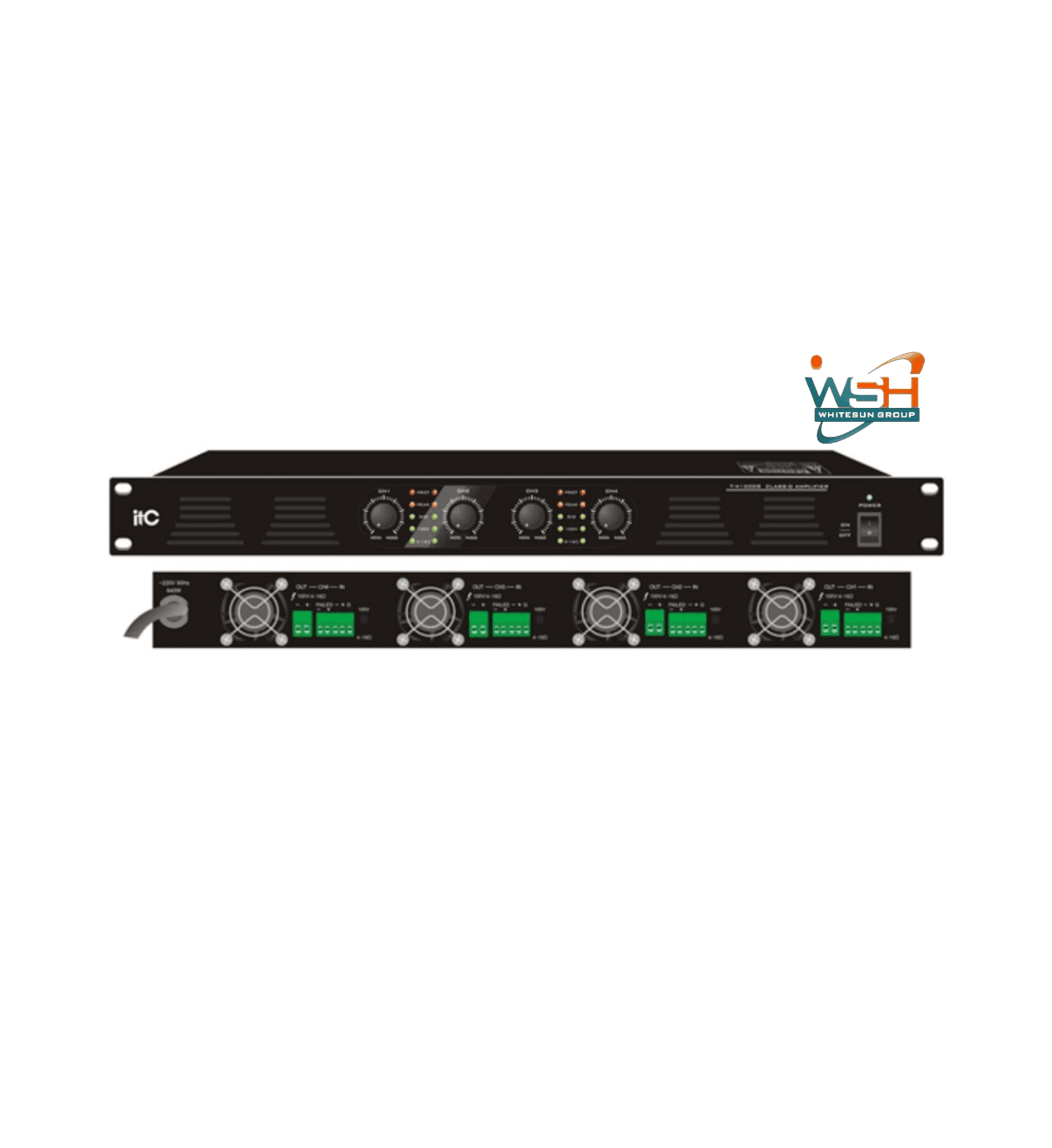

Model T-4350DS
Rated Power Output 4×350W
Rated Output 100V/4-16 ohms
Input Sensitivity(impedance) ±385mV/20KΩ,Balance input
Overload Source Electromotive Force >11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply 230V/50Hz
Power Consumption 1750W
Dimension 484×315×44mm
Weight 6.2Kg
