Description:
It can provide regional power amplification for broadcast systems. It is suitable for club, venue, shopping center and other places that need broadcast systems
with high-power power amplifier.
ModelT-4060DSA
Rated Power 4×60W
Rated Output 100V/4-16Ω
Input Sensitivity (impedance) ±385mV/20KΩ, Balanced input
Overload Source Electromotive Force >11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
SNR ≥85dB
THD ≤0.1% at 1KHz, 1/3 rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power supply
Protection High temperature, overload, short circuit
Cooling Forced fan cooling
Power Supply ~240V 50/60Hz
Power Consumption 380W
Dimension 484×315×44mm
Weight 5.0kg
Features:
. It adopts high-efficiency class D amplifying circuit and built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
. The internal heat dissipation layout of the product makes the product maintain the working temperature below 55 degrees even in the extremely harsh working
environment, which greatly prolongs the service life of the equipment.
. 1U standard rack design.
. 4 channel digital power amplifier provides four 100V or 4-16Ω output terminal.
. Without transformer output 100V and can switch to 4-16Ω output.
. Support fault output function, which can remotely monitor the working status of the power amplifier equipment.
. The product has short circuit, overload and overheat protection.
. 85% high efficiency amplifier with low power loss and low heat generation.
. With 4-channel European terminal balanced input, 4-channel European terminal output.

4 Channel Class D Amplifier T-4060DSA

Music& Accessories Hub

Description
High efficiency class D amplifier circuit and high efficiency switching power supply are adopted, making the efficiency of the whole machine up to 85%.
Reasonable heat dissipation layout is adopted in the interior of the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
Adopt 1U standard 19-inch industrial chassis design.
2 channel digital power amplifier to provide two 100V or 4-16Ω output terminal wiring speaker.
Not with 100V transformer output and can switch resistance between 4 and 16 Ω output.
Support fault output function, which can remotely monitor the working status of power amplifier .
The product has short circuit, overload and overheating protection function.
More than 85% high efficiency amplifier with low power loss and heat gain.
With 2-channel Euro-type balanced input and 2-channel Euro-type output.
Specifications:
Model
T-2240DSA
Rated Power
2×240W
Rated Output
100V/4-16Ω
Input sensitivity(Impedance)
±385mV/20KΩ，Balanced input
Overload source electromotive force
&gt;11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
SNR
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated Power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power supply
Protection
High temperature, overload, short circuit
Cooling
Forced fan cooling
Power Supply
~220V/50Hz
Power Consumption
650W
Dimension
484×300×44mm
Weight
4.5Kg

T-2240DSA 2-Channel Power Amplifier

Description
High efficiency class D amplifier circuit and high efficiency switching power supply are adopted, making the efficiency of the whole machine up to 85%.
Reasonable heat dissipation layout is adopted in the interior of the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
Adopt 1U standard 19-inch industrial chassis design.
2 channel digital power amplifier to provide two 100V or 4-16Ω output terminal wiring speaker.
Not with 100V transformer output and can switch resistance between 4 and 16 Ω output.
Support fault output function, which can remotely monitor the working status of power amplifier .
The product has short circuit, overload and overheating protection function.
More than 85% high efficiency amplifier with low power loss and heat gain.
With 2-channel Euro-type balanced input and 2-channel Euro-type output.
Specifications:
Model
T-2120DSA
Rated Power
2×120W
Rated Output
100V/4-16Ω
Input sensitivity(Impedance)
±385mV/20KΩ，Balanced input
Overload source electromotive force
&gt;11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
SNR
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated Power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power supply
Protection
High temperature, overload, short circuit
Cooling
Forced fan cooling
Power Supply
~220V/50Hz
Power Consumption
320W
Dimension
484×300×44mm
Weight
4.4Kg

T-2120DSA 2-Channel Power Amplifier

Description
High efficiency class D amplifier circuit and high efficiency switching power supply are adopted, making the efficiency of the whole machine up to 85%.
 Reasonable heat dissipation layout is adopted in the interior of the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 Adopt 1U standard 19-inch industrial chassis design.
 2 channel digital power amplifier to provide two 100V or 4-16Ω output terminal wiring speaker.
 Not with 100V transformer output and can switch resistance between 4 and 16 Ω output.
 Support fault output function, which can remotely monitor the working status of power amplifier .
 The product has short circuit, overload and overheating protection function.
 More than 85% high efficiency amplifier with low power loss and heat gain.
 With 2-channel Euro-type balanced input and 2-channel Euro-type output.
Specifications:
Model
T-2060DSA
Rated Power
2×60W
Rated Output
100V/4-16Ω
Input sensitivity(Impedance)
±385mV/20KΩ，Balanced input
Overload source electromotive force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
SNR
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated Power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power supply
Protection
High temperature, overload, short circuit
Cooling
Forced fan cooling
Power Supply
~220V/50Hz
Power Consumption
180W
Dimension
484×300×44mm
Weight
4.3Kg

T-2060DSA 2-Channel Power Amplifier

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel
high-power amplifier requirements.
Features:
Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in
extremely harsh working environment, greatly extending the service life of the equipment.
1U standard 19-inch industrial chassis design.
Providing 4 channel of 100 v or 4-16 Ω output terminal wiring speaker.
Without transformer output 100V and can switch constant resistance 4-16Ω output.
The fault output function can remotely monitor the working state of amplifier.
The product has short circuit, overload and overheat protection.
Support 4-channel independent power supply function.
85% high-efficiency amplifier with low power loss and heat output.
4-channel European terminal balanced input and 4-channel European terminal output.
Model T-4500DS
Rated Power Output 4×500W
Rated Output 100V/4-16 ohms
Input Sensitivity(impedance) ±385mV/20KΩ,Balance input
Overload Source Electromotive Force &gt;11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply 230V/50Hz
Power Consumption 2250W
Dimension 484×315×44mm
Weight 6.3Kg

4-Channel Class-D Amplifier T-4500DS

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel
high-power amplifier requirements.
Features:
Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in
extremely harsh working environment, greatly extending the service life of the equipment.
1U standard 19-inch industrial chassis design.
Providing 4 channel of 100 v or 4-16 Ω output terminal wiring speaker.
Without transformer output 100V and can switch constant resistance 4-16Ω output.
The fault output function can remotely monitor the working state of amplifier.
The product has short circuit, overload and overheat protection.
Support 4-channel independent power supply function.
85% high-efficiency amplifier with low power loss and heat output.
4-channel European terminal balanced input and 4-channel European terminal output.
Model T-4350DS
Rated Power Output 4×350W
Rated Output 100V/4-16 ohms
Input Sensitivity(impedance) ±385mV/20KΩ,Balance input
Overload Source Electromotive Force &gt;11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply 230V/50Hz
Power Consumption 1750W
Dimension 484×315×44mm
Weight 6.2Kg

4-Channel Class-D Amplifier T-4350DS

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel
high-power amplifier requirements.
Features:
Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in
extremely harsh working environment, greatly extending the service life of the equipment.
1U standard 19-inch industrial chassis design.
Providing 4 channel of 100 v or 4-16 Ω output terminal wiring speaker.
Without transformer output 100V and can switch constant resistance 4-16Ω output.
The fault output function can remotely monitor the working state of amplifier.
The product has short circuit, overload and overheat protection.
Support 4-channel independent power supply function.
85% high-efficiency amplifier with low power loss and heat output.
4-channel European terminal balanced input and 4-channel European terminal output.
Model T-4240DS
Rated Power Output 4×240W
Rated Output 100V/4-16 ohms
Input Sensitivity(impedance) ±385mV/20KΩ,Balance input
Overload Source Electromotive Force &gt;11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply 230V/50Hz
Power Consumption 1250W
Dimension 484×315×44mm
Weight 6.0Kg

4-Channel Class-D Amplifier T-4240DS

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel
high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in
extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 4 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 4-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 4-channel European terminal balanced input and 4-channel European terminal output.
Model T-4120DS
Rated Power Output 4×120W
Rated Output 100V/4-16 ohms
Input Sensitivity(impedance) ±385mV/20KΩ,Balance input
Overload Source Electromotive Force >11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply 230V/50Hz
Power Consumption 750W
Dimension 484×315×44mm
Weight 5.9Kg

4-Channel Class-D Amplifier T-4120DS

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
 Model
T-2500DS
Rated Power Output
2×500W
Rated Output
100V/4-16Ω
Input Sensitivity (impedance)
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
1250W
Dimension
484×300×44mm
Weight
4.7Kg

T-2500DS 2-Channel Class-D Amplifier

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
 Model
T-2350DS
Rated Power Output
2×350W
Rated Output
100V/4-16Ω
Input Sensitivity (impedance)
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
950W
Dimension
484×300×44mm
Weight
4.6Kg

T-2350DS 2-Channel Class-D Amplifier

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
 Model
T-2240DS
Rated Power Output
2×240W
Rated Output
100V/4-16Ω
Input Sensitivity (impedance)
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
650W
Dimension
484×300×44mm
Weight
4.5Kg

T-2240DS 2-Channel Class-D Amplifier

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
 Model
T-2120DS
Rated Power Output
2×120W
Rated Output
100V/4-16Ω
Input Sensitivity (impedance)
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
320W
Dimension
484×300×44mm
Weight
4.4Kg

T-2120DS 2-Channel Class-D Amplifier

Description：
 Class-D broadcast power amplifier is a high-performance single-channel high-power power amplifier with switching power supply. The structure is compact and reasonable. The intelligent protection circuit adopts advanced class-D digital power amplifier and soft switching power supply to ensure the stability and reliability and protect amplifiers and speakers under extreme conditions.
 It can provide regional power amplification for the system, which is suitable for broadcasting reinforent in a large area, such as medium &#038; large schools, buildings, clubs, venue bars, parks, etc.
Features：
 The 2U streamlined black alumina brushed panel is perfectly combined with reasonable and compact interior, which is exquisite process.
 The brand-new exclusive third-generation Class-D digital power amplifier, efficient power amplifier circuit, light weight, long system lifespan, high-fidelity sound quality, and perfectly restored sound source quality.
 A good pipe-type heat dissipation structure and built-in automatic temperature control fan cooling system to effectively remove hot air, reduce temperature, and extend normal operation time.
 1-channel LINE unbalanced TRS/XLR high-quality multi-function input interface, 1-channel LINE balanced XLR cascade output.
 Built-in PFC circuit and soft switching power supply technology. Automatic soft start enables 92% ultra-high system efficiency.
 New power amplifier circuit to ensure zero crossover distortion and lossless signal quality during reinforent.
 Built-in intelligent clipping distortion and over-current protection system can effectively protect the speaker unit.
 It has multiple intelligent detection and protection systems for over temperature, over voltage, under voltage, over current and short circuit.
 2 output modes: constant impedance 4-16Ω and constant voltage 100V are optional.
Specifications：
Model
T-62000D
Rated Power Output
2000W
Speaker Outputs
70V, 100V &#038; 4~16Ω
Input Sensitivity &#038; Impedance
775mV/10KΩ, Unbalanced XLR/TRS Input
Output Sensitivity &#038; impendance
775mV/470Ω, Unbalanced XLR/TRS output
Frequency Response
80Hz~16KHz (+1dB, -3dB )
S/N Ratio
>90dB
THD
Less than 0.5% at 1KHz, 1/3 rated power
Cooling
Fan automatically start up when temp reaches 45℃
Protection
Over heat, over load, short circuit
Power Supply
220V/50Hz
Power Consumption
2500W
Net Weight
9.5Kg
Dimension
484x420x88mm

T-62000D Digital Power Amplifier

Description：
 Class-D broadcast power amplifier is a high-performance single-channel high-power power amplifier with switching power supply. The structure is compact and reasonable. The intelligent protection circuit adopts advanced class-D digital power amplifier and soft switching power supply to ensure the stability and reliability and protect amplifiers and speakers under extreme conditions.
 It can provide regional power amplification for the system, which is suitable for broadcasting reinforent in a large area, such as medium &#038; large schools, buildings, clubs, venue bars, parks, etc.
Features：
 The 2U streamlined black alumina brushed panel is perfectly combined with reasonable and compact interior, which is exquisite process.
 The brand-new exclusive third-generation Class-D digital power amplifier, efficient power amplifier circuit, light weight, long system lifespan, high-fidelity sound quality, and perfectly restored sound source quality.
 A good pipe-type heat dissipation structure and built-in automatic temperature control fan cooling system to effectively remove hot air, reduce temperature, and extend normal operation time.
 1-channel LINE unbalanced TRS/XLR high-quality multi-function input interface, 1-channel LINE balanced XLR cascade output.
 Built-in PFC circuit and soft switching power supply technology. Automatic soft start enables 92% ultra-high system efficiency.
 New power amplifier circuit to ensure zero crossover distortion and lossless signal quality during reinforent.
 Built-in intelligent clipping distortion and over-current protection system can effectively protect the speaker unit.
 It has multiple intelligent detection and protection systems for over temperature, over voltage, under voltage, over current and short circuit.
 2 output modes: constant impedance 4-16Ω and constant voltage 100V are optional.
Specifications：
Model
T-61500D
Rated Power Output
1500W
Speaker Outputs
70V, 100V &#038; 4~16Ω
Input Sensitivity &#038; Impedance
775mV/10KΩ, Unbalanced XLR/TRS Input
Output Sensitivity &#038; impendance
775mV/470Ω, Unbalanced XLR/TRS output
Frequency Response
80Hz~16KHz (+1dB, -3dB )
S/N Ratio
>90dB
THD
Less than 0.5% at 1KHz, 1/3 rated power
Cooling
Fan automatically start up when temp reaches 45℃
Protection
Over heat, over load, short circuit
Power Supply
220V/50Hz
Power Consumption
1800W
Net Weight
8.7Kg
Dimension
484x420x88mm

T-61500D Digital Power Amplifier

Description：
 Class-D broadcast power amplifier is a high-performance single-channel high-power power amplifier with switching power supply. The structure is compact and reasonable. The intelligent protection circuit adopts advanced class-D digital power amplifier and soft switching power supply to ensure the stability and reliability and protect amplifiers and speakers under extreme conditions.
 It can provide regional power amplification for the system, which is suitable for broadcasting reinforent in a large area, such as medium &#038; large schools, buildings, clubs, venue bars, parks, etc.
Features：
 The 2U streamlined black alumina brushed panel is perfectly combined with reasonable and compact interior, which is exquisite process.
 The brand-new exclusive third-generation Class-D digital power amplifier, efficient power amplifier circuit, light weight, long system lifespan, high-fidelity sound quality, and perfectly restored sound source quality.
 A good pipe-type heat dissipation structure and built-in automatic temperature control fan cooling system to effectively remove hot air, reduce temperature, and extend normal operation time.
 1-channel LINE unbalanced TRS/XLR high-quality multi-function input interface, 1-channel LINE balanced XLR cascade output.
 Built-in PFC circuit and soft switching power supply technology. Automatic soft start enables 92% ultra-high system efficiency.
 New power amplifier circuit to ensure zero crossover distortion and lossless signal quality during reinforent.
 Built-in intelligent clipping distortion and over-current protection system can effectively protect the speaker unit.
 It has multiple intelligent detection and protection systems for over temperature, over voltage, under voltage, over current and short circuit.
 2 output modes: constant impedance 4-16Ω and constant voltage 100V are optional.
Specifications：
Model
T-6100D
Rated Power Output
1000W
Speaker Outputs
70V, 100V &#038; 4~16Ω
Input Sensitivity &#038; Impedance
775mV/10KΩ, Unbalanced XLR/TRS Input
Output Sensitivity &#038; impendance
775mV/470Ω, Unbalanced XLR/TRS output
Frequency Response
80Hz~16KHz (+1dB, -3dB )
S/N Ratio
>90dB
THD
Less than 0.5% at 1KHz, 1/3 rated power
Cooling
Fan automatically start up when temp reaches 45℃
Protection
Over heat, over load, short circuit
Power Supply
220V/50Hz
Power Consumption
1300W
Net Weight
8.6Kg
Dimension
484x420x88mm

T-61000D Digital Power Amplifier

Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-1650DS
Rated Power Output
650W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
900W
Dimension
484×315×44mm
Weight
4.1kg

T-1650DS Digital Mixer Amplifier

Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-1500DS
Rated Power Output
500W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
750W
Dimension
484×315×44mm
Weight
3.9kg

T-1500DS Digital Mixer Amplifier

Description
Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-1350DS
Rated Power Output
350W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
600W
Dimension
484×315×44mm
Weight
3.8kg

T-1350DS Digital Mixer Amplifier

Description
Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-1240DS
Rated Power Output
240W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
300W
Dimension
484×315×44mm
Weight
3.7kg

T-1240DS Digital Mixer Amplifier

Description
Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-1120DS
Rated Power Output
120W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
160W
Dimension
484×315×44mm
Weight
3.6kg

T-1120DS Digital Mixer Amplifier

Description
Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.
Features:
 Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.
 The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.
 Using 1U standard 19-inch industrial cabinet design.
 1-channel digital power amplifier with 100V or 4-16Ω output terminal.
 Support fault output function, can remotely monitor the working status of power amplifier equipment.
 The product has short circuit, overload and overheat protection.
 Support 1 channel independent power supply function.
 85% high efficiency amplifier with low power loss and low heat generation.
 With 1 channel European terminal balanced input, 1 channel European terminal output.
Specifications:
Model
T-160DS
Rated Power Output
60W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
90W
Dimension
484×315×44mm
Weight
3.3kg

T-160DS Digital Mixer Amplifier

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications:
Model
T-2500DS
Rated Power Output
2×500W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
(impedance)
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
1250W
Dimension
484×300×44mm
Weight
4.7Kg

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications:
Model
T-2350DS
Rated Power Output
2×350W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
(impedance)
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
950W
Dimension
484×300×44mm
Weight
4.6Kg

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications:
Model
T-2240DS
Rated Power Output
2×240W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
(impedance)
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
650W
Dimension
484×300×44mm
Weight
4.5Kg

Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
 Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
 Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
 1U standard 19-inch industrial chassis design.
 Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
 Without transformer output 100V and can switch constant resistance 4-16Ω output.
 The fault output function can remotely monitor the working state of amplifier.
 The product has short circuit, overload and overheat protection.
 Support 2-channel independent power supply function.
 85% high-efficiency amplifier with low power loss and heat output.
 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications:
Model
T-2120DS
Rated Power Output
2×120W
Rated Output
100V/4-16Ω
Input Sensitivity
±385mV/20KΩ,Balance input
(impedance)
Overload Source Electromotive Force
>11dB
Frequency Response
80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio
≥85dB
THD
≤0.1% at 1KHz, 1/3 Rated power
Control
Remote power control and fault indication
Indicator Light
Signal, peak, protection, power
Protection
Overheat, overload, short circuit
Cooling
Fan forced cooling
Power Supply
~220V/50Hz
Power Consumption
320W
Dimension
484×300×44mm
Weight
4.4Kg

Description
Class-D series digital power amplifier.
 Switch power supply.
85% high efficient amplifier
Low power consumption and less heat generation.
Four channel power amplifier in 1U height.
 RMS power output of 120W
 Four channel balanced line inputs by phoenix connector.
 Four channel separate speaker outputs of 100V without transformer.
 Four channel RJ45 ports for remote power control, volume control and status monitor.
 Remote power on/off could be done through the RJ45 port. Four channel separate volume control.
 Built-in powered band pass filter for 80Hz to 16KHz signal.
 Four channel separate cooling system for each channel.
 Four channel separate status indicators include signal, peak and protection.
 Extensive high temp, overload and short-circuit protection.
 AC 110V or 230V and DC 24V operation.
 Four channel separate DC 24V inputs with wide voltage protection.
Specifications:
Product Model	T-4350D
Indicators	Signal, peak, protection and power
Overload Electromotive Force	>11dB
Dimensions	484 x 395 x 44mm
Power Supply	~110V-230V 50/60Hz
Input Sensitivity/Impedance	± 385mV/20KΩ, balanced phoenix connector
automatically start up when internal temp reaches 55 ℃
Power Consumption	1750W
Speaker Outputs	100V
Rated Power Output	4x350W
Weight	9.06Kg
S/N Ratio	≥ 85dB
Protection	High temp, overload &#038; short-circuit
Frequency Response	80Hz~16KHz (+1, -3dB)
Cooling	Separate cooling system for each channel,fan
Controls	Remote power control, volume control and status monitor
THD	≤ 0.1% at 1KHz, 1/3 rated power

T-4350D 4-Channel Class-D Power Amplifier

Description
Class-D series digital power amplifier.
 Switch power supply.
85% high efficient amplifier
Low power consumption and less heat generation.
Four channel power amplifier in 1U height.
 RMS power output of 120W
 Four channel balanced line inputs by phoenix connector.
 Four channel separate speaker outputs of 100V without transformer.
 Four channel RJ45 ports for remote power control, volume control and status monitor.
 Remote power on/off could be done through the RJ45 port. Four channel separate volume control.
 Built-in powered band pass filter for 80Hz to 16KHz signal.
 Four channel separate cooling system for each channel.
 Four channel separate status indicators include signal, peak and protection.
 Extensive high temp, overload and short-circuit protection.
 AC 110V or 230V and DC 24V operation.
 Four channel separate DC 24V inputs with wide voltage protection.
Specifications:
Product Model	T-4500D
Indicators	Signal, peak, protection and power
Overload Electromotive Force	>11dB
Dimensions	484 x 395 x 44mm
Power Supply	~110V-230V 50/60Hz
Input Sensitivity/Impedance	± 385mV/20KΩ, balanced phoenix connector
automatically start up when internal temp reaches 55 ℃
Power Consumption	2250W
Speaker Outputs	100V
Rated Power Output	4x240W
Weight	10Kg
S/N Ratio	≥ 85dB
Protection	High temp, overload &#038; short-circuit
Frequency Response	80Hz~16KHz (+1, -3dB)
Cooling	Separate cooling system for each channel,fan
Controls	Remote power control, volume control and status monitor
THD	≤ 0.1% at 1KHz, 1/3 rated power

T-4500D4-Channel Class-D Power Amplifier

Description
Class-D series digital power amplifier.
Switch power supply.
85% high efficient amplifier
Low power consumption and less heat generation.
Four channel power amplifier in 1U height.
RMS power output of 120W
Four channel balanced line inputs by phoenix connector.
Four channel separate speaker outputs of 100V without transformer.
Four channel RJ45 ports for remote power control, volume control and status monitor.
Remote power on/off could be done through the RJ45 port. Four channel separate volume control.
Built-in powered band pass filter for 80Hz to 16KHz signal.
Four channel separate cooling system for each channel.
Four channel separate status indicators include signal, peak and protection.
Extensive high temp, overload and short-circuit protection.
AC 110V or 230V and DC 24V operation.
Four channel separate DC 24V inputs with wide voltage protection.
Specifications:
Product Model T-4240D
Indicators Signal, peak, protection and power
Overload Electromotive Force &gt;11dB
Dimensions 484 x 395 x 44mm
Power Supply ~110V-230V 50/60Hz
Input Sensitivity/Impedance ± 385mV/20KΩ, balanced phoenix connector
automatically start up when internal temp reaches 55 ℃
Power Consumption 1200W
Speaker Outputs 100V
Rated Power Output. N4x240W
Weight 9.02Kg
S/N Ratio ≥ 85dB
Protection High temp, overload &amp; short-circuit
Frequency Response 80Hz~16KHz (+1, -3dB)
Cooling Separate cooling system for each channel,fan
Controls Remote power control, volume control and status monitor
THD ≤ 0.1% at 1KHz, 1/3 rated power

T-4240D 4-Channel Class-D Power Amplifier

Description
Class-D series digital power amplifier.
 Switch power supply.
85% high efficient amplifier
Low power consumption and less heat generation.
Four channel power amplifier in 1U height.
 RMS power output of 120W
 Four channel balanced line inputs by phoenix connector.
 Four channel separate speaker outputs of 100V without transformer.
 Four channel RJ45 ports for remote power control, volume control and status monitor.
 Remote power on/off could be done through the RJ45 port. Four channel separate volume control.
 Built-in powered band pass filter for 80Hz to 16KHz signal.
 Four channel separate cooling system for each channel.
 Four channel separate status indicators include signal, peak and protection.
 Extensive high temp, overload and short-circuit protection.
 AC 110V or 230V and DC 24V operation.
 Four channel separate DC 24V inputs with wide voltage protection.
Specifications:
Product Model	T-4120D
Indicators	Signal, peak, protection and power
Overload Electromotive Force	>11dB
Dimensions	484 x 395 x 44mm
Power Supply	~110V-230V 50/60Hz
Input Sensitivity/Impedance	± 385mV/20KΩ, balanced phoenix connector
automatically start up when internal temp reaches 55 ℃
Power Consumption	600W
Speaker Outputs	100V
Rated Power Output	4x120W
Weight	9.04Kg
S/N Ratio	≥ 85dB
Protection	High temp, overload &#038; short-circuit
Frequency Response	80Hz~16KHz (+1, -3dB)
Cooling	Separate cooling system for each channel,fan
Controls	Remote power control, volume control and status monitor
THD	≤ 0.1% at 1KHz, 1/3 rated power

T-4120D 4-Channel Class-D Power Amplifier

Description:
The amplifier adopts high class D amplifier circuit, with built in high-efficient power switch which enhances the efficiency up to 85%.
 The product uses reasonable dissipation layout, which makes the amplifier can keep less than 55℃ even at severe working conditions, thus largely expanding its life span.
The amplifier is designed with rack mount in 1 U height and 19 inches.
 The rear panel provides with 1 channels 100V output terminal wiring speaker, a phoenix interface for remote control and monitoring equipment working condition.
 Extensive protection includes high temp, overload and short-circuit.
Features:
. 1 channel class D digital power amplifier, 1 independent channel without transformer output is 100V.
. The rear panel is equipped with a “ground” line suspension switch, which effectively eliminates the loop noise caused by the connection of the “ground” lines of multiple equipment signals.
. 85% high efficiency amplifier, low power loss, low heat.
. 1 channel European terminal balanced input, 1 channel European terminal output.
. Remote control of power-on function: remotely turn on the power of the machine, and disconnect the power of the machine when both functions are turned off at the same time.
. Fault output function, remote monitoring power amplifier working state.
. 1 channel independent 24V standby power inverter function, power amplifier with voltage limit, short circuit, overload, overheat protection.
. AC 110V or 230V and DC 24V optional.
Rated power output
350W
Controls
Remote power control and fault indicator
Indicators
signal, peak, protection, power
Protection
high temp, speaker DC output ,overload and short-circuit
Cooling
Forced cooling
Power Consumption
600W
Power Supply
~110-230V 50/60Hz
Dimensions
484 x 350 x 44mm
Weight
4.0Kg

T-1350D 1-Channel Class-D Power Amplifier

Description:
The amplifier adopts high class D amplifier circuit, with built in high-efficient power switch which enhances the efficiency up to 85%.
 The product uses reasonable dissipation layout, which makes the amplifier can keep less than 55℃ even at severe working conditions, thus largely expanding its life span.
The amplifier is designed with rack mount in 1 U height and 19 inches.
 The rear panel provides with 1 channels 100V output terminal wiring speaker, a phoenix interface for remote control and monitoring equipment working condition.
 Extensive protection includes high temp, overload and short-circuit.
Features:
. 1 channel class D digital power amplifier, 1 independent channel without transformer output is 100V.
. The rear panel is equipped with a “ground” line suspension switch, which effectively eliminates the loop noise caused by the connection of the “ground” lines of multiple equipment signals.
. 85% high efficiency amplifier, low power loss, low heat.
. 1 channel European terminal balanced input, 1 channel European terminal output.
. Remote control of power-on function: remotely turn on the power of the machine, and disconnect the power of the machine when both functions are turned off at the same time.
. Fault output function, remote monitoring power amplifier working state.
. 1 channel independent 24V standby power inverter function, power amplifier with voltage limit, short circuit, overload, overheat protection.
. AC 110V or 230V and DC 24V optional.
Rated power output
240W
Controls
Remote power control and fault indicator
Indicators
signal, peak, protection, power
Protection
high temp, speaker DC output ,overload and short-circuit
Cooling
Forced cooling
Power Consumption
300W
Power Supply
~110-230V 50/60Hz
Dimensions
484 x 350 x 44mm
Weight
3.9Kg

T-1240D 1-Channel Class-D Power Amplifier

Description
Model: T-1120D
Type: Single Channel Class-D Amplifier
Power Output: 120W
Voltage: 100V
Features: 1U height, volume control on the front panel, and 24VDC power input.

T-1120D, a single-channel Class-D amplifier.

Description

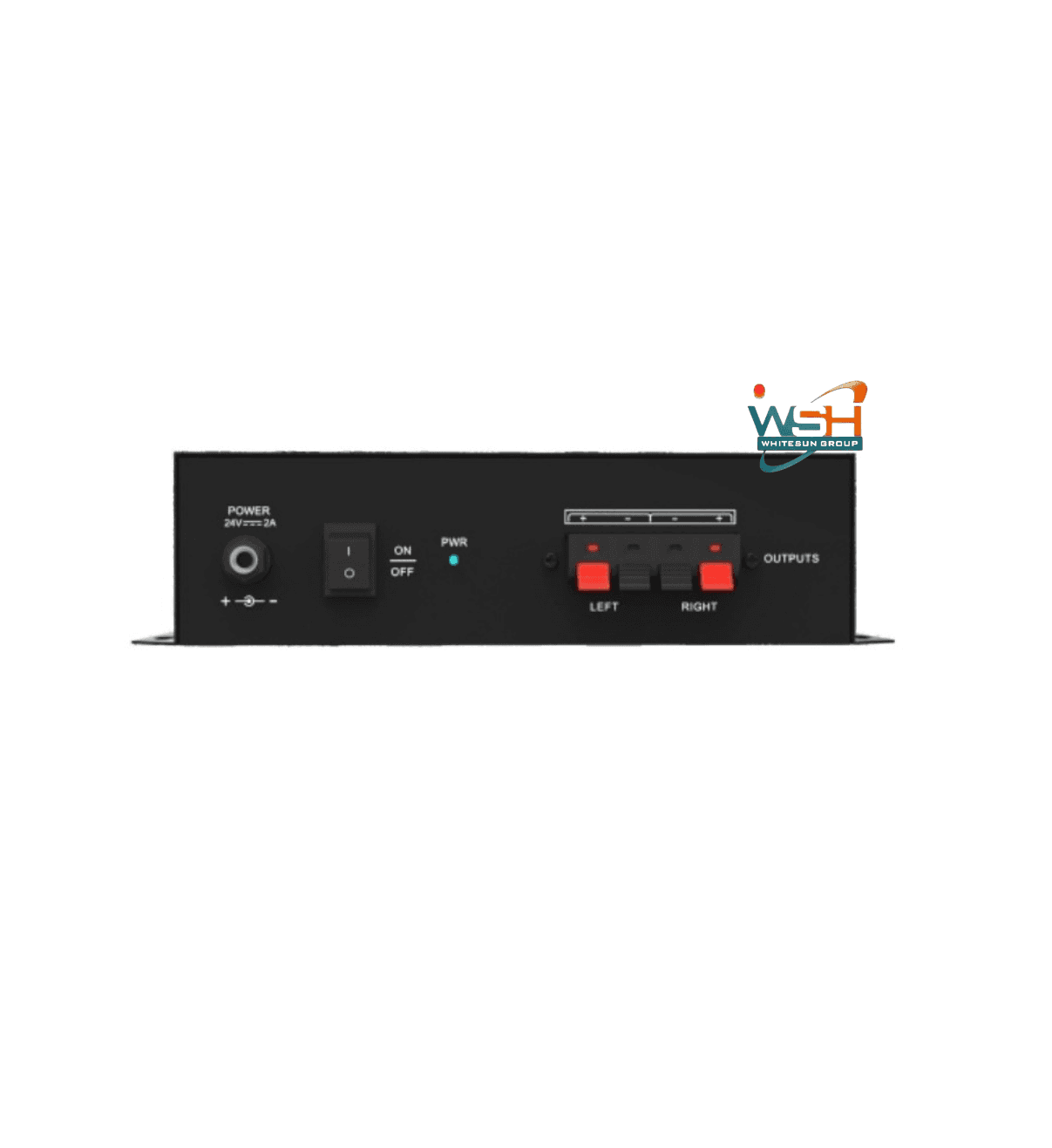

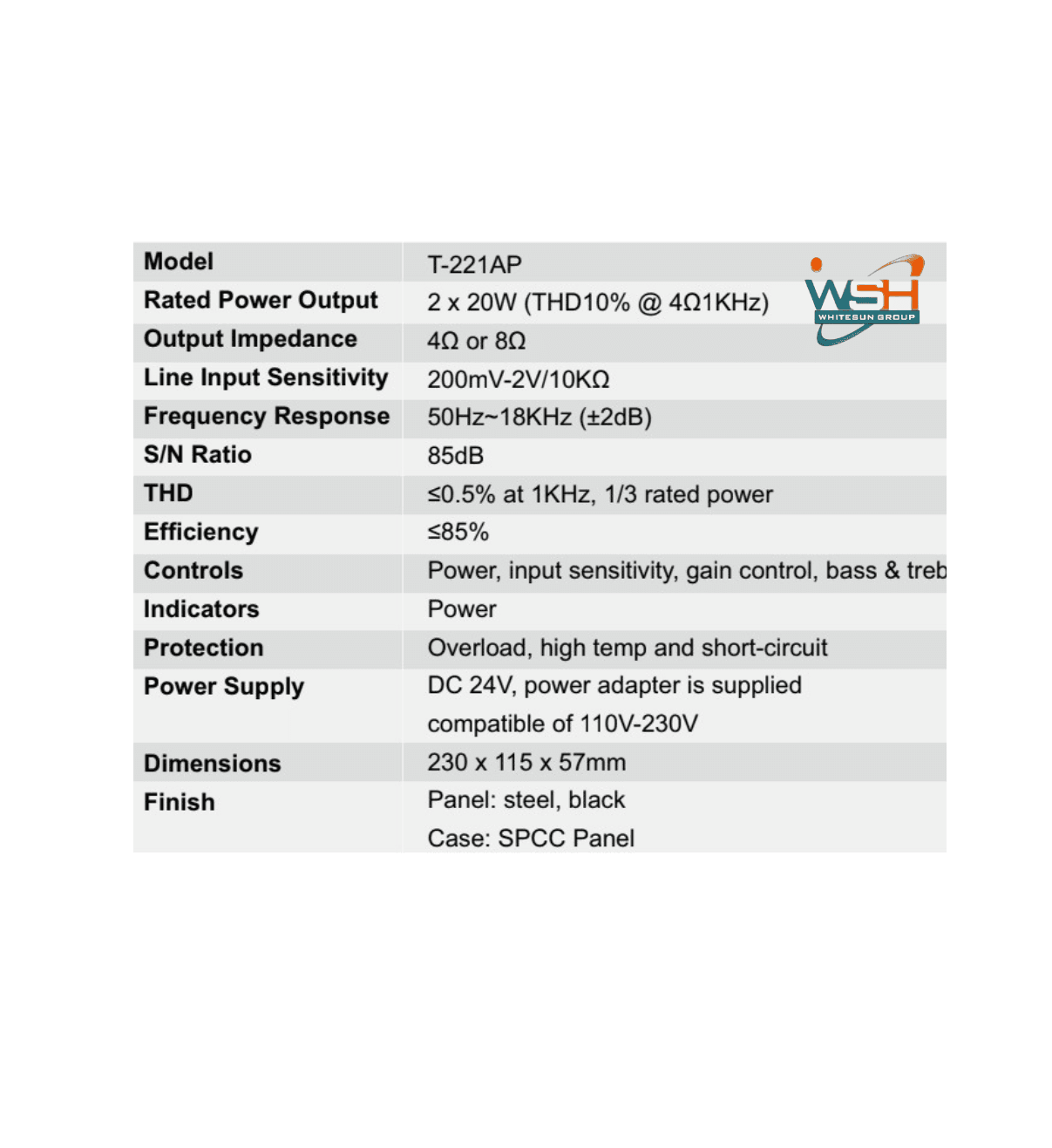

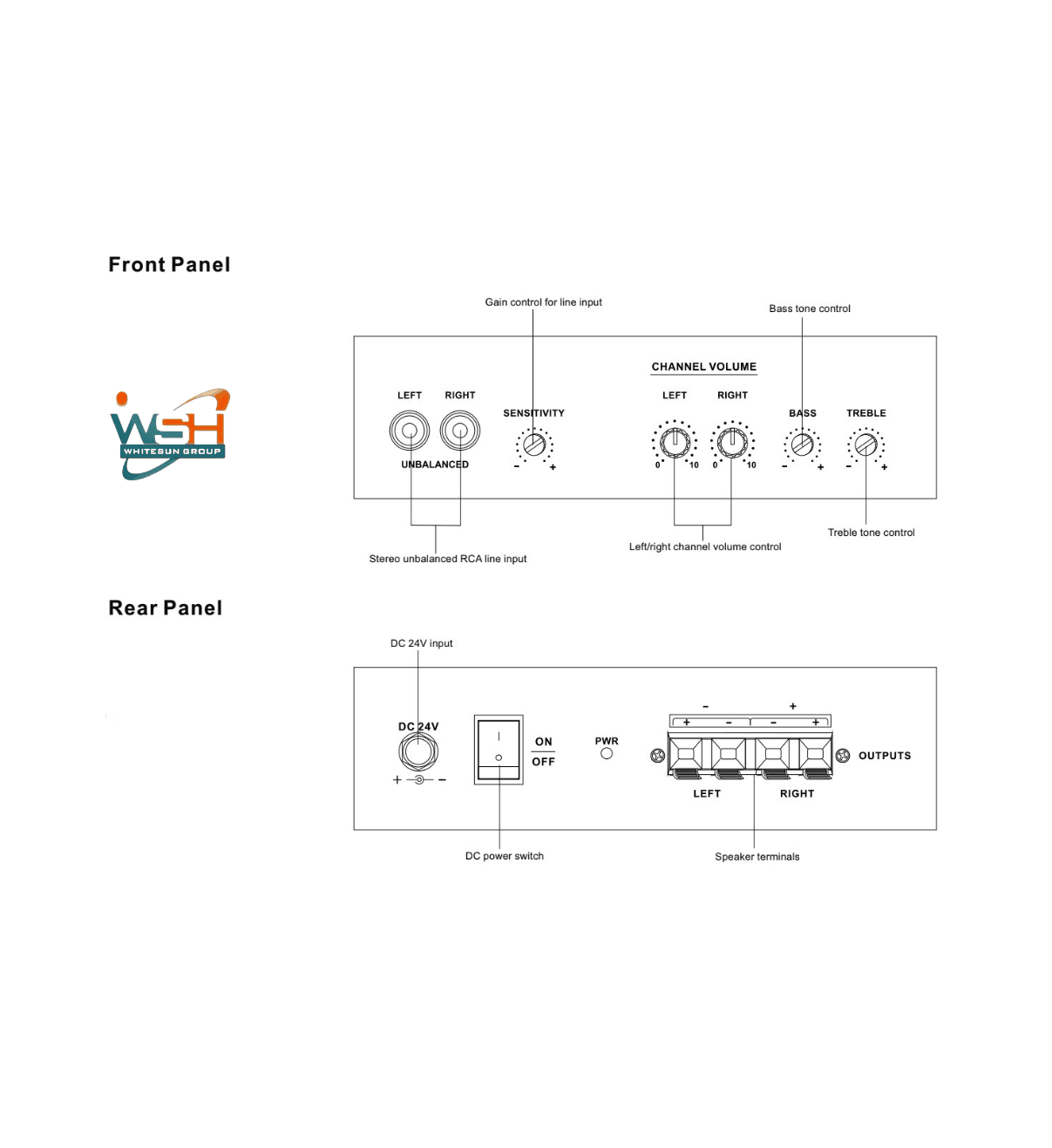

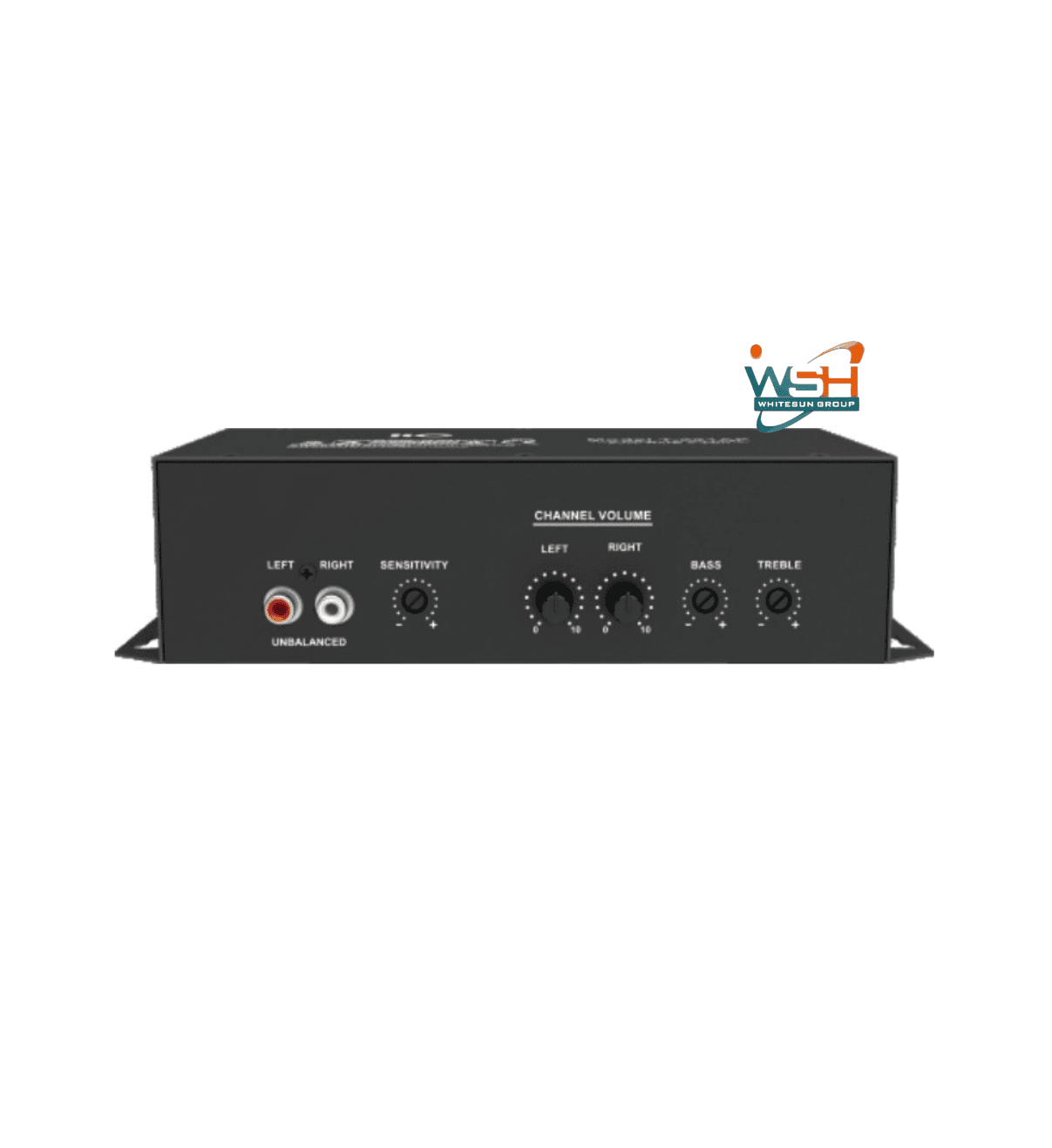

Mini-size Class D amplifier.
 Stereo output 20 watts by two channels at 4Ω.
 Wall mounted design with bracket.
 High efficient about 85%, low heat-generation technology.
 Environment-protection green technology to save power consumption.
 Stereo RCA unbalanced line level inputs.
 Sensitivity control over line inputs.
 Independent L/R gain control.
 Independent bass and treble control.
 Stereo left &#038; right channel outputs.
 Built-in intelligent limited to eliminate the earth line noise when connected
with laptop and iphone.
 Automatic power on when input signal is detected.
 Automatic power off when no inputs for 5 minutes.
 Output will be delayed after fully power on.
 Convenient push terminal speaker outputs.
 Overload, high temp and short-circuit protection.
 DC 24V power adapter is included.

2 Mini Stereo Class-D Amplifier (Unbalanced  inputs + Auto power on/off) T-221AP

Description
Compact size for tabletop or wall mounted design.
 Digital high efficiency mini amplifier.
 Stereo output 60 watts by two channels and parallel output 120 watts.
 2 Mic/line switchable inputs by phoenix connectors and 2 unbalanced aux inputs by dual RCA type.
 Left and right master volume controls over Mic and music , bass and treble tone controls.
 Left and right channel outputs by phoenix connector , parallel or stereo output two options with switch.
 Speaker stereo outputs at 4Ω / 8Ω and speaker parallel output at 8Ω.
 Built-in limiter for low noise and efficient operation, with limiter on/off switch, which make it suitable for laptop and iphone input.
Specifications:
Model
T-260AP
Rated Power Output
2 x 60W (THD10% @ 4Ω1KHz)
Speaker Outputs
4Ω or 8Ω
Input
2 AUX inputs by RCA and 2 MIC/Line inputs by phoenix connectors
LINE
350mV/10KΩ
MIC Input
5mV/600Ω
Frequency Response
50Hz~18KHz (±2dB)
S/N Ratio(line) Better than 85dB
THD
Less than 0.5% at 1KHz, 1/3 rated power
Efficiency
85%
Controls
Power switch, volume control Indicators
Power Protection
AC fuse, clipping, high temp &#038; short-circuit
Power Supply
~110V-230V 50/60Hz
Dimensions
230 x 115 x 57mm
Finish
Panel: steel, black
Case: SPCC Panel

T-260AP 2 x 60W Mini Stereo Class-D Amplifier (Balanced inputs + Bridge mode )

Description
Compact size for tabletop or wall mounted design.
. Digital high efficiency mini amplifier.
. Stereo output 20 watts by two channels and bridged output 40 watts.
. 2 Mic/line switchable inputs by phoenix connectors and 2 unbalanced aux inputs by dual RCA type.
. Left and right master volume controls over Mic and music, bass and treble tone controls.
. Left and right channel outputs by phoenix connector, bridged or stereo output two options with switch.
. Speaker stereo outputs at 4Ω / 8Ω and speaker bridged output at 8Ω.
. Built-in limiter for low noise and efficient operation, with limiter on/off switch, which make it suitable for laptop and iphone input.
 DC 24V power adapter is included.
Specifications:
Model
T-220AP
Rated Power Output
2 x 20W (THD10% @ 4Ω1KHz)
Speaker Outputs
4Ω or 8Ω
Input
2 AUX inputs by RCA and 2 MIC/Line inputs by phoenix connectors
LINE
350mV/10KΩ
MIC Input
5mV/600Ω
Frequency Response
50Hz~18KHz (±2dB)
S/N Ratio(line)
Better than 85dB
THD
Less than 0.5% at 1KHz, 1/3 rated power
Efficiency
85%
Controls
Power switch, volume control
Indicators
Power
Protection
AC fuse, clipping, high temp &#038; short-circuit
Power Supply
DC 24V
Dimensions
230 x 115 x 57mm
Finish
Panel: steel, black
Case: SPCC Panel

T-220AP 2 x 20W Mini Stereo Class-D Amplifier (Balanced inputs + Bridge mode)

Description
. Preamplifier with multi-channel microphone, audio and emergency signal input lines and single-channel output.
. It is suitable for pre-stage amplification of common sound sources.
. Standard cabinet design (2U), humanized design and exquisite workmanship show high-grade temperament.
. It has 5 microphone (MIC) inputs, 3 standard signal line (AUX) inputs and 2 emergency line (EMC) inputs.
. The fifth microphone (MIC5) has the highest priority and forced cut-in priority functions; MIC5 and EMC&#8217;s highest priority functions can be alternately selected
by pulling the switch, and customers can choose priority according to their usage.
. The 4-way emergency input line has the functions of secondary priority and forced cut-in priority.
. The MIC1, 2, 3, 4, 5, and 2 emergency input (EMC) channels are equipped with line auxiliary input interface functions.
. MIC1, 2, 3, 4, and AUX1, 2, and 3 can cross-mix outputs.
. Both the microphone (MIC) input channel and the line (AUX) input channel can independently adjust the volume and are equipped with a total volume control
knob.
. It has independent adjustment of treble (TREBLE) and bass (BASS).
. It has mute depth adjustment knob and EMC input gain adjustment knob.

Preamplifier  T-6201

Description:
Standard case design, 2 U aluminum alloy panel; User-friendly handle design, beautiful and practical. 1 group MIC input, with automatic and manual calling switch for options. In the state of automatic mode, MIC channel can adjust the volume and tone, with top priority. In the state of manual mode, each channel can select it by themselves which has the priority override EMC. When 24V DC signal cut in, it will recover automatically to corresponding inputs; 2 groups of EMC have the second priority . When there is an emergency signal , it will switch and broadcast the emergency signal automatically; when the emergency signal stops, it will automatically recover to their corresponding inputs.
Features:
8 line inputs with independent volume control.
MIC/line has independent treble and bass volume adjustment.
2 EMC input can switch 8 AUX signal.
MIC input can cut off the EMC input signal.
8 unbalanced line/MIC outputs.
Specifications:
Model
T-6240
Input
MIC: 5mV/600Ω, unbalanced line/Mic inputs
CH1-CH8: 350mV/10KΩ, unbalanced line/Mic inputs
EMC: 775mV/10KΩ, unbalanced line/Mic inputs
Output
1V, 600Ω
Frequency Response
Line/EMC frequency response: 20Hz~20KHz (±2dB)
Mic frequency response: 50Hz~16KHz (±2dB)
S/N Ratio
MIC: 66dB, LINE: 80dB
THD
0.01%
Crosstalk
MIC: 80dB, LINE: 85dB
Muting function
MIC has Muting function on EMC1-2;EMC has Muting function,
automatically on CH1-CH8
Controls
LINE, MIC separate volume control, treble and bass
adjustment, channel selectors, and power switch
Indicators
Power LED, MIC channel LED
Power Supply
~110V-230V 50/60Hz
Power Consumption
35W
Weight
4.44Kg
Dimensions
484 x 335 x 88mm

T-6240 8 Channel Pre-Amplifier (Each Input Has Treble and Bass Control)

Description
 2 balanced mic inputs by XLR type, phantom power &#038; gain control is separately provided.
 4 unbalanced line inputs by phone jack, gain control is separately provided.
 Stereo balanced line outputs by XLR type.
 Alarm input &#038; REC unbalanced output.
 Input priority level from high to low: Alarm input, Mic1/Mic2 &#038; Line 1-4 inputs.
 Bass/treble tone control and volume control for Mic1, Mic2 &#038; source.
 Master volume control separately for both left and right channel.
 5 output level meters separately for left and right channel.
 Dual AC input voltage selector of 115V and 230V.
Model
T-2S02
Input
MIC 1-2: 4 mV -45 mV /600Ω, balanced
MIC 1-2(LINE): 150mV-1.5V/10KΩ, balanced
LINE 1, 2, 3, 4: 250 mV -2.5V/10KΩ, unbalanced
Output
1V/600Ω
Frequency Response
20Hz~20KHz (±1dB)
S/N Ratio
Mic input: 65dB; Line input: 85dB
Tone
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Phantom Power
+48V
Protection
AC fuse
Power Supply
~110V -230V 50/60Hz
Dimensions
484 x 210 x 44mm
Weight
3.64Kg

T-2S02 Stereo Mixer Pre-amplifier

Descriptions
T-319 is remote paging console with mixer T-2S01, whose communication distance up to
1kms. The paging console could be power supplied by the mixer within 50 meters, while
extra DC 24V power supply is needed when distance is longer than 50 meters. This mic
inputs with highest priority over all other inputs.
 Highest input priority
 Condenser microphone type
 Talk and chime trigger functional buttons
 10 segment LED amplifier output level meters
 Mic volume is provided
 Extra DC power supply is needed when communication distance is more than 50 meters

Remote Paging Microphone  T-319

Description
It is a 10-channel audio mixer.
There is 1 channel for a remote microphone and a channel for a microphone or line signal (with 9 switches).
There is 1 input channel for the remote microphone.
Input channels 2-10, connectors are XLR type (Mic: Balanced, Line: Unbalanced)
Input channels 2-4 have phantom power for use with condenser microphones.
And when in use, the audio signal of input channels 5-10 will be automatically reduced.
Input channels 7-10, connectors are XLR (for mic) and RCA (for line), independent for selection.
There are 2 output channels, XLR, 200 ohm balanced connectors with volume control.
Features:
Standard cabinet design (1U).
Each input has level indication.
Mic 2.3.4 is equipped with priority switch to select its priority level.
All the 10 inputs with mic, line and high pass filtering selector.
Reminding signal of bell when opening:
① Optional 2-speed bell (built-in).
② Automatic priority.
③ The bell can be controlled with the remote microphone T-319.
Three output signal modes can be selected (output 1, output 1+2, output 2).
Two sets of output are equipped with high and bass adjustment function.
Double channel output has independent level display.
Independent stereo line output with RCA interface (line 7-10).
With recording output function.
It can be used with T-319.

ITC T-2S01 Pre-Amplifier Mixer

Description
The T-1S01 is a public address pre-amplifier with five balanced MIC inputs, three AUX level
inputs and one EMC(priority) level inputs.
Priority muting is achieved via MIC 2 and EMC for overriding music for paging and
emergency alarms.
Individual gain controls are provided for MIC and AUX inputs, bass and treble controls are
provided for overall tone control.
Features
 5-channel MIC input and 3-channel Aux input.
 With 1-channel EMC input.
 Independent volume control, MASTER volume control.
 With compulsive insert and Priority function.
 MIC balance input interface with phantom power.
 Individual Gain controls for MIC
 EMC has priority over all inputs except MIC 2
 Bass and Treble Tone Controls
 AC 110V or 230V and DC 24V operation

ITC T-1S01 Mixer & Pre-Amplifier

Description
Model:T-10ALP
Max Output Current:10A
Rated Current Outputs:7A
Input Sensitivity &#038; Impedance
:Input1-3(MIC): 2.5mV/600 , Balanced XLR input
Input1-3(LINE): 775mV/10K , Balanced XLR input
Output Sensitivity &#038; Impedance
1V/470 , Balanced XLR output
Tone Control
:Bass 10dB at 100Hz
:Treble 10dB at 10KHz
Frequency Response:50Hz~10KHz ( 3dB)
S/N Ratio:66dB
THD:Less than 0.1% at 1KHz, 1/3 rated power
Muting Function:Input 1 overrides other input signals with 0-30dB attenuation
Connector:Screw
Master Input:Connector 1/4&#8243; TS jack
Crosstalk:50dB
100V Input:Transformer balanced. Impedance >100k
90 Slave O utput:1V/470 , Unbalanced Connector 1/4&#8243; TS jack
0 Slave O utput:1V/470 , Unbalanced Connector 1/4&#8243; TS jack
Phantom Power: +48V
Cooling:Fan automatically start up when temp reaches 55
Protection: High temp, overload &#038; short-circuit
Power Supply: ~110V/60Hz or ~230V/50Hz
Power Consumption: 500W
Weight: 10.3Kg
Dimensions: 484x303x88mm
Finish
Panel: aluminum plate, black
Case: steel plate black

ITC T-10ALP PA System 10A Loop Sound Amplifier Hearing Aid for the Deaf

Describe:
1. Desktop type professional power amplifier with preamplifier.
2. Provide regional power amplification for the broadcasting system, suitable for large, medium and small places of broadcasting amplification.
Features:
 Standard desktop design, elegant craftsmanship, high-grade temperament.
 With 2 MIC inputs (panel MIC input priority is higher than rear panel MIC input), 2 channel AUX input and 1 channel TEL input.
 There are three levels of priority between channels (priority is TEL>MIC1>AUX).
 The panel has knobs to independently adjust the volume of the MIC, TEL and AUX channels. There are Bass and Treble adjustment knobs.
 Support short circuit, overload, overheat protection.
 Two kinds of power output methods: constant pressure output 100V, 70V; constant resistance output 4 ~ 16Ω.
Model: T-240AP
Rated Power Output: 120W
Speaker Outputs: 70V, 100V &#038; 4~16Ω
Input Sensitivity &#038; Impedance
:MIC1, 2, 3: 5mV/600Ω,Unbalanced TRS input
:MIC1: ±2.5mV/2KΩ
:TEL: ±175mV/10KΩ
:AUX: 350mV/10KΩ, Unbalanced RCA input
Output Sensitivity &#038; Impedance: LINE OUT: 1V/470Ω, Unbalanced RCA output
Overload Electromotive Force
:MIC 1, 2, 3: >10dB
:MIC1: >15dB
:AUX: >15dB, Unbalanced RCA input
:TEL: >12dB
Tone : Bass: ±10dB, Treble: ±10dB
Frequency Response: 50Hz~16KHz (+1dB, -3dB)
S/N Ratio MIC: 66dB, AUX: 80dB
THD : Less than 0.5% at 1KHz, 1/3 rated power
Muting Function :MIC 1 overrides other input signals with 30dB attenuation
Cross talk: ≥50dB
Phantom Power: +48V
Cooling :Button-up convert automatic cool
Protection : High temp, overload &#038; short-circuit
Power Supply : ~110V-230V 50/60Hz
Power Consumption: 340W
Weight : 11.5kgs
Dimensions 200 x 153 x 45mm
Finish : Panel: aluminum plate, black
Case: SPCC Panel

ITC T-240AP Mixer Amplifier

Description
60W desktop mixer amplifier with cooling and muting function. MIC1 input by combi connector of 1/4 &#8220;jack and XLR with phantom power, Mic2, 3 1/4&#8221; phone jack, AUX1 input by dual RCA, input by such Phoenix connector.
Line output by RCA dual type.
Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs.
100V, 70V and 416 ohm speaker output. 120 or 230 V AC operation.
Mic13, AUX1, tel, master volume control and bass / treble tone control.
High temperature, short circuit and on the protection of the load.
Characteristics
&#8211; MIC1 input through 1/4 &#8220;jack and XLR connector combined with phantom power
&#8211; MIC2, 3 1/4 &#8220;jack, AUX1 input by dual RCA, input by such Phoenix connector
-Right line-by-type dual RCA
&#8211; Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs
Specifications
&#8211; 100V, 70V and 416 ohm speaker output
&#8211; 120 or 230 V AC operation
&#8211; Mic13, AUX1, tel, master volume control and bass / treble tone control
&#8211; High temperature, short circuit and on load protection

ITC - T-60AP, Mixer amplifier with desktop cooling and muting, 60W power

Description
40W desktop mixer amplifier with cooling and muting function. MIC1 input by combi connector of 1/4 &#8220;jack and XLR with phantom power, Mic2, 3 1/4&#8221; phone jack, AUX1 input by dual RCA, input by such Phoenix connector. Line output by RCA dual type.
Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs. 100V, 70V and 416 ohm speaker output.
120 or 230 V AC operation. Mic13, AUX1, tel, master volume control and bass / treble tone control.
High temperature, short circuit and on the protection of the load.
Characteristics
&#8211; MIC1 input through 1/4 &#8220;jack and XLR connector combined with phantom power
&#8211; MIC2, 3 1/4 &#8220;jack, AUX1 input by dual RCA, input by such Phoenix connector
-Right line-by-type dual RCA
&#8211; Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs
Specifications
&#8211; 100V, 70V and 416 ohm speaker output
&#8211; 120 or 230 V AC operation
&#8211; Mic13, AUX1, tel, master volume control and bass / treble tone control
&#8211; High temperature, short circuit and on load protection

ITC - T-40AP, Mixer amplifier with desktop cooling and muting, 40W power

Description
MIC1 input by combi connector of 1/4 &#8220;jack and XLR with phantom power, Mic2 by 1/4&#8221; phone jack, AUX1 input by dual RCA, input by such Phoenix connector. Line output by RCA dual type.
Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs.
100V, 70V and 4-16 ohm speaker output. AC 120V or 230V operation.
Mic1-2, AUX1, tel, master volume control and bass / treble tone control.
High temperature, short circuit and on the protection of the load.
Characteristics
&#8211; MIC1 input through 1/4 &#8220;jack and XLR connector combined with phantom power
&#8211; MIC2 by 1/4 &#8220;jack, AUX1 input by dual RCA, input by such Phoenix connector
&#8211; Line output by RCA dual type
&#8211; Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs
 Specifications
&#8211; 100V, 70V and 4-16 ohm speaker output
&#8211; 120 or 230 V AC operation
&#8211; Mic1-, AUX1, tel, master volume control and bass / treble tone control
&#8211; High temperature, short circuit and on load protection

ITC - T-20AP, Mixing amplifier with muting, 20W power

Description
MIC1 input by combi connector of 1/4 &#8220;jack and XLR with phantom power, Mic2 by 1/4&#8221; phone jack, AUX1 input by dual RCA, input by such Phoenix connector.
Line output by RCA dual type.
Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs. 100V, 70V and 4-16 ohm speaker output.
AC 120V or 230V operation.
Mic1-2, AUX1, tel, master volume control and bass / treble tone control. High temperature, short circuit and on the protection of the load.
Characteristics
&#8211; MIC1 input through 1/4 &#8220;jack and XLR connector combined with phantom power
&#8211; MIC2 by 1/4 &#8220;jack, AUX1 input by dual RCA, input by such Phoenix connector
&#8211; Line output by RCA dual type
&#8211; Mic with Vox priority (with Vox level control) and telephone input with secondary input on all other inputs.
Specifications
&#8211; 70V and 4-16 ohm speaker output 12V Dc
&#8211; 120 or 230 V AC operation
&#8211; Mic1-, AUX1, tel, master volume control and bass / treble tone control
&#8211; High temperature, short circuit and on load protection

ITC - T-10AP, Mixing amplifier with muting, 10W power

Description
500W RMS Mixer Amplifier,
4 mic,
4 aux,
100V/70V and 4ohms,
AC 230V and DC 24
VThe FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-
16ohm speaker outputs &#038; 4 universal balanced XLR mic inputs with phantom power. The
amplifier rated power ranges from
There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master &#038; overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
60W, 120W, 240W to 350W, 500W (3U).
2U (less than 350W) tabletop and rack mount design and 3U (500W)
4 balanced XLR microphone inputs with phantom power and gain control
4 dual RCA line inputs
70V, 100V and 4-16ohm speaker terminals
Mic 1-4 with selectable priority over other inputs
Built-in chime, 2/4 tone selector and remote trigger
XLR balanced line output for extra power amplifier
REC output for tape recorder
Rated power output from 60W, 120W, 240W, 350W and 500W
PRE Output and AMP input for extra signal processor
Master, Mic1-4, Aux volume control, treble and bass control
Indications includes power and output level meter
AC 110V or 230V and DC 24V operation
DC 24V
Panel with/without handhold
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier

ITC T-500FP MIXER AMPLIFIER

Description
350W RMS Mixer Amplifier,
4 mic,
4 aux,
100V/70V and 4ohms,
AC 230V and DC 24V
The FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-
16ohm speaker outputs &#038; 4 universal balanced XLR mic inputs with phantom power. The
amplifier rated power ranges from
There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master &#038; overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
60W, 120W, 240W to 350W, 500W (3U).
2U (less than 350W) tabletop and rack mount design and 3U (500W)
4 balanced XLR microphone inputs with phantom power and gain control
4 dual RCA line inputs
70V, 100V and 4-16ohm speaker terminals
Mic 1-4 with selectable priority over other inputs
Built-in chime, 2/4 tone selector and remote trigger
XLR balanced line output for extra power amplifier
REC output for tape recorder
Rated power output from 60W, 120W, 240W, 350W and 500W
PRE Output and AMP input for extra signal processor
Master, Mic1-4, Aux volume control, treble and bass control
Indications includes power and output level meter
AC 110V or 230V and DC 24V operation
DC 24V
Panel with/without handhold
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier

ITC T-350FP MIXER AMPLIFIER

Description
240W RMS Mixer Amplifier,
4 mic,
4 aux,
100V/70V and 4ohms,
AC 230V and DC 24V
The FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-
16ohm speaker outputs &#038; 4 universal balanced XLR mic inputs with phantom power. The
amplifier rated power ranges from
There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master &#038; overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
60W, 120W, 240W to 350W, 500W (3U).
2U (less than 350W) tabletop and rack mount design and 3U (500W)
4 balanced XLR microphone inputs with phantom power and gain control
4 dual RCA line inputs
70V, 100V and 4-16ohm speaker terminals
Mic 1-4 with selectable priority over other inputs
Built-in chime, 2/4 tone selector and remote trigger
XLR balanced line output for extra power amplifier
REC output for tape recorder
Rated power output from 60W, 120W, 240W, 350W and 500W
PRE Output and AMP input for extra signal processor
Master, Mic1-4, Aux volume control, treble and bass control
Indications includes power and output level meter
AC 110V or 230V and DC 24V operation
DC 24V
Panel with/without handhold
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier

ITC T-240FP MIXER AMPLIFIER

Description
T-120FP
120W RMS Mixer Amplifier,
4 mic,
4 aux,
100V/70V and 4ohms, AC
230V and DC 24
VThe 120FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-
16ohm speaker outputs &#038; 4 universal balanced XLR mic inputs with phantom power. The
amplifier rated power ranges from
There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master &#038; overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
60W, 120W, 240W to 350W, 500W (3U).
2U (less than 350W) tabletop and rack mount design and 3U (500W)
4 balanced XLR microphone inputs with phantom power and gain control
4 dual RCA line inputs
70V, 100V and 4-16ohm speaker terminals
Mic 1-4 with selectable priority over other inputs
Built-in chime, 2/4 tone selector and remote trigger
XLR balanced line output for extra power amplifier
REC output for tape recorder
Rated power output from 60W, 120W, 240W, 350W and 500W
PRE Output and AMP input for extra signal processor
Master, Mic1-4, Aux volume control, treble and bass control
Indications includes power and output level meter
AC 110V or 230V and DC 24V operation
DC 24V
Panel with/without handhold
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier

ITC T-120FP MIXER AMPLIFIER

Description
60W RMS Mixer Amplifier,
4 mic,
4 aux,
100V/70V and 4ohms, AC
230V and DC 24V
The 60FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-
16ohm speaker outputs &#038; 4 universal balanced XLR mic inputs with phantom power. The
amplifier rated power ranges from
There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master &#038; overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
60W, 120W, 240W to 350W, 500W (3U).
2U (less than 350W) tabletop and rack mount design and 3U (500W)
4 balanced XLR microphone inputs with phantom power and gain control
4 dual RCA line inputs
70V, 100V and 4-16ohm speaker terminals
Mic 1-4 with selectable priority over other inputs
Built-in chime, 2/4 tone selector and remote trigger
XLR balanced line output for extra power amplifier
REC output for tape recorder
Rated power output from 60W, 120W, 240W, 350W and 500W
PRE Output and AMP input for extra signal processor
Master, Mic1-4, Aux volume control, treble and bass control
Indications includes power and output level meter
AC 110V or 230V and DC 24V operation
DC 24V
Panel with/without handhold
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier

ITC T-60FP MIXER AMPLIFIER

Description
500W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output, built-in 24VDC
It features a built-in Bluetooth function for wireless audio streaming.
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.

T-B500DV 500W Class D Mixer Amplifier,

Description
350W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output, built-in 24VDC
It features a built-in Bluetooth function for wireless audio streaming.
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.

T-B350DV Mixer Amplifier

Description
240W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output, built-in 24VDC
It features a built-in Bluetooth function for wireless audio streaming.
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.

T-B240DV Mixer Amplifier

Description
120W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output, built-in 24VDC
It features a built-in Bluetooth function for wireless audio streaming.
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.

T-B120DV Mixer Amplifier

Description
60W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output, built-in 24VDC
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.
Product Usage Instructions
Ensure that the unit is installed and connected properly according to the instructions in the user manual.
Power on the unit using the ON/OFF switch.
To pair a Bluetooth device, follow these steps:
Press the PAIRED BLUETOOTH button on the front panel.
Enable Bluetooth on your device and search for available devices.
Select “ECA-70MIXAMP-1-240D” from the list of available devices.
Once connected, the Bluetooth indicator on the front panel will light up.
To use a microphone, connect it to one of the MIC inputs (MIC 1-4) using an appropriate cable.
Adjust the volume levels for each input channel using the corresponding knobs labeled 0-10.
If using an auxiliary device, connect it to one of the AUX inputs (AUX 1-2) using an appropriate cable.
Adjust the bass and treble levels using the BASS and TREBLE knobs.
Control the overall volume of the system using the MASTER volume knob.
Observe the CLIP SIG indicator to ensure that the audio signal is not being clipped or distorted. Adjust the volume levels accordingly.
Ensure that the PROT 70V switch is set to the appropriate voltage for your system (4-16).
When finished using the unit, power it off using the ON/OFF switch.

T-B60DV Mixer Amplifier

Description
650W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.
Product Usage Instructions
Ensure that the unit is installed and connected properly according to the instructions in the user manual.
Power on the unit using the ON/OFF switch.
To pair a Bluetooth device, follow these steps:
Press the PAIRED BLUETOOTH button on the front panel.
Enable Bluetooth on your device and search for available devices.
Select “ECA-70MIXAMP-1-240D” from the list of available devices.
Once connected, the Bluetooth indicator on the front panel will light up.
To use a microphone, connect it to one of the MIC inputs (MIC 1-4) using an appropriate cable.
Adjust the volume levels for each input channel using the corresponding knobs labeled 0-10.
If using an auxiliary device, connect it to one of the AUX inputs (AUX 1-2) using an appropriate cable.
Adjust the bass and treble levels using the BASS and TREBLE knobs.
Control the overall volume of the system using the MASTER volume knob.
Observe the CLIP SIG indicator to ensure that the audio signal is not being clipped or distorted. Adjust the volume levels accordingly.
Ensure that the PROT 70V switch is set to the appropriate voltage for your system (4-16).
When finished using the unit, power it off using the ON/OFF switch.

T-B650D Mixer Amplifier

Description
500W Class D Mixer Amplifier, with 4 phoenix mic input, 2 Aux,100V &#038;
4-16Ω output
When Installing the Unit
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.
Product Usage Instructions
Ensure that the unit is installed and connected properly according to the instructions in the user manual.
Power on the unit using the ON/OFF switch.
To pair a Bluetooth device, follow these steps:
Press the PAIRED BLUETOOTH button on the front panel.
Enable Bluetooth on your device and search for available devices.
Select “ECA-70MIXAMP-1-240D” from the list of available devices.
Once connected, the Bluetooth indicator on the front panel will light up.
To use a microphone, connect it to one of the MIC inputs (MIC 1-4) using an appropriate cable.
Adjust the volume levels for each input channel using the corresponding knobs labeled 0-10.
If using an auxiliary device, connect it to one of the AUX inputs (AUX 1-2) using an appropriate cable.
Adjust the bass and treble levels using the BASS and TREBLE knobs.
Control the overall volume of the system using the MASTER volume knob.
Observe the CLIP SIG indicator to ensure that the audio signal is not being clipped or distorted. Adjust the volume levels accordingly.
Ensure that the PROT 70V switch is set to the appropriate voltage for your system (4-16).
When finished using the unit, power it off using the ON/OFF switch.

T-B500D Mixer Amplifier

Description
350W Class D Mixer Amplifier, with
4 phoenix mic input,
2 Aux,
100V &#038; 4-16Ω output
When Installing the Unit
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects — including the unit itself — on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit’s terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.
Product Usage Instructions
Ensure that the unit is installed and connected properly according to the instructions in the user manual.
Power on the unit using the ON/OFF switch.
To pair a Bluetooth device, follow these steps:
Press the PAIRED BLUETOOTH button on the front panel.
Enable Bluetooth on your device and search for available devices.
Select “ECA-70MIXAMP-1-240D” from the list of available devices.
Once connected, the Bluetooth indicator on the front panel will light up.
To use a microphone, connect it to one of the MIC inputs (MIC 1-4) using an appropriate cable.
Adjust the volume levels for each input channel using the corresponding knobs labeled 0-10.
If using an auxiliary device, connect it to one of the AUX inputs (AUX 1-2) using an appropriate cable.
Adjust the bass and treble levels using the BASS and TREBLE knobs.
Control the overall volume of the system using the MASTER volume knob.
Observe the CLIP SIG indicator to ensure that the audio signal is not being clipped or distorted. Adjust the volume levels accordingly.
Ensure that the PROT 70V switch is set to the appropriate voltage for your system (4-16).
When finished using the unit, power it off using the ON/OFF switch.

T-B350D Mixer Amplifier

Description
T-B240D 240W Class D Mixer Amplifier,with
4 phoenix mic input,
2 Aux,
100V &#038; 4-16Ω output

T-B240D Mixer Amplifier

Description
T-B240D 240W Class D Mixer Amplifier, with
4 phoenix mic input,
2 Aux,
100V &#038; 4-16Ω output

Description
T-B120D
120W Class D Mixer Amplifier, with
4 phoenix mic input,
2 Aux,
100V &#038;
 4-16Ω output

T-B120D Mixer Amplifier

Description
60W Class D Mixer Amplifier,
With 4 phoenix mic input,
2 Aux,100V &#038;
4-16Ω output

T-B60D Mixer Amplifier

Description
650W Class D Mixer Amplifier,
With 4 phone jack mic input,
2Aux,100V &#038; 4-16Ω output
Cooling;Forced fan cooling after side entry, fan start after start,stepless speed change processing
Protection;Overheating protection, over current protection, short circuit protection
Power Supply~220-240V /50Hz

T-650D Mixer Digital Amplifier(Phone Jack Mic Input)

Description
Output Power 500W
Output Terminals 4-16Ω, 100V
Input Sensitivity &#038; Impedance, MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector
AUX1, 2 input:350mV/10KΩ unbalanced RCA connector
EMC input:775mV/10KΩ unbalanced 6.3 connector
Output Sensitivity &#038;Source Impedance, MIX OUT:1000mV/470Ω unbalanced RCA connector
Tone:
Bass:±10dB at 100Hz
Treble:±10dB at 10KHz
Power Consumption 650W
Weight, 4.0 Kg

T-500D Mixer Digital Amplifier(Phone Jack Mic Input)

Description
Output Power 350W
Output Terminals 4-16Ω, 100V
Input Sensitivity &#038; Impedance, MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector
AUX1, 2 input:350mV/10KΩ unbalanced RCA connector
EMC input:775mV/10KΩ unbalanced 6.3 connector
Output Sensitivity &#038;Source Impedance, MIX OUT:1000mV/470Ω unbalanced RCA connector
Tone:
Bass:±10dB at 100Hz
Treble:±10dB at 10KHz
Power Consumption 500W
Weight, 3.9Kg

T-350D Mixer Digital Amplifier(Phone Jack Mic Input)

Description
Output Power 120w
Output Terminals 4-16Ω, 100V
Input Sensitivity &#038; Impedance, MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector
AUX1, 2 input:350mV/10KΩ unbalanced RCA connector
EMC input:775mV/10KΩ unbalanced 6.3 connector
Output Sensitivity &#038;Source Impedance, MIX OUT:1000mV/470Ω unbalanced RCA connector
Tone:
Bass:±10dB at 100Hz
Treble:±10dB at 10KHz
Power Consumption 160W
Weight, 3.6Kg

T-120D Mixer Digital Amplifier(Phone Jack Mic Input)

Description
Digital Mixer Amplifier.
 It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
 Standard cabinet design (1U), exquisite SMT process design.
 1 EMC input, 2 AUX inputs, 4 MIC inputs.
 Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
 Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
 The device is equipped with level indication, overload and protection indicators.
 The device has good self-protection such as short circuit, overload and overheating.
 Two output modes: 100V, 4-16Ω.
 The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
 Wide voltage supply: 180V-240V can work normally.
Cooling; Forced fan cooling after side entry, fan start after start,stepless speed change processing
Protection;Overheating protection, over current protection, short circuit protection
Power Consumption, 100W
Weight, 3.2Kg
Output Terminals,4-16Ω, 100V
Output Power,60W

T-60DMixer Digital Amplifier(Phone Jack Mic Input)

Description
24W Mini Economic Digital Mixer Amplifier,
2 Mic,
2 Aux Inputs, with
Mic2/Aux1 selector switch

T-240MA Mixer Amplifier

Description
120W Mini Economic Digital Mixer Amplifier, 2 Mic, 2 Aux Inputs, with
Mic2/Aux1 selector switch

T-120MA Mixer Amplifier

Description
60W Mini Economic Mixer Amplifier
3 Mic
2Aux Inputs, with
 Mic2/Aux1 and Mic3/Aux2 selector switch

T-60M Mixer Amplifier

Description
Brand name,ITC
35W Mini Economic Mixer Amplifier
3 Mic
2Aux Inputs, with Mic2/Aux1 and Mic3/Aux2 selector switch
place of origin, china
Speaker Outputs, 70V, 100V &#038; 4~8Ω

T-35M Mini Economic Mixer Amplifier

WSG-9809
&nbsp;
BNK X75 Professional Wireless Microphones
&nbsp;
4 Channel UHF Wireless Microphone System with 4 Wireless Handheld Microphones – Dynamic, Cardioid – Operating Range: up to 400 feet
&nbsp;
Visit whitesun.ke and place your order @19,990/=

BNK X75 Professional Wireless Microphones

WSG-9808
Ev 5pc Acoustic Drumsets
Brand : American Knight
Number of drum pieces:5pcs
Comes with :
Bass drums
Two toms
Snare drum
Chair
High hats
Crush
Drumkick
Pedals
Drumsticks
Drumkey
Visit whitesun.ke and place your order @47,000/=

Ev 5pc Acoustic Drumsets

WSG-9810
BNK X85 6 in 1 UHF Digital Wireless Microphone set
The BNK X85 6 in 1 UHF Digital Wireless Microphone set is a versatile wireless microphone system designed for various audio applications
Best performance wireless microphone for church , stadium , mosque and place of worship x85 offers high quality and powerful outstanding performance in all situation with 8 separate channels integrated in to one high quality digital transmitter with independent channel audio control knob . with a wide radius range of up to 100-120M sleek metal design titanium cartridge with inbuilt pop shield
Visit whitesun.ke and place your order @26,900/=

BNK X85 6 in 1 UHF Digital Wireless Microphone set

WSG 9816
Tama Imperialstar Drum Set – 5 piece – Hairline Black
A great-playing drum kit at an affordable price
Sizes: 10″ and 12″ toms, 16″ floor tom, 22″ kick drum, and 14″ snare
Includes cymbals, stands, pedal, and throne — just add drumsticks
Poplar shells offer natural warmth and balanced dynamics
Precision bearing edges enhance sensitivity, tuning range, and resonance
360° glued wrap finishes eliminate buzzing and lifting
Black nickel hardware offers a nuanced look
Quality Meinl HCS cymbal pack includes 14″ hi-hats, a 16″ crash, and a 20″ ride
TAMA Imperialstar drum throne is comfortable beyond its price point

2 Mini Stereo Class-D Amplifier (Unbalanced inputs + Auto power on/off) T-221AP

Product Description

Similar Products
